◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#166734) — 101 parça

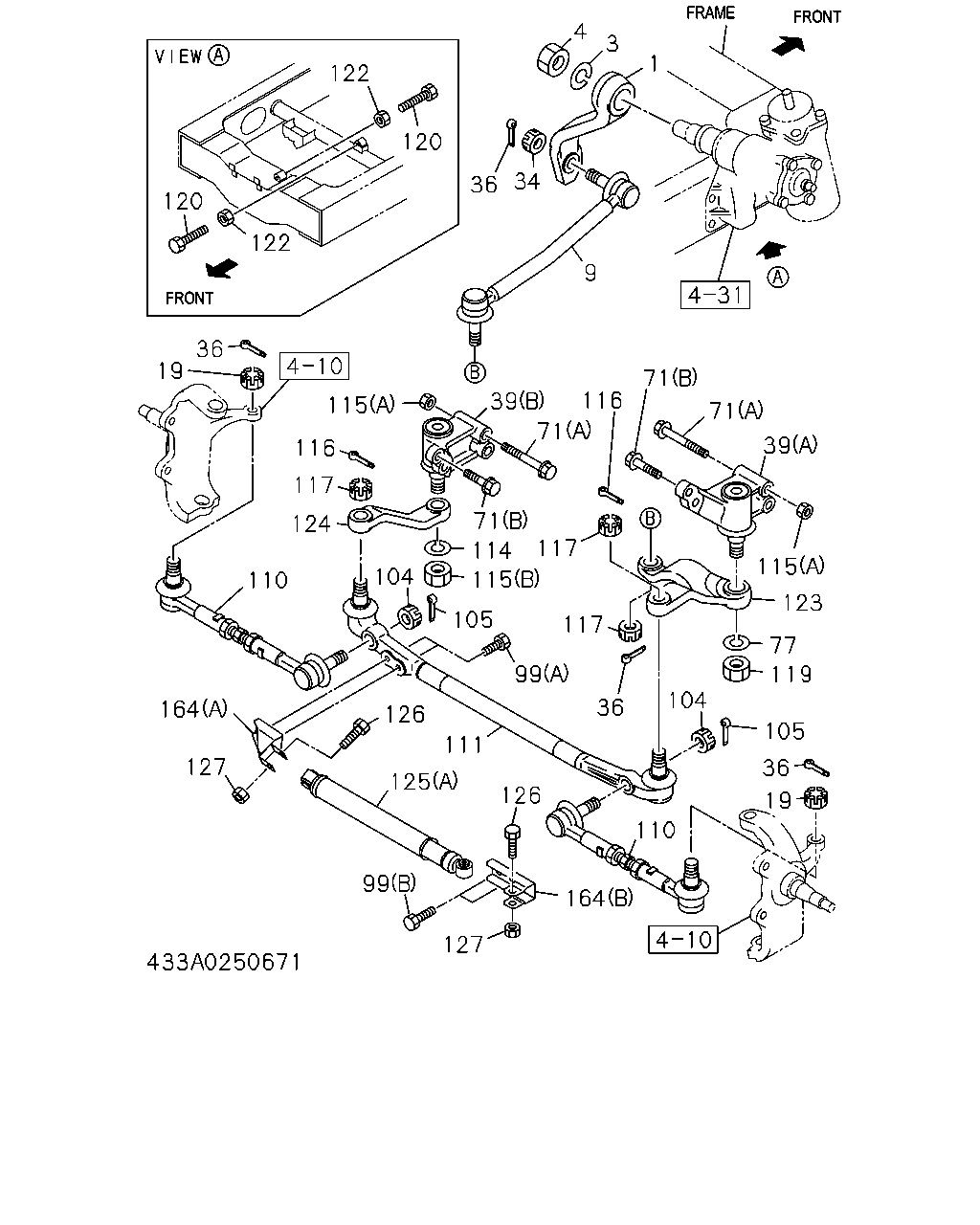

çizim 493613
1 3 4 34 36 120 122 9 122 120 36 19 115 116 124 117 110 164 127 104 126 105 114 71 115 71 39 116 71 39 71 117 117 115 123 77 119 104 105 36 19 110 36 99 126 111 125 127 99 164
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-362-2 01 1 9304- ● ● ● ● ● ●
1 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-929-0 01 1 9304-9503 ● ● ● ● ● ●
1 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 9504- ● ● ● ● ● ●
3 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) ID=27.5 		9-09150-527-0 01 1 9304- ● ● ● ● ● ●
3 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5 		9-09150-522-0 01 1 9304- ● ● ● ● ● ●
4 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) M27 		5-12378-002-0 01 1 9304- ● ● ● ● ● ●
4 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED 		8-97017-761-0 01 1 9304- ● ● ● ● ● ●
4 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M22 		9-09111-522-0 01 1 9304- ● ● ● ● ● ●
9 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-101-3 01 1 9304-9309 ● ● ● ● ● ●
9 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-323-0 01 1 9310- ● ● ● ● ● ●
9 LINK; DRAG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97107-332-0 01 1 9509-9703 ● ● ● ● ●
9 LINK; DRAG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97142-099-0 01 1 9704- ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97049-506-0 01 1 9304-9309 ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-330-0 01 1 9310-9502 ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-330-0 01 1 9503-9508 ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97107-330-0 01 1 9503-9508 ●
9 LINK; DRAG
SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97107-330-1 01 1 9509- ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97043-204-1 01 1 9304-9502 ●
9 LINK; DRAG
FRONT WIDE TREAD<7GV> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97043-204-1 01 1 9503-9703 ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97043-204-1 01 1 9503-9703 ●
9 LINK; DRAG
FRONT WIDE TREAD<7GV> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-098-0 01 1 9704- ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-098-0 01 1 9704- ●
19 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97017-762-0 02 1 9304- ● ● ● ● ● ●
34 NUT; DRAG LINK TO PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) M18 SLOTTED 		8-97017-761-0 01 1 9304- ● ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 04 1 9304- ● ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 01 1 9304- ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97031-397-0 01 1 9304-9309 ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97107-325-0 01 1 9310-9712 ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97189-457-0 01 1 9801- ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-260-0 01 1 9304-9309 ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97107-324-0 01 1 9310-9712 ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97189-455-0 01 1 9801- ● ● ● ● ● ●
71 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M12X93.5 		8-97085-383-0 04 1 9304- ● ● ● ● ● ●
71 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) (B) M12X43.5 		8-97085-384-0 04 1 9304- ● ● ● ● ● ●
77 WASHER; LK,RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) ID=20.2 		9-09150-520-0 01 1 9304- ● ● ● ● ● ●
99 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 FLANGE 		0-28081-020-0 02 1 9304-9703 ● ● ● ● ● ●
99 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 FLANGE 		0-28681-020-0 02 1 9704- ● ● ● ● ● ●
99 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A) M10X50 FLANGE 		0-28081-050-0 02 1 9304- ● ● ● ● ● ●
104 NUT; ROD END
FRT INDEPENDENT SUSPENSION(6PP) M16 SLOTTED 		1-09442-021-1 02 1 9304- ● ● ● ● ● ●
105 PIN; SPLIT,ROD END
FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=25 		9-08114-025-0 02 1 9304- ● ● ● ● ● ●
110 ROD; TRACK,OUTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-008-0 02 1 9304-9309 ● ● ● ● ● ●
110 ROD; TRACK,OUTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-318-1 02 1 9310- ● ● ● ● ● ●
111 ROD; TRACK,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97022-225-2 01 1 9304-9309 ● ● ● ● ● ●
111 ROD; TRACK,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-321-0 01 1 9310- ● ● ● ● ● ●
114 WASHER; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) ID=20.2 		9-09150-520-0 01 1 9304- ● ● ● ● ● ●
115 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M12 FLANGE 		0-91150-212-0 08 1 9304-9305 ● ● ● ● ● ●
115 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M12 		8-94139-015-0 08 1 9306- ● ● ● ● ● ●
115 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) (B) M20 		9-99111-520-0 01 1 9304- ● ● ● ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 02 1 9304- ● ● ● ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 01 1 9304- ● ● ● ● ● ●
117 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) M18 SLOTTED 		8-97017-761-0 03 1 9304- ● ● ● ● ● ●
117 NUT; DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M18 SLOTTED 		8-97017-761-0 01 1 9304- ● ● ● ● ● ●
119 NUT; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) M20 		9-99111-520-0 01 1 9304- ● ● ● ● ● ●
120 BOLT; RELAY LEVER STOPPER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97014-919-0 02 1 9304- ● ● ● ● ● ●
122 NUT; RELAY LEVER STOPPER
FRT INDEPENDENT SUSPENSION(6PP) M12 		9-99110-412-0 02 1 9304- ● ● ● ● ● ●
123 LEVER; RELAY,RH
FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-398-0 01 1 9304- ● ● ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-547-1 01 1 9304- ● ● ● ● ● ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97012-618-2 01 1 9304- ● ● ● ● ● ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97033-607-1 01 1 9304- ● ● ● ● ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97033-607-1 01 1 9304- ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97033-607-1 01 1 9304- ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-731-1 01 1 9304- ●
126 BOLT; STRG DAMPER TO RELAY LEVER BRKT
SHIMMY DAMPER<S3V> M10X45 FLANGE 		0-28081-045-0 02 1 9304- ● ● ● ● ● ●
127 NUT; STRG DAMPER
SHIMMY DAMPER<S3V> M10 FLANGE 		0-91150-210-0 02 1 9304- ● ● ● ● ● ●
164 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97012-595-2 01 1 9304- ● ● ● ● ● ●
164 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97025-765-1 01 1 9304- ● ● ● ● ● ●

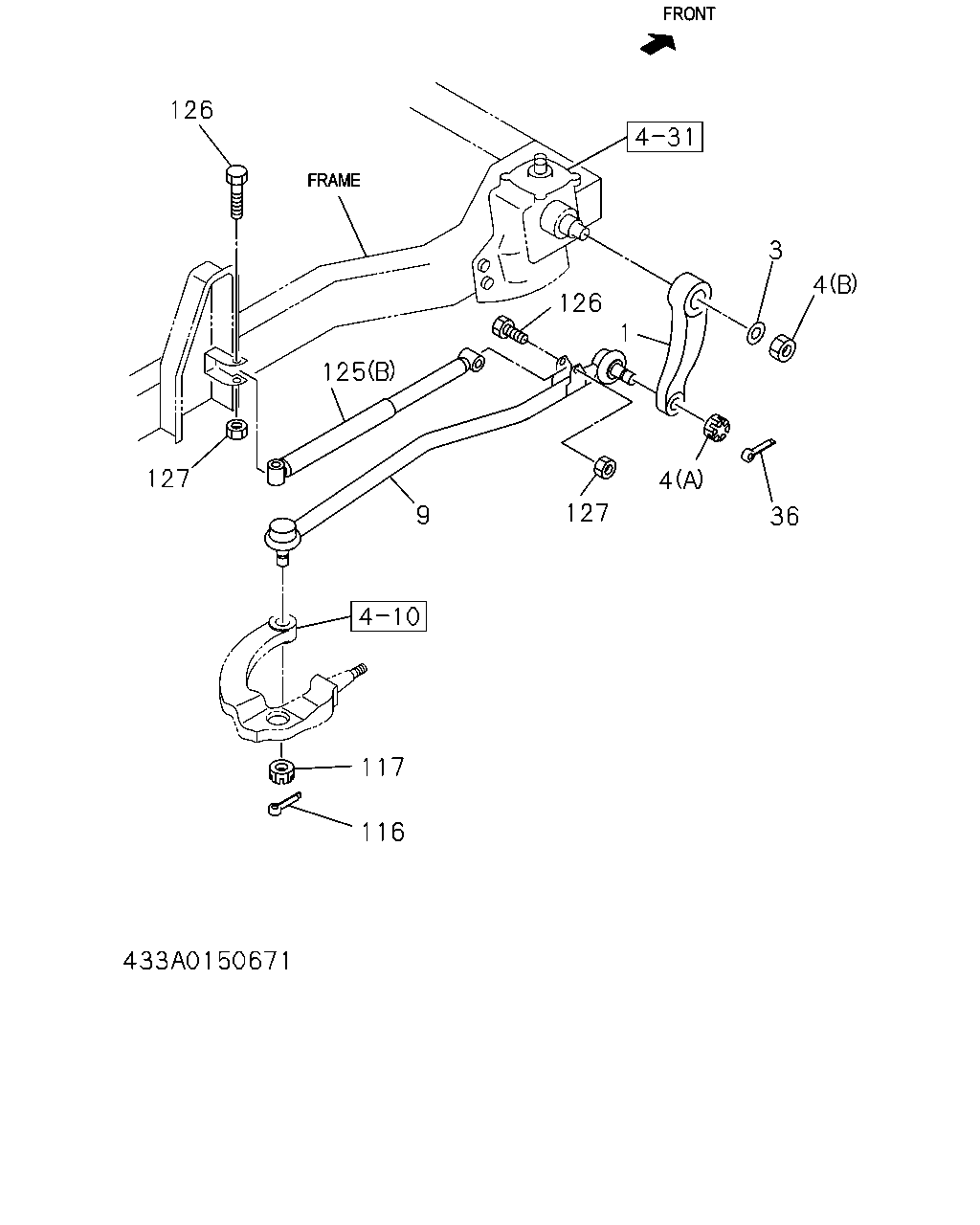

çizim 494350
126 126 3 4 36 4 127 1 125 9 127 117 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-362-2 01 1 9304- ● ● ● ● ● ●
1 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-929-0 01 1 9304-9503 ● ● ● ● ● ●
1 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 9504- ● ● ● ● ● ●
3 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) ID=27.5 		9-09150-527-0 01 1 9304- ● ● ● ● ● ●
3 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5 		9-09150-522-0 01 1 9304- ● ● ● ● ● ●
4 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) M27 		5-12378-002-0 01 1 9304- ● ● ● ● ● ●
4 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED 		8-97017-761-0 01 1 9304- ● ● ● ● ● ●
4 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M22 		9-09111-522-0 01 1 9304- ● ● ● ● ● ●
9 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-101-3 01 1 9304-9309 ● ● ● ● ● ●
9 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-323-0 01 1 9310- ● ● ● ● ● ●
9 LINK; DRAG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97107-332-0 01 1 9509-9703 ● ● ● ● ●
9 LINK; DRAG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97142-099-0 01 1 9704- ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97049-506-0 01 1 9304-9309 ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-330-0 01 1 9310-9502 ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-330-0 01 1 9503-9508 ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97107-330-0 01 1 9503-9508 ●
9 LINK; DRAG
SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97107-330-1 01 1 9509- ● ● ● ● ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97043-204-1 01 1 9304-9502 ●
9 LINK; DRAG
FRONT WIDE TREAD<7GV> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97043-204-1 01 1 9503-9703 ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97043-204-1 01 1 9503-9703 ●
9 LINK; DRAG
FRONT WIDE TREAD<7GV> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-098-0 01 1 9704- ●
9 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-098-0 01 1 9704- ●
36 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 04 1 9304- ● ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 01 1 9304- ● ● ● ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 02 1 9304- ● ● ● ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=3.7 L=30 		9-08114-030-0 01 1 9304- ● ● ● ● ● ●
117 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) M18 SLOTTED 		8-97017-761-0 03 1 9304- ● ● ● ● ● ●
117 NUT; DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M18 SLOTTED 		8-97017-761-0 01 1 9304- ● ● ● ● ● ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97012-618-2 01 1 9304- ● ● ● ● ● ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97033-607-1 01 1 9304- ● ● ● ● ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97033-607-1 01 1 9304- ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97033-607-1 01 1 9304- ●
125 DAMPER; STEERING
SHIMMY DAMPER<S3V> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-731-1 01 1 9304- ●
126 BOLT; STRG DAMPER TO RELAY LEVER BRKT
SHIMMY DAMPER<S3V> M10X45 FLANGE 		0-28081-045-0 02 1 9304- ● ● ● ● ● ●
127 NUT; STRG DAMPER
SHIMMY DAMPER<S3V> M10 FLANGE 		0-91150-210-0 02 1 9304- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
