4-31 — STEERING COLUMN AND SHAFT (#166733) — 233 parça

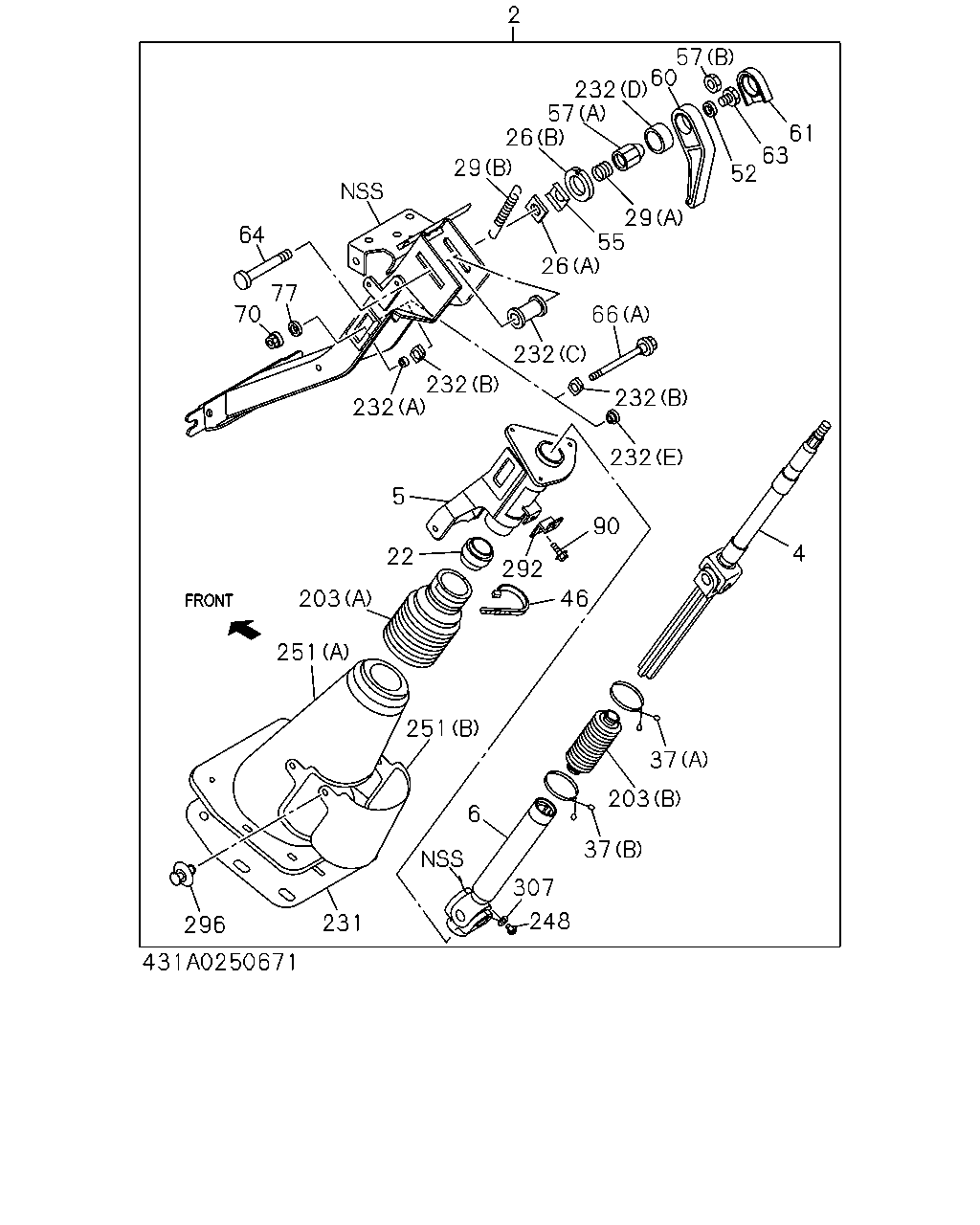

çizim 493673
2 57 60 232 57 26 29 64 77 70 232 232 232 26 55 29 52 63 61 66 232 232 4 90 46 292 22 5 203 251 251 6 37 203 37 307 248 231 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 SHAFT ASM; STRG
AIR BAG DRIVER(AJ3) EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97197-990-3 01 1 9811- ● ● ● ● ● ●
2 SHAFT ASM; STRG
EXC. AIR BAG DRIVER(AJ3),MANUAL TILT CAB<RWZ> BLACK 		8-97159-451-2 01 1 9811- ● ● ● ● ● ●
2 SHAFT ASM; STRG
DARK BEIGE 		8-97082-198-8 01 1 9304-9306 ● ● ● ● ● ●
2 SHAFT ASM; STRG
DARK BEIGE 		8-97098-089-4 01 1 9307-9605 ● ● ● ● ● ●
2 SHAFT ASM; STRG
DARK BEIGE 		8-97157-799-0 01 1 9606-9703 ● ● ● ● ● ●
2 SHAFT ASM; STRG
BLACK 		8-97159-165-1 01 1 9704-9801 ● ● ● ● ● ●
2 SHAFT ASM; STRG
EXC. AIR BAG DRIVER(AJ3) BLACK 		8-97159-450-1 01 1 9802-9810 ● ● ● ● ● ●
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER(AJ3) BLACK 		8-97159-450-2 01 1 9811- ● ● ● ● ● ●
2 SHAFT ASM; STRG
AIR BAG DRIVER(AJ3) BLACK 		8-97197-989-0 01 1 9802-9810 ● ● ● ● ● ●
2 SHAFT ASM; STRG
AIR BAG DRIVER(AJ3) MANUAL TILT CAB<RWZ> BLACK 		8-97197-989-3 01 1 9811- ● ● ● ● ● ●
4 SHAFT; STRG 8-97076-818-2 01 1 9304-9712 ● ● ● ● ● ●
4 SHAFT; STRG 8-97201-108-0 01 1 9801-9801 ● ● ● ● ● ●
4 SHAFT; STRG
AIR BAG DRIVER(AJ3) 		8-97201-106-1 01 1 9802- ● ● ● ● ● ●
4 SHAFT; STRG
EXC. AIR BAG DRIVER(AJ3) 		8-97201-108-1 01 1 9802- ● ● ● ● ● ●
5 COLUMN; STRG 8-97095-072-2 01 1 9304-9801 ● ● ● ● ● ●
5 COLUMN; STRG
EXC. AIR BAG DRIVER(AJ3) 		8-97095-072-2 01 1 9802- ● ● ● ● ● ●
5 COLUMN; STRG
AIR BAG DRIVER(AJ3) 		8-97163-914-2 01 1 9802- ● ● ● ● ● ●
6 SHAFT; STRG LWR 8-97094-625-1 01 1 9304-9712 ● ● ● ● ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 9801- ● ● ● ● ● ●
22 BUSHING; STRG COLUMN 8-97076-821-0 01 1 9304-9801 ● ● ● ● ● ●
22 BUSHING; STRG COLUMN
EXC. AIR BAG DRIVER(AJ3) 		8-97076-821-0 01 1 9802- ● ● ● ● ● ●
26 PLATE; ADJ
(A) 		8-97076-827-0 01 1 9304- ● ● ● ● ● ●
26 PLATE; ADJ
EXC. AIR BAG DRIVER(AJ3) (B) 		8-97180-534-0 01 1 9802- ● ● ● ● ● ●
29 SPRING; COLUMN
EXC. AIR BAG DRIVER(AJ3),MANUAL TILT CAB<RWZ> (A) 		8-97076-829-0 01 1 9811-9812 ● ● ● ● ● ●
29 SPRING; COLUMN
(B) 		8-97076-811-0 01 1 9304-9801 ● ● ● ● ● ●
29 SPRING; COLUMN
EXC. AIR BAG DRIVER(AJ3) (B) 		8-97076-811-0 01 1 9802- ● ● ● ● ● ●
29 SPRING; COLUMN
(A) 		8-97076-829-0 01 1 9304-9801 ● ● ● ● ● ●
29 SPRING; COLUMN
AIR BAG DRIVER(AJ3) (B) 		8-97163-926-0 02 1 9802- ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER(AJ3) (A),(B) 		8-97173-630-0 02 1 9812-9812 ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 9901- ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
(B) 		8-94165-569-0 01 1 9304-9811 ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
AIR BAG DRIVER(AJ3) MANUAL TILT CAB<RWZ> (B) 		8-94165-569-0 01 1 9812-9812 ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
EXC. MANUAL TILT CAB<RWZ> (B) 		8-94165-569-0 01 1 9812-9812 ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
(A) 		8-94165-570-0 01 1 9304-9811 ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
AIR BAG DRIVER(AJ3) MANUAL TILT CAB<RWZ> (A) 		8-94165-570-0 01 1 9812-9812 ● ● ● ● ● ●
37 CLAMP; BOOT TO SHAFT
EXC. MANUAL TILT CAB<RWZ> (A) 		8-94165-570-0 01 1 9812-9812 ● ● ● ● ● ●
46 CLIP; BOOT 8-97076-809-0 01 1 9304-9604 ● ● ● ● ● ●
46 CLIP; BOOT
AIR BAG DRIVER(AJ3) 		8-97076-809-0 01 1 9802- ● ● ● ● ● ●
52 WASHER; PL,ADJ LEVER 8-97076-813-0 01 1 9304-9801 ● ● ● ● ● ●
52 WASHER; PL,ADJ LEVER
AIR BAG DRIVER(AJ3) 		8-97163-923-0 01 1 9802- ● ● ● ● ● ●
55 PLATE; GUIDE 8-97076-828-0 01 1 9304-9801 ● ● ● ● ● ●
55 PLATE; GUIDE 8-97163-922-0 01 1 9802- ● ● ● ● ● ●
57 NUT; ADJ BOLT
(A) 		8-97076-826-0 01 1 9304-9801 ● ● ● ● ● ●
57 NUT; ADJ BOLT
AIR BAG DRIVER(AJ3) (A) 		8-97163-918-0 01 1 9802- ● ● ● ● ● ●
57 NUT; ADJ BOLT
(B) 		8-97163-916-0 01 1 9802- ● ● ● ● ● ●
57 NUT; ADJ BOLT
EXC. AIR BAG DRIVER(AJ3) (A) 		8-97201-119-0 01 1 9802- ● ● ● ● ● ●
60 LEVER; ADJ,STRG COLUMN 8-97076-830-0 01 1 9304-9801 ● ● ● ● ● ●
60 LEVER; ADJ,STRG COLUMN
EXC. AIR BAG DRIVER(AJ3) 		8-97167-572-0 01 1 9802- ● ● ● ● ● ●
60 LEVER; ADJ,STRG COLUMN
AIR BAG DRIVER(AJ3) 		8-97163-924-2 01 1 9802- ● ● ● ● ● ●
61 CAP; ADJ LEVER,TILT STRG 8-97076-814-0 01 1 9304-9801 ● ● ● ● ● ●
61 CAP; ADJ LEVER,TILT STRG
EXC. AIR BAG DRIVER(AJ3) 		8-97201-117-0 01 1 9802- ● ● ● ● ● ●
63 BOLT; ADJ LEVER,TILT STRG 8-97076-824-0 01 1 9304-9801 ● ● ● ● ● ●
64 BOLT; ADJ,PROTECTOR 8-97076-825-0 01 1 9304-9801 ● ● ● ● ● ●
64 BOLT; ADJ,PROTECTOR 8-97163-919-0 01 1 9802- ● ● ● ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9304- ● ● ● ● ● ●
66 BOLT; STRG COLUMN
(A) 		8-97076-831-0 01 1 9304-9801 ● ● ● ● ● ●
66 BOLT; STRG COLUMN
EXC. AIR BAG DRIVER(AJ3) (A) 		8-97076-831-0 01 1 9802- ● ● ● ● ● ●
66 BOLT; STRG COLUMN
AIR BAG DRIVER(AJ3) (A) 		8-97163-920-1 01 1 9802- ● ● ● ● ● ●
70 NUT; STRG COLUMN 8-97076-807-0 01 1 9304- ● ● ● ● ● ●
77 WASHER; PL,COLUMN 8-97076-804-0 01 1 9304- ● ● ● ● ● ●
90 BOLT; FLANGE
AIR BAG DRIVER(AJ3) 		8-97204-769-0 01 1 9802- ● ● ● ● ● ●
203 BOOT; STRG COLUMN LWR
(B) 		8-94159-074-0 01 1 9304-9801 ● ● ● ● ● ●
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 9802- ● ● ● ● ● ●
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 9304-9801 ● ● ● ● ● ●
203 BOOT; STRG COLUMN LWR
EXC. AIR BAG DRIVER(AJ3) (A) 		8-97076-822-0 01 1 9802- ● ● ● ● ● ●
203 BOOT; STRG COLUMN LWR
AIR BAG DRIVER(AJ3) (A) 		8-97163-915-0 01 1 9802- ● ● ● ● ● ●
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 9304- ● ● ● ● ● ●
232 SPACER; STRG SHAFT
(B) 		8-97076-805-0 02 1 9304-9801 ● ● ● ● ● ●
232 SPACER; STRG SHAFT
EXC. AIR BAG DRIVER(AJ3) (B) 		8-97076-805-0 02 1 9802- ● ● ● ● ● ●
232 SPACER; STRG SHAFT
(A) 		8-97076-806-0 01 1 9304-9801 ● ● ● ● ● ●
232 SPACER; STRG SHAFT
EXC. AIR BAG DRIVER(AJ3) (A) 		8-97076-806-0 01 1 9802- ● ● ● ● ● ●
232 SPACER; STRG SHAFT
(C) 		8-97148-277-0 01 1 9605-9801 ● ● ● ● ● ●
232 SPACER; STRG SHAFT
EXC. AIR BAG DRIVER(AJ3) (C) 		8-97148-277-0 01 1 9802- ● ● ● ● ● ●
232 SPACER; STRG SHAFT
AIR BAG DRIVER(AJ3) (E) 		8-97188-509-0 02 1 9802- ● ● ● ● ● ●
232 SPACER; STRG SHAFT
EXC. AIR BAG DRIVER(AJ3) (D) 		8-97193-317-0 01 1 9802- ● ● ● ● ● ●
248 SCREW; YOKE
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER(AJ3) 		8-97222-984-0 01 1 9812-9812 ● ● ● ● ● ●
248 SCREW; YOKE 8-97222-984-0 01 1 9901- ● ● ● ● ● ●
248 SCREW; YOKE 8-97076-819-0 01 1 9304-9712 ● ● ● ● ● ●
248 SCREW; YOKE 8-97201-112-0 01 1 9802-9811 ● ● ● ● ● ●
248 SCREW; YOKE
AIR BAG DRIVER(AJ3) MANUAL TILT CAB<RWZ> 		8-97201-112-0 01 1 9812-9812 ● ● ● ● ● ●
248 SCREW; YOKE
EXC. MANUAL TILT CAB<RWZ> 		8-97201-112-0 01 1 9812-9812 ● ● ● ● ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER(AJ3) (B) BLACK 		8-97291-634-1 01 1 9812-9812 ● ● ● ● ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97291-634-1 01 1 9901- ● ● ● ● ● ●
251 COVER; LWR
(B) DARK BEIGE 		8-97097-005-1 01 1 9304-9703 ● ● ● ● ● ●
251 COVER; LWR
(B) BLACK 		8-97159-169-0 01 1 9704-9810 ● ● ● ● ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97159-169-0 01 1 9811-9811 ● ● ● ● ● ●
251 COVER; LWR
AIR BAG DRIVER(AJ3) MANUAL TILT CAB<RWZ> (B) BLACK 		8-97159-169-0 01 1 9812-9812 ● ● ● ● ● ●
251 COVER; LWR
(A) DARK BEIGE 		8-97097-466-1 01 1 9304-9605 ● ● ● ● ● ●
251 COVER; LWR
(A) DARK BEIGE 		8-97157-808-0 01 1 9606-9703 ● ● ● ● ● ●
251 COVER; LWR
(A) BLACK 		8-97159-168-1 01 1 9704- ● ● ● ● ● ●
292 PLATE; BRKT
AIR BAG DRIVER(AJ3) 		8-97184-356-0 01 1 9802- ● ● ● ● ● ●
296 CLIP; COVER
DARK BEIGE 		8-97856-011-0 01 1 9304-9703 ● ● ● ● ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 9704- ● ● ● ● ● ●
307 WASHER; YOKE 8-97201-113-0 01 1 9802-9811 ● ● ● ● ● ●
307 WASHER; YOKE
AIR BAG DRIVER(AJ3) MANUAL TILT CAB<RWZ> 		8-97201-113-0 01 1 9812-9812 ● ● ● ● ● ●
307 WASHER; YOKE
EXC. MANUAL TILT CAB<RWZ> 		8-97201-113-0 01 1 9812-9812 ● ● ● ● ● ●

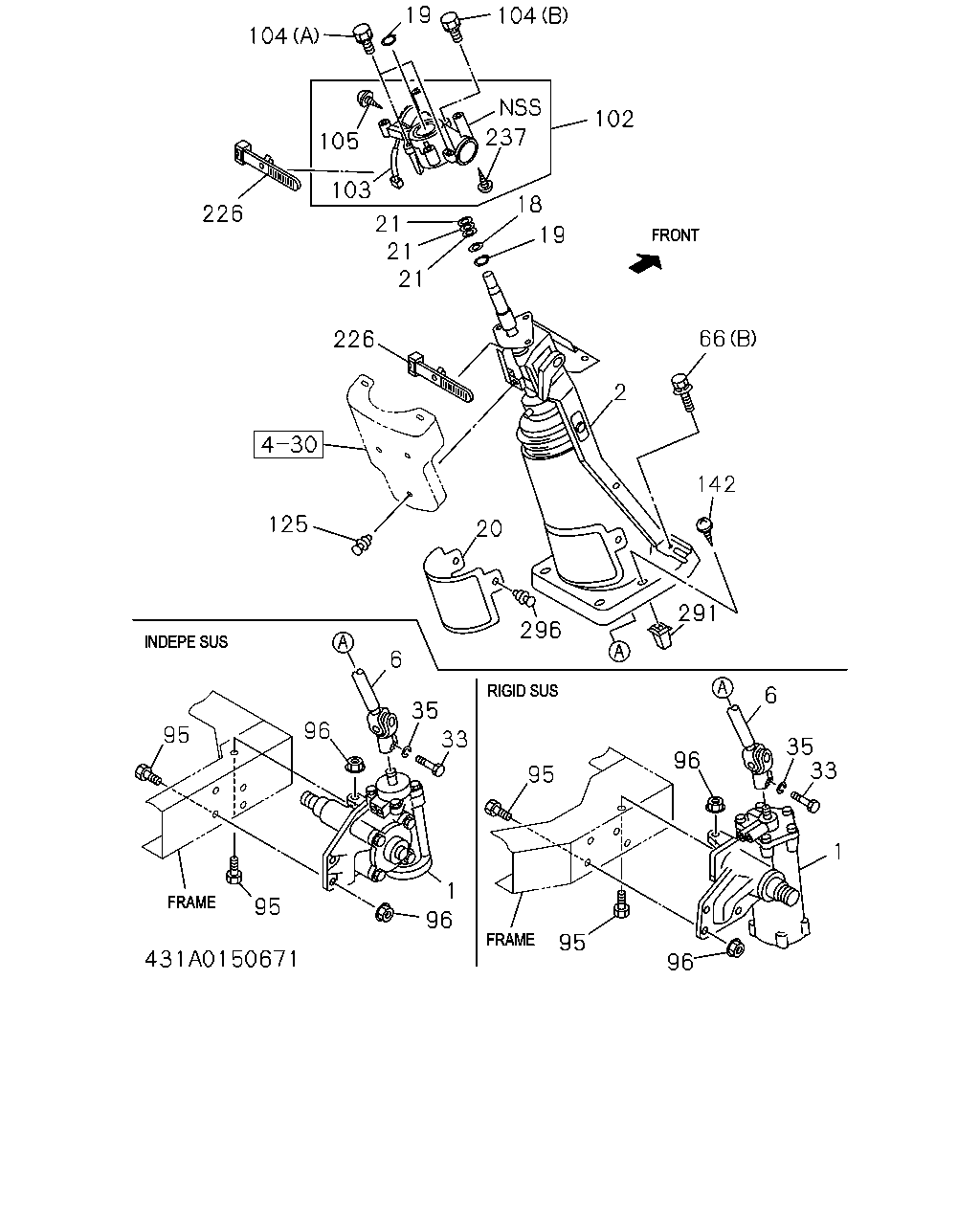

çizim 493793
104 19 104 226 105 103 21 21 21 237 102 18 19 226 125 20 296 142 2 66 291 6 35 33 1 96 95 96 95 33 35 6 96 96 1 95 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-161-2 01 1 9304-9502 ● ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-161-2 01 1 9503-9703 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-161-2 01 1 9503-9703 ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-161-2 01 1 9704-9809 ● ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) 		8-97203-998-0 01 1 9810- ● ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97075-822-2 01 1 9304-9510 ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97075-822-2 01 1 9304-9510 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97075-822-2 01 1 9304-9510 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97132-953-0 01 1 9511-9606 ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97132-953-0 01 1 9511-9606 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97132-953-0 01 1 9511-9606 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97132-953-0 01 1 9607-9702 ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97132-953-0 01 1 9607-9702 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97132-953-0 01 1 9607-9702 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97173-570-0 01 1 9703-9703 ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97173-570-0 01 1 9703-9703 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97173-570-0 01 1 9703-9703 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97173-570-0 01 1 9704-9810 ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97173-570-0 01 1 9704-9810 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97173-570-0 01 1 9704-9810 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97173-570-0 01 1 9704-9810 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97203-997-0 01 1 9811- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97203-997-0 01 1 9811- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97203-997-0 01 1 9811- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97203-997-0 01 1 9811- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-159-2 01 1 9304-9502 ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97073-159-2 01 1 9503-9601 ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97145-740-0 01 1 9602-9703 ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97145-740-2 01 1 9704- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-160-2 01 1 9304-9502 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-160-2 01 1 9304-9502 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-160-2 01 1 9304-9502 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-158-1 01 1 9503-9601 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-158-1 01 1 9503-9601 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-158-1 01 1 9503-9601 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97145-739-0 01 1 9602-9606 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97145-739-0 01 1 9602-9606 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97145-739-0 01 1 9602-9606 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> 		8-97145-739-2 01 1 9607- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97145-739-2 01 1 9607- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97145-739-2 01 1 9607- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. LOADING CAPACITY - 2000 KG<RPE> FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97145-739-2 01 1 9607- ●
2 SHAFT ASM; STRG
AIR BAG DRIVER(AJ3) EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97197-990-3 01 1 9811- ● ● ● ● ● ●
2 SHAFT ASM; STRG
EXC. AIR BAG DRIVER(AJ3),MANUAL TILT CAB<RWZ> BLACK 		8-97159-451-2 01 1 9811- ● ● ● ● ● ●
2 SHAFT ASM; STRG
DARK BEIGE 		8-97082-198-8 01 1 9304-9306 ● ● ● ● ● ●
2 SHAFT ASM; STRG
DARK BEIGE 		8-97098-089-4 01 1 9307-9605 ● ● ● ● ● ●
2 SHAFT ASM; STRG
DARK BEIGE 		8-97157-799-0 01 1 9606-9703 ● ● ● ● ● ●
2 SHAFT ASM; STRG
BLACK 		8-97159-165-1 01 1 9704-9801 ● ● ● ● ● ●
2 SHAFT ASM; STRG
EXC. AIR BAG DRIVER(AJ3) BLACK 		8-97159-450-1 01 1 9802-9810 ● ● ● ● ● ●
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER(AJ3) BLACK 		8-97159-450-2 01 1 9811- ● ● ● ● ● ●
2 SHAFT ASM; STRG
AIR BAG DRIVER(AJ3) BLACK 		8-97197-989-0 01 1 9802-9810 ● ● ● ● ● ●
2 SHAFT ASM; STRG
AIR BAG DRIVER(AJ3) MANUAL TILT CAB<RWZ> BLACK 		8-97197-989-3 01 1 9811- ● ● ● ● ● ●
6 SHAFT; STRG LWR 8-97094-625-1 01 1 9304-9712 ● ● ● ● ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 9801- ● ● ● ● ● ●
18 WASHER; STEERING SHAFT
(A) ID=19 		8-94146-919-0 01 1 9304- ● ● ● ● ● ●
18 WASHER; STEERING SHAFT
(B) ID=6.4 		9-09160-506-0 01 1 9304-9310 ● ● ● ● ● ●
19 RING; SNAP,STRG SHAFT
ID=17.5 		9-09180-019-0 02 1 9304- ● ● ● ● ● ●
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97159-169-0 01 1 9811- ● ● ● ● ● ●
21 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 9304- ● ● ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X33 		8-94249-011-1 01 1 9304-9605 ● ● ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-94247-692-0 01 1 9606- ● ● ● ● ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9304-9605 ● ● ● ● ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		9-09150-508-0 01 1 9606- ● ● ● ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9304- ● ● ● ● ● ●
66 BOLT; STRG COLUMN
(A) 		8-97076-831-0 01 1 9304-9801 ● ● ● ● ● ●
66 BOLT; STRG COLUMN
EXC. AIR BAG DRIVER(AJ3) (A) 		8-97076-831-0 01 1 9802- ● ● ● ● ● ●
66 BOLT; STRG COLUMN
AIR BAG DRIVER(AJ3) (A) 		8-97163-920-1 01 1 9802- ● ● ● ● ● ●
95 BOLT; STRG UNIT
M12X39 		8-97029-320-0 05 1 9304-9809 ● ● ● ● ● ●
95 BOLT; STRG UNIT
M12X45 		8-97212-810-0 05 1 9810- ● ● ● ● ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 05 1 9304- ● ● ● ● ● ●
102 LOCK ASM; STRG
A/T 4 SPEED-JATCO(RMK) 		8-97046-218-0 01 1 9304-9501 ● ● ● ● ● ●
102 LOCK ASM; STRG
4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97046-218-0 01 1 9502-9502 ● ● ● ● ●
102 LOCK ASM; STRG
EXC. FLOOR REMOTE SHIFT<M11> 		8-97046-218-0 01 1 9502-9502 ●
102 LOCK ASM; STRG
4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97046-218-0 01 1 9503-9612 ●
102 LOCK ASM; STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97046-218-0 01 1 9503-9612 ● ● ● ● ●
102 LOCK ASM; STRG
4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97172-078-0 01 1 9701-9703 ●
102 LOCK ASM; STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FLOOR REMOTE SHIFT<M11> 		8-97172-078-0 01 1 9701-9703 ● ● ● ● ●
102 LOCK ASM; STRG
VOLTAGE 24V<7AE> EXC. FLOOR REMOTE SHIFT<M11> 		8-97172-078-0 01 1 9704-9801 ● ● ●
102 LOCK ASM; STRG
EXC. FLOOR REMOTE SHIFT<M11> 		8-97172-078-0 01 1 9704-9801 ● ● ●
102 LOCK ASM; STRG
VOLTAGE 24V<7AE> EXC. AIR BAG DRIVER(AJ3),FLOOR REMOTE SHIFT<M11> 		8-97172-078-0 01 1 9802- ● ● ●
102 LOCK ASM; STRG
EXC. AIR BAG DRIVER(AJ3),FLOOR REMOTE SHIFT<M11> 		8-97172-078-0 01 1 9802- ● ● ●
102 LOCK ASM; STRG
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) 		8-97046-219-0 01 1 9304-9501 ● ● ● ● ● ●
102 LOCK ASM; STRG
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97046-219-0 01 1 9502-9502 ● ● ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> 		8-97046-219-0 01 1 9502-9502 ●
102 LOCK ASM; STRG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97046-219-0 01 1 9503-9612 ●
102 LOCK ASM; STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97046-219-0 01 1 9503-9612 ● ● ● ● ●
102 LOCK ASM; STRG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97170-362-0 01 1 9701-9703 ●
102 LOCK ASM; STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97170-362-0 01 1 9701-9703 ● ● ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> 		8-97170-362-0 01 1 9704-9801 ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> 		8-97170-362-0 01 1 9704-9801 ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. AIR BAG DRIVER(AJ3) 		8-97170-362-0 01 1 9802- ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3) 		8-97170-362-0 01 1 9802- ● ● ●
102 LOCK ASM; STRG
AIR BAG DRIVER(AJ3) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> 		8-97177-956-1 01 1 9802- ● ● ●
102 LOCK ASM; STRG
AIR BAG DRIVER(AJ3) FLOOR REMOTE SHIFT<M11> 		8-97177-956-1 01 1 9802- ● ● ●
102 LOCK ASM; STRG
AIR BAG DRIVER(AJ3) FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97177-957-1 01 1 9802- ● ● ●
102 LOCK ASM; STRG
AIR BAG DRIVER(AJ3) VOLTAGE 24V<7AE> EXC. FLOOR REMOTE SHIFT<M11> 		8-97177-954-1 01 1 9802- ● ● ●
102 LOCK ASM; STRG
AIR BAG DRIVER(AJ3) EXC. FLOOR REMOTE SHIFT<M11> 		8-97177-954-1 01 1 9802- ● ● ●
102 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-961-0 01 1 9502-9502 ● ●
102 LOCK ASM; STRG
4BE2 ENGINE(RLQ) FLOOR REMOTE SHIFT<M11> 		8-97117-961-0 01 1 9502-9502 ● ● ●
102 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-961-0 01 1 9503-9612 ● ● ● ● ●
102 LOCK ASM; STRG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97171-457-0 01 1 9701-9703 ● ● ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97171-457-0 01 1 9704-9801 ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3),VOLTAGE 24V<7AE> 		8-97171-457-0 01 1 9802- ● ● ●
103 SWITCH; IGNITION 8-97080-580-0 01 1 9304-9501 ● ● ● ● ● ●
103 SWITCH; IGNITION
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97080-580-0 01 1 9502-9502 ● ● ● ● ●
103 SWITCH; IGNITION 8-97080-580-0 01 1 9502-9502 ●
103 SWITCH; IGNITION
4HF1 ENG(RLS) 		8-97080-580-0 01 1 9503-9703 ●
103 SWITCH; IGNITION
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97080-580-0 01 1 9503-9703 ● ● ● ● ●
103 SWITCH; IGNITION
VOLTAGE 24V<7AE> 		8-97080-580-0 01 1 9704-9801 ● ● ●
103 SWITCH; IGNITION 8-97080-580-0 01 1 9704-9801 ● ● ●
103 SWITCH; IGNITION
VOLTAGE 24V<7AE> EXC. AIR BAG DRIVER(AJ3) 		8-97080-580-0 01 1 9802- ● ● ●
103 SWITCH; IGNITION
EXC. AIR BAG DRIVER(AJ3) 		8-97080-580-0 01 1 9802- ● ● ●
103 SWITCH; IGNITION
AIR BAG DRIVER(AJ3) FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97184-250-0 01 1 9802- ● ● ●
103 SWITCH; IGNITION
AIR BAG DRIVER(AJ3) VOLTAGE 24V<7AE> 		8-97184-249-0 01 1 9802- ● ● ●
103 SWITCH; IGNITION
AIR BAG DRIVER(AJ3) 		8-97184-249-0 01 1 9802- ● ● ●
103 SWITCH; IGNITION
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-996-0 01 1 9502-9502 ● ●
103 SWITCH; IGNITION
4BE2 ENGINE(RLQ) FLOOR REMOTE SHIFT<M11> 		8-97117-996-0 01 1 9502-9502 ● ● ●
103 SWITCH; IGNITION
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97117-996-0 01 1 9503-9703 ● ● ● ● ●
103 SWITCH; IGNITION
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97117-996-0 01 1 9704-9801 ● ● ●
103 SWITCH; IGNITION
FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3),VOLTAGE 24V<7AE> 		8-97117-996-0 01 1 9802- ● ● ●
104 BOLT; STRG LOCK TO COLUMN
(A) M6X25 		8-94279-204-0 02 1 9304-9501 ● ● ● ● ● ●
104 BOLT; STRG LOCK TO COLUMN
(B) M6X21 TORQUE BOLT 		8-94331-124-0 01 1 9304-9501 ● ● ● ● ● ●
104 BOLT; STRG LOCK TO COLUMN
(A),(B) M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9502-9801 ● ● ● ● ● ●
104 BOLT; STRG LOCK TO COLUMN
EXC. AIR BAG DRIVER(AJ3) (A),(B) M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9802-9806 ● ● ● ● ● ●
104 BOLT; STRG LOCK TO COLUMN
AIR BAG DRIVER(AJ3) (A),(B) M6X30 W/LK&PL WASHER 		8-97189-885-0 03 1 9802-9806 ● ● ● ● ● ●
104 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 03 1 9807- ● ● ● ● ● ●
105 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9304- ● ● ● ● ● ●
125 CLIP; STRG SHAFT
DARK BEIGE 		8-97856-011-0 01 1 9304-9703 ● ● ● ● ● ●
125 CLIP; STRG SHAFT
DARK GRAY 		8-97857-542-0 01 1 9704- ● ● ● ● ● ●
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 9304- ● ● ● ● ● ●
226 CLIP; SW HARNESS
L=145 		8-94257-575-1 03 1 9304-9801 ● ● ● ● ● ●
226 CLIP; SW HARNESS
AIR BAG DRIVER(AJ3) L=145 		8-94257-575-1 02 1 9802- ● ● ● ● ● ●
226 CLIP; SW HARNESS
EXC. AIR BAG DRIVER(AJ3) L=145 		8-94257-575-1 03 1 9802- ● ● ● ● ● ●
237 SCREW; DOOR WARNING SW
M3X8 W/LK WASHER 		9-03910-308-0 02 1 9304- ● ● ● ● ● ●
291 GROMMET; STRG SHAFT COVER
H=15 		8-94463-268-1 06 1 9304- ● ● ● ● ● ●
296 CLIP; COVER
DARK BEIGE 		8-97856-011-0 01 1 9304-9703 ● ● ● ● ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 9704- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
