◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#166732) — 53 parça

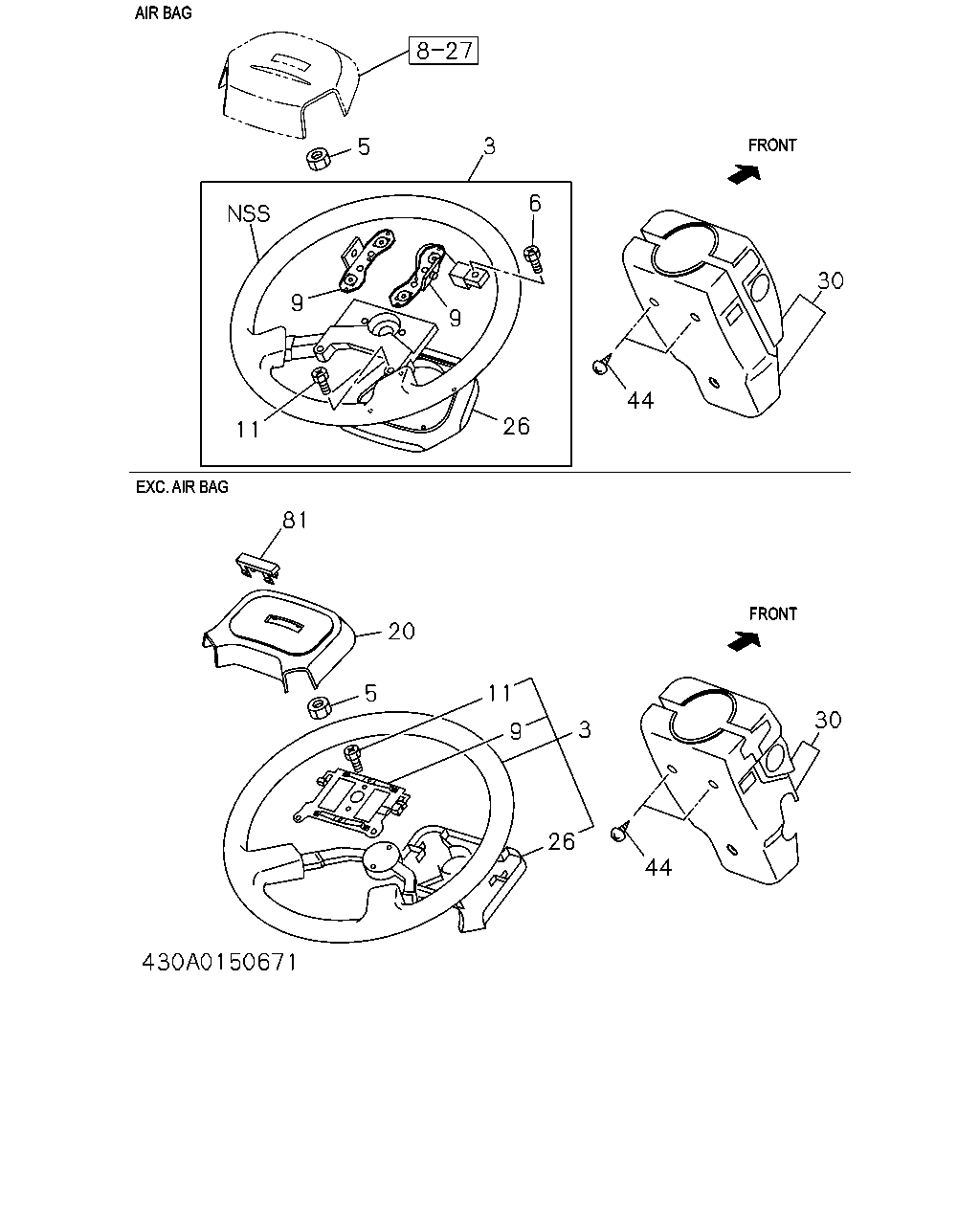

çizim 494212
5 3 6 26 9 9 11 44 30 30 44 26 3 9 11 5 20 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 WHEEL; STRG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> DARK BEIGE 		8-97009-451-1 01 1 9304-9703 ● ● ● ● ● ●
3 WHEEL; STRG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY 		8-97098-531-1 01 1 9704-9801 ● ● ● ● ● ●
3 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97098-531-1 01 1 9802- ● ●
3 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY 		8-97098-531-1 01 1 9802- ● ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER(AJ3) DARK GRAY 		8-97159-456-0 01 1 9802- ● ●
3 WHEEL; STRG
AIR BAG DRIVER(AJ3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY 		8-97159-456-0 01 1 9802- ● ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER(AJ3) 4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY 		8-97159-457-0 01 1 9802- ● ● ● ●
3 WHEEL; STRG
4 WHEEL ANTI LOCK BRAKE<JE5> DARK BEIGE 		8-97009-452-1 01 1 9304-9703 ● ● ● ●
3 WHEEL; STRG
4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY 		8-97155-993-1 01 1 9704-9801 ● ● ● ●
3 WHEEL; STRG
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97155-993-1 01 1 9802- ● ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 9304-9801 ● ● ● ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 9802- ● ● ● ● ● ●
6 SCREW; HORN SPR CONTACT
AIR BAG DRIVER(AJ3) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97167-582-0 01 1 9802- ● ● ● ●
9 PLATE; HORN CONTACT
AIR BAG DRIVER(AJ3) 		8-97167-583-0 01 1 9802- ● ● ● ● ● ●
9 PLATE; HORN CONTACT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97076-688-1 01 1 9304-9801 ● ● ● ● ● ●
9 PLATE; HORN CONTACT
EXC. AIR BAG DRIVER(AJ3) 		8-97076-688-1 01 1 9802- ● ●
9 PLATE; HORN CONTACT
EXC. AIR BAG DRIVER(AJ3),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97076-688-1 01 1 9802- ● ● ● ●
9 PLATE; HORN CONTACT
AIR BAG DRIVER(AJ3) 		8-97167-587-0 01 1 9802- ● ●
9 PLATE; HORN CONTACT
AIR BAG DRIVER(AJ3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97167-587-0 01 1 9802- ● ● ● ●
9 PLATE; HORN CONTACT
AIR BAG DRIVER(AJ3) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97167-584-0 01 1 9802- ● ● ● ●
9 PLATE; HORN CONTACT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97076-689-1 01 1 9304-9801 ● ● ● ●
9 PLATE; HORN CONTACT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER(AJ3) 		8-97076-689-1 01 1 9802- ● ● ● ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 02 1 9304-9801 ● ● ● ● ● ●
11 SCREW; PLATE TO BUTTON
EXC. AIR BAG DRIVER(AJ3) 		8-97076-690-1 02 1 9802- ● ● ● ● ● ●
11 SCREW; PLATE TO BUTTON
AIR BAG DRIVER(AJ3) M4X12 		8-97167-588-0 04 1 9802- ● ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
DARK BEIGE 		8-97009-450-0 01 1 9304-9703 ● ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 9704-9801 ● ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97098-526-0 01 1 9802- ● ● ● ● ● ●
26 COVER; STRG WHEEL,LWR
DARK BEIGE 		8-97097-432-1 01 1 9304-9703 ● ● ● ● ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 9704-9801 ● ● ● ● ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97098-534-1 01 1 9802- ● ● ● ● ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3) DARK GRAY 		8-97196-101-0 01 1 9802- ● ● ● ● ● ●
30 COWL; STEERING
AIR BAG DRIVER(AJ3) PTO MANUAL CONTROL(6WC) DARK GRAY 		8-97868-141-2 01 1 9802- ● ● ● ● ● ●
30 COWL; STEERING
AIR BAG DRIVER(AJ3) EXC. PTO MANUAL CONTROL(6WC) DARK GRAY 		8-97868-011-2 01 1 9802- ● ● ● ● ● ●
30 COWL; STEERING
PTO MANUAL CONTROL(6WC) DARK BEIGE 		8-97856-003-3 01 1 9304-9307 ● ● ● ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) EXC. PTO MANUAL CONTROL(6WC) DARK BEIGE 		8-97856-003-3 01 1 9304-9307 ● ● ● ● ● ●
30 COWL; STEERING
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-4 01 1 9308-9401 ● ● ● ● ● ●
30 COWL; STEERING
PTO MANUAL CONTROL(6WC) DARK BEIGE 		8-97856-003-4 01 1 9308-9401 ● ● ● ● ● ●
30 COWL; STEERING
PTO FOR SIDE CRANE(SD8),PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) DARK BEIGE 		8-97856-003-4 01 1 9308-9401 ● ● ● ● ●
30 COWL; STEERING
PTO MANUAL CONTROL(6WC) DARK BEIGE 		8-97856-003-8 01 1 9402-9703 ● ● ● ● ● ●
30 COWL; STEERING
PTO MANUAL CONTROL(6WC) DARK GRAY 		8-97866-930-8 01 1 9704-9801 ● ● ● ● ● ●
30 COWL; STEERING
PTO MANUAL CONTROL(6WC) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97866-930-8 01 1 9802- ● ● ● ● ● ●
30 COWL; STEERING
EXC. PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO MANUAL CONTROL(6WC),PTO TRANSMISSION REAR(7AY) DARK BEIGE 		8-97856-001-3 01 1 9304-9307 ● ● ● ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. FLOOR REMOTE SHIFT<M11> DARK BEIGE 		8-97856-001-4 01 1 9308-9401 ● ● ● ● ● ●
30 COWL; STEERING
PTO CONTROL VACCUM TYPE(6HM) DARK BEIGE 		8-97856-001-4 01 1 9308-9401 ● ● ● ● ● ●
30 COWL; STEERING
EXC. PTO FOR SIDE CRANE(SD8),PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO MANUALCONTROL(6WC),PTO TRANSMISSION REAR(7AY) DARK BEIGE 		8-97856-001-4 01 1 9308-9401 ● ● ● ● ● ●
30 COWL; STEERING
EXC. PTO MANUAL CONTROL(6WC) DARK BEIGE 		8-97856-001-8 01 1 9402-9703 ● ● ● ● ● ●
30 COWL; STEERING
EXC. PTO MANUAL CONTROL(6WC) DARK GRAY 		8-97857-532-8 01 1 9704-9801 ● ● ● ● ● ●
30 COWL; STEERING
EXC. AIR BAG DRIVER(AJ3),PTO MANUAL CONTROL(6WC) DARK GRAY 		8-97857-532-8 01 1 9802- ● ● ● ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9304- ● ● ● ● ● ●
81 EMBLEM; STRG WHEEL
DARK BEIGE 		8-97009-687-0 01 1 9304-9703 ● ● ● ● ● ●
81 EMBLEM; STRG WHEEL
DARK GRAY 		8-97098-527-0 01 1 9704-9801 ● ● ● ● ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97098-527-0 01 1 9802- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
