1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97076-936-0 |
01 |
1 |
9304- |
● |
|
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97076-937-0 |
01 |
1 |
9304- |
● |
|
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-422-0 |
01 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-422-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-422-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-422-0 |
01 |
1 |
9704- |
|
● |
● |
● |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
EXC. LIMITED SLIP DIFF<6LV>
41/8
|
8-97035-423-0 |
01 |
1 |
9304-9406 |
● |
● |
● |
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97035-423-0 |
01 |
1 |
9407-9502 |
● |
|
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
EXC. LIMITED SLIP DIFF<6LV>
41/8
|
8-97035-423-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
41/8
|
8-97035-423-0 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
EXC. LIMITED SLIP DIFF<6LV>
41/8
|
8-97035-423-0 |
01 |
1 |
9503-9703 |
● |
● |
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
41/8
|
8-97035-423-0 |
01 |
1 |
9503-9703 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
EXC. DISC BRAKE FRT<J52>
41/8
|
8-97035-423-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97035-423-0 |
01 |
1 |
9704- |
● |
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97035-423-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
EXC. LIMITED SLIP DIFF<6LV>
43/8
|
8-97035-424-0 |
01 |
1 |
9304-9502 |
● |
● |
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
43/8
|
8-97035-424-0 |
01 |
1 |
9304-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
EXC. LIMITED SLIP DIFF<6LV>
43/8
|
8-97035-424-0 |
01 |
1 |
9503-9506 |
● |
● |
● |
● |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
EXC. GARBAGE/VACUUM CHASSIS(V4G),LIMITED SLIP
DIFF<6LV>
43/8
|
8-97035-424-0 |
01 |
1 |
9507-9703 |
● |
● |
● |
● |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-424-0 |
01 |
1 |
9704- |
● |
|
|
● |
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-424-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
SUSPENSION - RR UNDER SLUNG<V4U>
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-424-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
43/8
|
8-97035-424-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FRT INDEPENDENT SUSPENSION(6PP)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-424-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-424-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
41/7
|
8-97094-682-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
43/7
|
8-97094-684-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
LIMITED SLIP DIFF<6LV>
41/7
|
8-97076-945-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
LIMITED SLIP DIFF<6LV>
41/7
|
8-97076-945-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
LIMITED SLIP DIFF<6LV>
41/7
|
8-97076-945-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
EXC. LIMITED SLIP DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9304-9406 |
|
● |
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
EXC. LIMITED SLIP DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. LIMITED SLIP DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
DISC BRAKE FRT<J52>
FINAL GEAR RATIO 41/7(R41)
EXC. LIMITED SLIP DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. GARBAGE/VACUUM CHASSIS(V4G),LIMITED SLIP
DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
DISC BRAKE FRT<J52>
FINAL GEAR RATIO 41/7(R41)
EXC. GARBAGE/VACUUM CHASSIS(V4G),LIMITED SLIP
DIFF<6LV>
41/7
|
8-97035-426-0 |
01 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
SUSPENSION - RR UNDER SLUNG<V4U>
FINAL GEAR RATIO 41/7(R41)
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
41/7
|
8-97035-426-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
41/7
|
8-97035-426-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FRT INDEPENDENT SUSPENSION(6PP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
LIMITED SLIP DIFF<6LV>
39/7
|
8-97076-944-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
LIMITED SLIP DIFF<6LV>
39/7
|
8-97076-944-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
LIMITED SLIP DIFF<6LV>
39/7
|
8-97076-944-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
LIMITED SLIP DIFF<6LV>
43/8
|
8-97076-943-0 |
01 |
1 |
9304-9502 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
LIMITED SLIP DIFF<6LV>
43/8
|
8-97076-943-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
LIMITED SLIP DIFF<6LV>
41/8
|
8-97076-942-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
LIMITED SLIP DIFF<6LV>
41/8
|
8-97076-942-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
LIMITED SLIP DIFF<6LV>
41/8
|
8-97076-942-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
EXC. LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9304-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
EXC. LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9503-9506 |
● |
|
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
EXC. LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
DISC BRAKE FRT<J52>
FINAL GEAR RATIO 39/7(GV1)
EXC. LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
● |
|
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
EXC. DISC BRAKE FRT<J52>,SUSPENSION - RR
UNDERSLUNG<V4U>,LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
REAR WIDE TREAD(V4T)
EXC. DISC BRAKE FRT<J52>,GARBAGE/VACUUM
CHASSIS(V4G),SUSPENSION - RR UNDER SLUNG<V4U>,FULL
FLATLOW<6GL>,LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
DISC BRAKE FRT<J52>
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
EXC. DISC BRAKE FRT<J52>,REAR WIDE TREAD(V4T),
LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
DISC BRAKE FRT<J52>
EXC. FLOOR REMOTE SHIFT<M11>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
1 |

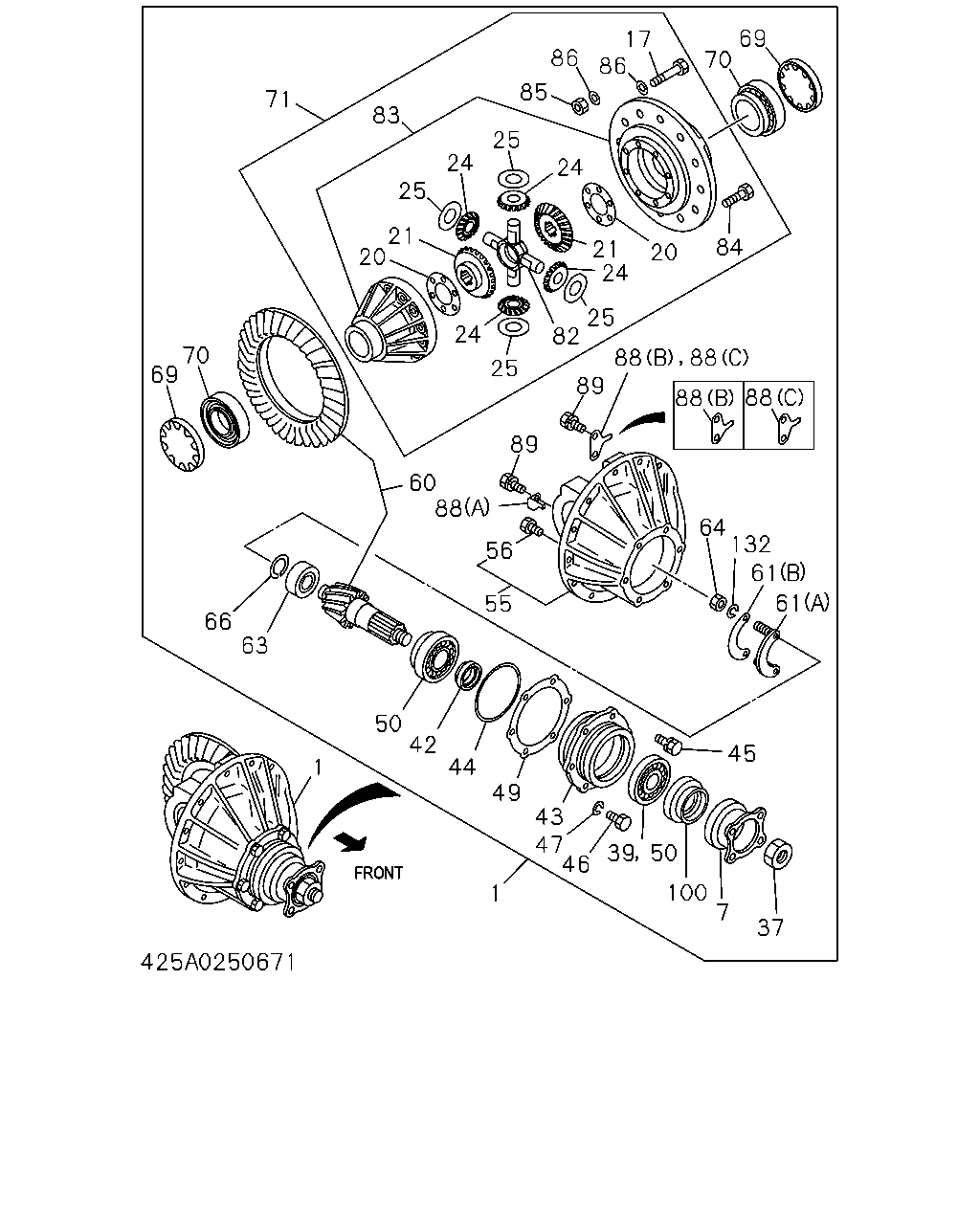

DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
DISC BRAKE FRT<J52>
EXC. BOTTLE CARRIER CHASSIS(V4E),LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
EXC. DISC BRAKE FRT<J52>,FULL FLATLOW<6GL>,
LIMITED SLIP DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
LOADING CAPACITY - 2750 KG<RPH>,LOADING
CAPACITY - 3000 KG<RPJ>
FULL FLATLOW<6GL>
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
DISC BRAKE FRT<J52>
FULL FLATLOW<6GL>
EXC. FLOOR REMOTE SHIFT<M11>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
FLOOR REMOTE SHIFT<M11>
LOADING CAPACITY - 2000 KG<RPE>
FULL FLATLOW<6GL>
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-425-0 |
01 |
1 |
9507-9703 |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-425-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-425-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
SUSPENSION - RR UNDER SLUNG<V4U>
FINAL GEAR RATIO 39/7(GV1)
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
39/7
|
8-97035-425-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
39/7
|
8-97035-425-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FRT INDEPENDENT SUSPENSION(6PP)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-425-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-425-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-425-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9304-9406 |
|
● |
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DISC BRAKE FRT<J52>,REAR WIDE TREAD(V4T),
FULL FLATLOW<6GL>,LIMITED SLIP DIFF<6LV>
43/7
|
8-97035-427-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,SUSPENSION - RR
UNDERSLUNG<V4U>,FULL FLATLOW<6GL>,LIMITED SLIP
DIFF<6LV>
43/7
|
8-97035-427-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
43/7
|
8-97035-427-0 |
01 |
1 |
9407-9502 |
|
|
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
43/7
|
8-97035-427-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
43/7
|
8-97035-427-0 |
01 |
1 |
9503-9506 |
|
|
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
EXC. GARBAGE/VACUUM CHASSIS(V4G),LIMITED SLIP
DIFF<6LV>
43/7
|
8-97035-427-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,GARBAGE/VACUUM
CHASSIS(V4G),LIMITED SLIP DIFF<6LV>
43/7
|
8-97035-427-0 |
01 |
1 |
9507-9703 |
|
|
|
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
SUSPENSION - RR UNDER SLUNG<V4U>
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
43/7
|
8-97035-427-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FRT INDEPENDENT SUSPENSION(6PP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-411-0 |
01 |
1 |
9304-9406 |
|
● |
|
● |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-411-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-411-0 |
01 |
1 |
9407-9502 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-411-0 |
01 |
1 |
9503-9703 |
|
● |
|
● |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-411-0 |
01 |
1 |
9704- |
|
● |
● |
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-411-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97071-731-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
SUSPENSION - RR UNDER SLUNG<V4U>
FINAL GEAR RATIO 39/7(GV1)
4JG2 ENG(RJC)
39/7
|
8-97071-731-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-94338-901-1 |
01 |
1 |
9503-9703 |
|
● |
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
SUSPENSION - RR UNDER SLUNG<V4U>
FINAL GEAR RATIO 41/7(R41)
4JG2 ENG(RJC)
41/7
|
8-94338-901-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-415-0 |
01 |
1 |
9304-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-415-0 |
01 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
EXC. DISC BRAKE FRT<J52>,SUSPENSION - RR
UNDERSLUNG<V4U>,FULL FLATLOW<6GL>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-415-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
39/7
|
8-97035-415-0 |
01 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FINAL GEAR RATIO 39/7(GV1)
EXC. FULL FLATLOW<6GL>
39/7
|
8-97035-415-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
39/7
|
8-97035-415-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 3500 KG<RPL>
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-415-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
41/7
|
8-97035-416-0 |
01 |
1 |
9304-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
41/7
|
8-97035-416-0 |
01 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
GARBAGE/VACUUM CHASSIS(V4G)
EXC. LIMITED SLIP DIFF<6LV>
41/7
|
8-97035-416-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
41/7
|
8-97035-416-0 |
01 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FINAL GEAR RATIO 41/7(R41)
EXC. FULL FLATLOW<6GL>
41/7
|
8-97035-416-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
41/7
|
8-97035-416-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 3500 KG<RPL>
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-416-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
EXC. LIMITED SLIP DIFF<6LV>
41/8
|
8-97035-413-0 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
41/8
|
8-97035-413-0 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 41/8(RU1)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
41/8
|
8-97035-413-0 |
01 |
1 |
9503-9703 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
LIMITED SLIP DIFF<6LV>
43/7
|
8-97048-176-0 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
LIMITED SLIP DIFF<6LV>
43/7
|
8-97048-176-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
LIMITED SLIP DIFF<6LV>
43/7
|
8-97048-176-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
43/7
|
8-97035-417-0 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
43/7
|
8-97035-417-0 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
43/7
|
8-97035-417-0 |
01 |
1 |
9503-9703 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FINAL GEAR RATIO 43/7(R42)
EXC. FULL FLATLOW<6GL>
43/7
|
8-97035-417-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
43/7
|
8-97035-417-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 3500 KG<RPL>
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-417-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
43/8
|
8-97035-414-0 |
01 |
1 |
9304-9502 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS)
FINAL GEAR RATIO 43/8(R40)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
43/8
|
8-97035-414-0 |
01 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
GARBAGE/VACUUM CHASSIS(V4G)
EXC. LIMITED SLIP DIFF<6LV>
43/8
|
8-97035-414-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
EXC. LIMITED SLIP DIFF<6LV>
43/8
|
8-97035-414-0 |
01 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR WIDE TREAD(V4T)
FINAL GEAR RATIO 43/8(R40)
EXC. FULL FLATLOW<6GL>
43/8
|
8-97035-414-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
43/8
|
8-97035-414-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
1 |
DRIVE ASM; FINAL,RR
LOADING CAPACITY - 3500 KG<RPL>
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-414-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
FINAL GEAR RATIO 43/7(R42)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BOTTLE
CARRIER CHASSIS(V4E),LIMITED SLIP DIFF<6LV>
43/7
|
8-94338-902-2 |
01 |
1 |
9503-9703 |
|
|
|
|
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97076-934-0 |
01 |
1 |
9304-9501 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97035-403-0 |
01 |
1 |
9502-9502 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
DISC BRAKE FRT<J52>
39/8
|
8-97035-403-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97035-403-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97076-935-0 |
01 |
1 |
9304-9501 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97080-668-0 |
01 |
1 |
9502-9502 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1)
DISC BRAKE FRT<J52>
41/8
|
8-97080-668-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97080-668-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97076-933-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
41/9
|
8-97076-933-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97076-933-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97076-940-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
DISC BRAKE FRT<J52>
41/10
|
8-97076-940-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97076-940-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97076-941-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
DISC BRAKE FRT<J52>
43/10
|
8-97076-941-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97076-941-0 |
01 |
1 |
9704- |
|
● |
|
● |
● |
|
| |
7 |
FLANGE; FINAL
REAR AXLE STANDARD 244MM(R39)
|
8-97075-216-2 |
01 |
1 |
9304-9703 |
● |
|
|
● |
|
|
| |
7 |
FLANGE; FINAL
REAR AXLE STANDARD 244MM(R39)
|
8-97075-216-3 |
01 |
1 |
9704- |
● |
|
|
● |
|
|
| |
7 |
FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-2 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
7 |
FLANGE; FINAL
|
8-94477-723-2 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
7 |
FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-3 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
7 |
FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-3 |
01 |
1 |
9503-9504 |
● |
|
● |
● |
|
|
| |
7 |
FLANGE; FINAL
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FIN
AL GEAR RATIO 43/9(S2J)
|
8-94477-723-3 |
01 |
1 |
9503-9504 |
|
● |
|
|
● |
● |
| |
7 |
FLANGE; FINAL
FINAL GEAR RATIO 41/9(HC6)
EXC. REAR WIDE TREAD(V4T)
|
8-94477-723-3 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
7 |
FLANGE; FINAL
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
|
8-94477-723-3 |
01 |
1 |
9503-9504 |
|
|
|
|
● |
|
| |
7 |
FLANGE; FINAL
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-3 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
7 |
FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-4 |
01 |
1 |
9704- |
● |
|
|
● |
|
|
| |
7 |
FLANGE; FINAL
REAR WIDE TREAD(V4T)
|
8-94477-723-4 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
7 |
FLANGE; FINAL
SUSPENSION - RR UNDER SLUNG<V4U>
REAR AXLE HEAVY DUTY 292MM(G73)
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
8-94477-723-4 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
7 |
FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-94477-723-4 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
7 |
FLANGE; FINAL
|
8-94477-723-4 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
7 |
FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97073-802-1 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
7 |
FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97073-802-2 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
7 |
FLANGE; FINAL
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-3 |
01 |
1 |
9503-9703 |
|
● |
|
|
● |
● |
| |
7 |
FLANGE; FINAL
SUSPENSION - RR UNDER SLUNG<V4U>
REAR AXLE HEAVY DUTY 292MM(G73)
4JG2 ENG(RJC)
|
8-94426-787-4 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X75
|
5-09000-213-0 |
12 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X75
|
5-09000-213-0 |
12 |
1 |
9407-9502 |
● |
|
|
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
M10X75
|
5-09000-213-0 |
12 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
M10X75
|
5-09000-213-0 |
12 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X75
|
5-09000-213-0 |
12 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
M10X75
|
5-09000-213-0 |
12 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
REAR WIDE TREAD(V4T)
M10X75
|
5-09000-213-0 |
12 |
1 |
9704- |
|
● |
|
|
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
M10X75
|
5-09000-213-0 |
12 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE STANDARD 244MM(R39)
M12X58
|
5-09020-007-1 |
08 |
1 |
9304-9703 |
● |
|
|
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE STANDARD 244MM(R39)
M12X58
|
5-09020-007-1 |
08 |
1 |
9704- |
● |
|
|
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-295-0 |
12 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97047-295-0 |
12 |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
T=1.40
|
9-41562-601-0 |
02 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
T=1.40
|
9-41562-601-0 |
02 |
1 |
9407-9502 |
● |
|
|
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
T=1.40
|
9-41562-601-0 |
02 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
T=1.40
|
9-41562-601-0 |
02 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
T=1.40
|
9-41562-601-0 |
02 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
T=1.40
|
9-41562-601-0 |
02 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR WIDE TREAD(V4T)
T=1.40
|
9-41562-601-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=1.40
|
9-41562-601-0 |
02 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE STANDARD 244MM(R39)
T=1.00
|
9-41562-602-0 |
02 |
1 |
9304- |
● |
|
|
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.80
|
1-41562-073-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
T=2.80
|
1-41562-073-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.90
|
1-41562-074-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
T=2.90
|
1-41562-074-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.00
|
1-41562-075-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
T=3.00
|
1-41562-075-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.10
|
1-41562-076-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
T=3.10
|
1-41562-076-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.20
|
1-41562-077-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
T=3.20
|
1-41562-077-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.30
|
1-41562-078-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
T=3.30
|
1-41562-078-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.40
|
1-41562-079-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
T=3.40
|
1-41562-079-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9304-9406 |
● |
● |
|
● |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=23
|
8-97035-388-0 |
02 |
1 |
9407-9502 |
● |
|
|
● |
|
|
| |
21 |
GEAR; SIDE,DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41),
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO
43/9(S2J)
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9407-9502 |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/9(S2J)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9407-9502 |
|
|
|
|
● |
● |
| |
21 |
GEAR; SIDE,DIFF
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
Z=23
|
8-97035-388-0 |
02 |
1 |
9407-9502 |
|
|
|
|
● |
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9503-9506 |
● |
● |
|
● |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9507-9703 |
● |
|
|
● |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T),LIMITED SLIP
DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
REAR WIDE TREAD(V4T)
EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL
FLATLOW<6GL>,LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
Z=23
|
8-97035-388-0 |
02 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=23
|
8-97035-388-0 |
02 |
1 |
9704- |
● |
|
|
● |
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
Z=23
|
8-97035-388-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
SUSPENSION - RR UNDER SLUNG<V4U>
REAR AXLE HEAVY DUTY 292MM(G73)
Z=23
|
8-97035-388-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
Z=23
|
8-97035-388-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
FRT INDEPENDENT SUSPENSION(6PP)
Z=23
|
8-97035-388-0 |
02 |
1 |
9704- |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
Z=23
|
8-97035-388-0 |
02 |
1 |
9704- |
|
|
|
|
|
● |
| |
21 |
GEAR; SIDE,DIFF
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
Z=23
|
8-97035-388-0 |
02 |
1 |
9704- |
|
|
|
|
● |
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=18
|
9-41561-047-1 |
02 |
1 |
9304- |
● |
|
|
● |
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=16
|
1-41561-093-0 |
02 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
Z=16
|
1-41561-093-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
Z=20
|
8-94461-233-0 |
02 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
Z=20
|
8-94461-233-0 |
02 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
Z=20
|
8-94461-233-0 |
02 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
EXC. LIMITED SLIP DIFF<6LV>
Z=20
|
8-94461-233-0 |
02 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
Z=20
|
8-94461-233-0 |
02 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
REAR WIDE TREAD(V4T)
EXC. FULL FLATLOW<6GL>
Z=20
|
8-94461-233-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
21 |
GEAR; SIDE,DIFF
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
Z=20
|
8-94461-233-0 |
02 |
1 |
9704- |
|
|
● |
|
|
|
| |
21 |
GEAR; SIDE,DIFF
LOADING CAPACITY - 3500 KG<RPL>
Z=20
|
8-94461-233-0 |
02 |
1 |
9704- |
|
|
|
|
● |
|
| |
24 |
GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-97041-972-0 |
04 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
● |
| |
24 |
GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-97041-972-0 |
04 |
1 |
9407-9502 |
● |
|
|
● |
|
|
| |
24 |
GEAR; PINION,DIFF
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
Z=10
|
8-97041-972-0 |
04 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
24 |
GEAR; PINION,DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
Z=10
|
8-97041-972-0 |
04 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
24 |
GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-97041-972-0 |
04 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
24 |
GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
Z=10
|
8-97041-972-0 |
04 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
24 |
GEAR; PINION,DIFF
REAR WIDE TREAD(V4T)
Z=10
|
8-97041-972-0 |
04 |
1 |
9704- |
|
● |
|
|
|
|
| |
24 |
GEAR; PINION,DIFF
Z=10
|
8-97041-972-0 |
04 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
24 |
GEAR; PINION,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=10
|
9-41551-029-1 |
04 |
1 |
9304- |
● |
|
|
● |
|
|
| |
24 |
GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=10
|
1-41551-024-0 |
04 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
24 |
GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
Z=10
|
1-41551-024-0 |
04 |
1 |
9704- |
|
● |
|
|
|
|
| |
25 |
WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41552-020-0 |
04 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
25 |
WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
1-41552-020-0 |
04 |
1 |
9704- |
|
● |
|
|
|
|
| |
37 |
NUT; DRIVING PINION
REAR AXLE STANDARD 244MM(R39)
M24 FLANGE
|
8-94376-261-1 |
01 |
1 |
9304- |
● |
|
|
● |
|
|
| |
37 |
NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
37 |
NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
37 |
NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
37 |
NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
37 |
NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
37 |
NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
37 |
NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
37 |
NUT; DRIVING PINION
REAR WIDE TREAD(V4T)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
37 |
NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
37 |
NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
37 |
NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
39 |
BEARING; FINAL PINION
REAR AXLE STANDARD 244MM(R39)
OUTER
JTEKT
|
5-09812-054-0 |
01 |
1 |
9304- |
● |
|
|
● |
|
|
| |
39 |
BEARING; FINAL PINION
REAR AXLE STANDARD 244MM(R39)
OUTER
NSK
|
9-00093-078-0 |
01 |
1 |
9304- |
● |
|
|
● |
|
|
| |
39 |
BEARING; FINAL PINION
REAR AXLE STANDARD 244MM(R39)
INNER
JTEKT
|
9-00093-079-0 |
01 |
1 |
9304- |
● |
|
|
● |
|
|
| |
39 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
JTEKT
|
5-09812-062-1 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
39 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
JTEKT
|
5-09812-062-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
39 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
5-09812-063-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
39 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
NSK
|
5-09812-063-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE STANDARD 244MM(R39)
L=50.8
|
9-41219-633-0 |
01 |
1 |
9304-9501 |
● |
|
|
● |
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE STANDARD 244MM(R39)
L=53.35
|
9-41219-634-1 |
01 |
1 |
9502- |
● |
|
|
● |
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
L=19.6
|
9-41219-603-1 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
L=19.6
|
9-41219-603-1 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
L=19.6
|
9-41219-603-1 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
L=19.6
|
9-41219-603-1 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
L=19.6
|
9-41219-603-1 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR WIDE TREAD(V4T)
L=19.6
|
9-41219-603-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-097-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
42 |
COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97047-097-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
43 |
CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94400-890-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
43 |
CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
43 |
CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94400-890-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
43 |
CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94400-890-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
43 |
CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
43 |
CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94400-890-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
43 |
CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
|
8-94400-890-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
43 |
CAGE; FINAL PINION
REAR WIDE TREAD(V4T)
|
8-94400-890-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
43 |
CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
43 |
CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-098-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
43 |
CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97047-098-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
44 |
GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09720-505-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
44 |
GASKET; PINION CAGE
|
9-09720-505-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
44 |
GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09720-505-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
44 |
GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09720-505-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
44 |
GASKET; PINION CAGE
|
9-09720-505-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
44 |
GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09720-505-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
44 |
GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
|
9-09720-505-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
44 |
GASKET; PINION CAGE
REAR WIDE TREAD(V4T)
|
9-09720-505-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
44 |
GASKET; PINION CAGE
|
9-09720-505-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
44 |
GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97048-053-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
44 |
GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97048-053-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
45 |
BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
45 |
BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
45 |
BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
45 |
BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
45 |
BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
45 |
BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
45 |
BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
45 |
BOLT; FINAL PINION CAGE
REAR WIDE TREAD(V4T)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9704- |
|
● |
|
|
|
|
| |
45 |
BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
45 |
BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
45 |
BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9704- |
|
● |
|
|
|
|
| |
46 |
BOLT
REAR AXLE HEAVY DUTY 292MM(G73)
M14X38
|
0-23801-438-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
46 |
BOLT
M14X38
|
0-23801-438-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
46 |
BOLT
REAR AXLE HEAVY DUTY 292MM(G73)
M14X38
|
0-23801-438-0 |
01 |
1 |
9407-9412 |
● |
● |
● |
● |
● |
● |
| |
46 |
BOLT
REAR AXLE HEAVY DUTY 292MM(G73)
M14X38
|
0-23801-438-0 |
01 |
1 |
9501-9504 |
● |
|
|
● |
|
|
| |
46 |
BOLT
M14X38
|
0-23801-438-0 |
01 |
1 |
9501-9504 |
|
● |
● |
|
● |
● |
| |
46 |
BOLT
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DISC BRAKE FRT<J52>,REAR WIDE TREAD(V4T),
FULL FLATLOW<6GL>,LIMITED SLIP DIFF<6LV>
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
9501-9502 |
|
● |
|
|
|
|
| |
46 |
BOLT
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DISC BRAKE FRT<J52>,FULL FLATLOW<6GL>,
LIMITED SLIP DIFF<6LV>
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
46 |
BOLT
REAR AXLE HEAVY DUTY 292MM(G73)
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
46 |
BOLT
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
46 |
BOLT
REAR WIDE TREAD(V4T)
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
46 |
BOLT
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
47 |
WASHER; LK
REAR AXLE HEAVY DUTY 292MM(G73)
ID=14.2
|
9-09150-614-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
47 |
WASHER; LK
ID=14.2
|
9-09150-614-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
47 |
WASHER; LK
REAR AXLE HEAVY DUTY 292MM(G73)
ID=14.2
|
9-09150-614-0 |
01 |
1 |
9407-9412 |
● |
● |
● |
● |
● |
● |
| |
47 |
WASHER; LK
REAR AXLE HEAVY DUTY 292MM(G73)
ID=14.2
|
9-09150-614-0 |
01 |
1 |
9501-9504 |
● |
|
|
● |
|
|
| |
47 |
WASHER; LK
ID=14.2
|
9-09150-614-0 |
01 |
1 |
9501-9504 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR WIDE TREAD(V4T)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR WIDE TREAD(V4T)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR WIDE TREAD(V4T)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR WIDE TREAD(V4T)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR WIDE TREAD(V4T)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR WIDE TREAD(V4T)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
5-09812-062-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
50 |
BEARING; FINAL PINION
JTEKT
|
5-09812-062-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
5-09812-062-0 |
02 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
5-09812-062-0 |
02 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
50 |
BEARING; FINAL PINION
JTEKT
|
5-09812-062-0 |
02 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
5-09812-062-1 |
02 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
JTEKT
|
5-09812-062-1 |
02 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
50 |
BEARING; FINAL PINION
REAR WIDE TREAD(V4T)
JTEKT
|
5-09812-062-1 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
50 |
BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
02 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09812-063-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
50 |
BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09812-063-0 |
02 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09812-063-0 |
02 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
50 |
BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
02 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09812-063-0 |
02 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
NSK
|
5-09812-063-0 |
02 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
50 |
BEARING; FINAL PINION
REAR WIDE TREAD(V4T)
NSK
|
5-09812-063-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
50 |
BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
02 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
INNER SIDE
NSK
|
1-09812-041-2 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
50 |
BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
INNER SIDE
NSK
|
1-09812-041-2 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
55 |
CARRIER; DIFF
REAR AXLE STANDARD 244MM(R39)
|
8-97076-964-0 |
01 |
1 |
9304-9409 |
● |
|
|
● |
|
|
| |
55 |
CARRIER; DIFF
REAR AXLE STANDARD 244MM(R39)
|
8-94376-227-1 |
01 |
1 |
9410- |
● |
|
|
● |
|
|
| |
55 |
CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94365-264-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
55 |
CARRIER; DIFF
|
8-94365-264-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
55 |
CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94365-264-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
55 |
CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94365-264-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
55 |
CARRIER; DIFF
|
8-94365-264-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
55 |
CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94365-264-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
55 |
CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
|
8-94365-264-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
55 |
CARRIER; DIFF
REAR WIDE TREAD(V4T)
|
8-94365-264-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
55 |
CARRIER; DIFF
|
8-94365-264-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
55 |
CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97094-637-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
55 |
CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97094-637-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
56 |
BOLT; BRG CAP
M14X80
|
8-94365-377-1 |
04 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
56 |
BOLT; BRG CAP
REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE
STANDARD 244MM(R39)
M14X80
|
8-94365-377-2 |
04 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
56 |
BOLT; BRG CAP
REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE
STANDARD 244MM(R39)
M14X80
|
8-94365-377-2 |
04 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
56 |
BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
56 |
BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9704- |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-433-0 |
01 |
1 |
9304- |
● |
|
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97076-938-0 |
01 |
1 |
9304- |
● |
|
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-452-0 |
01 |
1 |
9304-9703 |
● |
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-452-0 |
01 |
1 |
9704- |
● |
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97035-452-0 |
01 |
1 |
9704- |
|
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-450-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-450-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
|
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-450-0 |
01 |
1 |
9704- |
|
● |
● |
● |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97035-451-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
|
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97035-451-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97035-451-0 |
01 |
1 |
9704- |
● |
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97035-451-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
41/7
|
8-97083-126-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
43/7
|
8-97092-946-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-454-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
|
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-454-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-454-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-454-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. REAR WIDE TREAD(V4T)
41/7
|
8-97035-454-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
REAR WIDE TREAD(V4T)
41/7
|
8-97035-454-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-454-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-453-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-453-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-453-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-453-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-453-0 |
01 |
1 |
9704- |
|
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-455-0 |
01 |
1 |
9304-9502 |
|
● |
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-455-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
|
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR WIDE TREAD(V4T)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-455-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
EXC. REAR WIDE TREAD(V4T)
43/7
|
8-97035-455-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-455-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9304-9406 |
|
● |
|
● |
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9407-9502 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9503-9703 |
|
● |
|
● |
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9704- |
|
● |
● |
|
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97035-431-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
DISC BRAKE FRT<J52>
39/8
|
8-97035-431-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97035-431-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97076-962-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1)
DISC BRAKE FRT<J52>
41/8
|
8-97076-962-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97076-962-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-430-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
41/9
|
8-97035-430-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-430-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-253-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
DISC BRAKE FRT<J52>
41/10
|
8-97074-253-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-253-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97035-448-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
DISC BRAKE FRT<J52>
43/10
|
8-97035-448-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97035-448-0 |
01 |
1 |
9704- |
|
● |
|
● |
● |
|
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
REAR WIDE TREAD(V4T)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
9-41227-601-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
9-41227-601-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
9-41227-601-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
9-41227-601-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
(B)
|
9-41227-601-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
REAR WIDE TREAD(V4T)
(B)
|
9-41227-601-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97047-150-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
(B)
|
8-97047-150-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09810-008-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
63 |
BEARING; PINION PILOT
NSK
|
5-09810-008-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09810-008-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09810-008-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
63 |
BEARING; PINION PILOT
NSK
|
5-09810-008-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09810-008-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
NSK
|
5-09810-008-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
63 |
BEARING; PINION PILOT
REAR WIDE TREAD(V4T)
NSK
|
5-09810-008-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
63 |
BEARING; PINION PILOT
NSK
|
5-09810-008-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
5-09810-009-0 |
01 |
1 |
9304-9311 |
● |
|
|
● |
|
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
5-09810-009-0 |
01 |
1 |
9304-9311 |
|
● |
● |
|
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
8-97107-548-0 |
01 |
1 |
9312-9406 |
● |
|
|
● |
|
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
9312-9406 |
|
● |
● |
|
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
8-97107-548-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
8-97107-548-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
8-97107-548-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
JTEKT
|
8-97107-548-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
63 |
BEARING; PINION PILOT
REAR WIDE TREAD(V4T)
JTEKT
|
8-97107-548-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
8-97047-296-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
NSK
|
8-97047-296-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
JTEKT
|
8-97047-928-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
63 |
BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
JTEKT
|
8-97047-928-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
64 |
NUT; RET
REAR AXLE HEAVY DUTY 292MM(G73)
M6
|
9-09110-406-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
64 |
NUT; RET
M6
|
9-09110-406-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
64 |
NUT; RET
REAR AXLE HEAVY DUTY 292MM(G73)
M6
|
9-09110-406-0 |
02 |
1 |
9407-9503 |
● |
● |
● |
● |
● |
● |
| |
64 |
NUT; RET
REAR AXLE HEAVY DUTY 292MM(G73)
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
9504- |
● |
● |
● |
● |
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09752-002-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
66 |
RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09752-002-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09752-002-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
66 |
RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09752-002-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
|
9-09752-002-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
66 |
RING; SNAP,PILOT BRG
REAR WIDE TREAD(V4T)
|
9-09752-002-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
66 |
RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-297-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
66 |
RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97047-297-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
REAR WIDE TREAD(V4T)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M115 H=20
|
1-41121-030-0 |
02 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M115 H=20
|
1-41121-030-0 |
02 |
1 |
9704-9708 |
|
● |
|
|
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M115 H=20
|
1-41121-039-0 |
02 |
1 |
9709- |
|
● |
|
|
|
|
| |
70 |
BEARING; DIFF CAGE
REAR AXLE STANDARD 244MM(R39)
NSK
|
9-00032-211-0 |
02 |
1 |
9304- |
● |
|
|
● |
|
|
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-602-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
70 |
BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-602-0 |
02 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-602-0 |
02 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
70 |
BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-602-0 |
02 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
NSK
|
9-00093-602-0 |
02 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
70 |
BEARING; DIFF CAGE
REAR WIDE TREAD(V4T)
NSK
|
9-00093-602-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
70 |
BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
9-00093-614-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
70 |
BEARING; DIFF CAGE
JTEKT
|
9-00093-614-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
9-00093-614-0 |
02 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
9-00093-614-0 |
02 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
70 |
BEARING; DIFF CAGE
JTEKT
|
9-00093-614-0 |
02 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
9-00093-614-0 |
02 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
JTEKT
|
9-00093-614-0 |
02 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
70 |
BEARING; DIFF CAGE
REAR WIDE TREAD(V4T)
JTEKT
|
9-00093-614-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
70 |
BEARING; DIFF CAGE
JTEKT
|
9-00093-614-0 |
02 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
70 |
BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
|
5-41500-037-0 |
01 |
1 |
9802- |
|
|
|
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9304-9406 |
● |
● |
|
|
● |
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
43/8(R40)
|
8-97035-389-0 |
01 |
1 |
9407-9502 |
● |
|
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
● |
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 43/9(S2J)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41)
DISC BRAKE FRT<J52>
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9503-9506 |
● |
● |
|
|
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
DISC BRAKE FRT<J52>
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41)
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9503-9506 |
|
|
|
● |
|
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. GARBAGE/VACUUM CHASSIS(V4G),LIMITED SLIP
DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9507-9703 |
● |
● |
|
|
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
DISC BRAKE FRT<J52>
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41)
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-389-0 |
01 |
1 |
9507-9703 |
|
|
|
● |
|
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97035-389-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR WIDE TREAD(V4T)
FULL FLATLOW<6GL>
|
8-97035-389-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
SUSPENSION - RR UNDER SLUNG<V4U>
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
|
8-97035-389-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97035-389-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FRT INDEPENDENT SUSPENSION(6PP)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
|
8-97035-389-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
|
8-97035-389-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
43/8(R40)
|
8-97035-389-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
|
8-97035-389-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-390-0 |
01 |
1 |
9304-9406 |
● |
● |
|
● |
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
DISC BRAKE FRT<J52>
FINAL GEAR RATIO 43/9(S2J)
EXC. LIMITED SLIP DIFF<6LV>
|
8-97035-390-0 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
|
8-97035-390-0 |
01 |
1 |
9407-9502 |
● |
|
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J)
|
8-97035-390-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 43/9(S2J)
|
8-97035-390-0 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-97035-390-0 |
01 |
1 |
9407-9502 |
|
|
|
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97035-390-0 |
01 |
1 |
9407-9502 |
|
|
|
|
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J)
|
8-97035-390-0 |
01 |
1 |
9503-9504 |
● |
● |
● |
● |
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J)
|
8-97035-390-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
SUSPENSION - RR UNDER SLUNG<V4U>
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97035-390-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97035-390-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FRT INDEPENDENT SUSPENSION(6PP)
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J)
|
8-97035-390-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 43/9(S2J)
|
8-97035-390-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-97035-390-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97035-390-0 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/7(R41)
|
9-41510-605-0 |
01 |
1 |
9304-9502 |
● |
|
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
|
9-41510-605-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/7(R41)
|
9-41510-605-0 |
01 |
1 |
9503-9703 |
● |
|
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
DISC BRAKE FRT<J52>
|
9-41510-605-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/7(R41)
|
9-41510-605-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
BRK WHL LK CONT LSPV<6PH>
|
9-41510-605-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-100-1 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97047-100-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
LIMITED SLIP DIFF<6LV>
|
8-94362-393-0 |
01 |
1 |
9304-9502 |
|
● |
● |
|
● |
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
LIMITED SLIP DIFF<6LV>
|
8-94362-393-0 |
01 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
|
8-94461-234-1 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
|
8-94461-234-1 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
|
8-94461-234-1 |
01 |
1 |
9503-9506 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
EXC. LIMITED SLIP DIFF<6LV>
|
8-94461-234-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
EXC. DISC BRAKE FRT<J52>,LIMITED SLIP
DIFF<6LV>
|
8-94461-234-1 |
01 |
1 |
9507-9703 |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
REAR WIDE TREAD(V4T)
EXC. FULL FLATLOW<6GL>
|
8-94461-234-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94461-234-1 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
LOADING CAPACITY - 3500 KG<RPL>
|
8-94461-234-1 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
82 |
SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
5-41521-008-0 |
01 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
● |
| |
82 |
SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
5-41521-008-0 |
01 |
1 |
9407-9502 |
● |
|
|
● |
|
|
| |
82 |
SPIDER; DIFF PINION
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
5-41521-008-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
82 |
SPIDER; DIFF PINION
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
|
5-41521-008-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
82 |
SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
5-41521-008-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
82 |
SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
|
5-41521-008-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
82 |
SPIDER; DIFF PINION
REAR WIDE TREAD(V4T)
|
5-41521-008-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
82 |
SPIDER; DIFF PINION
|
5-41521-008-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
82 |
SPIDER; DIFF PINION
REAR AXLE STANDARD 244MM(R39)
|
9-41521-611-0 |
01 |
1 |
9304- |
● |
|
|
● |
|
|
| |
82 |
SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41521-035-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
82 |
SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
1-41521-035-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
|
8-94159-027-0 |
01 |
1 |
9304-9406 |
● |
● |
● |
|
● |
● |
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
43/8(R40)
|
8-94159-027-0 |
01 |
1 |
9407-9502 |
● |
|
|
|
|
|
| |
83 |
CAGE ASM; DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
|
8-94159-027-0 |
01 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
83 |
CAGE ASM; DIFF
FINAL GEAR RATIO 43/9(S2J)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,LIMITED SLIP DIFF<6LV>
|
8-94159-027-0 |
01 |
1 |
9407-9502 |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
|
8-94159-027-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94159-027-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR WIDE TREAD(V4T)
|
8-94159-027-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
SUSPENSION - RR UNDER SLUNG<V4U>
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
|
8-94159-027-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-94159-027-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
|
8-94159-027-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
43/8(R40)
|
8-94159-027-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
EXC. LIMITED SLIP DIFF<6LV>
|
8-94161-010-1 |
01 |
1 |
9304-9406 |
● |
● |
|
● |
● |
|
| |
83 |
CAGE ASM; DIFF
DISC BRAKE FRT<J52>
FINAL GEAR RATIO 43/9(S2J)
EXC. LIMITED SLIP DIFF<6LV>
|
8-94161-010-1 |
01 |
1 |
9304-9406 |
|
|
● |
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
|
8-94161-010-1 |
01 |
1 |
9407-9502 |
● |
|
|
|
|
|
| |
83 |
CAGE ASM; DIFF
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J)
|
8-94161-010-1 |
01 |
1 |
9407-9502 |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
FINAL GEAR RATIO 43/9(S2J)
|
8-94161-010-1 |
01 |
1 |
9407-9502 |
|
|
● |
|
|
● |
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9407-9502 |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9407-9502 |
|
|
|
|
● |
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J)
|
8-94161-010-1 |
01 |
1 |
9503-9504 |
● |
● |
● |
● |
● |
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J)
|
8-94161-010-1 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
|
| |
83 |
CAGE ASM; DIFF
SUSPENSION - RR UNDER SLUNG<V4U>
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-94161-010-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
FRT INDEPENDENT SUSPENSION(6PP)
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J)
|
8-94161-010-1 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
83 |
CAGE ASM; DIFF
FINAL GEAR RATIO 43/9(S2J)
|
8-94161-010-1 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/7(R41)
|
9-41510-610-0 |
01 |
1 |
9304-9502 |
● |
|
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
|
9-41510-610-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/7(R41)
|
9-41510-610-0 |
01 |
1 |
9503-9703 |
● |
|
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
DISC BRAKE FRT<J52>
|
9-41510-610-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/7(R41)
|
9-41510-610-0 |
01 |
1 |
9704- |
● |
|
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
BRK WHL LK CONT LSPV<6PH>
|
9-41510-610-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-117-1 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97047-117-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
|
5-41510-012-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
|
5-41510-012-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
83 |
CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
|
5-41510-012-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
M12X25
|
9-09606-505-1 |
12 |
1 |
9304-9309 |
● |
● |
● |
● |
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
M12X25
|
9-09606-505-1 |
12 |
1 |
9310-9406 |
● |
● |
● |
|
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
M12X25
|
9-09606-505-1 |
12 |
1 |
9310-9406 |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
M12X25
|
9-09606-505-2 |
12 |
1 |
9407-9502 |
● |
|
|
|
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
EXC. LIMITED SLIP DIFF<6LV>
M12X25
|
9-09606-505-2 |
12 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
M12X25
|
9-09606-505-2 |
12 |
1 |
9407-9502 |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
M12X25
|
9-09606-505-2 |
12 |
1 |
9407-9502 |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
DISC BRAKE FRT<J52>
EXC. FULL FLATLOW<6GL>
M12X25
|
9-09606-505-2 |
12 |
1 |
9407-9502 |
|
|
|
|
● |
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. LIMITED SLIP DIFF<6LV>
M12X25
|
9-09606-505-2 |
12 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
M12X25
|
9-09606-505-2 |
12 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
M12X25
|
9-09606-505-2 |
12 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO
39/8(RV9)
M12X25
|
9-09606-505-2 |
12 |
1 |
9704- |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
M12X22
|
9-09600-066-2 |
12 |
1 |
9304-9309 |
● |
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
M12X22
|
9-09600-066-3 |
12 |
1 |
9310-9502 |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/9(HC6),FINAL GEAR RATIO 41/7(R41)
M12X22
|
9-09600-066-3 |
12 |
1 |
9503-9703 |
● |
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/9(HC6)
M12X22
|
9-09600-066-3 |
12 |
1 |
9704- |
|
|
|
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
M16X30
|
8-97047-147-0 |
12 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M16X30
|
8-97047-147-0 |
12 |
1 |
9704- |
|
● |
|
|
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
LIMITED SLIP DIFF<6LV>
M12X30 FLANGE
|
8-94334-990-0 |
12 |
1 |
9304-9502 |
|
● |
● |
|
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
LIMITED SLIP DIFF<6LV>
M12X30 FLANGE
|
8-94334-990-0 |
12 |
1 |
9503-9703 |
|
● |
● |
|
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10
|
8-94159-009-0 |
12 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10
|
8-94159-009-0 |
12 |
1 |
9407-9407 |
● |
|
|
● |
|
|
| |
85 |
NUT; DIFF CAGE SETTING
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
M10
|
8-94159-009-0 |
12 |
1 |
9407-9407 |
|
● |
● |
|
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
M10
|
8-94159-009-0 |
12 |
1 |
9407-9407 |
|
● |
● |
|
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10
|
8-94159-009-0 |
16 |
1 |
9408-9502 |
● |
|
|
● |
|
|
| |
85 |
NUT; DIFF CAGE SETTING
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
M10
|
8-94159-009-0 |
16 |
1 |
9408-9502 |
|
● |
● |
|
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
M10
|
8-94159-009-0 |
16 |
1 |
9408-9502 |
|
● |
● |
|
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10
|
8-94159-009-1 |
16 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
M10
|
8-94159-009-1 |
16 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
85 |
NUT; DIFF CAGE SETTING
REAR WIDE TREAD(V4T)
M10
|
8-94159-009-1 |
16 |
1 |
9704- |
|
● |
|
|
|
|
| |
85 |
NUT; DIFF CAGE SETTING
M10
|
8-94159-009-1 |
16 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12
|
8-97065-214-0 |
12 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
85 |
NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M12
|
8-97065-214-0 |
12 |
1 |
9704- |
|
● |
|
|
|
|
| |
86 |
WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
● |
| |
86 |
WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9407-9502 |
● |
|
|
● |
|
|
| |
86 |
WASHER; PL,DIFF CAGE SETTING
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
43/9(S2J),FINAL GEAR RATIO 43/10(S7C)
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
86 |
WASHER; PL,DIFF CAGE SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO
41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)
EXC. LIMITED SLIP DIFF<6LV>
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9407-9502 |
|
● |
● |
|
● |
● |
| |
86 |
WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
86 |
WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
86 |
WASHER; PL,DIFF CAGE SETTING
REAR WIDE TREAD(V4T)
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9704- |
|
● |
|
|
|
|
| |
86 |
WASHER; PL,DIFF CAGE SETTING
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
86 |
WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
86 |
WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9704- |
|
● |
|
|
|
|
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-281-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-281-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-281-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-281-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97027-281-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
REAR WIDE TREAD(V4T)
(A)
|
8-97027-281-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-282-0 |
AR |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
|
8-97027-282-0 |
AR |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-282-0 |
AR |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-282-0 |
AR |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
|
8-97027-282-0 |
AR |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-282-0 |
AR |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97027-282-0 |
AR |
1 |
9704- |
● |
● |
|
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
REAR WIDE TREAD(V4T)
(A)
|
8-97027-282-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
|
8-97027-282-0 |
AR |
1 |
9704- |
|
|
● |
|
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
T=2.3
|
8-97087-821-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
(B)
T=2.3
|
8-97087-821-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
88 |
PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9704- |
|
● |
|
|
|
|
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
89 |
BOLT; LK PLATE
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
9407-9410 |
● |
● |
● |
● |
● |
● |
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9411-9502 |
● |
● |
● |
● |
● |
● |
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9704- |
|
● |
|
|
|
|
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
89 |
BOLT; LK PLATE
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
89 |
BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
89 |
BOLT; LK PLATE
REAR WIDE TREAD(V4T)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
89 |
BOLT; LK PLATE
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE STANDARD 244MM(R39)
NOK
|
8-94408-084-1 |
01 |
1 |
9304- |
● |
|
|
● |
|
|
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE STANDARD 244MM(R39)
TKK
|
8-94408-085-1 |
01 |
1 |
9304- |
● |
|
|
● |
|
|
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
OD=103
|
8-94408-083-0 |
01 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
100 |
SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
OD=103
|
8-94408-083-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
OD=103
|
8-94408-083-0 |
01 |
1 |
9503-9504 |
● |
|
|
● |
|
|
| |
100 |
SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
9503-9504 |
|
● |
● |
|
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
OD=103
|
8-94408-083-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. REAR WIDE TREAD(V4T)
OD=103
|
8-94408-083-0 |
01 |
1 |
9704- |
● |
● |
|
● |
|
|
| |
100 |
SEAL; OIL,FINAL PINION
REAR WIDE TREAD(V4T)
OD=103
|
8-94408-083-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
100 |
SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
9704- |
|
|
● |
|
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NOK
|
8-97047-609-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
100 |
SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
NOK
|
8-97047-609-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
132 |
WASHER; LK,RET
REAR AXLE HEAVY DUTY 292MM(G73)
ID=6.1
|
9-09150-506-0 |
02 |
1 |
9304-9406 |
● |
|
|
● |
|
|
| |
132 |
WASHER; LK,RET
ID=6.1
|
9-09150-506-0 |
02 |
1 |
9304-9406 |
|
● |
● |
|
● |
● |
| |
132 |
WASHER; LK,RET
REAR AXLE HEAVY DUTY 292MM(G73)
ID=6.1
|
9-09150-506-0 |
02 |
1 |
9407-9503 |
● |
● |
● |
● |
● |
● |
