Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#166729) — 314 parça

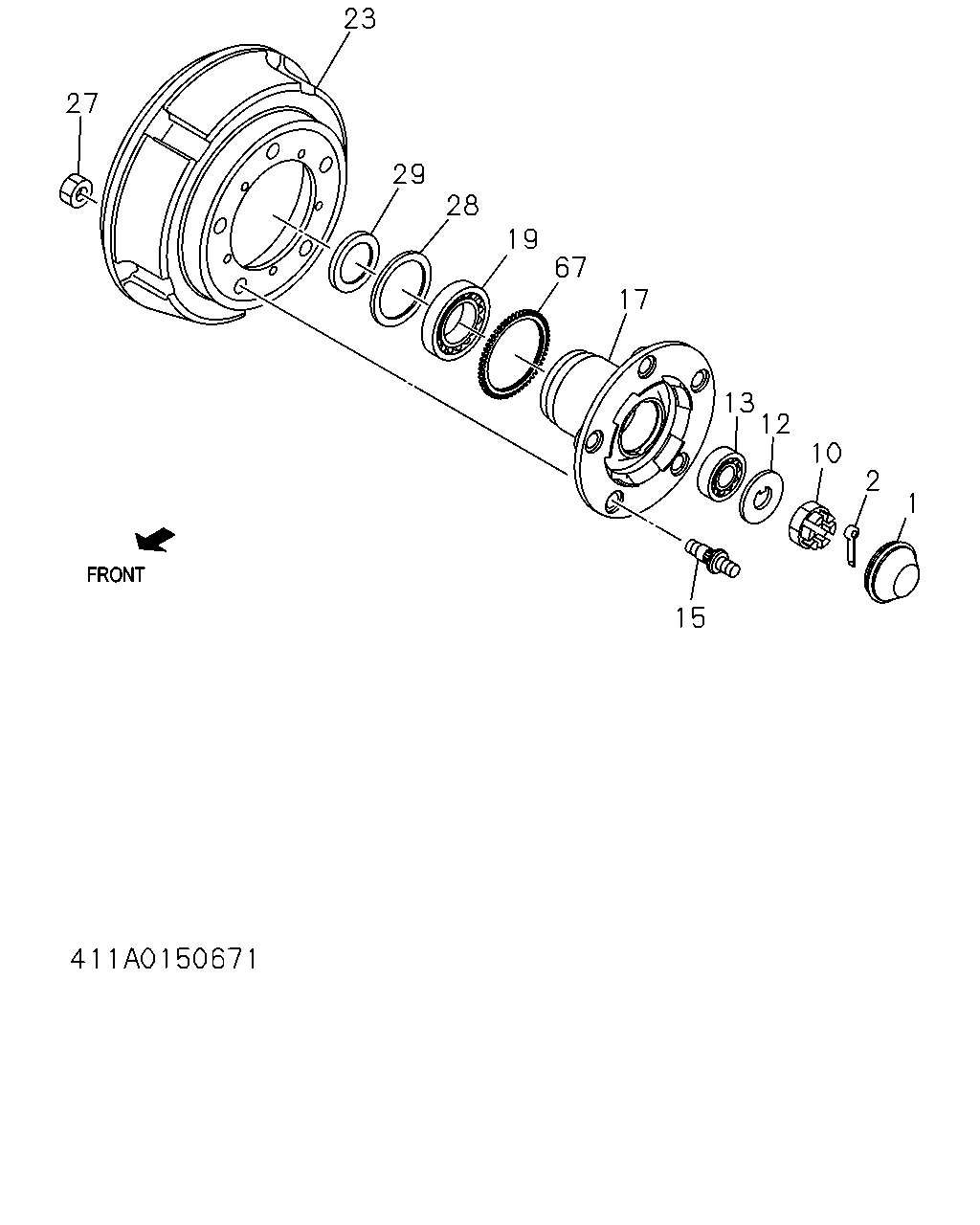

27 23 29 28 19 67 17 13 12 10 2 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAP; HUB,FRT AXLE	8-97012-619-0	02	1	9304-	●	●	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT	9-08105-040-0	02	1	9304-9809	●	●	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	9-08115-040-0	02	1	9810-	●	●	●	●	●	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	9304-	●	●	●	●	●	●
12	WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-356-1	02	1	9304-9504		●	●	●		●
12	WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-356-1	02	1	9505-		●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	8-94248-083-1	02	1	9304-	●	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	9304-	●	●	●	●	●	●
15	PIN; WHEEL,FRT AXLE M14X45 LH THREAD	8-94342-389-0	06	1	9304-9411	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M14X45 LH THREAD	8-94342-389-0	06	1	9304-9411					●
15	PIN; WHEEL,FRT AXLE M14X39 LH THREAD	8-97126-491-0	06	1	9412-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M14X39 LH THREAD	8-97126-491-0	06	1	9412-					●
15	PIN; WHEEL,FRT AXLE RH THREAD M14X45	8-94342-388-0	06	1	9304-9411	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M14X45	8-94342-388-0	06	1	9304-9411					●
15	PIN; WHEEL,FRT AXLE RH THREAD M14X39	8-97126-490-0	06	1	9412-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M14X39	8-97126-490-0	06	1	9412-					●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9304-9406		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9407-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9503-9703		●	●	●		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> M18X46 LH THREAD	8-97017-042-0	05	1	9503-9703		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9704-		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9304-9406		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9407-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9503-9703		●	●	●		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> RH THREAD M18X46	8-97017-041-0	05	1	9503-9703		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X46 RH THREAD	8-97017-041-0	05	1	9704-		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 RH THREAD	8-97017-041-0	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9304-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9503-9506		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9507-9703		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9304-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9503-9506		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9507-9703		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9704-		●	●	●		●
17	HUB; FRT AXLE	8-94365-825-3	02	1	9304-9502	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94365-825-3	02	1	9304-9502					●
17	HUB; FRT AXLE	8-97090-751-0	02	1	9503-	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97090-751-0	02	1	9503-					●
17	HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97017-193-0	02	1	9503-9703		●
17	HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP)	8-97017-193-0	02	1	9704-		●		●	●	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97033-167-0	02	1	9304-9406		●	●	●		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97033-167-0	02	1	9407-9711		●	●	●		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97188-443-0	02	1	9712-		●	●	●		●
17	HUB; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9304-9502		●	●	●		●
17	HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9503-9506		●	●	●	●	●
17	HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9507-9703		●	●	●	●	●
17	HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9704-		●	●	●		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-160-0	02	1	9704-		●	●	●		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97140-126-0	02	1	9704-		●		●		●
19	BEARING; HUB INNER,FRT AXLE NSK	8-94336-289-0	02	1	9304-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-94336-289-0	02	1	9304-					●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94336-290-0	02	1	9304-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94336-290-0	02	1	9304-					●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-97034-255-0	02	1	9304-9406		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-97034-255-0	02	1	9407-		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94248-088-1	02	1	9304-9504		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94248-088-1	02	1	9505-		●	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK	9-00093-149-0	02	1	9304-9504		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK	9-00093-149-0	02	1	9505-		●	●	●	●	●
23	DRUM; BRK,FRT FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR 195/70R17.5S 5.25X17.5-115(9EV),FRT&RR 205/85R16 16X5.5J-116.5(9HD) ,FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR 205/85R165.5JX16-116.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-2	02	1	9304-9308		●	●	●		●
23	DRUM; BRK,FRT FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR 195/70R17.5S 5.25X17.5-115(9EV),FRT&RR 205/85R16 16X5.5J-116.5(9HD) ,FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 7-16-8L 5.5FX16-115 LOW NOISE(9TW),FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR 205/85R16 5.5JX16-116.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-3	02	1	9309-9408		●	●	●		●
23	DRUM; BRK,FRT FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT), FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR 195/70R17.5S 5.25X17.5-115(9EV),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT &RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 7-16-8L 5.5FX16-115 LOW NOISE(9TW),FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR 205/85R16 5.5JX16-116.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE),FR T&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-3	02	1	9409-9502		●	●	●		●
23	DRUM; BRK,FRT FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT), FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR 195/70R17.5S 5.25X17.5-115(9EV) ,FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 195/85R16 RR 175R14-8(9HZ),FRT &RR 7-16-8L 5.5FX16-115 LOW NOISE(9TW),FRT&RR 195/85R16 RIB 16X5.5J-116.5(9TX),FRT 7R-16-10 RR 195R15-8(9WP),FRT 6.5-16-12 RR 6-14-8(9WQ) ,FRT 6.5-16-12L RR 6-14-8L(9WR),FRT 6.5-16-12SRR 6-14-8S(9WS),FRT 195/85R16 RR 185R14-8(9XA),FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR 205/85R16 5.5JX16-116.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H)	8-94385-650-3	02	1	9503-9703		●	●	●	●	●
23	DRUM; BRK,FRT FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH) EXC. DISC BRAKE FRT<J52>,REAR WIDE TREAD(V4T), FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-3	02	1	9503-9703		●
23	DRUM; BRK,FRT FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-3	02	1	9503-9703						●
23	DRUM; BRK,FRT FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT), FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR 205/75R16 16X5.5J-116.5 WHITE(APS),FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT& RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR 195/70R17.5S 5.25X17.5-115(9EV),FRT&RR 7R-16- 12 16X5.5F-115(9GE),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16 5.5JX16-116.5(9HE), FRT&RR 195/85R16 5.5JX16-116.5(9HF),FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16 RR 185R14-8(9TR),FRT&RR 195/85R16 RIB 16X5.5J-116.5(9TX) ,FRT 195/85R16 RR 185R14-8(9XA),FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR 205/85R16 5.5JX16-116.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE) ,FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-3	02	1	9704-9706		●	●	●		●
23	DRUM; BRK,FRT FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT), FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR 205/75R16 16X5.5J-116.5 WHITE(APS),FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),FRT&RR 205/70R17.5 RIB 17.5X5.25-115(AUQ),FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FR T&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR 195/70R17.5S 5.25X17.5-115(9EV),FRT&RR 7R-16-12 16X5.5F-115(9GE),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT& RR 195/85R16 5.5JX16-116.5(9HF),FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16 RR 185R14-8(9TR),FRT&RR 195/85R16 RIB 16X5.5J-116.5(9TX),FRT 195/85R16 RR 185R14-8(9XA),FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR 205/85R16 5.5JX16-1 16.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE), FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-3	02	1	9707-9801		●	●	●		●
23	DRUM; BRK,FRT FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT), FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR 205/75R16 16X5.5J-116.5 WHITE(APS),FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),FRT&RR 205/70R17.5 RIB 17.5X5.25-115(AUQ),FRT&RR 205/75R16 16X5.5J-116.5(AXG),FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&R R 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H) ,FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR 195/70R17.5S5.25X17.5-115(9EV),FRT&RR 7R-16-12 16X5.5F-115(9GE),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT& RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 195/85R16 5.5JX16-116.5(9HF),FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16 RR 185R14-8(9TR),FRT&RR 195/85R16 RIB 16X5.5J-116.5(9TX),FRT 195/85R16RR 185R14-8(9XA),FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR 205/85R16 5.5JX16-116.5(9YD), FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&R R 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR7-16-12 16X5.5F-115(96H) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94385-650-3	02	1	9802-		●	●	●		●
23	DRUM; BRK,FRT FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C), FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR),FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97041-475-1	02	1	9304-9311		●				●
23	DRUM; BRK,FRT FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C), FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR),FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97094-434-2	02	1	9312-9502		●				●
23	DRUM; BRK,FRT FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C), FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR),FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97094-434-2	02	1	9503-9703		●				●
23	DRUM; BRK,FRT FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH) REAR WIDE TREAD(V4T) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D), GARBAGE/VACUUM CHASSIS(V4G),FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV>	8-97094-434-2	02	1	9503-9703		●
23	DRUM; BRK,FRT FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C), FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR),FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97094-434-2	02	1	9704-		●				●
27	NUT; WHEEL PIN,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M20	9-99110-520-0	10	1	9304-9502		●	●	●		●
27	NUT; WHEEL PIN,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M20	9-99110-520-0	10	1	9503-9506		●	●	●	●	●
27	NUT; WHEEL PIN,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M20	9-99110-520-0	10	1	9507-9703		●	●	●	●	●
27	NUT; WHEEL PIN,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M20	9-99110-520-0	10	1	9704-		●	●	●		●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(6PP)	8-94368-555-0	02	1	9304-9806	●	●	●	●	●	●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97211-082-0	02	1	9807-	●	●	●	●	●	●
28	SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-117-1	02	1	9304-9504		●	●	●		●
28	SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-117-1	02	1	9505-		●	●	●	●	●
29	DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94246-302-0	02	1	9304-9504		●	●	●		●
29	DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94246-302-0	02	1	9505-		●	●	●	●	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-207-0	02	1	9304-9502		●	●	●		●
67	ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-207-0	02	1	9503-		●	●	●		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97033-681-1	02	1	9704-		●	●	●		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97120-476-0	02	1	9704-		●		●		●

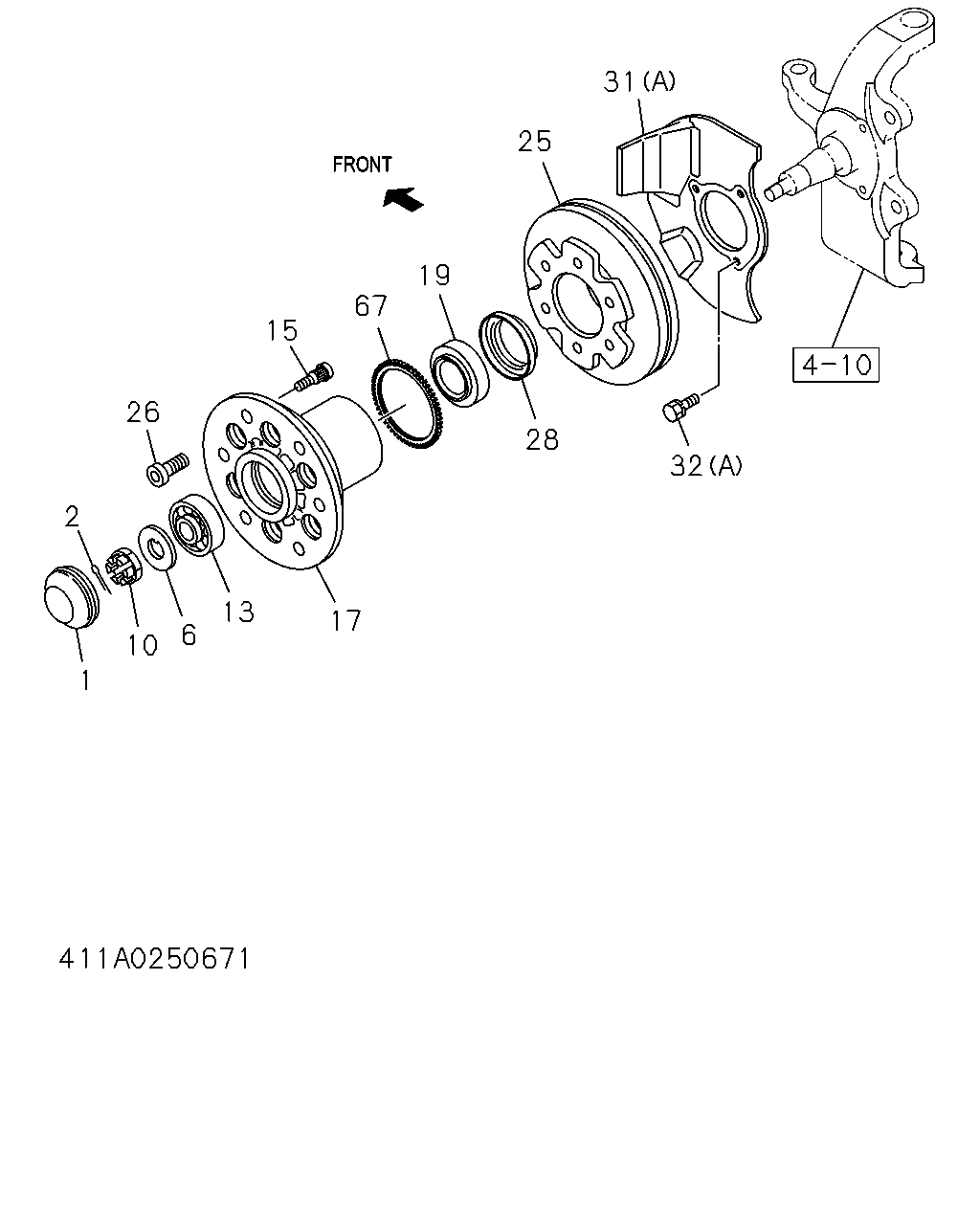

31 25 32 28 19 67 15 17 13 6 10 1 2 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAP; HUB,FRT AXLE	8-97012-619-0	02	1	9304-	●	●	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT	9-08105-040-0	02	1	9304-9809	●	●	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	9-08115-040-0	02	1	9810-	●	●	●	●	●	●
6	WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(6PP)	8-94247-356-1	02	1	9304-	●	●	●	●	●	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	9304-	●	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	8-94248-083-1	02	1	9304-	●	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	9304-	●	●	●	●	●	●
15	PIN; WHEEL,FRT AXLE M14X45 LH THREAD	8-94342-389-0	06	1	9304-9411	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M14X45 LH THREAD	8-94342-389-0	06	1	9304-9411					●
15	PIN; WHEEL,FRT AXLE M14X39 LH THREAD	8-97126-491-0	06	1	9412-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M14X39 LH THREAD	8-97126-491-0	06	1	9412-					●
15	PIN; WHEEL,FRT AXLE RH THREAD M14X45	8-94342-388-0	06	1	9304-9411	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M14X45	8-94342-388-0	06	1	9304-9411					●
15	PIN; WHEEL,FRT AXLE RH THREAD M14X39	8-97126-490-0	06	1	9412-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M14X39	8-97126-490-0	06	1	9412-					●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9304-9406		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9407-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9503-9703		●	●	●		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> M18X46 LH THREAD	8-97017-042-0	05	1	9503-9703		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9704-		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9304-9406		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9407-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9503-9703		●	●	●		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> RH THREAD M18X46	8-97017-041-0	05	1	9503-9703		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X46 RH THREAD	8-97017-041-0	05	1	9704-		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 RH THREAD	8-97017-041-0	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9304-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9503-9506		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9507-9703		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9304-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9503-9506		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9507-9703		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9704-		●	●	●		●
17	HUB; FRT AXLE	8-94365-825-3	02	1	9304-9502	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94365-825-3	02	1	9304-9502					●
17	HUB; FRT AXLE	8-97090-751-0	02	1	9503-	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97090-751-0	02	1	9503-					●
17	HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97017-193-0	02	1	9503-9703		●
17	HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP)	8-97017-193-0	02	1	9704-		●		●	●	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97033-167-0	02	1	9304-9406		●	●	●		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97033-167-0	02	1	9407-9711		●	●	●		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97188-443-0	02	1	9712-		●	●	●		●
17	HUB; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9304-9502		●	●	●		●
17	HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9503-9506		●	●	●	●	●
17	HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9507-9703		●	●	●	●	●
17	HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9704-		●	●	●		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-160-0	02	1	9704-		●	●	●		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97140-126-0	02	1	9704-		●		●		●
19	BEARING; HUB INNER,FRT AXLE NSK	8-94336-289-0	02	1	9304-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-94336-289-0	02	1	9304-					●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94336-290-0	02	1	9304-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94336-290-0	02	1	9304-					●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-97034-255-0	02	1	9304-9406		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-97034-255-0	02	1	9407-		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94248-088-1	02	1	9304-9504		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94248-088-1	02	1	9505-		●	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK	9-00093-149-0	02	1	9304-9504		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK	9-00093-149-0	02	1	9505-		●	●	●	●	●
25	ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-007-1	02	1	9304-	●				●
25	ROTOR; DISC BRK,FRT FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7-16-8L 5.5FX16-115LOW NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV>	8-97015-887-0	02	1	9503-9703		●
25	ROTOR; DISC BRK,FRT FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 195/85R16 5.5JX16-116.5(9HF),FRT& RR 205/85R16 5.5JX16-116.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FR T&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH), FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV>	8-97015-887-0	02	1	9704-		●
25	ROTOR; DISC BRK,FRT FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT), FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 195/85R16 5.5JX16-116.5(9HF),FRT&RR 195/85R16 RIB 16X5.5J-116.5(9TX) ,FRT&RR 205/85R16 5.5JX16-116.5(9YD) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-			●
25	ROTOR; DISC BRK,FRT FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12 16X5.5F-115(9GE),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT &RR 205/85R16 5.5JX16-116.5(9YD) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-				●
25	ROTOR; DISC BRK,FRT FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-					●
25	ROTOR; DISC BRK,FRT FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16 RR 185R14-8(9TR),FRT 195/85R16 RR 185R14-8(9XA),FRT&R R 205/85R16 5.5JX16-116.5(9YD),FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-						●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FLOOR REMOTESHIFT<M11>	8-97077-346-2	02	1	9304-9502		●	●	●		●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FLOOR REMOTESHIFT<M11>	8-97077-346-3	02	1	9503-		●	●	●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP)	8-97077-346-3	02	1	9503-		●	●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>	8-97077-346-3	02	1	9503-		●	●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97077-346-3	02	1	9503-				●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP)	8-97077-346-3	02	1	9503-				●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>	8-97077-346-3	02	1	9503-						●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP)	8-97077-346-3	02	1	9503-						●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP)	8-97031-008-1	02	1	9304-9502		●	●	●		●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97031-008-1	02	1	9304-9502		●	●	●		●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP)	8-97031-008-2	02	1	9503-		●	●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97031-008-2	02	1	9503-						●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP)	8-97031-008-2	02	1	9503-						●
26	BOLT; BRK,DISC TO HUB	8-97081-913-0	12	1	9304-	●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97081-913-0	12	1	9304-					●
26	BOLT; BRK,DISC TO HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94474-923-0	24	1	9503-9703		●
26	BOLT; BRK,DISC TO HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94474-923-0	24	1	9704-		●	●	●	●	●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97031-209-0	10	1	9304-9406		●	●	●		●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97031-209-0	10	1	9407-		●	●	●		●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(6PP)	8-94368-555-0	02	1	9304-9806	●	●	●	●	●	●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97211-082-0	02	1	9807-	●	●	●	●	●	●
28	SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-117-1	02	1	9304-9504		●	●	●		●
28	SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-117-1	02	1	9505-		●	●	●	●	●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-265-0	01	1	9304-	●	●	●	●	●	●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-264-0	01	1	9304-	●	●	●	●	●	●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-698-2	01	1	9503-9703		●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-698-2	01	1	9704-		●	●	●	●	●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-697-2	01	1	9503-9703		●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-697-2	01	1	9704-		●	●	●	●	●
32	BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) (A) M8X10 W/LK WASHER	8-97025-916-0	06	1	9304-	●	●	●	●	●	●
32	BOLT; DUST COVER TO KNUCKLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 W/LK WASHER	0-50041-020-0	06	1	9503-9703		●
32	BOLT; DUST COVER TO KNUCKLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 W/LK WASHER	0-50041-020-0	06	1	9704-		●	●	●	●	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-207-0	02	1	9304-9502		●	●	●		●
67	ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-207-0	02	1	9503-		●	●	●		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97033-681-1	02	1	9704-		●	●	●		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97120-476-0	02	1	9704-		●		●		●

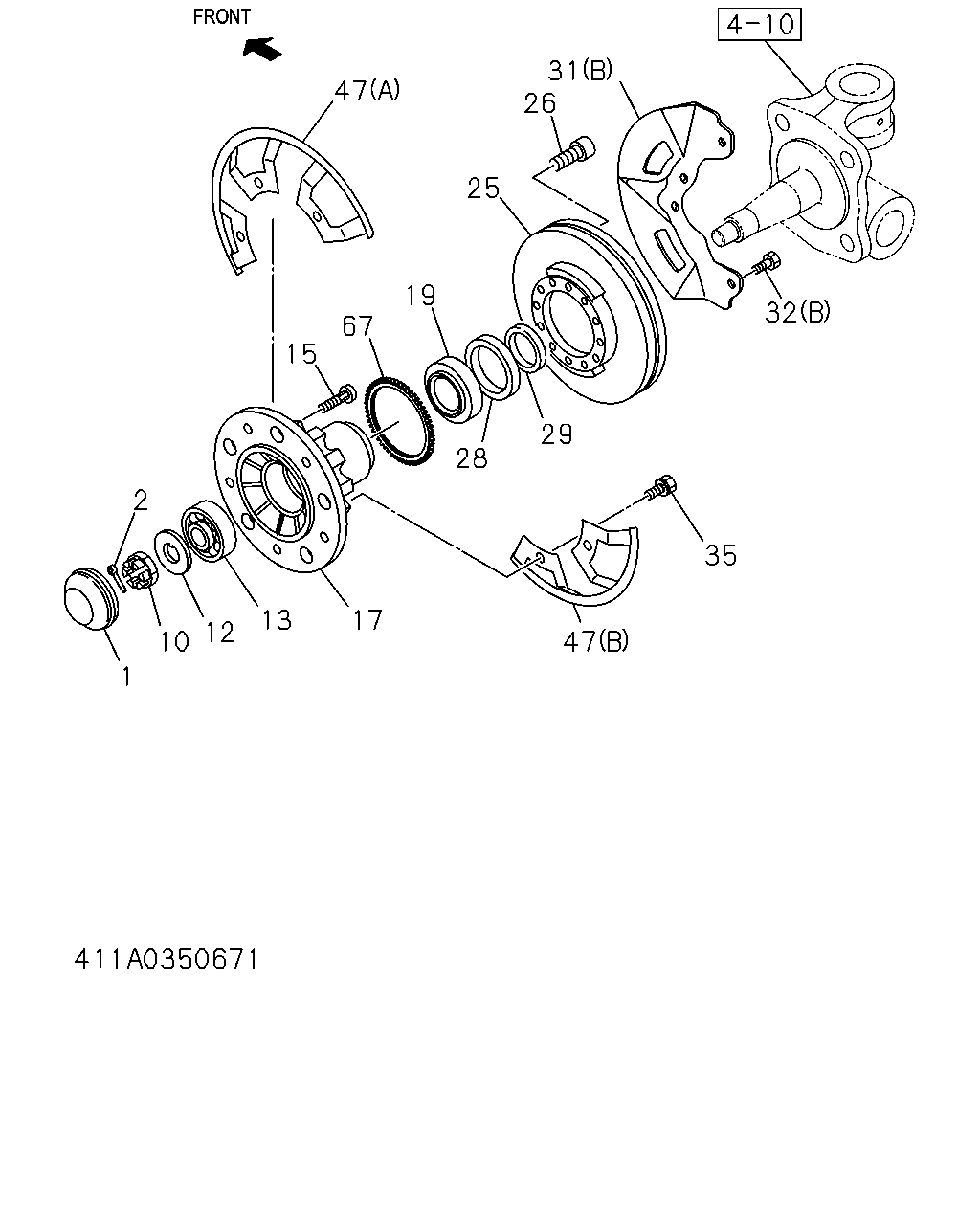

47 25 26 31 32 29 28 35 47 17 13 12 10 1 2 15 67 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAP; HUB,FRT AXLE	8-97012-619-0	02	1	9304-	●	●	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT	9-08105-040-0	02	1	9304-9809	●	●	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	9-08115-040-0	02	1	9810-	●	●	●	●	●	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	9304-	●	●	●	●	●	●
12	WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-356-1	02	1	9304-9504		●	●	●		●
12	WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-356-1	02	1	9505-		●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	8-94248-083-1	02	1	9304-	●	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	9304-	●	●	●	●	●	●
15	PIN; WHEEL,FRT AXLE M14X45 LH THREAD	8-94342-389-0	06	1	9304-9411	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M14X45 LH THREAD	8-94342-389-0	06	1	9304-9411					●
15	PIN; WHEEL,FRT AXLE M14X39 LH THREAD	8-97126-491-0	06	1	9412-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M14X39 LH THREAD	8-97126-491-0	06	1	9412-					●
15	PIN; WHEEL,FRT AXLE RH THREAD M14X45	8-94342-388-0	06	1	9304-9411	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M14X45	8-94342-388-0	06	1	9304-9411					●
15	PIN; WHEEL,FRT AXLE RH THREAD M14X39	8-97126-490-0	06	1	9412-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M14X39	8-97126-490-0	06	1	9412-					●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9304-9406		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9407-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9503-9703		●	●	●		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> M18X46 LH THREAD	8-97017-042-0	05	1	9503-9703		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9704-		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 LH THREAD	8-97017-042-0	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9304-9406		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9407-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M18X46	8-97017-041-0	05	1	9503-9703		●	●	●		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV> RH THREAD M18X46	8-97017-041-0	05	1	9503-9703		●
15	PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X46 RH THREAD	8-97017-041-0	05	1	9704-		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) M18X46 RH THREAD	8-97017-041-0	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9304-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9503-9506		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9507-9703		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	9704-		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9304-9502		●	●	●		●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9503-9506		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9507-9703		●	●	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	9704-		●	●	●		●
17	HUB; FRT AXLE	8-94365-825-3	02	1	9304-9502	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94365-825-3	02	1	9304-9502					●
17	HUB; FRT AXLE	8-97090-751-0	02	1	9503-	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97090-751-0	02	1	9503-					●
17	HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97017-193-0	02	1	9503-9703		●
17	HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP)	8-97017-193-0	02	1	9704-		●		●	●	●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97033-167-0	02	1	9304-9406		●	●	●		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97033-167-0	02	1	9407-9711		●	●	●		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97188-443-0	02	1	9712-		●	●	●		●
17	HUB; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9304-9502		●	●	●		●
17	HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9503-9506		●	●	●	●	●
17	HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9507-9703		●	●	●	●	●
17	HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94365-459-0	02	1	9704-		●	●	●		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-160-0	02	1	9704-		●	●	●		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97140-126-0	02	1	9704-		●		●		●
19	BEARING; HUB INNER,FRT AXLE NSK	8-94336-289-0	02	1	9304-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-94336-289-0	02	1	9304-					●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94336-290-0	02	1	9304-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94336-290-0	02	1	9304-					●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-97034-255-0	02	1	9304-9406		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) NSK	8-97034-255-0	02	1	9407-		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94248-088-1	02	1	9304-9504		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT	8-94248-088-1	02	1	9505-		●	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK	9-00093-149-0	02	1	9304-9504		●	●	●		●
19	BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK	9-00093-149-0	02	1	9505-		●	●	●	●	●
25	ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-007-1	02	1	9304-	●				●
25	ROTOR; DISC BRK,FRT FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7-16-8L 5.5FX16-115LOW NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) DISC BRAKE FRT<J52> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV>	8-97015-887-0	02	1	9503-9703		●
25	ROTOR; DISC BRK,FRT FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR 7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 195/85R16 5.5JX16-116.5(9HF),FRT& RR 205/85R16 5.5JX16-116.5(9YD),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FR T&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH), FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP),FRONT WIDE TREAD<7GV>	8-97015-887-0	02	1	9704-		●
25	ROTOR; DISC BRK,FRT FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT), FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR 195/85R16 5.5JX16-116.5(9HF),FRT&RR 195/85R16 RIB 16X5.5J-116.5(9TX) ,FRT&RR 205/85R16 5.5JX16-116.5(9YD) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-			●
25	ROTOR; DISC BRK,FRT FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12 16X5.5F-115(9GE),FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT &RR 205/85R16 5.5JX16-116.5(9YD) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-				●
25	ROTOR; DISC BRK,FRT FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-					●
25	ROTOR; DISC BRK,FRT FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16 RR 185R14-8(9TR),FRT 195/85R16 RR 185R14-8(9XA),FRT&R R 205/85R16 5.5JX16-116.5(9YD),FRT&RR 205/60R17.5 17.5X5.25-115(9ZG),FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97015-887-0	02	1	9704-						●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FLOOR REMOTESHIFT<M11>	8-97077-346-2	02	1	9304-9502		●	●	●		●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FLOOR REMOTESHIFT<M11>	8-97077-346-3	02	1	9503-		●	●	●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP)	8-97077-346-3	02	1	9503-		●	●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>	8-97077-346-3	02	1	9503-		●	●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97077-346-3	02	1	9503-				●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP)	8-97077-346-3	02	1	9503-				●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>	8-97077-346-3	02	1	9503-						●
25	ROTOR; DISC BRK,FRT A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP)	8-97077-346-3	02	1	9503-						●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP)	8-97031-008-1	02	1	9304-9502		●	●	●		●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97031-008-1	02	1	9304-9502		●	●	●		●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP)	8-97031-008-2	02	1	9503-		●	●
25	ROTOR; DISC BRK,FRT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97031-008-2	02	1	9503-						●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP)	8-97031-008-2	02	1	9503-						●
26	BOLT; BRK,DISC TO HUB	8-97081-913-0	12	1	9304-	●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97081-913-0	12	1	9304-					●
26	BOLT; BRK,DISC TO HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94474-923-0	24	1	9503-9703		●
26	BOLT; BRK,DISC TO HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94474-923-0	24	1	9704-		●	●	●	●	●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97031-209-0	10	1	9304-9406		●	●	●		●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97031-209-0	10	1	9407-		●	●	●		●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(6PP)	8-94368-555-0	02	1	9304-9806	●	●	●	●	●	●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(6PP)	8-97211-082-0	02	1	9807-	●	●	●	●	●	●
28	SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-117-1	02	1	9304-9504		●	●	●		●
28	SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-117-1	02	1	9505-		●	●	●	●	●
29	DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94246-302-0	02	1	9304-9504		●	●	●		●
29	DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94246-302-0	02	1	9505-		●	●	●	●	●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-265-0	01	1	9304-	●	●	●	●	●	●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-264-0	01	1	9304-	●	●	●	●	●	●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-698-2	01	1	9503-9703		●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-698-2	01	1	9704-		●	●	●	●	●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-697-2	01	1	9503-9703		●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97023-697-2	01	1	9704-		●	●	●	●	●
32	BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) (A) M8X10 W/LK WASHER	8-97025-916-0	06	1	9304-	●	●	●	●	●	●
32	BOLT; DUST COVER TO KNUCKLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 W/LK WASHER	0-50041-020-0	06	1	9503-9703		●
32	BOLT; DUST COVER TO KNUCKLE DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 W/LK WASHER	0-50041-020-0	06	1	9704-		●	●	●	●	●
35	BOLT; DRUM COVER DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X20 W/LK WASHER	0-50041-020-0	10	1	9503-9703		●
35	BOLT; DRUM COVER DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X20 W/LK WASHER	0-50041-020-0	10	1	9704-		●		●
47	HOLDER; TIRE VALVE,FRT HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94479-193-0	02	1	9503-9703		●
47	HOLDER; TIRE VALVE,FRT HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94479-193-0	02	1	9704-		●		●
47	HOLDER; TIRE VALVE,FRT HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94479-194-0	02	1	9503-9703		●
47	HOLDER; TIRE VALVE,FRT HUB DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94479-194-0	02	1	9704-		●		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-207-0	02	1	9304-9502		●	●	●		●
67	ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-207-0	02	1	9503-		●	●	●		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97033-681-1	02	1	9704-		●	●	●		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97120-476-0	02	1	9704-		●		●		●

70 71 69 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	F
69	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-183-3	01	1	9304-9502	●	●	●	●
69	SENSOR; SPEED FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-183-4	01	1	9503-	●	●	●	●
69	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-182-3	01	1	9304-9502	●	●	●	●
69	SENSOR; SPEED FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-182-4	01	1	9503-	●	●	●	●
70	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97037-527-0	01	1	9304-9502	●	●	●	●
70	BRACKET; SPEED SENSOR FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97037-527-1	01	1	9503-	●	●	●	●
70	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97037-526-0	01	1	9304-9502	●	●	●	●
70	BRACKET; SPEED SENSOR FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97037-526-1	01	1	9503-	●	●	●	●
71	BOLT; SENSOR TO KNUCKLE 4 WHEEL ANTI LOCK BRAKE<JE5> M8X16 W/LK WASHER	0-50040-816-0	06	1	9304-9502	●	●	●	●
71	BOLT; SENSOR TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5> M8X16 W/LK WASHER	0-50040-816-0	06	1	9503-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
