4-02 — PROPELLER SHAFT GUARD (#166727) — 74 parça

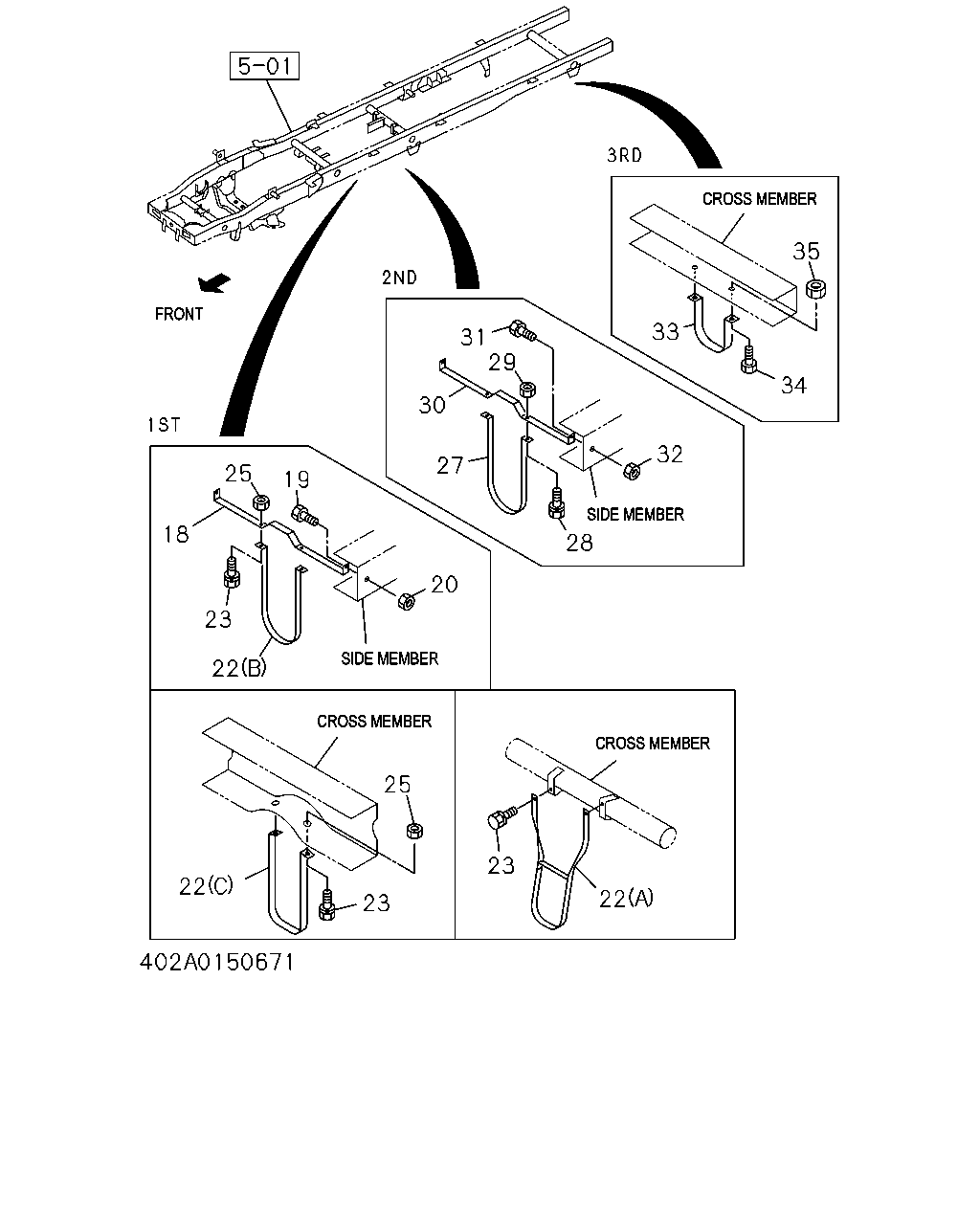

çizim 494347
35 34 33 32 28 27 30 31 29 19 25 18 23 22 20 25 23 22 23 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 BRACKET; PROP SHAFT GUARD 8-97035-289-0 01 1 9304-9306 ● ●
18 BRACKET; PROP SHAFT GUARD
EXC. GARBAGE/VACUUM CHASSIS(V4G) 		8-97035-289-1 01 1 9307- ●
18 BRACKET; PROP SHAFT GUARD 8-97035-289-1 01 1 9307- ●
18 BRACKET; PROP SHAFT GUARD
REAR WIDE TREAD(V4T) 		8-97035-290-0 01 1 9304- ●
18 BRACKET; PROP SHAFT GUARD
EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97035-290-0 01 1 9304- ● ● ●
18 BRACKET; PROP SHAFT GUARD
M/T MXA5R(RMT) BOTTLE CARRIER CHASSIS(V4E) 		8-97048-547-0 01 1 9304- ●
19 BOLT; BRKT,PROP SHAFT GUARD
M10X25 FLANGE 		0-28081-025-0 02 1 9304-9702 ● ● ● ● ●
19 BOLT; BRKT,PROP SHAFT GUARD
REAR WIDE TREAD(V4T) M10X25 FLANGE 		0-28081-025-0 02 1 9304-9702 ●
19 BOLT; BRKT,PROP SHAFT GUARD
M10X30 FLANGE 		0-28681-030-0 02 1 9703- ● ● ● ● ●
19 BOLT; BRKT,PROP SHAFT GUARD
REAR WIDE TREAD(V4T) M10X30 FLANGE 		0-28681-030-0 02 1 9703- ●
20 NUT; BRKT,PROP SHAFT GUARD
M10 FLANGE 		0-91150-110-0 02 1 9304- ● ● ● ● ●
20 NUT; BRKT,PROP SHAFT GUARD
REAR WIDE TREAD(V4T) M10 FLANGE 		0-91150-110-0 02 1 9304- ●
22 GUARD; PROP SHAFT
(B) L=220 		8-94115-619-0 01 1 9304-9306 ● ●
22 GUARD; PROP SHAFT
EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) L=220 		8-94115-619-0 01 1 9307-9503 ●
22 GUARD; PROP SHAFT
(B) L=220 		8-94115-619-0 01 1 9307-9503 ●
22 GUARD; PROP SHAFT
EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) L=220 		8-94115-619-0 01 1 9503- ●
22 GUARD; PROP SHAFT
FLOOR REMOTE SHIFT<M11> (B) L=220 		8-94115-619-0 01 1 9503- ●
22 GUARD; PROP SHAFT
LOADING CAPACITY - 3000 KG<RPJ> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) 		8-97137-823-0 01 1 9508-9509 ●
22 GUARD; PROP SHAFT
FRAME-KICK UP<7EW> (A) 		8-97137-823-0 01 1 9510- ●
22 GUARD; PROP SHAFT
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97107-051-0 01 1 9503-9503 ●
22 GUARD; PROP SHAFT
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97107-051-0 01 1 9504-9507 ●
22 GUARD; PROP SHAFT
LOADING CAPACITY - 2000 KG<RPE> FRAME-KICK UP<7EW> (A) 		8-97107-051-0 01 1 9508-9509 ●
22 GUARD; PROP SHAFT
LOADING CAPACITY - 3000 KG<RPJ> FRAME-KICK UP<7EW> EXC. DUMP CHASSIS(V4D) (A) 		8-97107-051-0 01 1 9508-9509 ●
22 GUARD; PROP SHAFT
REAR WIDE TREAD(V4T) (B) L=227 		8-94116-995-1 01 1 9304-9503 ●
22 GUARD; PROP SHAFT
EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=227 		8-94116-995-1 01 1 9304-9503 ● ● ●
22 GUARD; PROP SHAFT
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) L=227 		8-94116-995-1 01 1 9503- ●
22 GUARD; PROP SHAFT
EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=227 		8-94116-995-1 01 1 9503- ● ● ●
22 GUARD; PROP SHAFT
EXC. FLOOR REMOTE SHIFT<M11> (B) L=227 		8-94116-995-1 01 1 9503- ●
22 GUARD; PROP SHAFT
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97085-815-1 01 1 9304-9502 ●
22 GUARD; PROP SHAFT
REAR AXLE HEAVY DUTY 292MM(G73) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97085-815-1 01 1 9503-9503 ●
22 GUARD; PROP SHAFT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9304-9306 ●
22 GUARD; PROP SHAFT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9304-9306 ●
22 GUARD; PROP SHAFT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94459-273-0 01 1 9304-9306 ●
22 GUARD; PROP SHAFT
GARBAGE/VACUUM CHASSIS(V4G) (C) 		8-94459-273-0 01 1 9307-9502 ●
22 GUARD; PROP SHAFT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9307-9502 ●
22 GUARD; PROP SHAFT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-94459-273-0 01 1 9307-9502 ●
22 GUARD; PROP SHAFT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94459-273-0 01 1 9307-9502 ●
22 GUARD; PROP SHAFT
GARBAGE/VACUUM CHASSIS(V4G) (C) 		8-94459-273-0 01 1 9503-9605 ●
22 GUARD; PROP SHAFT
4JG2 ENG(RJC) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9503-9605 ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-94459-273-0 01 1 9503-9605 ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94459-273-0 01 1 9503-9605 ●
22 GUARD; PROP SHAFT
GARBAGE/VACUUM CHASSIS(V4G) (C) 		8-94459-273-0 01 1 9606-9703 ●
22 GUARD; PROP SHAFT
4JG2 ENG(RJC) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9606-9703 ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-94459-273-0 01 1 9606-9703 ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94459-273-0 01 1 9606-9703 ●
22 GUARD; PROP SHAFT
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9606-9703 ●
22 GUARD; PROP SHAFT
GARBAGE/VACUUM CHASSIS(V4G) (C) 		8-94459-273-0 01 1 9704- ●
22 GUARD; PROP SHAFT
4JG2 ENG(RJC) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9704- ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94459-273-0 01 1 9704- ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-94459-273-0 01 1 9704- ●
22 GUARD; PROP SHAFT
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94459-273-0 01 1 9704- ●
22 GUARD; PROP SHAFT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97095-507-0 01 1 9304-9502 ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97095-507-0 01 1 9503-9703 ●
22 GUARD; PROP SHAFT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97095-507-0 01 1 9704- ●
22 GUARD; PROP SHAFT
M/T MXA5R(RMT) BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97089-293-0 01 1 9304- ●
23 BOLT; GUARD
EXC. BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9411 ● ● ● ● ● ●
23 BOLT; GUARD
EXC. BOTTLE CARRIER CHASSIS(V4E) M8X25 FLANGE 		0-28680-825-0 02 1 9412- ● ● ● ● ● ●
25 NUT; GUARD
EXC. BOTTLE CARRIER CHASSIS(V4E) M8 FLANGE 		0-91150-108-0 02 1 9304- ● ● ● ● ●
25 NUT; GUARD
REAR WIDE TREAD(V4T) M8 FLANGE 		0-91150-108-0 02 1 9304- ●
25 NUT; GUARD
SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE 		0-91150-108-0 02 1 9304- ●
27 GUARD; PROP SHAFT,2ND
BOTTLE CARRIER CHASSIS(V4E) L=160 		5-53493-064-1 01 1 9304- ●
27 GUARD; PROP SHAFT,2ND
EXC. BOTTLE CARRIER CHASSIS(V4E) L=227 		8-94116-995-1 01 1 9304- ● ●
28 BOLT; GUARD,PROP SHAFT,2ND
M8X20 FLANGE 		0-28080-820-0 02 1 9304-9411 ● ●
28 BOLT; GUARD,PROP SHAFT,2ND
M8X25 FLANGE 		0-28680-825-0 02 1 9412- ● ●
29 NUT; GUARD,PROP SHAFT,2ND
M8 FLANGE 		0-91150-108-0 02 1 9304- ● ●
30 BRACKET; PROP SHAFT,2ND
BOTTLE CARRIER CHASSIS(V4E) 		8-97048-548-0 01 1 9304- ●
30 BRACKET; PROP SHAFT,2ND
EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97035-290-0 01 1 9304- ● ●
31 BOLT; BRKT,PROP SHAFT,2ND,GUARD
M10X25 FLANGE 		0-28081-025-0 02 1 9304-9702 ● ●
31 BOLT; BRKT,PROP SHAFT,2ND,GUARD
M10X30 FLANGE 		0-28681-030-0 02 1 9703- ● ●
32 NUT; BRKT,PROP SHAFT,2ND,GUARD
M10 FLANGE 		0-91150-110-0 02 1 9304- ● ●
33 GUARD; PROP SHAFT,3RD
BOTTLE CARRIER CHASSIS(V4E) L=215 		5-53493-065-1 01 1 9304- ●
34 BOLT; GUARD,PROP SHAFT,3RD
BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9411 ●
34 BOLT; GUARD,PROP SHAFT,3RD
BOTTLE CARRIER CHASSIS(V4E) M8X25 FLANGE 		0-28680-825-0 02 1 9412- ●
35 NUT; GUARD,PROP SHAFT,3RD
BOTTLE CARRIER CHASSIS(V4E) M8 FLANGE 		0-91150-108-0 02 1 9304- ●
