Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#166721) — 383 parça

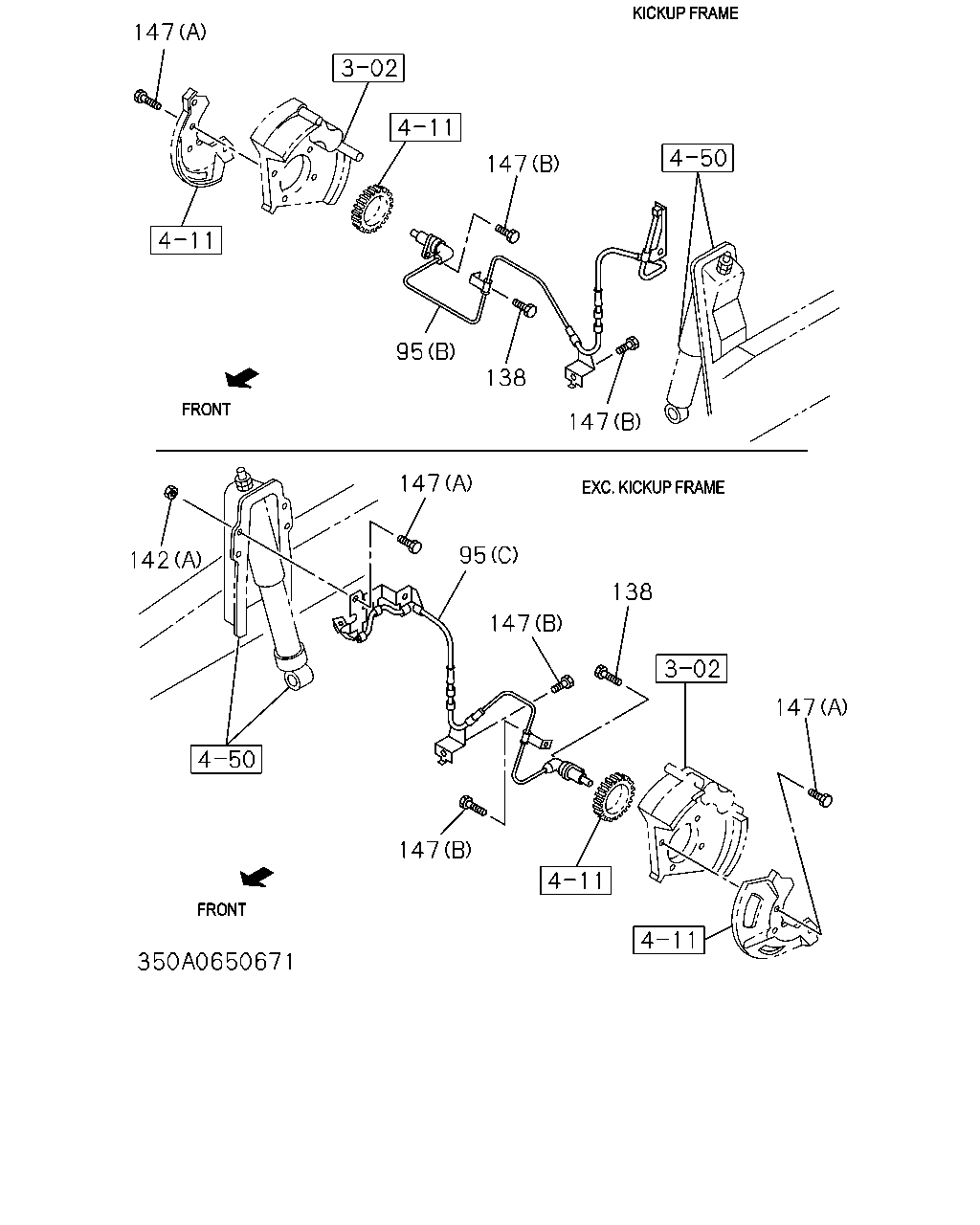

142 147 95 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

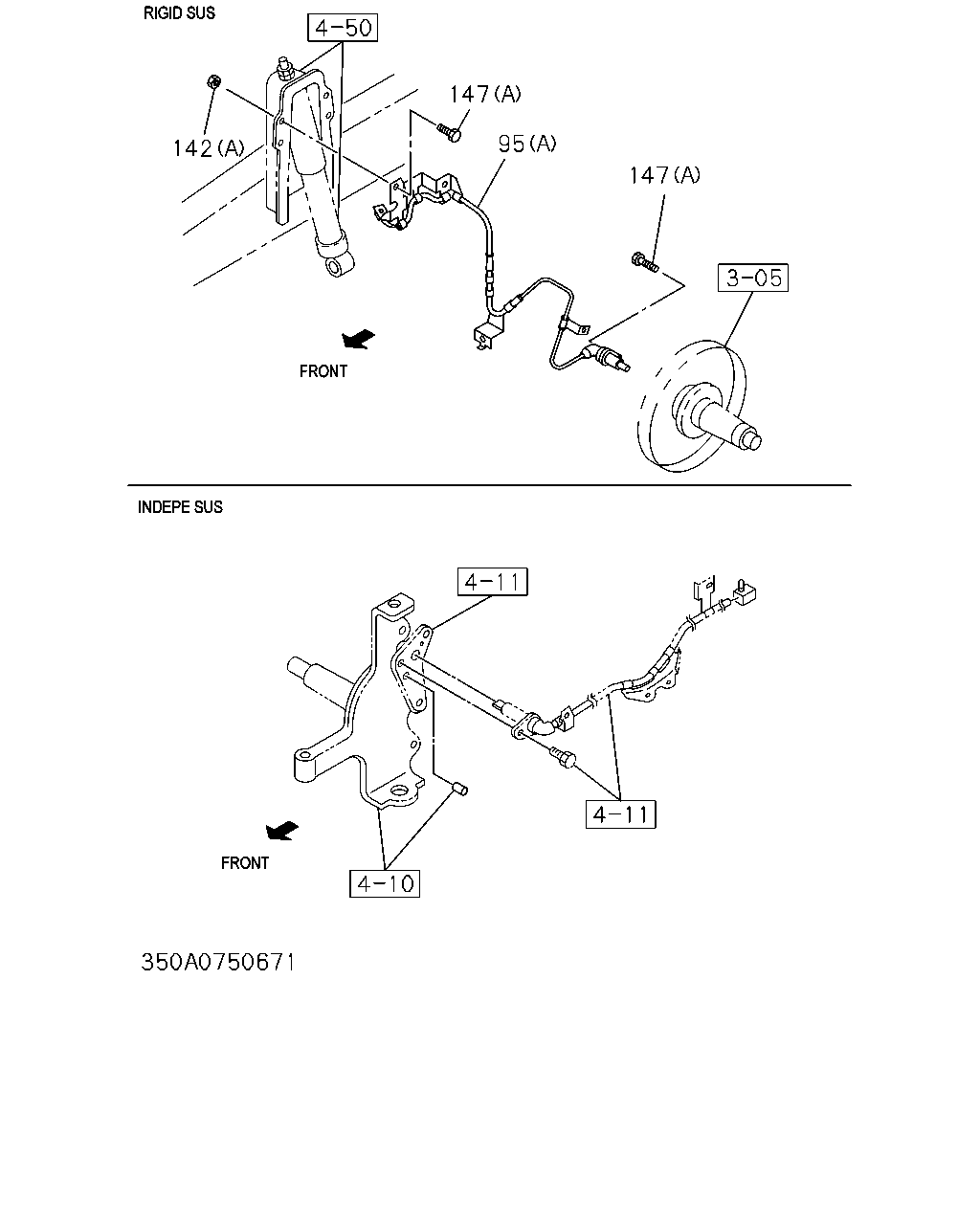

95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97123-232-1	01	1	9704-	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97123-231-1	01	1	9704-	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97118-930-3	01	1	9704-	●	●	●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97118-926-2	01	1	9704-	●	●	●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97118-932-1	01	1	9704-9705			●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97181-951-0	01	1	9706-			●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97118-928-1	01	1	9704-9705			●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97181-950-0	01	1	9706-			●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (A) M8 FLANGE	0-91150-108-0	02	1	9704-	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A) M8 FLANGE	0-91150-108-0	02	1	9704-			●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6 FLANGE	0-91150-106-0	01	1	9304-9703	●	●	●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (B) M6 FLANGE	0-91150-106-0	01	1	9704-	●	●	●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M6 FLANGE	0-91150-106-0	01	1	9704-	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) M8 FLANGE	0-91150-108-0	04	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X20 FLANGE	0-28080-820-0	02	1	9304-9503	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X20 FLANGE	0-28680-820-0	02	1	9504-9703	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 FLANGE	0-28680-820-0	02	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (C) M8X20 FLANGE	0-28680-820-0	02	1	9704-	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X12 FLANGE	0-28080-812-0	04	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) M8X20 FLANGE	0-28680-820-0	04	1	9704-	●	●	●	●

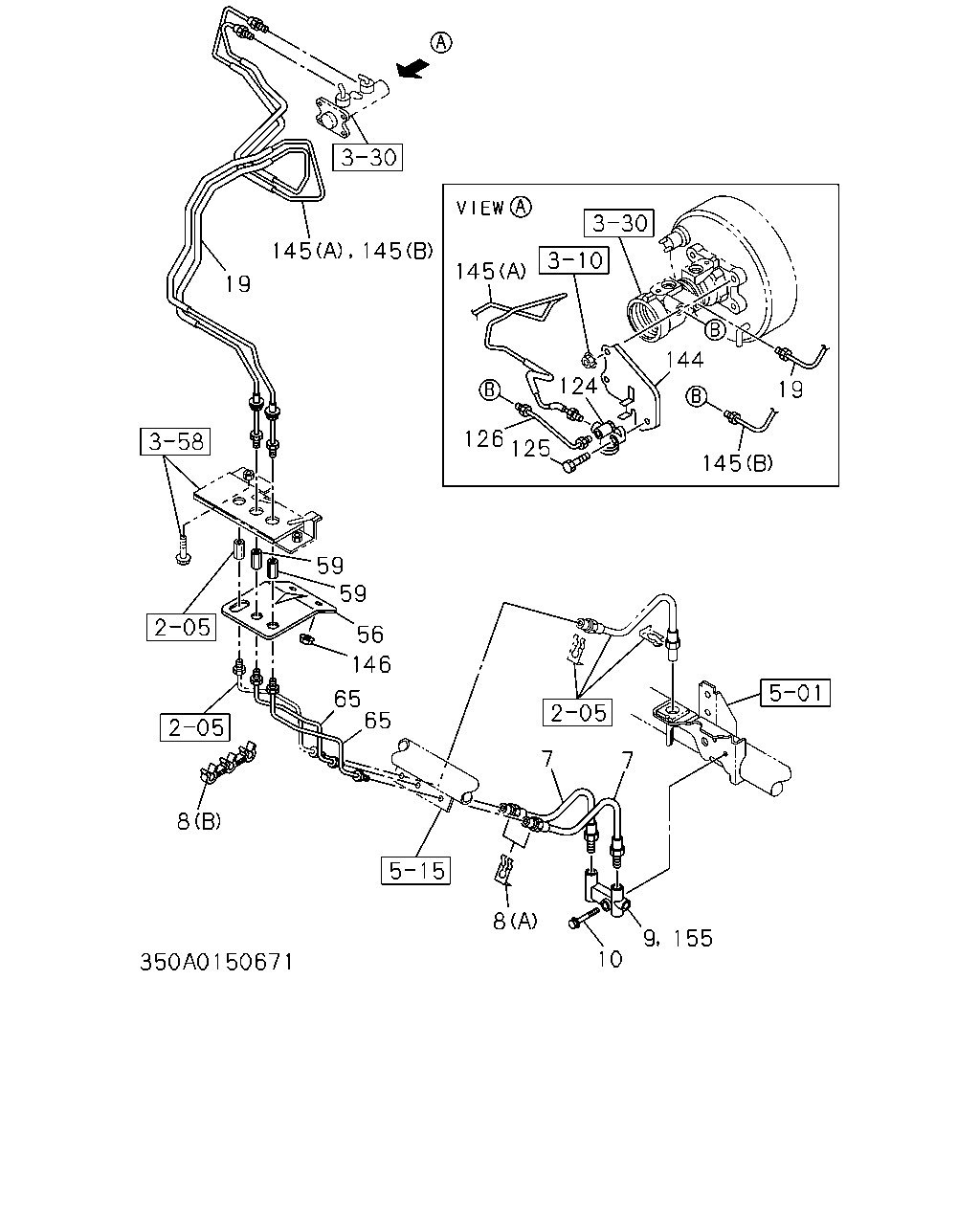

145 145 144 145 126 125 124 145 19 19 8 59 59 56 146 65 65 7 7 8 10 155 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97035-573-0	02	1	9304-9801	●	●	●	●	●	●
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	9802-	●	●	●	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-94167-006-0	02	1	9304-	●	●	●	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	9304-	●	●	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-47456-009-0	01	1	9304-9703	●	●	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9704-	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-0	01	1	9304-9703	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-0	01	1	9704-	●	●	●	●
10	BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9304-9704	●	●	●	●	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28680-640-0	01	1	9704-	●	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION	8-97035-989-1	01	1	9304-9801	●	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION	8-97164-844-2	01	1	9802-	●	●	●	●	●	●
56	BRACKET; UNION,BRK	8-97078-564-1	01	1	9304-	●	●	●	●	●	●
59	UNION; BRK PIPE M10 STRAIGHT	9-09227-005-0	02	1	9304-	●	●	●	●	●	●
65	PIPE; OIL,UNION TO FRT FLEX HOSE	8-97035-978-0	02	1	9304-	●	●	●	●	●	●
124	VALVE; METERING A/T 4 SPEED-JATCO(RMK) DISC BRAKE FRT<J52>	8-97042-955-2	01	1	9304-9506	●	●	●	●	●	●
125	BOLT; VALVE A/T 4 SPEED-JATCO(RMK) DISC BRAKE FRT<J52> M6X35 W/LK&PL WASHER	0-50140-635-0	01	1	9304-9506	●	●	●	●	●	●
126	PIPE; BRK,M/CYL TO METERING VLV A/T 4 SPEED-JATCO(RMK) DISC BRAKE FRT<J52>	8-97046-301-1	01	1	9304-9506	●	●	●	●	●	●
144	BRACKET; METERING VALVE A/T 4 SPEED-JATCO(RMK) DISC BRAKE FRT<J52>	8-97042-956-0	01	1	9304-9506	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION A/T 4 SPEED-JATCO(RMK) DISC BRAKE FRT<J52> (A)	8-97046-302-1	01	1	9304-9506	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION A/T 4 SPEED-JATCO(RMK) EXC. DISC BRAKE FRT<J52> (B)	8-97035-988-1	01	1	9304-9502	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> (B)	8-97035-988-1	01	1	9304-9502	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION A/T 4 SPEED-JATCO(RMK) EXC. DISC BRAKE FRT<J52> (B)	8-97090-742-0	01	1	9503-9506	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> (B)	8-97090-742-0	01	1	9503-9506	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION (B)	8-97090-742-0	01	1	9507-9603	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION (B)	8-97145-913-0	01	1	9604-9801	●	●	●	●	●	●
145	PIPE; BRK,METERING VLV TO UNION (B)	8-97164-840-2	01	1	9802-	●	●	●	●	●	●
146	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9304-	●	●	●	●	●	●
155	JOINT; 6WAY	8-97120-033-1	01	1	9704-					●	●
155	JOINT; 6WAY BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-1	01	1	9704-	●	●	●	●

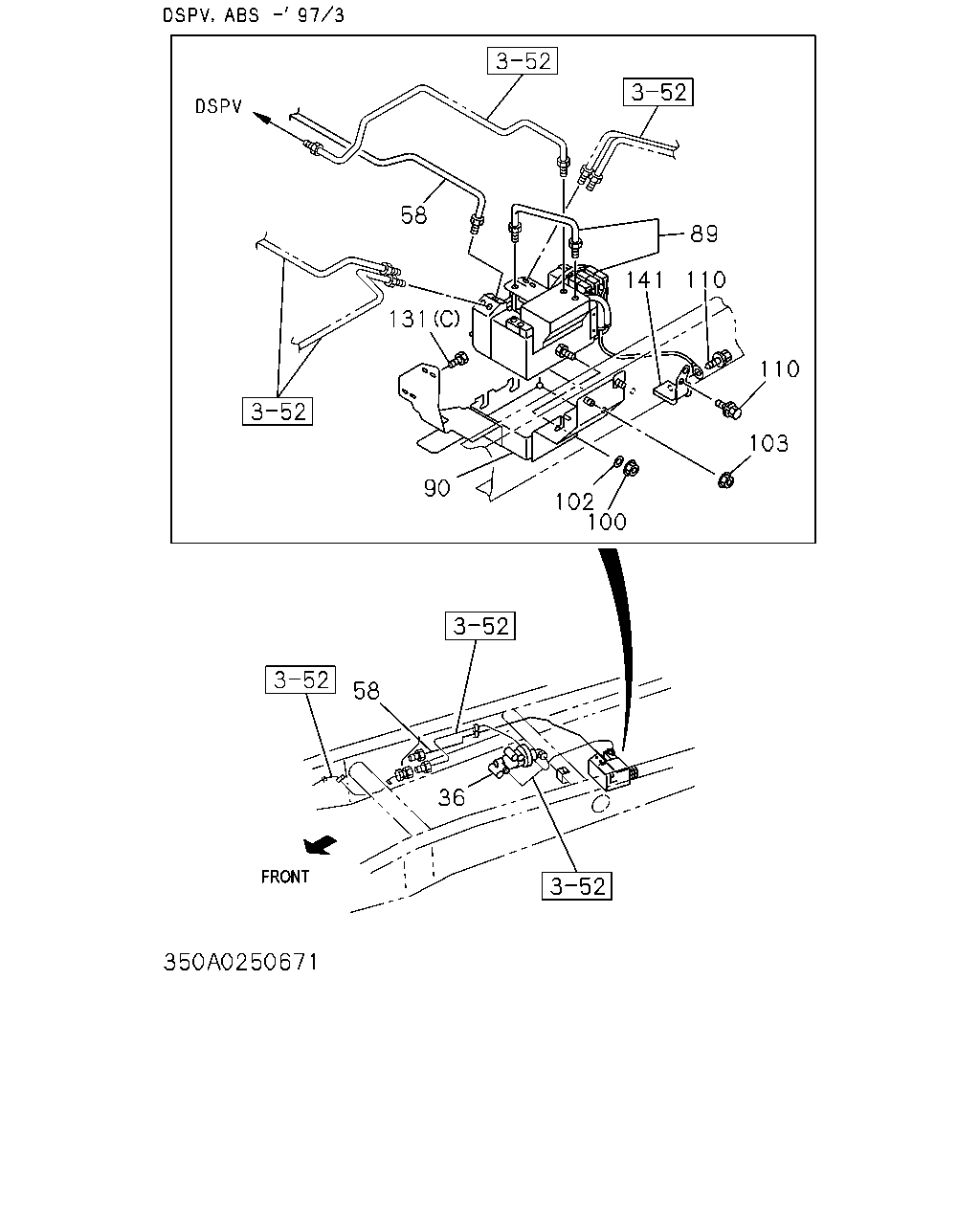

58 131 141 89 110 110 103 100 102 90 58 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

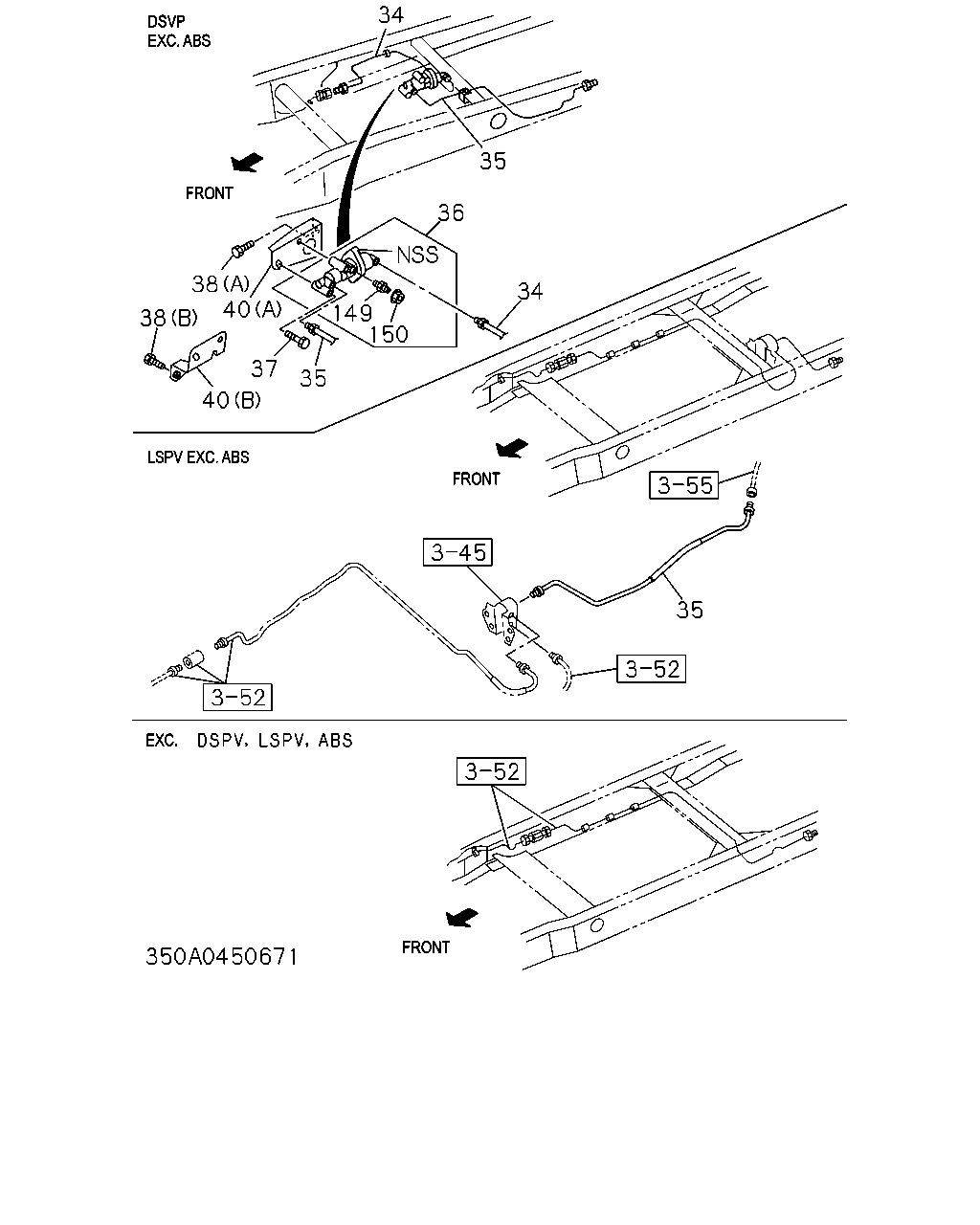

36	VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	9304-9502	●	●	●	●	●	●
36	VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	9503-9703	●	●				●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97076-535-3	01	1	9304-9502	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U>	8-97076-535-3	01	1	9304-9502	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	8-97075-954-2	01	1	9304-9502	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97066-678-3	01	1	9304-9502		●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97063-455-4	01	1	9304-9502			●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-066-3	01	1	9304-9405	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97115-502-0	01	1	9406-9502	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-97115-502-1	01	1	9503-9703	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-97118-913-1	01	1	9704-	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH>	8-97090-840-1	01	1	9503-9703	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH>	8-97118-912-1	01	1	9704-	●	●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97035-805-4	01	1	9304-9502	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U>	8-97035-805-4	01	1	9304-9502	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97035-805-4	01	1	9304-9502		●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW>	8-97103-654-0	01	1	9503-9703	●	●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW>	8-97118-914-1	01	1	9704-	●	●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	8-97077-356-2	01	1	9304-9502	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW>	8-97077-356-2	01	1	9503-9703	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW>	8-97118-915-1	01	1	9704-	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97118-997-1	01	1	9704-		●	●	●
100	NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91150-108-0	03	1	9304-	●	●	●	●
102	WASHER; PL,HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> ID=8.4 OD=22	9-09164-708-0	02	1	9304-9703	●	●	●	●
102	WASHER; PL,HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> ID=8.4 OD=22	9-09164-708-0	02	1	9704-	●	●	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) M8 FLANGE	0-91150-108-0	04	1	9304-9304	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	04	1	9304-9304	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91150-108-0	04	1	9304-9304		●	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) M8 FLANGE	0-91150-108-0	03	1	9304-9502	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	03	1	9304-9502	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91150-108-0	03	1	9304-9502		●	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	01	1	9503-9703	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	02	1	9304-9304	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	01	1	9304-9502	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	03	1	9503-	●	●	●	●
110	BOLT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X22	8-94122-771-0	02	1	9304-9304	●	●	●	●
110	BOLT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9304-9703	●	●	●	●
131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8X12 FLANGE	0-28080-812-0	02	1	9304-	●	●	●	●

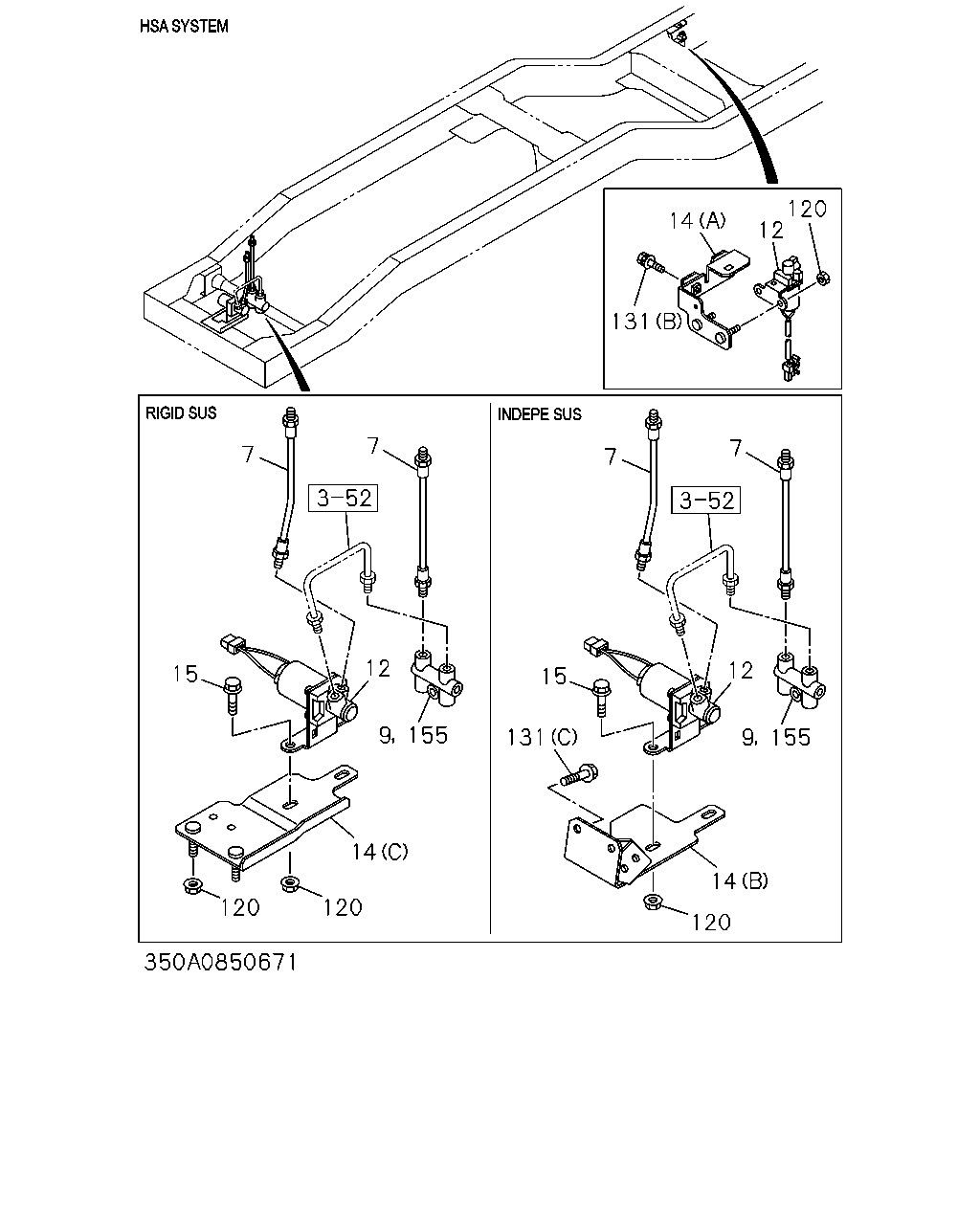

131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 W/LK&PL WASHER	0-50141-225-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-		●	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
141	BRACKET; EARTH 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97077-319-1	01	1	9304-9703	●	●	●	●

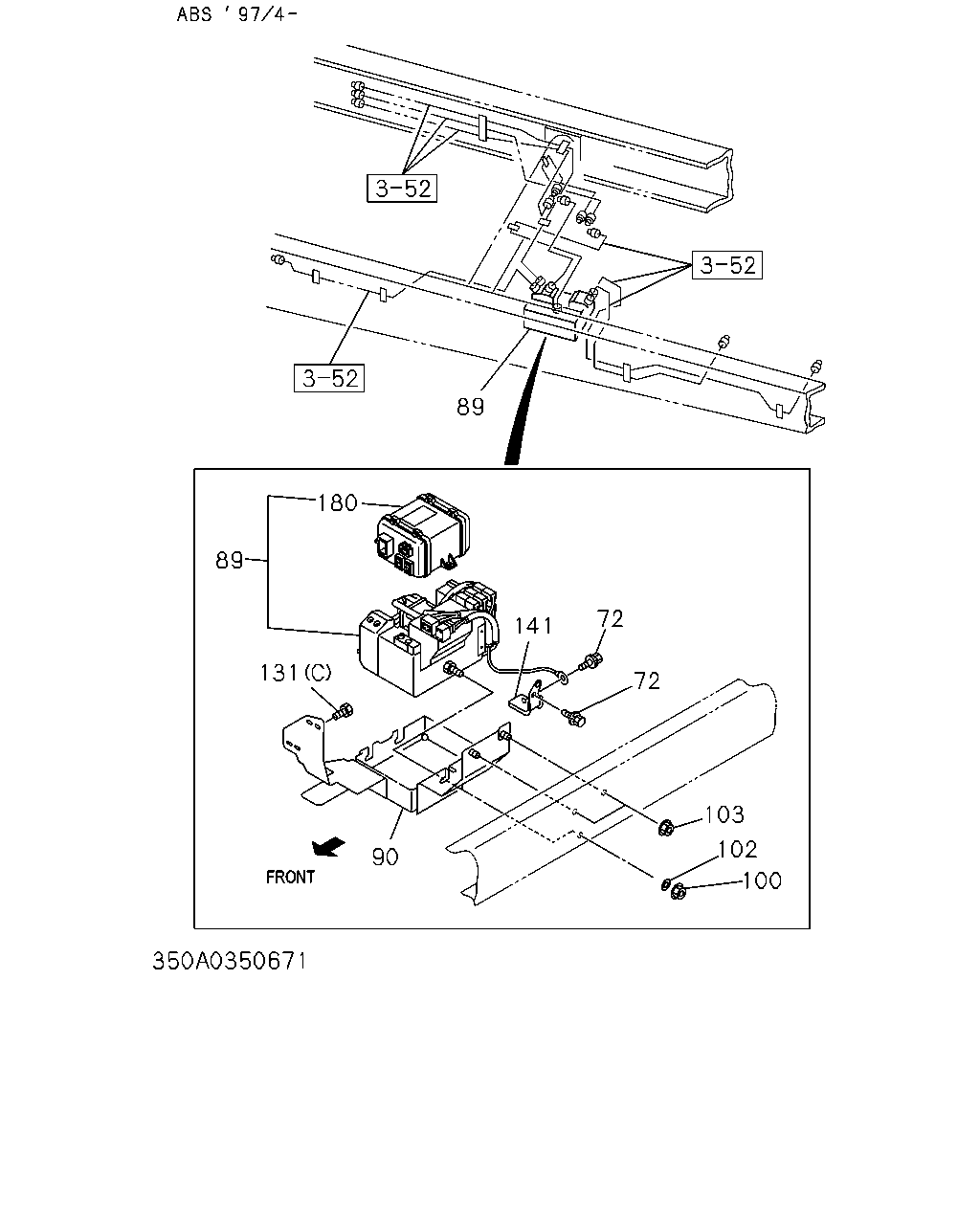

89 180 89 131 141 72 72 103 102 100 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) M8X20 FLANGE	0-28080-820-0	02	1	9304-9304	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE	0-28080-820-0	02	1	9304-9304	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28080-820-0	02	1	9304-9304		●	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M8X16 FLANGE	0-28080-816-0	02	1	9304-9703	●	●	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> M8X16 FLANGE	0-28080-816-0	01	1	9704-	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8X14 FLANGE	0-28080-814-0	02	1	9304-9304	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28080-825-0	01	1	9304-9703	●	●	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> M10X25 FLANGE	0-28681-025-0	02	1	9704-	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> M8X16 FLANGE	0-28080-816-0	02	1	9704-	●	●	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> M8X25 FLANGE	0-28680-825-0	01	1	9704-	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-066-3	01	1	9304-9405	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97115-502-0	01	1	9406-9502	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-97115-502-1	01	1	9503-9703	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-97118-913-1	01	1	9704-	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH>	8-97090-840-1	01	1	9503-9703	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH>	8-97118-912-1	01	1	9704-	●	●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97035-805-4	01	1	9304-9502	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U>	8-97035-805-4	01	1	9304-9502	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97035-805-4	01	1	9304-9502		●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW>	8-97103-654-0	01	1	9503-9703	●	●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW>	8-97118-914-1	01	1	9704-	●	●	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	8-97077-356-2	01	1	9304-9502	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW>	8-97077-356-2	01	1	9503-9703	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW>	8-97118-915-1	01	1	9704-	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97118-997-1	01	1	9704-		●	●	●
100	NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91150-108-0	03	1	9304-	●	●	●	●
102	WASHER; PL,HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> ID=8.4 OD=22	9-09164-708-0	02	1	9304-9703	●	●	●	●
102	WASHER; PL,HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> ID=8.4 OD=22	9-09164-708-0	02	1	9704-	●	●	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) M8 FLANGE	0-91150-108-0	04	1	9304-9304	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	04	1	9304-9304	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91150-108-0	04	1	9304-9304		●	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) M8 FLANGE	0-91150-108-0	03	1	9304-9502	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	03	1	9304-9502	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91150-108-0	03	1	9304-9502		●	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	01	1	9503-9703	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	02	1	9304-9304	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8 FLANGE	0-91150-108-0	01	1	9304-9502	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	03	1	9503-	●	●	●	●
131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8X12 FLANGE	0-28080-812-0	02	1	9304-	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 W/LK&PL WASHER	0-50141-225-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-		●	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
141	BRACKET; EARTH 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97077-319-1	01	1	9304-9703	●	●	●	●
180	RELAY BOX ASM; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH>	8-97174-836-0	01	1	9802-	●	●	●	●
180	RELAY BOX ASM; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-97174-837-0	01	1	9802-	●	●	●	●

34 35 36 34 38 38 40 35 37 40 149 150 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
34	PIPE; BRK,UNION TO DSPV 4HF1 ENG(RLS) BRK WHL LK CONT DSPV<JL8> SERVICED BY L=1295	5-47411-775-0	01	1	9304-9502					●	●
34	PIPE; BRK,UNION TO DSPV 4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT DSPV<JL8> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=1295	5-47411-775-0	01	1	9503-9703						●
34	PIPE; BRK,UNION TO DSPV 4JG2 ENG(RJC),4BE1 ENG(RLH) BRK WHL LK CONT DSPV<JL8>	5-47411-773-0	01	1	9304-9502					●	●
34	PIPE; BRK,UNION TO DSPV 4JG2 ENG(RJC) BRK WHL LK CONT DSPV<JL8>	5-47411-773-0	01	1	9503-9703						●
34	PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,H.S. A SYSTEM<6EP>	8-97035-361-2	01	1	9304-9502	●
34	PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-97035-361-2	01	1	9503-9703	●
34	PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,H.S. A SYSTEM<6EP>,FRT INDEPENDENT SUSPENSION(6PP)	8-97061-444-0	01	1	9304-9502	●
34	PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8> FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>,FRT INDEPENDENT SUSPENSION(6PP)	8-97061-444-0	01	1	9503-9703	●
34	PIPE; BRK,UNION TO DSPV 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) BRK WHL LK CONT DSPV<JL8> REAR WIDE TREAD(V4T) L=995 SERVICED BY L=1055	5-47411-771-0	01	1	9304-9502	●
34	PIPE; BRK,UNION TO DSPV 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) BRK WHL LK CONT DSPV<JL8> SUSPENSION - RR UNDER SLUNG<V4U> L=995 SERVICED BY L=1055	5-47411-771-0	01	1	9304-9502	●
34	PIPE; BRK,UNION TO DSPV 4HF1 ENG(RLS) BRK WHL LK CONT DSPV<JL8> REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-97035-657-1	01	1	9304-9502	●
34	PIPE; BRK,UNION TO DSPV 4HF1 ENG(RLS) BRK WHL LK CONT DSPV<JL8> SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-97035-657-1	01	1	9304-9502	●
34	PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>,FRAME-KICK UP<7EW>	8-97035-657-1	01	1	9503-9703	●
35	PIPE; BRK,VLV TO RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT DSPV<JL8>	8-97035-632-3	01	1	9304-9502					●	●
35	PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97100-892-0	01	1	9503-9703					●
35	PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97100-892-0	01	1	9704-					●
35	PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC)	8-97100-892-0	01	1	9704-						●
35	PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC) BRK WHL LK CONT DSPV<JL8>	8-97091-258-1	01	1	9304-9502					●	●
35	PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC) BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP)	8-97091-258-1	01	1	9503-9703						●
35	PIPE; BRK,VLV TO RR AXLE DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FULL FLATLOW<6GL>,FRAME-KICK UP<7EW>	8-97162-298-0	01	1	9704-	●
35	PIPE; BRK,VLV TO RR AXLE LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP)	8-97202-129-0	01	1	9804-	●
35	PIPE; BRK,VLV TO RR AXLE LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97202-130-0	01	1	9804-	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8> SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-47411-774-0	01	1	9304-9502	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8> EXC. FRAME-KICK UP<7EW>	5-47411-774-0	01	1	9503-9703	●
35	PIPE; BRK,VLV TO RR AXLE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D)	8-97176-030-0	01	1	9704-						●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97124-593-0	01	1	9503-9703	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-894-0	01	1	9704-9803	●
35	PIPE; BRK,VLV TO RR AXLE LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-894-0	01	1	9804-	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	5-47411-774-0	01	1	9304-9502	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW>	5-47411-774-0	01	1	9503-9703	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D),FRAME-KICK UP<7EW>	8-97139-895-0	01	1	9704-	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	5-47411-774-0	01	1	9304-9502	●
35	PIPE; BRK,VLV TO RR AXLE 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-97106-502-1	01	1	9503-9703					●
35	PIPE; BRK,VLV TO RR AXLE 4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-97106-502-1	01	1	9704-					●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP)	8-97118-952-1	01	1	9503-9803	●
35	PIPE; BRK,VLV TO RR AXLE LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP)	8-97118-952-1	01	1	9804-	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97124-124-1	01	1	9503-9703		●
35	PIPE; BRK,VLV TO RR AXLE DUMP CHASSIS(V4D)	8-97122-977-0	01	1	9704-						●
35	PIPE; BRK,VLV TO RR AXLE 4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP)	8-97108-798-1	01	1	9503-9703						●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-371-0	01	1	9503-9703				●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-371-0	01	1	9704-		●	●	●
36	VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	9304-9502	●	●	●	●	●	●
36	VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	9503-9703	●	●				●
37	BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> M8X70 W/LK WASHER	0-50040-870-0	02	1	9304-9502	●	●	●	●	●	●
37	BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> M8X70 W/LK WASHER	0-50040-870-0	02	1	9503-9703	●	●				●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502		●	●	●	●	●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> SUSPENSION - RR UNDER SLUNG<V4U> (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-9504	●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> SUSPENSION - RR UNDER SLUNG<V4U> (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-9504	●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-9504		●				●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> EXC. FRAME-KICK UP<7EW> (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-9703	●	●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-9703						●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9304-9502				●	●	●
38	BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9503-9703						●
40	BRACKET BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94156-783-4	01	1	9304-9502		●	●	●	●	●
40	BRACKET BRK WHL LK CONT DSPV<JL8> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-94156-783-4	01	1	9304-9502	●
40	BRACKET BRK WHL LK CONT DSPV<JL8> SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-94156-783-4	01	1	9304-9502	●
40	BRACKET BRK WHL LK CONT DSPV<JL8> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-94156-783-4	01	1	9503-9504	●
40	BRACKET BRK WHL LK CONT DSPV<JL8> SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-94156-783-4	01	1	9503-9504	●
40	BRACKET BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94156-783-4	01	1	9503-9504		●				●
40	BRACKET BRK WHL LK CONT DSPV<JL8> EXC. FRAME-KICK UP<7EW> (A)	8-94156-783-4	01	1	9505-9703	●
40	BRACKET BRK WHL LK CONT DSPV<JL8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94156-783-4	01	1	9505-9703						●
40	BRACKET BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94116-055-4	01	1	9304-9502				●	●	●
40	BRACKET BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94116-055-4	01	1	9503-9703						●
40	BRACKET BRK WHL LK CONT DSPV<JL8> (A)	8-97131-053-0	01	1	9505-9703		●
149	PLUG; BLEEDER,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-663-0	01	1	9304-9502	●	●	●	●	●	●
149	PLUG; BLEEDER,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-663-0	01	1	9503-9703	●	●				●
150	CAP; BLEEDER PLUG,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-662-0	01	1	9304-9502	●	●	●	●	●	●
150	CAP; BLEEDER PLUG,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-662-0	01	1	9503-9703	●	●				●

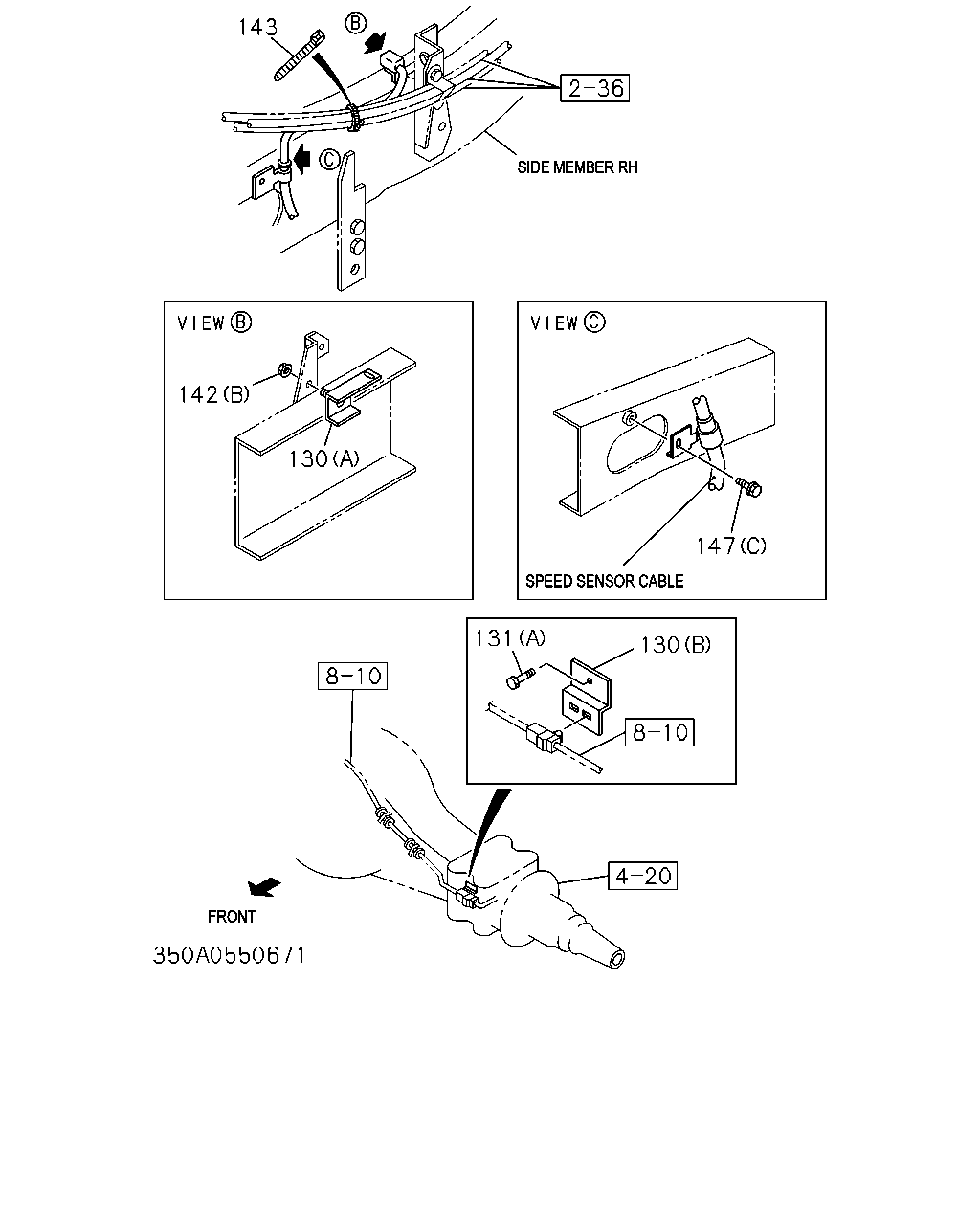

143 142 130 147 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97080-060-2	02	1	9304-	●	●	●	●
130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97077-318-1	01	1	9304-9703	●	●	●	●
130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-318-1	01	1	9704-	●	●	●	●
130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-318-1	01	1	9704-	●
131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8X12 FLANGE	0-28080-812-0	02	1	9304-	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 W/LK&PL WASHER	0-50141-225-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-		●	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (A) M8 FLANGE	0-91150-108-0	02	1	9704-	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A) M8 FLANGE	0-91150-108-0	02	1	9704-			●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6 FLANGE	0-91150-106-0	01	1	9304-9703	●	●	●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (B) M6 FLANGE	0-91150-106-0	01	1	9704-	●	●	●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M6 FLANGE	0-91150-106-0	01	1	9704-	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) M8 FLANGE	0-91150-108-0	04	1	9704-	●	●	●	●
143	CLIP; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> L=140	5-09707-031-0	01	1	9304-9703	●	●	●	●
143	CLIP; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=140	5-09707-031-1	02	1	9704-	●
143	CLIP; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) L=140	5-09707-031-1	01	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X20 FLANGE	0-28080-820-0	02	1	9304-9503	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X20 FLANGE	0-28680-820-0	02	1	9504-9703	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 FLANGE	0-28680-820-0	02	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (C) M8X20 FLANGE	0-28680-820-0	02	1	9704-	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X12 FLANGE	0-28080-812-0	04	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) M8X20 FLANGE	0-28680-820-0	04	1	9704-	●	●	●	●

147 147 95 147 138 147 142 95 147 138 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97123-232-1	01	1	9704-	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97123-231-1	01	1	9704-	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97118-930-3	01	1	9704-	●	●	●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97118-926-2	01	1	9704-	●	●	●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97118-932-1	01	1	9704-9705			●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97181-951-0	01	1	9706-			●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97118-928-1	01	1	9704-9705			●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97181-950-0	01	1	9706-			●	●
138	BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X20 FLANGE	0-28681-020-0	02	1	9704-	●	●	●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (A) M8 FLANGE	0-91150-108-0	02	1	9704-	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A) M8 FLANGE	0-91150-108-0	02	1	9704-			●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6 FLANGE	0-91150-106-0	01	1	9304-9703	●	●	●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (B) M6 FLANGE	0-91150-106-0	01	1	9704-	●	●	●	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M6 FLANGE	0-91150-106-0	01	1	9704-	●
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) M8 FLANGE	0-91150-108-0	04	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X20 FLANGE	0-28080-820-0	02	1	9304-9503	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X20 FLANGE	0-28680-820-0	02	1	9504-9703	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 FLANGE	0-28680-820-0	02	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (C) M8X20 FLANGE	0-28680-820-0	02	1	9704-	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X12 FLANGE	0-28080-812-0	04	1	9704-	●	●	●	●
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) M8X20 FLANGE	0-28680-820-0	04	1	9704-	●	●	●	●

14 120 12 131 7 7 12 15 9 155 14 120 120 131 15 7 7 12 9 155 14 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97035-573-0	02	1	9304-9801	●	●	●	●	●	●
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	9802-	●	●	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-47456-009-0	01	1	9304-9703	●	●	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9704-	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-0	01	1	9304-9703	●	●	●	●
9	JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-0	01	1	9704-	●	●	●	●
12	VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97065-161-4	02	1	9304-9403	●	●	●	●
12	VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97093-537-0	02	1	9404-9502	●	●	●	●
12	VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97093-537-1	02	1	9503-9703	●	●	●	●	●	●
12	VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97141-073-4	02	1	9704-	●	●	●	●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> REAR WIDE TREAD(V4T) (A)	8-97069-622-3	01	1	9304-9502	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-97069-622-3	01	1	9304-9502	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 2750 KG<RPH> (A)	8-97069-622-3	01	1	9304-9502		●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2000 KG<RPE> (A)	8-97069-622-3	01	1	9304-9502			●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A)	8-97069-622-3	01	1	9503-9503	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (A)	8-97069-622-3	01	1	9503-9503	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2000 KG<RPE> (A)	8-97069-622-3	01	1	9503-9503		●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A)	8-97069-622-3	01	1	9503-9503						●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A)	8-97069-622-3	01	1	9503-9508	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (A)	8-97069-622-3	01	1	9503-9508	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-97069-622-3	01	1	9503-9508	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2000 KG<RPE> (A)	8-97069-622-3	01	1	9503-9508		●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A)	8-97069-622-3	01	1	9503-9508						●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A)	8-97069-622-3	01	1	9509-9802	●	●	●	●		●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97069-622-3	01	1	9509-9802	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97069-622-3	01	1	9509-9802	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A)	8-97069-622-3	01	1	9803-	●	●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97069-622-3	01	1	9803-	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97069-622-3	01	1	9803-	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-97069-715-3	01	1	9304-9502	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> (A)	8-97069-715-3	01	1	9503-	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97069-620-3	01	1	9304-9502	●	●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97069-620-3	01	1	9503-		●	●	●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (B)	8-97069-620-3	01	1	9503-	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> FRAME-KICK UP<7EW> (B)	8-97069-620-3	01	1	9503-	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97069-621-3	01	1	9304-9502	●	●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97069-621-3	01	1	9503-	●	●	●	●	●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 3000 KG<RPJ> (A)	8-97069-737-3	01	1	9304-9502		●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ> (A)	8-97069-737-3	01	1	9304-9502			●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> (A)	8-97102-612-0	01	1	9503-9508					●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> (A)	8-97102-612-0	01	1	9503-9508		●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ> (A)	8-97102-612-0	01	1	9503-9508			●	●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> (A)	8-97102-612-0	01	1	9509-					●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97102-612-0	01	1	9509-		●		●
14	BRACKET; HSA VALVE H.S.A SYSTEM<6EP> EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97102-612-0	01	1	9509-			●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> M8X16 FLANGE	0-28080-816-0	02	1	9503-9802	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE	0-28080-816-0	02	1	9503-9802	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE	0-28080-816-0	02	1	9503-9802	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) M8X16 FLANGE	0-28080-816-0	02	1	9503-9802						●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> M8X16 FLANGE	0-28080-816-0	02	1	9803-	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE	0-28080-816-0	02	1	9803-	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE	0-28080-816-0	02	1	9803-	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> M8X16 FLANGE	0-28080-816-0	02	1	9803-	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) M8X16 FLANGE	0-28080-816-0	02	1	9803-						●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●	●	●	●
15	BOLT; HSA VALVE H.S.A SYSTEM<6EP> M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●	●	●	●	●	●
120	NUT; HSA H.S.A SYSTEM<6EP> M8 FLANGE	0-91150-108-0	02	1	9304-9311	●	●	●	●
120	NUT; HSA H.S.A SYSTEM<6EP> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	02	1	9304-9311	●	●	●	●
120	NUT; HSA H.S.A SYSTEM<6EP> M8 FLANGE	0-91150-108-0	04	1	9312-9502	●	●	●	●
120	NUT; HSA H.S.A SYSTEM<6EP> M8 FLANGE	0-91150-108-0	02	1	9503-	●	●	●	●	●	●
120	NUT; HSA H.S.A SYSTEM<6EP> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	02	1	9503-		●	●	●	●	●
120	NUT; HSA H.S.A SYSTEM<6EP> M8 FLANGE	0-91150-108-0	02	1	9503-		●	●	●	●	●
120	NUT; HSA H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	02	1	9503-	●
120	NUT; HSA H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	02	1	9503-	●
120	NUT; HSA H.S.A SYSTEM<6EP> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	02	1	9503-	●
120	NUT; HSA H.S.A SYSTEM<6EP> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	02	1	9312-9502	●	●	●	●
131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8X12 FLANGE	0-28080-812-0	02	1	9304-	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 W/LK&PL WASHER	0-50141-225-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9503						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9503-9802						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-		●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B) M12X25 FLANGE	0-28681-225-0	02	1	9803-						●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-		●	●	●	●	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
131	BOLT; BRKT H.S.A SYSTEM<6EP> FRAME-KICK UP<7EW> (C) M8X20 W/LK WASHER	0-50040-820-0	02	1	9503-	●
155	JOINT; 6WAY	8-97120-033-1	01	1	9704-					●	●
155	JOINT; 6WAY BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-1	01	1	9704-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
