Sayfa 3-45 - Isuzu EPC

3-45 — LOAD SENSING PROPORTIONING VALVE (#166720) — 181 parça

21 118 119 1 13 108 109 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	VALVE ASM; LOAD SENSING PROPORTIONING	8-94368-455-2	01	1	9505-9703	●
1	VALVE ASM; LOAD SENSING PROPORTIONING	8-94368-455-2	01	1	9704-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-94368-455-2	01	1	9704-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING REAR AXLE STANDARD 244MM(R39)	8-94368-455-2	01	1	9704-			●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-94427-224-2	01	1	9505-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH>	8-97149-785-0	01	1	9704-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING DUMP CHASSIS(V4D)	8-97149-785-0	01	1	9704-			●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97106-314-0	01	1	9503-9703		●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97138-424-0	01	1	9704-		●		●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH>	8-97138-424-0	01	1	9704-						●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME-KICK UP<7EW>	8-97146-128-0	01	1	9704-9708		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> CRANE CHASSIS(V4C) BRK WHL LK CONT LSPV<6PH>	8-97146-128-0	01	1	9704-9708				●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME-KICK UP<7EW>	8-97146-128-0	01	1	9709-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> CRANE CHASSIS(V4C) BRK WHL LK CONT LSPV<6PH>	8-97146-128-0	01	1	9709-				●		●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97090-862-0	01	1	9503-9703		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97090-862-0	01	1	9704-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FULL FLATLOW<6GL>	8-97070-721-0	01	1	9503-9703					●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE CHASSIS(V4C),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW>	8-97070-721-0	01	1	9704-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97070-721-0	01	1	9704-			●
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	04	1	9503-9703	●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	04	1	9503-9703		●		●	●	●
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	04	1	9704-	●		●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	04	1	9704-		●		●	●	●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	02	1	9503-9703		●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	02	1	9704-		●
13	NUT; LSPV TO BRKT DUMP CHASSIS(V4D) M8 FLANGE	0-91150-108-0	02	1	9704-			●
21	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9503-9703	●
21	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9503-9703		●		●	●	●
21	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9704-9705	●		●
21	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9704-9705		●		●	●	●
21	BOLT; BRKT DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9704-9705		●
21	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9706-	●	●	●	●	●	●
21	BOLT; BRKT DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	03	1	9706-		●
21	BOLT; BRKT DUMP CHASSIS(V4D) M8X16 FLANGE	0-28080-816-0	02	1	9704-9705			●
21	BOLT; BRKT DUMP CHASSIS(V4D) M8X16 FLANGE	0-28080-816-0	01	1	9706-			●
108	SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9704-	●	●	●	●	●	●
108	SHACKLE; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9503-9504		●		●	●	●
108	SHACKLE; LSPV	8-97045-985-0	01	1	9505-9505	●
108	SHACKLE; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9505-9505		●		●	●	●
108	SHACKLE; LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97045-985-0	01	1	9505-9505		●
108	SHACKLE; LSPV	8-97045-985-0	01	1	9505-9703	●
108	SHACKLE; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9505-9703		●		●	●	●
109	COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	01	1	9704-	●	●	●	●	●	●
109	COLLAR; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9503-9504		●		●	●	●
109	COLLAR; LSPV	8-97045-987-0	01	1	9505-9505	●
109	COLLAR; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9505-9505		●		●	●	●
109	COLLAR; LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97045-987-0	01	1	9505-9505		●
109	COLLAR; LSPV	8-97045-987-0	01	1	9505-9703	●
109	COLLAR; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9505-9703		●		●	●	●
110	BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9704-	●	●	●	●	●	●
110	BUSHING; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9503-9504		●		●	●	●
110	BUSHING; LSPV	8-97045-986-0	02	1	9505-9505	●
110	BUSHING; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9505-9505		●		●	●	●
110	BUSHING; LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97045-986-0	02	1	9505-9505		●
110	BUSHING; LSPV	8-97045-986-0	02	1	9505-9703	●
110	BUSHING; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9505-9703		●		●	●	●
118	SCREW; BLEEDER,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9503-9504		●		●	●	●
118	SCREW; BLEEDER,LSPV	8-97093-663-0	01	1	9505-9505	●
118	SCREW; BLEEDER,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9505-9505		●		●	●	●
118	SCREW; BLEEDER,LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97093-663-0	01	1	9505-9505		●
118	SCREW; BLEEDER,LSPV	8-97093-663-0	01	1	9505-9703	●
118	SCREW; BLEEDER,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9505-9703		●		●	●	●
118	SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9704-	●	●	●	●	●	●
119	CAP; BLEEDER SCREW,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9503-9504		●		●	●	●
119	CAP; BLEEDER SCREW,LSPV	8-97093-662-0	01	1	9505-9505	●
119	CAP; BLEEDER SCREW,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9505-9505		●		●	●	●
119	CAP; BLEEDER SCREW,LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97093-662-0	01	1	9505-9505		●
119	CAP; BLEEDER SCREW,LSPV	8-97093-662-0	01	1	9505-9703	●
119	CAP; BLEEDER SCREW,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9505-9703		●		●	●	●
119	CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9704-	●	●	●	●	●	●

32 1 29 12 28 31 27 1 28 27 31 32 29 12 27 32 31 28 1 12 27 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	VALVE ASM; LOAD SENSING PROPORTIONING	8-94368-455-2	01	1	9505-9703	●
1	VALVE ASM; LOAD SENSING PROPORTIONING	8-94368-455-2	01	1	9704-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-94368-455-2	01	1	9704-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING REAR AXLE STANDARD 244MM(R39)	8-94368-455-2	01	1	9704-			●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-94427-224-2	01	1	9505-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH>	8-97149-785-0	01	1	9704-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING DUMP CHASSIS(V4D)	8-97149-785-0	01	1	9704-			●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97106-314-0	01	1	9503-9703		●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97138-424-0	01	1	9704-		●		●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH>	8-97138-424-0	01	1	9704-						●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME-KICK UP<7EW>	8-97146-128-0	01	1	9704-9708		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> CRANE CHASSIS(V4C) BRK WHL LK CONT LSPV<6PH>	8-97146-128-0	01	1	9704-9708				●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME-KICK UP<7EW>	8-97146-128-0	01	1	9709-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> CRANE CHASSIS(V4C) BRK WHL LK CONT LSPV<6PH>	8-97146-128-0	01	1	9709-				●		●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97090-862-0	01	1	9503-9703		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97090-862-0	01	1	9704-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FULL FLATLOW<6GL>	8-97070-721-0	01	1	9503-9703					●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE CHASSIS(V4C),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW>	8-97070-721-0	01	1	9704-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97070-721-0	01	1	9704-			●
12	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9503-9703	●
12	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	02	1	9503-9703		●		●	●	●
12	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	02	1	9704-	●	●	●	●	●	●
27	BRACKET; SHACKLE TO AXLE (A)	8-97010-977-0	01	1	9503-9703	●
27	BRACKET; SHACKLE TO AXLE (A)	8-97010-977-0	01	1	9704-	●
27	BRACKET; SHACKLE TO AXLE REAR AXLE STANDARD 244MM(R39) (A)	8-97010-977-0	01	1	9704-			●
27	BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 320MM(6CP) LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> (E)	8-97146-173-0	01	1	9704-		●
27	BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 320MM(6CP) LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> (D)	8-97126-033-1	01	1	9505-		●
27	BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 292MM(G73) LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> (C)	8-97125-186-1	01	1	9505-9703		●
27	BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 292MM(G73) LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> (C)	8-97161-765-0	01	1	9704-		●
27	BRACKET; SHACKLE TO AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97090-850-1	01	1	9503-9703		●		●	●	●
27	BRACKET; SHACKLE TO AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B)	8-97090-850-1	01	1	9704-		●		●	●	●
27	BRACKET; SHACKLE TO AXLE A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FULL FLATLOW<6GL> (C)	8-97091-545-2	01	1	9503-9703					●
27	BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME-KICK UP<7EW> (D)	8-97161-212-0	01	1	9704-		●		●	●	●
27	BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 292MM(G73) LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> (D)	8-97161-212-0	01	1	9704-		●
27	BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 292MM(G73) (D)	8-97161-212-0	01	1	9704-			●
28	RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9503-	●	●	●	●	●	●
29	NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> M8	9-09117-408-0	01	1	9503-	●	●	●	●	●	●
31	WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> ID=8.2	9-09150-508-0	01	1	9503-	●	●	●	●	●	●
32	PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> OD=1.8 L=15	9-08112-015-0	01	1	9503-	●	●	●	●	●	●

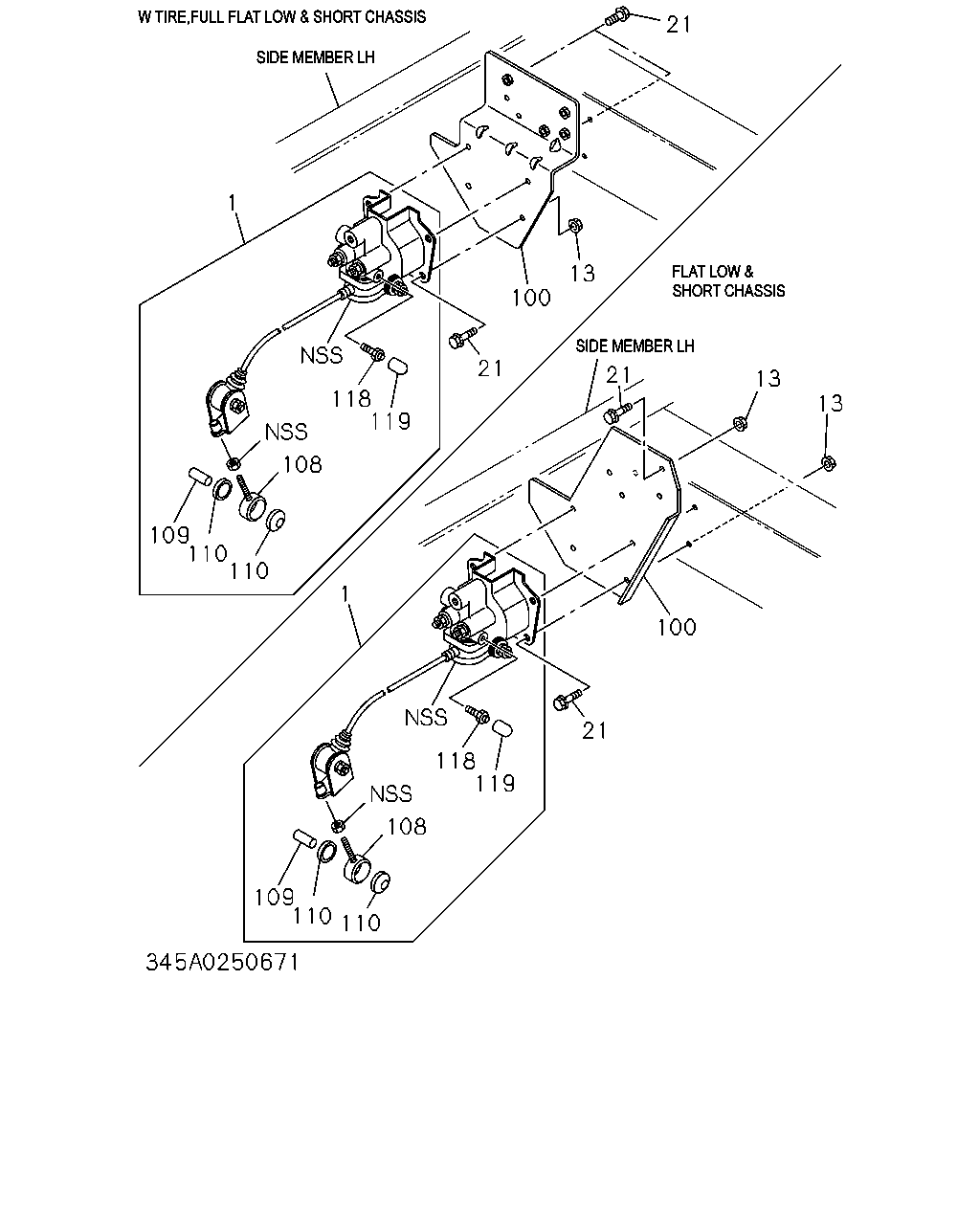

1 118 119 21 100 13 21 21 13 13 100 21 119 118 108 109 110 110 108 110 110 109 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	VALVE ASM; LOAD SENSING PROPORTIONING	8-94368-455-2	01	1	9505-9703	●
1	VALVE ASM; LOAD SENSING PROPORTIONING	8-94368-455-2	01	1	9704-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-94368-455-2	01	1	9704-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING REAR AXLE STANDARD 244MM(R39)	8-94368-455-2	01	1	9704-			●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-94427-224-2	01	1	9505-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH>	8-97149-785-0	01	1	9704-		●
1	VALVE ASM; LOAD SENSING PROPORTIONING DUMP CHASSIS(V4D)	8-97149-785-0	01	1	9704-			●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97106-314-0	01	1	9503-9703		●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97138-424-0	01	1	9704-		●		●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH>	8-97138-424-0	01	1	9704-						●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME-KICK UP<7EW>	8-97146-128-0	01	1	9704-9708		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> CRANE CHASSIS(V4C) BRK WHL LK CONT LSPV<6PH>	8-97146-128-0	01	1	9704-9708				●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2750 KG<RPH>,LOADING CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500 KG<RPL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME-KICK UP<7EW>	8-97146-128-0	01	1	9709-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> CRANE CHASSIS(V4C) BRK WHL LK CONT LSPV<6PH>	8-97146-128-0	01	1	9709-				●		●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97090-862-0	01	1	9503-9703		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING 4 WHEEL ANTI LOCK BRAKE<JE5> LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97090-862-0	01	1	9704-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FULL FLATLOW<6GL>	8-97070-721-0	01	1	9503-9703					●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOADING CAPACITY - 2000 KG<RPE> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE CHASSIS(V4C),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW>	8-97070-721-0	01	1	9704-		●		●	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97070-721-0	01	1	9704-			●
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	04	1	9503-9703	●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	04	1	9503-9703		●		●	●	●
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	04	1	9704-	●		●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	04	1	9704-		●		●	●	●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	02	1	9503-9703		●
13	NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	02	1	9704-		●
13	NUT; LSPV TO BRKT DUMP CHASSIS(V4D) M8 FLANGE	0-91150-108-0	02	1	9704-			●
21	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9503-9703	●
21	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9503-9703		●		●	●	●
21	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9704-9705	●		●
21	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9704-9705		●		●	●	●
21	BOLT; BRKT DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9704-9705		●
21	BOLT; BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	04	1	9706-	●	●	●	●	●	●
21	BOLT; BRKT DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE	0-28080-816-0	03	1	9706-		●
21	BOLT; BRKT DUMP CHASSIS(V4D) M8X16 FLANGE	0-28080-816-0	02	1	9704-9705			●
21	BOLT; BRKT DUMP CHASSIS(V4D) M8X16 FLANGE	0-28080-816-0	01	1	9706-			●
100	BRACKET; LSPV DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH>	8-97164-310-2	01	1	9704-		●
100	BRACKET; LSPV DUMP CHASSIS(V4D)	8-97138-425-2	01	1	9704-			●
108	SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9704-	●	●	●	●	●	●
108	SHACKLE; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9503-9504		●		●	●	●
108	SHACKLE; LSPV	8-97045-985-0	01	1	9505-9505	●
108	SHACKLE; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9505-9505		●		●	●	●
108	SHACKLE; LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97045-985-0	01	1	9505-9505		●
108	SHACKLE; LSPV	8-97045-985-0	01	1	9505-9703	●
108	SHACKLE; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9505-9703		●		●	●	●
109	COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	01	1	9704-	●	●	●	●	●	●
109	COLLAR; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9503-9504		●		●	●	●
109	COLLAR; LSPV	8-97045-987-0	01	1	9505-9505	●
109	COLLAR; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9505-9505		●		●	●	●
109	COLLAR; LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97045-987-0	01	1	9505-9505		●
109	COLLAR; LSPV	8-97045-987-0	01	1	9505-9703	●
109	COLLAR; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9505-9703		●		●	●	●
110	BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9704-	●	●	●	●	●	●
110	BUSHING; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9503-9504		●		●	●	●
110	BUSHING; LSPV	8-97045-986-0	02	1	9505-9505	●
110	BUSHING; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9505-9505		●		●	●	●
110	BUSHING; LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97045-986-0	02	1	9505-9505		●
110	BUSHING; LSPV	8-97045-986-0	02	1	9505-9703	●
110	BUSHING; LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9505-9703		●		●	●	●
118	SCREW; BLEEDER,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9503-9504		●		●	●	●
118	SCREW; BLEEDER,LSPV	8-97093-663-0	01	1	9505-9505	●
118	SCREW; BLEEDER,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9505-9505		●		●	●	●
118	SCREW; BLEEDER,LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97093-663-0	01	1	9505-9505		●
118	SCREW; BLEEDER,LSPV	8-97093-663-0	01	1	9505-9703	●
118	SCREW; BLEEDER,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9505-9703		●		●	●	●
118	SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	9704-	●	●	●	●	●	●
119	CAP; BLEEDER SCREW,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9503-9504		●		●	●	●
119	CAP; BLEEDER SCREW,LSPV	8-97093-662-0	01	1	9505-9505	●
119	CAP; BLEEDER SCREW,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9505-9505		●		●	●	●
119	CAP; BLEEDER SCREW,LSPV LOADING CAPACITY - 3000 KG<RPJ> BRK WHL LK CONT LSPV<6PH> FRAME-KICK UP<7EW>	8-97093-662-0	01	1	9505-9505		●
119	CAP; BLEEDER SCREW,LSPV	8-97093-662-0	01	1	9505-9703	●
119	CAP; BLEEDER SCREW,LSPV 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9505-9703		●		●	●	●
119	CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	9704-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
