1 |

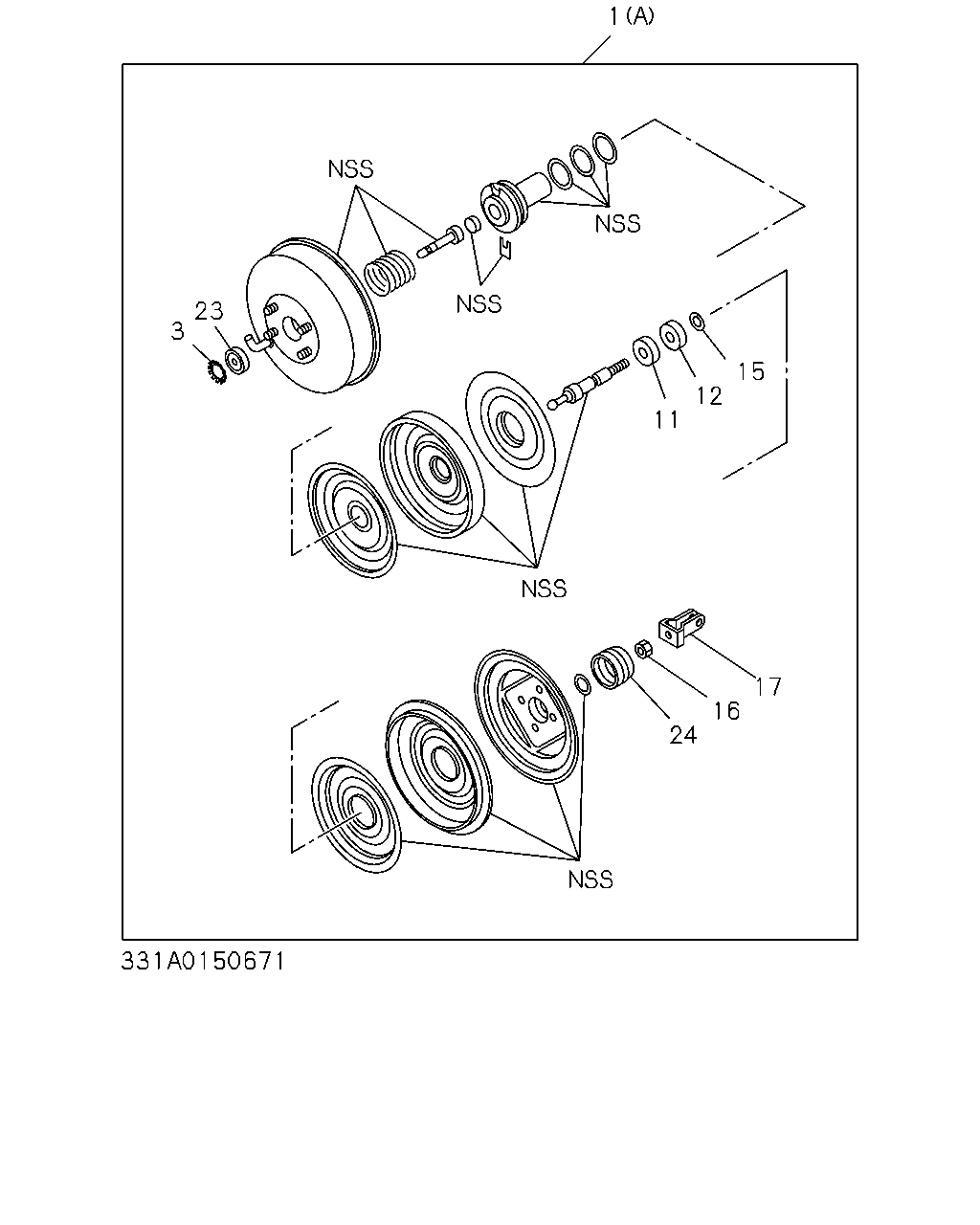

MASTER VAC ASM; BRK
(A)
|
8-97033-986-1 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
1 |
MASTER VAC ASM; BRK
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97033-986-1 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
(A)
|
8-97033-986-1 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
(A)
|
8-97033-986-1 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
(A)
|
8-97033-986-1 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97033-986-1 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
(A)
|
8-97033-986-1 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
(A)
|
8-97033-986-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
(A)
|
8-97033-986-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
(A)
|
8-97033-986-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97033-986-1 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97033-986-1 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97033-986-1 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97033-986-1 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
(A)
|
8-97033-986-1 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
1 |
MASTER VAC ASM; BRK
FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97033-986-1 |
01 |
1 |
9709-9801 |
● |
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97033-986-1 |
01 |
1 |
9709-9801 |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97033-986-1 |
01 |
1 |
9709-9801 |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
(C)
|
8-97033-986-1 |
01 |
1 |
9709-9801 |
|
|
|
● |
|
|
| |
1 |
MASTER VAC ASM; BRK
FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97177-972-1 |
01 |
1 |
9802- |
● |
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97177-972-1 |
01 |
1 |
9802- |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97177-972-1 |
01 |
1 |
9802- |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
(C)
|
8-97177-972-1 |
01 |
1 |
9802- |
|
|
|
● |
|
|
| |
1 |
MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97036-929-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
(C)
|
8-97036-929-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
|
|
| |
1 |
MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97036-929-0 |
01 |
1 |
9704-9708 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
(C)
|
8-97036-929-0 |
01 |
1 |
9704-9708 |
|
|
|
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
(C)
|
8-97036-929-0 |
01 |
1 |
9709-9801 |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
(C)
|
8-97036-929-0 |
01 |
1 |
9709-9801 |
|
● |
● |
|
|
|
| |
1 |
MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97036-929-0 |
01 |
1 |
9709-9801 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
(C)
|
8-97036-929-0 |
01 |
1 |
9709-9801 |
|
|
● |
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
(C)
|
8-97036-929-0 |
01 |
1 |
9709-9801 |
|
|
|
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
(C)
|
8-97177-974-0 |
01 |
1 |
9802- |
|
● |
● |
|
● |
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
(C)
|
8-97177-974-0 |
01 |
1 |
9802- |
|
● |
● |
|
|
|
| |
1 |
MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97177-974-0 |
01 |
1 |
9802- |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
(C)
|
8-97177-974-0 |
01 |
1 |
9802- |
|
|
● |
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
(C)
|
8-97177-974-0 |
01 |
1 |
9802- |
|
|
|
|
● |
|
| |
1 |
MASTER VAC ASM; BRK

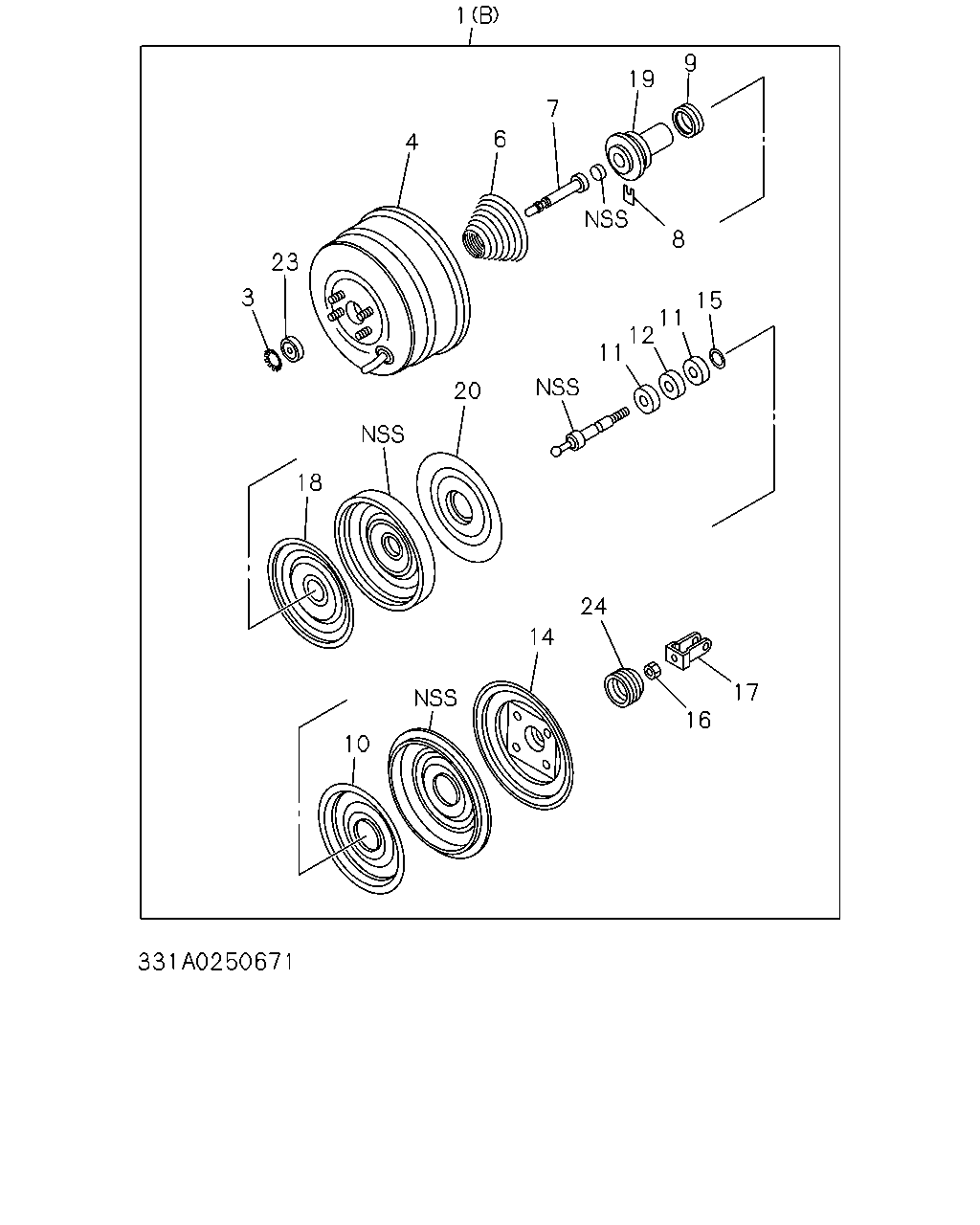

EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97036-928-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
(B)
|
8-97036-928-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97036-928-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
(B)
|
8-97036-928-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
(B)
|
8-97036-928-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97036-928-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97036-928-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97036-928-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
(B)
|
8-97036-928-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
(B)
|
8-97036-928-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
(B)
|
8-97036-928-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97177-973-4 |
01 |
1 |
9802- |
● |
|
|
|
|
● |
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97177-973-4 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
(D)
|
8-97177-973-4 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
(D)
|
8-97177-973-4 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
1 |
MASTER VAC ASM; BRK
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
(D)
|
8-97177-973-4 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
|
9-83315-319-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83315-319-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
3 |
RETAINER; FRT SHELL,M/VAC
|
9-83315-319-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
9-83315-319-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
|
9-83315-319-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83315-319-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
3 |
RETAINER; FRT SHELL,M/VAC
|
9-83315-319-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
|
9-83315-319-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
9-83315-319-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
|
9-83315-319-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83315-319-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
3 |
RETAINER; FRT SHELL,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83315-319-0 |
01 |
1 |
9704- |
● |
|
|
|
|
● |
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83315-319-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
9-83315-319-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
9-83315-319-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
3 |
RETAINER; FRT SHELL,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-83315-319-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
3 |
RETAINER; FRT SHELL,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>,LOADING CAPACITY - 3500
KG<RPL>
|
9-83315-319-0 |
01 |
1 |
9704- |
|
|
● |
● |
● |
|
| |
4 |
SHELL; FRT,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97114-074-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
4 |
SHELL; FRT,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97114-074-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
4 |
SHELL; FRT,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97114-074-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
4 |
SHELL; FRT,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-97114-074-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
4 |
SHELL; FRT,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97114-074-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
4 |
SHELL; FRT,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97114-074-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
4 |
SHELL; FRT,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97114-074-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
4 |
SHELL; FRT,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97114-074-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
4 |
SHELL; FRT,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97114-074-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
4 |
SHELL; FRT,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-97114-074-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
6 |
SPRING; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-126-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
6 |
SPRING; M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-126-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
6 |
SPRING; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-126-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
6 |
SPRING; M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94402-126-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
6 |
SPRING; M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-126-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
6 |
SPRING; M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94402-126-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
6 |
SPRING; M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-126-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
6 |
SPRING; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94402-126-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
6 |
SPRING; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-126-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
6 |
SPRING; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94402-126-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
7 |
ROD; PUSH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-132-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
7 |
ROD; PUSH,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-132-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
7 |
ROD; PUSH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-132-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
7 |
ROD; PUSH,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94402-132-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
7 |
ROD; PUSH,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-132-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
7 |
ROD; PUSH,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94402-132-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
7 |
ROD; PUSH,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-132-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
7 |
ROD; PUSH,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94402-132-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
7 |
ROD; PUSH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-132-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
7 |
ROD; PUSH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94402-132-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
8 |
KEY; STOPPER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-133-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
8 |
KEY; STOPPER,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-133-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
8 |
KEY; STOPPER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-133-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
8 |
KEY; STOPPER,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94402-133-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
8 |
KEY; STOPPER,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-133-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
8 |
KEY; STOPPER,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94402-133-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
8 |
KEY; STOPPER,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-133-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
8 |
KEY; STOPPER,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94402-133-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
8 |
KEY; STOPPER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-133-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
8 |
KEY; STOPPER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94402-133-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
9 |
BODY; VALVE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-135-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
9 |
BODY; VALVE,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-135-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
9 |
BODY; VALVE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-135-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
9 |
BODY; VALVE,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94402-135-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
9 |
BODY; VALVE,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-135-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
9 |
BODY; VALVE,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94402-135-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
9 |
BODY; VALVE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-135-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
9 |
BODY; VALVE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94402-135-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
9 |
BODY; VALVE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-135-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
9 |
BODY; VALVE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94402-135-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
10 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-029-1 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
10 |
PLATE; DIAPH,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-029-1 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
10 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-029-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
10 |
PLATE; DIAPH,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94415-029-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
10 |
PLATE; DIAPH,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-029-1 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
10 |
PLATE; DIAPH,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94415-029-1 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
10 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-029-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
10 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94415-029-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
10 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-029-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
10 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94415-029-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
11 |
FILTER; M/VAC
|
8-94334-506-3 |
01 |
1 |
9304-9306 |
● |
● |
● |
● |
● |
|
| |
11 |
FILTER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94334-506-3 |
01 |
1 |
9304-9306 |
|
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
|
9-83345-063-0 |
01 |
1 |
9307-9502 |
● |
● |
● |
● |
● |
|
| |
11 |
FILTER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9307-9502 |
|
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
|
9-83345-063-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
9-83345-063-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
|
9-83345-063-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
11 |
FILTER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
|
9-83345-063-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
|
9-83345-063-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
9-83345-063-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
11 |
FILTER; M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
|
9-83345-063-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
11 |
FILTER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
11 |
FILTER; M/VAC
|
9-83345-063-0 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
11 |
FILTER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9709- |
● |
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
11 |
FILTER; M/VAC
|
9-83345-063-0 |
01 |
1 |
9709- |
|
|
|
● |
|
|
| |
11 |
FILTER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
02 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
9-83345-063-0 |
02 |
1 |
9704-9708 |
|
● |
● |
|
|
|
| |
11 |
FILTER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
02 |
1 |
9704-9708 |
|
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
9-83345-063-0 |
02 |
1 |
9704-9708 |
|
|
|
|
● |
|
| |
11 |
FILTER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
9-83345-063-0 |
02 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
9-83345-063-0 |
02 |
1 |
9709- |
|
● |
● |
|
|
|
| |
11 |
FILTER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-83345-063-0 |
02 |
1 |
9709- |
|
|
|
|
|
● |
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
|
9-83345-063-0 |
02 |
1 |
9709- |
|
|
● |
|
|
|
| |
11 |
FILTER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
9-83345-063-0 |
02 |
1 |
9709- |
|
|
|
|
● |
|
| |
12 |
SILENCER; M/VAC
|
8-94341-722-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
12 |
SILENCER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
12 |
SILENCER; M/VAC
|
8-94341-722-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94341-722-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
|
8-94341-722-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
12 |
SILENCER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
12 |
SILENCER; M/VAC
|
8-94341-722-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
|
8-94341-722-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94341-722-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
12 |
SILENCER; M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
|
8-94341-722-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
12 |
SILENCER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
12 |
SILENCER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
12 |
SILENCER; M/VAC
|
8-94341-722-0 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
12 |
SILENCER; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9709- |
● |
|
|
|
|
● |
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-722-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
12 |
SILENCER; M/VAC
|
8-94341-722-0 |
01 |
1 |
9709- |
|
|
|
● |
|
|
| |
12 |
SILENCER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-94465-510-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-94465-510-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
|
|
| |
12 |
SILENCER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94465-510-0 |
01 |
1 |
9704-9708 |
|
|
|
|
|
● |
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-94465-510-0 |
01 |
1 |
9704-9708 |
|
|
|
|
● |
|
| |
12 |
SILENCER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94465-510-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-94465-510-0 |
01 |
1 |
9709- |
|
● |
● |
|
|
|
| |
12 |
SILENCER; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94465-510-0 |
01 |
1 |
9709- |
|
|
|
|
|
● |
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
|
8-94465-510-0 |
01 |
1 |
9709- |
|
|
● |
|
|
|
| |
12 |
SILENCER; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-94465-510-0 |
01 |
1 |
9709- |
|
|
|
|
● |
|
| |
14 |
SHELL; RR,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97114-075-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
14 |
SHELL; RR,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97114-075-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
14 |
SHELL; RR,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97114-075-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
14 |
SHELL; RR,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-97114-075-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
14 |
SHELL; RR,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97114-075-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
14 |
SHELL; RR,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97114-075-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
14 |
SHELL; RR,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97114-075-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
14 |
SHELL; RR,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97114-075-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
14 |
SHELL; RR,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97114-075-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
14 |
SHELL; RR,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-97114-075-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
|
8-94375-083-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
15 |
RETAINER; GUARD,M/VAC
|
8-94375-083-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94375-083-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
|
8-94375-083-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
15 |
RETAINER; GUARD,M/VAC
|
8-94375-083-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
|
8-94375-083-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94375-083-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
|
8-94375-083-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
15 |
RETAINER; GUARD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
|
8-94375-083-0 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
15 |
RETAINER; GUARD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9709- |
● |
|
|
|
|
● |
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-083-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
|
8-94375-083-0 |
01 |
1 |
9709- |
|
|
|
● |
|
|
| |
15 |
RETAINER; GUARD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-94123-119-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-94123-119-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94123-119-0 |
01 |
1 |
9704-9708 |
|
|
|
|
|
● |
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-94123-119-0 |
01 |
1 |
9704-9708 |
|
|
|
|
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94123-119-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-94123-119-0 |
01 |
1 |
9709- |
|
● |
● |
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94123-119-0 |
01 |
1 |
9709- |
|
|
|
|
|
● |
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
|
8-94123-119-0 |
01 |
1 |
9709- |
|
|
● |
|
|
|
| |
15 |
RETAINER; GUARD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-94123-119-0 |
01 |
1 |
9709- |
|
|
|
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9304-9306 |
● |
● |
● |
● |
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9304-9306 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9307-9502 |
● |
● |
● |
● |
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9307-9502 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
16 |
NUT; VLV ROD,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9709- |
● |
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
M10 FLANGE
|
8-97096-430-0 |
01 |
1 |
9709- |
|
|
|
● |
|
|
| |
16 |
NUT; VLV ROD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-410-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
M10
|
9-09111-410-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-410-0 |
01 |
1 |
9704-9708 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
M10
|
9-09111-410-0 |
01 |
1 |
9704-9708 |
|
|
|
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
M10
|
9-09111-410-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
M10
|
9-09111-410-0 |
01 |
1 |
9709- |
|
● |
● |
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-410-0 |
01 |
1 |
9709- |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
M10
|
9-09111-410-0 |
01 |
1 |
9709- |
|
|
● |
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
M10
|
9-09111-410-0 |
01 |
1 |
9709- |
|
|
|
|
● |
|
| |
16 |
NUT; VLV ROD,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-510-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
M10
|
9-09111-510-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-510-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
M10
|
9-09111-510-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
M10
|
9-09111-510-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-510-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-510-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10
|
9-09111-510-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
M10
|
9-09111-510-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
M10
|
9-09111-510-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
M10
|
9-09111-510-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97186-402-0 |
01 |
1 |
9802- |
● |
|
|
|
|
● |
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97186-402-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97186-402-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97186-402-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
16 |
NUT; VLV ROD,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-97186-402-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
|
8-94341-787-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
|
8-94341-787-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94341-787-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
|
8-94341-787-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
|
8-94341-787-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
|
8-94341-787-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94341-787-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
|
8-94341-787-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
|
8-94341-787-0 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9709- |
● |
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-94341-787-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
|
8-94341-787-0 |
01 |
1 |
9709- |
|
|
|
● |
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97186-403-0 |
01 |
1 |
9802- |
● |
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97186-403-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97186-403-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-97186-403-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-97186-403-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
5-47829-011-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
5-47829-011-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
5-47829-011-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
5-47829-011-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9704-9708 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9704-9708 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9709-9801 |
● |
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
5-47829-011-0 |
01 |
1 |
9709-9801 |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9709-9801 |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9709-9801 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9709-9801 |
|
● |
|
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
|
5-47829-011-0 |
01 |
1 |
9709-9801 |
|
|
● |
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9802- |
|
● |
● |
|
● |
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
5-47829-011-0 |
01 |
1 |
9802- |
|
● |
● |
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47829-011-0 |
01 |
1 |
9802- |
|
|
|
|
|
● |
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
|
5-47829-011-0 |
01 |
1 |
9802- |
|
|
● |
|
|
|
| |
17 |
CLEVIS; YOKE,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
5-47829-011-0 |
01 |
1 |
9802- |
|
|
|
|
● |
|
| |
18 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-030-1 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
18 |
PLATE; DIAPH,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-030-1 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
18 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-030-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
18 |
PLATE; DIAPH,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94415-030-1 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
18 |
PLATE; DIAPH,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-030-1 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
18 |
PLATE; DIAPH,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94415-030-1 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
18 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-030-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
18 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94415-030-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
18 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-030-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
18 |
PLATE; DIAPH,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94415-030-1 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
19 |
BODY; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-131-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
19 |
BODY; CENTER,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-131-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
19 |
BODY; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-131-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
19 |
BODY; CENTER,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94402-131-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
19 |
BODY; CENTER,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-131-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
19 |
BODY; CENTER,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94402-131-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
19 |
BODY; CENTER,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94402-131-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
19 |
BODY; CENTER,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94402-131-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
19 |
BODY; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94402-131-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
19 |
BODY; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94402-131-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
20 |
PLATE; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-031-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
20 |
PLATE; CENTER,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-031-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
20 |
PLATE; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-031-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
20 |
PLATE; CENTER,M/VAC
GARBAGE/VACUUM CHASSIS(V4G)
FRONT WIDE TREAD<7GV>
|
8-94415-031-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
20 |
PLATE; CENTER,M/VAC
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-031-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
20 |
PLATE; CENTER,M/VAC
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94415-031-0 |
01 |
1 |
9704-9801 |
● |
|
|
|
|
● |
| |
20 |
PLATE; CENTER,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
REAR WIDE TREAD(V4T)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94415-031-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
20 |
PLATE; CENTER,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
GARBAGE/VACUUM CHASSIS(V4G)
EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-94415-031-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
20 |
PLATE; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
DUMP CHASSIS(V4D)
|
8-94415-031-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
20 |
PLATE; CENTER,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. DUMP CHASSIS(V4D)
|
8-94415-031-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
23 |
SEAL; M/VAC
|
8-94152-349-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
23 |
SEAL; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
23 |
SEAL; M/VAC
|
8-94152-349-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94152-349-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
|
8-94152-349-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
23 |
SEAL; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
23 |
SEAL; M/VAC
|
8-94152-349-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
|
8-94152-349-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-94152-349-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
23 |
SEAL; M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
|
8-94152-349-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
23 |
SEAL; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
23 |
SEAL; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
23 |
SEAL; M/VAC
|
8-94152-349-0 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
23 |
SEAL; M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9709- |
● |
|
|
|
|
● |
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-94152-349-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
23 |
SEAL; M/VAC
|
8-94152-349-0 |
01 |
1 |
9709- |
|
|
|
● |
|
|
| |
23 |
SEAL; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-350-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-97079-350-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
|
|
| |
23 |
SEAL; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-350-0 |
01 |
1 |
9704-9708 |
|
|
|
|
|
● |
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-97079-350-0 |
01 |
1 |
9704-9708 |
|
|
|
|
● |
|
| |
23 |
SEAL; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97079-350-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-97079-350-0 |
01 |
1 |
9709- |
|
● |
● |
|
|
|
| |
23 |
SEAL; M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-350-0 |
01 |
1 |
9709- |
|
|
|
|
|
● |
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
|
8-97079-350-0 |
01 |
1 |
9709- |
|
|
● |
|
|
|
| |
23 |
SEAL; M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-97079-350-0 |
01 |
1 |
9709- |
|
|
|
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
|
8-97025-156-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
|
8-97025-156-0 |
01 |
1 |
9503-9506 |
● |
|
● |
● |
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-97025-156-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
|
8-97025-156-0 |
01 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9503-9506 |
|
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
|
8-97025-156-0 |
01 |
1 |
9507-9703 |
● |
|
● |
● |
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 2750 KG<RPH>
EXC. FRONT WIDE TREAD<7GV>
|
8-97025-156-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D)
|
8-97025-156-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
FRONT WIDE TREAD<7GV>
EXC. GARBAGE/VACUUM CHASSIS(V4G)
|
8-97025-156-0 |
01 |
1 |
9507-9703 |
|
● |
|
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9507-9703 |
|
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9704-9708 |
● |
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
|
8-97025-156-0 |
01 |
1 |
9704-9708 |
|
|
|
● |
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9709-9801 |
● |
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9709-9801 |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-97025-156-0 |
01 |
1 |
9709-9801 |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
|
8-97025-156-0 |
01 |
1 |
9709-9801 |
|
|
|
● |
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-084-1 |
01 |
1 |
9802- |
● |
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-084-1 |
01 |
1 |
9802- |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CRANE
CHASSIS(V4C),GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-94375-084-1 |
01 |
1 |
9802- |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
|
8-94375-084-1 |
01 |
1 |
9802- |
|
|
|
● |
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE
TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-349-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-97079-349-0 |
01 |
1 |
9704-9708 |
|
● |
● |
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-349-0 |
01 |
1 |
9704-9708 |
|
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-97079-349-0 |
01 |
1 |
9704-9708 |
|
|
|
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
LOADING CAPACITY - 2000 KG<RPE>
EXC. CRANE CHASSIS(V4C),GARBAGE/VACUUM
CHASSIS(V4G),REAR WIDE TREAD(V4T),FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97079-349-0 |
01 |
1 |
9709- |
|
● |
● |
|
● |
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>
EXC. DUMP CHASSIS(V4D),SUSPENSION - RR UNDER
SLUNG<V4U>
|
8-97079-349-0 |
01 |
1 |
9709- |
|
● |
● |
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-349-0 |
01 |
1 |
9709- |
|
|
|
|
|
● |
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 2000 KG<RPE>
CRANE CHASSIS(V4C)
|
8-97079-349-0 |
01 |
1 |
9709- |
|
|
● |
|
|
|
| |
24 |
GUARD; VLV BODY,M/VAC
LOADING CAPACITY - 3000 KG<RPJ>,LOADING
CAPACITY - 3500 KG<RPL>
|
8-97079-349-0 |
01 |
1 |
9709- |
|
|
|
|
● |
|
