Isuzu WW
▶
TRUCKS
▶
NKR
▶
50671 - NKR
▶
3 - Brakes, Brake System
▶

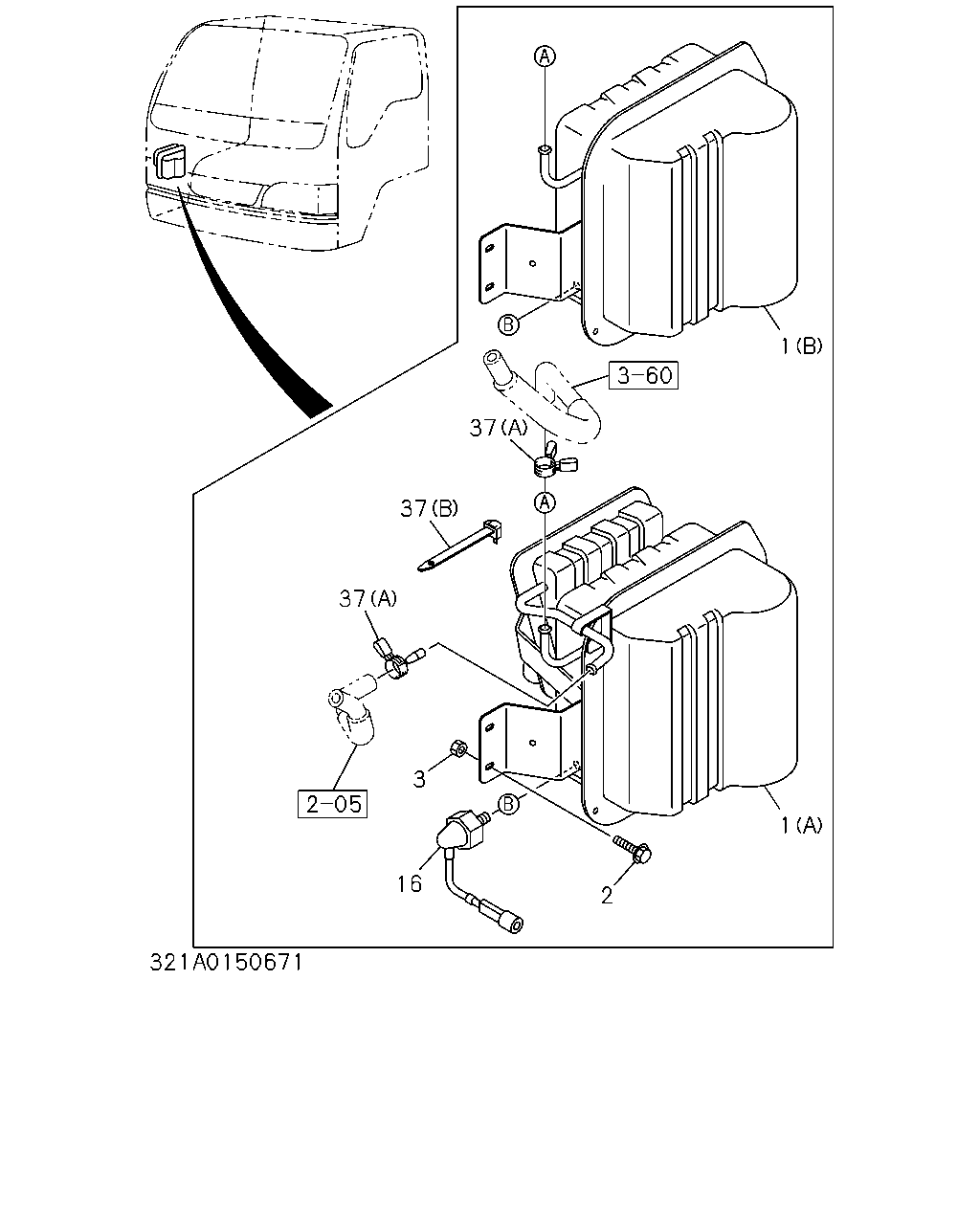

3-21 - VACUUM TANK
▶
3-21 — VACUUM TANK
(#166717) — 14 parça
Tümü
A - NKB1SC
B - NKC1SC
C - NKC1SD
D - NKC1SF
E - NKN1SC
F - NKN1SF
1
37
37
37
3
1
2
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
TANK; VAC,MAIN
A/T 4 SPEED-JATCO(RMK),M/T MSB5S(R45) (B)
8-97073-471-3
01
1
9304-9502
●
●
●
●
●
●
1
TANK; VAC,MAIN
A/T 4 SPEED-JATCO(RMK),M/T MSB5M(RM5),M/T MSB5S(R45) (B)
8-97073-471-3
01
1
9503-
●
●
●
●
●
●
1
TANK; VAC,MAIN
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) (A)
8-97062-399-4
01
1
9304-9502
●
●
●
●
●
●
1
TANK; VAC,MAIN
M/T MXA5R(RMT),M/T MXA 6R(RMU) (A)
8-97062-399-4
01
1
9503-
●
●
●
●
●
●
2
BOLT; VAC TANK
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
9304-9404
●
●
●
●
●
●
2
BOLT; VAC TANK
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9405-
●
●
●
●
●
●
3
NUT; VAC TANK TO BRKT
M8 FLANGE
0-91150-108-0
02
1
9304-
●
●
●
●
●
●
16
SWITCH; VAC
8-97073-374-1
01
1
9304-
●
●
●
●
●
●
37
CLIP; RUBBER HOSE
A/T 4 SPEED-JATCO(RMK),M/T MSB5S(R45) (A) ID=16
8-94238-568-0
01
1
9304-9502
●
●
●
●
●
●
37
CLIP; RUBBER HOSE
A/T 4 SPEED-JATCO(RMK),M/T MSB5M(RM5),M/T MSB5S(R45) (A) ID=16
8-94238-568-0
01
1
9503-
●
●
●
●
●
●
37
CLIP; RUBBER HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) (B) L=219.5
1-09987-136-0
01
1
9304-9502
●
●
●
●
●
●
37
CLIP; RUBBER HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU) (B) L=219.5
1-09987-136-0
01
1
9503-
●
●
●
●
●
●
37
CLIP; RUBBER HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) (A) ID=16
8-94238-568-0
02
1
9304-9502
●
●
●
●
●
●
37
CLIP; RUBBER HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) ID=16
8-94238-568-0
02
1
9503-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
