3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#166716) — 11 parça

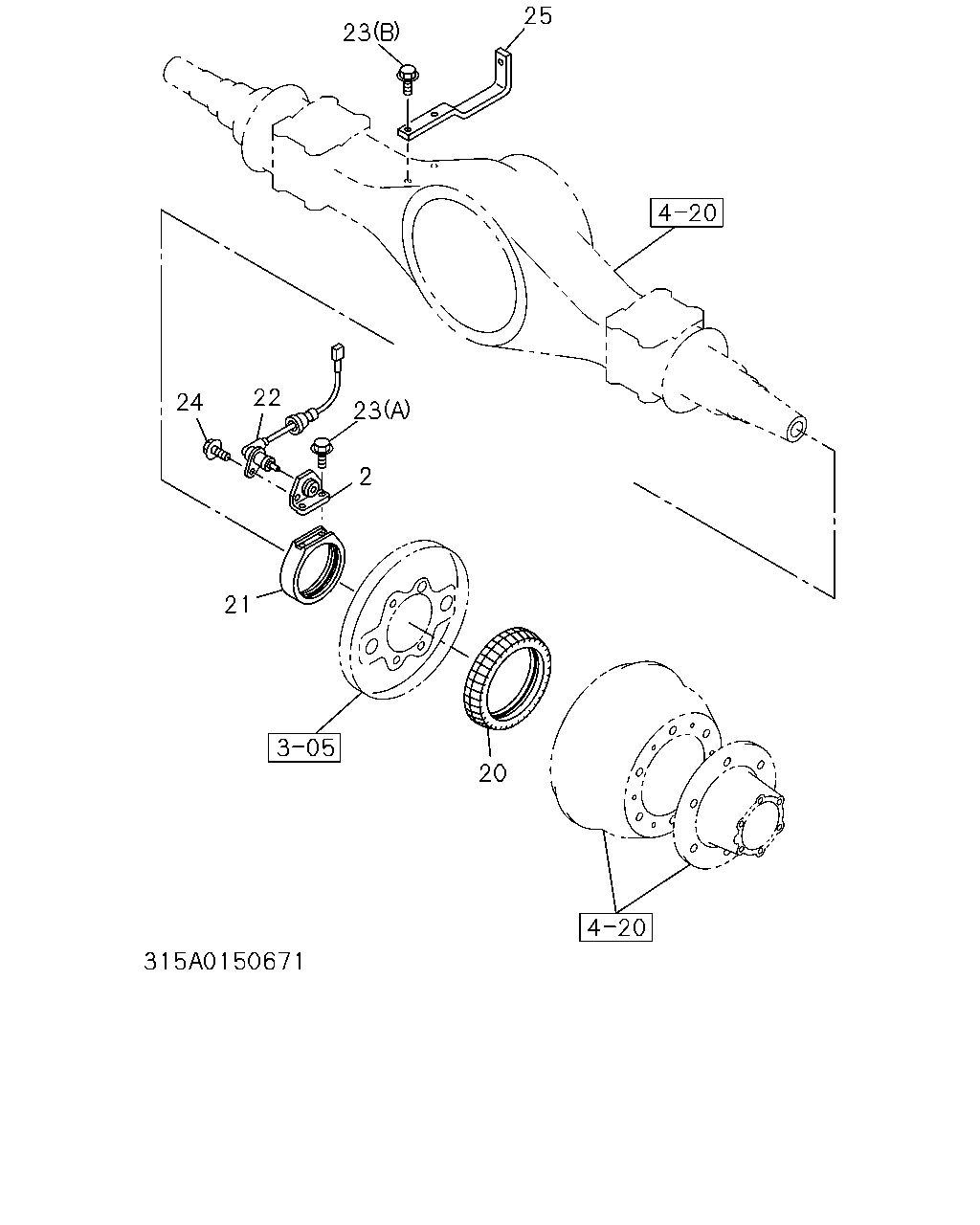

23 25 22 24 21 2 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-243-2	02	1	9304-	●	●	●	●
20	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97033-683-1	02	1	9304-	●	●	●	●
21	SUPPORT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-423-2	02	1	9304-	●	●	●	●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-187-2	01	1	9304-	●	●	●	●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-186-2	01	1	9304-	●	●	●	●
23	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X14 W/LK WASHER	0-50040-614-0	04	1	9304-9403	●	●	●	●
23	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 W/LK WASHER	0-50040-616-0	04	1	9404-	●	●	●	●
23	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M8X16 W/LK WASHER	0-50040-816-0	02	1	9304-9307	●	●	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 W/LK WASHER	0-50040-812-0	02	1	9304-9406	●	●	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28080-812-0	02	1	9407-	●	●	●	●
25	BRACKET; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97040-410-1	01	1	9304-9307	●	●	●	●
