◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶

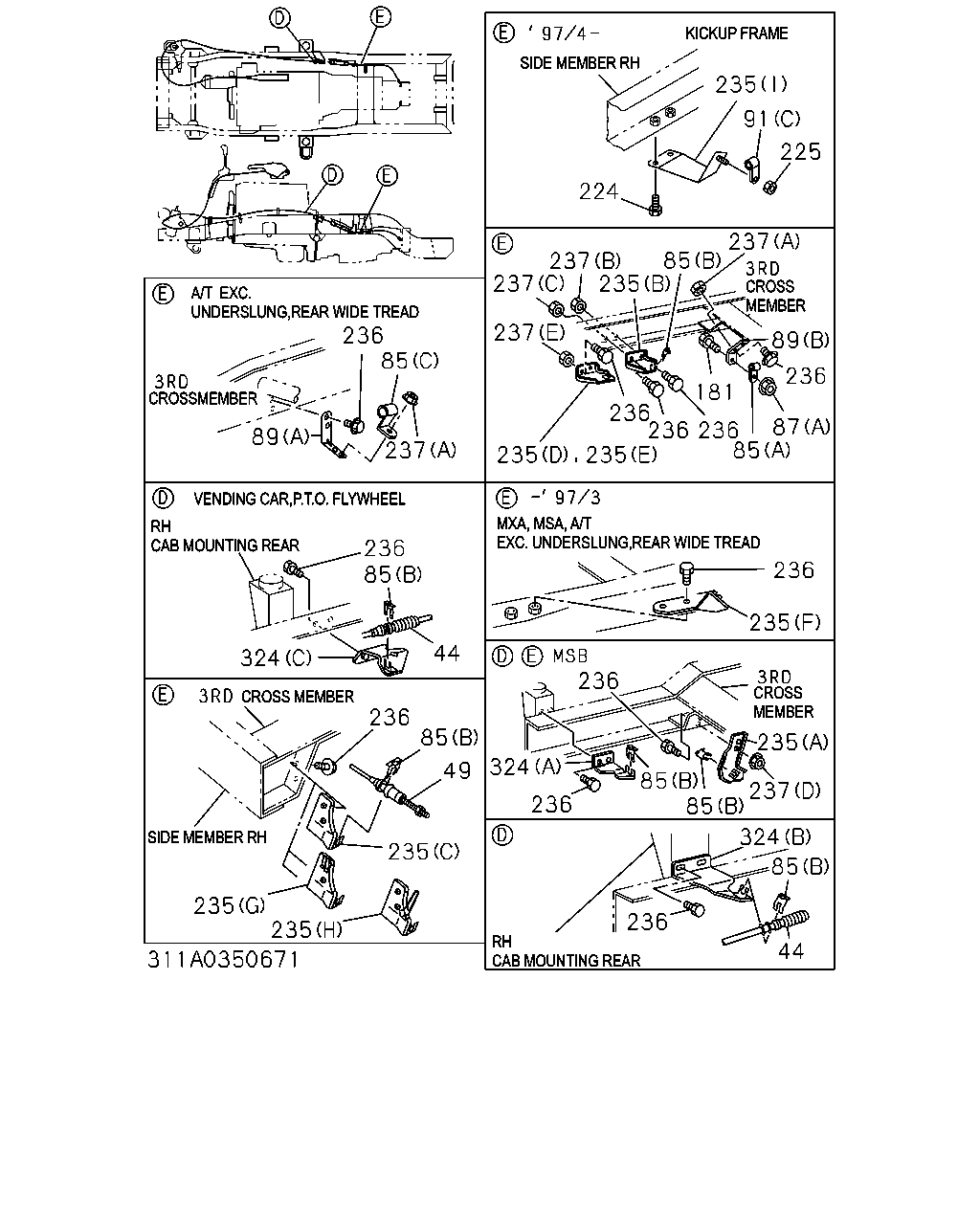

3-11 — PARKING BRAKE CONTROL (#166715) — 440 parça
çizim 493769
224 235 91 225 237 85 235 237 237 237 236 236 181 236 85 87 236 89 235 235 235 236 235 237 85 85 236 324 236 324 85 44 236 235 49 85 236 44 85 236 324 235 235 237 85 236 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97063-123-8 01 1 9304-9502 ● ● ● ● ●
44 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC) 		8-97063-121-8 01 1 9304-9504 ● ●
44 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC) 		8-97118-186-0 01 1 9505-9607 ● ●
44 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC) 		8-97176-235-0 01 1 9608-9703 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97161-435-0 01 1 9704- ● ● ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97063-124-8 01 1 9304-9502 ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97063-124-8 01 1 9304-9502 ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-124-8 01 1 9304-9502 ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-124-8 01 1 9503-9504 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97063-124-8 01 1 9503-9504 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97063-124-8 01 1 9503-9504 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97118-187-0 01 1 9505-9607 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97118-187-0 01 1 9505-9607 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97118-187-0 01 1 9505-9607 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97176-237-0 01 1 9608-9703 ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97176-237-0 01 1 9608-9703 ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97176-237-0 01 1 9608-9703 ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-125-8 01 1 9304-9502 ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97063-125-8 01 1 9304-9502 ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-125-8 01 1 9503-9504 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97063-125-8 01 1 9503-9504 ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97118-371-0 01 1 9505-9607 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97118-371-0 01 1 9505-9607 ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97176-239-0 01 1 9608-9703 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97176-239-0 01 1 9608-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) 		8-97180-432-0 01 1 9704-9708 ● ● ● ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) 		8-97183-435-1 01 1 9709- ● ● ● ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9304-9502 ● ● ● ● ●
49 CABLE; PARKING BRK
M/T MXA5R(RMT) EXC. PTO TRANSMISSION REAR(7AY) (A) 		8-97063-113-6 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9503-9703 ● ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. PTO TRANSMISSION REAR(7AY) (A) 		8-97063-113-6 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97161-428-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97161-428-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),PTO TRANSMISSION REAR(7AY) (A) 		8-97161-428-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97161-428-0 01 1 9704- ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97063-109-7 01 1 9304-9502 ● ● ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-109-7 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-109-7 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) (A) 		8-97063-109-7 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME-KICK UP<7EW> (A) 		8-97063-109-7 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) (A) 		8-97063-109-7 01 1 9503-9703 ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97063-109-7 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) 		8-97161-430-0 01 1 9704- ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) (A) 		8-97063-106-5 01 1 9304-9502 ● ● ● ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-106-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-106-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97102-246-4 01 1 9503-9508 ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97129-870-0 01 1 9509-9703 ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97129-870-0 01 1 9704-9709 ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97184-270-0 01 1 9710- ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (A) 		8-97063-103-5 01 1 9304-9703 ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) PTO TRANSMISSION REAR(7AY) (A) 		8-97161-432-1 01 1 9704- ●
49 CABLE; PARKING BRK
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97161-432-1 01 1 9704- ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-112-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-115-6 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) 		8-97063-115-6 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97161-429-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97161-429-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97161-429-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97161-429-0 01 1 9704- ● ●
49 CABLE; PARKING BRK
M/T MXA5R(RMT) PTO TRANSMISSION REAR(7AY) (A) 		8-97035-185-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) PTO TRANSMISSION REAR(7AY) (A) 		8-97035-185-5 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97063-108-6 01 1 9304-9502 ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97063-108-6 01 1 9511-9703 ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97068-800-6 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97068-800-6 01 1 9503-9703 ●
85 CLIP; BRKT
(B) 		8-97084-216-0 02 1 9304-9502 ● ● ● ● ● ●
85 CLIP; BRKT
(B) 		8-97084-216-0 02 1 9503-9510 ● ●
85 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97084-216-0 02 1 9503-9510 ● ● ● ●
85 CLIP; BRKT
(B) 		8-97084-216-0 02 1 9511-9703 ● ●
85 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97084-216-0 02 1 9511-9703 ● ● ● ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) ID=14.5 L=20 		1-09701-012-0 01 1 9304-9311 ● ● ● ● ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9304-9311 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9304-9311 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) ID=14.5 L=20 		1-09701-012-0 01 1 9312-9703 ● ● ● ● ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRAME-KICK UP<7EW> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (E) ID=16 L=60 		9-09525-596-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (C) ID=15 H=30 L=30 		1-09700-832-0 01 1 9304-9311 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (C) ID=15 H=30 L=30 		1-09700-832-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (D) ID=16 L=28 		9-09525-556-0 01 1 9304-9703 ●
87 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9304- ● ● ● ● ● ●
87 NUT
(C) M6 		8-97088-730-1 01 1 9304- ● ● ● ● ● ●
87 NUT
A/T 4 SPEED-JATCO(RMK) (A) M8 FLANGE 		0-91150-108-0 01 1 9304-9311 ● ● ● ● ●
87 NUT
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) M8 FLANGE 		0-91150-108-0 01 1 9304-9311 ●
87 NUT
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (A) M8 FLANGE 		0-91150-108-0 01 1 9304-9311 ●
87 NUT
A/T 4 SPEED-JATCO(RMK) EXC. FRAME-KICK UP<7EW> (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9502 ● ● ● ● ● ●
87 NUT
A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97046-975-0 01 1 9304-9311 ● ● ● ● ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97046-975-0 01 1 9304-9311 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97046-975-0 01 1 9304-9311 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97046-975-0 01 1 9312-9703 ● ● ● ● ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) 		8-97046-975-0 01 1 9312-9703 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRAME-KICK UP<7EW> (B) 		8-97046-975-0 01 1 9312-9703 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97049-215-1 01 1 9304-9311 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) 		8-97049-215-1 01 1 9312-9703 ●
89 BRACKET; CLIP
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97113-984-0 01 1 9503-9703 ● ● ●
89 BRACKET; CLIP
4JG2 ENG(RJC) (D) 		8-97113-984-1 01 1 9704- ● ● ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97091-887-0 01 1 9304-9703 ●
91 CLIP; PARKING BRK CABLE
4HF1 ENG(RJK),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ●
91 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ● ● ● ●
91 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ●
91 CLIP; PARKING BRK CABLE
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) ID=10 & 16.5 		8-94360-745-0 01 1 9304- ● ● ● ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) 		9-09917-514-0 01 1 9503-9508 ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) ID=13 L=50 		9-09525-286-0 01 1 9509-9703 ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) ID=13 L=50 		9-09525-286-0 01 1 9704- ● ● ●
181 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9502 ● ● ● ● ●
181 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9502 ●
181 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28080-820-0 01 1 9503-9503 ● ● ● ● ●
181 BOLT; BRKT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28080-820-0 01 1 9503-9503 ● ● ●
181 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 01 1 9503-9503 ●
181 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9703 ● ● ● ● ●
181 BOLT; BRKT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9703 ● ● ●
181 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9703 ●
181 BOLT; BRKT
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ●
224 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> M10X25 FLANGE 		0-28681-025-0 01 1 9704- ● ● ● ● ● ●
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X20 FLANGE 		0-28080-820-0 01 1 9503-9503 ● ● ●
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9703 ● ● ●
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ●
225 NUT; CABLE CLIP
4HF1 ENG(RJK),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9704- ●
225 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9704- ● ● ● ●
225 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9704- ●
225 NUT; CABLE CLIP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ●
225 NUT; CABLE CLIP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
235 BRACKET; CONT CABLE TO FRAME
4BE1 ENG(RLH) M/T MSA5G(S7G) (G) 		8-97102-960-0 01 1 9307-9309 ● ● ● ●
235 BRACKET; CONT CABLE TO FRAME
4BE1 ENG(RLH) M/T MSA5G(S7G) EXC. FRAME-KICK UP<7EW> (G) 		8-97102-960-0 01 1 9307-9309 ●
235 BRACKET; CONT CABLE TO FRAME
4BE1 ENG(RLH) M/T MSA5G(S7G) (H) 		8-97105-724-1 01 1 9310-9502 ● ● ● ●
235 BRACKET; CONT CABLE TO FRAME
4BE1 ENG(RLH) M/T MSA5G(S7G) EXC. FRAME-KICK UP<7EW> (H) 		8-97105-724-1 01 1 9310-9502 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) (B) 		8-97063-096-3 01 1 9304-9703 ● ●
235 BRACKET; CONT CABLE TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) (C) 		8-97063-093-2 01 1 9304-9306 ● ● ● ● ●
235 BRACKET; CONT CABLE TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97063-093-2 01 1 9304-9306 ●
235 BRACKET; CONT CABLE TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97063-093-2 01 1 9304-9306 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97063-093-2 01 1 9304-9306 ●
235 BRACKET; CONT CABLE TO FRAME
4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) (C) 		8-97063-093-2 01 1 9307-9309 ● ● ● ● ●
235 BRACKET; CONT CABLE TO FRAME
4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. FRAME-KICK UP<7EW> (C) 		8-97063-093-2 01 1 9307-9309 ●
235 BRACKET; CONT CABLE TO FRAME
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97063-093-2 01 1 9307-9309 ●
235 BRACKET; CONT CABLE TO FRAME
4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) (C) 		8-97105-722-0 01 1 9310-9502 ● ● ● ● ●
235 BRACKET; CONT CABLE TO FRAME
4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. FRAME-KICK UP<7EW> (C) 		8-97105-722-0 01 1 9310-9502 ●
235 BRACKET; CONT CABLE TO FRAME
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97105-722-0 01 1 9310-9502 ●
235 BRACKET; CONT CABLE TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRAME-KICK UP<7EW> (C) 		8-97105-722-0 01 1 9503-9703 ● ● ● ● ● ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97105-722-0 01 1 9503-9703 ●
235 BRACKET; CONT CABLE TO FRAME
4JG2 ENG(RJC) (A) 		8-97063-091-3 01 1 9304-9309 ● ●
235 BRACKET; CONT CABLE TO FRAME
4JG2 ENG(RJC) (A) 		8-97105-721-0 01 1 9310-9703 ● ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (D) 		8-97087-018-1 01 1 9304-9502 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (D) 		8-97087-018-1 01 1 9503-9703 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-97066-291-1 01 1 9304-9502 ● ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (E) 		8-97066-291-1 01 1 9304-9502 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) (E) 		8-97066-291-1 01 1 9304-9502 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (E) 		8-97066-291-1 01 1 9304-9502 ● ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) (E) 		8-97066-291-1 01 1 9503-9703 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. FULL FLATLOW<6GL>,FRAME-KICK UP<7EW> (E) 		8-97066-291-1 01 1 9503-9703 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (E) 		8-97066-291-1 01 1 9503-9703 ● ● ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MSA5G(S7G) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (F) 		8-97063-095-4 01 1 9304-9306 ●
235 BRACKET; CONT CABLE TO FRAME
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MSA5G(S7G) FRAME-KICK UP<7EW> (F) 		8-97063-095-4 01 1 9307-9502 ●
235 BRACKET; CONT CABLE TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FRAME-KICK UP<7EW> (F) 		8-97063-095-4 01 1 9503-9703 ●
235 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> (I) 		8-97176-465-1 01 1 9704- ●
236 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45),M/T MSA5G(S7G) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45),M/T MSA5G(S7G) M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ●
236 BOLT; BRKT TO FRAME
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X20 FLANGE 		0-28080-820-0 02 1 9310-9502 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 02 1 9310-9502 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 02 1 9503-9503 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28080-820-0 02 1 9503-9503 ● ●
236 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X20 FLANGE 		0-28080-820-0 02 1 9503-9503 ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9703 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9504-9703 ● ●
236 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9703 ● ● ● ●
236 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 02 1 9704- ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X30 FLANGE 		0-28080-830-0 01 1 9304-9507 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X30 FLANGE 		0-28680-830-0 01 1 9508-9509 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X35 FLANGE 		0-28680-835-0 01 1 9510-9703 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M10X30 FLANGE 		0-28081-030-0 01 1 9304-9703 ● ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ● ● ● ● ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45) M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ● ● ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT) EXC. FRAME-KICK UP<7EW> M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M10X30 FLANGE 		0-28081-030-0 02 1 9304-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> M10X30 FLANGE 		0-28081-030-0 02 1 9304-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X30 FLANGE 		0-28081-030-0 02 1 9304-9502 ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. FRAME-KICK UP<7EW> M10X30 FLANGE 		0-28081-030-0 02 1 9503-9703 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X30 FLANGE 		0-28081-030-0 02 1 9503-9703 ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MSA5G(S7G) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8X30 FLANGE 		0-28080-830-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X30 FLANGE 		0-28080-830-0 02 1 9309-9502 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MSA5G(S7G) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8X30 FLANGE 		0-28080-830-0 02 1 9309-9502 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X30 FLANGE 		0-28080-830-0 02 1 9503-9507 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FRAME-KICK UP<7EW> M8X30 FLANGE 		0-28080-830-0 02 1 9503-9507 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X30 FLANGE 		0-28680-830-0 02 1 9508-9509 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FRAME-KICK UP<7EW> M8X30 FLANGE 		0-28680-830-0 02 1 9508-9509 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X35 FLANGE 		0-28680-835-0 02 1 9510-9703 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FRAME-KICK UP<7EW> M8X35 FLANGE 		0-28680-835-0 02 1 9510-9703 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) M10X20 FLANGE 		0-28081-020-0 01 1 9304-9703 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) (A) M8 FLANGE 		0-91150-108-0 02 1 9304-9305 ● ● ● ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) M8 FLANGE 		0-91150-108-0 02 1 9304-9305 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MSB5S(R45) (A) M8 FLANGE 		0-91150-108-0 02 1 9306-9309 ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) (A) M8 FLANGE 		0-91150-108-0 02 1 9306-9309 ● ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) M8 FLANGE 		0-91150-108-0 02 1 9306-9309 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) (A) M8 FLANGE 		0-91150-108-0 02 1 9310-9311 ● ● ● ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) M8 FLANGE 		0-91150-108-0 02 1 9310-9311 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. DUMP CHASSIS(V4D),BOTTLE CARRIER CHASSIS(V4E) (A) M8 FLANGE 		0-91150-108-0 02 1 9312-9703 ● ● ● ● ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL> (A) M8 FLANGE 		0-91150-108-0 02 1 9312-9703 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) (B) M8 FLANGE 		0-91150-208-0 01 1 9304-9305 ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) (B) M8 FLANGE 		0-91150-108-0 01 1 9306-9703 ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) (C) M10 FLANGE 		0-91150-210-0 01 1 9304-9305 ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) (C) M10 FLANGE 		0-91150-110-0 01 1 9306-9703 ● ●
237 NUT; BRKT TO FRAME
M/T MSB5S(R45) (D) M8 FLANGE 		0-91150-208-0 02 1 9304-9305 ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) M10 FLANGE 		0-91150-210-0 02 1 9304-9305 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (E) M10 FLANGE 		0-91150-210-0 02 1 9304-9305 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (E) M10 FLANGE 		0-91150-210-0 02 1 9304-9305 ● ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) M10 FLANGE 		0-91150-110-0 02 1 9306-9309 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (E) M10 FLANGE 		0-91150-110-0 02 1 9306-9309 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (E) M10 FLANGE 		0-91150-110-0 02 1 9306-9309 ● ● ●
237 NUT; BRKT TO FRAME
M/T MSB5S(R45) (E) M10 FLANGE 		0-91150-110-0 02 1 9310-9502 ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) M10 FLANGE 		0-91150-110-0 02 1 9310-9502 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (E) M10 FLANGE 		0-91150-110-0 02 1 9310-9502 ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (E) M10 FLANGE 		0-91150-110-0 02 1 9310-9502 ● ● ●
237 NUT; BRKT TO FRAME
4JG2 ENG(RJC) (E) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ●
237 NUT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (E) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ● ● ●
324 BRACKET
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97063-092-1 01 1 9304-9408 ● ● ● ●
324 BRACKET
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97063-092-1 01 1 9304-9408 ● ●
324 BRACKET
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) 		8-97063-092-1 01 1 9304-9408 ●
324 BRACKET
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) (B) 		8-97063-092-1 01 1 9304-9408 ●
324 BRACKET
M/T MXA5R(RMT),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97063-092-1 01 1 9304-9408 ●
324 BRACKET
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97112-916-0 01 1 9409-9502 ● ● ● ●
324 BRACKET
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97112-916-0 01 1 9409-9502 ● ●
324 BRACKET
SUSPENSION - RR UNDER SLUNG<V4U> EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97112-916-0 01 1 9409-9502 ●
324 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),POWER TAKE OFF - FLYWHEEL(6SZ),FRAME-KICK UP<7EW> (B) 		8-97112-916-0 01 1 9503-9703 ● ● ● ● ● ●
324 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97140-998-2 01 1 9704- ● ● ● ● ● ●
324 BRACKET
4JG2 ENG(RJC) (A) 		8-97063-090-1 01 1 9304-9703 ● ●
324 BRACKET
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97063-094-2 01 1 9304-9502 ●
324 BRACKET
FRAME-KICK UP<7EW> EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97063-094-2 01 1 9503-9703 ●
324 BRACKET
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B) 		8-97087-017-1 01 1 9304-9408 ●
324 BRACKET
POWER TAKE OFF - FLYWHEEL(6SZ) (C) 		8-97066-290-4 01 1 9304-9502 ● ●
324 BRACKET
4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97066-290-4 01 1 9304-9502 ●
324 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER TAKE OFF - FLYWHEEL(6SZ) (C) 		8-97066-290-4 01 1 9503-9703 ● ●
324 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97066-290-4 01 1 9503-9703 ●

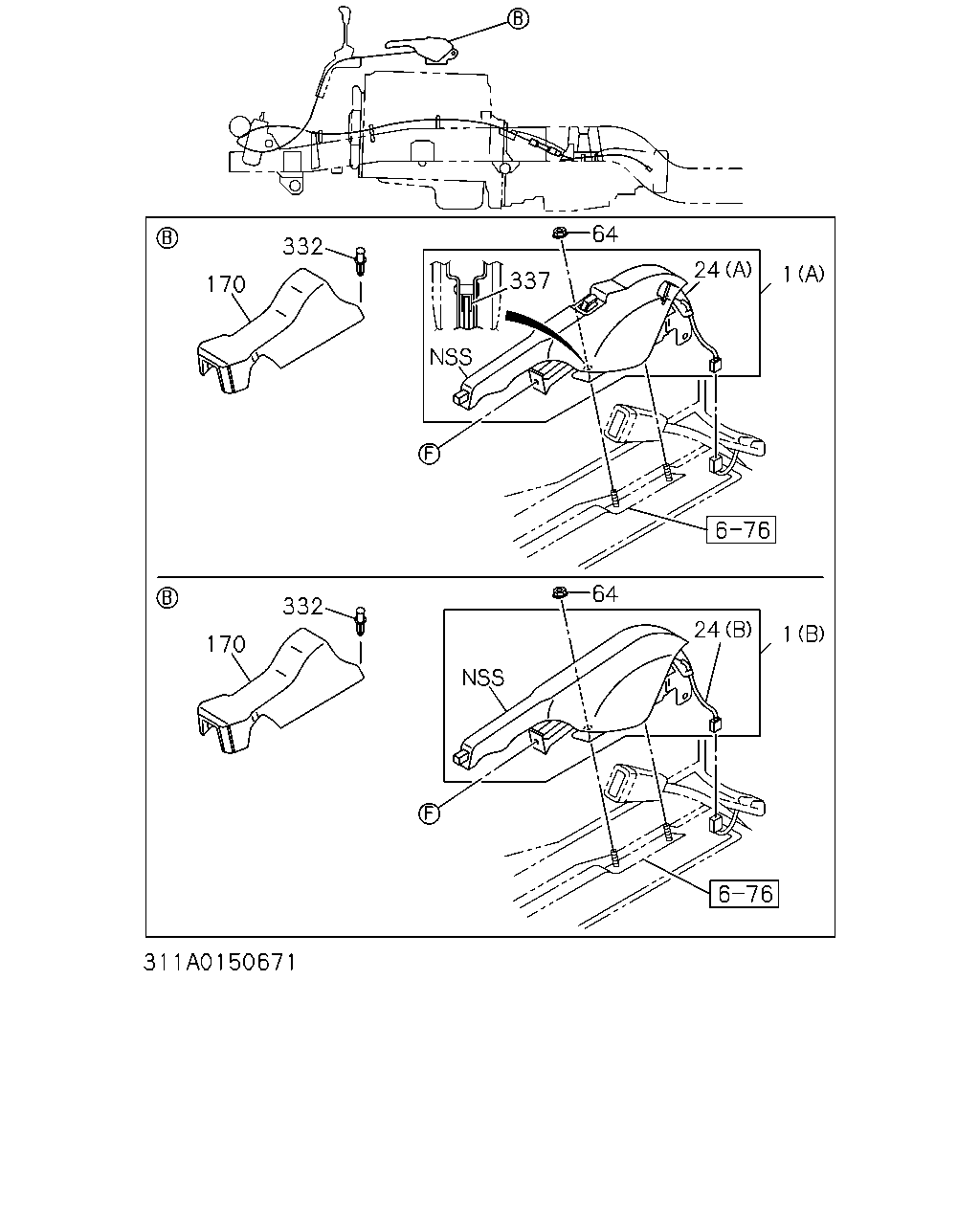

çizim 494209
170 332 337 64 24 1 1 24 64 332 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STEM ASM; PARKING BRK
(A) DARK BEIGE 		8-97853-933-7 01 1 9304-9703 ● ● ● ● ● ●
1 STEM ASM; PARKING BRK
(A) DARK GRAY 		8-97859-714-7 01 1 9704-9801 ● ● ● ● ● ●
1 STEM ASM; PARKING BRK
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (A) DARK GRAY 		8-97859-714-7 01 1 9802- ● ● ● ● ● ●
1 STEM ASM; PARKING BRK
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. REAR SPRING HEAVY DUTY(G50) (A) DARK GRAY 		8-97859-714-7 01 1 9802- ● ● ● ● ● ●
1 STEM ASM; PARKING BRK
REAR SPRING HEAVY DUTY(G50) SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK GRAY 		8-97890-438-1 01 1 9802- ● ● ● ● ● ●
24 SWITCH ASM; PARK BRK
(A) 		8-97857-198-1 01 1 9304-9801 ● ● ● ● ● ●
24 SWITCH ASM; PARK BRK
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (A) 		8-97857-198-1 01 1 9802- ● ● ● ● ● ●
24 SWITCH ASM; PARK BRK
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. REAR SPRING HEAVY DUTY(G50) (A) 		8-97857-198-1 01 1 9802- ● ● ● ● ● ●
24 SWITCH ASM; PARK BRK
REAR SPRING HEAVY DUTY(G50) SEAT ASM-ASSIST CENTER DELETE<SP9> (B) 		8-97890-859-0 01 1 9802- ● ● ● ● ● ●
64 NUT; PARKING BRK
M8 FLANGE 		8-94279-060-0 02 1 9304-9507 ● ● ● ● ● ●
64 NUT; PARKING BRK
M8 FLANGE 		8-94279-517-0 02 1 9508-9605 ● ● ● ● ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 9606- ● ● ● ● ● ●
170 COVER; PARKING BRK LEVER
DARK BEIGE 		8-97097-008-0 01 1 9304-9703 ● ● ● ● ● ●
170 COVER; PARKING BRK LEVER
DARK GRAY 		8-97155-172-0 01 1 9704- ● ● ● ● ● ●
332 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 9304- ● ● ● ● ● ●
337 SILENCER; PARKING BRK 8-97857-230-1 01 1 9304-9510 ● ● ● ● ● ●

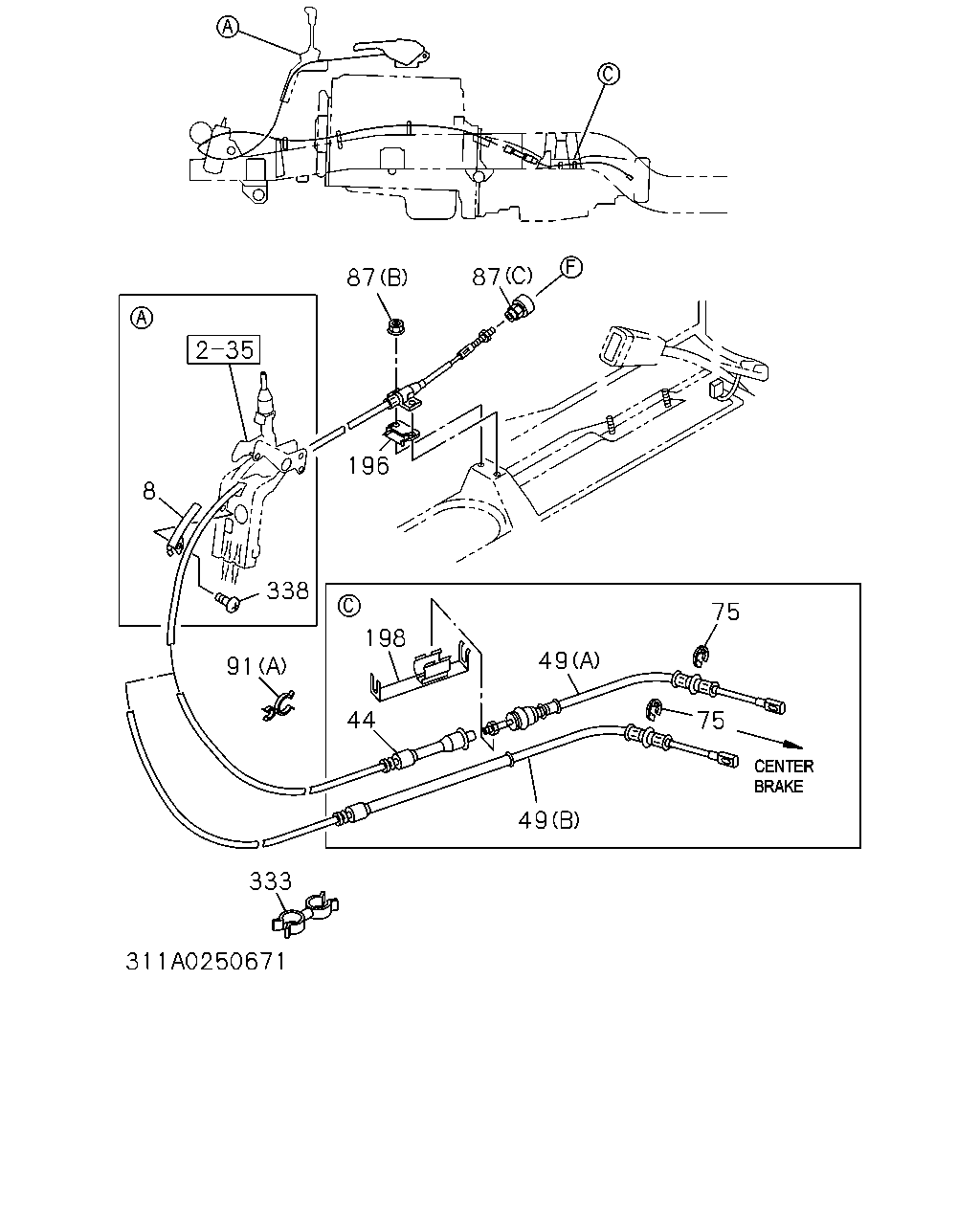

çizim 494240
87 87 196 8 338 91 198 44 49 75 75 49 333
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 GUIDE; PARKING BRK 8-97071-939-0 01 1 9304- ● ● ● ● ● ●
44 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97063-123-8 01 1 9304-9502 ● ● ● ● ●
44 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC) 		8-97063-121-8 01 1 9304-9504 ● ●
44 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC) 		8-97118-186-0 01 1 9505-9607 ● ●
44 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC) 		8-97176-235-0 01 1 9608-9703 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97161-435-0 01 1 9704- ● ● ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97063-124-8 01 1 9304-9502 ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97063-124-8 01 1 9304-9502 ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-124-8 01 1 9304-9502 ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-124-8 01 1 9503-9504 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97063-124-8 01 1 9503-9504 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97063-124-8 01 1 9503-9504 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97118-187-0 01 1 9505-9607 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97118-187-0 01 1 9505-9607 ● ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97118-187-0 01 1 9505-9607 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97176-237-0 01 1 9608-9703 ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97176-237-0 01 1 9608-9703 ● ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97176-237-0 01 1 9608-9703 ● ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-125-8 01 1 9304-9502 ● ●
44 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97063-125-8 01 1 9304-9502 ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97063-125-8 01 1 9503-9504 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97063-125-8 01 1 9503-9504 ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97118-371-0 01 1 9505-9607 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97118-371-0 01 1 9505-9607 ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97176-239-0 01 1 9608-9703 ● ●
44 CABLE; PARKING BRK,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97176-239-0 01 1 9608-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) 		8-97180-432-0 01 1 9704-9708 ● ● ● ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) 		8-97183-435-1 01 1 9709- ● ● ● ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9304-9502 ● ● ● ● ●
49 CABLE; PARKING BRK
M/T MXA5R(RMT) EXC. PTO TRANSMISSION REAR(7AY) (A) 		8-97063-113-6 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9503-9703 ● ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. PTO TRANSMISSION REAR(7AY) (A) 		8-97063-113-6 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97161-428-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97161-428-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),PTO TRANSMISSION REAR(7AY) (A) 		8-97161-428-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97161-428-0 01 1 9704- ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97063-109-7 01 1 9304-9502 ● ● ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-109-7 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-109-7 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) (A) 		8-97063-109-7 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME-KICK UP<7EW> (A) 		8-97063-109-7 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) (A) 		8-97063-109-7 01 1 9503-9703 ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97063-109-7 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) 		8-97161-430-0 01 1 9704- ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) (A) 		8-97063-106-5 01 1 9304-9502 ● ● ● ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-106-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-106-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97102-246-4 01 1 9503-9508 ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97129-870-0 01 1 9509-9703 ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97129-870-0 01 1 9704-9709 ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (B) 		8-97184-270-0 01 1 9710- ● ● ●
49 CABLE; PARKING BRK
4JG2 ENG(RJC) (A) 		8-97063-103-5 01 1 9304-9703 ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) PTO TRANSMISSION REAR(7AY) (A) 		8-97161-432-1 01 1 9704- ●
49 CABLE; PARKING BRK
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97161-432-1 01 1 9704- ●
49 CABLE; PARKING BRK
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M/T MSA5G(S7G) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-112-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97063-115-6 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) 		8-97063-115-6 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97161-429-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97161-429-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97161-429-0 01 1 9704- ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97161-429-0 01 1 9704- ● ●
49 CABLE; PARKING BRK
M/T MXA5R(RMT) PTO TRANSMISSION REAR(7AY) (A) 		8-97035-185-5 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) PTO TRANSMISSION REAR(7AY) (A) 		8-97035-185-5 01 1 9503-9703 ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97063-108-6 01 1 9304-9502 ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA 6R(RMU) (A) 		8-97063-108-6 01 1 9511-9703 ● ● ●
49 CABLE; PARKING BRK
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97068-800-6 01 1 9304-9502 ●
49 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97068-800-6 01 1 9503-9703 ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 9304- ● ● ● ● ● ●
87 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9304- ● ● ● ● ● ●
87 NUT
(C) M6 		8-97088-730-1 01 1 9304- ● ● ● ● ● ●
87 NUT
A/T 4 SPEED-JATCO(RMK) (A) M8 FLANGE 		0-91150-108-0 01 1 9304-9311 ● ● ● ● ●
87 NUT
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) M8 FLANGE 		0-91150-108-0 01 1 9304-9311 ●
87 NUT
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (A) M8 FLANGE 		0-91150-108-0 01 1 9304-9311 ●
87 NUT
A/T 4 SPEED-JATCO(RMK) EXC. FRAME-KICK UP<7EW> (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9502 ● ● ● ● ● ●
87 NUT
A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ●
91 CLIP; PARKING BRK CABLE
4HF1 ENG(RJK),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ●
91 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ● ● ● ●
91 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ●
91 CLIP; PARKING BRK CABLE
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) ID=10 & 16.5 		8-94360-745-0 01 1 9304- ● ● ● ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) 		9-09917-514-0 01 1 9503-9508 ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) ID=13 L=50 		9-09525-286-0 01 1 9509-9703 ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) ID=13 L=50 		9-09525-286-0 01 1 9704- ● ● ●
196 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 9304- ● ● ● ● ● ●
198 BRACKET; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97161-538-1 01 1 9704- ● ● ● ● ● ●
333 CLIP; CABLE
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) ID=16.5 & 16.5 		8-94468-380-0 01 1 9903- ●
338 SCREW; GUIDE
M6X10 		9-03497-610-0 01 1 9304- ● ● ● ● ● ●
çizim 494241
225 91 224 224 89 85 89 85 236
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 CLIP; BRKT
(B) 		8-97084-216-0 02 1 9304-9502 ● ● ● ● ● ●
85 CLIP; BRKT
(B) 		8-97084-216-0 02 1 9503-9510 ● ●
85 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-97084-216-0 02 1 9503-9510 ● ● ● ●
85 CLIP; BRKT
(B) 		8-97084-216-0 02 1 9511-9703 ● ●
85 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97084-216-0 02 1 9511-9703 ● ● ● ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) ID=14.5 L=20 		1-09701-012-0 01 1 9304-9311 ● ● ● ● ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9304-9311 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9304-9311 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) ID=14.5 L=20 		1-09701-012-0 01 1 9312-9703 ● ● ● ● ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRAME-KICK UP<7EW> (A) ID=14.5 L=20 		1-09701-012-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (E) ID=16 L=60 		9-09525-596-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (C) ID=15 H=30 L=30 		1-09700-832-0 01 1 9304-9311 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (C) ID=15 H=30 L=30 		1-09700-832-0 01 1 9312-9703 ●
85 CLIP; BRKT
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (D) ID=16 L=28 		9-09525-556-0 01 1 9304-9703 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97046-975-0 01 1 9304-9311 ● ● ● ● ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97046-975-0 01 1 9304-9311 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97046-975-0 01 1 9304-9311 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97046-975-0 01 1 9312-9703 ● ● ● ● ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) 		8-97046-975-0 01 1 9312-9703 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRAME-KICK UP<7EW> (B) 		8-97046-975-0 01 1 9312-9703 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97049-215-1 01 1 9304-9311 ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) FRAME-KICK UP<7EW> (A) 		8-97049-215-1 01 1 9312-9703 ●
89 BRACKET; CLIP
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97113-984-0 01 1 9503-9703 ● ● ●
89 BRACKET; CLIP
4JG2 ENG(RJC) (D) 		8-97113-984-1 01 1 9704- ● ● ●
89 BRACKET; CLIP
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (C) 		8-97091-887-0 01 1 9304-9703 ●
91 CLIP; PARKING BRK CABLE
4HF1 ENG(RJK),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ●
91 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ● ● ● ●
91 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) ID=13 L=20 		1-09701-138-1 01 1 9704- ●
91 CLIP; PARKING BRK CABLE
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) ID=10 & 16.5 		8-94360-745-0 01 1 9304- ● ● ● ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) 		9-09917-514-0 01 1 9503-9508 ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) ID=13 L=50 		9-09525-286-0 01 1 9509-9703 ● ● ●
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (B) ID=13 L=50 		9-09525-286-0 01 1 9704- ● ● ●
224 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> M10X25 FLANGE 		0-28681-025-0 01 1 9704- ● ● ● ● ● ●
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X20 FLANGE 		0-28080-820-0 01 1 9503-9503 ● ● ●
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9703 ● ● ●
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ●
225 NUT; CABLE CLIP
4HF1 ENG(RJK),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9704- ●
225 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9704- ● ● ● ●
225 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9704- ●
225 NUT; CABLE CLIP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ●
225 NUT; CABLE CLIP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
236 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45),M/T MSA5G(S7G) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45),M/T MSA5G(S7G) M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> M8X20 FLANGE 		0-28080-820-0 02 1 9309-9309 ●
236 BOLT; BRKT TO FRAME
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X20 FLANGE 		0-28080-820-0 02 1 9310-9502 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 02 1 9310-9502 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X20 FLANGE 		0-28080-820-0 02 1 9503-9503 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28080-820-0 02 1 9503-9503 ● ●
236 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X20 FLANGE 		0-28080-820-0 02 1 9503-9503 ● ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9703 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9504-9703 ● ●
236 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9703 ● ● ● ●
236 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 02 1 9704- ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X30 FLANGE 		0-28080-830-0 01 1 9304-9507 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X30 FLANGE 		0-28680-830-0 01 1 9508-9509 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M8X35 FLANGE 		0-28680-835-0 01 1 9510-9703 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) M10X30 FLANGE 		0-28081-030-0 01 1 9304-9703 ● ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ● ● ● ● ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MSA5G(S7G) SUSPENSION - RR UNDER SLUNG<V4U> M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) M10X20 FLANGE 		0-28081-020-0 02 1 9310-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45) M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ● ● ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT) EXC. FRAME-KICK UP<7EW> M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ●
236 BOLT; BRKT TO FRAME
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) M10X20 FLANGE 		0-28081-020-0 02 1 9503-9703 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M10X30 FLANGE 		0-28081-030-0 02 1 9304-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> M10X30 FLANGE 		0-28081-030-0 02 1 9304-9502 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X30 FLANGE 		0-28081-030-0 02 1 9304-9502 ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. FRAME-KICK UP<7EW> M10X30 FLANGE 		0-28081-030-0 02 1 9503-9703 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X30 FLANGE 		0-28081-030-0 02 1 9503-9703 ● ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MSA5G(S7G) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8X30 FLANGE 		0-28080-830-0 02 1 9304-9308 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X30 FLANGE 		0-28080-830-0 02 1 9309-9502 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MSA5G(S7G) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M8X30 FLANGE 		0-28080-830-0 02 1 9309-9502 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X30 FLANGE 		0-28080-830-0 02 1 9503-9507 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FRAME-KICK UP<7EW> M8X30 FLANGE 		0-28080-830-0 02 1 9503-9507 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X30 FLANGE 		0-28680-830-0 02 1 9508-9509 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FRAME-KICK UP<7EW> M8X30 FLANGE 		0-28680-830-0 02 1 9508-9509 ●
236 BOLT; BRKT TO FRAME
POWER TAKE OFF - FLYWHEEL(6SZ) M8X35 FLANGE 		0-28680-835-0 02 1 9510-9703 ● ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FRAME-KICK UP<7EW> M8X35 FLANGE 		0-28680-835-0 02 1 9510-9703 ●
236 BOLT; BRKT TO FRAME
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) M10X20 FLANGE 		0-28081-020-0 01 1 9304-9703 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
