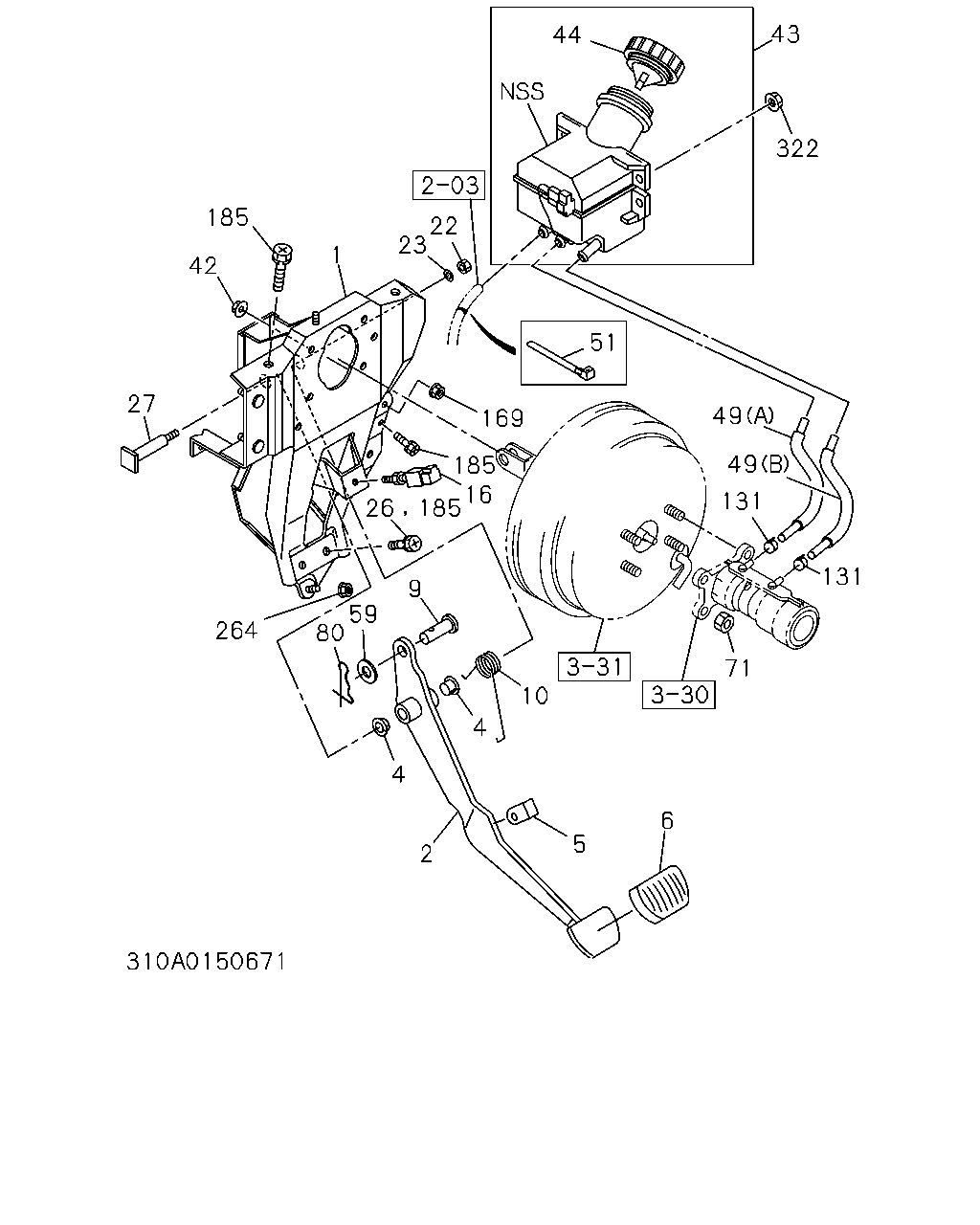

3-10 — BRAKE PEDAL AND CONTROL (#166714) — 64 parça
çizim 494208
43 322 44 22 23 185 42 27 264 80 59 9 26 1 185 169 16 185 51 49 49 131 131 71 6 5 10 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BRACKET ASM; PEDAL 8-97853-209-8 01 1 9304- ● ● ● ● ● ●
2 PEDAL; BRK 8-97853-210-2 01 1 9304- ● ● ● ● ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 9304- ● ● ● ● ● ●
5 STOPPER; BRK PEDAL 8-97853-602-0 01 1 9304- ● ● ● ● ● ●
6 COVER; BRK PEDAL 8-97853-413-1 01 1 9304- ● ● ● ● ● ●
9 PIN; JAW JOINT 8-94410-276-0 01 1 9304- ● ● ● ● ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 9304- ● ● ● ● ● ●
16 SWITCH; STOP LAMP 8-94118-754-1 01 1 9304-9403 ● ● ● ● ● ●
16 SWITCH; STOP LAMP 8-97855-187-0 01 1 9404- ● ● ● ● ● ●
22 NUT; SHAFT
M10 		9-09110-410-0 01 1 9304-9406 ● ● ● ● ● ●
22 NUT; SHAFT
M10 FLANGE 		1-09440-022-0 01 1 9407- ● ● ● ● ● ●
23 WASHER; LK,SHAFT
ID=10.2 		9-09150-610-0 01 1 9304-9406 ● ● ● ● ● ●
23 WASHER; LK,SHAFT
ID=10.2 		9-09150-610-0 01 1 9407-9407 ● ● ● ● ● ●
26 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 02 1 9512- ● ● ● ● ● ●
27 SHAFT; BRK PEDAL 8-97853-213-0 01 1 9304-9511 ● ● ● ● ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 9512- ● ● ● ● ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 9304- ● ● ● ● ● ●
43 TANK ASM; OIL
A/T 4 SPEED-JATCO(RMK) DISC BRAKE FRT<J52> 		8-97049-567-4 01 1 9304-9902 ● ● ● ● ● ●
43 TANK ASM; OIL
A/T 4 SPEED-JATCO(RMK) DISC BRAKE FRT<J52> 		8-97209-414-1 01 1 9903- ● ● ● ● ● ●
43 TANK ASM; OIL
A/T 4 SPEED-JATCO(RMK) EXC. DISC BRAKE FRT<J52> 		8-97049-569-4 01 1 9304-9812 ● ● ● ● ● ●
43 TANK ASM; OIL
A/T 4 SPEED-JATCO(RMK) EXC. DISC BRAKE FRT<J52> 		8-97179-814-1 01 1 9901- ● ● ● ● ● ●
43 TANK ASM; OIL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) DISC BRAKE FRT<J52> 		8-97049-566-4 01 1 9304-9502 ● ● ● ● ● ●
43 TANK ASM; OIL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) DISC BRAKE FRT<J52> 		8-97049-566-4 01 1 9503- ● ● ● ● ● ●
43 TANK ASM; OIL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) EXC. DISC BRAKE FRT<J52> 		8-97049-568-4 01 1 9304-9502 ● ● ● ● ● ●
43 TANK ASM; OIL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) EXC. DISC BRAKE FRT<J52> 		8-97049-568-4 01 1 9503-9811 ● ● ● ● ● ●
43 TANK ASM; OIL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) EXC. DISC BRAKE FRT<J52> 		8-97179-813-1 01 1 9812- ● ● ● ● ● ●
44 CAP; OIL TANK
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) EXC. DISC BRAKE FRT<J52> 		8-97178-291-0 01 1 9812-9902 ● ● ● ● ● ●
44 CAP; OIL TANK
A/T 4 SPEED-JATCO(RMK) 		8-97178-291-0 01 1 9903- ● ● ● ● ● ●
44 CAP; OIL TANK
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) EXC. DISC BRAKE FRT<J52> 		8-97178-291-0 01 1 9903- ● ● ● ● ● ●
44 CAP; OIL TANK 8-97095-698-0 01 1 9304-9502 ● ● ● ● ● ●
44 CAP; OIL TANK
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97095-698-0 01 1 9503-9811 ● ● ● ● ● ●
44 CAP; OIL TANK
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5),M/T MSB5S(R45) DISC BRAKE FRT<J52> 		8-97095-698-0 01 1 9812-9902 ● ● ● ● ● ●
44 CAP; OIL TANK
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) DISC BRAKE FRT<J52> 		8-97095-698-0 01 1 9903- ● ● ● ● ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(A),(B) 		8-97100-078-0 02 1 9304-9510 ● ● ● ● ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(A),(B) 		8-97129-582-0 02 1 9511-9511 ● ● ● ●
49 HOSE; OIL TANK TO BRK M/CYL
LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 2750 KG<RPH> EXC. FRONT WIDE TREAD<7GV> (A),(B) 		8-97129-582-0 02 1 9511-9511 ●
49 HOSE; OIL TANK TO BRK M/CYL
LOADING CAPACITY - 3000 KG<RPJ> EXC. DUMP CHASSIS(V4D) (A),(B) 		8-97129-582-0 02 1 9511-9511 ●
49 HOSE; OIL TANK TO BRK M/CYL
FRONT WIDE TREAD<7GV> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A),(B) 		8-97129-582-0 02 1 9511-9511 ●
49 HOSE; OIL TANK TO BRK M/CYL
FRT INDEPENDENT SUSPENSION(6PP) (A),(B) 		8-97129-582-0 02 1 9511-9511 ●
49 HOSE; OIL TANK TO BRK M/CYL
(A),(B) 		8-97129-582-0 02 1 9512-9710 ● ● ● ● ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-97129-582-0 01 1 9711- ● ● ● ● ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-97173-291-0 01 1 9711- ● ● ● ● ● ●
49 HOSE; OIL TANK TO BRK M/CYL
LOADING CAPACITY - 3000 KG<RPJ> DUMP CHASSIS(V4D) (A),(B) 		8-97129-583-0 02 1 9511-9511 ●
49 HOSE; OIL TANK TO BRK M/CYL
GARBAGE/VACUUM CHASSIS(V4G) FRONT WIDE TREAD<7GV> (A),(B) 		8-97129-583-0 02 1 9511-9511 ●
49 HOSE; OIL TANK TO BRK M/CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A),(B) 		8-97129-583-0 02 1 9511-9511 ●
51 CLIP; HOSE,OIL TANK
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) L=140 		5-09707-031-0 01 1 9304-9502 ● ● ● ● ● ●
51 CLIP; HOSE,OIL TANK
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) L=140 		5-09707-031-1 01 1 9503- ● ● ● ● ● ●
59 WASHER; PL,JAW JOINT
ID=15 		9-09160-514-0 01 1 9304- ● ● ● ● ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 9304- ● ● ● ● ● ●
80 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 9304- ● ● ● ● ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-97094-435-0 04 1 9304-9510 ● ● ● ● ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-97130-480-0 04 1 9511- ● ● ● ● ● ●
169 NUT; BRKT TO PNL
M8 		9-09110-408-0 01 1 9304-9310 ● ● ● ● ● ●
185 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9304-9603 ● ● ● ● ● ●
185 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9604-9801 ● ● ● ● ● ●
185 BOLT; BRKT
M10X25 		8-94279-212-0 04 1 9304-9309 ● ● ● ● ● ●
185 BOLT; BRKT
M10X25 		8-94279-212-0 02 1 9310-9406 ● ● ● ● ● ●
185 BOLT; BRKT
M10X25 		1-09980-494-0 02 1 9310-9511 ● ● ● ● ● ●
185 BOLT; BRKT
M10X25 		8-94279-212-0 03 1 9412-9412 ● ● ● ● ● ●
185 BOLT; BRKT
M10X25 		8-94279-212-0 02 1 9501-9603 ● ● ● ● ● ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28691-025-0 02 1 9604- ● ● ● ● ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE 		8-94279-517-0 01 1 9311-9609 ● ● ● ● ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE 		8-97046-127-0 01 1 9610- ● ● ● ● ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91150-106-0 02 1 9304- ● ● ● ● ● ●
