Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#166713) — 189 parça

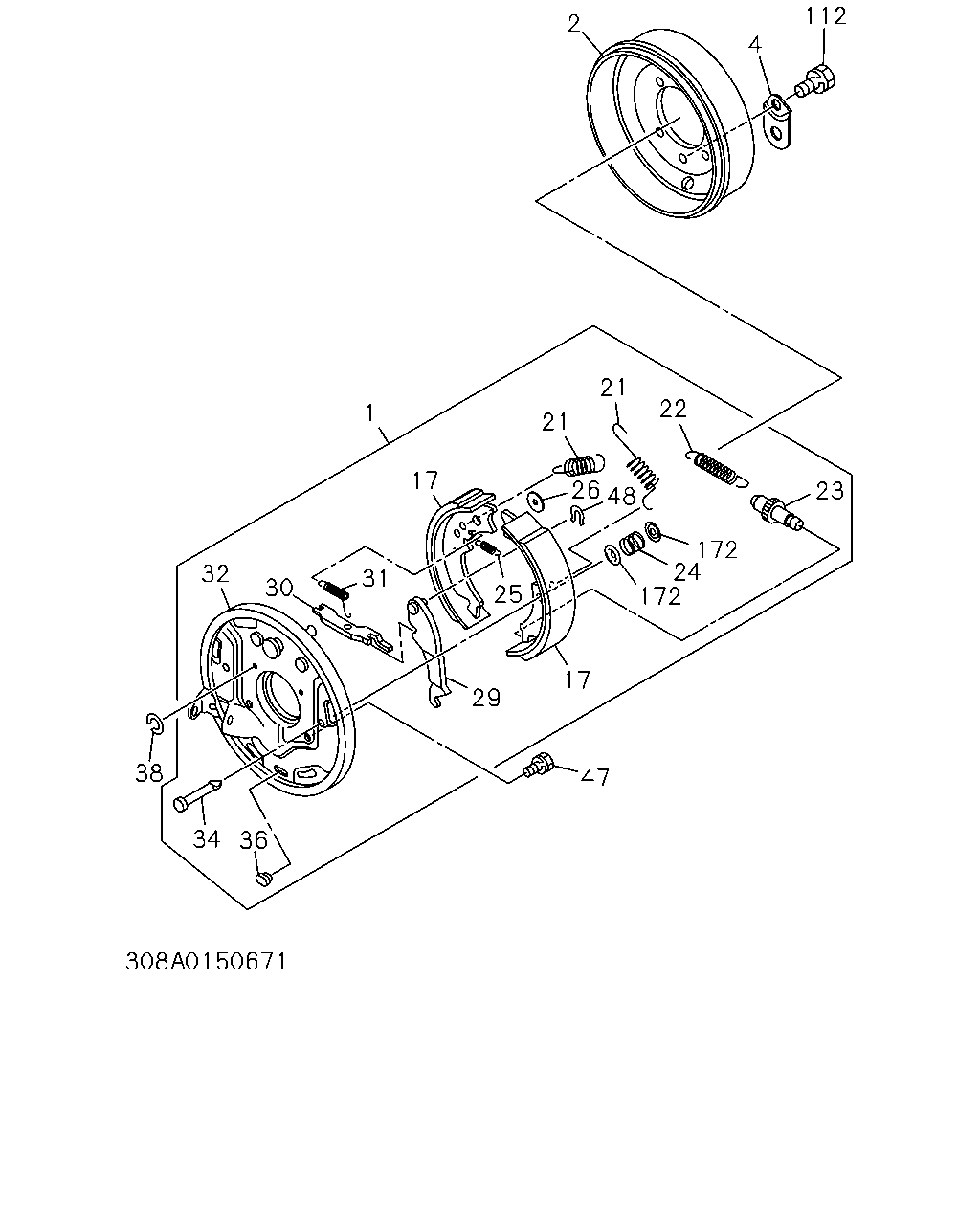

112 4 2 22 21 21 17 1 31 30 32 47 17 29 25 172 24 172 23 48 26 36 34 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G)	8-97100-212-2	01	1	9304-9502	●	●	●	●	●	●
1	BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97100-212-2	01	1	9503-9703	●	●	●	●	●	●
1	BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97100-212-2	01	1	9704-	●	●	●	●	●	●
1	BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97034-553-2	01	1	9304-	●	●	●	●	●	●
2	DRUM; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-97033-989-1	01	1	9304-9502	●	●	●	●	●	●
2	DRUM; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97033-989-1	01	1	9503-9703	●	●	●	●	●	●
2	DRUM; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97033-989-1	01	1	9704-	●	●	●	●	●	●
2	DRUM; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	5-46210-005-3	01	1	9304-9502	●				●
2	DRUM; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	5-46210-005-3	01	1	9503-	●	●	●	●	●	●
4	COVER; ADJ HOLE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	5-46219-001-0	01	1	9304-9502	●	●	●	●	●	●
4	COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1 ENG(RLS)	5-46219-001-0	01	1	9503-9703	●	●	●	●	●	●
4	COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	5-46219-001-0	01	1	9704-	●	●	●	●	●	●
4	COVER; ADJ HOLE 4JG2 ENG(RJC) M/T MSB5S(R45)	5-42319-003-0	01	1	9304-9502	●				●
4	COVER; ADJ HOLE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	5-42319-003-0	01	1	9503-	●	●	●	●	●	●
17	SHOE; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-97020-250-2	02	1	9304-9502	●	●	●	●	●	●
17	SHOE; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97020-250-2	02	1	9503-9703	●	●	●	●	●	●
17	SHOE; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97020-250-2	02	1	9704-	●	●	●	●	●	●
17	SHOE; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	8-97042-933-1	02	1	9304-9502	●				●
17	SHOE; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97042-933-1	02	1	9503-	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-157-0	02	1	9304-9502	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-157-0	02	1	9503-9703	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-157-0	02	1	9704-	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09942-552-1	01	1	9304-9502	●				●
21	SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-552-1	01	1	9503-	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94107-618-0	01	1	9304-9502	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94107-618-0	01	1	9503-9703	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94107-618-0	01	1	9704-	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09942-340-1	01	1	9304-9502	●				●
22	SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-340-1	01	1	9503-	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	5-47165-025-0	01	1	9304-9304	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS)	5-47165-025-0	01	1	9304-9502	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)	5-47165-025-0	01	1	9503-9703	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS)	5-47165-025-0	01	1	9704-	●	●	●	●	●	●
24	SPRING; BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-155-0	02	1	9304-9502	●	●	●	●	●	●
24	SPRING; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-155-0	02	1	9503-9703	●	●	●	●	●	●
24	SPRING; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-155-0	02	1	9704-	●	●	●	●	●	●
24	SPRING; BRK SHOE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09941-062-1	02	1	9304-9502	●				●
24	SPRING; BRK SHOE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09941-062-1	02	1	9503-	●	●	●	●	●	●
25	SPRING; SHOE ALIGNMENT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-156-0	01	1	9304-9502	●	●	●	●	●	●
25	SPRING; SHOE ALIGNMENT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-156-0	01	1	9503-9703	●	●	●	●	●	●
25	SPRING; SHOE ALIGNMENT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-156-0	01	1	9704-	●	●	●	●	●	●
26	PLATE; SHOE GUIDE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	9-09851-986-0	01	1	9304-9502	●	●	●	●	●	●
26	PLATE; SHOE GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-09851-986-0	01	1	9503-9703	●	●	●	●	●	●
26	PLATE; SHOE GUIDE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-09851-986-0	01	1	9704-	●	●	●	●	●	●
29	LEVER; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-97027-125-0	01	1	9304-9502	●	●	●	●	●	●
29	LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97027-125-0	01	1	9503-9703	●	●	●	●	●	●
29	LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97027-125-0	01	1	9704-	●	●	●	●	●	●
29	LEVER; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	8-94128-765-0	01	1	9304-9502	●				●
29	LEVER; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-94128-765-0	01	1	9503-	●	●	●	●	●	●
30	STRUT; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94311-779-0	01	1	9304-9502	●	●	●	●	●	●
30	STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94311-779-0	01	1	9503-9703	●	●	●	●	●	●
30	STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94311-779-0	01	1	9704-	●	●	●	●	●	●
30	STRUT; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	5-46251-007-0	01	1	9304-9502	●				●
30	STRUT; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	5-46251-007-0	01	1	9503-	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-158-0	01	1	9304-9502	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-158-0	01	1	9503-9703	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-158-0	01	1	9704-	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09942-521-1	01	1	9304-9502	●				●
31	SPRING; SHOE TO STRUT 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-521-1	01	1	9503-	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94311-780-1	01	1	9304-9502	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94311-780-1	01	1	9503-9703	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94311-780-1	01	1	9704-	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	9-46213-601-2	01	1	9304-9502	●				●
32	PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-46213-601-2	01	1	9503-	●	●	●	●	●	●
34	PIN; BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-159-0	02	1	9304-9502	●	●	●	●	●	●
34	PIN; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-159-0	02	1	9503-9703	●	●	●	●	●	●
34	PIN; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-159-0	02	1	9704-	●	●	●	●	●	●
34	PIN; BRK SHOE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-47162-034-0	02	1	9304-9502	●				●
34	PIN; BRK SHOE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-47162-034-0	02	1	9503-	●	●	●	●	●	●
36	GROMMET; ADJ HOLE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	5-47169-002-0	01	1	9304-9502	●	●	●	●	●	●
36	GROMMET; ADJ HOLE 4HG1 ENG(RJH),4HF1 ENG(RLS)	5-47169-002-0	01	1	9503-9703	●	●	●	●	●	●
36	GROMMET; ADJ HOLE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	5-47169-002-0	01	1	9704-	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) ID=12.2	9-09150-812-0	04	1	9304-9502	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) ID=12.2	9-09150-812-0	04	1	9503-9605	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5S(R45) ID=8.2	9-09150-808-0	02	1	9304-9502	●				●
38	WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45) ID=8.2	9-09150-808-0	02	1	9503-	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M12X22	0-20801-222-0	04	1	9304-9405	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G)	8-97115-723-0	04	1	9406-9502	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-723-0	04	1	9503-9605	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97147-821-0	04	1	9606-9703	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97147-821-0	04	1	9704-9809	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) M12X20 FLANGE	8-97213-401-0	04	1	9810-	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) M12X32 W/LK WASHER	0-50051-232-0	04	1	9304-9502	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) M12X32 W/LK WASHER	0-50051-232-0	04	1	9503-9703	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) M12X32 W/LK WASHER	0-50051-232-0	04	1	9704-	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-02060-814-0	02	1	9304-9502	●				●
47	BOLT; SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-02060-814-0	02	1	9503-	●	●	●	●	●	●
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS)	9-46349-005-1	01	1	9304-9502	●	●	●	●	●	●
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)	9-46349-005-1	01	1	9503-9703	●	●	●	●	●	●
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS)	9-46349-005-1	01	1	9704-	●	●	●	●	●	●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	9304-	●	●	●	●	●	●
172	CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G)	9-47162-033-0	04	1	9304-9502	●	●	●	●	●	●
172	CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-47162-033-0	04	1	9503-9703	●	●	●	●	●	●
172	CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-47162-033-0	04	1	9704-	●	●	●	●	●	●
172	CUP; SHOE HOLD 4JG2 ENG(RJC) M/T MSB5S(R45)	9-46238-006-0	04	1	9304-9502	●	●	●	●	●	●
172	CUP; SHOE HOLD 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-46238-006-0	04	1	9503-9610	●	●	●	●	●	●
172	CUP; SHOE HOLD 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-94378-404-0	04	1	9611-	●	●	●	●	●	●

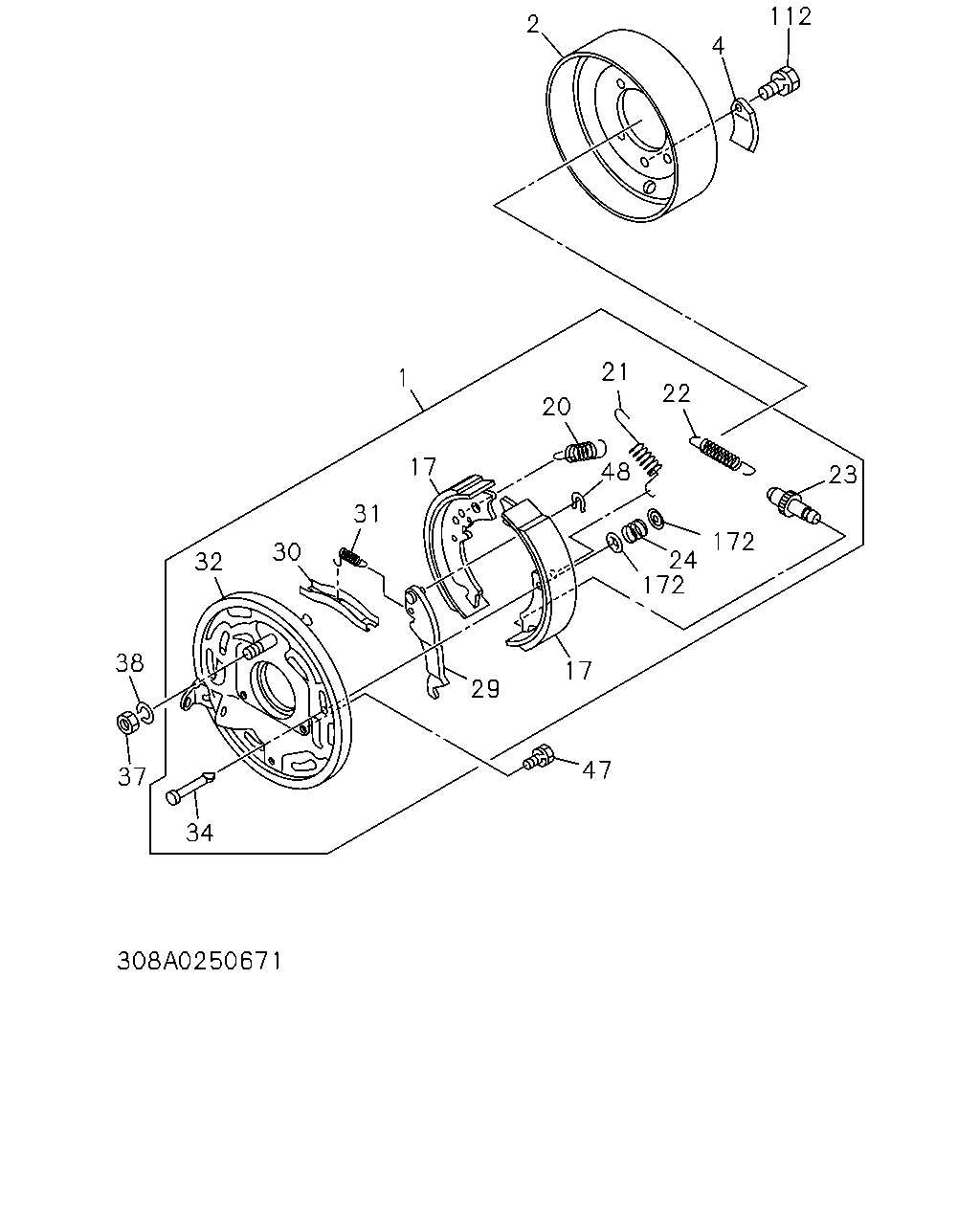

2 4 112 22 21 20 17 1 31 30 32 38 37 34 29 17 47 172 24 172 23 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G)	8-97100-212-2	01	1	9304-9502	●	●	●	●	●	●
1	BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97100-212-2	01	1	9503-9703	●	●	●	●	●	●
1	BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97100-212-2	01	1	9704-	●	●	●	●	●	●
1	BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97034-553-2	01	1	9304-	●	●	●	●	●	●
2	DRUM; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-97033-989-1	01	1	9304-9502	●	●	●	●	●	●
2	DRUM; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97033-989-1	01	1	9503-9703	●	●	●	●	●	●
2	DRUM; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97033-989-1	01	1	9704-	●	●	●	●	●	●
2	DRUM; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	5-46210-005-3	01	1	9304-9502	●				●
2	DRUM; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	5-46210-005-3	01	1	9503-	●	●	●	●	●	●
4	COVER; ADJ HOLE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	5-46219-001-0	01	1	9304-9502	●	●	●	●	●	●
4	COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1 ENG(RLS)	5-46219-001-0	01	1	9503-9703	●	●	●	●	●	●
4	COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	5-46219-001-0	01	1	9704-	●	●	●	●	●	●
4	COVER; ADJ HOLE 4JG2 ENG(RJC) M/T MSB5S(R45)	5-42319-003-0	01	1	9304-9502	●				●
4	COVER; ADJ HOLE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	5-42319-003-0	01	1	9503-	●	●	●	●	●	●
17	SHOE; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-97020-250-2	02	1	9304-9502	●	●	●	●	●	●
17	SHOE; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97020-250-2	02	1	9503-9703	●	●	●	●	●	●
17	SHOE; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97020-250-2	02	1	9704-	●	●	●	●	●	●
17	SHOE; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	8-97042-933-1	02	1	9304-9502	●				●
17	SHOE; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97042-933-1	02	1	9503-	●	●	●	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09942-553-1	01	1	9304-9502	●				●
20	SPRING; RETURN,SECONDARY,PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-553-1	01	1	9503-	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-157-0	02	1	9304-9502	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-157-0	02	1	9503-9703	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-157-0	02	1	9704-	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09942-552-1	01	1	9304-9502	●				●
21	SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-552-1	01	1	9503-	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94107-618-0	01	1	9304-9502	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94107-618-0	01	1	9503-9703	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94107-618-0	01	1	9704-	●	●	●	●	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09942-340-1	01	1	9304-9502	●				●
22	SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-340-1	01	1	9503-	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	5-47165-025-0	01	1	9304-9304	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS)	5-47165-025-0	01	1	9304-9502	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)	5-47165-025-0	01	1	9503-9703	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS)	5-47165-025-0	01	1	9704-	●	●	●	●	●	●
24	SPRING; BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-155-0	02	1	9304-9502	●	●	●	●	●	●
24	SPRING; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-155-0	02	1	9503-9703	●	●	●	●	●	●
24	SPRING; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-155-0	02	1	9704-	●	●	●	●	●	●
24	SPRING; BRK SHOE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09941-062-1	02	1	9304-9502	●				●
24	SPRING; BRK SHOE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09941-062-1	02	1	9503-	●	●	●	●	●	●
29	LEVER; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-97027-125-0	01	1	9304-9502	●	●	●	●	●	●
29	LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97027-125-0	01	1	9503-9703	●	●	●	●	●	●
29	LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97027-125-0	01	1	9704-	●	●	●	●	●	●
29	LEVER; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	8-94128-765-0	01	1	9304-9502	●				●
29	LEVER; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-94128-765-0	01	1	9503-	●	●	●	●	●	●
30	STRUT; PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94311-779-0	01	1	9304-9502	●	●	●	●	●	●
30	STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94311-779-0	01	1	9503-9703	●	●	●	●	●	●
30	STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94311-779-0	01	1	9704-	●	●	●	●	●	●
30	STRUT; PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	5-46251-007-0	01	1	9304-9502	●				●
30	STRUT; PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	5-46251-007-0	01	1	9503-	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-158-0	01	1	9304-9502	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-158-0	01	1	9503-9703	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-158-0	01	1	9704-	●	●	●	●	●	●
31	SPRING; SHOE TO STRUT 4JG2 ENG(RJC) M/T MSB5S(R45)	9-09942-521-1	01	1	9304-9502	●				●
31	SPRING; SHOE TO STRUT 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-521-1	01	1	9503-	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94311-780-1	01	1	9304-9502	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94311-780-1	01	1	9503-9703	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94311-780-1	01	1	9704-	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC) M/T MSB5S(R45)	9-46213-601-2	01	1	9304-9502	●				●
32	PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-46213-601-2	01	1	9503-	●	●	●	●	●	●
34	PIN; BRK SHOE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)	8-94132-159-0	02	1	9304-9502	●	●	●	●	●	●
34	PIN; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94132-159-0	02	1	9503-9703	●	●	●	●	●	●
34	PIN; BRK SHOE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94132-159-0	02	1	9704-	●	●	●	●	●	●
34	PIN; BRK SHOE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-47162-034-0	02	1	9304-9502	●				●
34	PIN; BRK SHOE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-47162-034-0	02	1	9503-	●	●	●	●	●	●
37	NUT; SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5S(R45) M12	8-97033-122-0	01	1	9304-9502	●				●
37	NUT; SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45) M12	8-97033-122-0	01	1	9503-	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) ID=12.2	9-09150-812-0	04	1	9304-9502	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) ID=12.2	9-09150-812-0	04	1	9503-9605	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5S(R45) ID=8.2	9-09150-808-0	02	1	9304-9502	●				●
38	WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45) ID=8.2	9-09150-808-0	02	1	9503-	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M12X22	0-20801-222-0	04	1	9304-9405	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G)	8-97115-723-0	04	1	9406-9502	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-723-0	04	1	9503-9605	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97147-821-0	04	1	9606-9703	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97147-821-0	04	1	9704-9809	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) M12X20 FLANGE	8-97213-401-0	04	1	9810-	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) M12X32 W/LK WASHER	0-50051-232-0	04	1	9304-9502	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) M12X32 W/LK WASHER	0-50051-232-0	04	1	9503-9703	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) M12X32 W/LK WASHER	0-50051-232-0	04	1	9704-	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5S(R45)	9-02060-814-0	02	1	9304-9502	●				●
47	BOLT; SUPPORT PLATE 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-02060-814-0	02	1	9503-	●	●	●	●	●	●
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS)	9-46349-005-1	01	1	9304-9502	●	●	●	●	●	●
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)	9-46349-005-1	01	1	9503-9703	●	●	●	●	●	●
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS)	9-46349-005-1	01	1	9704-	●	●	●	●	●	●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	9304-	●	●	●	●	●	●
172	CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G)	9-47162-033-0	04	1	9304-9502	●	●	●	●	●	●
172	CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-47162-033-0	04	1	9503-9703	●	●	●	●	●	●
172	CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-47162-033-0	04	1	9704-	●	●	●	●	●	●
172	CUP; SHOE HOLD 4JG2 ENG(RJC) M/T MSB5S(R45)	9-46238-006-0	04	1	9304-9502	●	●	●	●	●	●
172	CUP; SHOE HOLD 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	9-46238-006-0	04	1	9503-9610	●	●	●	●	●	●
172	CUP; SHOE HOLD 4JG2 ENG(RJC) M/T MSB5M(RM5),M/T MSB5S(R45)	8-94378-404-0	04	1	9611-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
