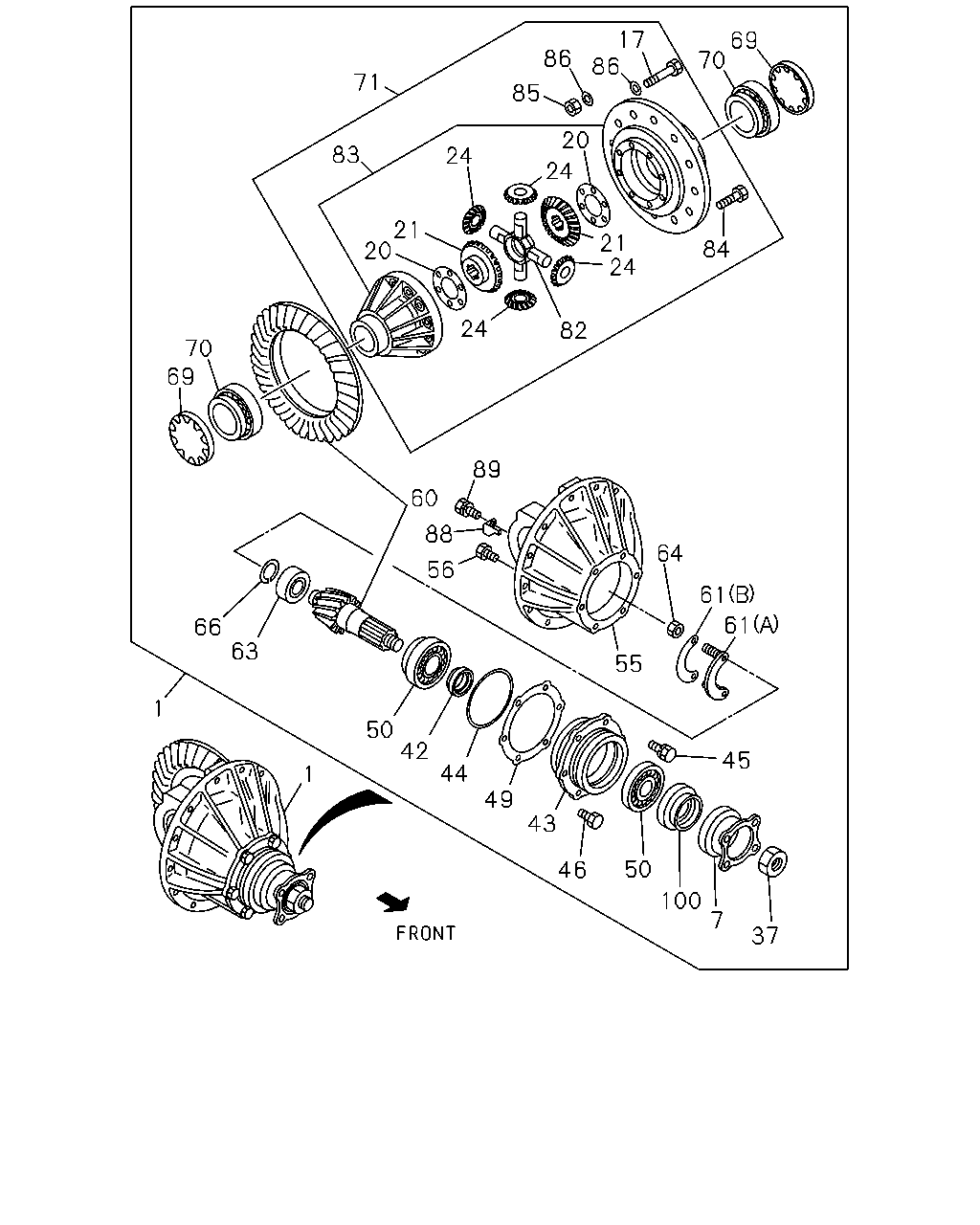

4-25 — REAR FINAL DRIVE (#16671) — 302 parça

17 86 69 70 86 71 85 20 83 24 24 21 24 21 20 84 24 82 70 69 89 60 88 64 56 61 61 66 63 55 1 50 42 45 44 1 49 43 50 46 100 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97076-936-0	01	1	0009-0304	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97367-501-0	01	1	0305-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97076-937-0	01	1	0009-0304	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97367-502-0	01	1	0305-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97071-731-0	01	1	0009-0203		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97319-261-0	01	1	0204-0303		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97356-443-0	01	1	0304-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97363-116-0	01	1	0304-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-94338-901-1	01	1	0009-0203		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-262-0	01	1	0204-0303		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97356-444-0	01	1	0304-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97363-117-0	01	1	0304-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-94338-902-2	01	1	0009-0203		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97319-263-0	01	1	0204-0303		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97356-445-0	01	1	0304-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97363-118-0	01	1	0304-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97035-413-0	01	1	0009-0203			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-242-0	01	1	0204-0303			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97356-424-0	01	1	0304-0304			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97363-097-0	01	1	0304-			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97035-414-0	01	1	0009-0203			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97319-243-0	01	1	0204-0303			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97356-425-0	01	1	0304-0304			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97363-098-0	01	1	0304-			●
7	FLANGE; FINAL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97075-216-3	01	1	0009-	●
7	FLANGE; FINAL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94426-787-4	01	1	0009-		●
7	FLANGE; FINAL FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94477-723-4	01	1	0009-			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X58	5-09020-007-1	08	1	0009-0108	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X58	8-97314-497-0	08	1	0109-	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X75	5-09000-213-0	12	1	0009-0203		●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X75	5-09000-213-0	12	1	0009-0203			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X75 FLANGE	8-97232-161-0	04	1	0009-0203		●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X75 FLANGE	8-97232-161-0	04	1	0009-0203			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X75 FLANGE	8-97232-161-0	12	1	0204-		●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X75 FLANGE	8-97232-161-0	12	1	0204-			●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> T=1.00	9-41562-602-0	02	1	0009-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> T=1.40	9-41562-601-0	02	1	0009-		●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> T=1.40	9-41562-601-0	02	1	0009-			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> Z=18	8-97226-764-0	02	1	0009-	●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=23	8-97035-388-0	02	1	0009-0009		●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=20	8-97300-269-0	02	1	0010-0303		●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=20	8-97362-599-0	02	1	0304-		●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=20	8-94461-233-0	02	1	0009-0009			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=20	8-97300-266-0	02	1	0010-0303			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=20	8-97362-598-0	02	1	0304-			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> Z=10	8-97226-762-0	04	1	0009-	●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=10	8-97041-972-0	04	1	0009-0009		●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=10	8-97041-972-0	04	1	0009-0009			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=10	8-97300-265-0	04	1	0010-0303		●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=10	8-97300-265-0	04	1	0010-0303			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=10	8-97356-349-0	04	1	0304-		●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=10	8-97356-349-0	04	1	0304-			●
37	NUT; DRIVING PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M24 FLANGE	8-94376-261-1	01	1	0009-	●
37	NUT; DRIVING PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M24 FLANGE	8-94329-526-1	01	1	0009-		●
37	NUT; DRIVING PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M24 FLANGE	8-94329-526-1	01	1	0009-			●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> L=53.35	9-41219-634-1	01	1	0009-	●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> L=19.6	9-41219-603-1	01	1	0009-		●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> L=19.6	9-41219-603-1	01	1	0009-			●
43	CAGE; FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94400-890-0	01	1	0009-		●
43	CAGE; FINAL PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94400-890-0	01	1	0009-			●
44	GASKET; PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	9-09720-505-0	01	1	0009-		●
44	GASKET; PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	9-09720-505-0	01	1	0009-			●
45	BOLT; FINAL PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M12X38 W/LK WASHER	0-50051-238-0	05	1	0009-		●
45	BOLT; FINAL PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M12X38 W/LK WASHER	0-50051-238-0	05	1	0009-			●
46	BOLT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M14X35 W/LK WASHER	0-50051-435-0	01	1	0009-		●
46	BOLT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M14X35 W/LK WASHER	0-50051-435-0	01	1	0009-			●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=132 T=0.10	8-94401-335-0	AR	1	0009-		●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=132 T=0.10	8-94401-335-0	AR	1	0009-			●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=132 T=0.12	8-94401-336-0	AR	1	0009-		●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=132 T=0.12	8-94401-336-0	AR	1	0009-			●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=132 T=0.14	8-94401-337-0	AR	1	0009-		●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=132 T=0.14	8-94401-337-0	AR	1	0009-			●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=132 T=0.16	8-94401-338-0	AR	1	0009-		●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=132 T=0.16	8-94401-338-0	AR	1	0009-			●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=132 T=0.18	8-94401-339-0	AR	1	0009-		●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=132 T=0.18	8-94401-339-0	AR	1	0009-			●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=132 T=0.20	8-94401-340-0	AR	1	0009-		●
49	SHIM; FINAL PINION CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=132 T=0.20	8-94401-340-0	AR	1	0009-			●
50	BEARING; FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> KOYO	5-09812-062-1	02	1	0009-		●
50	BEARING; FINAL PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> KOYO	5-09812-062-1	02	1	0009-			●
50	BEARING; FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK	5-09812-063-0	02	1	0009-		●
50	BEARING; FINAL PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK	5-09812-063-0	02	1	0009-			●
55	CARRIER; DIFF FINAL GEAR RATIO 41/7<R41>	8-97307-760-0	02	1	0203-0206		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>	8-97307-760-0	02	1	0203-0206			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-94376-227-1	02	1	0009-0201	●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-94376-227-3	01	1	0202-	●
55	CARRIER; DIFF FINAL GEAR RATIO 41/7<R41>	8-94365-264-0	02	1	0009-0103		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>	8-94365-264-0	02	1	0009-0103			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 43/7<R42>	8-94365-264-0	01	1	0009-0103		●
55	CARRIER; DIFF FINAL GEAR RATIO 43/8<R40>	8-94365-264-0	01	1	0009-0103			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94365-264-0	01	1	0104-0202		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94365-264-0	01	1	0104-0202			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 43/7<R42>	8-97307-760-0	01	1	0203-0206		●
55	CARRIER; DIFF FINAL GEAR RATIO 43/8<R40>	8-97307-760-0	01	1	0203-0206			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97307-760-0	01	1	0207-		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97307-760-0	01	1	0207-			●
56	BOLT; BRG CAP FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M14X80	8-94365-377-3	04	1	0009-	●
56	BOLT; BRG CAP FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M14X80	8-94365-377-3	04	1	0009-		●
56	BOLT; BRG CAP FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M14X80	8-94365-377-3	04	1	0009-			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-433-0	01	1	0009-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97076-938-0	01	1	0009-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-453-0	01	1	0009-0203		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97319-160-0	01	1	0204-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97035-454-0	01	1	0009-0203		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-161-0	01	1	0204-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97035-455-0	01	1	0009-0203		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> THA	8-97319-103-0	01	1	0204-0205		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97320-103-0	01	1	0206-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97320-103-0	01	1	0204-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97035-451-0	01	1	0009-0203			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-158-0	01	1	0204-			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97035-452-0	01	1	0009-0203			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97319-159-0	01	1	0204-			●
61	RETAINER; PILOT BRG,PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (A) W/STUD	5-41227-001-0	01	1	0009-		●
61	RETAINER; PILOT BRG,PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (A) W/STUD	5-41227-001-0	01	1	0009-			●
61	RETAINER; PILOT BRG,PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (B)	9-41227-601-0	01	1	0009-		●
61	RETAINER; PILOT BRG,PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (B)	9-41227-601-0	01	1	0009-			●
63	BEARING; PINION PILOT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK	5-09810-008-1	01	1	0009-		●
63	BEARING; PINION PILOT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK	5-09810-008-1	01	1	0009-			●
63	BEARING; PINION PILOT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> KOYO	8-97107-548-0	01	1	0009-		●
63	BEARING; PINION PILOT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> KOYO	8-97107-548-0	01	1	0009-			●
64	NUT; RET FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M6 FLANGE	0-91150-106-0	02	1	0009-		●
64	NUT; RET FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M6 FLANGE	0-91150-106-0	02	1	0009-			●
66	RING; SNAP,PILOT BRG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	9-09752-002-0	01	1	0009-		●
66	RING; SNAP,PILOT BRG FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	9-09752-002-0	01	1	0009-			●
69	NUT; ADJ,DIFF CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M110 H=10	5-41121-001-0	02	1	0009-		●
69	NUT; ADJ,DIFF CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M110 H=10	5-41121-001-0	02	1	0009-			●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NSK	9-00032-211-0	02	1	0009-	●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK	9-00093-602-0	02	1	0009-		●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK	9-00093-602-0	02	1	0009-			●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97228-309-0	01	1	0009-	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97035-389-0	01	1	0009-0203		●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97319-040-0	01	1	0204-0303		●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97356-486-0	01	1	0304-0304		●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97363-159-0	01	1	0304-		●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94461-234-1	01	1	0009-0203			●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97319-039-0	01	1	0204-0303			●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97356-483-0	01	1	0304-0304			●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97363-156-0	01	1	0304-			●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-41521-611-0	01	1	0009-	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	5-41521-008-0	01	1	0009-		●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-41521-008-0	01	1	0009-			●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-41510-610-0	01	1	0009-	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94159-027-0	01	1	0009-0203		●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94159-027-0	01	1	0009-0203			●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97319-396-1	01	1	0204-		●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97319-396-1	01	1	0204-			●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X22	9-09600-066-3	12	1	0009-0208	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X25	9-09606-505-2	12	1	0209-	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M12X25	9-09606-505-2	12	1	0009-0203		●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M12X25	9-09606-505-2	12	1	0009-0203			●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M14X25	8-97318-938-1	12	1	0204-		●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M14X25	8-97318-938-1	12	1	0204-			●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10 FLANGE	0-91150-210-0	04	1	0009-0203		●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10 FLANGE	0-91150-210-0	04	1	0009-0203			●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10 FLANGE	0-91150-210-0	12	1	0204-		●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10 FLANGE	0-91150-210-0	12	1	0204-			●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10	8-94159-009-1	12	1	0009-0203		●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10	8-94159-009-1	12	1	0009-0203			●
86	WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=10 OD=18 T=2 THA	9-09651-116-0	24	1	0009-0203		●
86	WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=10 OD=18 T=2 THA	9-09651-116-0	24	1	0009-0203			●
88	PLATE; LK,ADJ NUT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97027-281-0	AR	1	0009-		●
88	PLATE; LK,ADJ NUT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97027-281-0	AR	1	0009-			●
88	PLATE; LK,ADJ NUT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97027-282-0	AR	1	0009-		●
88	PLATE; LK,ADJ NUT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97027-282-0	AR	1	0009-			●
89	BOLT; LK PLATE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M8X16 FLANGE	0-28080-816-0	02	1	0009-		●
89	BOLT; LK PLATE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M8X16 FLANGE	0-28080-816-0	02	1	0009-			●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NOK	8-94408-084-1	01	1	0009-	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> TKK	8-94408-085-1	01	1	0009-	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> OD=103	8-94408-083-0	01	1	0009-		●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> OD=103	8-94408-083-0	01	1	0009-			●
161	WASHER; LK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=12.2	9-09150-612-0	08	1	0305-	●

70 84 73 83 24 82 24 21 73 19 17 21 20 20 24 24 73 70 73 60 51 51 39 42 56 55 39 100 7 37 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97076-936-0	01	1	0009-0304	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97367-501-0	01	1	0305-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97076-937-0	01	1	0009-0304	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97367-502-0	01	1	0305-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97071-731-0	01	1	0009-0203		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97319-261-0	01	1	0204-0303		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97356-443-0	01	1	0304-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97363-116-0	01	1	0304-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-94338-901-1	01	1	0009-0203		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-262-0	01	1	0204-0303		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97356-444-0	01	1	0304-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97363-117-0	01	1	0304-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-94338-902-2	01	1	0009-0203		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97319-263-0	01	1	0204-0303		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97356-445-0	01	1	0304-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97363-118-0	01	1	0304-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97035-413-0	01	1	0009-0203			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-242-0	01	1	0204-0303			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97356-424-0	01	1	0304-0304			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97363-097-0	01	1	0304-			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97035-414-0	01	1	0009-0203			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97319-243-0	01	1	0204-0303			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97356-425-0	01	1	0304-0304			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97363-098-0	01	1	0304-			●
7	FLANGE; FINAL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97075-216-3	01	1	0009-	●
7	FLANGE; FINAL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94426-787-4	01	1	0009-		●
7	FLANGE; FINAL FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94477-723-4	01	1	0009-			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X58	5-09020-007-1	08	1	0009-0108	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X58	8-97314-497-0	08	1	0109-	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X75	5-09000-213-0	12	1	0009-0203		●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X75	5-09000-213-0	12	1	0009-0203			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X75 FLANGE	8-97232-161-0	04	1	0009-0203		●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X75 FLANGE	8-97232-161-0	04	1	0009-0203			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X75 FLANGE	8-97232-161-0	12	1	0204-		●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X75 FLANGE	8-97232-161-0	12	1	0204-			●
19	WASHER; LK,DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=12.2	9-09150-612-0	08	1	0009-0304	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> T=1.00	9-41562-602-0	02	1	0009-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> T=1.40	9-41562-601-0	02	1	0009-		●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> T=1.40	9-41562-601-0	02	1	0009-			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> Z=18	8-97226-764-0	02	1	0009-	●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=23	8-97035-388-0	02	1	0009-0009		●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=20	8-97300-269-0	02	1	0010-0303		●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=20	8-97362-599-0	02	1	0304-		●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=20	8-94461-233-0	02	1	0009-0009			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=20	8-97300-266-0	02	1	0010-0303			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=20	8-97362-598-0	02	1	0304-			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> Z=10	8-97226-762-0	04	1	0009-	●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=10	8-97041-972-0	04	1	0009-0009		●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=10	8-97041-972-0	04	1	0009-0009			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=10	8-97300-265-0	04	1	0010-0303		●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=10	8-97300-265-0	04	1	0010-0303			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=10	8-97356-349-0	04	1	0304-		●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=10	8-97356-349-0	04	1	0304-			●
37	NUT; DRIVING PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M24 FLANGE	8-94376-261-1	01	1	0009-	●
37	NUT; DRIVING PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M24 FLANGE	8-94329-526-1	01	1	0009-		●
37	NUT; DRIVING PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M24 FLANGE	8-94329-526-1	01	1	0009-			●
39	BEARING; FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NSK	9-00093-078-0	01	1	0009-	●
39	BEARING; FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> KOYO	9-00093-079-0	01	1	0009-	●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> L=53.35	9-41219-634-1	01	1	0009-	●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> L=19.6	9-41219-603-1	01	1	0009-		●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> L=19.6	9-41219-603-1	01	1	0009-			●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.12	9-41219-608-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.16	9-41219-610-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.20	9-41219-612-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.24	9-41219-614-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.28	9-41219-616-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.32	9-41219-618-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.36	9-41219-620-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.40	9-41219-622-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.44	9-41219-624-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.48	9-41219-626-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.52	9-41219-628-0	01	1	0009-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> OD=89.5 T=2.56	9-41219-630-0	01	1	0009-	●
55	CARRIER; DIFF FINAL GEAR RATIO 41/7<R41>	8-97307-760-0	02	1	0203-0206		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>	8-97307-760-0	02	1	0203-0206			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-94376-227-1	02	1	0009-0201	●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-94376-227-3	01	1	0202-	●
55	CARRIER; DIFF FINAL GEAR RATIO 41/7<R41>	8-94365-264-0	02	1	0009-0103		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>	8-94365-264-0	02	1	0009-0103			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 43/7<R42>	8-94365-264-0	01	1	0009-0103		●
55	CARRIER; DIFF FINAL GEAR RATIO 43/8<R40>	8-94365-264-0	01	1	0009-0103			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94365-264-0	01	1	0104-0202		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94365-264-0	01	1	0104-0202			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 43/7<R42>	8-97307-760-0	01	1	0203-0206		●
55	CARRIER; DIFF FINAL GEAR RATIO 43/8<R40>	8-97307-760-0	01	1	0203-0206			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97307-760-0	01	1	0207-		●
55	CARRIER; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97307-760-0	01	1	0207-			●
56	BOLT; BRG CAP FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M14X80	8-94365-377-3	04	1	0009-	●
56	BOLT; BRG CAP FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M14X80	8-94365-377-3	04	1	0009-		●
56	BOLT; BRG CAP FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M14X80	8-94365-377-3	04	1	0009-			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-433-0	01	1	0009-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97076-938-0	01	1	0009-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-453-0	01	1	0009-0203		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97319-160-0	01	1	0204-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97035-454-0	01	1	0009-0203		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-161-0	01	1	0204-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97035-455-0	01	1	0009-0203		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> THA	8-97319-103-0	01	1	0204-0205		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97320-103-0	01	1	0206-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7<R42> 43/7	8-97320-103-0	01	1	0204-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97035-451-0	01	1	0009-0203			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-158-0	01	1	0204-			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97035-452-0	01	1	0009-0203			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-97319-159-0	01	1	0204-			●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NSK	9-00032-211-0	02	1	0009-	●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK	9-00093-602-0	02	1	0009-		●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK	9-00093-602-0	02	1	0009-			●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> T=0.50	9-41519-009-0	AR	1	0009-	●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> T=0.25	9-41519-010-0	AR	1	0009-	●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> T=0.30	9-41519-601-0	AR	1	0009-	●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> T=0.35	9-41519-602-0	AR	1	0009-	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-41521-611-0	01	1	0009-	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	5-41521-008-0	01	1	0009-		●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-41521-008-0	01	1	0009-			●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-41510-610-0	01	1	0009-	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94159-027-0	01	1	0009-0203		●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94159-027-0	01	1	0009-0203			●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97319-396-1	01	1	0204-		●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97319-396-1	01	1	0204-			●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X22	9-09600-066-3	12	1	0009-0208	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M12X25	9-09606-505-2	12	1	0209-	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M12X25	9-09606-505-2	12	1	0009-0203		●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M12X25	9-09606-505-2	12	1	0009-0203			●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M14X25	8-97318-938-1	12	1	0204-		●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M14X25	8-97318-938-1	12	1	0204-			●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NOK	8-94408-084-1	01	1	0009-	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> TKK	8-94408-085-1	01	1	0009-	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> OD=103	8-94408-083-0	01	1	0009-		●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> OD=103	8-94408-083-0	01	1	0009-			●
161	WASHER; LK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=12.2	9-09150-612-0	08	1	0305-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
