Sayfa 2-82 - Isuzu EPC

2-82 — POWER TAKE OFF; TRANSMISSION REAR (#166708) — 217 parça

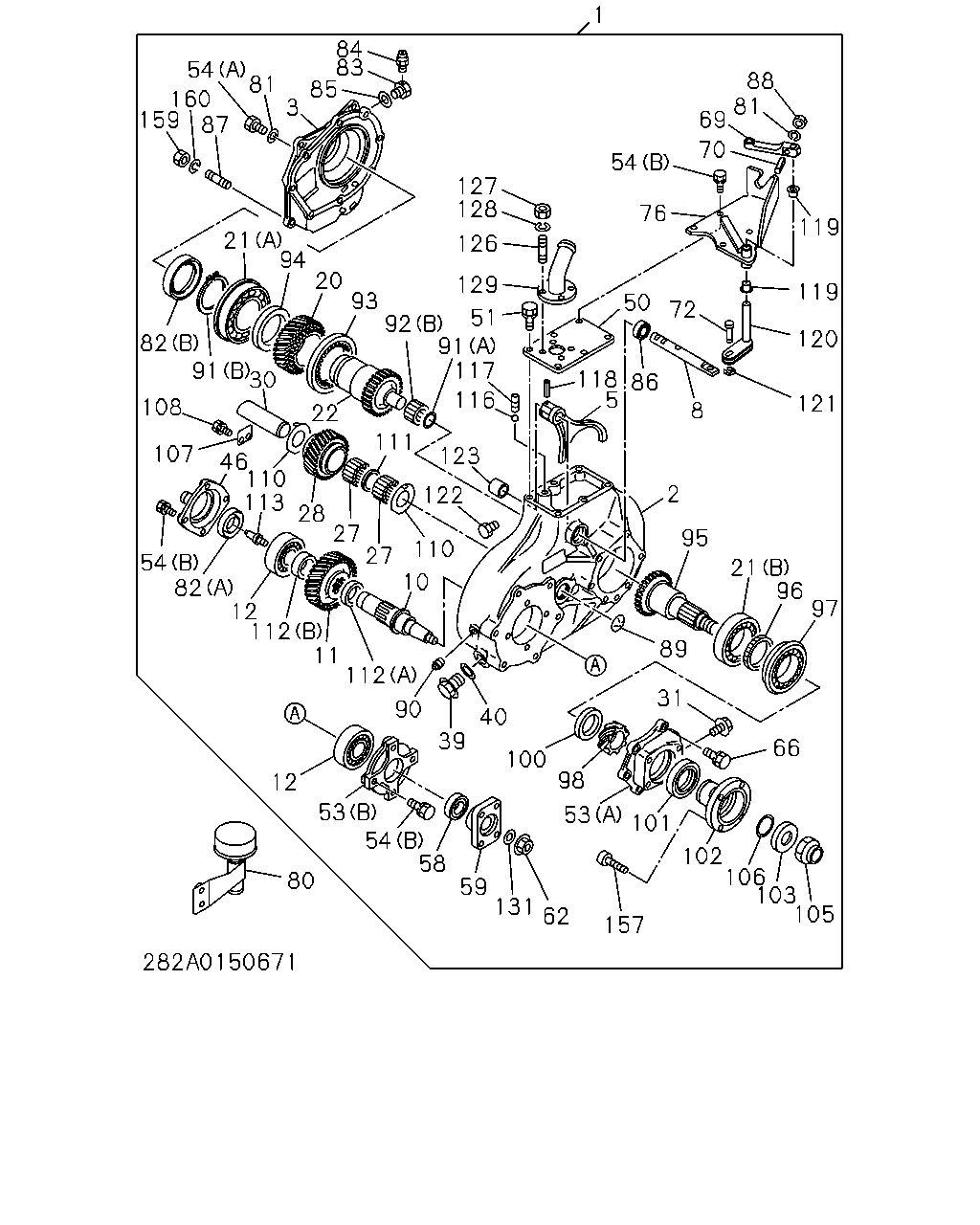

54 160 87 159 3 81 84 83 85 21 94 20 93 92 91 117 116 51 129 126 1 127 128 54 76 70 69 81 88 119 119 120 121 72 8 50 86 118 5 2 95 21 96 97 89 31 66 102 106 103 105 157 62 131 59 112 90 39 40 100 12 53 54 58 80 112 11 12 82 54 107 46 110 113 28 27 27 10 110 122 123 111 22 30 91 82 108 98 53 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS RR PTO TRANSMISSION REAR(7AY)	8-97076-387-1	01	1	9304-9502
1	POWER TAKE OFF ASM; TRANS RR PTO TRANSMISSION REAR(7AY)	8-97103-005-4	01	1	9503-
2	CASE; GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-94407-309-0	01	1	9304-9502
2	CASE; GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-406-1	01	1	9503-
3	COVER; GEAR CASE,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97076-388-0	01	1	9304-
5	ARM; SHIFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	5-38322-005-0	01	1	9304-9502
5	ARM; SHIFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-423-0	01	1	9503-
8	ROD; GEAR SHIFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97076-705-0	01	1	9304-
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-166-0	01	1	9304-9502
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-418-0	01	1	9503-
11	GEAR; PTO OUTPUT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) Z=37	5-38241-023-0	01	1	9304-9502
12	BEARING; PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY) NSK	8-94173-866-0	02	1	9304-9502
12	BEARING; PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY) NSK	5-09800-062-1	02	1	9503-
20	GEAR; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) Z=31	5-38241-029-0	01	1	9304-9502
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A)	5-09800-094-0	01	1	9304-9502
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A)	5-09800-093-0	01	1	9503-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	5-09800-095-0	01	1	9304-9502
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	1-09800-235-0	01	1	9503-
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97095-188-0	01	1	9304-9502
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-407-0	01	1	9503-
27	BEARING; IDLE GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	5-38229-003-0	36	1	9304-9502
28	GEAR; IDLE,TRANS RR PTO PTO TRANSMISSION REAR(7AY) Z=25	5-38241-022-0	01	1	9304-9502
30	SHAFT; IDLE GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	5-38211-004-0	01	1	9304-9502
31	BOLT; PTO GEAR CASE TO TRANS PTO TRANSMISSION REAR(7AY) M8X12	8-94128-785-0	01	1	9304-9502
39	PLUG; OIL DRAIN,PTO GEAR CASE PTO TRANSMISSION REAR(7AY) M24X17 FLANGE	1-09604-023-0	01	1	9304-
40	GASKET; DRAIN PLUG,PTO GEAR CASE PTO TRANSMISSION REAR(7AY) ID=26.8	9-09920-605-0	01	1	9304-
46	COVER; BRG,PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY)	8-94334-998-0	01	1	9304-9502
46	COVER; BRG,PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY)	8-97106-425-0	01	1	9503-
50	COVER; GEAR CASE UPR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-94418-265-0	01	1	9304-9710
50	COVER; GEAR CASE UPR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97186-466-0	01	1	9711-
51	BOLT; UPR COVER,RR PTO GEAR CASE PTO TRANSMISSION REAR(7AY) M10X20 W/LK WASHER	0-50051-020-0	02	1	9304-
51	BOLT; UPR COVER,RR PTO GEAR CASE PTO TRANSMISSION REAR(7AY) M10X25 W/LK WASHER	0-50051-025-0	04	1	9503-
53	COVER; BRG,MAINSHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	8-97010-167-0	01	1	9304-9502
53	COVER; BRG,MAINSHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	8-97106-421-0	01	1	9503-
53	COVER; BRG,MAINSHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A)	8-97076-389-0	01	1	9304-
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A) M8X28 W/LK WASHER	0-50040-828-0	06	1	9304-9502
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A) M8X25 FLANGE	0-28080-825-0	06	1	9503-9710
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A) M8X25 FLANGE	0-28080-825-0	05	1	9711-
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B) M10X25 W/LK WASHER	0-50051-025-0	12	1	9304-9502
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B) M8X12	8-94128-785-0	01	1	9503-
58	SEAL; OIL,PTO DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-252-0	01	1	9304-9502
58	SEAL; OIL,PTO DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-453-0	01	1	9503-
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-205-0	01	1	9304-9502
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-427-0	01	1	9503-
62	NUT; YOKE,PTO OUTPUT SHAFT,TRANS RR PT PTO TRANSMISSION REAR(7AY)	0-91150-216-0	01	1	9304-
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M10X25 W/LK WASHER	0-50051-025-0	03	1	9304-9502
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M8X20 FLANGE	0-28080-820-0	08	1	9503-
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M10X30 W/LK WASHER	0-50051-030-0	06	1	9304-9502
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M10X30 FLANGE	0-28181-030-0	06	1	9503-
69	LEVER; PTO CONT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-94408-548-0	01	1	9304-9503
69	LEVER; PTO CONT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97130-762-0	01	1	9503-
70	PIN; CONT LEVER TO SHIFT ROD,RR PTO PTO TRANSMISSION REAR(7AY)	9-33651-435-0	01	1	9304-
72	PIN; COTTER,CONT LEVER PIN,RR PTO PTO TRANSMISSION REAR(7AY)	5-09744-023-0	01	1	9304-
76	BRACKET; PTO CONT LEVER PTO TRANSMISSION REAR(7AY)	8-94418-266-1	01	1	9304-9503
76	BRACKET; PTO CONT LEVER PTO TRANSMISSION REAR(7AY)	8-97130-719-0	01	1	9503-
80	BREATHER ASM; PTO PTO TRANSMISSION REAR(7AY)	9-11740-161-0	01	1	9304-
81	WASHER; LK,COVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	03	1	9304-9502
81	WASHER; LK,COVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	02	1	9503-9710
81	WASHER; LK,COVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	03	1	9711-
82	SEAL; OIL,COVER PTO TRANSMISSION REAR(7AY) (A)	5-09625-096-0	01	1	9304-
82	SEAL; OIL,COVER PTO TRANSMISSION REAR(7AY) (B)	8-94127-326-0	02	1	9304-
83	SEAT; COVER PTO TRANSMISSION REAR(7AY)	8-94340-654-0	01	1	9304-
84	BREATHER; RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-244-1	01	1	9304-
85	GASKET; SEAT PTO TRANSMISSION REAR(7AY)	9-09921-243-0	01	1	9304-
86	SEAL; OIL,SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-09924-534-0	01	1	9304-
87	STUD; GEAR CASE PTO TRANSMISSION REAR(7AY) M8X25 L=37	9-04110-825-0	02	1	9304-9710
87	STUD; GEAR CASE PTO TRANSMISSION REAR(7AY) M8X25 L=37	9-04110-825-0	03	1	9711-
88	NUT; COVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	03	1	9304-9502
88	NUT; COVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	02	1	9503-9710
88	NUT; COVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	03	1	9711-
89	PLUG; PLATE PTO TRANSMISSION REAR(7AY) ID=33	9-09201-333-0	01	1	9304-9502
90	PLUG; OIL LEVEL PTO TRANSMISSION REAR(7AY) PT3/8	9-09204-517-0	01	1	9304-
91	RING; SNAP PTO TRANSMISSION REAR(7AY) (A)	5-09588-036-0	01	1	9304-
91	RING; SNAP PTO TRANSMISSION REAR(7AY) (B) ID=55.8	9-09180-060-0	01	1	9304-
92	BEARING; DRIVE SHAFT PTO TRANSMISSION REAR(7AY) (B)	1-09811-187-0	01	1	9304-
92	BEARING; DRIVE SHAFT PTO TRANSMISSION REAR(7AY) (A)	5-09800-094-0	01	1	9503-
93	SLEEVE; DOG CLU PTO TRANSMISSION REAR(7AY)	5-38244-001-0	01	1	9304-9502
93	SLEEVE; DOG CLU PTO TRANSMISSION REAR(7AY)	8-97106-413-0	01	1	9503-
94	COLLAR; THRUST,SHAFT PTO TRANSMISSION REAR(7AY)	5-38229-002-0	01	1	9304-
95	SHAFT; DRIVEN PTO TRANSMISSION REAR(7AY)	8-97095-187-0	01	1	9304-9502
95	SHAFT; DRIVEN PTO TRANSMISSION REAR(7AY)	8-97106-414-0	01	1	9503-
96	COLLAR; DRIVEN SHAFT PTO TRANSMISSION REAR(7AY)	5-38226-003-0	01	1	9304-
97	BEARING; DRIVEN SHAFT PTO TRANSMISSION REAR(7AY)	5-09800-093-0	01	1	9304-9502
98	GEAR; SPD DRIVE PTO TRANSMISSION REAR(7AY) Z=4	8-97011-348-0	01	1	9304-
100	COLLAR; DRIVE GEAR PTO TRANSMISSION REAR(7AY)	8-97011-726-0	01	1	9304-
101	SEAL; OIL,RR COVER PTO TRANSMISSION REAR(7AY) TKK	8-94178-728-0	01	1	9304-
102	FLANGE ASM; DRIVEN SHAFT PTO TRANSMISSION REAR(7AY)	8-97011-344-2	01	1	9304-
103	WASHER; LK,MAINSHAFT PTO TRANSMISSION REAR(7AY)	8-94249-240-0	01	1	9304-
105	NUT; MAINSHAFT PTO TRANSMISSION REAR(7AY) M24 FLANGE	8-97087-750-0	01	1	9304-
106	GASKET; MAINSHAFT PTO TRANSMISSION REAR(7AY)	8-94178-725-0	01	1	9304-
107	PLATE; LOCK PTO TRANSMISSION REAR(7AY)	5-38263-001-0	01	1	9304-9502
108	BOLT; IDLE SHAFT PTO TRANSMISSION REAR(7AY) M6X16 W/LK WASHER	0-50040-616-0	02	1	9304-9502
110	WASHER; THRUST,IDLE SHAFT PTO TRANSMISSION REAR(7AY)	5-38229-001-0	02	1	9304-9502
111	COLLAR; IDLE SHAFT PTO TRANSMISSION REAR(7AY)	5-38226-004-0	01	1	9304-9502
112	COLLAR; DIST PTO TRANSMISSION REAR(7AY) (A) T=16	5-38226-005-0	01	1	9304-9502
112	COLLAR; DIST PTO TRANSMISSION REAR(7AY) (B) T=13	5-38226-006-0	01	1	9304-9502
113	ADAPTER; TACHOMETER DRIVE PTO TRANSMISSION REAR(7AY)	5-38262-001-0	01	1	9304-
116	BALL; SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-00097-009-0	01	1	9304-
117	SPRING; SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-09941-253-0	01	1	9304-
118	PIN; SPR PTO TRANSMISSION REAR(7AY)	9-09878-614-0	01	1	9304-
119	BUSHING; BRKT PTO TRANSMISSION REAR(7AY)	5-33659-011-0	02	1	9304-
120	SHAFT; SHIFT LEVER PTO TRANSMISSION REAR(7AY)	8-97076-704-0	01	1	9304-9503
120	SHAFT; SHIFT LEVER PTO TRANSMISSION REAR(7AY)	8-97130-721-0	01	1	9503-
121	RING; SNAP,SHIFT LEVER PTO TRANSMISSION REAR(7AY) ID=6	9-09185-006-0	01	1	9304-
122	PLUG; GEAR CASE PTO TRANSMISSION REAR(7AY) M14X9	9-99202-314-0	01	1	9304-9502
123	PLUG; SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-38115-006-0	01	1	9304-
126	STUD; FILLER PTO TRANSMISSION REAR(7AY) M6X16 L=25	9-04110-616-0	04	1	9304-
127	NUT; FILLER PTO TRANSMISSION REAR(7AY) M6	9-09110-506-0	04	1	9304-
128	WASHER; LK,FILLER PTO TRANSMISSION REAR(7AY) ID=6.1	9-09150-506-0	04	1	9304-
129	FILLER; CASE PTO TRANSMISSION REAR(7AY)	8-94418-263-0	01	1	9304-
131	GASKET; OUTPUT SHAFT PTO TRANSMISSION REAR(7AY)	9-09561-325-0	01	1	9304-9502
157	BOLT; FLANGE PTO TRANSMISSION REAR(7AY) M12X41	8-94476-729-0	04	1	9503-
159	NUT; LEVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	01	1	9503-
160	WASHER; LK,LEVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	01	1	9503-

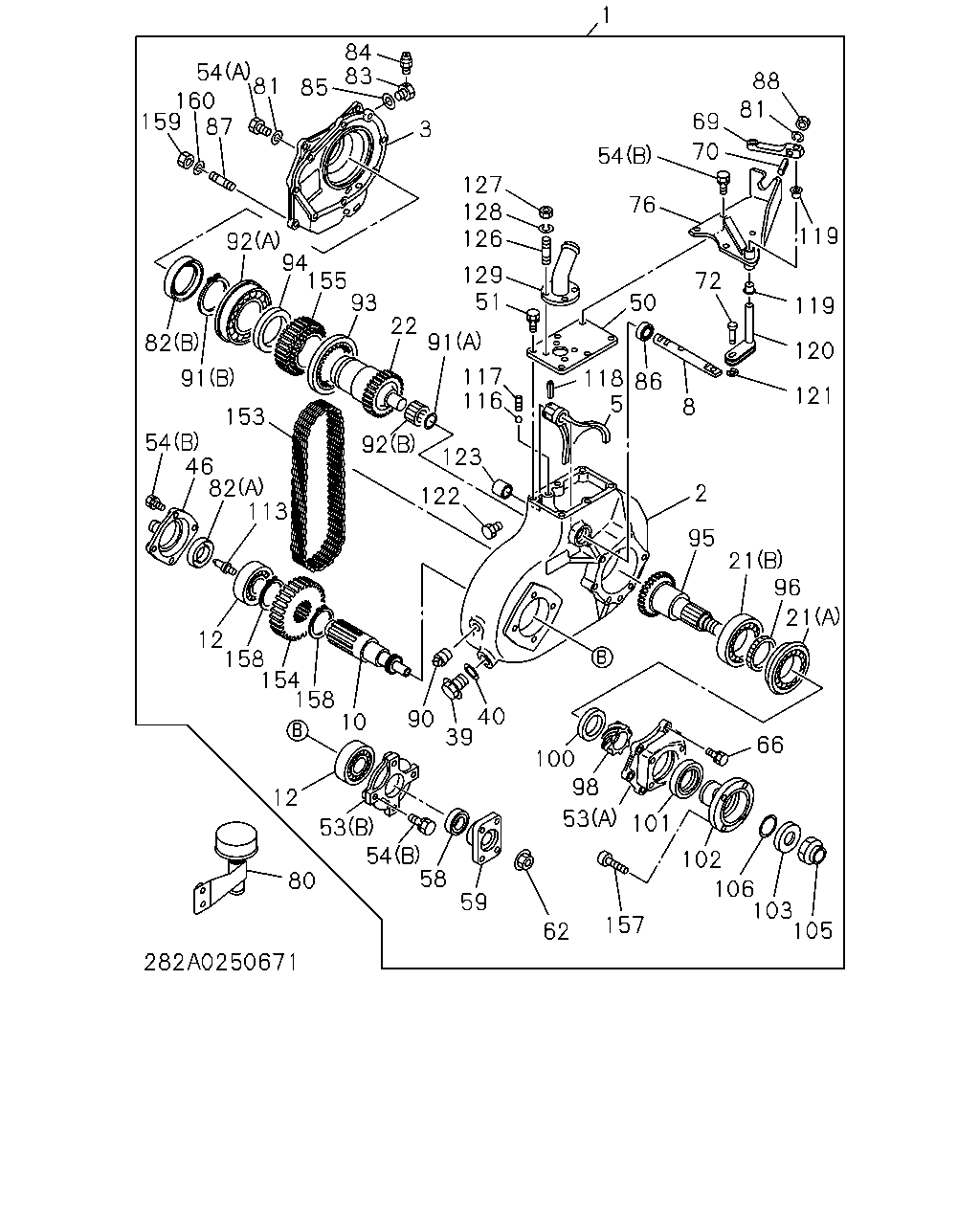

159 160 87 81 85 84 83 3 92 94 155 93 22 91 127 128 126 129 51 117 116 123 122 92 82 113 46 54 153 91 82 12 53 54 58 59 62 157 53 101 102 106 103 105 98 100 40 39 90 10 158 154 158 12 54 76 50 118 5 86 8 72 70 69 81 88 119 119 120 121 95 21 96 21 2 1 66 80 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS RR PTO TRANSMISSION REAR(7AY)	8-97076-387-1	01	1	9304-9502
1	POWER TAKE OFF ASM; TRANS RR PTO TRANSMISSION REAR(7AY)	8-97103-005-4	01	1	9503-
2	CASE; GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-94407-309-0	01	1	9304-9502
2	CASE; GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-406-1	01	1	9503-
3	COVER; GEAR CASE,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97076-388-0	01	1	9304-
5	ARM; SHIFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	5-38322-005-0	01	1	9304-9502
5	ARM; SHIFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-423-0	01	1	9503-
8	ROD; GEAR SHIFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97076-705-0	01	1	9304-
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-166-0	01	1	9304-9502
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-418-0	01	1	9503-
12	BEARING; PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY) NSK	8-94173-866-0	02	1	9304-9502
12	BEARING; PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY) NSK	5-09800-062-1	02	1	9503-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A)	5-09800-094-0	01	1	9304-9502
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A)	5-09800-093-0	01	1	9503-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	5-09800-095-0	01	1	9304-9502
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	1-09800-235-0	01	1	9503-
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97095-188-0	01	1	9304-9502
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-407-0	01	1	9503-
39	PLUG; OIL DRAIN,PTO GEAR CASE PTO TRANSMISSION REAR(7AY) M24X17 FLANGE	1-09604-023-0	01	1	9304-
40	GASKET; DRAIN PLUG,PTO GEAR CASE PTO TRANSMISSION REAR(7AY) ID=26.8	9-09920-605-0	01	1	9304-
46	COVER; BRG,PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY)	8-94334-998-0	01	1	9304-9502
46	COVER; BRG,PTO DRIVE SHAFT,FRT PTO TRANSMISSION REAR(7AY)	8-97106-425-0	01	1	9503-
50	COVER; GEAR CASE UPR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-94418-265-0	01	1	9304-9710
50	COVER; GEAR CASE UPR,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97186-466-0	01	1	9711-
51	BOLT; UPR COVER,RR PTO GEAR CASE PTO TRANSMISSION REAR(7AY) M10X20 W/LK WASHER	0-50051-020-0	02	1	9304-
51	BOLT; UPR COVER,RR PTO GEAR CASE PTO TRANSMISSION REAR(7AY) M10X25 W/LK WASHER	0-50051-025-0	04	1	9503-
53	COVER; BRG,MAINSHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	8-97010-167-0	01	1	9304-9502
53	COVER; BRG,MAINSHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B)	8-97106-421-0	01	1	9503-
53	COVER; BRG,MAINSHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A)	8-97076-389-0	01	1	9304-
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A) M8X28 W/LK WASHER	0-50040-828-0	06	1	9304-9502
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A) M8X25 FLANGE	0-28080-825-0	06	1	9503-9710
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (A) M8X25 FLANGE	0-28080-825-0	05	1	9711-
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B) M10X25 W/LK WASHER	0-50051-025-0	12	1	9304-9502
54	BOLT; BRG COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) (B) M8X12	8-94128-785-0	01	1	9503-
58	SEAL; OIL,PTO DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-252-0	01	1	9304-9502
58	SEAL; OIL,PTO DRIVE SHAFT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-453-0	01	1	9503-
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-205-0	01	1	9304-9502
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-427-0	01	1	9503-
62	NUT; YOKE,PTO OUTPUT SHAFT,TRANS RR PT PTO TRANSMISSION REAR(7AY)	0-91150-216-0	01	1	9304-
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M10X25 W/LK WASHER	0-50051-025-0	03	1	9304-9502
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M8X20 FLANGE	0-28080-820-0	08	1	9503-
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M10X30 W/LK WASHER	0-50051-030-0	06	1	9304-9502
66	BOLT; GEAR CASE COVER,TRANS RR PTO PTO TRANSMISSION REAR(7AY) M10X30 FLANGE	0-28181-030-0	06	1	9503-
69	LEVER; PTO CONT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-94408-548-0	01	1	9304-9503
69	LEVER; PTO CONT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97130-762-0	01	1	9503-
70	PIN; CONT LEVER TO SHIFT ROD,RR PTO PTO TRANSMISSION REAR(7AY)	9-33651-435-0	01	1	9304-
72	PIN; COTTER,CONT LEVER PIN,RR PTO PTO TRANSMISSION REAR(7AY)	5-09744-023-0	01	1	9304-
76	BRACKET; PTO CONT LEVER PTO TRANSMISSION REAR(7AY)	8-94418-266-1	01	1	9304-9503
76	BRACKET; PTO CONT LEVER PTO TRANSMISSION REAR(7AY)	8-97130-719-0	01	1	9503-
80	BREATHER ASM; PTO PTO TRANSMISSION REAR(7AY)	9-11740-161-0	01	1	9304-
81	WASHER; LK,COVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	03	1	9304-9502
81	WASHER; LK,COVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	02	1	9503-9710
81	WASHER; LK,COVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	03	1	9711-
82	SEAL; OIL,COVER PTO TRANSMISSION REAR(7AY) (A)	5-09625-096-0	01	1	9304-
82	SEAL; OIL,COVER PTO TRANSMISSION REAR(7AY) (B)	8-94127-326-0	02	1	9304-
83	SEAT; COVER PTO TRANSMISSION REAR(7AY)	8-94340-654-0	01	1	9304-
84	BREATHER; RR PTO PTO TRANSMISSION REAR(7AY)	8-97010-244-1	01	1	9304-
85	GASKET; SEAT PTO TRANSMISSION REAR(7AY)	9-09921-243-0	01	1	9304-
86	SEAL; OIL,SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-09924-534-0	01	1	9304-
87	STUD; GEAR CASE PTO TRANSMISSION REAR(7AY) M8X25 L=37	9-04110-825-0	02	1	9304-9710
87	STUD; GEAR CASE PTO TRANSMISSION REAR(7AY) M8X25 L=37	9-04110-825-0	03	1	9711-
88	NUT; COVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	03	1	9304-9502
88	NUT; COVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	02	1	9503-9710
88	NUT; COVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	03	1	9711-
90	PLUG; OIL LEVEL PTO TRANSMISSION REAR(7AY) PT3/8	9-09204-517-0	01	1	9304-
91	RING; SNAP PTO TRANSMISSION REAR(7AY) (A)	5-09588-036-0	01	1	9304-
91	RING; SNAP PTO TRANSMISSION REAR(7AY) (B) ID=55.8	9-09180-060-0	01	1	9304-
92	BEARING; DRIVE SHAFT PTO TRANSMISSION REAR(7AY) (B)	1-09811-187-0	01	1	9304-
92	BEARING; DRIVE SHAFT PTO TRANSMISSION REAR(7AY) (A)	5-09800-094-0	01	1	9503-
93	SLEEVE; DOG CLU PTO TRANSMISSION REAR(7AY)	5-38244-001-0	01	1	9304-9502
93	SLEEVE; DOG CLU PTO TRANSMISSION REAR(7AY)	8-97106-413-0	01	1	9503-
94	COLLAR; THRUST,SHAFT PTO TRANSMISSION REAR(7AY)	5-38229-002-0	01	1	9304-
95	SHAFT; DRIVEN PTO TRANSMISSION REAR(7AY)	8-97095-187-0	01	1	9304-9502
95	SHAFT; DRIVEN PTO TRANSMISSION REAR(7AY)	8-97106-414-0	01	1	9503-
96	COLLAR; DRIVEN SHAFT PTO TRANSMISSION REAR(7AY)	5-38226-003-0	01	1	9304-
98	GEAR; SPD DRIVE PTO TRANSMISSION REAR(7AY) Z=4	8-97011-348-0	01	1	9304-
100	COLLAR; DRIVE GEAR PTO TRANSMISSION REAR(7AY)	8-97011-726-0	01	1	9304-
101	SEAL; OIL,RR COVER PTO TRANSMISSION REAR(7AY) TKK	8-94178-728-0	01	1	9304-
102	FLANGE ASM; DRIVEN SHAFT PTO TRANSMISSION REAR(7AY)	8-97011-344-2	01	1	9304-
103	WASHER; LK,MAINSHAFT PTO TRANSMISSION REAR(7AY)	8-94249-240-0	01	1	9304-
105	NUT; MAINSHAFT PTO TRANSMISSION REAR(7AY) M24 FLANGE	8-97087-750-0	01	1	9304-
106	GASKET; MAINSHAFT PTO TRANSMISSION REAR(7AY)	8-94178-725-0	01	1	9304-
113	ADAPTER; TACHOMETER DRIVE PTO TRANSMISSION REAR(7AY)	5-38262-001-0	01	1	9304-
116	BALL; SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-00097-009-0	01	1	9304-
117	SPRING; SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-09941-253-0	01	1	9304-
118	PIN; SPR PTO TRANSMISSION REAR(7AY)	9-09878-614-0	01	1	9304-
119	BUSHING; BRKT PTO TRANSMISSION REAR(7AY)	5-33659-011-0	02	1	9304-
120	SHAFT; SHIFT LEVER PTO TRANSMISSION REAR(7AY)	8-97076-704-0	01	1	9304-9503
120	SHAFT; SHIFT LEVER PTO TRANSMISSION REAR(7AY)	8-97130-721-0	01	1	9503-
121	RING; SNAP,SHIFT LEVER PTO TRANSMISSION REAR(7AY) ID=6	9-09185-006-0	01	1	9304-
122	PLUG; GEAR CASE PTO TRANSMISSION REAR(7AY) M14X9	9-99202-314-0	01	1	9304-9502
123	PLUG; SHIFTER ROD PTO TRANSMISSION REAR(7AY)	9-38115-006-0	01	1	9304-
126	STUD; FILLER PTO TRANSMISSION REAR(7AY) M6X16 L=25	9-04110-616-0	04	1	9304-
127	NUT; FILLER PTO TRANSMISSION REAR(7AY) M6	9-09110-506-0	04	1	9304-
128	WASHER; LK,FILLER PTO TRANSMISSION REAR(7AY) ID=6.1	9-09150-506-0	04	1	9304-
129	FILLER; CASE PTO TRANSMISSION REAR(7AY)	8-94418-263-0	01	1	9304-
153	CHAIN; DRIVE PTO TRANSMISSION REAR(7AY)	8-97106-417-0	01	1	9503-
154	SPROCKET; OUTPUT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-416-0	01	1	9503-
155	SPROCKET; INPUT,TRANS RR PTO PTO TRANSMISSION REAR(7AY)	8-97106-411-0	01	1	9503-
157	BOLT; FLANGE PTO TRANSMISSION REAR(7AY) M12X41	8-94476-729-0	04	1	9503-
158	RING; SNAP,SPROCKET PTO TRANSMISSION REAR(7AY) ID=41.5	9-09180-045-0	02	1	9503-
159	NUT; LEVER PTO TRANSMISSION REAR(7AY) M8	9-09110-408-0	01	1	9503-
160	WASHER; LK,LEVER PTO TRANSMISSION REAR(7AY) ID=8.2	9-09150-508-0	01	1	9503-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
