2-56 — AUTO TRANS CONTROL LINK (#166706) — 29 parça

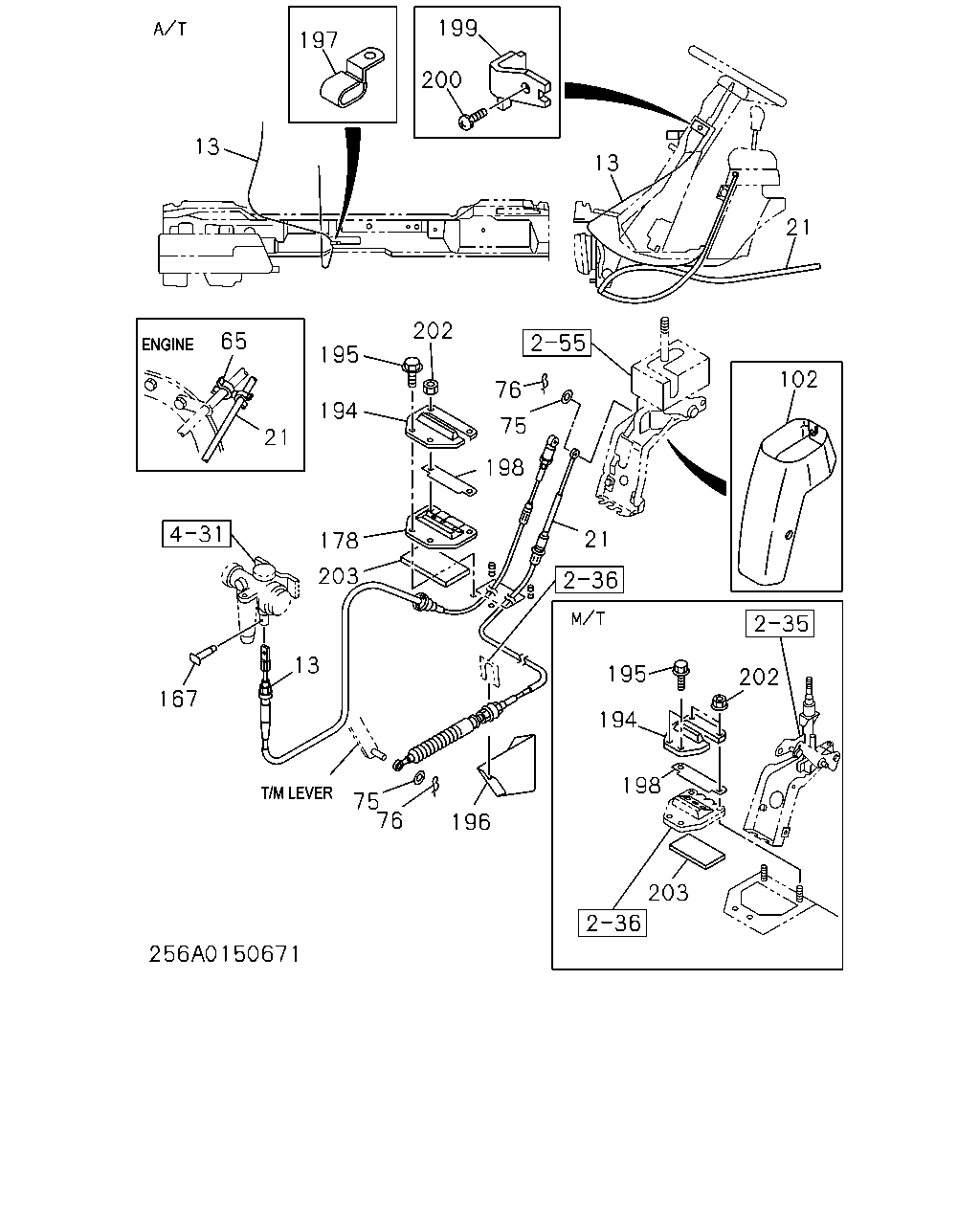

çizim 493879
197 13 199 200 13 21 202 195 65 21 194 76 198 75 195 194 198 196 76 75 13 167 203 178 21 202 203 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 CABLE; SAFETY LK 8-97075-361-3 01 1 9304-9703 ●
13 CABLE; SAFETY LK 8-97123-083-0 01 1 9704- ●
21 CABLE; A/T 8-97043-148-4 01 1 9304-9703 ●
21 CABLE; A/T 8-97140-382-1 01 1 9704-9804 ●
21 CABLE; A/T 8-97203-216-0 01 1 9805- ●
65 CLIP; A/T CONT CABLE
ID=12 & 16.5 		8-94400-865-0 01 1 9304- ●
75 WASHER; PL,CONT CABLE TO A/T
ID=6.4 OD=14 		9-09160-606-0 02 1 9304- ●
76 PIN; SNAP,A/T CONT
L=21.2 		8-94111-136-0 02 1 9304- ●
102 COVER; GEAR CONT
DARK BEIGE 		8-97009-446-2 01 1 9304-9603 ●
102 COVER; GEAR CONT
DARK BEIGE 		8-97867-284-0 01 1 9604-9703 ●
102 COVER; GEAR CONT
DARK GRAY 		8-97867-272-0 01 1 9704-9807 ●
102 COVER; GEAR CONT
DARK GRAY 		8-94351-596-2 01 1 9808- ●
167 PIN; JOINT 8-94170-423-0 01 1 9304- ●
178 GROMMET; CONT CABLE 8-97061-404-2 01 1 9304- ●
194 RETAINER; GROMMET 8-97048-319-1 01 1 9304-9502 ● ● ● ● ●
194 RETAINER; GROMMET 8-97048-319-1 01 1 9503- ● ● ● ● ●
195 BOLT; GROMMET FIX
M6X20 		0-28280-620-0 02 1 9304-9502 ● ● ● ● ●
195 BOLT; GROMMET FIX
M6X20 		0-28280-620-0 02 1 9503-9606 ● ● ● ● ●
195 BOLT; GROMMET FIX
M6X20 FLANGE 		0-28480-620-0 02 1 9607- ● ● ● ● ●
196 BRACKET; A/T SIDE 8-97043-279-0 01 1 9304-9703 ●
196 BRACKET; A/T SIDE 8-97140-128-0 01 1 9704- ●
197 CLIP; KEY LOCK CABLE
ID=11X2 L=16 		1-09700-734-0 01 1 9304- ●
198 SEAL; GROMMET TO RETAINER 8-97087-140-0 01 1 9304-9306 ● ● ● ● ●
199 BRACKET; KEY LOCK 8-97077-382-0 01 1 9304- ●
200 SCREW; KEY LOCK
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9304- ●
202 NUT; GROMMET
M6 FLANGE 		0-91150-206-0 02 1 9304-9502 ● ● ● ● ●
202 NUT; GROMMET
M6 FLANGE 		0-91150-206-0 02 1 9503- ● ● ● ● ●
203 SEAL; CABLE 8-97096-753-0 01 1 9304-9703 ● ● ● ● ● ●
203 SEAL; CABLE
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 9704- ● ● ● ● ● ●
