◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55 - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER (#166705) — 177 parça

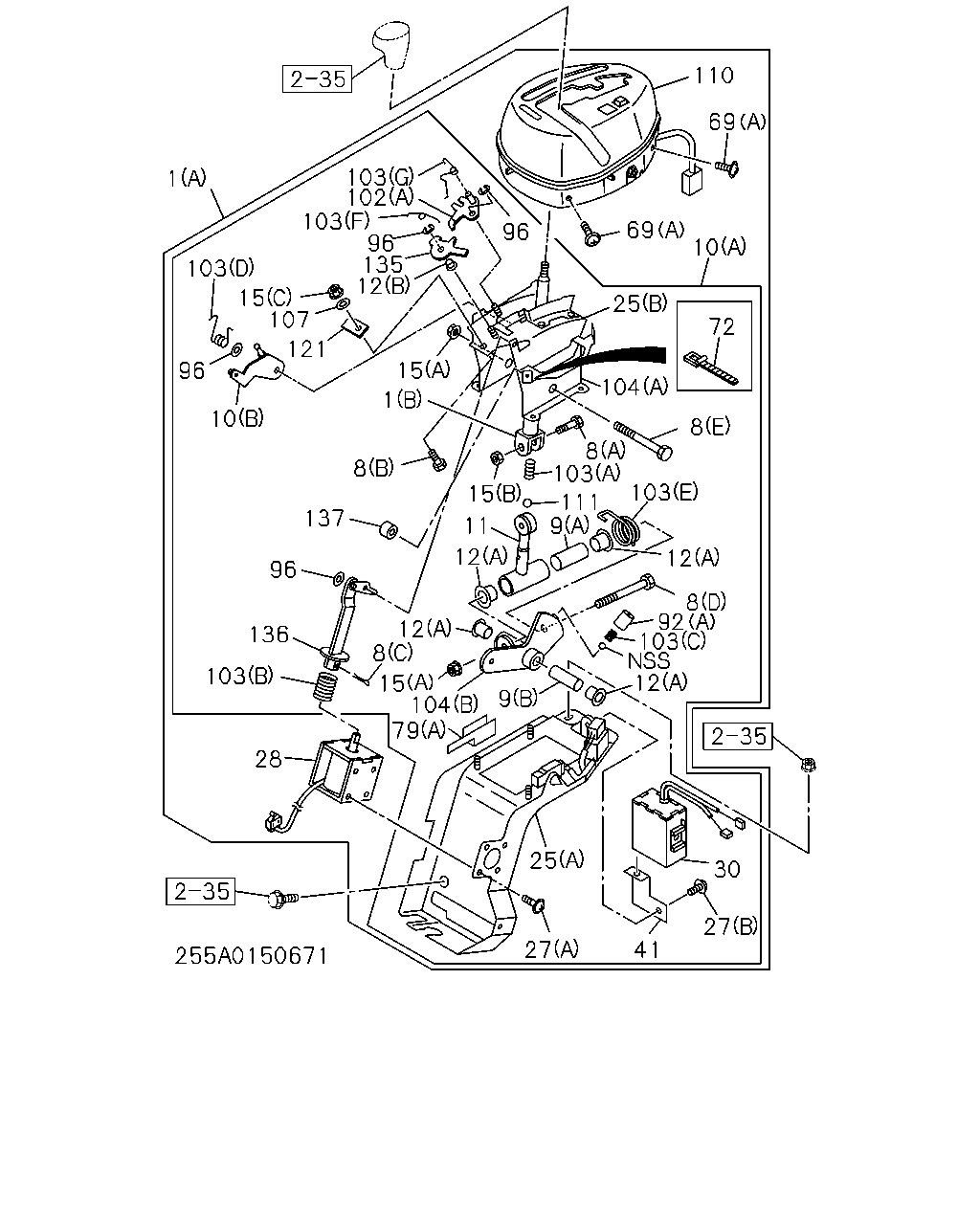

çizim 493547
1 103 102 103 103 107 15 121 10 96 135 12 96 96 69 10 69 110 72 25 104 8 103 8 103 15 11 8 15 1 137 96 136 103 28 111 9 12 12 8 92 103 12 12 8 15 104 79 9 25 27 41 30 27
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
(A) DARK BEIGE 		8-97009-448-4 01 1 9304-9703
1 LEVER; SHIFT,A/T
(C) DARK GRAY 		8-97155-991-2 01 1 9704-
1 LEVER; SHIFT,A/T
(B) 		8-97100-741-0 01 1 9304-9703
8 PIN; SELECT GATE
(F) 		8-97100-705-0 01 1 9304-9703
8 PIN; SELECT GATE
(A) 		8-97100-759-0 01 1 9304-9703
8 PIN; SELECT GATE
(B) 		8-97100-760-0 01 1 9304-9703
8 PIN; SELECT GATE
(C) 		8-97100-762-0 01 1 9304-9703
8 PIN; SELECT GATE
(D) 		8-97100-847-0 01 1 9304-9703
8 PIN; SELECT GATE
(E) 		8-97100-848-0 01 1 9304-
9 SLEEVE; KNOB,SHIFT LEVER
(A) 		8-97100-763-0 01 1 9304-9703
9 SLEEVE; KNOB,SHIFT LEVER
(B) 		8-97100-764-0 01 1 9304-
10 LEVER; A/T CONT
(A) 		8-97066-426-1 01 1 9304-9703
10 LEVER; A/T CONT
(C) 		8-97173-358-0 01 1 9704-
10 LEVER; A/T CONT
(B) 		8-97100-748-0 01 1 9304-9703
11 LEVER; A/T SHIFT LEVER TO LINK 8-97100-756-0 01 1 9304-9703
12 BUSHING; SELECT LEVER
(A) 		8-97100-765-0 04 1 9304-9703
12 BUSHING; SELECT LEVER
(C) 		8-97100-765-0 01 1 9704-
12 BUSHING; SELECT LEVER
(B) 		8-97100-766-0 03 1 9304-9703
15 NUT; LEVER TO SHAFT
(B) M6 FLANGE 		0-91150-106-0 01 1 9304-9703
15 NUT; LEVER TO SHAFT
(A) M8 FLANGE 		0-91150-208-0 06 1 9304-9703
15 NUT; LEVER TO SHAFT
(A) M8 FLANGE 		0-91150-208-0 01 1 9704-
15 NUT; LEVER TO SHAFT
(C) M5 		9-99110-405-0 01 1 9304-9606
15 NUT; LEVER TO SHAFT
(C) M5 		9-99110-405-0 02 1 9607-9703
25 PLATE SUB ASM; AUTO SHIFT LEVER
(A) WITH SWITCH 		8-97100-736-0 01 1 9304-9703
25 PLATE SUB ASM; AUTO SHIFT LEVER
(B) 		8-97100-739-0 01 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(C) 		8-97048-083-0 03 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(B) M4X8 W/WASHER 		9-03920-408-0 03 1 9704-
27 SCREW; INDICATOR TO BRKT
(A) M4X8 W/WASHER 		9-03920-408-0 02 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(B) M5X12 W/LK&PL WASHER 		9-03920-512-0 04 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(A) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9704-
28 SOLENOID ASM
WITH SHIFT LOCK SWITCH 		8-97066-430-0 01 1 9304-9703
28 SOLENOID ASM
WITH SHIFT LOCK SWITCH 		8-97140-486-0 01 1 9704-
30 CONTROLLER; A/T
WITH BACK BUZZER 		8-97066-428-0 01 1 9304-9703
30 CONTROLLER; A/T
WITH BACK BUZZER 		8-97140-481-0 01 1 9704-
41 BRACKET; A/T CONT LEVER 8-97100-754-0 01 1 9304-9703
69 SCREW; COVER,SHIFT LEVER
(A) M6X12 W/LK&PL WASHER 		9-03920-612-0 04 1 9304-9304
69 SCREW; COVER,SHIFT LEVER
(A) M6X14 W/PL WASHER 		9-03900-614-0 04 1 9305-
69 SCREW; COVER,SHIFT LEVER
(B) 		8-97173-340-0 02 1 9704-
72 CLAMP; SWITCH CABLE,A/T LEVER 8-97100-776-0 02 1 9304-9703
79 CLIP; LAMP CABLE,A/T CONT LEVER
(B) 		8-97100-697-0 01 1 9304-9703
79 CLIP; LAMP CABLE,A/T CONT LEVER
(A) 		8-97116-312-0 01 1 9304-
92 GUIDE; SLIDER
(B) 		8-97100-735-0 01 1 9304-9703
92 GUIDE; SLIDER
(C) 		8-97173-357-0 01 1 9704-
92 GUIDE; SLIDER
(A) 		8-97100-745-0 01 1 9304-9703
96 RING; SNAP
ID=5 		9-09185-405-0 04 1 9304-9703
96 RING; SNAP
ID=5 		9-09185-405-0 02 1 9704-
102 PLATE; SELECT
(B) 		8-97100-693-0 01 1 9304-9703
102 PLATE; SELECT
(C) 		8-97173-354-0 01 1 9704-
102 PLATE; SELECT
(A) 		8-97100-757-0 01 1 9304-9703
103 SPRING; PLATE
(A) 		8-97100-767-0 01 1 9304-9703
103 SPRING; PLATE
(A) 		8-97173-339-0 01 1 9704-
103 SPRING; PLATE
(B) 		8-97100-768-0 01 1 9304-9703
103 SPRING; PLATE
(B) 		8-97173-345-0 01 1 9704-
103 SPRING; PLATE
(C) 		8-97100-769-0 01 1 9304-9703
103 SPRING; PLATE
(C) 		8-97173-346-0 01 1 9704-
103 SPRING; PLATE
(D) 		8-97100-771-0 01 1 9304-9703
103 SPRING; PLATE
(D) 		8-97173-355-0 01 1 9704-
103 SPRING; PLATE
(E) 		8-97100-772-0 01 1 9304-9703
103 SPRING; PLATE
(E) 		8-97173-356-0 01 1 9704-
103 SPRING; PLATE
(F) 		8-97100-773-0 01 1 9304-9703
103 SPRING; PLATE
(G) 		8-97100-775-0 01 1 9304-9703
104 PLATE; LINK
(B) 		8-97100-737-0 01 1 9304-9703
104 PLATE; LINK
(A) 		8-97100-747-0 01 1 9304-9703
107 WASHER; PL
ID=5.3 		9-09164-505-0 01 1 9304-9606
107 WASHER; PL
ID=5.3 		9-09164-505-0 02 1 9607-9703
110 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97009-449-3 01 1 9304-9703
110 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97158-972-1 01 1 9704-
111 BALL 8-97029-393-0 01 1 9304-9703
121 BRACKET 8-97100-752-0 01 1 9304-9703
135 PIECE; SHIFT LOCK 8-97116-166-0 01 1 9304-9703
136 LOCK ASM 8-97100-744-0 01 1 9304-9703
137 CUSHION 8-97100-753-0 01 1 9304-9606
çizim 494343
110 110 18 92 75 102 61 79 61 8 7 19 141 140 14 27 141 107 15
BalonParca AdiParca NoAdetTipApplied Date
7 SPRING; RETURN,ROD 8-97100-698-0 01 1 9304-9703
8 PIN; SELECT GATE
(F) 		8-97100-705-0 01 1 9304-9703
8 PIN; SELECT GATE
(A) 		8-97100-759-0 01 1 9304-9703
8 PIN; SELECT GATE
(B) 		8-97100-760-0 01 1 9304-9703
8 PIN; SELECT GATE
(C) 		8-97100-762-0 01 1 9304-9703
8 PIN; SELECT GATE
(D) 		8-97100-847-0 01 1 9304-9703
8 PIN; SELECT GATE
(E) 		8-97100-848-0 01 1 9304-
14 WASHER; SHAFT 8-97048-084-0 03 1 9304-9703
15 NUT; LEVER TO SHAFT
(B) M6 FLANGE 		0-91150-106-0 01 1 9304-9703
15 NUT; LEVER TO SHAFT
(A) M8 FLANGE 		0-91150-208-0 06 1 9304-9703
15 NUT; LEVER TO SHAFT
(A) M8 FLANGE 		0-91150-208-0 01 1 9704-
15 NUT; LEVER TO SHAFT
(C) M5 		9-99110-405-0 01 1 9304-9606
15 NUT; LEVER TO SHAFT
(C) M5 		9-99110-405-0 02 1 9607-9703
18 COVER; INDICATOR,UPR 8-97100-691-0 01 1 9304-9703
19 COVER; INDICATOR,LWR 8-97100-692-0 01 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(C) 		8-97048-083-0 03 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(B) M4X8 W/WASHER 		9-03920-408-0 03 1 9704-
27 SCREW; INDICATOR TO BRKT
(A) M4X8 W/WASHER 		9-03920-408-0 02 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(B) M5X12 W/LK&PL WASHER 		9-03920-512-0 04 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(A) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9704-
61 PANEL; SHIFT LEVER
(A) 		8-97100-694-0 01 1 9304-9703
61 PANEL; SHIFT LEVER
(C) 		8-97173-352-0 01 1 9704-
61 PANEL; SHIFT LEVER
(B) 		8-97100-695-0 01 1 9304-9703
75 PIPE; SHIFT LEVER,A/T CONT 8-97048-078-0 01 1 9304-9703
79 CLIP; LAMP CABLE,A/T CONT LEVER
(B) 		8-97100-697-0 01 1 9304-9703
79 CLIP; LAMP CABLE,A/T CONT LEVER
(A) 		8-97116-312-0 01 1 9304-
92 GUIDE; SLIDER
(B) 		8-97100-735-0 01 1 9304-9703
92 GUIDE; SLIDER
(C) 		8-97173-357-0 01 1 9704-
92 GUIDE; SLIDER
(A) 		8-97100-745-0 01 1 9304-9703
102 PLATE; SELECT
(B) 		8-97100-693-0 01 1 9304-9703
102 PLATE; SELECT
(C) 		8-97173-354-0 01 1 9704-
102 PLATE; SELECT
(A) 		8-97100-757-0 01 1 9304-9703
107 WASHER; PL
ID=5.3 		9-09164-505-0 01 1 9304-9606
107 WASHER; PL
ID=5.3 		9-09164-505-0 02 1 9607-9703
110 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97009-449-3 01 1 9304-9703
110 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97158-972-1 01 1 9704-
140 WIRE; LAMP
WITH OVER DRIVE SWITCH 		8-97100-710-0 01 1 9304-9703
141 VALVE 8-97100-712-0 02 1 9304-9703

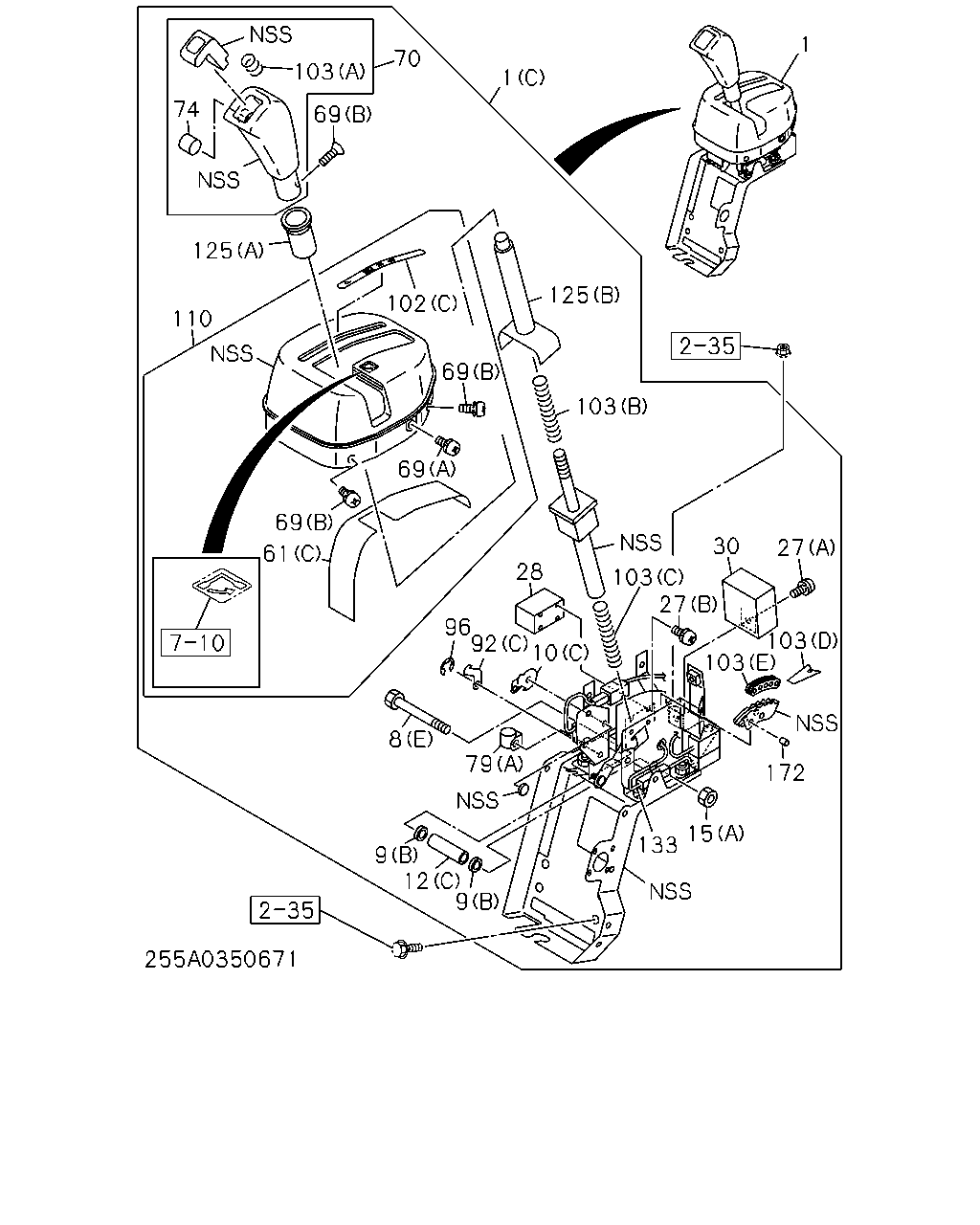

çizim 494344
74 103 69 70 1 1 125 110 102 125 69 69 69 61 103 103 27 30 27 28 96 92 10 103 103 172 15 133 12 9 79 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
(A) DARK BEIGE 		8-97009-448-4 01 1 9304-9703
1 LEVER; SHIFT,A/T
(C) DARK GRAY 		8-97155-991-2 01 1 9704-
1 LEVER; SHIFT,A/T
(B) 		8-97100-741-0 01 1 9304-9703
8 PIN; SELECT GATE
(F) 		8-97100-705-0 01 1 9304-9703
8 PIN; SELECT GATE
(A) 		8-97100-759-0 01 1 9304-9703
8 PIN; SELECT GATE
(B) 		8-97100-760-0 01 1 9304-9703
8 PIN; SELECT GATE
(C) 		8-97100-762-0 01 1 9304-9703
8 PIN; SELECT GATE
(D) 		8-97100-847-0 01 1 9304-9703
8 PIN; SELECT GATE
(E) 		8-97100-848-0 01 1 9304-
9 SLEEVE; KNOB,SHIFT LEVER
(A) 		8-97100-763-0 01 1 9304-9703
9 SLEEVE; KNOB,SHIFT LEVER
(B) 		8-97100-764-0 01 1 9304-
10 LEVER; A/T CONT
(A) 		8-97066-426-1 01 1 9304-9703
10 LEVER; A/T CONT
(C) 		8-97173-358-0 01 1 9704-
10 LEVER; A/T CONT
(B) 		8-97100-748-0 01 1 9304-9703
12 BUSHING; SELECT LEVER
(A) 		8-97100-765-0 04 1 9304-9703
12 BUSHING; SELECT LEVER
(C) 		8-97100-765-0 01 1 9704-
12 BUSHING; SELECT LEVER
(B) 		8-97100-766-0 03 1 9304-9703
15 NUT; LEVER TO SHAFT
(B) M6 FLANGE 		0-91150-106-0 01 1 9304-9703
15 NUT; LEVER TO SHAFT
(A) M8 FLANGE 		0-91150-208-0 06 1 9304-9703
15 NUT; LEVER TO SHAFT
(A) M8 FLANGE 		0-91150-208-0 01 1 9704-
15 NUT; LEVER TO SHAFT
(C) M5 		9-99110-405-0 01 1 9304-9606
15 NUT; LEVER TO SHAFT
(C) M5 		9-99110-405-0 02 1 9607-9703
27 SCREW; INDICATOR TO BRKT
(C) 		8-97048-083-0 03 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(B) M4X8 W/WASHER 		9-03920-408-0 03 1 9704-
27 SCREW; INDICATOR TO BRKT
(A) M4X8 W/WASHER 		9-03920-408-0 02 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(B) M5X12 W/LK&PL WASHER 		9-03920-512-0 04 1 9304-9703
27 SCREW; INDICATOR TO BRKT
(A) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9704-
28 SOLENOID ASM
WITH SHIFT LOCK SWITCH 		8-97066-430-0 01 1 9304-9703
28 SOLENOID ASM
WITH SHIFT LOCK SWITCH 		8-97140-486-0 01 1 9704-
30 CONTROLLER; A/T
WITH BACK BUZZER 		8-97066-428-0 01 1 9304-9703
30 CONTROLLER; A/T
WITH BACK BUZZER 		8-97140-481-0 01 1 9704-
61 PANEL; SHIFT LEVER
(A) 		8-97100-694-0 01 1 9304-9703
61 PANEL; SHIFT LEVER
(C) 		8-97173-352-0 01 1 9704-
61 PANEL; SHIFT LEVER
(B) 		8-97100-695-0 01 1 9304-9703
69 SCREW; COVER,SHIFT LEVER
(A) M6X12 W/LK&PL WASHER 		9-03920-612-0 04 1 9304-9304
69 SCREW; COVER,SHIFT LEVER
(A) M6X14 W/PL WASHER 		9-03900-614-0 04 1 9305-
69 SCREW; COVER,SHIFT LEVER
(B) 		8-97173-340-0 02 1 9704-
70 KNOB; SHIFT LEVER
DARK GRAY 		8-97158-968-0 01 1 9704-
74 SWITCH; OVERDRIVE,A/T CONT LEVER
DARK GRAY 		8-97158-969-0 01 1 9704-
79 CLIP; LAMP CABLE,A/T CONT LEVER
(B) 		8-97100-697-0 01 1 9304-9703
79 CLIP; LAMP CABLE,A/T CONT LEVER
(A) 		8-97116-312-0 01 1 9304-
92 GUIDE; SLIDER
(B) 		8-97100-735-0 01 1 9304-9703
92 GUIDE; SLIDER
(C) 		8-97173-357-0 01 1 9704-
92 GUIDE; SLIDER
(A) 		8-97100-745-0 01 1 9304-9703
96 RING; SNAP
ID=5 		9-09185-405-0 04 1 9304-9703
96 RING; SNAP
ID=5 		9-09185-405-0 02 1 9704-
102 PLATE; SELECT
(B) 		8-97100-693-0 01 1 9304-9703
102 PLATE; SELECT
(C) 		8-97173-354-0 01 1 9704-
102 PLATE; SELECT
(A) 		8-97100-757-0 01 1 9304-9703
103 SPRING; PLATE
(A) 		8-97100-767-0 01 1 9304-9703
103 SPRING; PLATE
(A) 		8-97173-339-0 01 1 9704-
103 SPRING; PLATE
(B) 		8-97100-768-0 01 1 9304-9703
103 SPRING; PLATE
(B) 		8-97173-345-0 01 1 9704-
103 SPRING; PLATE
(C) 		8-97100-769-0 01 1 9304-9703
103 SPRING; PLATE
(C) 		8-97173-346-0 01 1 9704-
103 SPRING; PLATE
(D) 		8-97100-771-0 01 1 9304-9703
103 SPRING; PLATE
(D) 		8-97173-355-0 01 1 9704-
103 SPRING; PLATE
(E) 		8-97100-772-0 01 1 9304-9703
103 SPRING; PLATE
(E) 		8-97173-356-0 01 1 9704-
103 SPRING; PLATE
(F) 		8-97100-773-0 01 1 9304-9703
103 SPRING; PLATE
(G) 		8-97100-775-0 01 1 9304-9703
110 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97009-449-3 01 1 9304-9703
110 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97158-972-1 01 1 9704-
125 COVER; SHIFT LEVER
(A) DARK GRAY 		8-97158-970-0 01 1 9704-
125 COVER; SHIFT LEVER
(B) DARK GRAY 		8-97158-971-0 01 1 9704-
133 HARNESS; INDICATOR 8-97173-344-1 01 1 9704-
172 PIN; SPRING 8-97173-349-0 02 1 9704-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
