Sayfa 2-53 - Isuzu EPC

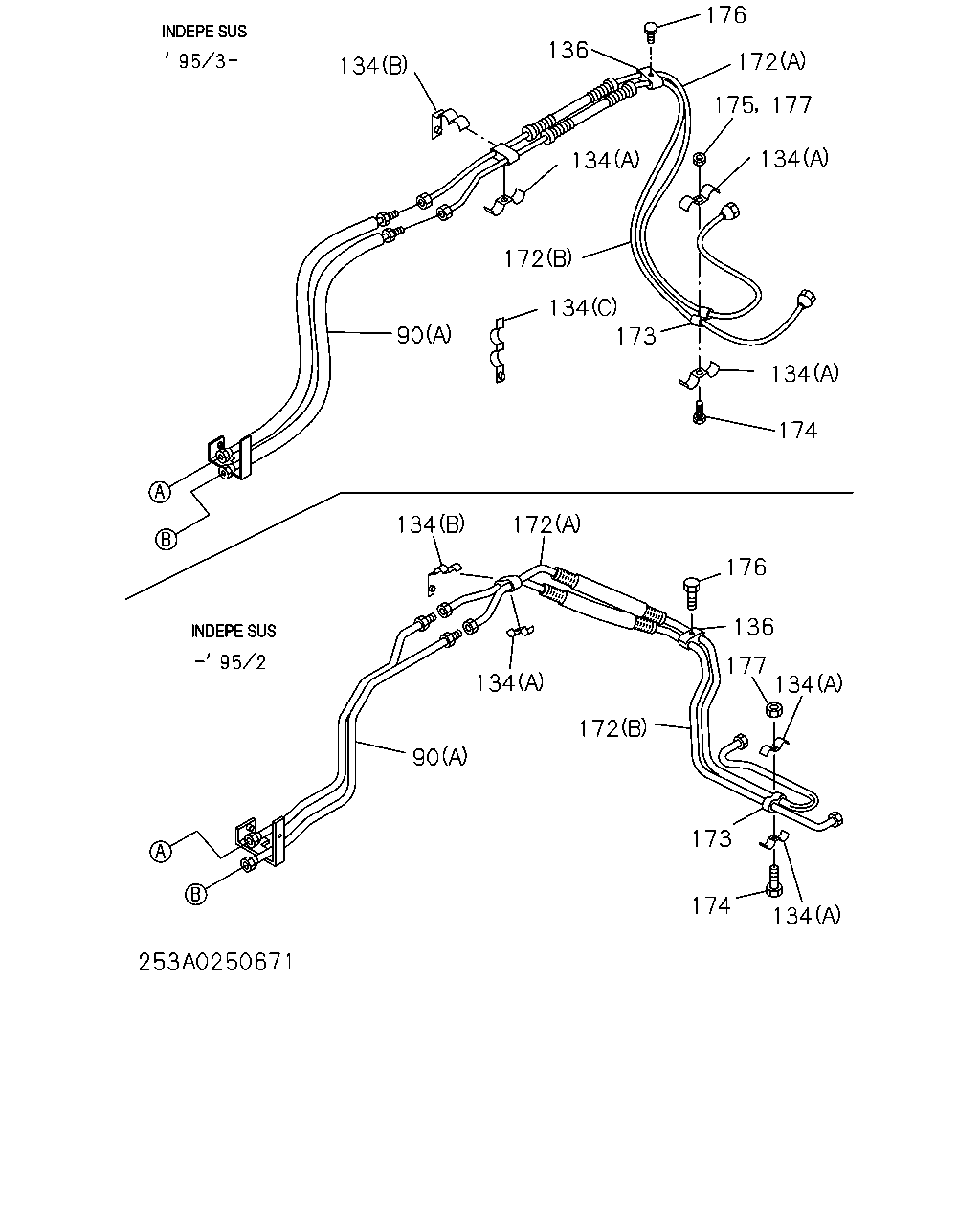

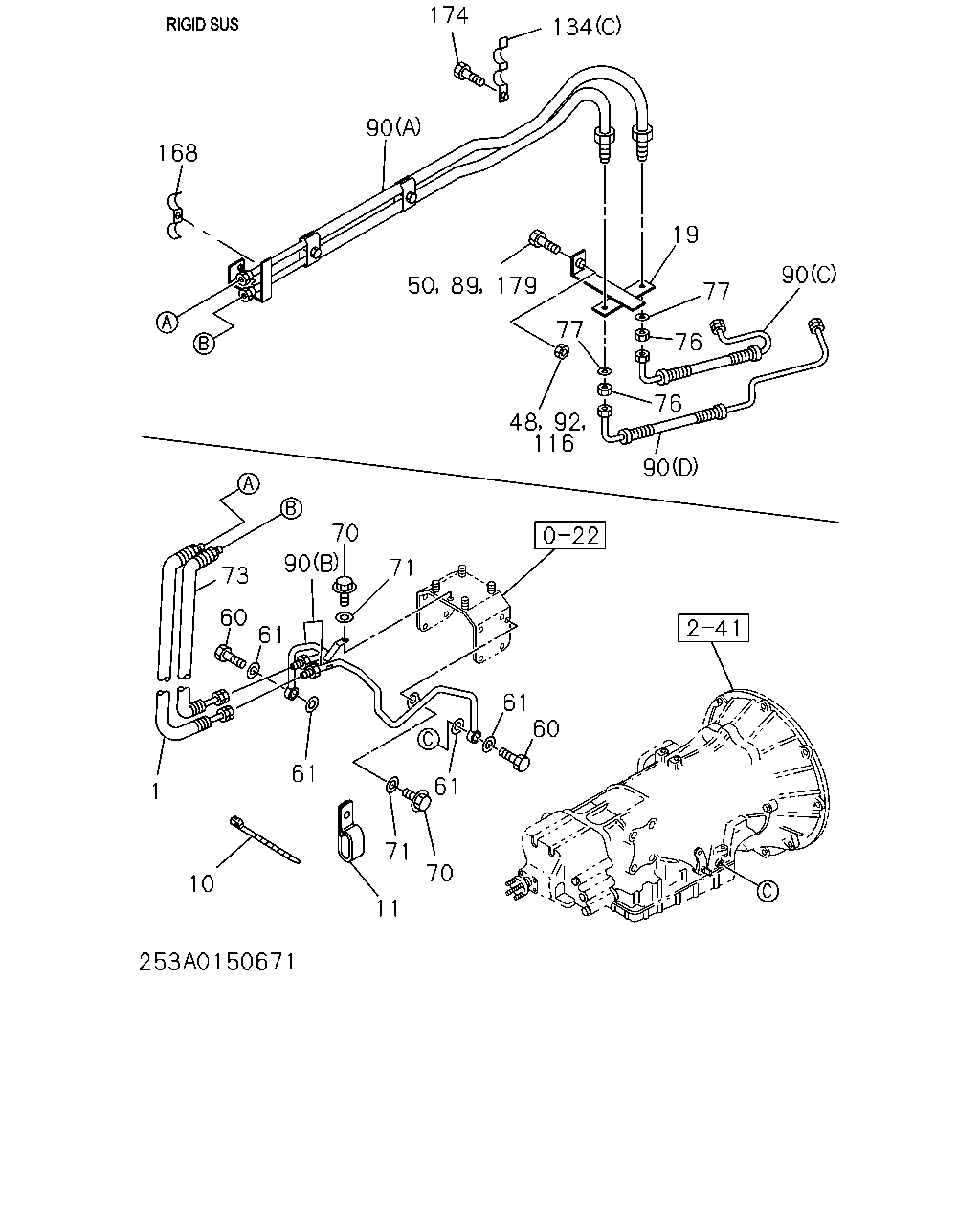

2-53 — TRANSMISSION OIL COOLER SYSTEM (#166704) — 258 parça

174 134 90 168 50 89 179 19 77 90 76 76 90 116 92 48 71 70 90 73 60 61 61 10 1 11 61 61 71 70 60 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HOSE; ATF S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF)	8-97089-488-1	01	1	9304-9502	●
1	HOSE; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T)	8-97089-488-1	01	1	9304-9502	●
1	HOSE; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U>	8-97089-488-1	01	1	9304-9502	●
1	HOSE; ATF S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97089-488-1	01	1	9503-9703	●
1	HOSE; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T)	8-97089-488-1	01	1	9503-9703	●
1	HOSE; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U>	8-97089-488-1	01	1	9503-9703	●
1	HOSE; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97089-488-1	01	1	9704-	●
1	HOSE; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	8-97048-192-0	01	1	9304-9502	●
1	HOSE; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	8-97048-192-0	01	1	9503-9703	●
1	HOSE; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97048-192-0	01	1	9704-	●
10	CLIP; A/T COOLER HOSE 4HF1 ENG(RLS) L=250	5-09707-030-0	01	1	9304-9502	●
10	CLIP; A/T COOLER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) L=250	5-09707-030-1	01	1	9503-	●
11	CLIP; PIPE FRAME-KICK UP<7EW> ID=13X2 L=40	9-09535-276-0	01	1	9304-9502	●
11	CLIP; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> ID=13X2 L=40	9-09535-276-0	01	1	9503-9703	●
11	CLIP; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> ID=13X2 L=40	9-09535-276-0	01	1	9711-	●
11	CLIP; PIPE S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	02	1	9304-9304	●
11	CLIP; PIPE SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	02	1	9304-9304	●
11	CLIP; PIPE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	02	1	9304-9304	●
11	CLIP; PIPE FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	01	1	9304-9502	●
11	CLIP; PIPE FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> ID=13X2 L=16	9-09535-225-0	01	1	9304-9502	●
11	CLIP; PIPE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. BOTTLE CARRIER CHASSIS(V4E),REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	01	1	9304-9502	●
11	CLIP; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	02	1	9503-9710	●
11	CLIP; PIPE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	02	1	9503-9710	●
11	CLIP; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	01	1	9711-	●
11	CLIP; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> ID=13X2 L=16	9-09535-225-0	01	1	9711-	●
11	CLIP; PIPE FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13X2 L=16	9-09535-225-0	01	1	9711-	●
11	CLIP; PIPE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 & 16.5	8-94468-380-0	01	1	9304-9502	●
11	CLIP; PIPE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 & 16.5	8-94468-380-0	01	1	9304-9502	●
11	CLIP; PIPE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 & 16.5	8-94468-380-0	01	1	9304-9502	●
11	CLIP; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> ID=16.5 & 16.5	8-94468-380-0	01	1	9503-	●
19	BRACKET; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94383-420-1	01	1	9304-9502	●
19	BRACKET; FLEX HOSE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94383-420-1	01	1	9304-9502	●
19	BRACKET; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94383-420-1	01	1	9304-9502	●
19	BRACKET; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94383-420-1	01	1	9503-9703	●
19	BRACKET; FLEX HOSE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94383-420-1	01	1	9503-9703	●
19	BRACKET; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94383-420-1	01	1	9503-9703	●
19	BRACKET; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW>	8-94383-420-1	01	1	9704-	●
48	NUT; BRKT 4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) M8 FLANGE	0-91150-108-0	01	1	9304-9502	●	●	●	●	●	●
48	NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) M8 FLANGE	0-91150-108-0	01	1	9503-9705	●	●	●	●	●	●
48	NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	01	1	9706-	●
48	NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	01	1	9706-	●
48	NUT; BRKT 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE	0-91150-106-0	01	1	9304-9502	●
48	NUT; BRKT EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M6 FLANGE	0-91150-106-0	01	1	9304-9502	●
48	NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE	0-91150-106-0	01	1	9503-9703	●
48	NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M6 FLANGE	0-91150-106-0	01	1	9503-9703	●
48	NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE	0-91150-106-0	01	1	9704-	●
48	NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> M6 FLANGE	0-91150-106-0	01	1	9704-	●
50	BOLT; CLIP S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE	0-28080-816-0	01	1	9304-9502	●
50	BOLT; CLIP SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE	0-28080-816-0	01	1	9304-9502	●
50	BOLT; CLIP W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE	0-28080-816-0	01	1	9304-9502	●
50	BOLT; CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE	0-28680-620-0	01	1	9503-	●
50	BOLT; CLIP W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE	0-28680-620-0	01	1	9503-	●
60	BOLT; EYE,ATF PIPE	1-09675-033-0	02	1	9304-	●
61	GASKET; EYE BOLT,ATF PIPE ID=14.2 OD=23.0	9-09572-014-0	04	1	9304-9408	●
61	GASKET; EYE BOLT,ATF PIPE ID=14.2 OD=20.0	9-09571-414-0	04	1	9409-	●
70	BOLT; CLIP,A/T SIDE M8X18 FLANGE	0-28080-818-0	02	1	9304-9409	●
70	BOLT; CLIP,A/T SIDE M8X16 FLANGE	0-28080-816-0	02	1	9410-	●
70	BOLT; CLIP,A/T SIDE FRAME-KICK UP<7EW> M8X16 FLANGE	0-28080-816-0	01	1	9304-9502	●
70	BOLT; CLIP,A/T SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> M8X16 FLANGE	0-28080-816-0	01	1	9503-	●
71	WASHER; CLIP ID=8.4 OD=18	9-09164-608-0	01	1	9304-9409	●
73	HOSE; FLEX,TRANS S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF)	8-97089-487-1	01	1	9304-9502	●
73	HOSE; FLEX,TRANS W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T)	8-97089-487-1	01	1	9304-9502	●
73	HOSE; FLEX,TRANS W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U>	8-97089-487-1	01	1	9304-9502	●
73	HOSE; FLEX,TRANS S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97089-487-1	01	1	9503-9703	●
73	HOSE; FLEX,TRANS W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T)	8-97089-487-1	01	1	9503-9703	●
73	HOSE; FLEX,TRANS W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U>	8-97089-487-1	01	1	9503-9703	●
73	HOSE; FLEX,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97089-487-1	01	1	9704-	●
73	HOSE; FLEX,TRANS W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	8-97048-191-0	01	1	9304-9502	●
73	HOSE; FLEX,TRANS W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>	8-97048-191-0	01	1	9503-9703	●
73	HOSE; FLEX,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97048-191-0	01	1	9704-	●
76	NUT; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M16	9-99111-416-0	02	1	9304-9502	●
76	NUT; FLEX HOSE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) M16	9-99111-416-0	02	1	9304-9502	●
76	NUT; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M16	9-99111-416-0	02	1	9304-9502	●
76	NUT; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M16	9-99111-416-0	02	1	9503-9703	●
76	NUT; FLEX HOSE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) M16	9-99111-416-0	02	1	9503-9703	●
76	NUT; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M16	9-99111-416-0	02	1	9503-9703	●
76	NUT; FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M16	9-99111-416-0	02	1	9704-	●
77	WASHER; LK W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9304-9502	●
77	WASHER; LK W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9304-9502	●
77	WASHER; LK W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9304-9502	●
77	WASHER; LK W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9503-9703	●
77	WASHER; LK W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9503-9703	●
77	WASHER; LK W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9503-9703	●
77	WASHER; LK W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9704-	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28080-830-0	01	1	9304-9502	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28080-830-0	01	1	9304-9502	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28080-830-0	01	1	9304-9502	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28080-830-0	01	1	9503-9507	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28080-830-0	01	1	9503-9507	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28080-830-0	01	1	9503-9507	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28680-830-0	01	1	9508-9703	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28680-830-0	01	1	9508-9703	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 FLANGE	0-28680-830-0	01	1	9508-9703	●
89	BOLT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8X30 FLANGE	0-28680-830-0	01	1	9704-	●
90	PIPE ASM; ATF 4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) (A)	8-97067-060-1	01	1	9304-9502	●	●	●	●	●	●
90	PIPE ASM; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) (A)	8-97067-060-1	01	1	9503-	●	●	●	●	●	●
90	PIPE ASM; ATF (B)	8-97037-222-6	01	1	9304-	●
90	PIPE ASM; ATF S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-162-4	01	1	9304-9502	●
90	PIPE ASM; ATF S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-162-4	01	1	9503-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-161-4	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-161-4	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97113-986-1	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. BOTTLE CARRIER CHASSIS(V4E) (A)	8-97113-986-1	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97113-986-1	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A)	8-97113-986-1	01	1	9704-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97113-986-1	01	1	9704-	●
90	PIPE ASM; ATF W TIRE & MIDDLE CHASSIS(NKC**F) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. BOTTLE CARRIER CHASSIS(V4E) (A)	8-97113-986-1	01	1	9704-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) (A)	8-97077-298-2	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97177-747-0	01	1	9704-9705	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97177-747-0	01	1	9704-9705	●
90	PIPE ASM; ATF W TIRE & MIDDLE CHASSIS(NKC**F) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97177-747-0	01	1	9704-9705	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97181-962-0	01	1	9706-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97181-962-0	01	1	9706-	●
90	PIPE ASM; ATF W TIRE & MIDDLE CHASSIS(NKC**F) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97181-962-0	01	1	9706-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97069-839-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97069-839-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97069-839-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97069-840-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97069-840-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97069-840-0	01	1	9304-9308	●
90	PIPE ASM; ATF FRAME-KICK UP<7EW> (A)	8-97048-057-3	01	1	9304-9502	●
90	PIPE ASM; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> (A)	8-97048-057-4	01	1	9503-	●
92	NUT; CLIP FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91150-108-0	01	1	9304-9502	●
92	NUT; CLIP 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE	0-91150-106-0	01	1	9304-9502	●
92	NUT; CLIP EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M6 FLANGE	0-91150-106-0	01	1	9304-9502	●
92	NUT; CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE	0-91150-106-0	02	1	9503-	●
92	NUT; CLIP W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE	0-91150-106-0	02	1	9503-	●
116	NUT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HF1 ENG(RLS) M8	9-09110-408-0	01	1	9304-9502	●
116	NUT; BRKT,FLEX HOSE SEMI MIDDLE CHASSIS(NK***D) M8	9-09110-408-0	01	1	9304-9502	●
116	NUT; BRKT,FLEX HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) M8	9-09110-408-0	01	1	9503-	●
134	BRACKET; ATF HOSE 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9304-9502	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9304-9502	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9503-9703	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9503-9703	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9704-	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9704-	●
134	BRACKET; ATF HOSE 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-995-0	01	1	9304-9502	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-995-0	01	1	9503-	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-996-0	01	1	9304-9502	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-996-0	01	1	9503-9703	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-996-0	01	1	9704-	●
168	CLIP; A/T SIDE FRAME-KICK UP<7EW> ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9304-9502	●
168	CLIP; A/T SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9503-	●
174	BOLT; BRKT TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M6X20	0-20800-620-0	02	1	9309-9502	●
174	BOLT; BRKT TO BRKT W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M6X20	0-20800-620-0	02	1	9503-	●
174	BOLT; BRKT TO BRKT 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9304-9502	●
174	BOLT; BRKT TO BRKT W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9304-9502	●
174	BOLT; BRKT TO BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9503-9703	●
174	BOLT; BRKT TO BRKT W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9503-9703	●
174	BOLT; BRKT TO BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9704-	●
174	BOLT; BRKT TO BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9704-	●
179	BOLT; BRKT 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9304-9502	●
179	BOLT; BRKT EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9304-9502	●
179	BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9503-9703	●
179	BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9503-9703	●
179	BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9704-	●
179	BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9704-	●
179	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	01	1	9304-9304	●
179	BOLT; BRKT EXC. BOTTLE CARRIER CHASSIS(V4E) M8X30 FLANGE	0-28080-830-0	01	1	9304-9304	●
179	BOLT; BRKT EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> M8X25 FLANGE	0-28080-825-0	01	1	9305-9502	●
179	BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> M8X25 FLANGE	0-28080-825-0	01	1	9503-9703	●
179	BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> M8X25 FLANGE	0-28680-825-0	01	1	9704-9705	●
179	BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> M8X25 FLANGE	0-28680-825-0	01	1	9706-	●

134 136 134 176 172 175 177 134 172 90 134 173 134 174 172 134 90 134 172 177 136 176 134 173 174 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
90	PIPE ASM; ATF 4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) (A)	8-97067-060-1	01	1	9304-9502	●	●	●	●	●	●
90	PIPE ASM; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) BOTTLE CARRIER CHASSIS(V4E) (A)	8-97067-060-1	01	1	9503-	●	●	●	●	●	●
90	PIPE ASM; ATF (B)	8-97037-222-6	01	1	9304-	●
90	PIPE ASM; ATF S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-162-4	01	1	9304-9502	●
90	PIPE ASM; ATF S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-162-4	01	1	9503-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-161-4	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-161-4	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97113-986-1	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. BOTTLE CARRIER CHASSIS(V4E) (A)	8-97113-986-1	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97113-986-1	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A)	8-97113-986-1	01	1	9704-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97113-986-1	01	1	9704-	●
90	PIPE ASM; ATF W TIRE & MIDDLE CHASSIS(NKC**F) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. BOTTLE CARRIER CHASSIS(V4E) (A)	8-97113-986-1	01	1	9704-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) (A)	8-97077-298-2	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9304-9502	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97077-298-2	01	1	9503-9703	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97177-747-0	01	1	9704-9705	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97177-747-0	01	1	9704-9705	●
90	PIPE ASM; ATF W TIRE & MIDDLE CHASSIS(NKC**F) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97177-747-0	01	1	9704-9705	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97181-962-0	01	1	9706-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97181-962-0	01	1	9706-	●
90	PIPE ASM; ATF W TIRE & MIDDLE CHASSIS(NKC**F) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97181-962-0	01	1	9706-	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97069-839-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97069-839-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97069-839-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97069-840-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97069-840-0	01	1	9304-9308	●
90	PIPE ASM; ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97069-840-0	01	1	9304-9308	●
90	PIPE ASM; ATF FRAME-KICK UP<7EW> (A)	8-97048-057-3	01	1	9304-9502	●
90	PIPE ASM; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> (A)	8-97048-057-4	01	1	9503-	●
134	BRACKET; ATF HOSE 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9304-9502	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9304-9502	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9503-9703	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9503-9703	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9704-	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97042-250-0	03	1	9704-	●
134	BRACKET; ATF HOSE 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-995-0	01	1	9304-9502	●
134	BRACKET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-995-0	01	1	9503-	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-996-0	01	1	9304-9502	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-996-0	01	1	9503-9703	●
134	BRACKET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-996-0	01	1	9704-	●
136	CLIP; FLEX HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) ID=10X2 H=22	8-94252-455-0	01	1	9304-9612	●
136	CLIP; FLEX HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) ID=10X2 H=22	8-94252-455-0	01	1	9701-	●
172	HOSE; FLEX,ATF EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97069-839-1	01	1	9309-9502	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A)	8-97069-839-2	01	1	9503-	●
172	HOSE; FLEX,ATF EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B)	8-97069-840-1	01	1	9309-9502	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B)	8-97069-840-2	01	1	9503-	●
172	HOSE; FLEX,ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97085-737-0	01	1	9304-9612	●
172	HOSE; FLEX,ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97085-738-0	01	1	9304-9612	●
172	HOSE; FLEX,ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-168-0	01	1	9304-9612	●
172	HOSE; FLEX,ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-168-0	01	1	9701-	●
172	HOSE; FLEX,ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97048-169-0	01	1	9304-9612	●
172	HOSE; FLEX,ATF 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97048-169-0	01	1	9701-	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-853-0	01	1	9304-9502	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-853-0	01	1	9503-9703	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97048-853-0	01	1	9704-	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97048-854-0	01	1	9304-9502	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97048-854-0	01	1	9503-9703	●
172	HOSE; FLEX,ATF W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97048-854-0	01	1	9704-	●
173	GROMMET; ATF HOSE 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-97042-251-0	04	1	9304-9502	●
173	GROMMET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-97042-251-0	04	1	9304-9502	●
173	GROMMET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-97042-251-0	04	1	9503-9703	●
173	GROMMET; ATF HOSE W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-97042-251-0	04	1	9503-9703	●
173	GROMMET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-97042-251-0	04	1	9704-	●
173	GROMMET; ATF HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97042-251-0	04	1	9704-	●
174	BOLT; BRKT TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M6X20	0-20800-620-0	02	1	9309-9502	●
174	BOLT; BRKT TO BRKT W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M6X20	0-20800-620-0	02	1	9503-	●
174	BOLT; BRKT TO BRKT 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9304-9502	●
174	BOLT; BRKT TO BRKT W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9304-9502	●
174	BOLT; BRKT TO BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9503-9703	●
174	BOLT; BRKT TO BRKT W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9503-9703	●
174	BOLT; BRKT TO BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9704-	●
174	BOLT; BRKT TO BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9704-	●
175	NUT; BRKT TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M6	9-09111-406-0	02	1	9309-9502	●
175	NUT; BRKT TO BRKT W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M6	9-09111-406-0	02	1	9503-	●
176	BOLT; HOSE CLIP 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9304-9502	●
176	BOLT; HOSE CLIP W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9304-9502	●
176	BOLT; HOSE CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9503-9703	●
176	BOLT; HOSE CLIP W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9503-9703	●
176	BOLT; HOSE CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9704-	●
176	BOLT; HOSE CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94321-476-0	01	1	9704-	●
177	NUT; HOSE CLIP 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M5	9-99111-405-0	02	1	9304-9502	●
177	NUT; HOSE CLIP W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M5	9-99111-405-0	02	1	9304-9502	●
177	NUT; HOSE CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M5	9-99111-405-0	02	1	9503-9703	●
177	NUT; HOSE CLIP W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M5	9-99111-405-0	02	1	9503-9703	●
177	NUT; HOSE CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M5	9-99111-405-0	02	1	9704-	●
177	NUT; HOSE CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M5	9-99111-405-0	02	1	9704-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
