2-49 — AUTO TRANS INHIBITOR SWITCH (#166703) — 38 parça
çizim 493708
93 94 93 41 44 93
BalonParca AdiParca NoAdetTipApplied Date
41 RETAINER; SPR,SHAFT 8-94483-341-0 01 1 9304-
44 ROD ASM; PARKING PAWL 8-94483-271-0 01 1 9304-
93 CLIP; A/T CONT HARNESS
(D) 		8-94385-704-0 01 1 9304-
93 CLIP; A/T CONT HARNESS
(E) ID=18 		8-94329-853-0 01 1 9503-9505
93 CLIP; A/T CONT HARNESS
PTO TRANSMISSION SIDE FLANGE TYPE(7GM),PTO SIDE OLD TYPE(7GQ) (E) ID=18 		8-94329-853-0 01 1 9506-
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97078-324-0 01 1 9304-9401
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (A) 		8-97078-324-0 01 1 9402-
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-97087-831-0 01 1 9304-9401
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (B) 		8-97087-831-0 01 1 9402-
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-97107-391-0 01 1 9304-9401
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (C) 		8-97107-391-0 01 1 9402-9505
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (C) 		8-97112-971-0 01 1 9506-9703
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (C) 		8-97112-971-0 01 1 9704-
94 BOLT; CLIP,A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE(V66) 		8-94483-333-0 04 1 9304-9401
94 BOLT; CLIP,A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) 		8-94483-333-0 04 1 9402-

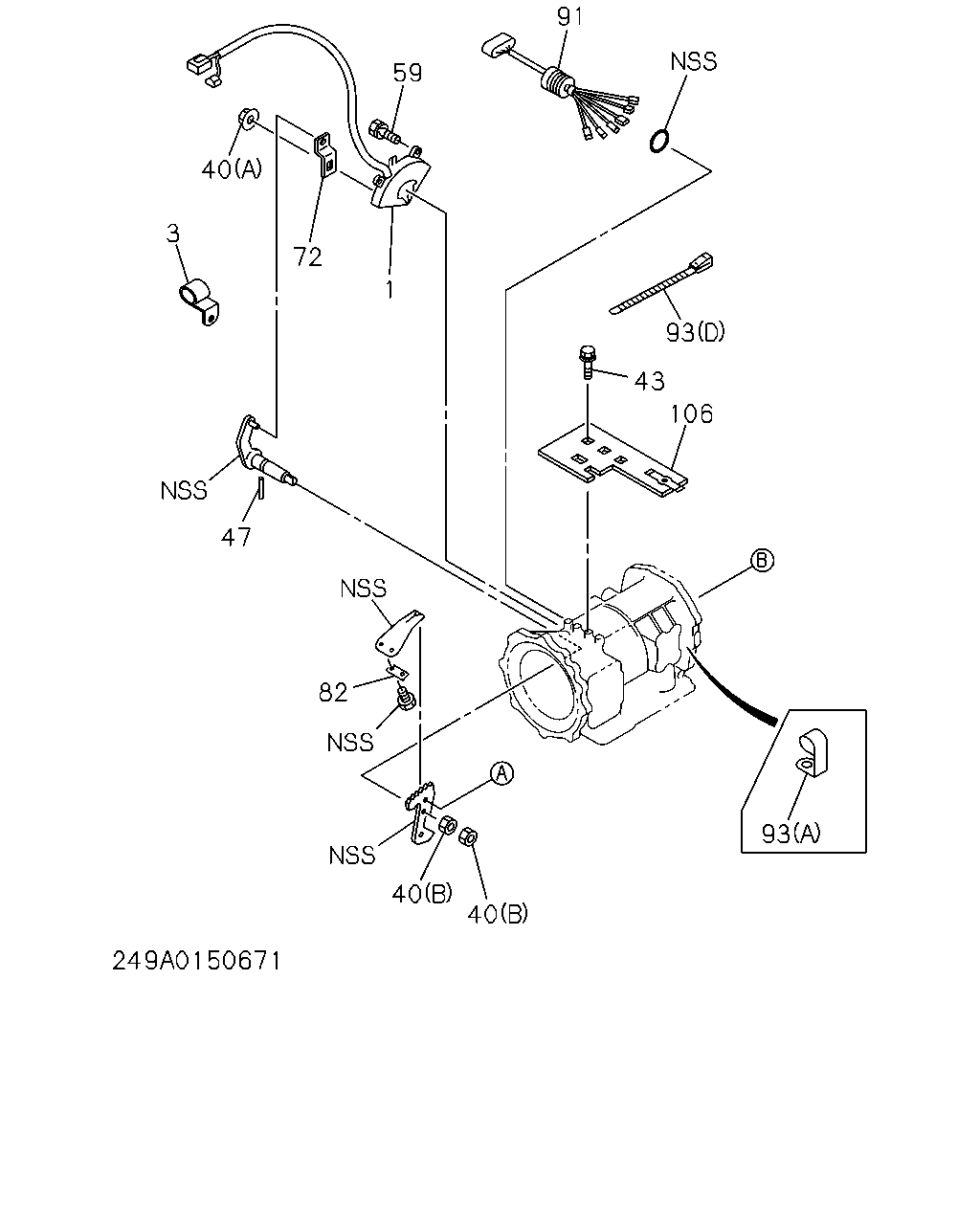

çizim 494238
93 40 40 82 106 43 91 59 72 40 3 47 1 93
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; INHIBITOR,A/T 8-97092-826-0 01 1 9304-9412
1 SWITCH; INHIBITOR,A/T 8-97126-091-0 01 1 9501-
3 CLIP; INHIBITOR SW,A/T 8-94483-613-0 01 1 9304-
40 NUT; LEVER TO SHAFT
(A) M14 FLANGE 		0-91150-114-0 01 1 9304-
40 NUT; LEVER TO SHAFT
(B) M14 		8-94483-278-0 02 1 9304-
43 BOLT; BRKT
M6X12 W/WASHER ET SCREW 		8-94430-946-0 02 1 9304-
47 PIN; ROLL SHAFT 8-94483-277-0 01 1 9304-
59 SCREW; SW,A/T 8-94483-612-0 03 1 9304-
72 LEVER; SELECT CONT 8-97047-878-0 01 1 9304-
82 SPACER; DETENT SPRING 8-97109-230-0 01 1 9304-
91 HARNESS ASM; CABLE,A/T CONT
WITH WATER TEMPERATURE SENSOR 		8-97087-832-0 01 1 9304-
93 CLIP; A/T CONT HARNESS
(D) 		8-94385-704-0 01 1 9304-
93 CLIP; A/T CONT HARNESS
(E) ID=18 		8-94329-853-0 01 1 9503-9505
93 CLIP; A/T CONT HARNESS
PTO TRANSMISSION SIDE FLANGE TYPE(7GM),PTO SIDE OLD TYPE(7GQ) (E) ID=18 		8-94329-853-0 01 1 9506-
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97078-324-0 01 1 9304-9401
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (A) 		8-97078-324-0 01 1 9402-
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-97087-831-0 01 1 9304-9401
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (B) 		8-97087-831-0 01 1 9402-
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-97107-391-0 01 1 9304-9401
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (C) 		8-97107-391-0 01 1 9402-9505
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (C) 		8-97112-971-0 01 1 9506-9703
93 CLIP; A/T CONT HARNESS
EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO SIDE OLD TYPE(7GQ) (C) 		8-97112-971-0 01 1 9704-
106 BRACKET; HARNESS 8-97061-054-2 01 1 9304-
