Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#16670) — 205 parça

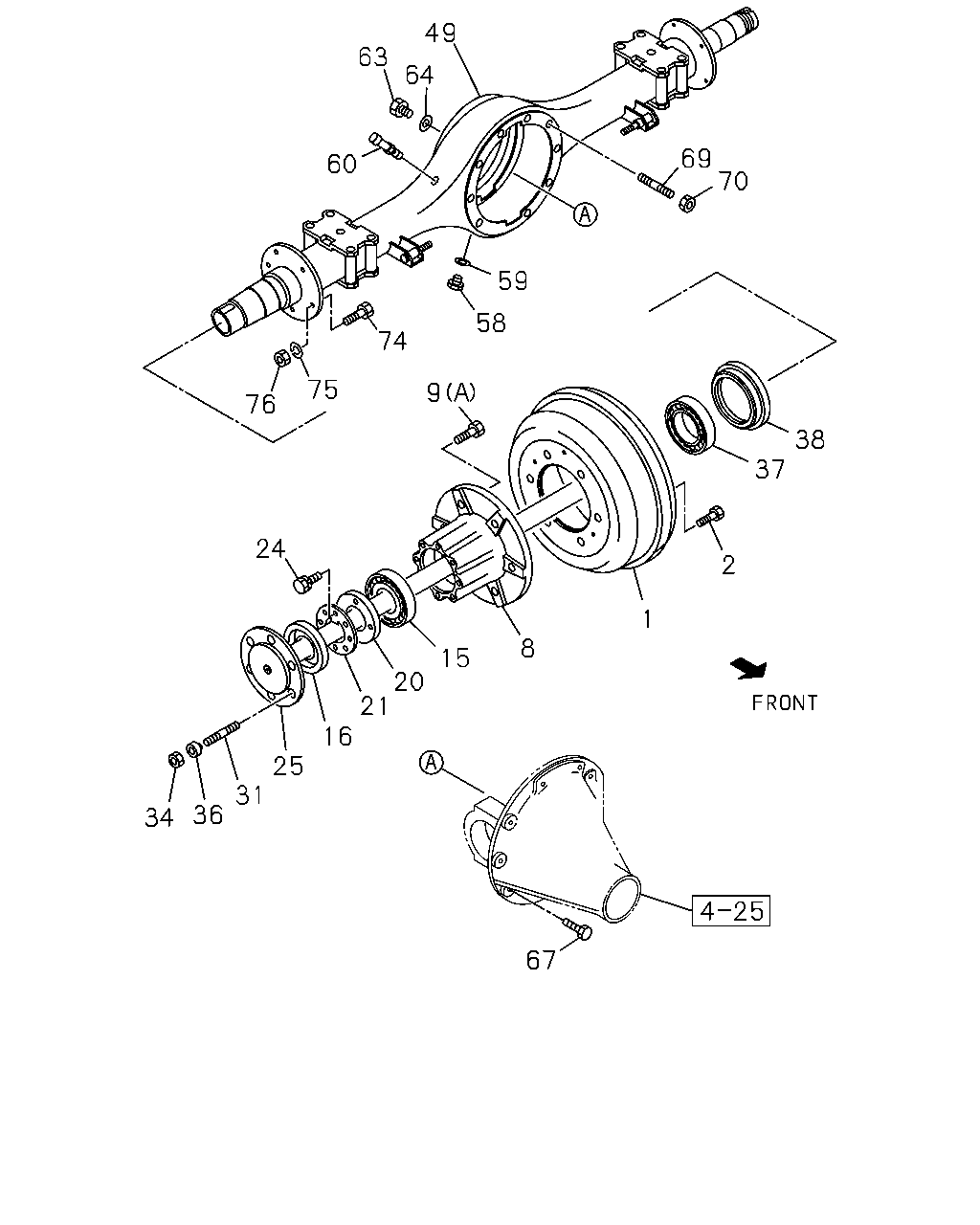

49 63 64 69 70 60 59 58 74 75 9 76 38 37 24 2 1 8 15 20 21 16 25 31 36 34 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR FINAL GEAR RATIO 41/7<R41> THA	8-97940-560-0	02	1	0009-	●
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-97940-559-0	02	1	0009-		●
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> THA	8-97940-560-0	02	1	0009-	●
1	DRUM; BRK,RR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> THA	8-97940-561-0	02	1	0009-			●
2	BOLT; BRK DRUM FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M6X18	0-20800-618-0	02	1	0009-		●
8	HUB; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-97940-278-0	02	1	0009-		●
8	HUB; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> THA	8-97940-277-0	02	1	0009-	●
8	HUB; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> THA	8-97940-279-0	02	1	0009-			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> (A) M14X50 RH THREAD	9-42331-605-4	06	1	0009-0304		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M14X50 RH THREAD	9-42331-605-4	06	1	0305-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> (A) M14X50 LH THREAD	9-42332-605-4	06	1	0009-0304		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M14X50 LH THREAD	9-42332-605-4	06	1	0305-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (B) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0009-0304	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (B) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0009-0304			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0305-	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0305-			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0009-0304	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0009-0304			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0305-	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0305-			●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NSK THA	9-00093-082-0	02	1	0009-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK THA	9-00093-082-0	02	1	0009-	●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK THA	9-00093-607-0	02	1	0009-			●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> TKK	8-94336-315-2	02	1	0009-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> TKK	8-94336-315-2	02	1	0009-	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NOK	8-94367-961-1	02	1	0009-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NOK	8-94367-961-1	02	1	0009-	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> TKK	8-94336-317-2	02	1	0009-			●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NOK	8-94367-960-1	02	1	0009-			●
20	NUT; BRG,RR HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M52	8-97137-092-0	02	1	0009-		●
20	NUT; BRG,RR HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M52	8-97137-092-0	02	1	0009-	●
20	NUT; BRG,RR HUB FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M55	8-97137-094-0	02	1	0009-			●
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=52	9-09853-214-0	02	1	0009-		●
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=52	9-09853-214-0	02	1	0009-	●
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=55	9-09653-002-0	02	1	0009-			●
24	BOLT; LK WASHER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M6X12 W/LK WASHER	0-50040-612-0	04	1	0009-		●
24	BOLT; LK WASHER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M6X12 W/LK WASHER	0-50040-612-0	04	1	0009-	●
24	BOLT; LK WASHER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M6X12 W/LK WASHER	0-50040-612-0	04	1	0009-			●
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-94366-192-0	02	1	0009-		●
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> THA	8-97032-496-0	02	1	0009-	●
25	SHAFT; AXLE,RR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> L=780	8-94366-190-1	02	1	0009-			●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X30 L=49	5-09300-066-1	12	1	0009-0304		●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X30 L=49	5-09300-066-1	06	1	0305-		●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X30 L=49	5-09300-066-1	16	1	0009-0304	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X30 L=49	5-09300-066-1	16	1	0009-0304			●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X30 L=49	5-09300-066-1	08	1	0305-	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X30 L=49	5-09300-066-1	08	1	0305-			●
34	NUT; AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10 FLANGE	0-91150-210-0	12	1	0009-		●
34	NUT; AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10 FLANGE	0-91150-210-0	16	1	0009-	●
34	NUT; AXLE SHAFT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10 FLANGE	0-91150-210-0	16	1	0009-			●
36	WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=10.5	9-09855-207-0	12	1	0009-		●
36	WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=10.5	9-09855-207-0	16	1	0009-	●
36	WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=10.5	9-09855-207-0	16	1	0009-			●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NSK THA	9-00093-081-0	02	1	0009-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK THA	9-00093-081-0	02	1	0009-	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK THA	9-00093-624-0	02	1	0009-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> TKK	8-94336-314-1	02	1	0009-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> TKK	8-94336-314-1	02	1	0009-	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NOK	8-94367-959-0	02	1	0009-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NOK	8-94367-959-0	02	1	0009-	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> TKK	8-94336-316-1	02	1	0009-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NOK	8-94367-958-0	02	1	0009-			●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97032-768-2	01	1	0009-0304		●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97032-768-2	02	1	0305-0305		●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97032-768-3	01	1	0305-		●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97032-861-2	01	1	0009-0304	●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97032-861-2	02	1	0305-0305	●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97032-861-3	01	1	0305-	●
49	CASE; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97070-484-3	01	1	0009-0304			●
49	CASE; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97070-484-3	02	1	0305-0305			●
49	CASE; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97070-484-4	01	1	0305-			●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M16X12.5	8-97109-869-0	01	1	0009-		●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M16X12.5	8-97109-869-0	01	1	0009-	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M16X12.5	8-97109-869-0	01	1	0009-			●
59	GASKET; DRAIN PLUG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=16.2 OD=24	9-09571-416-0	01	1	0009-		●
59	GASKET; DRAIN PLUG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=16.2 OD=24	9-09571-416-0	01	1	0009-	●
59	GASKET; DRAIN PLUG FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=16.2 OD=24	9-09571-416-0	01	1	0009-			●
60	BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	0009-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M20X10.5	9-09662-005-0	01	1	0009-		●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M20X10.5	9-09662-005-0	01	1	0009-	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M20X10.5	9-09662-005-0	01	1	0009-			●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=20 OD=30 THA	8-94462-734-0	01	1	0009-		●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=20 OD=30 THA	8-94462-734-0	01	1	0009-	●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=20 OD=30 THA	8-94462-734-0	01	1	0009-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X40 W/LK WASHER	0-50061-040-0	08	1	0009-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X40 W/LK WASHER	0-50061-040-0	11	1	0009-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X40 W/LK WASHER	0-50061-040-0	11	1	0009-			●
69	STUD; AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X40.5 L=52.5	8-97026-282-0	02	1	0009-		●
69	STUD; AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X40.5 L=52.5	8-97026-282-0	02	1	0009-	●
69	STUD; AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X40.5 L=52.5	8-97026-282-0	02	1	0009-			●
70	NUT; CARRIER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10 FLANGE	0-91150-210-0	02	1	0009-		●
70	NUT; CARRIER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10 FLANGE	0-91150-210-0	02	1	0009-	●
70	NUT; CARRIER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10 FLANGE	0-91150-210-0	02	1	0009-			●
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97259-178-0	12	1	0009-		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M12X32	5-09000-078-0	12	1	0009-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M12X32	5-09000-078-0	12	1	0009-			●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=10.2	9-09150-610-0	12	1	0009-		●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=12.2	9-09150-612-0	12	1	0009-	●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=12.2	9-09150-612-0	12	1	0009-			●
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10	9-09110-510-0	12	1	0009-		●
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M12	9-99110-512-0	12	1	0009-	●
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M12	9-99110-512-0	12	1	0009-			●

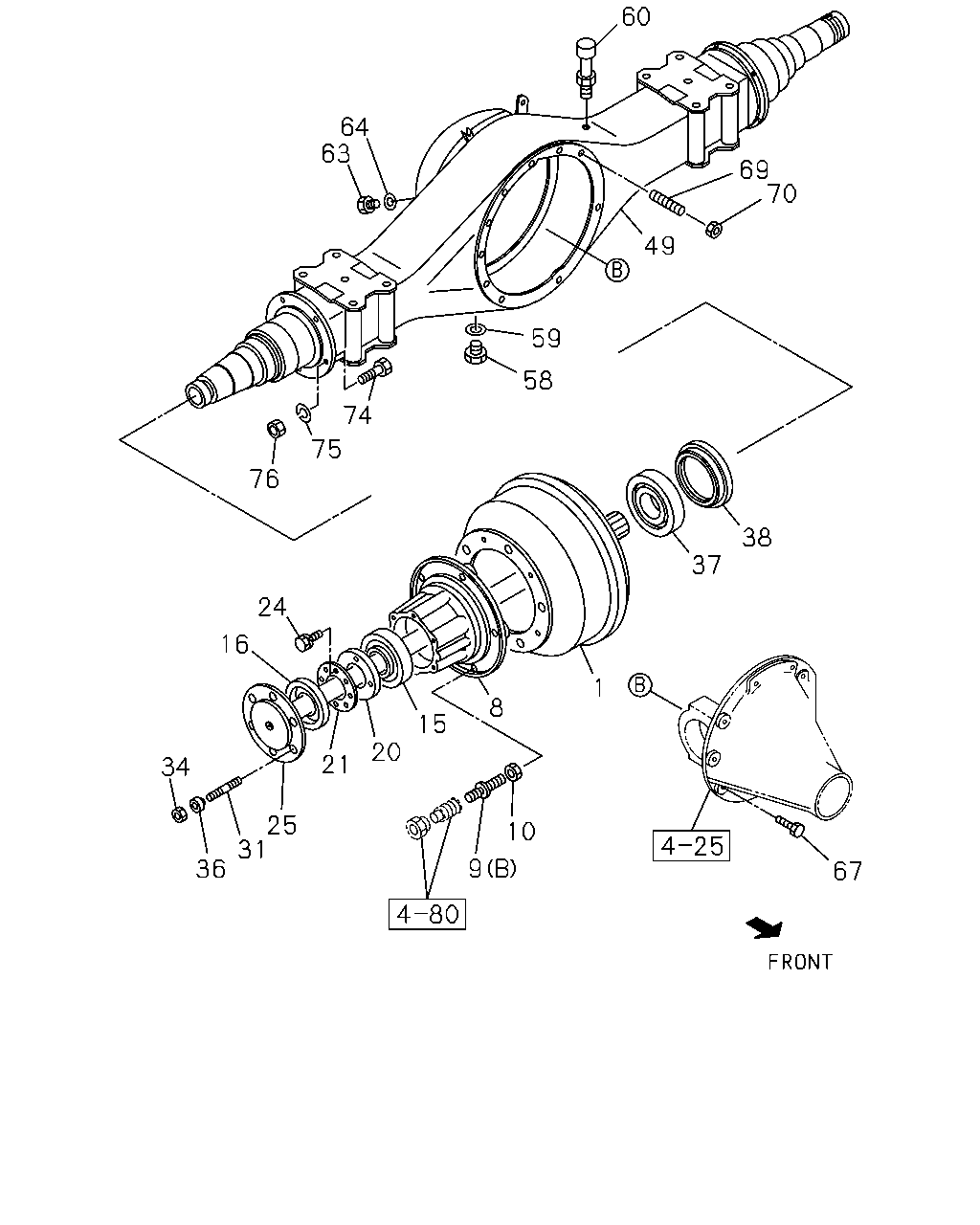

60 64 63 69 70 49 59 58 74 75 76 38 37 24 16 1 8 15 20 21 34 25 31 10 9 36 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR FINAL GEAR RATIO 41/7<R41> THA	8-97940-560-0	02	1	0009-	●
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-97940-559-0	02	1	0009-		●
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> THA	8-97940-560-0	02	1	0009-	●
1	DRUM; BRK,RR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> THA	8-97940-561-0	02	1	0009-			●
8	HUB; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-97940-278-0	02	1	0009-		●
8	HUB; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> THA	8-97940-277-0	02	1	0009-	●
8	HUB; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> THA	8-97940-279-0	02	1	0009-			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> (A) M14X50 RH THREAD	9-42331-605-4	06	1	0009-0304		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M14X50 RH THREAD	9-42331-605-4	06	1	0305-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> (A) M14X50 LH THREAD	9-42332-605-4	06	1	0009-0304		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M14X50 LH THREAD	9-42332-605-4	06	1	0305-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (B) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0009-0304	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (B) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0009-0304			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0305-	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0305-			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0009-0304	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0009-0304			●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0305-	●
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0305-			●
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M20	9-99110-520-0	10	1	0009-	●
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M20	9-99110-520-0	10	1	0009-			●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NSK THA	9-00093-082-0	02	1	0009-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK THA	9-00093-082-0	02	1	0009-	●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK THA	9-00093-607-0	02	1	0009-			●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> TKK	8-94336-315-2	02	1	0009-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> TKK	8-94336-315-2	02	1	0009-	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NOK	8-94367-961-1	02	1	0009-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NOK	8-94367-961-1	02	1	0009-	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> TKK	8-94336-317-2	02	1	0009-			●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NOK	8-94367-960-1	02	1	0009-			●
20	NUT; BRG,RR HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M52	8-97137-092-0	02	1	0009-		●
20	NUT; BRG,RR HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M52	8-97137-092-0	02	1	0009-	●
20	NUT; BRG,RR HUB FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M55	8-97137-094-0	02	1	0009-			●
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=52	9-09853-214-0	02	1	0009-		●
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=52	9-09853-214-0	02	1	0009-	●
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=55	9-09653-002-0	02	1	0009-			●
24	BOLT; LK WASHER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M6X12 W/LK WASHER	0-50040-612-0	04	1	0009-		●
24	BOLT; LK WASHER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M6X12 W/LK WASHER	0-50040-612-0	04	1	0009-	●
24	BOLT; LK WASHER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M6X12 W/LK WASHER	0-50040-612-0	04	1	0009-			●
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> THA	8-94366-192-0	02	1	0009-		●
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> THA	8-97032-496-0	02	1	0009-	●
25	SHAFT; AXLE,RR FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> L=780	8-94366-190-1	02	1	0009-			●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X30 L=49	5-09300-066-1	12	1	0009-0304		●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X30 L=49	5-09300-066-1	06	1	0305-		●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X30 L=49	5-09300-066-1	16	1	0009-0304	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X30 L=49	5-09300-066-1	16	1	0009-0304			●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X30 L=49	5-09300-066-1	08	1	0305-	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X30 L=49	5-09300-066-1	08	1	0305-			●
34	NUT; AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10 FLANGE	0-91150-210-0	12	1	0009-		●
34	NUT; AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10 FLANGE	0-91150-210-0	16	1	0009-	●
34	NUT; AXLE SHAFT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10 FLANGE	0-91150-210-0	16	1	0009-			●
36	WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=10.5	9-09855-207-0	12	1	0009-		●
36	WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=10.5	9-09855-207-0	16	1	0009-	●
36	WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=10.5	9-09855-207-0	16	1	0009-			●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NSK THA	9-00093-081-0	02	1	0009-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NSK THA	9-00093-081-0	02	1	0009-	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NSK THA	9-00093-624-0	02	1	0009-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> TKK	8-94336-314-1	02	1	0009-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> TKK	8-94336-314-1	02	1	0009-	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> NOK	8-94367-959-0	02	1	0009-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> NOK	8-94367-959-0	02	1	0009-	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> TKK	8-94336-316-1	02	1	0009-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NOK	8-94367-958-0	02	1	0009-			●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97032-768-2	01	1	0009-0304		●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97032-768-2	02	1	0305-0305		●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97032-768-3	01	1	0305-		●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97032-861-2	01	1	0009-0304	●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97032-861-2	02	1	0305-0305	●
49	CASE; RR AXLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97032-861-3	01	1	0305-	●
49	CASE; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97070-484-3	01	1	0009-0304			●
49	CASE; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97070-484-3	02	1	0305-0305			●
49	CASE; RR AXLE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97070-484-4	01	1	0305-			●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M16X12.5	8-97109-869-0	01	1	0009-		●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M16X12.5	8-97109-869-0	01	1	0009-	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M16X12.5	8-97109-869-0	01	1	0009-			●
59	GASKET; DRAIN PLUG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=16.2 OD=24	9-09571-416-0	01	1	0009-		●
59	GASKET; DRAIN PLUG FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=16.2 OD=24	9-09571-416-0	01	1	0009-	●
59	GASKET; DRAIN PLUG FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=16.2 OD=24	9-09571-416-0	01	1	0009-			●
60	BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	0009-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M20X10.5	9-09662-005-0	01	1	0009-		●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M20X10.5	9-09662-005-0	01	1	0009-	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M20X10.5	9-09662-005-0	01	1	0009-			●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=20 OD=30 THA	8-94462-734-0	01	1	0009-		●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=20 OD=30 THA	8-94462-734-0	01	1	0009-	●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=20 OD=30 THA	8-94462-734-0	01	1	0009-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X40 W/LK WASHER	0-50061-040-0	08	1	0009-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X40 W/LK WASHER	0-50061-040-0	11	1	0009-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X40 W/LK WASHER	0-50061-040-0	11	1	0009-			●
69	STUD; AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10X40.5 L=52.5	8-97026-282-0	02	1	0009-		●
69	STUD; AXLE CASE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10X40.5 L=52.5	8-97026-282-0	02	1	0009-	●
69	STUD; AXLE CASE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10X40.5 L=52.5	8-97026-282-0	02	1	0009-			●
70	NUT; CARRIER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10 FLANGE	0-91150-210-0	02	1	0009-		●
70	NUT; CARRIER FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M10 FLANGE	0-91150-210-0	02	1	0009-	●
70	NUT; CARRIER FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M10 FLANGE	0-91150-210-0	02	1	0009-			●
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97259-178-0	12	1	0009-		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M12X32	5-09000-078-0	12	1	0009-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M12X32	5-09000-078-0	12	1	0009-			●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> ID=10.2	9-09150-610-0	12	1	0009-		●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> ID=12.2	9-09150-612-0	12	1	0009-	●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=12.2	9-09150-612-0	12	1	0009-			●
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> M10	9-09110-510-0	12	1	0009-		●
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> M12	9-99110-512-0	12	1	0009-	●
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> M12	9-99110-512-0	12	1	0009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
