◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#1667) — 10 parça

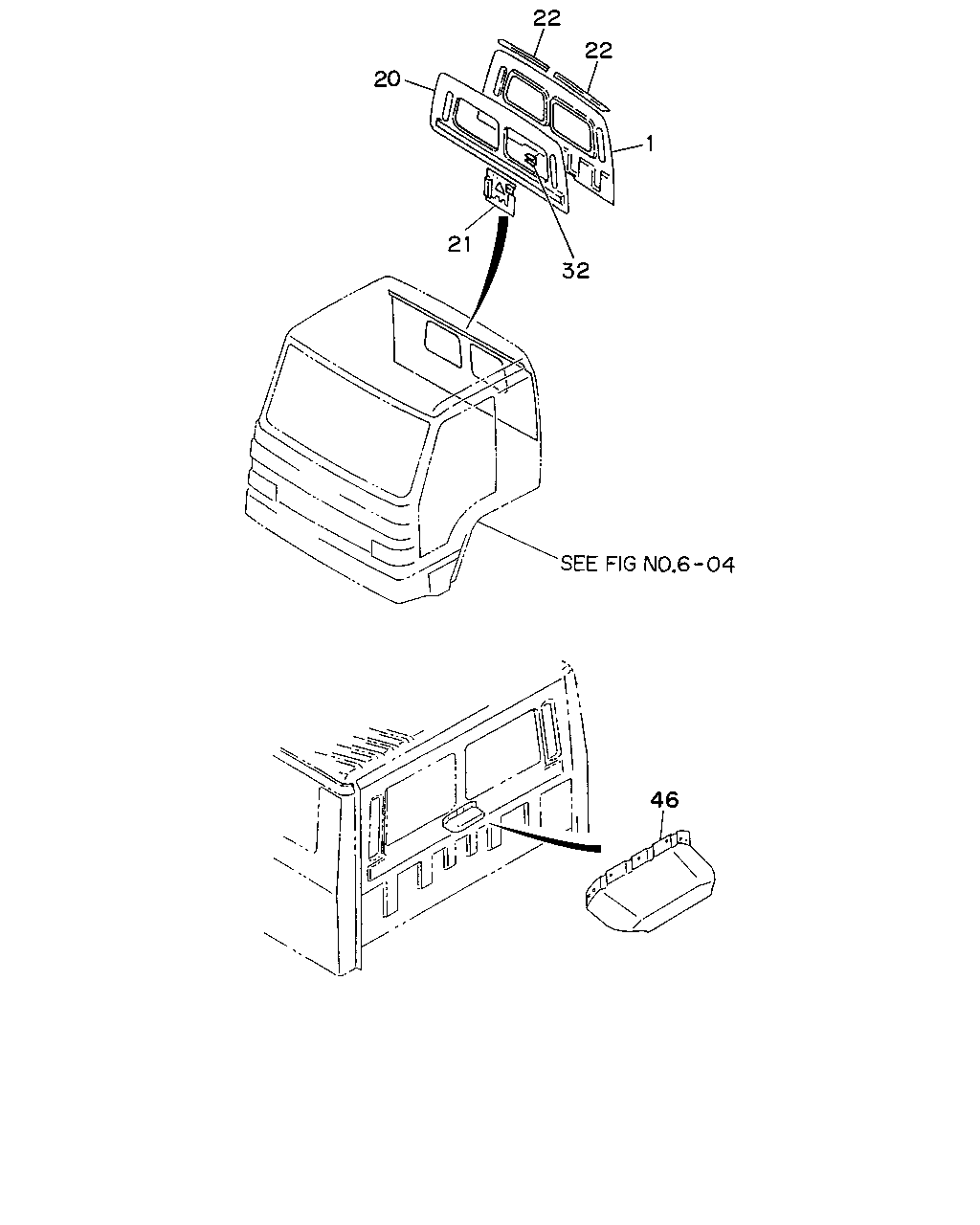

çizim 27939
22 22 20 21 32 46 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; BACK OUTER
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61580-848-4 01 1 9207- ● ● ● ● ●
1 PANEL; BACK OUTER
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> PRIMER 		1-61580-867-2 01 1 9207- ● ● ● ● ●
20 PANEL; BACK INNER,CENTER 1-61580-717-7 01 1 9207- ● ● ● ● ●
21 REINFORCEMENT; CAB LK 1-61580-720-5 01 1 9207- ● ● ● ● ●
22 MOLDING; DRIP,BACK PANEL 1-61580-711-0 01 1 9207- ● ● ● ● ●
22 MOLDING; DRIP,BACK PANEL 1-61580-710-0 01 1 9207- ● ● ● ● ●
32 PATCH; AIR INT DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61580-849-0 01 1 9207- ● ● ● ● ●
32 PATCH; AIR INT DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61580-753-2 01 1 9207- ● ● ● ● ●
46 COVER; CAB LK 1-61580-657-1 01 1 9207- ● ● ● ●
46 COVER; CAB LK
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61580-657-1 01 1 9207- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
