◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#166696) — 395 parça

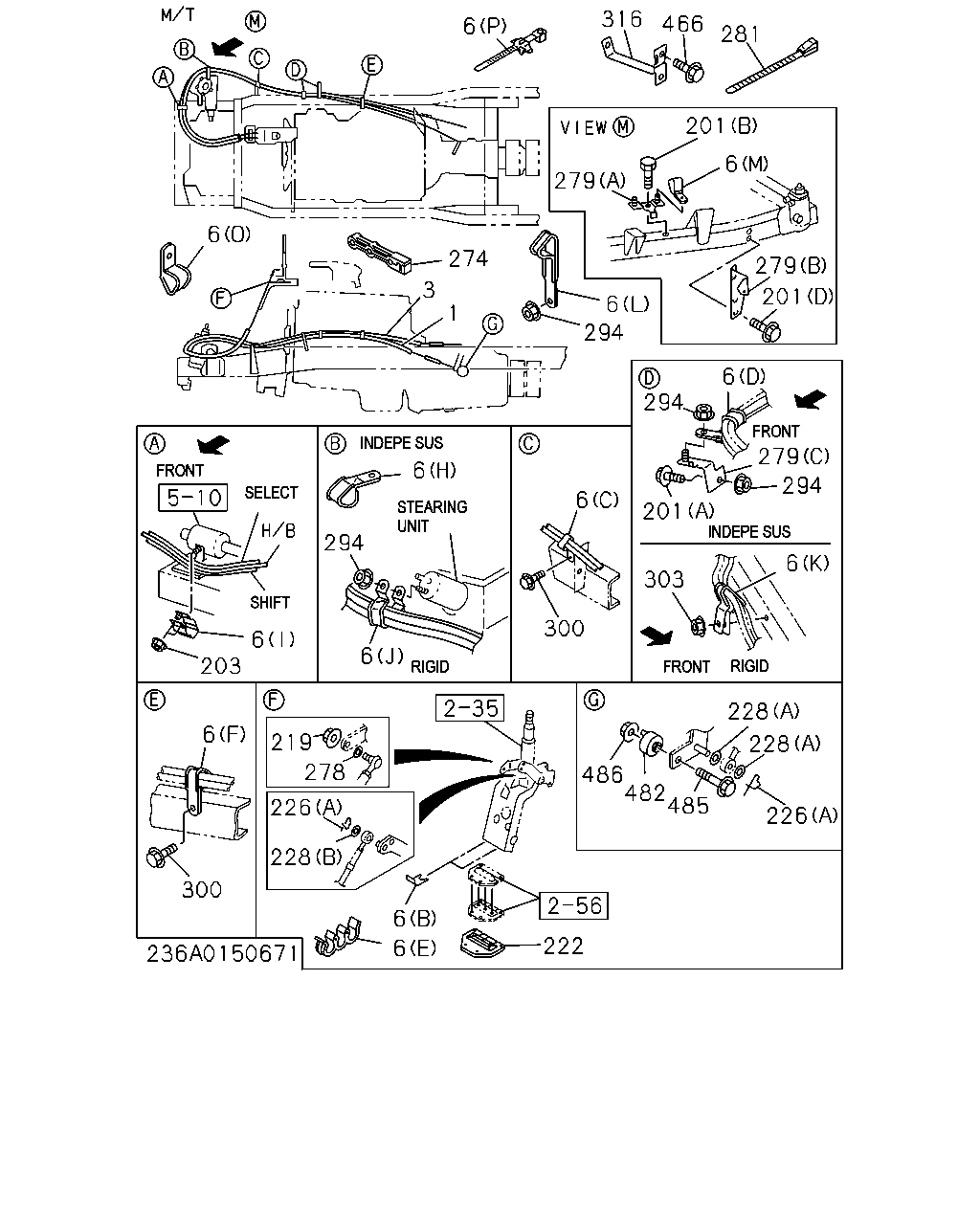

çizim 493478
201 279 6 201 281 466 316 6 6 274 3 1 6 279 294 6 294 279 201 294 6 300 303 6 228 228 226 485 482 486 222 6 6 294 6 203 219 278 228 226 6 300 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CABLE; SHIFT,TRANS CONT 8-97035-755-4 01 1 9304-9502 ●
1 CABLE; SHIFT,TRANS CONT
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97043-139-4 01 1 9304-9607 ●
1 CABLE; SHIFT,TRANS CONT
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97176-470-0 01 1 9608- ●
1 CABLE; SHIFT,TRANS CONT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97035-756-4 01 1 9304-9607 ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) L=2779 		8-97176-467-0 01 1 9608- ● ●
1 CABLE; SHIFT,TRANS CONT
4JG2 ENG(RJC) L=2623 		8-97034-143-5 01 1 9304-9502 ●
1 CABLE; SHIFT,TRANS CONT
4JG2 ENG(RJC) L=2623 		8-97034-143-6 01 1 9503-9607 ● ●
1 CABLE; SHIFT,TRANS CONT
4JG2 ENG(RJC) L=2643 		8-97176-466-0 01 1 9608- ● ●
3 CABLE; SELECT,TRANS CONT 8-97035-757-4 01 1 9304-9502 ●
3 CABLE; SELECT,TRANS CONT
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97043-145-4 01 1 9304-9607 ●
3 CABLE; SELECT,TRANS CONT
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97176-478-0 01 1 9608- ●
3 CABLE; SELECT,TRANS CONT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97035-758-3 01 1 9304-9607 ● ●
3 CABLE; SELECT,TRANS CONT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97176-475-0 01 1 9608- ● ●
3 CABLE; SELECT,TRANS CONT
4JG2 ENG(RJC) L=2790 		8-97034-144-4 01 1 9304-9502 ●
3 CABLE; SELECT,TRANS CONT
4JG2 ENG(RJC) L=2790 		8-97034-144-4 01 1 9503-9607 ● ●
3 CABLE; SELECT,TRANS CONT
4JG2 ENG(RJC) L=2810 		8-97176-474-0 01 1 9608- ● ●
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (E) 		8-97087-453-0 01 1 9304-9502 ●
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (P) L=168 		8-97802-347-0 01 1 9304-9406 ●
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (P) L=170.3 		1-09987-182-0 01 1 9407-9502 ●
6 CLIP; CABLE
4BE1 ENG(RLH) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (D) 		8-97036-330-1 01 1 9304-9502 ●
6 CLIP; CABLE
(D) 		8-97036-330-1 01 1 9304-9502 ●
6 CLIP; CABLE
4JG2 ENG(RJC) (D) 		8-97036-330-1 01 1 9503- ● ●
6 CLIP; CABLE
4BE2 ENGINE(RLQ) (K) 		8-97036-329-2 01 1 9304-9502 ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9503-9808 ● ● ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9503- ● ● ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9304-9502 ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9503- ● ● ● ●
6 CLIP; CABLE
(I) 		8-97036-328-2 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
(I) 		8-97036-328-2 01 1 9503-9608 ● ● ● ● ●
6 CLIP; CABLE
(I) 		8-97147-985-0 01 1 9609- ● ● ● ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97039-296-1 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97039-296-1 01 1 9503- ● ● ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97036-334-2 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97036-334-2 01 1 9503- ● ● ● ● ●
6 CLIP; CABLE
(M) 		8-97039-295-0 01 1 9304-9502 ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (M) 		8-97039-295-0 01 1 9503-9703 ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (M) 		8-97039-295-0 01 1 9704- ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9304-9502 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9503-9703 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9704- ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9304-9502 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9503-9703 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9704- ● ● ●
6 CLIP; CABLE
4JG2 ENG(RJC) (O) 		8-97036-332-1 01 1 9304-9502 ●
6 CLIP; CABLE
4JG2 ENG(RJC) (O) 		8-97036-332-1 01 1 9503- ● ●
6 CLIP; CABLE
4JG2 ENG(RJC) (K) 		8-97036-329-2 01 1 9704- ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 01 1 9304- ●
6 CLIP; CABLE
(N) 		8-97028-508-2 01 1 9304-9804 ●
6 CLIP; CABLE
(N) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ●
6 CLIP; CABLE
(G) ID=16X2 L=20 		9-09535-536-0 01 1 9304- ●
6 CLIP; CABLE
EXC. FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-94365-914-2 01 1 9704-9808 ●
6 CLIP; CABLE
EXC. FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 9809- ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9304 ● ● ● ● ●
201 BOLT; BRKT
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9502 ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9502 ● ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9503-9703 ● ● ●
201 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 01 1 9503-9703 ● ●
201 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9704- ● ● ● ● ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9411 ● ● ● ●
201 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9503-9703 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ●
201 BOLT; BRKT
(D) M8X25 FLANGE 		0-28480-825-0 02 1 9304-9502 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28480-825-0 02 1 9503-9605 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28680-825-0 02 1 9606-9703 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ● ●
201 BOLT; BRKT
4JG2 ENG(RJC) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9304-9502 ●
201 BOLT; BRKT
4JG2 ENG(RJC) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9503-9704 ● ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9705- ● ●
201 BOLT; BRKT
(E) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9304-9703 ●
201 BOLT; BRKT
(E) M8X20 FLANGE 		0-28680-820-0 02 1 9704- ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ● ● ● ●
203 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ●
203 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 9304-9502 ● ● ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 9503-9801 ● ● ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ● ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 9803- ● ● ● ●
222 GROMMET; CABLE 8-97061-403-2 01 1 9304-9502 ● ● ● ●
222 GROMMET; CABLE 8-97061-403-2 01 1 9503- ● ● ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9304-9502 ● ● ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9503- ● ● ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9304-9502 ● ● ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9503- ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9304-9502 ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9503-9707 ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708- ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9304-9502 ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9503- ● ● ● ●
274 CLIP; CONT CABLE 8-97093-491-1 01 1 9304-9502 ● ● ● ●
274 CLIP; CONT CABLE 8-97093-491-1 01 1 9503-9508 ● ● ● ●
274 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9704- ● ● ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9304-9502 ● ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9503- ● ● ● ●
279 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9304-9304 ● ● ● ● ●
279 BRACKET; CABLE TO FRAME
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (C) 		8-97066-629-5 01 1 9304-9502 ●
279 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9304-9502 ● ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9503-9703 ● ● ●
279 BRACKET; CABLE TO FRAME
(C) 		8-97066-629-5 01 1 9503-9703 ● ●
279 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9704- ● ● ● ● ●
279 BRACKET; CABLE TO FRAME
(A) 		8-97028-496-1 01 1 9304-9502 ● ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9503-9703 ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9704- ● ● ●
279 BRACKET; CABLE TO FRAME
(B) 		8-97047-898-0 01 1 9304-9502 ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 9503-9703 ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 9704- ● ● ●
281 CLIP; BAND
L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ●
294 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ● ● ●
294 NUT; CLIP
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ●
294 NUT; CLIP
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ●
294 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ●
294 NUT; CLIP
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ●
294 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ● ● ● ●
294 NUT; CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ●
294 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ●
294 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28480-825-0 01 1 9306-9502 ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28480-825-0 01 1 9503-9601 ● ● ● ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9304-9305 ● ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9305 ● ● ● ● ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9304-9305 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9306-9411 ● ● ● ● ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9306-9411 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ● ● ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9503-9601 ● ● ● ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9503-9601 ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9602- ● ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28680-825-0 01 1 9602- ● ● ● ● ● ●
300 BOLT; CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9602- ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-208-0 03 1 9304-9304 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9305-9502 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9503-9703 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9704- ● ● ● ● ●
316 BRACKET; CLIP
4BE1 ENG(RLH) 		8-97026-340-1 01 1 9304-9501 ●
316 BRACKET; CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4BE1 ENG(RLH) FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97026-340-1 01 1 9502-9502 ●
316 BRACKET; CLIP
FLAT LOW(NKN***) 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97026-340-1 01 1 9502-9502 ●
466 BOLT; FIX
4BE1 ENG(RLH) M8X16 FLANGE 		0-28080-816-0 01 1 9304-9502 ●
482 WEIGHT; SHIFT CABLE 8-97066-730-1 01 1 9304-9502 ● ● ●
482 WEIGHT; SHIFT CABLE 8-97066-730-1 01 1 9503- ● ●
485 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 9304-9502 ● ● ●
485 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 9503- ● ●
486 NUT; WEIGHT
M12 FLANGE 		0-91150-212-0 01 1 9304-9305 ● ● ●
486 NUT; WEIGHT
M12 FLANGE 		8-94436-194-0 01 1 9306-9502 ● ● ●
486 NUT; WEIGHT
M12 FLANGE 		8-94436-194-0 01 1 9503- ● ●

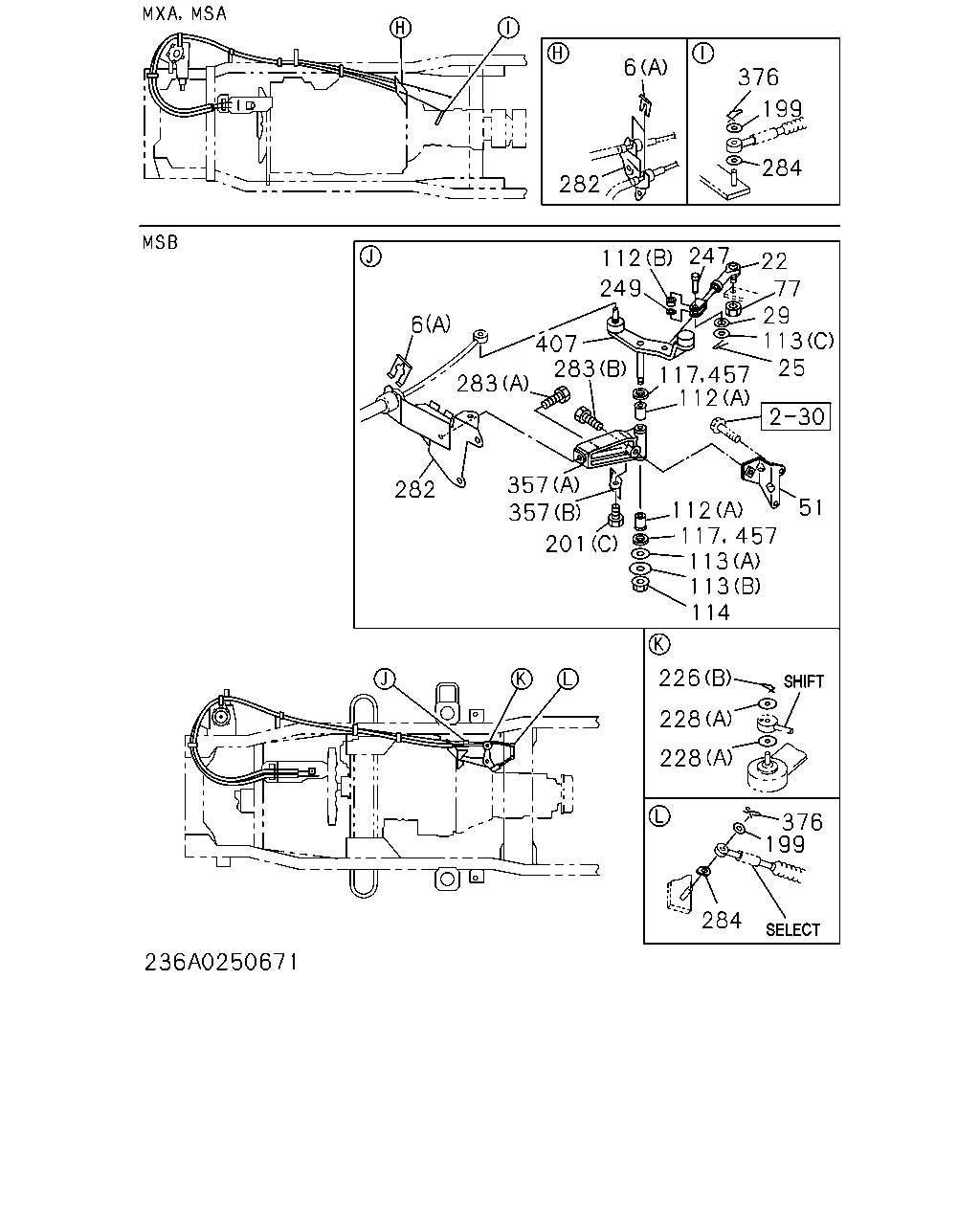

çizim 493595
199 376 284 282 22 247 112 249 29 113 25 457 112 117 283 407 283 282 6 357 357 201 112 117 113 113 114 457 376 199 284 228 228 226 6 77 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (E) 		8-97087-453-0 01 1 9304-9502 ●
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (P) L=168 		8-97802-347-0 01 1 9304-9406 ●
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (P) L=170.3 		1-09987-182-0 01 1 9407-9502 ●
6 CLIP; CABLE
4BE1 ENG(RLH) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (D) 		8-97036-330-1 01 1 9304-9502 ●
6 CLIP; CABLE
(D) 		8-97036-330-1 01 1 9304-9502 ●
6 CLIP; CABLE
4JG2 ENG(RJC) (D) 		8-97036-330-1 01 1 9503- ● ●
6 CLIP; CABLE
4BE2 ENGINE(RLQ) (K) 		8-97036-329-2 01 1 9304-9502 ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9503-9808 ● ● ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9503- ● ● ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9304-9502 ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9503- ● ● ● ●
6 CLIP; CABLE
(I) 		8-97036-328-2 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
(I) 		8-97036-328-2 01 1 9503-9608 ● ● ● ● ●
6 CLIP; CABLE
(I) 		8-97147-985-0 01 1 9609- ● ● ● ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97039-296-1 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97039-296-1 01 1 9503- ● ● ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97036-334-2 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97036-334-2 01 1 9503- ● ● ● ● ●
6 CLIP; CABLE
(M) 		8-97039-295-0 01 1 9304-9502 ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (M) 		8-97039-295-0 01 1 9503-9703 ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (M) 		8-97039-295-0 01 1 9704- ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9304-9502 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9503-9703 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9704- ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9304-9502 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9503-9703 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9704- ● ● ●
6 CLIP; CABLE
4JG2 ENG(RJC) (O) 		8-97036-332-1 01 1 9304-9502 ●
6 CLIP; CABLE
4JG2 ENG(RJC) (O) 		8-97036-332-1 01 1 9503- ● ●
6 CLIP; CABLE
4JG2 ENG(RJC) (K) 		8-97036-329-2 01 1 9704- ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 01 1 9304- ●
6 CLIP; CABLE
(N) 		8-97028-508-2 01 1 9304-9804 ●
6 CLIP; CABLE
(N) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ●
6 CLIP; CABLE
(G) ID=16X2 L=20 		9-09535-536-0 01 1 9304- ●
6 CLIP; CABLE
EXC. FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-94365-914-2 01 1 9704-9808 ●
6 CLIP; CABLE
EXC. FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 9809- ●
22 ROD; CONT,SHIFT
4JG2 ENG(RJC) 		8-97085-158-0 01 1 9304-9502 ●
22 ROD; CONT,SHIFT
4JG2 ENG(RJC) 		8-97085-158-0 01 1 9503-9704 ● ●
22 ROD; CONT,SHIFT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-286-0 01 1 9705- ● ●
22 ROD; CONT,SHIFT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97174-058-0 01 1 9705- ● ●
25 PIN; SNAP,CONT ROD,RELAY LEVER
4JG2 ENG(RJC) L=27.7 		8-94210-407-0 01 1 9304-9502 ●
25 PIN; SNAP,CONT ROD,RELAY LEVER
4JG2 ENG(RJC) L=27.7 		8-94210-407-0 01 1 9503-9704 ● ●
29 WASHER; LK,RELAY LEVER
4JG2 ENG(RJC) ID=8.5 T=0.3 		5-09509-001-0 01 1 9304-9502 ●
29 WASHER; LK,RELAY LEVER
4JG2 ENG(RJC) ID=8.5 T=0.3 		5-09509-001-0 01 1 9503-9704 ● ●
51 BRACKET; GEAR CONT
4JG2 ENG(RJC) 		8-97029-286-0 01 1 9304-9502 ●
51 BRACKET; GEAR CONT
4JG2 ENG(RJC) 		8-97029-286-0 01 1 9503- ● ●
77 NUT; LK,BALL JOINT,CONT ROD
4JG2 ENG(RJC) M8 T=8.0 		8-94363-045-0 01 1 9304-9502 ●
77 NUT; LK,BALL JOINT,CONT ROD
4JG2 ENG(RJC) M8 T=8.0 		8-94363-045-0 01 1 9503-9801 ● ●
77 NUT; LK,BALL JOINT,CONT ROD
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ●
77 NUT; LK,BALL JOINT,CONT ROD
4JG2 ENG(RJC) M8 T=8.0 		8-94363-045-0 01 1 9803- ● ●
112 BUSHING; RELAY LEVER
4JG2 ENG(RJC) (A) ID=14 OD=16 		8-94252-671-0 02 1 9304-9502 ●
112 BUSHING; RELAY LEVER
4JG2 ENG(RJC) (A) ID=14 OD=16 		8-94252-671-0 02 1 9503-9704 ● ●
112 BUSHING; RELAY LEVER
4JG2 ENG(RJC) (A) 		8-97174-057-0 02 1 9705- ● ●
112 BUSHING; RELAY LEVER
4JG2 ENG(RJC) (B) 		8-97085-157-0 01 1 9304-9502 ●
112 BUSHING; RELAY LEVER
4JG2 ENG(RJC) (B) 		8-97085-157-0 01 1 9503-9704 ● ●
112 BUSHING; RELAY LEVER
4JG2 ENG(RJC) (B) 		8-97174-060-0 01 1 9705- ● ●
113 WASHER; RELAY LEVER
4JG2 ENG(RJC) (A) 		8-97061-437-0 02 1 9304-9502 ●
113 WASHER; RELAY LEVER
4JG2 ENG(RJC) (A) 		8-97061-437-0 02 1 9503-9704 ● ●
113 WASHER; RELAY LEVER
4JG2 ENG(RJC) (A) ID=15 OD=36 		9-09164-714-0 01 1 9705- ● ●
113 WASHER; RELAY LEVER
4JG2 ENG(RJC) (B) 		8-97089-693-0 01 1 9304-9502 ●
113 WASHER; RELAY LEVER
4JG2 ENG(RJC) (B) 		8-97089-693-0 01 1 9503-9704 ● ●
113 WASHER; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10.5 OD=22 		9-09160-610-0 01 1 9705- ● ●
113 WASHER; RELAY LEVER
4JG2 ENG(RJC) (C) ID=8.4 OD=22 		9-09160-708-0 01 1 9304-9502 ●
113 WASHER; RELAY LEVER
4JG2 ENG(RJC) (C) ID=8.4 OD=22 		9-09160-708-0 01 1 9503-9704 ● ●
113 WASHER; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=10.5 OD=22 		9-09160-610-0 02 1 9705- ● ●
114 NUT; RELAY LEVER
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9304-9502 ●
114 NUT; RELAY LEVER
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9503- ● ●
117 SEAL; DUST,RELAY LEVER
4JG2 ENG(RJC) 		8-97061-438-0 02 1 9304-9502 ●
117 SEAL; DUST,RELAY LEVER
4JG2 ENG(RJC) 		8-97061-438-0 02 1 9503-9704 ● ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 9304-9502 ● ● ● ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 9503- ● ● ● ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9304 ● ● ● ● ●
201 BOLT; BRKT
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9502 ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9502 ● ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9503-9703 ● ● ●
201 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 01 1 9503-9703 ● ●
201 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9704- ● ● ● ● ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9411 ● ● ● ●
201 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9503-9703 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ●
201 BOLT; BRKT
(D) M8X25 FLANGE 		0-28480-825-0 02 1 9304-9502 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28480-825-0 02 1 9503-9605 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28680-825-0 02 1 9606-9703 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ● ●
201 BOLT; BRKT
4JG2 ENG(RJC) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9304-9502 ●
201 BOLT; BRKT
4JG2 ENG(RJC) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9503-9704 ● ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9705- ● ●
201 BOLT; BRKT
(E) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9304-9703 ●
201 BOLT; BRKT
(E) M8X20 FLANGE 		0-28680-820-0 02 1 9704- ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9304-9502 ● ● ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9503- ● ● ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9304-9502 ● ● ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9503- ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9304-9502 ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9503-9707 ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708- ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9304-9502 ● ● ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9503- ● ● ● ●
247 PIN; CONT ROD TO LEVER
4JG2 ENG(RJC) 		9-09876-059-1 01 1 9304-9502 ●
247 PIN; CONT ROD TO LEVER
4JG2 ENG(RJC) 		9-09876-059-1 01 1 9503- ● ●
249 WASHER; RUBBER,CONT ROD TO LEVER
4JG2 ENG(RJC) ID=8.5 T=1.5 		9-09851-889-0 01 1 9304-9502 ●
249 WASHER; RUBBER,CONT ROD TO LEVER
4JG2 ENG(RJC) ID=8.5 T=1.5 		9-09851-889-0 01 1 9503- ● ●
282 BRACKET; TRANS SIDE 8-97035-759-0 01 1 9304-9502 ●
282 BRACKET; TRANS SIDE 8-97035-760-0 01 1 9304-9707 ● ●
282 BRACKET; TRANS SIDE 8-97182-260-0 01 1 9708- ● ●
282 BRACKET; TRANS SIDE
4JG2 ENG(RJC) 		8-97034-142-0 01 1 9304-9502 ●
282 BRACKET; TRANS SIDE
4JG2 ENG(RJC) 		8-97034-142-1 01 1 9503- ● ●
283 BOLT; RELAY LEVER
4JG2 ENG(RJC) (A) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9304-9502 ●
283 BOLT; RELAY LEVER
4JG2 ENG(RJC) (A) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9503-9703 ● ●
283 BOLT; RELAY LEVER
4JG2 ENG(RJC) (A) M10X25 FLANGE 		0-28681-025-0 01 1 9704- ● ●
283 BOLT; RELAY LEVER
4JG2 ENG(RJC) (B) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9304-9502 ●
283 BOLT; RELAY LEVER
4JG2 ENG(RJC) (B) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9503-9703 ● ●
283 BOLT; RELAY LEVER
4JG2 ENG(RJC) (B) M10X35 FLANGE 		0-28681-035-0 01 1 9704- ● ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9304-9502 ● ● ● ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9503- ● ● ● ●
357 BRACKET; RELAY LEVER
4JG2 ENG(RJC) (A) 		8-97089-691-0 01 1 9304-9502 ●
357 BRACKET; RELAY LEVER
4JG2 ENG(RJC) (A) 		8-97089-691-0 01 1 9503-9704 ● ●
357 BRACKET; RELAY LEVER
4JG2 ENG(RJC) (A) 		8-97174-056-0 01 1 9705-9706 ● ●
357 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-056-0 01 1 9707- ● ●
357 BRACKET; RELAY LEVER
4JG2 ENG(RJC) (B) 		8-97089-692-0 01 1 9304-9502 ●
357 BRACKET; RELAY LEVER
4JG2 ENG(RJC) (B) 		8-97089-692-0 01 1 9503-9704 ● ●
357 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-692-0 01 1 9705- ● ●
357 BRACKET; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-166-0 01 1 9707- ● ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9304-9502 ● ● ● ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9503- ● ● ● ●
407 LEVER; RELAY,SHIFT
4JG2 ENG(RJC) 		8-97089-690-1 01 1 9304-9502 ●
407 LEVER; RELAY,SHIFT
4JG2 ENG(RJC) 		8-97089-690-1 01 1 9503-9704 ● ●
407 LEVER; RELAY,SHIFT
4JG2 ENG(RJC) 		8-97174-055-1 01 1 9705- ● ●
457 GASKET
4JG2 ENG(RJC) ID=13.8 		9-09561-114-0 02 1 9705- ● ●

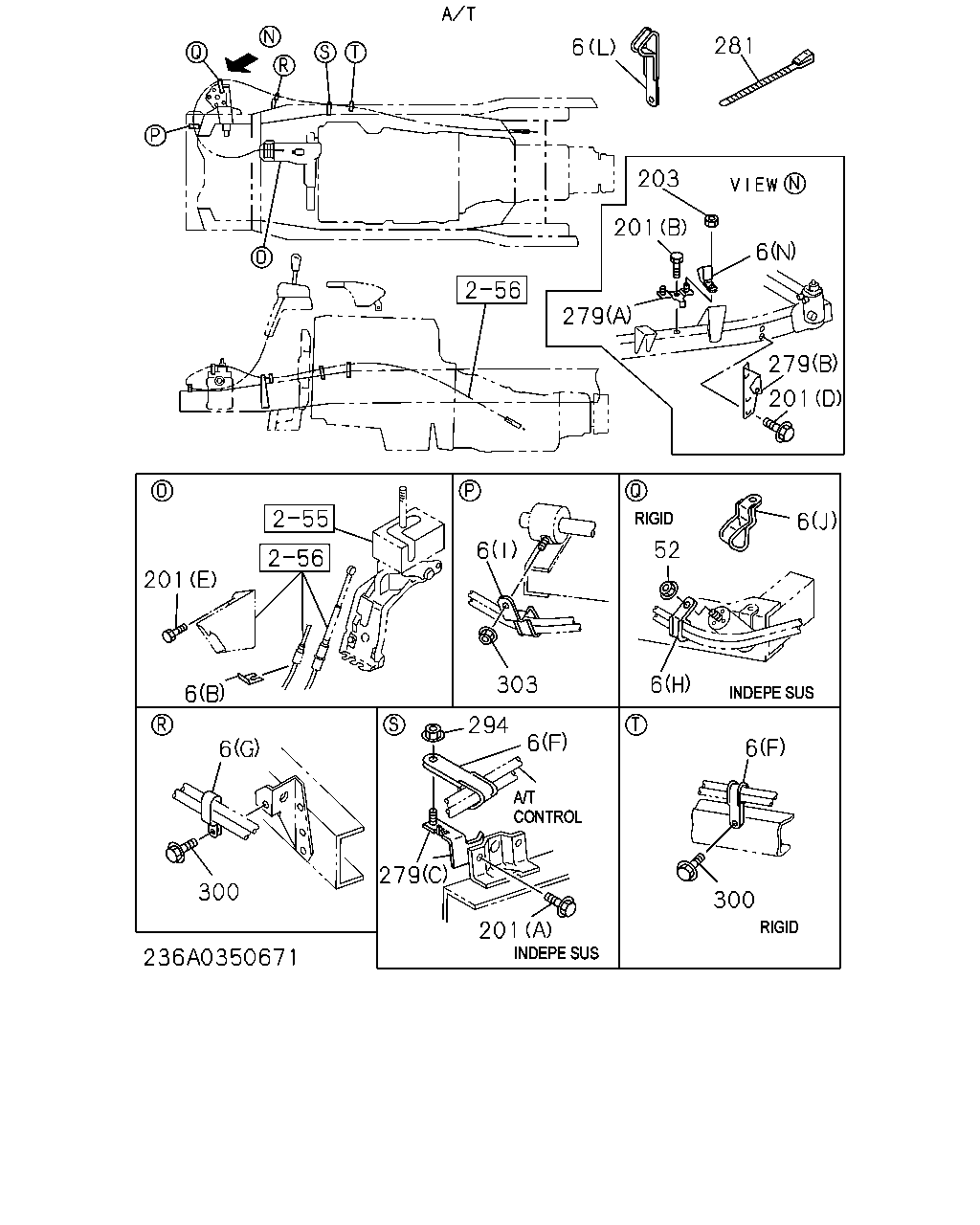

çizim 494079
6 203 201 279 279 201 6 52 6 201 279 294 6 303 201 6 6 300 281 6 300 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (E) 		8-97087-453-0 01 1 9304-9502 ●
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (P) L=168 		8-97802-347-0 01 1 9304-9406 ●
6 CLIP; CABLE
CHASSIS PARTS FOR 2-COMP<6NG> (P) L=170.3 		1-09987-182-0 01 1 9407-9502 ●
6 CLIP; CABLE
4BE1 ENG(RLH) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (D) 		8-97036-330-1 01 1 9304-9502 ●
6 CLIP; CABLE
(D) 		8-97036-330-1 01 1 9304-9502 ●
6 CLIP; CABLE
4JG2 ENG(RJC) (D) 		8-97036-330-1 01 1 9503- ● ●
6 CLIP; CABLE
4BE2 ENGINE(RLQ) (K) 		8-97036-329-2 01 1 9304-9502 ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9503-9808 ● ● ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9503- ● ● ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9304-9502 ● ● ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9304-9502 ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9503- ● ● ● ●
6 CLIP; CABLE
(I) 		8-97036-328-2 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
(I) 		8-97036-328-2 01 1 9503-9608 ● ● ● ● ●
6 CLIP; CABLE
(I) 		8-97147-985-0 01 1 9609- ● ● ● ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97039-296-1 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97039-296-1 01 1 9503- ● ● ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97036-334-2 01 1 9304-9502 ● ● ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97036-334-2 01 1 9503- ● ● ● ● ●
6 CLIP; CABLE
(M) 		8-97039-295-0 01 1 9304-9502 ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (M) 		8-97039-295-0 01 1 9503-9703 ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (M) 		8-97039-295-0 01 1 9704- ● ●
6 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9304-9502 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9503-9703 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97039-517-1 01 1 9704- ● ● ●
6 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9304-9502 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9503-9703 ● ● ●
6 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97036-331-1 01 1 9704- ● ● ●
6 CLIP; CABLE
4JG2 ENG(RJC) (O) 		8-97036-332-1 01 1 9304-9502 ●
6 CLIP; CABLE
4JG2 ENG(RJC) (O) 		8-97036-332-1 01 1 9503- ● ●
6 CLIP; CABLE
4JG2 ENG(RJC) (K) 		8-97036-329-2 01 1 9704- ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 01 1 9304- ●
6 CLIP; CABLE
(N) 		8-97028-508-2 01 1 9304-9804 ●
6 CLIP; CABLE
(N) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ●
6 CLIP; CABLE
(G) ID=16X2 L=20 		9-09535-536-0 01 1 9304- ●
6 CLIP; CABLE
EXC. FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-94365-914-2 01 1 9704-9808 ●
6 CLIP; CABLE
EXC. FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 9809- ●
52 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ● ● ● ●
52 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 02 1 9305-9502 ● ● ● ●
52 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ●
52 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9304 ● ● ● ● ●
201 BOLT; BRKT
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9502 ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9304-9502 ● ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9503-9703 ● ● ●
201 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 01 1 9503-9703 ● ●
201 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9704- ● ● ● ● ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9411 ● ● ● ●
201 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9503-9703 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ●
201 BOLT; BRKT
(D) M8X25 FLANGE 		0-28480-825-0 02 1 9304-9502 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28480-825-0 02 1 9503-9605 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28680-825-0 02 1 9606-9703 ● ● ●
201 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D) M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ● ●
201 BOLT; BRKT
4JG2 ENG(RJC) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9304-9502 ●
201 BOLT; BRKT
4JG2 ENG(RJC) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9503-9704 ● ●
201 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) (C) M8X16 FLANGE 		0-28080-816-0 01 1 9705- ● ●
201 BOLT; BRKT
(E) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9304-9703 ●
201 BOLT; BRKT
(E) M8X20 FLANGE 		0-28680-820-0 02 1 9704- ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ● ● ● ●
203 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ●
203 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
279 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9304-9304 ● ● ● ● ●
279 BRACKET; CABLE TO FRAME
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (C) 		8-97066-629-5 01 1 9304-9502 ●
279 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9304-9502 ● ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9503-9703 ● ● ●
279 BRACKET; CABLE TO FRAME
(C) 		8-97066-629-5 01 1 9503-9703 ● ●
279 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9704- ● ● ● ● ●
279 BRACKET; CABLE TO FRAME
(A) 		8-97028-496-1 01 1 9304-9502 ● ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9503-9703 ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9704- ● ● ●
279 BRACKET; CABLE TO FRAME
(B) 		8-97047-898-0 01 1 9304-9502 ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 9503-9703 ● ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 9704- ● ● ●
281 CLIP; BAND
L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ●
294 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ● ● ●
294 NUT; CLIP
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ●
294 NUT; CLIP
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ●
294 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ●
294 NUT; CLIP
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHASSIS PARTS FOR 2-COMP<6NG> M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ●
294 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ● ● ● ●
294 NUT; CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ●
294 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ●
294 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28480-825-0 01 1 9306-9502 ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28480-825-0 01 1 9503-9601 ● ● ● ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9304-9305 ● ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9305 ● ● ● ● ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9304-9305 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9306-9411 ● ● ● ● ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9306-9411 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ● ● ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9503-9601 ● ● ● ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9503-9601 ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9602- ● ● ● ● ● ●
300 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28680-825-0 01 1 9602- ● ● ● ● ● ●
300 BOLT; CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9602- ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-208-0 03 1 9304-9304 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9305-9502 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9503-9703 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9704- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
