2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#166695) — 133 parça

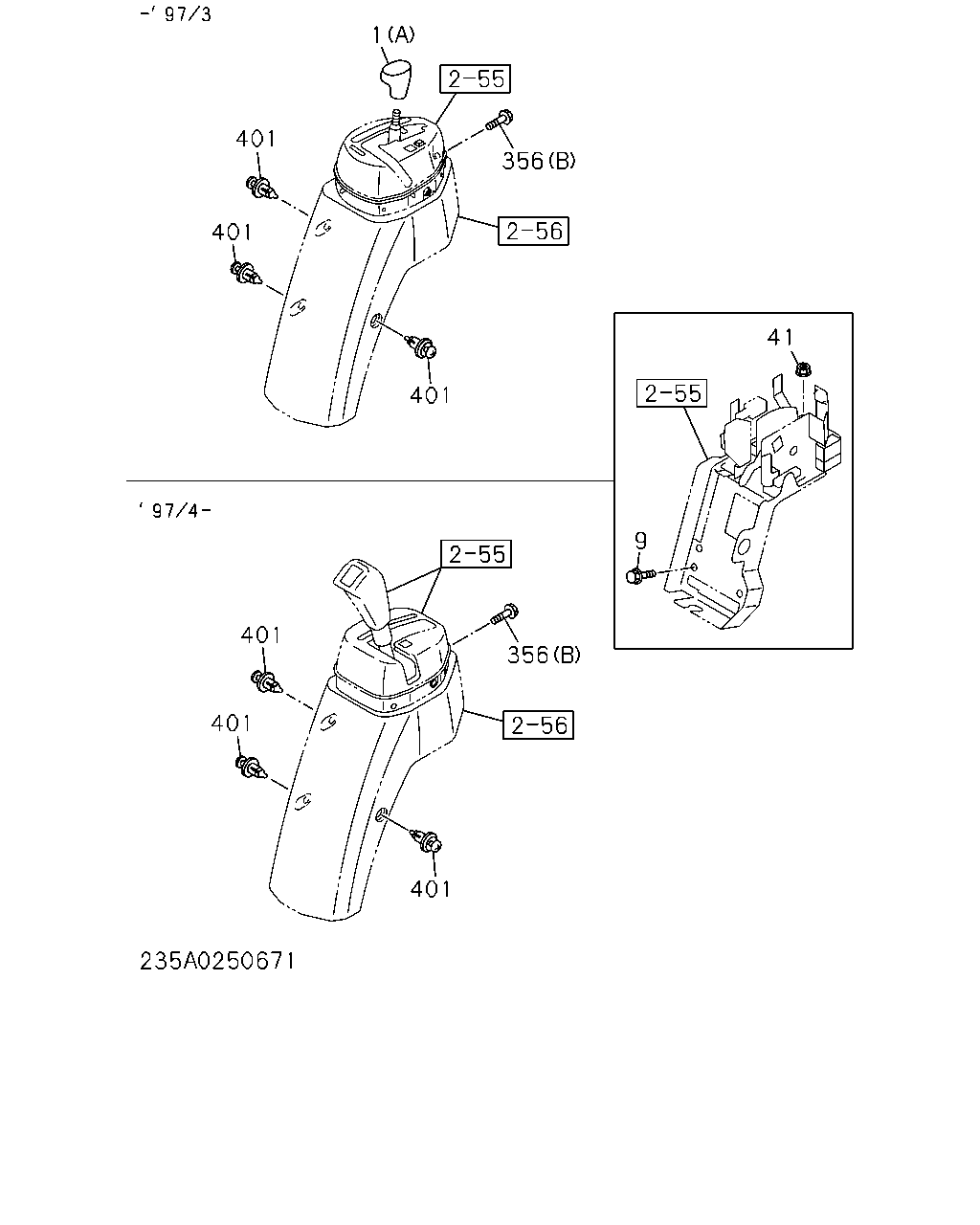

çizim 493703
1 356 401 401 401 356 9 401 401 401 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-442-0 01 1 9304-9502 ● ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-442-0 01 1 9503-9703 ●
1 KNOB; CHANGE LEVER
(A) DARK GRAY 		8-97098-657-0 01 1 9704-9801 ●
1 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (A) DARK GRAY 		8-97098-657-0 01 1 9802- ●
1 KNOB; CHANGE LEVER
CLUTCH FREE(7RW) (B) DARK GRAY 		8-97158-621-2 01 1 9802- ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-443-0 01 1 9304-9703 ●
1 KNOB; CHANGE LEVER
(A) DARK GRAY 		8-97155-986-0 01 1 9704-9801 ●
1 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (A) DARK GRAY 		8-97155-986-0 01 1 9802- ●
1 KNOB; CHANGE LEVER
CLUTCH FREE(7RW) (B) DARK GRAY 		8-97158-622-2 01 1 9802- ●
1 KNOB; CHANGE LEVER
4JG2 ENG(RJC) (A) DARK BEIGE 		8-97009-441-0 01 1 9304-9502 ●
1 KNOB; CHANGE LEVER
4JG2 ENG(RJC) (A) DARK BEIGE 		8-97009-441-0 01 1 9503-9703 ● ●
1 KNOB; CHANGE LEVER
(A) DARK GRAY 		8-97155-173-0 01 1 9704- ● ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-444-0 01 1 9304-9502 ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97152-861-0 01 1 9503-9703 ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9304-9502 ● ● ● ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9503- ● ● ● ●
9 BOLT; CHANGE LEVER
M8X16 FLANGE 		0-28080-816-0 02 1 9304- ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-94459-656-0 02 1 9304-9502 ● ● ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-94459-656-0 02 1 9503-9602 ● ● ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9603- ● ● ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		0-91150-108-0 02 1 9305- ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9304-9309 ● ● ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9310-9502 ● ● ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9503- ● ● ● ●
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9304-9502 ● ● ● ● ●
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9503- ● ● ● ● ●
401 CLIP; COVER
DARK BEIGE 		8-97009-447-0 03 1 9304-9502 ● ● ● ● ●
401 CLIP; COVER
DARK BEIGE 		8-97009-447-0 03 1 9503-9703 ● ● ● ● ●
401 CLIP; COVER
DARK GRAY 		8-97098-523-0 03 1 9704- ● ● ● ● ●

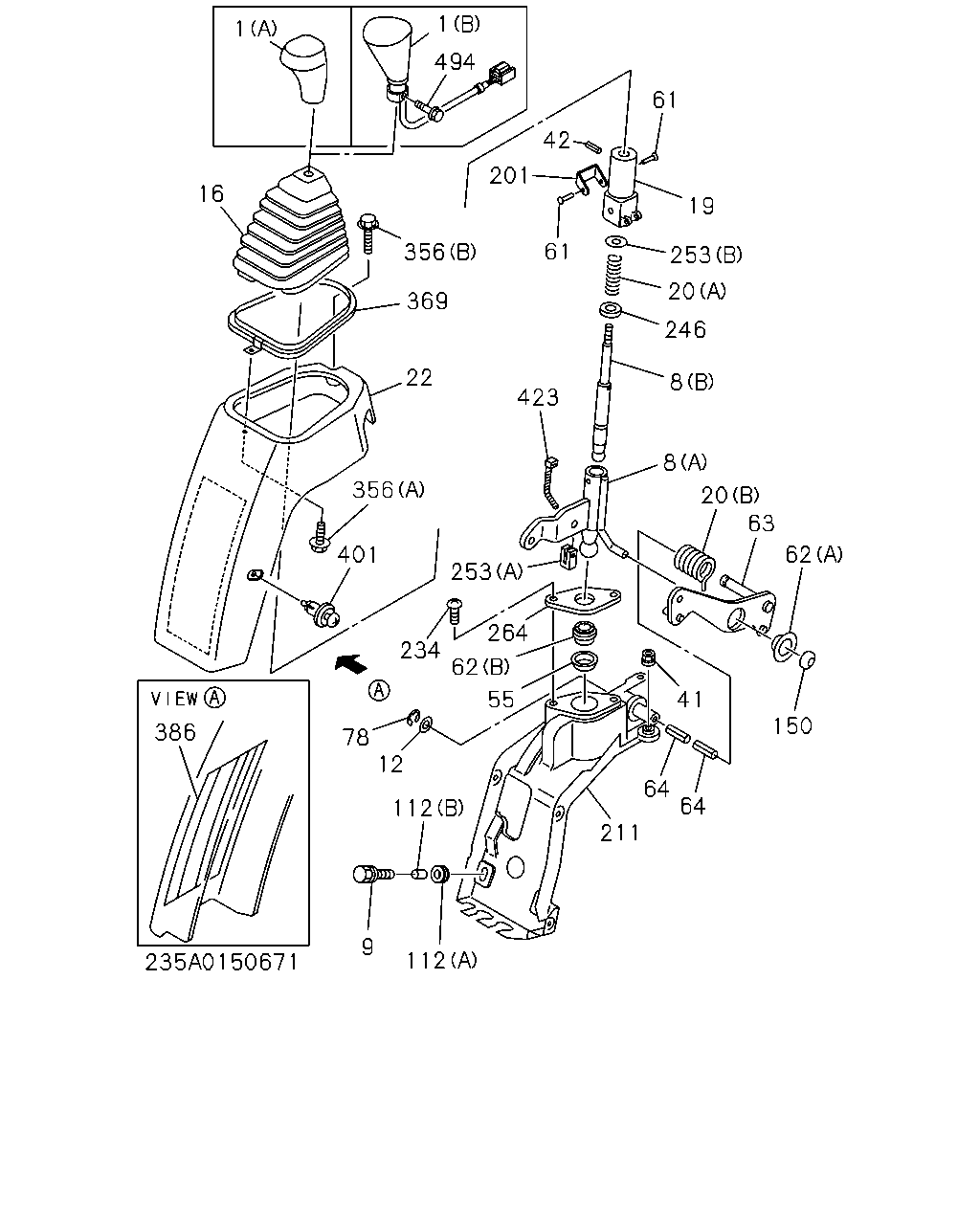

çizim 494549
19 61 42 201 494 1 1 16 356 369 423 22 356 401 253 264 62 55 234 78 12 112 211 64 41 64 150 62 63 20 8 8 246 20 253 9 112 386 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-442-0 01 1 9304-9502 ● ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-442-0 01 1 9503-9703 ●
1 KNOB; CHANGE LEVER
(A) DARK GRAY 		8-97098-657-0 01 1 9704-9801 ●
1 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (A) DARK GRAY 		8-97098-657-0 01 1 9802- ●
1 KNOB; CHANGE LEVER
CLUTCH FREE(7RW) (B) DARK GRAY 		8-97158-621-2 01 1 9802- ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-443-0 01 1 9304-9703 ●
1 KNOB; CHANGE LEVER
(A) DARK GRAY 		8-97155-986-0 01 1 9704-9801 ●
1 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (A) DARK GRAY 		8-97155-986-0 01 1 9802- ●
1 KNOB; CHANGE LEVER
CLUTCH FREE(7RW) (B) DARK GRAY 		8-97158-622-2 01 1 9802- ●
1 KNOB; CHANGE LEVER
4JG2 ENG(RJC) (A) DARK BEIGE 		8-97009-441-0 01 1 9304-9502 ●
1 KNOB; CHANGE LEVER
4JG2 ENG(RJC) (A) DARK BEIGE 		8-97009-441-0 01 1 9503-9703 ● ●
1 KNOB; CHANGE LEVER
(A) DARK GRAY 		8-97155-173-0 01 1 9704- ● ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97009-444-0 01 1 9304-9502 ●
1 KNOB; CHANGE LEVER
(A) DARK BEIGE 		8-97152-861-0 01 1 9503-9703 ●
8 LEVER; CHANGE
(B) 		8-97083-142-1 01 1 9304-9502 ● ● ● ●
8 LEVER; CHANGE
(B) 		8-97083-142-1 01 1 9503-9801 ● ● ● ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (B) 		8-97083-142-1 01 1 9802- ● ● ● ●
8 LEVER; CHANGE
(A) 		8-97083-140-0 01 1 9304-9502 ● ● ●
8 LEVER; CHANGE
(A) 		8-97083-140-0 01 1 9503- ● ● ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> CLUTCH FREE(7RW) (B) 		8-97161-481-0 01 1 9802-9811 ● ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> CLUTCH FREE(7RW) (B) 		8-97161-481-0 01 1 9812- ● ● ●
8 LEVER; CHANGE
(A) 		8-97083-141-0 01 1 9304-9801 ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> (A) 		8-97083-141-0 01 1 9802- ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9304-9502 ● ● ● ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9503- ● ● ● ●
9 BOLT; CHANGE LEVER
M8X16 FLANGE 		0-28080-816-0 02 1 9304- ●
12 WASHER; PL,CHANGE LEVER
ID=12.5 		9-09160-512-0 01 1 9304-9502 ● ● ● ●
12 WASHER; PL,CHANGE LEVER
ID=12.5 		9-09160-512-0 01 1 9503- ● ● ● ●
16 BOOT; CHANGE LEVER 8-97066-287-1 01 1 9304-9502 ● ● ● ●
16 BOOT; CHANGE LEVER 8-97066-287-1 01 1 9503-9801 ● ● ● ●
16 BOOT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) 		8-97066-287-1 01 1 9802- ● ● ● ●
16 BOOT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> CLUTCH FREE(7RW) 		8-97867-812-0 01 1 9802- ● ●
19 COVER; CHANGE LEVER 8-97083-144-4 01 1 9304-9502 ● ● ● ●
19 COVER; CHANGE LEVER 8-97083-144-4 01 1 9503- ● ● ● ●
20 SPRING; CHANGE LEVER
(A) 		8-97091-422-1 01 1 9304-9502 ● ● ● ●
20 SPRING; CHANGE LEVER
(A) 		8-97091-422-1 01 1 9503- ● ● ● ●
20 SPRING; CHANGE LEVER
(B) 		8-97091-424-0 01 1 9304-9502 ● ● ● ●
20 SPRING; CHANGE LEVER
(B) 		8-97091-424-0 01 1 9503- ● ● ● ●
22 COVER; DUST,CHANGE LEVER
DARK BEIGE 		8-97082-704-1 01 1 9304-9502 ● ● ● ●
22 COVER; DUST,CHANGE LEVER
DARK BEIGE 		8-97082-704-1 01 1 9503-9703 ● ● ● ●
22 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-94351-595-1 01 1 9704- ● ● ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-94459-656-0 02 1 9304-9502 ● ● ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-94459-656-0 02 1 9503-9602 ● ● ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9603- ● ● ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		0-91150-108-0 02 1 9305- ●
42 PIN; SPRING,SELECT LEVER PIN 8-97091-419-0 01 1 9304-9502 ● ● ● ●
42 PIN; SPRING,SELECT LEVER PIN 8-97091-419-0 01 1 9503- ● ● ● ●
55 SEAT; RUBBER,SELECT SPRING 8-97083-150-0 01 1 9304-9502 ● ● ● ●
55 SEAT; RUBBER,SELECT SPRING 8-97083-150-0 01 1 9503- ● ● ● ●
61 PIN; SELECT LEVER 8-97091-417-0 02 1 9304-9502 ● ● ● ●
61 PIN; SELECT LEVER 8-97091-417-0 02 1 9503- ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		8-97049-148-0 01 1 9304-9502 ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		8-97049-148-0 01 1 9503- ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97091-423-0 01 1 9304-9502 ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97091-423-0 01 1 9503- ● ● ● ●
63 LEVER; RELAY,SELECT 8-97083-147-0 01 1 9304-9502 ● ● ●
63 LEVER; RELAY,SELECT 8-97083-147-1 01 1 9503-9604 ● ● ●
63 LEVER; RELAY,SELECT 8-97143-199-0 01 1 9605- ● ● ●
63 LEVER; RELAY,SELECT 8-97083-148-1 01 1 9304-9604 ●
63 LEVER; RELAY,SELECT 8-97143-200-0 01 1 9605-9607 ●
63 LEVER; RELAY,SELECT 8-97163-768-0 01 1 9608- ●
64 BUSHING; SELECT LEVER 8-97083-149-0 02 1 9304-9502 ● ● ● ●
64 BUSHING; SELECT LEVER 8-97083-149-0 02 1 9503- ● ● ● ●
78 RING; SNAP,CHANGE LEVER
ID=10 		9-09185-410-0 01 1 9304-9502 ● ● ● ●
78 RING; SNAP,CHANGE LEVER
ID=10 		9-09185-410-0 01 1 9503- ● ● ● ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 9304-9502 ● ● ● ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 9503- ● ● ● ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 9304-9502 ● ● ● ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 9503- ● ● ● ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 9304-9502 ● ● ● ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 9503- ● ● ● ●
201 CLIP; BOOT TO BRKT 8-97091-416-0 01 1 9304-9502 ● ● ● ●
201 CLIP; BOOT TO BRKT 8-97091-416-0 01 1 9503- ● ● ● ●
211 BRACKET; CHANGE LEVER 8-97083-139-0 01 1 9304-9502 ● ● ● ●
211 BRACKET; CHANGE LEVER 8-97083-139-1 01 1 9503-9604 ● ● ● ●
211 BRACKET; CHANGE LEVER 8-97143-198-0 01 1 9605- ● ● ● ●
234 BOLT; BRKT 8-97011-898-0 02 1 9304-9502 ● ● ● ●
234 BOLT; BRKT 8-97011-898-0 02 1 9503- ● ● ● ●
246 SEAT; SPR SET 8-97083-146-1 01 1 9304-9502 ● ● ● ●
246 SEAT; SPR SET 8-97083-146-1 01 1 9503- ● ● ● ●
253 STOPPER; CHANGE LEVER
(A) 		8-97026-014-0 01 1 9304-9502 ● ● ● ●
253 STOPPER; CHANGE LEVER
(A) 		8-97026-014-0 01 1 9503- ● ● ● ●
253 STOPPER; CHANGE LEVER
(B) 		8-97083-145-0 01 1 9304-9502 ● ● ● ●
253 STOPPER; CHANGE LEVER
(B) 		8-97083-145-0 01 1 9503-9504 ● ● ● ●
264 PLATE; COVER 8-97083-151-0 01 1 9304-9502 ● ● ● ●
264 PLATE; COVER 8-97083-151-0 01 1 9503- ● ● ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9304-9309 ● ● ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9310-9502 ● ● ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9503- ● ● ● ●
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9304-9502 ● ● ● ● ●
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9503- ● ● ● ● ●
369 RETAINER; REINF 8-97066-288-0 01 1 9304-9502 ● ● ● ●
369 RETAINER; REINF 8-97066-288-0 01 1 9503- ● ● ● ●
386 INSULATION; CHANGE LEVER 8-97867-282-0 02 1 9604-9703 ● ● ● ●
386 INSULATION; CHANGE LEVER 8-97867-282-0 01 1 9704-9807 ● ● ● ●
401 CLIP; COVER
DARK BEIGE 		8-97009-447-0 03 1 9304-9502 ● ● ● ● ●
401 CLIP; COVER
DARK BEIGE 		8-97009-447-0 03 1 9503-9703 ● ● ● ● ●
401 CLIP; COVER
DARK GRAY 		8-97098-523-0 03 1 9704- ● ● ● ● ●
423 CLIP; BAND 8-97062-120-0 01 1 9304-9502 ● ● ● ●
423 CLIP; BAND 8-97062-120-0 01 1 9503-9801 ● ● ● ●
423 CLIP; BAND
CLUTCH FREE(7RW) L=140 		5-09707-031-1 02 1 9802- ● ●
494 BOLT; KNOB
CLUTCH FREE(7RW) M6X20 FLANGE 		0-28690-620-0 01 1 9802- ● ●
