Sayfa 2-30 - Isuzu EPC

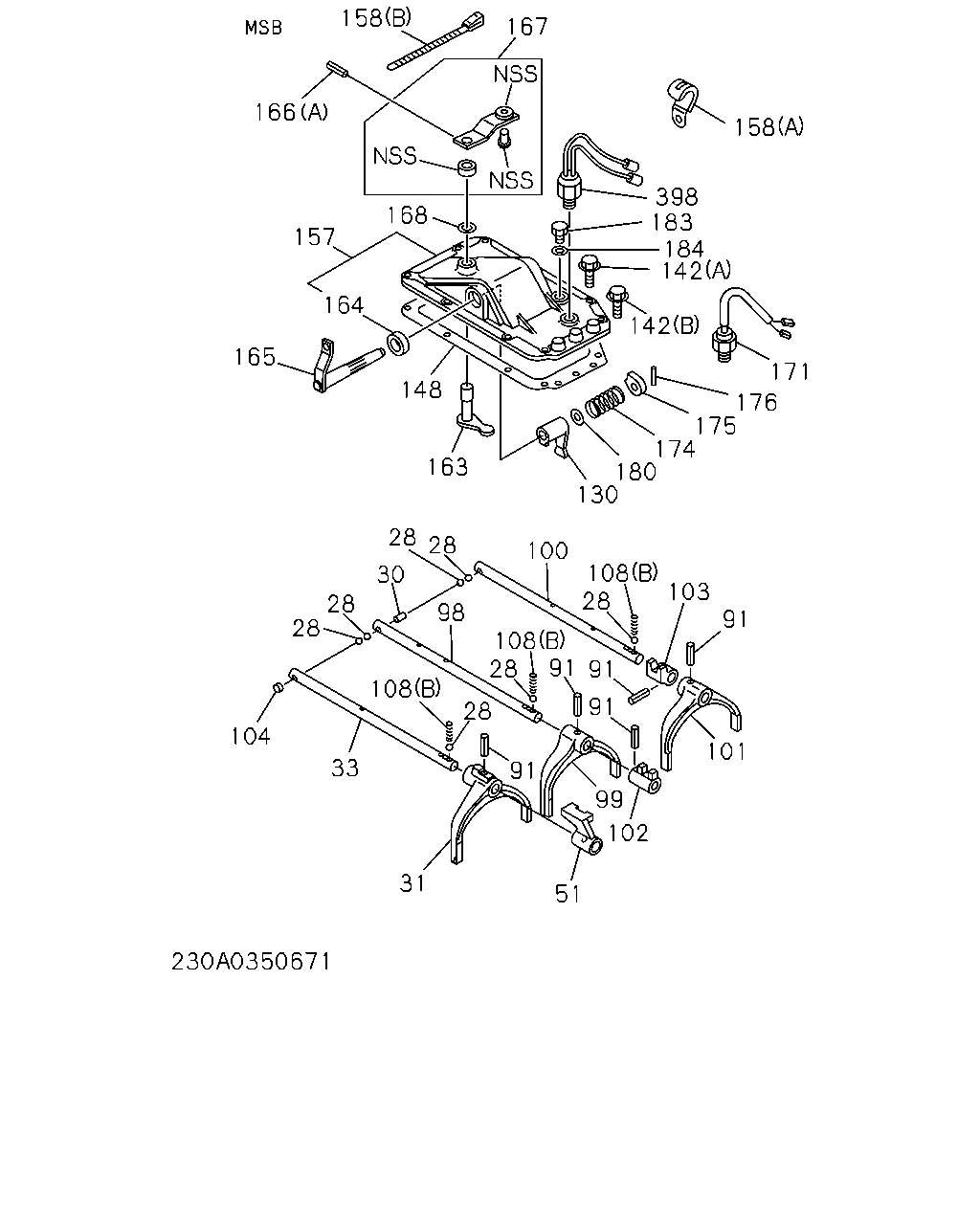

2-30 — GEAR SHIFTER AND QUADRANT BOX (#166694) — 628 parça

171 176 175 174 180 130 91 103 108 28 100 101 91 91 91 108 28 102 99 51 91 28 31 33 108 104 28 28 28 30 28 163 148 164 157 166 165 167 168 183 398 142 184 142 98 158 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
28	BALL; INTER LK	9-00097-010-0	08	1	9304-9502	●
28	BALL; INTER LK	9-00097-010-0	07	1	9304-9502		●	●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	07	1	9503-9703			●
28	BALL; INTER LK 4JG2 ENG(RJC)	9-00097-010-0	07	1	9503-9703		●		●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-00097-010-0	07	1	9704-			●
28	BALL; INTER LK 4JG2 ENG(RJC)	9-00097-010-0	07	1	9704-		●		●
28	BALL; INTER LK 4HF1 ENG(RLS)	9-00097-010-0	10	1	9304-9502					●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	10	1	9503-9703					●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-00097-010-0	10	1	9704-					●
30	PIN; INTER LK	5-33534-001-0	01	1	9304-9502	●	●
30	PIN; INTER LK 4JG2 ENG(RJC)	5-33534-001-0	01	1	9503-		●		●
30	PIN; INTER LK	8-97035-041-0	01	1	9304-9502			●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	01	1	9503-9703			●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-041-0	01	1	9704-			●
30	PIN; INTER LK 4HF1 ENG(RLS)	8-97035-041-0	02	1	9304-9502					●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	02	1	9503-9703					●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-041-0	02	1	9704-					●
31	ARM; SHIFT,LOW & 2ND 4JG2 ENG(RJC)	8-97011-365-1	01	1	9304-9502		●
31	ARM; SHIFT,LOW & 2ND 4JG2 ENG(RJC)	8-97011-365-1	01	1	9503-		●		●
33	ROD; SHIFT,LOW & 2ND 4JG2 ENG(RJC)	8-97011-370-1	01	1	9304-9502		●
33	ROD; SHIFT,LOW & 2ND 4JG2 ENG(RJC)	8-97011-370-1	01	1	9503-		●		●
51	BLOCK; SHIFT,1ST & 2ND 4JG2 ENG(RJC)	8-97022-837-2	01	1	9304-9502		●
51	BLOCK; SHIFT,1ST & 2ND 4JG2 ENG(RJC)	8-97022-837-2	01	1	9503-		●		●
91	PIN; SPR,SHIFT ARM L=25 OD=5	8-94135-771-0	03	1	9304-9502	●		●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=25 OD=5	8-94135-771-0	03	1	9503-9703			●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=25 OD=5	8-94135-771-0	03	1	9704-			●		●
91	PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9304-9502	●		●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9503-9703			●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9704-			●		●
91	PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) L=25 OD=5	8-94135-771-0	06	1	9304-9502		●
91	PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) L=25 OD=5	8-94135-771-0	06	1	9503-		●		●
98	ROD; SHIFT,TOP & 3RD 4JG2 ENG(RJC)	8-97011-371-1	01	1	9304-9502		●
98	ROD; SHIFT,TOP & 3RD 4JG2 ENG(RJC)	8-97011-371-1	01	1	9503-		●		●
99	ARM; SHIFT,4TH & 3RD 4JG2 ENG(RJC)	8-97011-366-1	01	1	9304-9502		●
99	ARM; SHIFT,4TH & 3RD 4JG2 ENG(RJC)	8-97011-366-1	01	1	9503-		●		●
100	ROD; SHIFT,REV & 5TH 4JG2 ENG(RJC)	8-94316-923-0	01	1	9304-9502		●
100	ROD; SHIFT,REV & 5TH 4JG2 ENG(RJC)	8-94316-923-0	01	1	9503-		●		●
101	ARM; SHIFT,REV & 5TH 4JG2 ENG(RJC)	8-97077-342-0	01	1	9304-9401		●
101	ARM; SHIFT,REV & 5TH 4JG2 ENG(RJC)	8-97107-545-0	01	1	9402-9502		●
101	ARM; SHIFT,REV & 5TH 4JG2 ENG(RJC)	8-97107-545-0	01	1	9503-		●		●
102	BLOCK; SHIFT,3RD & 4TH 4JG2 ENG(RJC)	8-97017-573-1	01	1	9304-9502		●
102	BLOCK; SHIFT,3RD & 4TH 4JG2 ENG(RJC)	8-97017-573-1	01	1	9503-		●		●
103	BLOCK; SHIFT,REV TO OD 4JG2 ENG(RJC)	8-94135-719-4	01	1	9304-9502		●
103	BLOCK; SHIFT,REV TO OD 4JG2 ENG(RJC)	8-94135-719-4	01	1	9503-		●		●
104	PLUG; PLATE 4JG2 ENG(RJC) OD=16	9-09201-316-0	01	1	9304-9502		●
104	PLUG; PLATE 4JG2 ENG(RJC) OD=16	9-09201-316-0	01	1	9503-		●		●
108	SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9304-9502	●
108	SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9304-9502	●	●	●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9503-9703			●
108	SPRING; LOCK BALL 4JG2 ENG(RJC) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9503-9703		●		●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9704-			●
108	SPRING; LOCK BALL 4JG2 ENG(RJC) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9704-		●		●
108	SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9304-9502			●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9503-9703			●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9704-			●
108	SPRING; LOCK BALL 4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9304-9502					●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9503-9703					●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9704-					●
130	LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9304-9502	●		●		●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94340-131-2	01	1	9503-9703			●		●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94340-131-2	01	1	9704-			●		●
130	LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9304-9502		●
130	LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9503-		●		●
142	BOLT; QUAD BOX 4JG2 ENG(RJC) (A) M8X25	8-94128-786-0	08	1	9304-9502		●
142	BOLT; QUAD BOX 4JG2 ENG(RJC) (A) M8X25	8-94128-786-0	08	1	9503-		●		●
142	BOLT; QUAD BOX 4JG2 ENG(RJC) (B) M8X30	8-97029-705-0	02	1	9304-9502		●
142	BOLT; QUAD BOX 4JG2 ENG(RJC) (B) M8X30	8-97029-705-0	02	1	9503-		●		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC)	8-94257-162-0	01	1	9304-9502		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC)	8-94257-162-0	01	1	9503-		●		●
157	BOX; QUAD,TRANS	8-97048-844-0	01	1	9304-9502	●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9611-9703			●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97167-640-0	01	1	9704-			●
157	BOX; QUAD,TRANS	8-97034-814-1	01	1	9304-9502			●		●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9503-9610			●		●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9611-9703					●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-814-1	01	1	9704-					●
157	BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9304-9502		●
157	BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9503-		●		●
158	CLIP; HARNESS 4JG2 ENG(RJC) (A) ID=8.5	5-09700-275-0	01	1	9304-9502		●
158	CLIP; HARNESS 4JG2 ENG(RJC) (A) ID=8.5	5-09700-275-0	01	1	9503-		●		●
158	CLIP; HARNESS 4JG2 ENG(RJC) (B) L=140	5-09707-031-0	01	1	9304-9502		●
158	CLIP; HARNESS 4JG2 ENG(RJC) (B) L=140	5-09707-031-1	01	1	9503-		●		●
163	LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9304-9502	●	●
163	LEVER; SELECT,INTERNAL 4JG2 ENG(RJC)	8-94159-268-1	01	1	9503-		●		●
163	LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9304-9502			●		●
163	LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9503-9703			●		●
163	LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-886-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-94128-784-0	01	1	9304-9502	●		●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) OD=27	8-94128-784-0	01	1	9503-9703			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) OD=27	8-94128-784-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9304-9502	●		●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9503-9703			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) OD=27	8-94128-784-0	02	1	9304-9502		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) OD=27	8-94128-784-0	02	1	9503-		●		●
165	LEVER; SHIFT	8-97035-556-0	01	1	9304-9502	●
165	LEVER; SHIFT	8-97034-816-0	01	1	9304-9502			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-816-0	01	1	9503-9703			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-816-0	01	1	9704-9801			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW)	8-97034-816-0	01	1	9802-			●		●
165	LEVER; SHIFT 4HF1 ENG(RLS) CLUTCH FREE(7RW)	8-97168-471-0	01	1	9802-			●		●
165	LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9304-9502		●
165	LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9503-		●		●
166	PIN; SPR,SELECT LEVER (A) L=25 OD=5	8-94135-771-0	01	1	9304-9502	●	●	●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	01	1	9503-9703			●
166	PIN; SPR,SELECT LEVER 4JG2 ENG(RJC) (A) L=25 OD=5	8-94135-771-0	01	1	9503-9703		●		●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	01	1	9704-			●
166	PIN; SPR,SELECT LEVER 4JG2 ENG(RJC) (A) L=25 OD=5	8-94135-771-0	01	1	9704-		●		●
166	PIN; SPR,SELECT LEVER 4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9304-9502					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9503-9703					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9704-					●
166	PIN; SPR,SELECT LEVER 4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9304-9502					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9503-9703					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9704-					●
167	LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9304-9502	●
167	LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9304-9502			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9503-9703			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-558-1	01	1	9704-9801			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW)	8-97035-558-1	01	1	9802-			●		●
167	LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS) CLUTCH FREE(7RW)	8-97168-475-0	01	1	9802-			●		●
167	LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9304-9502		●
167	LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9503-		●		●
168	WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9304-9502	●	●	●		●
168	WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94249-250-1	01	1	9503-9703			●		●
168	WASHER; LK,SELECT LEVER 4JG2 ENG(RJC)	8-94249-250-1	01	1	9503-9703		●		●
168	WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94249-250-1	01	1	9704-			●		●
168	WASHER; LK,SELECT LEVER 4JG2 ENG(RJC)	8-94249-250-1	01	1	9704-		●		●
171	SWITCH; NEUTRAL	8-97065-416-0	01	1	9304-9405	●	●	●		●
171	SWITCH; NEUTRAL	8-97113-440-1	01	1	9406-9502	●	●	●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97113-440-1	01	1	9503-9508			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97113-440-1	01	1	9503-9508		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97137-656-0	01	1	9509-9608			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97137-656-0	01	1	9509-9608		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-0	01	1	9609-9703			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97165-946-0	01	1	9609-9703		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97165-946-1	01	1	9704-			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97165-946-1	01	1	9704-		●		●
174	SPRING; REV	8-97076-907-0	01	1	9304-9502	●
174	SPRING; REV	8-97035-052-0	01	1	9304-9502			●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-052-0	01	1	9503-9703			●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-052-0	01	1	9704-			●
174	SPRING; REV 4HF1 ENG(RLS)	8-97076-906-0	01	1	9304-9502					●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97076-906-0	01	1	9503-9703					●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97076-906-0	01	1	9704-					●
174	SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9304-9502		●
174	SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9503-		●		●
175	RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9304-9502	●		●		●
175	RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-819-0	01	1	9503-9703			●		●
175	RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-819-0	01	1	9704-			●		●
175	RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9304-9502		●
175	RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9503-		●		●
176	PIN; SPR,STOPPER L=30 OD=4	9-09678-549-0	02	1	9304-9502	●	●	●		●
176	PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RLS) L=30 OD=4	9-09678-549-0	02	1	9503-9703			●		●
176	PIN; SPR,STOPPER 4JG2 ENG(RJC) L=30 OD=4	9-09678-549-0	02	1	9503-9703		●		●
176	PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=30 OD=4	9-09678-549-0	02	1	9704-			●		●
176	PIN; SPR,STOPPER 4JG2 ENG(RJC) L=30 OD=4	9-09678-549-0	02	1	9704-		●		●
180	WASHER; REV STOP SPRING 4JG2 ENG(RJC)	8-94249-244-0	01	1	9304-9502		●
180	WASHER; REV STOP SPRING 4JG2 ENG(RJC)	8-94249-244-0	01	1	9503-		●		●
183	PLUG; SCREW,OIL FILTER 4JG2 ENG(RJC) M18	8-94337-946-1	01	1	9304-9502		●
183	PLUG; SCREW,OIL FILTER 4JG2 ENG(RJC) M18	8-94337-946-1	01	1	9503-		●		●
184	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) ID=15.3	8-94336-511-0	01	1	9304-9502		●
184	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) ID=15.3	8-94336-511-0	01	1	9503-		●		●
398	SWITCH; REV LAMP	8-97071-665-0	01	1	9304-9405	●	●	●		●
398	SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9502	●	●	●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97113-435-1	01	1	9503-9508			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97113-435-1	01	1	9503-9508		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97137-650-0	01	1	9509-9608			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97137-650-0	01	1	9509-9608		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-0	01	1	9609-9703			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97165-947-0	01	1	9609-9703		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97165-947-1	01	1	9704-			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97165-947-1	01	1	9704-		●		●

170 169 214 171 398 168 167 166 108 28 179 178 175 176 70 174 91 25 91 1 91 114 117 117 17 29 2 28 28 26 28 108 28 108 106 107 162 162 162 157 165 164 164 108 163 91 30 28 28 28 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV	8-97011-363-1	01	1	9304-9502	●
1	ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9304-9502			●		●
1	ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-825-1	01	1	9503-9703			●		●
1	ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-825-1	01	1	9704-			●		●
2	ROD; SHIFT,1ST & REV	8-97078-204-0	01	1	9304-9502	●
2	ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	9304-9502			●		●
2	ROD; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-820-0	01	1	9503-9703			●		●
2	ROD; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-820-0	01	1	9704-			●		●
17	BLOCK; SHIFT,1ST & REV	8-94135-719-4	01	1	9304-9502	●
17	BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	9304-9502			●		●
17	BLOCK; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-829-1	01	1	9503-9703			●		●
17	BLOCK; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-829-1	01	1	9704-			●		●
25	ARM; SHIFT,2ND & 3RD	8-97011-364-1	01	1	9304-9502	●
25	ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9304-9502			●		●
25	ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-826-2	01	1	9503-9703			●		●
25	ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-826-2	01	1	9704-			●		●
26	ROD; SHIFT,2ND & 3RD	8-97078-205-0	01	1	9304-9502	●
26	ROD; SHIFT,2ND & 3RD	8-97034-821-0	01	1	9304-9502			●		●
26	ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-821-0	01	1	9503-9507			●		●
26	ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97129-493-0	01	1	9508-9703			●		●
26	ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97129-493-0	01	1	9704-			●		●
28	BALL; INTER LK	9-00097-010-0	08	1	9304-9502	●
28	BALL; INTER LK	9-00097-010-0	07	1	9304-9502		●	●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	07	1	9503-9703			●
28	BALL; INTER LK 4JG2 ENG(RJC)	9-00097-010-0	07	1	9503-9703		●		●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-00097-010-0	07	1	9704-			●
28	BALL; INTER LK 4JG2 ENG(RJC)	9-00097-010-0	07	1	9704-		●		●
28	BALL; INTER LK 4HF1 ENG(RLS)	9-00097-010-0	10	1	9304-9502					●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	10	1	9503-9703					●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-00097-010-0	10	1	9704-					●
29	BLOCK; SHIFT,2ND & 3RD	8-97017-573-1	01	1	9304-9502	●
29	BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	9304-9502			●		●
29	BLOCK; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-830-0	01	1	9503-9703			●		●
29	BLOCK; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-830-0	01	1	9704-			●		●
30	PIN; INTER LK	5-33534-001-0	01	1	9304-9502	●	●
30	PIN; INTER LK 4JG2 ENG(RJC)	5-33534-001-0	01	1	9503-		●		●
30	PIN; INTER LK	8-97035-041-0	01	1	9304-9502			●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	01	1	9503-9703			●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-041-0	01	1	9704-			●
30	PIN; INTER LK 4HF1 ENG(RLS)	8-97035-041-0	02	1	9304-9502					●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	02	1	9503-9703					●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-041-0	02	1	9704-					●
70	WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9304-9502	●		●		●
70	WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94461-345-0	01	1	9503-9703			●		●
70	WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94461-345-0	01	1	9704-			●		●
91	PIN; SPR,SHIFT ARM L=25 OD=5	8-94135-771-0	03	1	9304-9502	●		●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=25 OD=5	8-94135-771-0	03	1	9503-9703			●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=25 OD=5	8-94135-771-0	03	1	9704-			●		●
91	PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9304-9502	●		●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9503-9703			●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9704-			●		●
91	PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) L=25 OD=5	8-94135-771-0	06	1	9304-9502		●
91	PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) L=25 OD=5	8-94135-771-0	06	1	9503-		●		●
106	ROD; SHIFT,OD TO TOP	8-97078-206-0	01	1	9304-9502	●
106	ROD; SHIFT,OD TO TOP	8-97034-822-0	01	1	9304-9502			●		●
106	ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-822-0	01	1	9503-9609			●		●
106	ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97166-578-0	01	1	9610-9703			●		●
106	ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97166-578-0	01	1	9704-			●		●
107	BLOCK; SHIFT,OD TO TOP	8-94135-718-2	01	1	9304-9502	●
107	BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	9304-9502			●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-832-0	01	1	9503-9703			●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-832-0	01	1	9704-			●
107	BLOCK; SHIFT,OD TO TOP 4HF1 ENG(RLS)	8-97034-831-1	01	1	9304-9502					●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-831-1	01	1	9503-9703					●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-831-1	01	1	9704-					●
108	SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9304-9502	●
108	SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9304-9502	●	●	●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9503-9703			●
108	SPRING; LOCK BALL 4JG2 ENG(RJC) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9503-9703		●		●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9704-			●
108	SPRING; LOCK BALL 4JG2 ENG(RJC) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9704-		●		●
108	SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9304-9502			●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9503-9703			●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9704-			●
108	SPRING; LOCK BALL 4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9304-9502					●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9503-9703					●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9704-					●
114	ARM; SHIFT,OD TO TOP	8-94316-994-1	01	1	9304-9502	●
114	ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	9304-9502			●		●
114	ARM; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-827-1	01	1	9503-9703			●		●
114	ARM; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-827-1	01	1	9704-			●		●
117	PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9304-9502	●		●		●
117	PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94316-996-0	02	1	9503-9703			●		●
117	PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94316-996-0	02	1	9704-			●		●
130	LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9304-9502	●		●		●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94340-131-2	01	1	9503-9703			●		●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94340-131-2	01	1	9704-			●		●
130	LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9304-9502		●
130	LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9503-		●		●
157	BOX; QUAD,TRANS	8-97048-844-0	01	1	9304-9502	●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9611-9703			●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97167-640-0	01	1	9704-			●
157	BOX; QUAD,TRANS	8-97034-814-1	01	1	9304-9502			●		●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9503-9610			●		●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9611-9703					●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-814-1	01	1	9704-					●
157	BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9304-9502		●
157	BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9503-		●		●
162	COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	03	1	9304-9502	●
162	COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	9304-9502			●		●
162	COVER; SHIFT ROD,QUAD BOX 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94101-319-0	04	1	9503-9703			●		●
162	COVER; SHIFT ROD,QUAD BOX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94101-319-0	04	1	9704-			●		●
163	LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9304-9502	●	●
163	LEVER; SELECT,INTERNAL 4JG2 ENG(RJC)	8-94159-268-1	01	1	9503-		●		●
163	LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9304-9502			●		●
163	LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9503-9703			●		●
163	LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-886-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-94128-784-0	01	1	9304-9502	●		●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) OD=27	8-94128-784-0	01	1	9503-9703			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) OD=27	8-94128-784-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9304-9502	●		●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9503-9703			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) OD=27	8-94128-784-0	02	1	9304-9502		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) OD=27	8-94128-784-0	02	1	9503-		●		●
165	LEVER; SHIFT	8-97035-556-0	01	1	9304-9502	●
165	LEVER; SHIFT	8-97034-816-0	01	1	9304-9502			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-816-0	01	1	9503-9703			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-816-0	01	1	9704-9801			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW)	8-97034-816-0	01	1	9802-			●		●
165	LEVER; SHIFT 4HF1 ENG(RLS) CLUTCH FREE(7RW)	8-97168-471-0	01	1	9802-			●		●
165	LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9304-9502		●
165	LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9503-		●		●
166	PIN; SPR,SELECT LEVER (A) L=25 OD=5	8-94135-771-0	01	1	9304-9502	●	●	●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	01	1	9503-9703			●
166	PIN; SPR,SELECT LEVER 4JG2 ENG(RJC) (A) L=25 OD=5	8-94135-771-0	01	1	9503-9703		●		●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	01	1	9704-			●
166	PIN; SPR,SELECT LEVER 4JG2 ENG(RJC) (A) L=25 OD=5	8-94135-771-0	01	1	9704-		●		●
166	PIN; SPR,SELECT LEVER 4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9304-9502					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9503-9703					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9704-					●
166	PIN; SPR,SELECT LEVER 4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9304-9502					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9503-9703					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9704-					●
167	LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9304-9502	●
167	LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9304-9502			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9503-9703			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-558-1	01	1	9704-9801			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW)	8-97035-558-1	01	1	9802-			●		●
167	LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS) CLUTCH FREE(7RW)	8-97168-475-0	01	1	9802-			●		●
167	LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9304-9502		●
167	LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9503-		●		●
168	WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9304-9502	●	●	●		●
168	WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94249-250-1	01	1	9503-9703			●		●
168	WASHER; LK,SELECT LEVER 4JG2 ENG(RJC)	8-94249-250-1	01	1	9503-9703		●		●
168	WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94249-250-1	01	1	9704-			●		●
168	WASHER; LK,SELECT LEVER 4JG2 ENG(RJC)	8-94249-250-1	01	1	9704-		●		●
169	BRACKET; ENG MTG TO TRANS	8-94112-892-2	02	1	9304-9502	●		●		●
169	BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	02	1	9503-9703			●		●
169	BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94112-892-2	02	1	9704-			●		●
170	NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9304-9502	●		●		●
170	NUT; CONT BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) M12 FLANGE	8-94249-242-0	04	1	9503-9703			●		●
170	NUT; CONT BOX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M12 FLANGE	8-94249-242-0	04	1	9704-			●		●
171	SWITCH; NEUTRAL	8-97065-416-0	01	1	9304-9405	●	●	●		●
171	SWITCH; NEUTRAL	8-97113-440-1	01	1	9406-9502	●	●	●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97113-440-1	01	1	9503-9508			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97113-440-1	01	1	9503-9508		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97137-656-0	01	1	9509-9608			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97137-656-0	01	1	9509-9608		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-0	01	1	9609-9703			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97165-946-0	01	1	9609-9703		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97165-946-1	01	1	9704-			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97165-946-1	01	1	9704-		●		●
174	SPRING; REV	8-97076-907-0	01	1	9304-9502	●
174	SPRING; REV	8-97035-052-0	01	1	9304-9502			●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-052-0	01	1	9503-9703			●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-052-0	01	1	9704-			●
174	SPRING; REV 4HF1 ENG(RLS)	8-97076-906-0	01	1	9304-9502					●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97076-906-0	01	1	9503-9703					●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97076-906-0	01	1	9704-					●
174	SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9304-9502		●
174	SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9503-		●		●
175	RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9304-9502	●		●		●
175	RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-819-0	01	1	9503-9703			●		●
175	RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-819-0	01	1	9704-			●		●
175	RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9304-9502		●
175	RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9503-		●		●
176	PIN; SPR,STOPPER L=30 OD=4	9-09678-549-0	02	1	9304-9502	●	●	●		●
176	PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RLS) L=30 OD=4	9-09678-549-0	02	1	9503-9703			●		●
176	PIN; SPR,STOPPER 4JG2 ENG(RJC) L=30 OD=4	9-09678-549-0	02	1	9503-9703		●		●
176	PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=30 OD=4	9-09678-549-0	02	1	9704-			●		●
176	PIN; SPR,STOPPER 4JG2 ENG(RJC) L=30 OD=4	9-09678-549-0	02	1	9704-		●		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09571-612-0	01	1	9304-9502	●		●		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-09571-612-0	01	1	9503-9703			●		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-09571-612-0	01	1	9704-			●		●
179	PLUG; LOCK BALL	8-97031-668-0	01	1	9304-9502	●		●		●
179	PLUG; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97031-668-0	01	1	9503-9703			●		●
179	PLUG; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97031-668-0	01	1	9704-			●		●
214	BOLT; CONT BOX,SUB TRANS M8X25	8-94128-786-0	05	1	9304-9502	●
214	BOLT; CONT BOX,SUB TRANS M8X45	8-94132-164-0	02	1	9304-9502	●
214	BOLT; CONT BOX,SUB TRANS M8X25	8-94128-786-0	04	1	9304-9502			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25	8-94128-786-0	04	1	9503-9703			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25	8-94128-786-0	04	1	9704-			●		●
214	BOLT; CONT BOX,SUB TRANS M8X45	8-94132-164-0	06	1	9304-9502			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X45	8-94132-164-0	06	1	9503-9703			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X45	8-94132-164-0	06	1	9704-9801			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW) M8X45	8-94132-164-0	06	1	9802-			●		●
214	BOLT; CONT BOX,SUB TRANS 4HF1 ENG(RLS) CLUTCH FREE(7RW) M8X45	8-94132-164-0	04	1	9802-			●		●
398	SWITCH; REV LAMP	8-97071-665-0	01	1	9304-9405	●	●	●		●
398	SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9502	●	●	●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97113-435-1	01	1	9503-9508			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97113-435-1	01	1	9503-9508		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97137-650-0	01	1	9509-9608			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97137-650-0	01	1	9509-9608		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-0	01	1	9609-9703			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97165-947-0	01	1	9609-9703		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97165-947-1	01	1	9704-			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97165-947-1	01	1	9704-		●		●

167 166 165 171 162 503 234 502 501 162 39 150 121 166 108 28 4 108 28 108 28 166 50 5 4 166 26 30 28 28 106 107 5 91 163 162 162 164 164 168 398 169 170 214 554 28 108 108 178 179 222 70 157 130 25 28 29 28 28 2 17 117 117 114 1 91 91 91 174 176 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV	8-97011-363-1	01	1	9304-9502	●
1	ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9304-9502			●		●
1	ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-825-1	01	1	9503-9703			●		●
1	ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-825-1	01	1	9704-			●		●
2	ROD; SHIFT,1ST & REV	8-97078-204-0	01	1	9304-9502	●
2	ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	9304-9502			●		●
2	ROD; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-820-0	01	1	9503-9703			●		●
2	ROD; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-820-0	01	1	9704-			●		●
4	ROD; SHIFT,6TH 4HF1 ENG(RLS) (A)	8-97034-823-0	01	1	9304-9502					●
4	ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97034-823-0	01	1	9503-9507					●
4	ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97129-495-0	01	1	9508-9703					●
4	ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97129-495-0	01	1	9704-					●
4	ROD; SHIFT,6TH 4HF1 ENG(RLS) (B)	8-97034-824-0	01	1	9304-9502					●
4	ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97034-824-0	01	1	9503-9703					●
4	ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B)	8-97034-824-0	01	1	9704-					●
5	BLOCK; SHIFT,6TH 4HF1 ENG(RLS) (A)	8-97034-834-0	01	1	9304-9312					●
5	BLOCK; SHIFT,6TH 4HF1 ENG(RLS) (A)	8-97107-224-0	01	1	9401-9411					●
5	BLOCK; SHIFT,6TH 4HF1 ENG(RLS) (A)	8-97123-420-0	01	1	9412-9502					●
5	BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97123-420-0	01	1	9503-9703					●
5	BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97123-420-0	01	1	9704-					●
5	BLOCK; SHIFT,6TH 4HF1 ENG(RLS) (B)	8-97034-836-0	01	1	9304-9502					●
5	BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97034-836-0	01	1	9503-9703					●
5	BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B)	8-97034-836-0	01	1	9704-					●
17	BLOCK; SHIFT,1ST & REV	8-94135-719-4	01	1	9304-9502	●
17	BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	9304-9502			●		●
17	BLOCK; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-829-1	01	1	9503-9703			●		●
17	BLOCK; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-829-1	01	1	9704-			●		●
25	ARM; SHIFT,2ND & 3RD	8-97011-364-1	01	1	9304-9502	●
25	ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9304-9502			●		●
25	ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-826-2	01	1	9503-9703			●		●
25	ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-826-2	01	1	9704-			●		●
26	ROD; SHIFT,2ND & 3RD	8-97078-205-0	01	1	9304-9502	●
26	ROD; SHIFT,2ND & 3RD	8-97034-821-0	01	1	9304-9502			●		●
26	ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-821-0	01	1	9503-9507			●		●
26	ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97129-493-0	01	1	9508-9703			●		●
26	ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97129-493-0	01	1	9704-			●		●
28	BALL; INTER LK	9-00097-010-0	08	1	9304-9502	●
28	BALL; INTER LK	9-00097-010-0	07	1	9304-9502		●	●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	07	1	9503-9703			●
28	BALL; INTER LK 4JG2 ENG(RJC)	9-00097-010-0	07	1	9503-9703		●		●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-00097-010-0	07	1	9704-			●
28	BALL; INTER LK 4JG2 ENG(RJC)	9-00097-010-0	07	1	9704-		●		●
28	BALL; INTER LK 4HF1 ENG(RLS)	9-00097-010-0	10	1	9304-9502					●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	10	1	9503-9703					●
28	BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-00097-010-0	10	1	9704-					●
29	BLOCK; SHIFT,2ND & 3RD	8-97017-573-1	01	1	9304-9502	●
29	BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	9304-9502			●		●
29	BLOCK; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-830-0	01	1	9503-9703			●		●
29	BLOCK; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-830-0	01	1	9704-			●		●
30	PIN; INTER LK	5-33534-001-0	01	1	9304-9502	●	●
30	PIN; INTER LK 4JG2 ENG(RJC)	5-33534-001-0	01	1	9503-		●		●
30	PIN; INTER LK	8-97035-041-0	01	1	9304-9502			●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	01	1	9503-9703			●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-041-0	01	1	9704-			●
30	PIN; INTER LK 4HF1 ENG(RLS)	8-97035-041-0	02	1	9304-9502					●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	02	1	9503-9703					●
30	PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-041-0	02	1	9704-					●
39	BALL; DETENT 4HF1 ENG(RLS)	9-00097-010-0	01	1	9304-9411					●
50	ARM; SHIFT,6TH 4HF1 ENG(RLS)	8-97034-828-1	01	1	9304-9502					●
50	ARM; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-828-1	01	1	9503-9703					●
50	ARM; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-828-1	01	1	9704-					●
70	WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9304-9502	●		●		●
70	WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94461-345-0	01	1	9503-9703			●		●
70	WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94461-345-0	01	1	9704-			●		●
91	PIN; SPR,SHIFT ARM L=25 OD=5	8-94135-771-0	03	1	9304-9502	●		●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=25 OD=5	8-94135-771-0	03	1	9503-9703			●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=25 OD=5	8-94135-771-0	03	1	9704-			●		●
91	PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9304-9502	●		●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9503-9703			●		●
91	PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9704-			●		●
91	PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) L=25 OD=5	8-94135-771-0	06	1	9304-9502		●
91	PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) L=25 OD=5	8-94135-771-0	06	1	9503-		●		●
106	ROD; SHIFT,OD TO TOP	8-97078-206-0	01	1	9304-9502	●
106	ROD; SHIFT,OD TO TOP	8-97034-822-0	01	1	9304-9502			●		●
106	ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-822-0	01	1	9503-9609			●		●
106	ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97166-578-0	01	1	9610-9703			●		●
106	ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97166-578-0	01	1	9704-			●		●
107	BLOCK; SHIFT,OD TO TOP	8-94135-718-2	01	1	9304-9502	●
107	BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	9304-9502			●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-832-0	01	1	9503-9703			●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-832-0	01	1	9704-			●
107	BLOCK; SHIFT,OD TO TOP 4HF1 ENG(RLS)	8-97034-831-1	01	1	9304-9502					●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-831-1	01	1	9503-9703					●
107	BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-831-1	01	1	9704-					●
108	SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9304-9502	●
108	SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9304-9502	●	●	●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9503-9703			●
108	SPRING; LOCK BALL 4JG2 ENG(RJC) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9503-9703		●		●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9704-			●
108	SPRING; LOCK BALL 4JG2 ENG(RJC) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9704-		●		●
108	SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9304-9502			●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9503-9703			●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9704-			●
108	SPRING; LOCK BALL 4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9304-9502					●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9503-9703					●
108	SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	04	1	9704-					●
114	ARM; SHIFT,OD TO TOP	8-94316-994-1	01	1	9304-9502	●
114	ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	9304-9502			●		●
114	ARM; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-827-1	01	1	9503-9703			●		●
114	ARM; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-827-1	01	1	9704-			●		●
117	PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9304-9502	●		●		●
117	PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94316-996-0	02	1	9503-9703			●		●
117	PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94316-996-0	02	1	9704-			●		●
121	PLUG; DETENT SPR 4HF1 ENG(RLS) M10X7	1-09604-094-0	01	1	9304-9411					●
130	LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9304-9502	●		●		●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94340-131-2	01	1	9503-9703			●		●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94340-131-2	01	1	9704-			●		●
130	LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9304-9502		●
130	LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9503-		●		●
150	SPRING; DETENT BALL 4HF1 ENG(RLS)	8-97035-056-0	01	1	9304-9411					●
157	BOX; QUAD,TRANS	8-97048-844-0	01	1	9304-9502	●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9611-9703			●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97167-640-0	01	1	9704-			●
157	BOX; QUAD,TRANS	8-97034-814-1	01	1	9304-9502			●		●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9503-9610			●		●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9611-9703					●
157	BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-814-1	01	1	9704-					●
157	BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9304-9502		●
157	BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9503-		●		●
162	COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	03	1	9304-9502	●
162	COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	9304-9502			●		●
162	COVER; SHIFT ROD,QUAD BOX 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94101-319-0	04	1	9503-9703			●		●
162	COVER; SHIFT ROD,QUAD BOX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94101-319-0	04	1	9704-			●		●
163	LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9304-9502	●	●
163	LEVER; SELECT,INTERNAL 4JG2 ENG(RJC)	8-94159-268-1	01	1	9503-		●		●
163	LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9304-9502			●		●
163	LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9503-9703			●		●
163	LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-886-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-94128-784-0	01	1	9304-9502	●		●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) OD=27	8-94128-784-0	01	1	9503-9703			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) OD=27	8-94128-784-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9304-9502	●		●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9503-9703			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9704-			●		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) OD=27	8-94128-784-0	02	1	9304-9502		●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) OD=27	8-94128-784-0	02	1	9503-		●		●
165	LEVER; SHIFT	8-97035-556-0	01	1	9304-9502	●
165	LEVER; SHIFT	8-97034-816-0	01	1	9304-9502			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-816-0	01	1	9503-9703			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-816-0	01	1	9704-9801			●		●
165	LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW)	8-97034-816-0	01	1	9802-			●		●
165	LEVER; SHIFT 4HF1 ENG(RLS) CLUTCH FREE(7RW)	8-97168-471-0	01	1	9802-			●		●
165	LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9304-9502		●
165	LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9503-		●		●
166	PIN; SPR,SELECT LEVER (A) L=25 OD=5	8-94135-771-0	01	1	9304-9502	●	●	●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	01	1	9503-9703			●
166	PIN; SPR,SELECT LEVER 4JG2 ENG(RJC) (A) L=25 OD=5	8-94135-771-0	01	1	9503-9703		●		●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	01	1	9704-			●
166	PIN; SPR,SELECT LEVER 4JG2 ENG(RJC) (A) L=25 OD=5	8-94135-771-0	01	1	9704-		●		●
166	PIN; SPR,SELECT LEVER 4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9304-9502					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9503-9703					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=25 OD=5	8-94135-771-0	03	1	9704-					●
166	PIN; SPR,SELECT LEVER 4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9304-9502					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9503-9703					●
166	PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9704-					●
167	LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9304-9502	●
167	LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9304-9502			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9503-9703			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-558-1	01	1	9704-9801			●		●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW)	8-97035-558-1	01	1	9802-			●		●
167	LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS) CLUTCH FREE(7RW)	8-97168-475-0	01	1	9802-			●		●
167	LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9304-9502		●
167	LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9503-		●		●
168	WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9304-9502	●	●	●		●
168	WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94249-250-1	01	1	9503-9703			●		●
168	WASHER; LK,SELECT LEVER 4JG2 ENG(RJC)	8-94249-250-1	01	1	9503-9703		●		●
168	WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94249-250-1	01	1	9704-			●		●
168	WASHER; LK,SELECT LEVER 4JG2 ENG(RJC)	8-94249-250-1	01	1	9704-		●		●
169	BRACKET; ENG MTG TO TRANS	8-94112-892-2	02	1	9304-9502	●		●		●
169	BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	02	1	9503-9703			●		●
169	BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-94112-892-2	02	1	9704-			●		●
170	NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9304-9502	●		●		●
170	NUT; CONT BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) M12 FLANGE	8-94249-242-0	04	1	9503-9703			●		●
170	NUT; CONT BOX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M12 FLANGE	8-94249-242-0	04	1	9704-			●		●
171	SWITCH; NEUTRAL	8-97065-416-0	01	1	9304-9405	●	●	●		●
171	SWITCH; NEUTRAL	8-97113-440-1	01	1	9406-9502	●	●	●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97113-440-1	01	1	9503-9508			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97113-440-1	01	1	9503-9508		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97137-656-0	01	1	9509-9608			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97137-656-0	01	1	9509-9608		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-0	01	1	9609-9703			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97165-946-0	01	1	9609-9703		●		●
171	SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97165-946-1	01	1	9704-			●		●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97165-946-1	01	1	9704-		●		●
174	SPRING; REV	8-97076-907-0	01	1	9304-9502	●
174	SPRING; REV	8-97035-052-0	01	1	9304-9502			●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-052-0	01	1	9503-9703			●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97035-052-0	01	1	9704-			●
174	SPRING; REV 4HF1 ENG(RLS)	8-97076-906-0	01	1	9304-9502					●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97076-906-0	01	1	9503-9703					●
174	SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97076-906-0	01	1	9704-					●
174	SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9304-9502		●
174	SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9503-		●		●
175	RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9304-9502	●		●		●
175	RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-819-0	01	1	9503-9703			●		●
175	RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97034-819-0	01	1	9704-			●		●
175	RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9304-9502		●
175	RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9503-		●		●
176	PIN; SPR,STOPPER L=30 OD=4	9-09678-549-0	02	1	9304-9502	●	●	●		●
176	PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RLS) L=30 OD=4	9-09678-549-0	02	1	9503-9703			●		●
176	PIN; SPR,STOPPER 4JG2 ENG(RJC) L=30 OD=4	9-09678-549-0	02	1	9503-9703		●		●
176	PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=30 OD=4	9-09678-549-0	02	1	9704-			●		●
176	PIN; SPR,STOPPER 4JG2 ENG(RJC) L=30 OD=4	9-09678-549-0	02	1	9704-		●		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09571-612-0	01	1	9304-9502	●		●		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-09571-612-0	01	1	9503-9703			●		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-09571-612-0	01	1	9704-			●		●
179	PLUG; LOCK BALL	8-97031-668-0	01	1	9304-9502	●		●		●
179	PLUG; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97031-668-0	01	1	9503-9703			●		●
179	PLUG; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97031-668-0	01	1	9704-			●		●
214	BOLT; CONT BOX,SUB TRANS M8X25	8-94128-786-0	05	1	9304-9502	●
214	BOLT; CONT BOX,SUB TRANS M8X45	8-94132-164-0	02	1	9304-9502	●
214	BOLT; CONT BOX,SUB TRANS M8X25	8-94128-786-0	04	1	9304-9502			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25	8-94128-786-0	04	1	9503-9703			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25	8-94128-786-0	04	1	9704-			●		●
214	BOLT; CONT BOX,SUB TRANS M8X45	8-94132-164-0	06	1	9304-9502			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X45	8-94132-164-0	06	1	9503-9703			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X45	8-94132-164-0	06	1	9704-9801			●		●
214	BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. CLUTCH FREE(7RW) M8X45	8-94132-164-0	06	1	9802-			●		●
214	BOLT; CONT BOX,SUB TRANS 4HF1 ENG(RLS) CLUTCH FREE(7RW) M8X45	8-94132-164-0	04	1	9802-			●		●
222	BRACKET; CLIP	8-97061-051-0	01	1	9304-9502			●		●
222	BRACKET; CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97061-051-0	01	1	9503-9703			●		●
222	BRACKET; CLIP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97061-051-0	01	1	9704-			●		●
234	RING; SNAP 4HF1 ENG(RLS)	9-09180-117-0	01	1	9304-9502					●
234	RING; SNAP 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-09180-117-0	01	1	9503-9703					●
234	RING; SNAP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	9-09180-117-0	01	1	9704-					●
398	SWITCH; REV LAMP	8-97071-665-0	01	1	9304-9405	●	●	●		●
398	SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9502	●	●	●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97113-435-1	01	1	9503-9508			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97113-435-1	01	1	9503-9508		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97137-650-0	01	1	9509-9608			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97137-650-0	01	1	9509-9608		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-0	01	1	9609-9703			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97165-947-0	01	1	9609-9703		●		●
398	SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97165-947-1	01	1	9704-			●		●
398	SWITCH; REV LAMP 4JG2 ENG(RJC)	8-97165-947-1	01	1	9704-		●		●
501	PLUNGER; SHIFT BLOCK 4HF1 ENG(RLS)	8-97034-835-0	01	1	9304-9312					●
501	PLUNGER; SHIFT BLOCK 4HF1 ENG(RLS)	8-97107-222-0	01	1	9401-9411					●
501	PLUNGER; SHIFT BLOCK 4HF1 ENG(RLS)	8-97123-165-0	01	1	9412-9502					●
501	PLUNGER; SHIFT BLOCK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97123-165-0	01	1	9503-9703					●
501	PLUNGER; SHIFT BLOCK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97123-165-0	01	1	9704-					●
502	SPRING; PLUNGER 4HF1 ENG(RLS)	8-97035-054-0	01	1	9304-9411					●
502	SPRING; PLUNGER 4HF1 ENG(RLS)	8-97123-424-0	01	1	9412-9502					●
502	SPRING; PLUNGER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97123-424-0	01	1	9503-9703					●
502	SPRING; PLUNGER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97123-424-0	01	1	9704-					●
503	WASHER; PLUNGER 4HF1 ENG(RLS) ID=4.5	8-97035-057-0	01	1	9304-9502					●
503	WASHER; PLUNGER 4HG1 ENG(RJH),4HF1 ENG(RLS) ID=4.5	8-97035-057-0	01	1	9503-9703					●
503	WASHER; PLUNGER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) ID=4.5	8-97035-057-0	01	1	9704-					●
554	STUD; CONT BOX 4HF1 ENG(RLS) CLUTCH FREE(7RW)	8-97168-649-0	02	1	9802-			●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
