2-08 — CLUTCH MASTER CYLINDER (#166689) — 97 parça

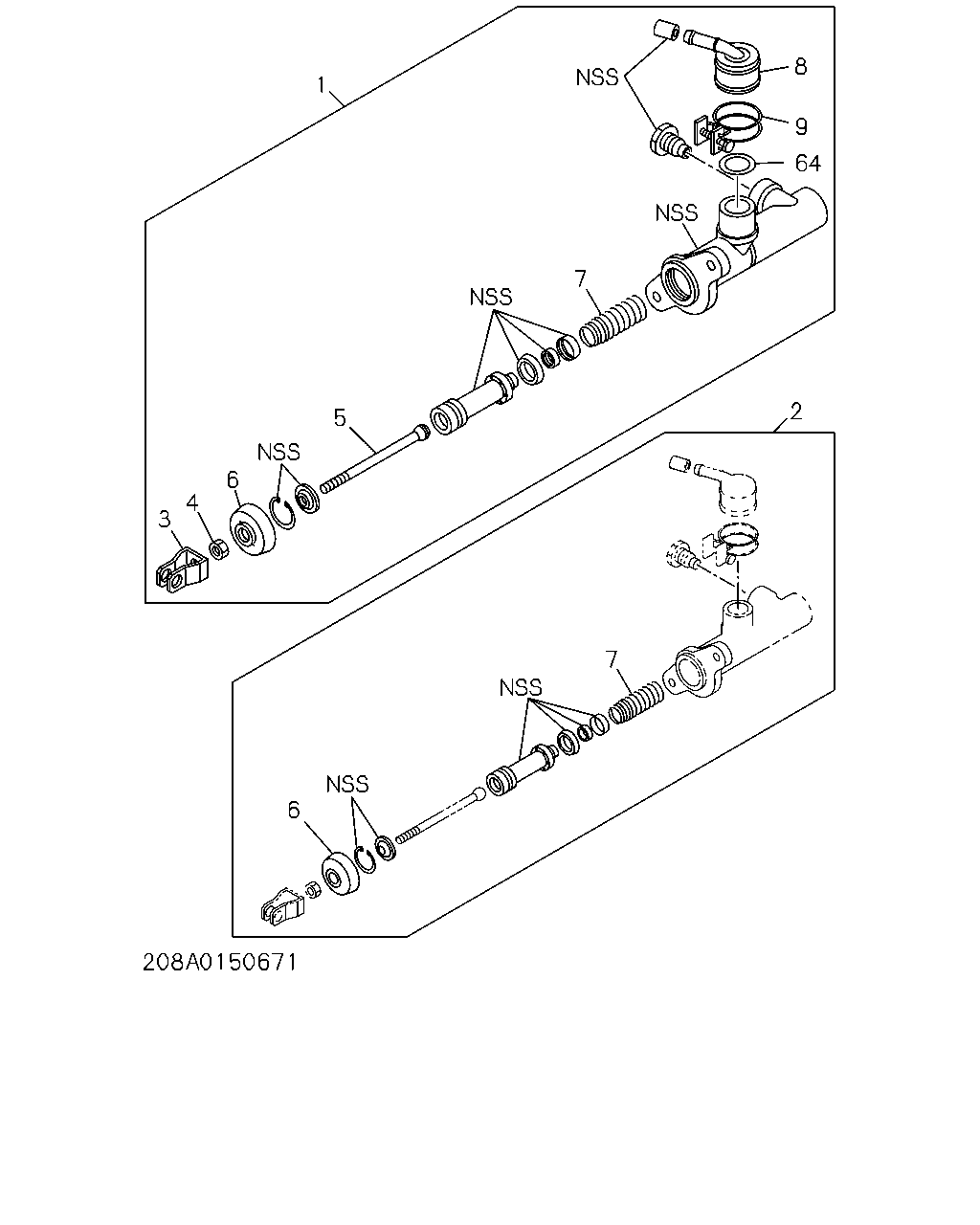

çizim 493980
8 9 64 2 7 6 3 4 6 5 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. H.S.A SYSTEM<6EP> 		8-97048-927-3 01 1 9304-9410 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. H.S.A SYSTEM<6EP> 		8-97124-112-0 01 1 9411-9502 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97124-112-0 01 1 9503-9611 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97162-964-0 01 1 9612-9902 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97210-747-1 01 1 9903- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER 8-97035-919-2 01 1 9304-9410 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97124-110-0 01 1 9411-9611 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97162-963-0 01 1 9612- ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97063-098-3 01 1 9304-9410 ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97124-111-0 01 1 9411-9611 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97162-965-0 01 1 9612-9902 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97210-746-0 01 1 9903- ● ●
2 REPAIR KIT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		5-87831-404-1 01 1 9304-9502 ● ● ●
2 REPAIR KIT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-404-1 01 1 9503-9611 ● ●
2 REPAIR KIT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-617-0 01 1 9612- ● ● ●
2 REPAIR KIT; CLU M/CYL 5-87831-403-1 01 1 9304-9611 ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9612- ●
3 JOINT; JAW,CLU M/CYL 8-97083-160-0 01 1 9304-9611 ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9612- ●
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 9304- ●
5 ROD; PUSH,CLU M/CYL 8-97083-159-0 01 1 9304-9611 ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9612- ●
6 BOOT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97014-563-0 01 1 9304-9502 ● ● ●
6 BOOT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97014-563-0 01 1 9503-9611 ● ●
6 BOOT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-153-0 01 1 9612-9902 ● ● ●
6 BOOT; CLU M/CYL 8-97076-981-0 01 1 9304-9611 ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 9612- ●
7 SPRING ASM; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97076-982-0 01 1 9304-9502 ● ● ●
7 SPRING ASM; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97076-982-0 01 1 9503-9611 ● ●
7 SPRING ASM; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-148-0 01 1 9612- ● ● ●
7 SPRING ASM; CLU M/CYL 8-97081-422-0 01 1 9304-9611 ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9612- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97083-129-0 01 1 9304-9502 ● ● ●
8 CONNECTOR; PIPE,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97083-129-0 01 1 9304-9502 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97083-129-0 01 1 9503-9611 ●
8 CONNECTOR; PIPE,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97083-129-0 01 1 9503-9611 ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 9612- ●
8 CONNECTOR; PIPE,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-154-0 01 1 9612- ● ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-94147-279-0 01 1 9304-9502 ● ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94147-279-0 01 1 9304-9502 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-94147-279-0 01 1 9503-9611 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94147-279-0 01 1 9503-9611 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9612- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-143-0 01 1 9612- ● ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 9612- ●

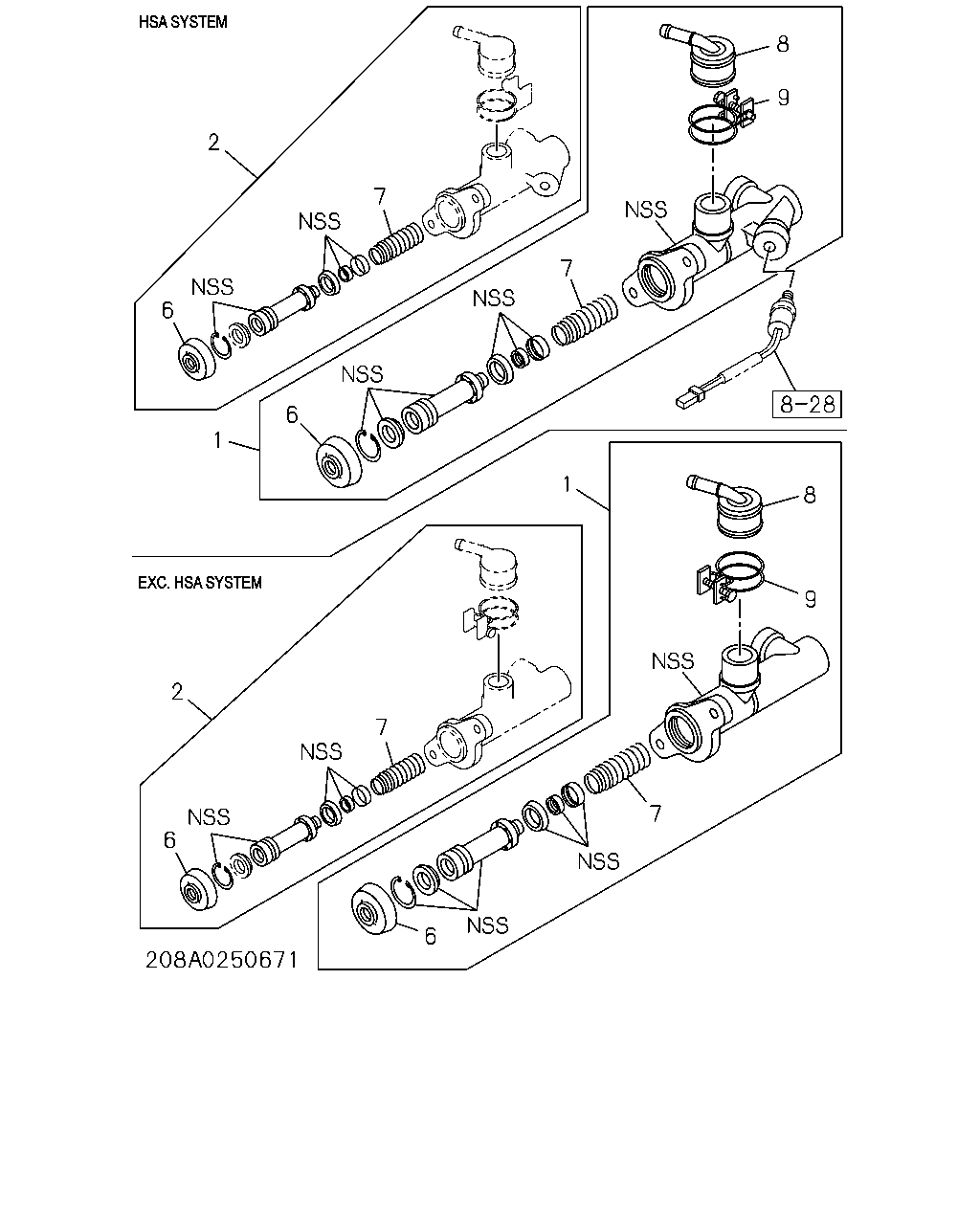

çizim 493981
2 7 6 1 6 7 8 9 8 9 7 6 6 2 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. H.S.A SYSTEM<6EP> 		8-97048-927-3 01 1 9304-9410 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. H.S.A SYSTEM<6EP> 		8-97124-112-0 01 1 9411-9502 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97124-112-0 01 1 9503-9611 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97162-964-0 01 1 9612-9902 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97210-747-1 01 1 9903- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER 8-97035-919-2 01 1 9304-9410 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97124-110-0 01 1 9411-9611 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97162-963-0 01 1 9612- ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97063-098-3 01 1 9304-9410 ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97124-111-0 01 1 9411-9611 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97162-965-0 01 1 9612-9902 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97210-746-0 01 1 9903- ● ●
2 REPAIR KIT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		5-87831-404-1 01 1 9304-9502 ● ● ●
2 REPAIR KIT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-404-1 01 1 9503-9611 ● ●
2 REPAIR KIT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-617-0 01 1 9612- ● ● ●
2 REPAIR KIT; CLU M/CYL 5-87831-403-1 01 1 9304-9611 ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9612- ●
6 BOOT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97014-563-0 01 1 9304-9502 ● ● ●
6 BOOT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97014-563-0 01 1 9503-9611 ● ●
6 BOOT; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-153-0 01 1 9612-9902 ● ● ●
6 BOOT; CLU M/CYL 8-97076-981-0 01 1 9304-9611 ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 9612- ●
7 SPRING ASM; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97076-982-0 01 1 9304-9502 ● ● ●
7 SPRING ASM; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97076-982-0 01 1 9503-9611 ● ●
7 SPRING ASM; CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-148-0 01 1 9612- ● ● ●
7 SPRING ASM; CLU M/CYL 8-97081-422-0 01 1 9304-9611 ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9612- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97083-129-0 01 1 9304-9502 ● ● ●
8 CONNECTOR; PIPE,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97083-129-0 01 1 9304-9502 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97083-129-0 01 1 9503-9611 ●
8 CONNECTOR; PIPE,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97083-129-0 01 1 9503-9611 ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 9612- ●
8 CONNECTOR; PIPE,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-154-0 01 1 9612- ● ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-94147-279-0 01 1 9304-9502 ● ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94147-279-0 01 1 9304-9502 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-94147-279-0 01 1 9503-9611 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94147-279-0 01 1 9503-9611 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9612- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97163-143-0 01 1 9612- ● ● ●

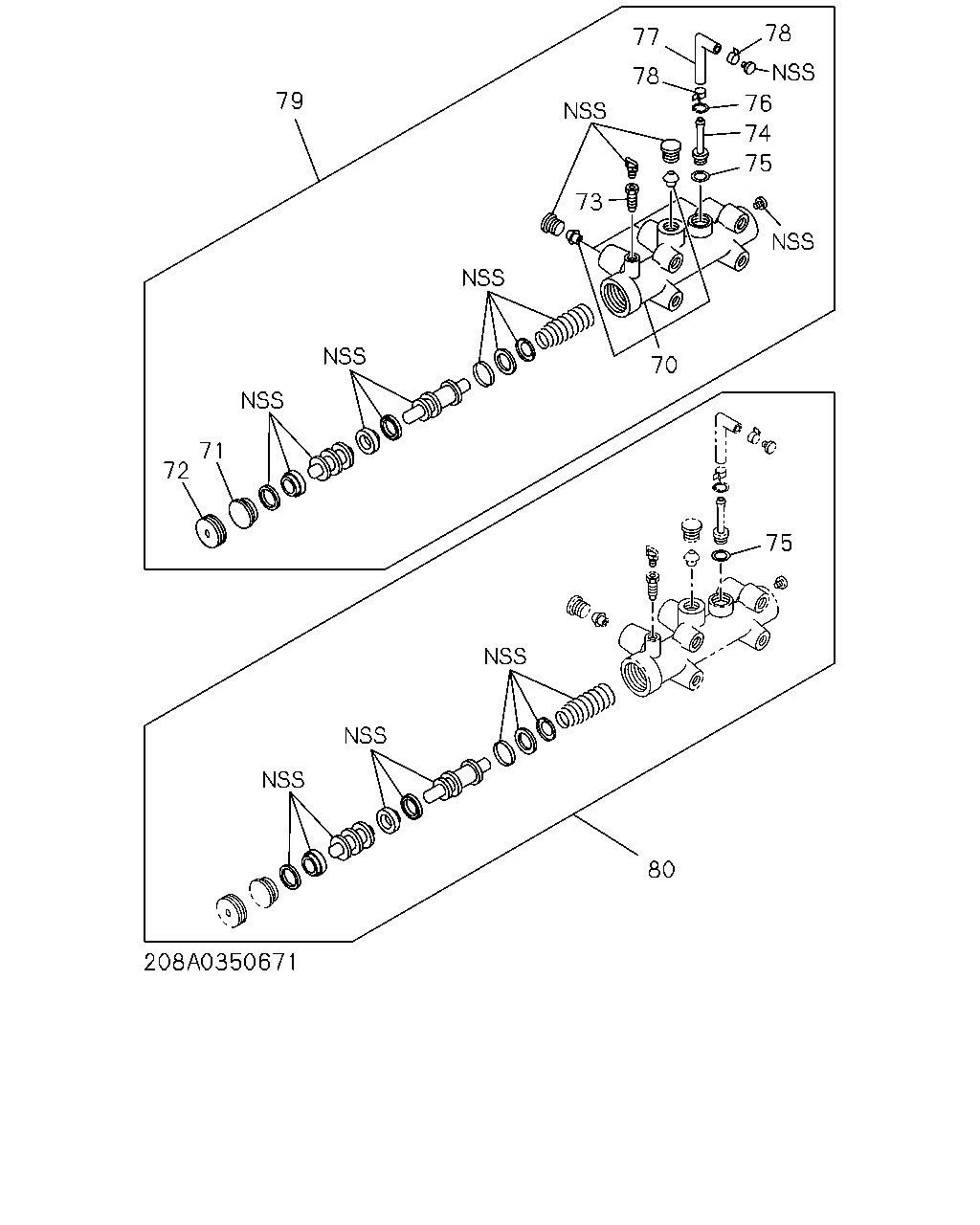

çizim 493982
77 78 78 76 74 75 73 70 79 71 72 75 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
70 BODY; CYLINDER
CLUTCH FREE(7RW) 		8-97200-930-0 01 1 9802- ●
71 CAP; END,CYLINDER
CLUTCH FREE(7RW) 		8-97200-937-0 01 1 9802- ●
72 NUT; END,CYLINDER
CLUTCH FREE(7RW) 		8-97200-938-0 01 1 9802- ●
73 BLEEDER; CYLINDER
CLUTCH FREE(7RW) 		8-97200-939-0 01 1 9802- ●
74 CONNECTOR; HOSE,CYLINDER
CLUTCH FREE(7RW) 		8-97200-940-0 01 1 9802- ●
75 GASKET; CONNECTOR,CYLINDER
CLUTCH FREE(7RW) 		8-97200-941-0 01 1 9802- ●
76 RING; SNAP,CONNECTOR,CYLINDER
CLUTCH FREE(7RW) 		8-97200-942-0 01 1 9802- ●
77 HOSE; CYLINDER
CLUTCH FREE(7RW) 		8-97200-951-0 01 1 9802- ●
78 CLIP; HOSE,CYLINDER
CLUTCH FREE(7RW) 		8-97200-952-0 02 1 9802- ●
79 CYLINDER ASM; CLUTCH
CLUTCH FREE(7RW) 		8-97200-953-0 01 1 9802-9901 ●
79 CYLINDER ASM; CLUTCH
CLUTCH FREE(7RW) 		8-97225-203-0 01 1 9902- ●
80 REPAIR KIT; CYLINDER
CLUTCH FREE(7RW) 		8-97200-954-0 01 1 9802-9901 ●
80 REPAIR KIT; CYLINDER
CLUTCH FREE(7RW) 		8-97225-204-0 01 1 9902- ●
