◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#166688) — 19 parça

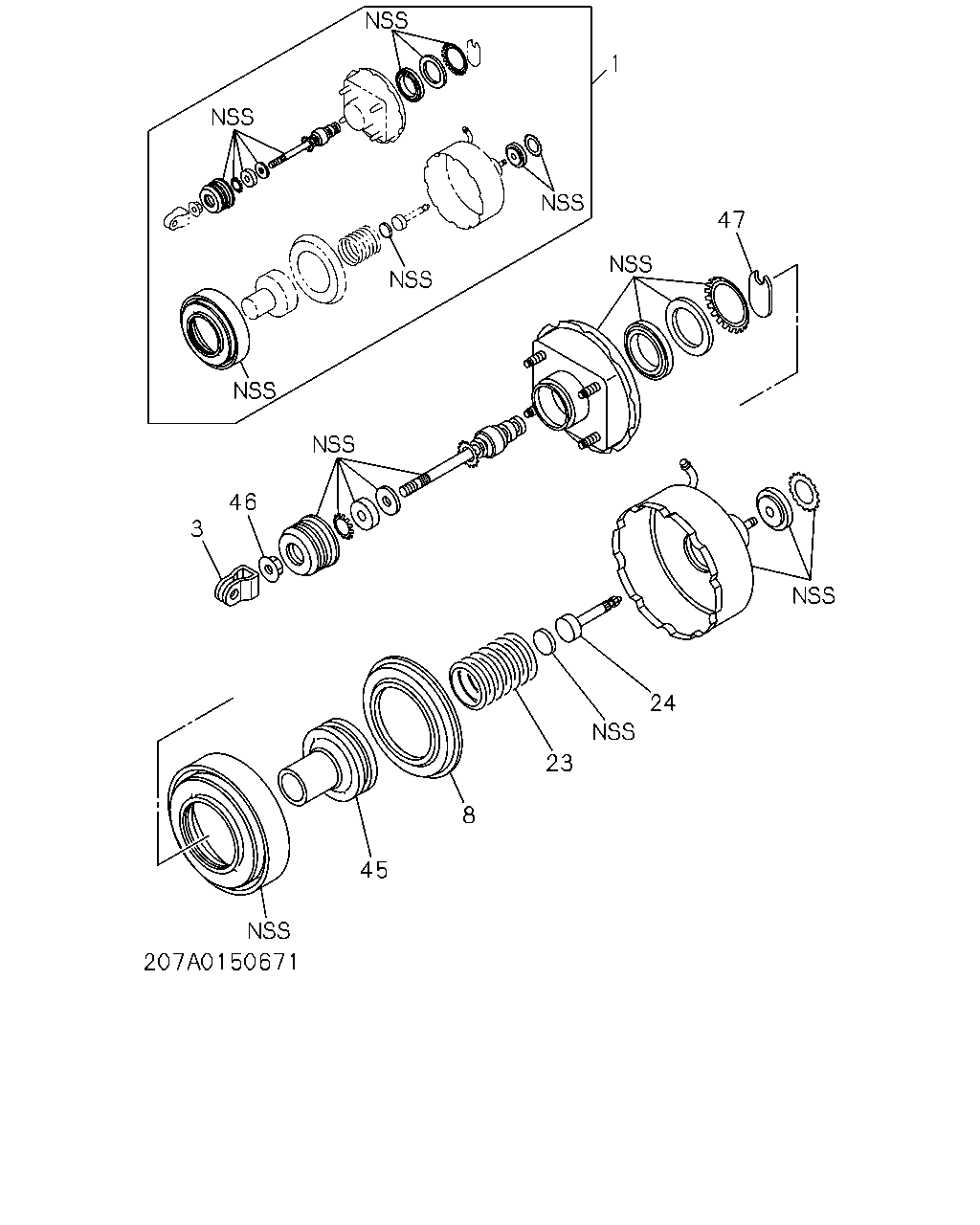

çizim 493948
1 47 24 23 8 45 3 46
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 8-97080-111-0 01 1 9304-9502 ● ● ●
1 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97080-111-0 01 1 9503-9703 ● ●
1 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97174-145-0 01 1 9704- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 8-94341-787-0 01 1 9304-9502 ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94341-787-0 01 1 9503-9703 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97174-147-0 01 1 9704- ● ●
8 RETAINER; DIAPH 8-97015-778-0 01 1 9304-9502 ● ● ●
8 RETAINER; DIAPH
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97015-778-0 01 1 9503-9703 ● ●
23 SPRING; SHELL,CLU BOOSTER 8-94369-071-0 01 1 9304-9502 ● ● ●
23 SPRING; SHELL,CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94369-071-0 01 1 9503-9703 ● ●
24 ROD; PUSH,CLU BOOSTER 8-97094-972-0 01 1 9304-9502 ● ● ●
24 ROD; PUSH,CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97094-972-0 01 1 9503-9703 ● ●
45 PLATE; END,CLU BOOSTER 8-97103-376-0 01 1 9304-9502 ● ● ●
45 PLATE; END,CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97103-376-0 01 1 9503-9703 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 FLANGE 		0-91150-110-0 01 1 9304-9502 ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9503-9703 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97174-148-0 01 1 9704- ● ●
47 KEY; CLU BOOSTER 8-94123-120-0 01 1 9304-9502 ● ● ●
47 KEY; CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94123-120-0 01 1 9503-9703 ● ●
