◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#166687) — 96 parça
çizim 493570
1 8 7 5 3 5 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER; SLAVE,CLU 8-97032-848-1 01 1 9304-9502 ●
1 CYLINDER; SLAVE,CLU 8-97032-851-1 01 1 9304-9502 ●
1 CYLINDER; SLAVE,CLU 8-97047-972-0 01 1 9304-9607 ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-972-0 01 1 9608-9812 ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97212-011-0 01 1 9901- ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-881-0 01 1 9608-9812 ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97212-015-0 01 1 9901- ●
1 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97032-847-1 01 1 9304-9801 ● ● ●
1 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		8-97032-847-1 01 1 9802- ● ● ●
1 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97148-625-1 01 1 9802- ●
2 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9304-9502 ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-204-0 01 1 9304-9502 ●
2 REPAIR KIT; CLU SLAVE CYL 5-87831-402-0 01 1 9304-9812 ●
2 REPAIR KIT; CLU SLAVE CYL 5-87831-731-0 01 1 9901- ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		5-87831-364-0 01 1 9802- ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-204-0 01 1 9503-9801 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		5-87831-204-0 01 1 9802- ● ● ●
3 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9304-9502 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94457-860-0 01 1 9304-9502 ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94457-860-0 01 1 9503-9801 ● ● ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		8-94457-860-0 01 1 9802- ● ● ●
3 ROD; PUSH,SLAVE CYL 8-94459-698-0 01 1 9304-9812 ●
3 ROD; PUSH,SLAVE CYL 8-97212-019-0 01 1 9901- ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97185-369-0 01 1 9802- ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97160-570-0 01 1 9802- ●
7 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9304-9502 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9304-9502 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9503-9607 ● ●
7 SCREW; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X16.5 		8-94115-113-0 01 1 9608-9703 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9608-9703 ● ●
7 SCREW; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X16.5 		8-94115-113-0 01 1 9704-9812 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9704-9812 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9901- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) M7X19.5 		8-97188-329-0 01 1 9901- ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9304-9502 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9304-9502 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9503-9607 ● ●
8 CAP; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=9.5 		9-47619-005-0 01 1 9608-9703 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9608-9703 ● ●
8 CAP; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=9.5 		9-47619-005-0 01 1 9704-9812 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9704-9812 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9901- ● ● ●
8 CAP; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-330-0 01 1 9901- ●

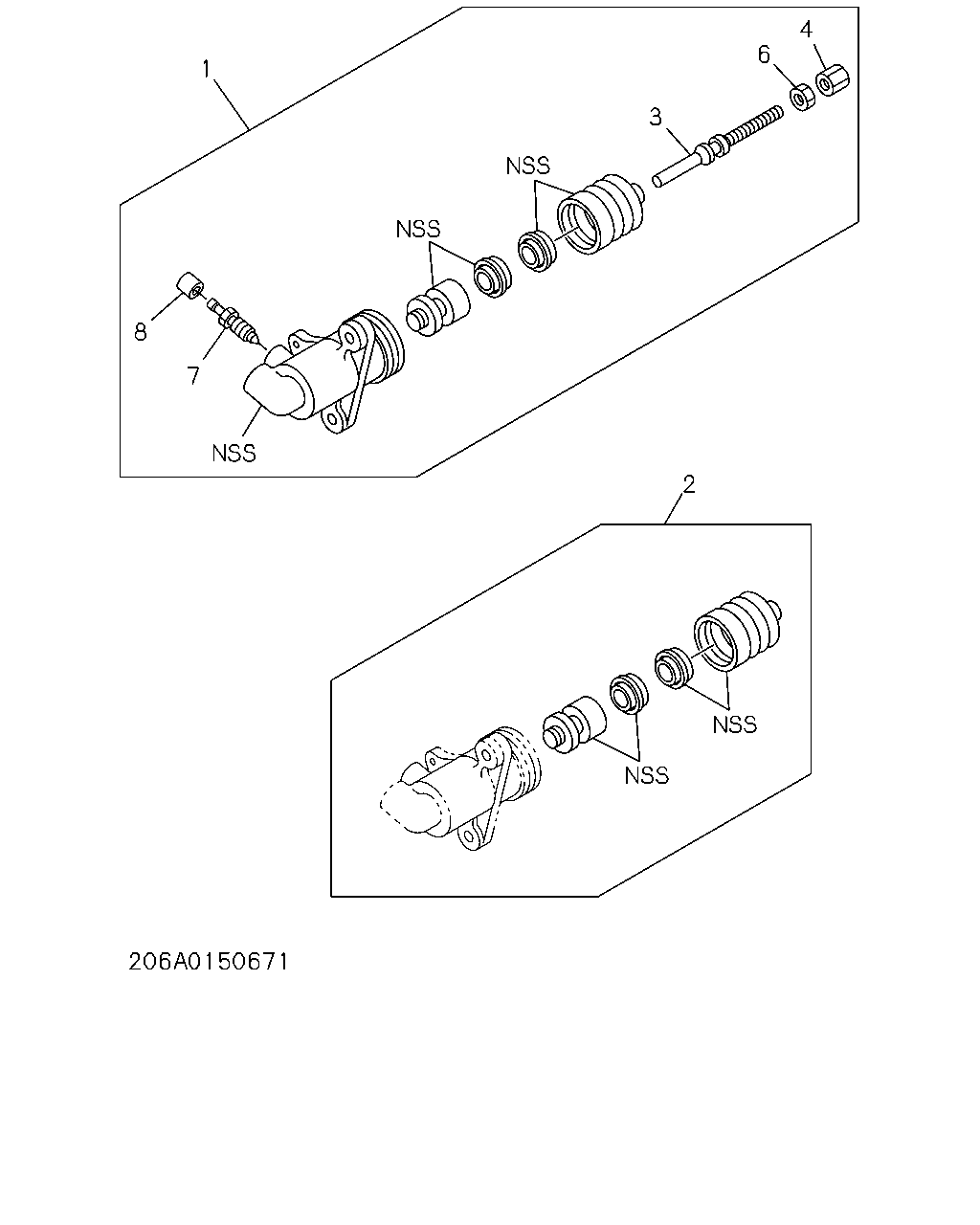

çizim 493947
4 6 3 1 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER; SLAVE,CLU 8-97032-848-1 01 1 9304-9502 ●
1 CYLINDER; SLAVE,CLU 8-97032-851-1 01 1 9304-9502 ●
1 CYLINDER; SLAVE,CLU 8-97047-972-0 01 1 9304-9607 ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-972-0 01 1 9608-9812 ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97212-011-0 01 1 9901- ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-881-0 01 1 9608-9812 ●
1 CYLINDER; SLAVE,CLU
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97212-015-0 01 1 9901- ●
1 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97032-847-1 01 1 9304-9801 ● ● ●
1 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		8-97032-847-1 01 1 9802- ● ● ●
1 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97148-625-1 01 1 9802- ●
2 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9304-9502 ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-204-0 01 1 9304-9502 ●
2 REPAIR KIT; CLU SLAVE CYL 5-87831-402-0 01 1 9304-9812 ●
2 REPAIR KIT; CLU SLAVE CYL 5-87831-731-0 01 1 9901- ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		5-87831-364-0 01 1 9802- ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		5-87831-204-0 01 1 9503-9801 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		5-87831-204-0 01 1 9802- ● ● ●
3 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9304-9502 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94457-860-0 01 1 9304-9502 ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94457-860-0 01 1 9503-9801 ● ● ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		8-94457-860-0 01 1 9802- ● ● ●
3 ROD; PUSH,SLAVE CYL 8-94459-698-0 01 1 9304-9812 ●
3 ROD; PUSH,SLAVE CYL 8-97212-019-0 01 1 9901- ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97185-369-0 01 1 9802- ●
4 NUT; ADJ,SLAVE CYL PUSH ROD 9-09644-005-0 01 1 9304-9502 ● ● ●
4 NUT; ADJ,SLAVE CYL PUSH ROD 9-09644-005-0 01 1 9503-9812 ●
4 NUT; ADJ,SLAVE CYL PUSH ROD 8-97212-020-0 01 1 9901- ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97032-299-0 01 1 9304-9801 ● ● ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		8-97032-299-0 01 1 9802- ● ● ●
6 NUT; LK,ROD END
M8 		9-09111-408-0 01 1 9304-9502 ● ● ●
6 NUT; LK,ROD END
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8 		9-09111-408-0 01 1 9304-9502 ●
6 NUT; LK,ROD END
FLOOR REMOTE SHIFT<M11> M8 		9-09111-408-0 01 1 9503-9801 ●
6 NUT; LK,ROD END
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8 		9-09111-408-0 01 1 9503-9801 ● ● ●
6 NUT; LK,ROD END
FLOOR REMOTE SHIFT<M11> M8 		9-09111-408-0 01 1 9802- ●
6 NUT; LK,ROD END
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) M8 		9-09111-408-0 01 1 9802- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9304-9502 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9304-9502 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9503-9607 ● ●
7 SCREW; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X16.5 		8-94115-113-0 01 1 9608-9703 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9608-9703 ● ●
7 SCREW; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X16.5 		8-94115-113-0 01 1 9704-9812 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9704-9812 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X16.5 		8-94115-113-0 01 1 9901- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) M7X19.5 		8-97188-329-0 01 1 9901- ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9304-9502 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9304-9502 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9503-9607 ● ●
8 CAP; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=9.5 		9-47619-005-0 01 1 9608-9703 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9608-9703 ● ●
8 CAP; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=9.5 		9-47619-005-0 01 1 9704-9812 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9704-9812 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=9.5 		9-47619-005-0 01 1 9901- ● ● ●
8 CAP; BLEEDER,SLAVE CYL
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-330-0 01 1 9901- ●
