◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#166686) — 288 parça

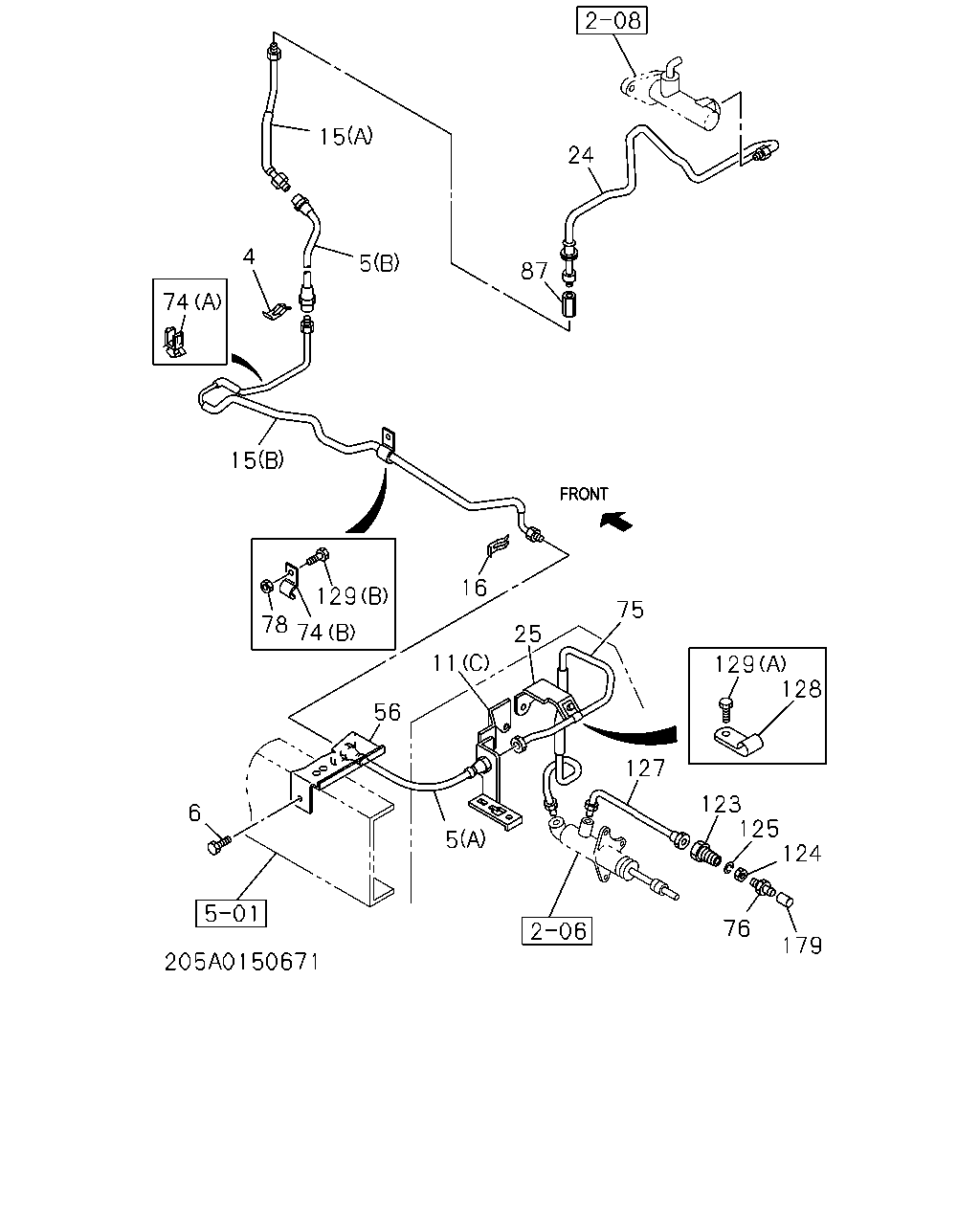

çizim 493878
24 87 5 15 4 74 15 129 78 74 6 56 11 16 25 75 129 128 123 125 124 179 76 127 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 CLIP; FLEX HOSE,CLU CONT
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) 		8-94167-006-0 02 1 9304-9502 ● ● ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9503- ● ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-97018-982-0 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) (B) 		8-94248-702-2 01 1 9304-9502 ● ● ● ● ●
5 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9503- ● ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97064-108-1 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97064-108-1 01 1 9503- ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9304- ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) (A) 		8-97168-853-0 01 1 9802- ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),CLUTCH FREE(7RW) (A) 		8-94482-265-1 01 1 9304- ● ● ●
6 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9304-9411 ● ● ●
6 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ●
6 BOLT; BRKT,FLEX HOSE
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X25 FLANGE 		0-28680-825-0 01 1 9503- ● ● ●
6 BOLT; BRKT,FLEX HOSE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9304-9503 ●
6 BOLT; BRKT,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 9504- ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97220-600-0 01 1 9812- ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94411-135-0 01 1 9304-9406 ● ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94172-381-1 01 1 9304-9305 ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94411-135-0 01 1 9407-9502 ● ●
11 BRACKET; FLEX HOSE,CLU
(C) 		8-97091-929-0 01 1 9304- ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97063-755-0 01 1 9304-9703 ● ●
11 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97169-504-0 01 1 9704-9801 ● ● ●
11 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) (A) 		8-97169-504-0 01 1 9802- ● ● ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) (B) 		8-97160-164-1 01 1 9802-9811 ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) (B) 		8-97160-164-1 01 1 9812- ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9304-9502 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9304-9502 ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9304-9502 ● ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9503-9703 ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9704- ● ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97061-379-1 01 1 9304-9707 ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-249-0 01 1 9708- ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-653-5 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-653-5 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97140-098-2 01 1 9704- ● ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97140-099-2 01 1 9704- ● ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-364-4 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-364-4 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97170-183-0 01 1 9704- ● ● ●
16 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9304-9502 ● ● ●
16 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94167-006-0 01 1 9503- ● ● ●
16 CLIP; FLEX HOSE 8-94167-006-0 02 1 9304- ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97035-973-0 01 1 9304-9502 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97035-973-0 01 1 9503-9801 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97173-649-1 01 1 9802- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 9304-9801 ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97174-073-2 01 1 9802- ●
25 BRACKET; OIL PIPE 8-97013-211-1 01 1 9304- ●
25 BRACKET; OIL PIPE
CLUTCH FREE(7RW) 		8-97168-241-0 01 1 9802- ●
56 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9304- ●
74 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94363-358-0 01 1 9304-9304 ●
74 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		9-09716-287-0 01 1 9304- ●
74 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (A) H=28.5 		8-94486-808-0 01 1 9304- ●
75 PIPE ASM; CLU,HSG 8-97063-756-2 01 1 9304- ●
76 SCREW; BREATHER
M8X16.5 		8-94115-113-0 01 1 9304-9607 ●
76 SCREW; BREATHER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M8X16.5 		8-94115-113-0 01 1 9608- ●
78 NUT; CLIP,CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE 		0-91150-106-0 01 1 9304-9502 ●
87 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9304-9502 ● ● ● ●
87 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9503- ● ● ● ●
123 UNION; AIR PIPE 8-97013-854-0 01 1 9304-9607 ●
123 UNION; AIR PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-854-0 01 1 9608- ●
124 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9304-9607 ●
124 NUT; PIPE UNION
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M16 		9-99111-416-0 01 1 9608- ●
125 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9304-9607 ●
125 WASHER; LK,PIPE UNION
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) ID=16.2 		9-09150-516-0 01 1 9608- ●
127 PIPE; AIR,UNION TO MAG VLV 8-97062-512-1 01 1 9304-9607 ●
127 PIPE; AIR,UNION TO MAG VLV
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-512-1 01 1 9608- ●
128 CLIP; AIR PIPE
ID=7 L=16 		9-09524-622-0 02 1 9304- ●
129 BOLT; PIPE CLIP
(A) M6X12 		0-20800-612-0 02 1 9304-9606 ●
129 BOLT; PIPE CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 9607- ●
129 BOLT; PIPE CLIP
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9304-9304 ●
129 BOLT; PIPE CLIP
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) M6X20 FLANGE 		0-28080-620-0 02 1 9304-9305 ●
129 BOLT; PIPE CLIP
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) M6X20 FLANGE 		0-28080-620-0 01 1 9306-9502 ●
129 BOLT; PIPE CLIP
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) M6X20 FLANGE 		0-28480-620-0 01 1 9306-9710 ●
129 BOLT; PIPE CLIP
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) M6X20 FLANGE 		0-28680-620-0 01 1 9711- ●
179 CAP; BREATHER
OD=9.5 		9-47619-005-0 01 1 9304-9607 ●
179 CAP; BREATHER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) OD=9.5 		9-47619-005-0 01 1 9608- ●

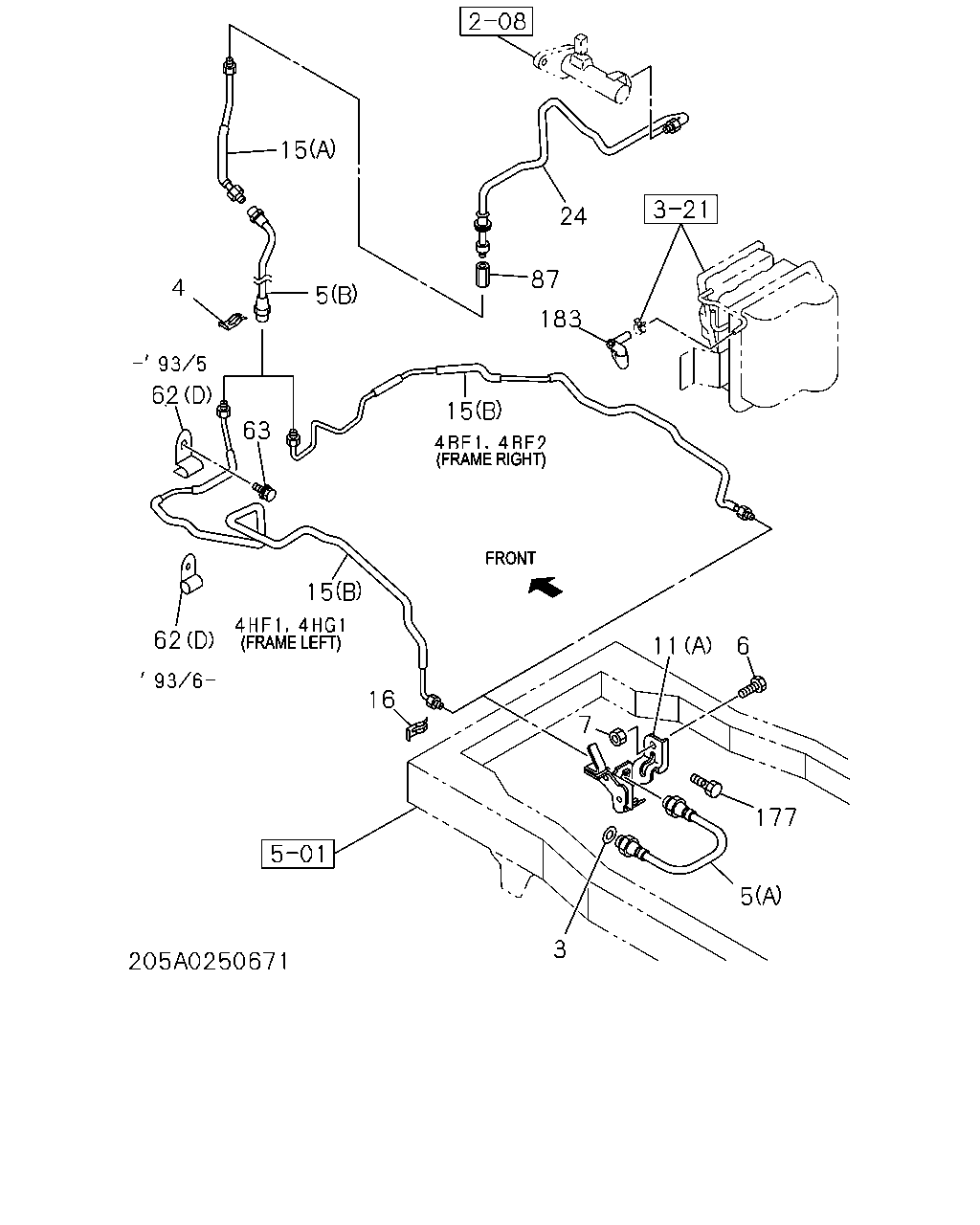

çizim 493910
15 4 5 63 62 62 15 16 11 6 7 3 5 177 183 87 24 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 		9-09571-410-0 02 1 9304-9502 ●
3 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9304-9502 ●
3 GASKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		9-09920-873-1 01 1 9304-9502 ●
3 GASKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		9-09920-873-1 01 1 9503- ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) 		8-94167-006-0 02 1 9304-9502 ● ● ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9503- ● ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-97018-982-0 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) (B) 		8-94248-702-2 01 1 9304-9502 ● ● ● ● ●
5 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9503- ● ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97064-108-1 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97064-108-1 01 1 9503- ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9304- ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) (A) 		8-97168-853-0 01 1 9802- ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),CLUTCH FREE(7RW) (A) 		8-94482-265-1 01 1 9304- ● ● ●
6 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9304-9411 ● ● ●
6 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ●
6 BOLT; BRKT,FLEX HOSE
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X25 FLANGE 		0-28680-825-0 01 1 9503- ● ● ●
6 BOLT; BRKT,FLEX HOSE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9304-9503 ●
6 BOLT; BRKT,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 9504- ●
7 NUT; FLEX HOSE,CLU CONT
M8 		9-09110-408-0 01 1 9304-9502 ● ● ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 9503- ● ● ● ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97220-600-0 01 1 9812- ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94411-135-0 01 1 9304-9406 ● ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94172-381-1 01 1 9304-9305 ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94411-135-0 01 1 9407-9502 ● ●
11 BRACKET; FLEX HOSE,CLU
(C) 		8-97091-929-0 01 1 9304- ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97063-755-0 01 1 9304-9703 ● ●
11 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97169-504-0 01 1 9704-9801 ● ● ●
11 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) (A) 		8-97169-504-0 01 1 9802- ● ● ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) (B) 		8-97160-164-1 01 1 9802-9811 ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) (B) 		8-97160-164-1 01 1 9812- ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9304-9502 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9304-9502 ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9304-9502 ● ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9503-9703 ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9704- ● ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97061-379-1 01 1 9304-9707 ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-249-0 01 1 9708- ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-653-5 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-653-5 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97140-098-2 01 1 9704- ● ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97140-099-2 01 1 9704- ● ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-364-4 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-364-4 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97170-183-0 01 1 9704- ● ● ●
16 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9304-9502 ● ● ●
16 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94167-006-0 01 1 9503- ● ● ●
16 CLIP; FLEX HOSE 8-94167-006-0 02 1 9304- ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97035-973-0 01 1 9304-9502 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97035-973-0 01 1 9503-9801 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97173-649-1 01 1 9802- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 9304-9801 ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97174-073-2 01 1 9802- ●
62 CLIP; CLU PIPE
W TIRE & MIDDLE CHASSIS(NKC**F) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97026-150-0 01 1 9812- ●
62 CLIP; CLU PIPE
CLUTCH FREE(7RW) (A) ID=9 & 9 L=15 & 15 		1-09700-061-0 01 1 9802-9811 ●
62 CLIP; CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) (A) ID=9 & 9 L=15 & 15 		1-09700-061-0 01 1 9812- ●
62 CLIP; CLU PIPE
CLUTCH FREE(7RW) (B) 		8-94110-461-1 01 1 9802- ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9 L=20 		9-09545-108-0 01 1 9304-9305 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9 L=20 		9-09545-108-0 01 1 9304-9305 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9306-9502 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9306-9502 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9503-9703 ● ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9503-9703 ● ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9704- ● ● ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9704- ● ● ●
63 BOLT; CLIP,PIPE
CLUTCH FREE(7RW) M6X20 FLANGE 		0-28680-620-0 01 1 9802-9811 ●
63 BOLT; CLIP,PIPE
FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) M6X20 FLANGE 		0-28680-620-0 01 1 9812- ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9502 ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9502 ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9503-9703 ● ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9503-9703 ● ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9704- ● ● ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9704- ● ● ●
87 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9304-9502 ● ● ● ●
87 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9503- ● ● ● ●
177 BOLT; EYE,FLEX HOSE TO M/CYL
M10X22 		5-09675-017-0 01 1 9304-9502 ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97063-570-1 01 1 9304-9312 ● ● ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97108-638-0 01 1 9401-9502 ● ● ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97108-638-0 01 1 9503-9503 ● ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-873-0 01 1 9504- ● ● ●

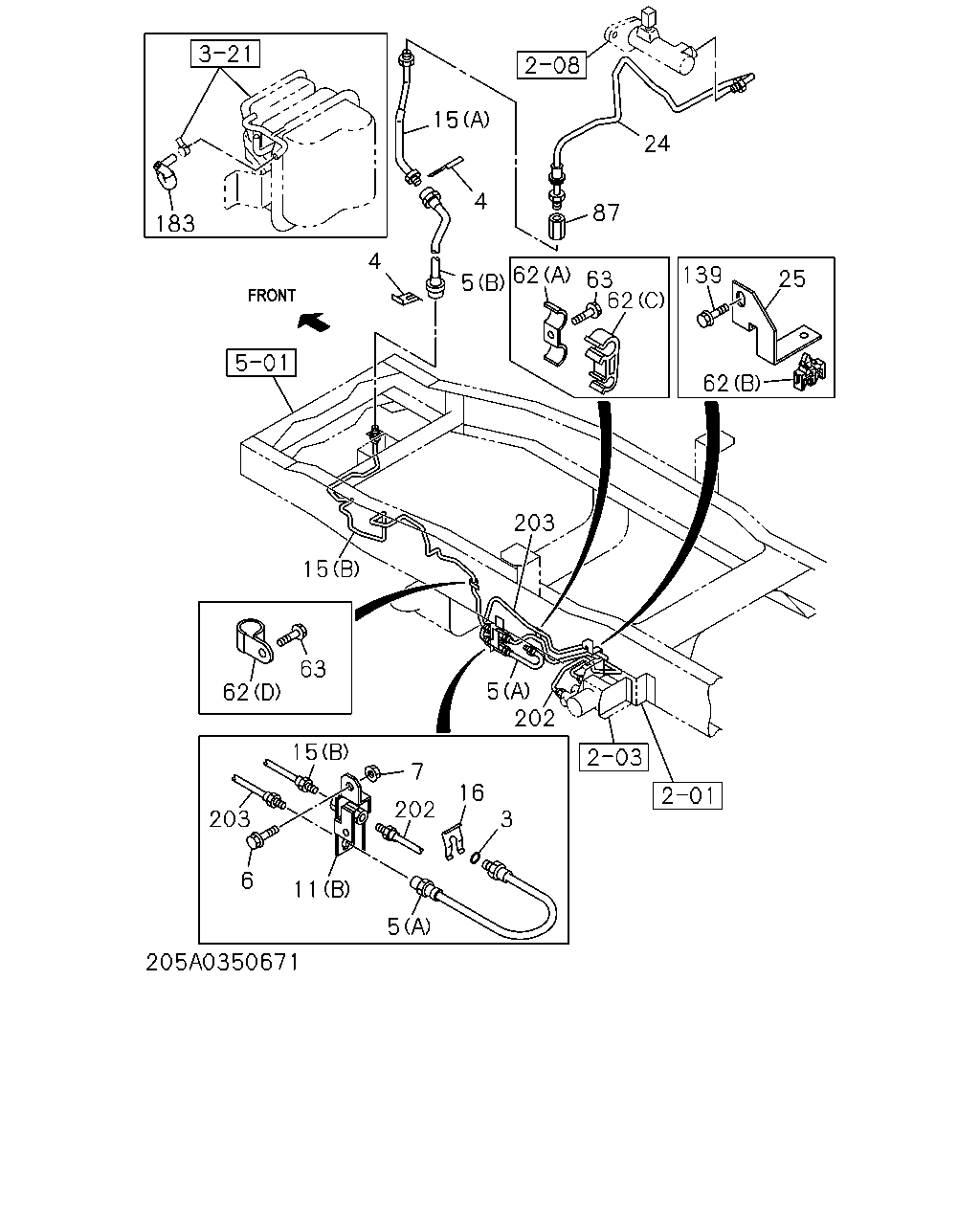

çizim 493911
183 4 4 5 15 87 24 139 25 62 62 63 62 203 5 202 16 3 7 202 5 11 6 203 15 63 15 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 		9-09571-410-0 02 1 9304-9502 ●
3 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9304-9502 ●
3 GASKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		9-09920-873-1 01 1 9304-9502 ●
3 GASKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		9-09920-873-1 01 1 9503- ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) 		8-94167-006-0 02 1 9304-9502 ● ● ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9503- ● ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-97018-982-0 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) (B) 		8-94248-702-2 01 1 9304-9502 ● ● ● ● ●
5 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9503- ● ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97064-108-1 01 1 9304-9502 ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-97064-108-1 01 1 9503- ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9304- ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) (A) 		8-97168-853-0 01 1 9802- ●
5 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),CLUTCH FREE(7RW) (A) 		8-94482-265-1 01 1 9304- ● ● ●
6 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9304-9411 ● ● ●
6 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9502 ● ● ●
6 BOLT; BRKT,FLEX HOSE
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) M8X25 FLANGE 		0-28680-825-0 01 1 9503- ● ● ●
6 BOLT; BRKT,FLEX HOSE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9304-9503 ●
6 BOLT; BRKT,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 9504- ●
7 NUT; FLEX HOSE,CLU CONT
M8 		9-09110-408-0 01 1 9304-9502 ● ● ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 9503- ● ● ● ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97220-600-0 01 1 9812- ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94411-135-0 01 1 9304-9406 ● ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94172-381-1 01 1 9304-9305 ●
11 BRACKET; FLEX HOSE,CLU
(A) 		8-94411-135-0 01 1 9407-9502 ● ●
11 BRACKET; FLEX HOSE,CLU
(C) 		8-97091-929-0 01 1 9304- ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97063-755-0 01 1 9304-9703 ● ●
11 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97169-504-0 01 1 9704-9801 ● ● ●
11 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) (A) 		8-97169-504-0 01 1 9802- ● ● ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) (B) 		8-97160-164-1 01 1 9802-9811 ●
11 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) (B) 		8-97160-164-1 01 1 9812- ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9304-9502 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9304-9502 ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-341-2 01 1 9304-9305 ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9306-9502 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9304-9502 ● ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9503-9703 ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97035-987-0 01 1 9704- ● ● ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97061-379-1 01 1 9304-9707 ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-249-0 01 1 9708- ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-653-5 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-653-5 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97140-098-2 01 1 9704- ● ● ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97063-342-3 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97140-099-2 01 1 9704- ● ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-364-4 01 1 9304-9502 ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-364-4 01 1 9503-9703 ● ●
15 PIPE; CLU,FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97170-183-0 01 1 9704- ● ● ●
16 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9304-9502 ● ● ●
16 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94167-006-0 01 1 9503- ● ● ●
16 CLIP; FLEX HOSE 8-94167-006-0 02 1 9304- ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97035-973-0 01 1 9304-9502 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97035-973-0 01 1 9503-9801 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> 		8-97173-649-1 01 1 9802- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 9304-9801 ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97174-073-2 01 1 9802- ●
25 BRACKET; OIL PIPE 8-97013-211-1 01 1 9304- ●
25 BRACKET; OIL PIPE
CLUTCH FREE(7RW) 		8-97168-241-0 01 1 9802- ●
62 CLIP; CLU PIPE
W TIRE & MIDDLE CHASSIS(NKC**F) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97026-150-0 01 1 9812- ●
62 CLIP; CLU PIPE
CLUTCH FREE(7RW) (A) ID=9 & 9 L=15 & 15 		1-09700-061-0 01 1 9802-9811 ●
62 CLIP; CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) (A) ID=9 & 9 L=15 & 15 		1-09700-061-0 01 1 9812- ●
62 CLIP; CLU PIPE
CLUTCH FREE(7RW) (B) 		8-94110-461-1 01 1 9802- ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9 L=20 		9-09545-108-0 01 1 9304-9305 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9 L=20 		9-09545-108-0 01 1 9304-9305 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9306-9502 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9306-9502 ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9503-9703 ● ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9503-9703 ● ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9704- ● ● ●
62 CLIP; CLU PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11 L=20 		9-09525-035-0 01 1 9704- ● ● ●
63 BOLT; CLIP,PIPE
CLUTCH FREE(7RW) M6X20 FLANGE 		0-28680-620-0 01 1 9802-9811 ●
63 BOLT; CLIP,PIPE
FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) M6X20 FLANGE 		0-28680-620-0 01 1 9812- ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9502 ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9502 ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9503-9703 ● ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9503-9703 ● ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9704- ● ● ●
63 BOLT; CLIP,PIPE
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE 		0-28680-820-0 01 1 9704- ● ● ●
87 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9304-9502 ● ● ● ●
87 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9503- ● ● ● ●
139 BOLT; BRKT
CLUTCH FREE(7RW) M10X30 FLANGE 		0-28681-030-0 01 1 9802- ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97063-570-1 01 1 9304-9312 ● ● ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97108-638-0 01 1 9401-9502 ● ● ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97108-638-0 01 1 9503-9503 ● ●
183 HOSE; VAC,VAC TANK SIDE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-873-0 01 1 9504- ● ● ●
202 PIPE; CLU,2 WAY TO ACTUATOR
W TIRE & MIDDLE CHASSIS(NKC**F) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97220-279-0 01 1 9812-9902 ●
202 PIPE; CLU,2 WAY TO ACTUATOR
W TIRE & MIDDLE CHASSIS(NKC**F) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97226-241-0 01 1 9903- ●
202 PIPE; CLU,2 WAY TO ACTUATOR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) CLUTCH FREE(7RW) 		8-97149-781-3 01 1 9802- ●
202 PIPE; CLU,2 WAY TO ACTUATOR
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) CLUTCH FREE(7RW) 		8-97161-852-2 01 1 9802-9811 ●
202 PIPE; CLU,2 WAY TO ACTUATOR
MIDDLE CHASSIS(NK***F) FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) 		8-97161-852-2 01 1 9812- ●
203 PIPE; CLU,ACTUATOR TO FLEX HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) CLUTCH FREE(7RW) 		8-97149-823-1 01 1 9802- ●
203 PIPE; CLU,ACTUATOR TO FLEX HOSE
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) CLUTCH FREE(7RW) 		8-97161-853-1 01 1 9802-9811 ●
203 PIPE; CLU,ACTUATOR TO FLEX HOSE
MIDDLE CHASSIS(NK***F) FRT INDEPENDENT SUSPENSION(6PP) CLUTCH FREE(7RW) 		8-97161-853-1 01 1 9812- ●
203 PIPE; CLU,ACTUATOR TO FLEX HOSE
W TIRE & MIDDLE CHASSIS(NKC**F) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97220-280-0 01 1 9812-9902 ●
203 PIPE; CLU,ACTUATOR TO FLEX HOSE
W TIRE & MIDDLE CHASSIS(NKC**F) CLUTCH FREE(7RW) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97226-242-0 01 1 9903- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
