◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#166685) — 151 parça

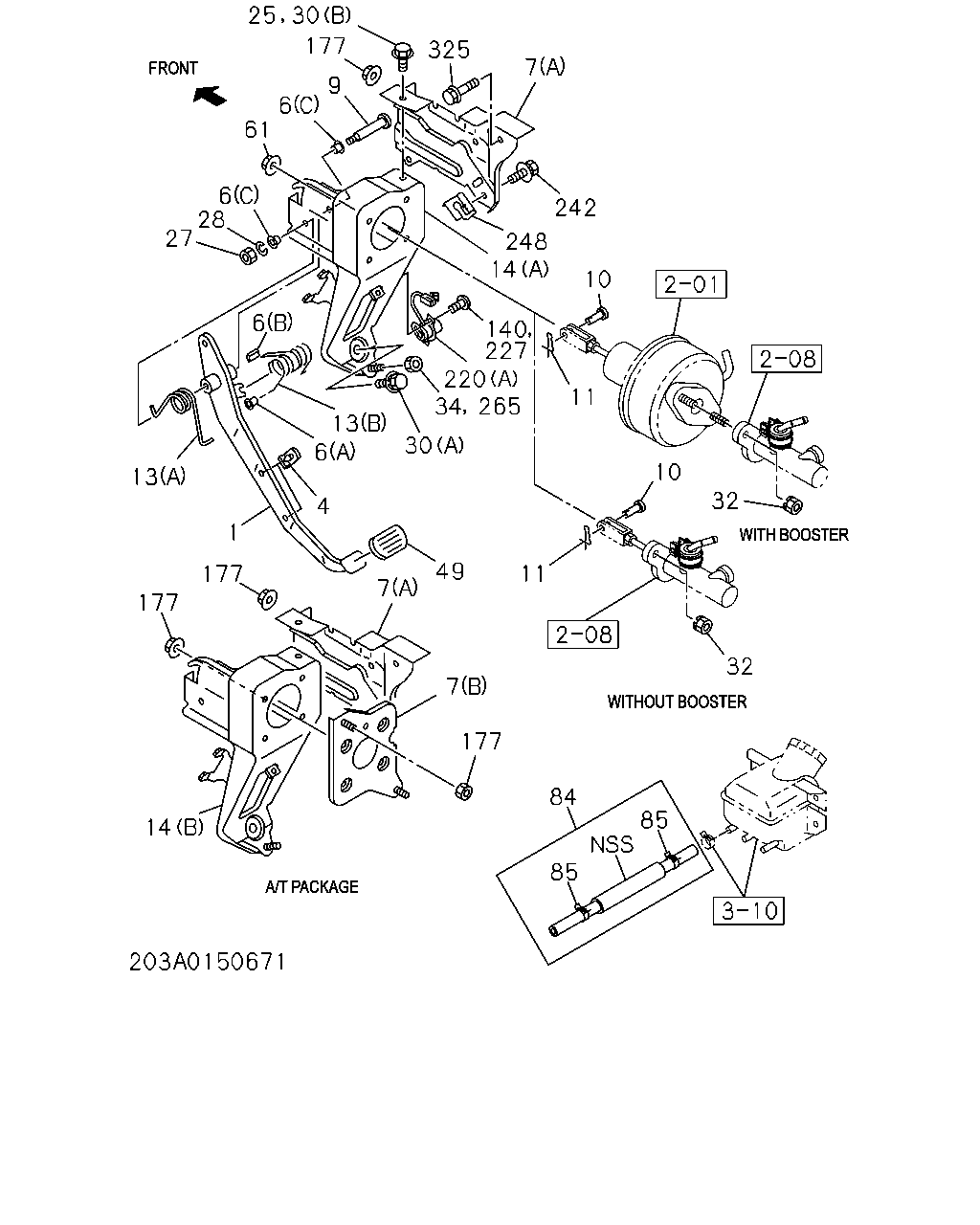

çizim 493610
25 30 9 6 177 61 6 28 27 325 7 242 248 14 10 11 10 32 11 32 84 85 85 177 7 49 7 4 6 13 1 177 177 13 14 30 34 220 265 227 140 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PEDAL; CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. H.S.A SYSTEM<6EP> 		8-97853-220-1 01 1 9304-9502 ● ● ● ● ● ●
1 PEDAL; CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97853-220-1 01 1 9503-9703 ● ● ● ● ● ●
1 PEDAL; CLU
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97853-220-1 01 1 9704-9801 ● ● ● ● ● ●
1 PEDAL; CLU
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> 		8-97853-220-1 01 1 9802- ● ● ● ● ● ●
1 PEDAL; CLU
CLUTCH FREE(7RW) 		8-97853-220-1 01 1 9802- ● ● ● ● ● ●
1 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97853-219-0 01 1 9304-9404 ● ●
1 PEDAL; CLU
M/T MSB5S(R45) 		8-97853-219-1 01 1 9405-9502 ● ●
1 PEDAL; CLU
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97853-219-1 01 1 9503-9703 ● ● ● ● ●
1 PEDAL; CLU
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> 		8-97853-219-1 01 1 9704-9801 ● ● ●
1 PEDAL; CLU
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) 		8-97853-219-1 01 1 9802- ● ● ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> FLOOR REMOTE SHIFT<M11> 		8-97856-115-0 01 1 9304-9404 ● ● ● ●
1 PEDAL; CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97856-115-1 01 1 9405-9502 ● ● ● ●
1 PEDAL; CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> 		8-97856-115-1 01 1 9503-9801 ● ● ● ● ● ●
1 PEDAL; CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97856-115-1 01 1 9802- ● ● ● ● ● ●
4 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-534-0 02 1 9304- ● ● ● ● ● ●
6 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> (C) 		8-94238-596-0 02 1 9304- ● ● ● ● ● ●
6 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> (A) 		8-97853-619-0 02 1 9304-9404 ● ●
6 BUSHING; CLU PEDAL
M/T MSB5S(R45) (A) 		8-97853-619-0 02 1 9405-9502 ● ●
6 BUSHING; CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (A) 		8-97853-619-0 02 1 9503-9703 ● ● ● ● ●
6 BUSHING; CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (A) 		8-97853-619-0 02 1 9704-9801 ● ● ●
6 BUSHING; CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (A) 		8-97853-619-0 02 1 9802- ● ● ●
6 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> (B) 		8-97853-620-0 01 1 9304-9404 ● ●
6 BUSHING; CLU PEDAL
M/T MSB5S(R45) (B) 		8-97853-620-0 01 1 9405-9502 ● ●
6 BUSHING; CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (B) 		8-97853-620-0 01 1 9503-9703 ● ● ● ● ●
6 BUSHING; CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (B) 		8-97853-620-0 01 1 9704-9801 ● ● ●
6 BUSHING; CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (B) 		8-97853-620-0 01 1 9802- ● ● ●
7 BRACKET; CLU PEDAL
(A) 		8-97853-522-4 01 1 9304- ● ● ● ● ● ●
7 BRACKET; CLU PEDAL
EXC. FLOOR REMOTE SHIFT<M11> (B) 		8-97853-790-3 01 1 9304-9309 ● ● ● ● ● ●
7 BRACKET; CLU PEDAL
A/T 4 SPEED-JATCO(RMK) (B) 		8-97853-790-4 01 1 9310- ● ● ● ● ● ●
9 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-213-0 01 1 9304-9511 ● ● ● ● ● ●
9 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97866-667-0 01 1 9512- ● ● ● ● ● ●
10 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-94410-276-0 01 1 9304- ● ● ● ● ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 		8-94279-912-0 01 1 9304- ● ● ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> (A) 		8-97853-535-0 01 1 9304-9404 ● ●
13 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> (A) 		8-97853-535-0 01 1 9304-9404 ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) (A) 		8-97853-535-1 01 1 9405-9502 ● ● ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97853-535-1 01 1 9503-9703 ● ● ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97853-535-1 01 1 9704- ● ● ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> (B) 		8-97853-221-0 01 1 9304-9404 ● ●
13 SPRING; ASSIST,CLU PEDAL
M/T MSB5S(R45) (B) 		8-97853-221-1 01 1 9405-9502 ● ●
13 SPRING; ASSIST,CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (B) 		8-97853-221-1 01 1 9503-9703 ● ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (B) 		8-97853-221-1 01 1 9704-9801 ● ● ●
13 SPRING; ASSIST,CLU PEDAL
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (B) 		8-97853-221-1 01 1 9802- ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
EXC. FLOOR REMOTE SHIFT<M11> (B) 		8-97853-789-1 01 1 9304-9309 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-JATCO(RMK) (B) 		8-97853-789-3 01 1 9310-9609 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-JATCO(RMK) (B) 		8-97867-999-1 01 1 9610- ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> (A) 		8-97853-217-1 01 1 9304-9404 ● ●
14 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. H.S.A SYSTEM<6EP> (A) 		8-97853-217-1 01 1 9304-9404 ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) EXC. H.S.A SYSTEM<6EP> (A) 		8-97853-217-2 01 1 9405-9502 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> (A) 		8-97853-217-3 01 1 9503-9609 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> (A) 		8-97867-997-0 01 1 9610-9703 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> (A) 		8-97867-997-1 01 1 9704-9801 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. H.S.A SYSTEM<6EP> (A) 		8-97890-257-2 01 1 9802- ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
CLUTCH FREE(7RW) (A) 		8-97890-257-2 01 1 9802- ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> (A) 		8-97856-402-1 01 1 9304-9404 ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MSB5S(R45) (A) 		8-97856-402-2 01 1 9405-9502 ● ●
14 BRACKET ASM; CLU PEDAL MTG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (A) 		8-97856-402-3 01 1 9503-9609 ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (A) 		8-97867-998-0 01 1 9610-9703 ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> (A) 		8-97867-998-1 01 1 9704-9801 ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. CLUTCH FREE(7RW) (A) 		8-97890-256-2 01 1 9802- ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> FLOOR REMOTE SHIFT<M11> (A) 		8-97856-114-2 01 1 9304-9404 ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97856-114-3 01 1 9405-9502 ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97856-114-4 01 1 9503-9609 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97868-001-1 01 1 9610-9801 ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) (A) 		8-97890-258-2 01 1 9802- ● ● ● ● ● ●
25 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 01 1 9512- ● ● ● ● ● ●
27 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> M10 		9-09110-410-0 01 1 9304-9406 ● ● ● ● ● ●
27 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> M10 FLANGE 		1-09440-022-0 01 1 9407- ● ● ● ● ● ●
28 WASHER; LK,FULCRUM PIN
FLOOR REMOTE SHIFT<M11> ID=10.2 		9-09150-610-0 01 1 9304-9406 ● ● ● ● ● ●
30 BOLT; CLU MTG BRKT
(A) M10X25 		8-94279-212-0 02 1 9304-9309 ● ● ● ● ● ●
30 BOLT; CLU MTG BRKT
(A) M10X25 		8-94279-212-0 01 1 9310-9603 ● ● ● ● ● ●
30 BOLT; CLU MTG BRKT
(A) M10X25 FLANGE 		0-28691-025-0 01 1 9604- ● ● ● ● ● ●
30 BOLT; CLU MTG BRKT
(B) M10X25 		1-09980-494-0 01 1 9310-9511 ● ● ● ● ● ●
32 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> M8 W/LK WASHER 		8-94279-050-0 02 1 9304- ● ● ● ● ● ●
34 NUT; BRKT TO DASH LWR
M8 		9-09110-408-0 01 1 9304-9310 ● ● ● ● ● ●
49 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-413-1 01 1 9304- ● ● ● ● ● ●
61 NUT; BOOSTER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) M8 W/LK WASHER 		8-94279-050-0 04 1 9304-9502 ● ● ● ● ● ●
61 NUT; BOOSTER TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) M8 W/LK WASHER 		8-94279-050-0 04 1 9503-9703 ● ● ● ● ● ●
61 NUT; BOOSTER TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) M8 W/LK WASHER 		8-94279-050-0 04 1 9704- ● ● ● ● ● ●
84 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> 		8-97075-302-1 01 1 9304-9403 ● ● ● ● ● ●
84 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> 		8-97113-845-0 01 1 9404-9502 ● ● ● ● ● ●
84 HOSE; RUBBER,CLU LINE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) 		8-97113-845-0 01 1 9503-9507 ● ● ● ● ● ●
84 HOSE; RUBBER,CLU LINE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) 		8-97135-024-0 01 1 9508- ● ● ● ● ● ●
85 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 		8-97094-435-0 02 1 9404-9502 ● ● ● ● ● ●
85 CLIP; HOSE TO M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) 		8-97094-435-0 02 1 9503-9507 ● ● ● ● ● ●
85 CLIP; HOSE TO M/CYL
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5M(RM5), M/T MSB5S(R45) 		8-97130-480-0 02 1 9508- ● ● ● ● ● ●
140 BOLT; BRKT
PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) PTO MANUAL CONTROL(6WC) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9304-9401 ● ● ● ● ● ●
140 BOLT; BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9405-9502 ● ● ● ●
140 BOLT; BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9503-9801 ● ● ● ● ● ●
140 BOLT; BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9802- ● ● ● ● ● ●
177 NUT; BRKT
EXC. FLOOR REMOTE SHIFT<M11> M8 W/LK WASHER 		8-94279-050-0 02 1 9304-9309 ● ● ● ● ● ●
177 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) M8 W/LK WASHER 		8-94279-050-0 02 1 9310-9401 ● ● ● ● ● ●
177 NUT; BRKT
M8 W/LK WASHER 		8-94279-050-0 02 1 9402- ● ● ● ● ● ●
177 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) M8 W/LK WASHER 		8-94279-050-0 02 1 9402- ● ● ● ● ● ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> FLOOR REMOTE SHIFT<M11> (A) 		8-97079-895-1 01 1 9304-9404 ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97079-895-1 01 1 9405-9502 ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97079-895-1 01 1 9503-9609 ● ● ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97166-388-0 01 1 9610-9801 ● ● ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) (A) 		8-97166-388-0 01 1 9802- ● ● ● ● ● ●
220 SENSOR; CLUTCH
CLUTCH FREE(7RW) (B) 		8-97161-552-0 01 1 9802- ● ● ●
227 SCREW; BRKT
H.S.A SYSTEM<6EP> FLOOR REMOTE SHIFT<M11> M6X20 W/LK&PL WASHER 		9-03920-620-0 02 1 9304-9404 ● ● ● ●
242 BOLT; BRKT,CLUTCH
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9304-9511 ● ● ● ● ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 9512- ● ● ● ● ● ●
248 BRACKET; PTO
PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) PTO MANUAL CONTROL(6WC) 		8-97853-792-0 01 1 9304-9401 ● ● ● ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE 		8-94279-517-0 01 1 9311-9609 ● ● ● ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE 		8-97046-127-0 01 1 9610- ● ● ● ● ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 9802- ● ● ● ● ● ●

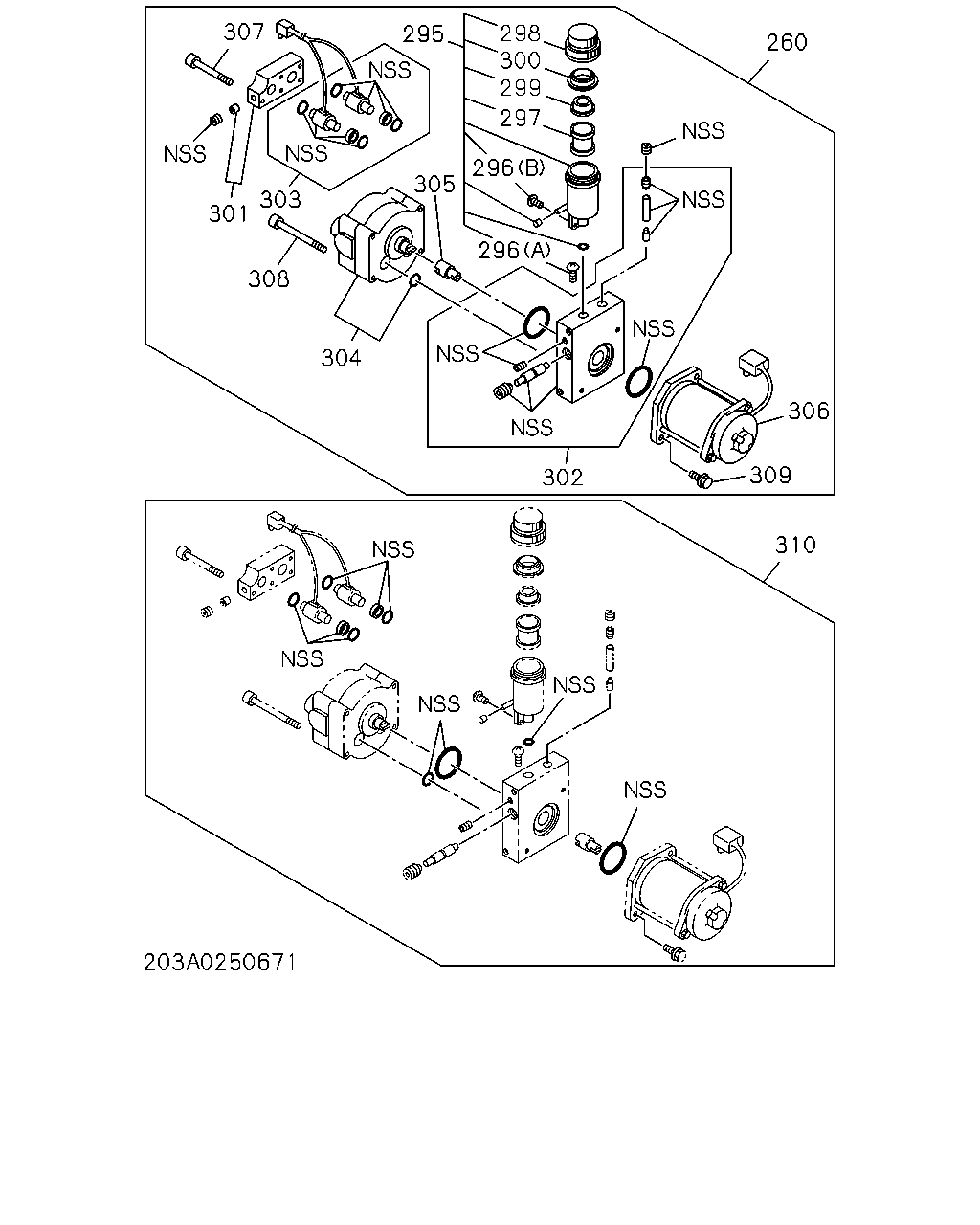

çizim 493847
307 295 305 308 303 301 304 298 300 299 297 296 296 260 306 309 310 302
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
260 ACTUATOR; AUTO CLU
CLUTCH FREE(7RW) 		8-97168-252-0 01 1 9802- ● ● ●
295 TANK ASM; OIL,ACTUATOR
CLUTCH FREE(7RW) 		8-97201-087-0 01 1 9802- ● ● ●
296 SCREW; OIL TANK,ACTUATOR
CLUTCH FREE(7RW) (A) 		8-97200-912-0 01 1 9802- ● ● ●
296 SCREW; OIL TANK,ACTUATOR
CLUTCH FREE(7RW) (B) 		8-97200-913-0 01 1 9802- ● ● ●
297 FILTER; OIL TANK,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-914-0 01 1 9802- ● ● ●
298 CAP; OIL TANK,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-915-0 01 1 9802- ● ● ●
299 DIAPHRAGM; OIL TANK,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-916-0 01 1 9802- ● ● ●
300 PLATE; OIL TANK,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-917-0 01 1 9802- ● ● ●
301 HEAD ASM; SOLENOID VLV,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-918-0 01 1 9802- ● ● ●
302 BODY ASM; ACTUATOR
CLUTCH FREE(7RW) 		8-97200-921-0 01 1 9802- ● ● ●
303 VALVE ASM; SOLENOID,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-922-0 01 1 9802- ● ● ●
304 PUMP ASM; OIL,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-923-0 01 1 9802- ● ● ●
305 SHAFT; COUPLING,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-924-0 01 1 9802- ● ● ●
306 MOTOR ASM; ACTUATOR
CLUTCH FREE(7RW) 		8-97200-925-0 01 1 9802- ● ● ●
307 BOLT; SOLENOID VLV,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-926-0 04 1 9802- ● ● ●
308 BOLT; PUMP,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-927-0 02 1 9802- ● ● ●
309 BOLT; MOTOR,ACTUATOR
CLUTCH FREE(7RW) 		8-97200-928-0 02 1 9802- ● ● ●
310 REPAIR KIT; ACTUATOR
CLUTCH FREE(7RW) 		8-97200-929-0 01 1 9802- ● ● ●

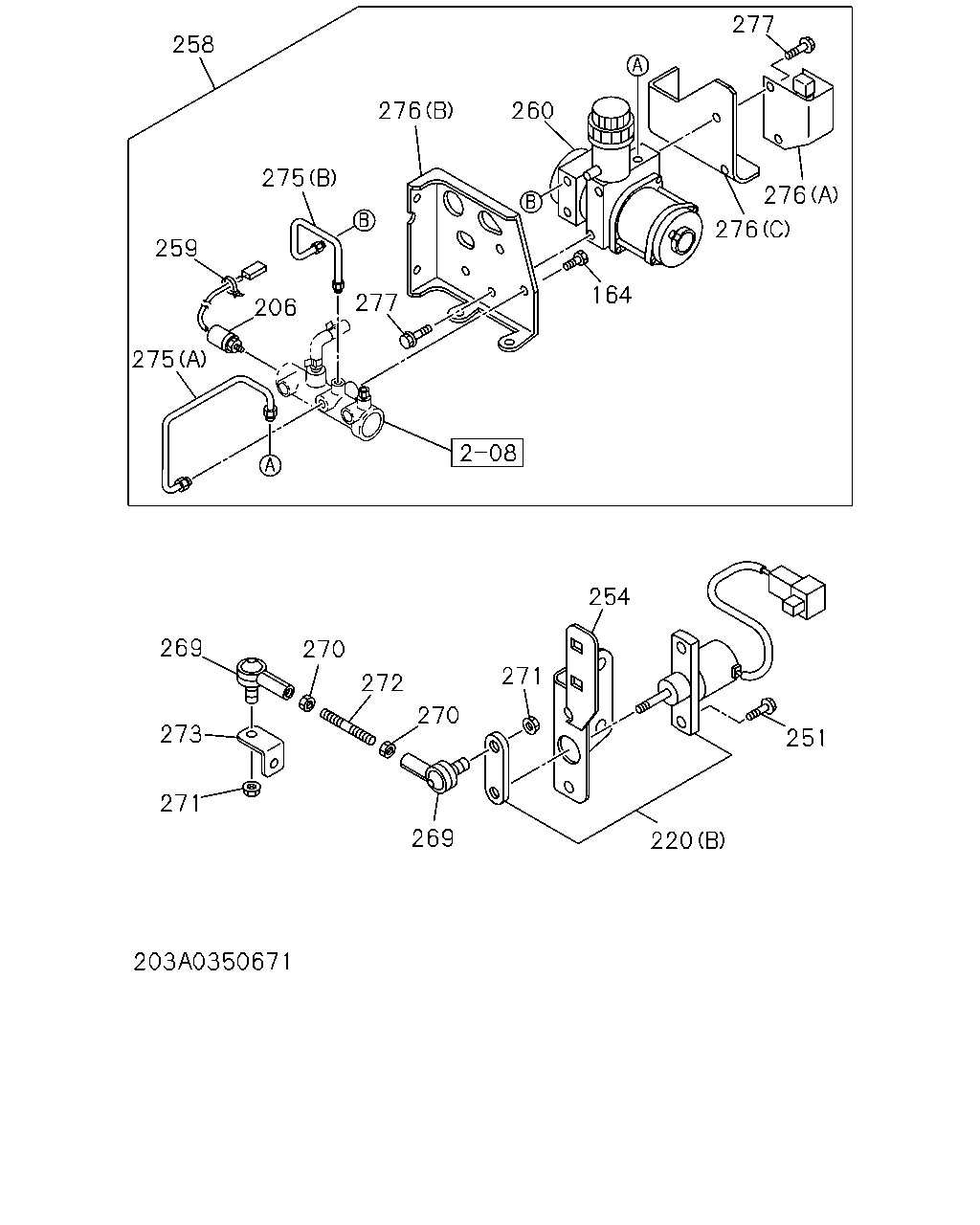

çizim 493848
258 275 259 206 275 277 164 276 276 277 260 276 254 271 251 220 269 270 272 270 273 269 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
164 BOLT; CLU M/CYL
CLUTCH FREE(7RW) M8X16 FLANGE 		0-28080-816-0 04 1 9802- ● ● ●
206 SWITCH; OIL PRESS,CLUTCH
CLUTCH FREE(7RW) 		8-97168-254-0 01 1 9802- ● ● ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> FLOOR REMOTE SHIFT<M11> (A) 		8-97079-895-1 01 1 9304-9404 ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97079-895-1 01 1 9405-9502 ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97079-895-1 01 1 9503-9609 ● ● ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> (A) 		8-97166-388-0 01 1 9610-9801 ● ● ● ● ● ●
220 SENSOR; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) (A) 		8-97166-388-0 01 1 9802- ● ● ● ● ● ●
220 SENSOR; CLUTCH
CLUTCH FREE(7RW) (B) 		8-97161-552-0 01 1 9802- ● ● ●
251 BOLT; SENSOR
CLUTCH FREE(7RW) M6X16 FLANGE 		0-28680-616-0 02 1 9802- ● ● ●
254 BRACKET; CLU SENSOR
CLUTCH FREE(7RW) 		8-97161-003-1 01 1 9802- ● ● ●
258 ACTUATOR ASM; AUTO CLU
CLUTCH FREE(7RW) 		8-97161-561-1 01 1 9802-9901 ● ● ●
258 ACTUATOR ASM; AUTO CLU
CLUTCH FREE(7RW) 		8-97225-201-0 01 1 9902- ● ● ●
259 CLIP; BAND
CLUTCH FREE(7RW) 		8-97190-577-0 05 1 9802- ● ● ●
260 ACTUATOR; AUTO CLU
CLUTCH FREE(7RW) 		8-97168-252-0 01 1 9802- ● ● ●
269 JOINT; BALL,ROD
CLUTCH FREE(7RW) 		8-97168-051-0 02 1 9802- ● ● ●
270 NUT; ROD
CLUTCH FREE(7RW) M6 		9-09110-406-0 02 1 9802- ● ● ●
271 NUT; JOINT
CLUTCH FREE(7RW) M6 FLANGE 		0-91150-106-0 02 1 9802- ● ● ●
272 ROD; LINK
CLUTCH FREE(7RW) 		9-08400-605-0 01 1 9802- ● ● ●
273 BRACKET; LINK
CLUTCH FREE(7RW) 		8-97161-002-0 01 1 9802- ● ● ●
275 PIPE; CLU CYL
CLUTCH FREE(7RW) (A) 		8-97168-255-0 01 1 9802- ● ● ●
275 PIPE; CLU CYL
CLUTCH FREE(7RW) (B) 		8-97168-256-0 01 1 9802- ● ● ●
276 BRACKET; ACTUATOR
CLUTCH FREE(7RW) (B) 		8-97168-257-0 01 1 9802- ● ● ●
276 BRACKET; ACTUATOR
CLUTCH FREE(7RW) (C) 		8-97168-258-0 01 1 9802- ● ● ●
276 BRACKET; ACTUATOR
CLUTCH FREE(7RW) (A) 		8-97190-578-0 01 1 9802- ● ● ●
277 BOLT; ACTUATOR
CLUTCH FREE(7RW) M10X20 FLANGE 		0-28081-020-0 04 1 9802-9901 ● ● ●
277 BOLT; ACTUATOR
CLUTCH FREE(7RW) M10X16 FLANGE 		0-28081-016-0 04 1 9902- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
