2-01 — CLUTCH (#166684) — 75 parça

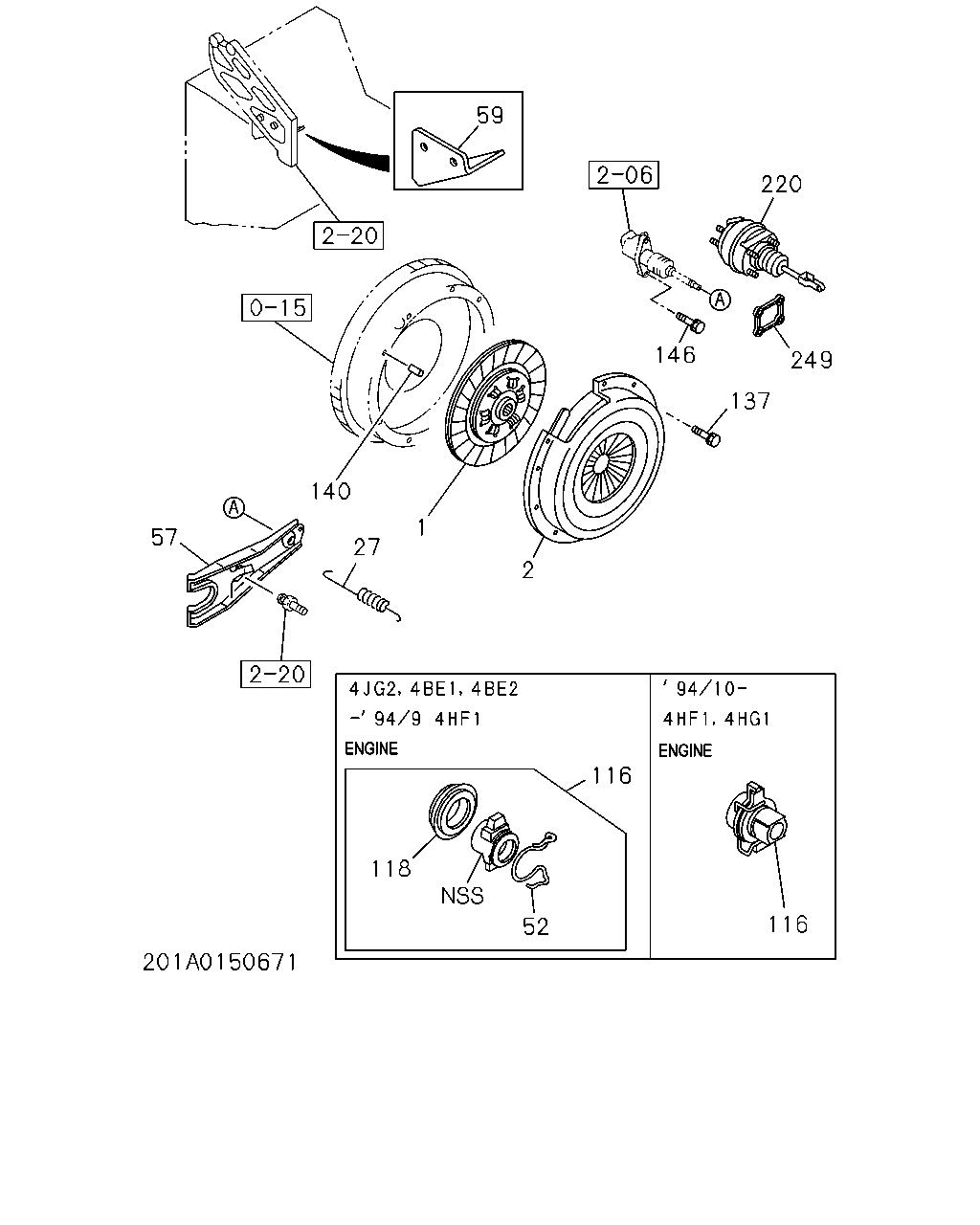

çizim 494306
59 146 220 249 137 2 1 140 27 57 116 116 52 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DISC; CLUTCH
10.8" 		8-97079-521-0 01 1 9304-9502 ● ●
1 DISC; CLUTCH 8-97080-564-1 01 1 9304-9509 ●
1 DISC; CLUTCH 8-97135-492-0 01 1 9510-9806 ●
1 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 DISC; CLUTCH 8-97217-985-0 01 1 9810- ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97076-639-2 01 1 9304-9502 ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97076-639-2 01 1 9503-9503 ● ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97118-840-0 01 1 9504-9511 ● ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97139-129-0 01 1 9512-9701 ● ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97162-966-0 01 1 9702-9703 ● ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97162-966-1 01 1 9704-9801 ● ● ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		8-97162-966-1 01 1 9802- ● ● ●
1 DISC; CLUTCH
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97166-390-1 01 1 9802- ●
2 PLATE ASM; PRESSURE,CLU 8-97031-759-2 01 1 9304-9502 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97090-843-0 01 1 9304-9504 ●
2 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9505- ●
2 PLATE ASM; PRESSURE,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97031-757-2 01 1 9304- ● ● ●
27 SPRING; RETURN,SHIFT FORK
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-94335-691-2 01 1 9304-9502 ● ● ●
27 SPRING; RETURN,SHIFT FORK
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94335-691-2 01 1 9503-9703 ● ●
27 SPRING; RETURN,SHIFT FORK
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94335-691-2 01 1 9704-9712 ● ● ●
27 SPRING; RETURN,SHIFT FORK
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97184-359-0 01 1 9801- ● ● ●
27 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9304-9712 ●
27 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9801- ●
52 SPRING; SHIFT BLOCK TO FORK
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) 		8-97017-094-0 01 1 9304-9409 ● ● ● ● ●
52 SPRING; SHIFT BLOCK TO FORK
M/T MSB5S(R45),M/T MSA5G(S7G) 		8-97017-094-0 01 1 9410-9502 ● ● ●
52 SPRING; SHIFT BLOCK TO FORK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97017-094-0 01 1 9503- ●
57 FORK; SHIFT,CLU 8-97022-322-0 01 1 9304-9502 ● ●
57 FORK; SHIFT,CLU 8-97033-701-0 01 1 9304-9502 ●
57 FORK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-701-0 01 1 9503- ●
57 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97045-138-0 01 1 9304-9712 ● ● ●
57 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97187-936-0 01 1 9801-9801 ● ● ●
57 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. CLUTCH FREE(7RW) 		8-97187-936-0 01 1 9802- ● ● ●
57 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97187-937-0 01 1 9802- ●
59 GUIDE; AIR,SLAVE CYL 8-97089-844-1 01 1 9304-9408 ●
116 BLOCK; SHIFT,CLU 8-97022-320-0 01 1 9304-9502 ● ●
116 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9304-9502 ●
116 BLOCK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-699-0 01 1 9503- ●
116 BLOCK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97013-553-0 01 1 9304-9409 ●
116 BLOCK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97089-652-0 01 1 9410- ● ● ●
118 BEARING; CLU RELEASE 8-97023-074-0 01 1 9304-9502 ● ●
118 BEARING; CLU RELEASE
JTEKT 		8-94379-499-0 01 1 9304-9502 ●
118 BEARING; CLU RELEASE
M/T MSB5M(RM5),M/T MSB5S(R45) JTEKT 		8-94379-499-0 01 1 9503- ●
118 BEARING; CLU RELEASE
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		1-09820-078-0 01 1 9304-9409 ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 12 1 9304-9502 ● ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9304-9611 ●
137 BOLT; CLU COVER
M8X16 FLANGE 		0-28080-816-0 06 1 9612- ●
137 BOLT; CLU COVER
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X20 W/LK WASHER 		8-94462-038-1 10 1 9304-9702 ● ●
137 BOLT; CLU COVER
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X16 FLANGE 		0-28081-016-0 10 1 9703- ● ● ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9304-9502 ● ● ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9503- ●
140 PIN; STRAIGHT
M/T MXA5R(RMT),M/T MXA 6R(RMU) L=25 		8-94410-361-0 02 1 9304- ● ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSB5S(R45), M/T MSA5G(S7G) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9304-9502 ● ● ● ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9503-9606 ● ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9703 ● ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> M8X30 FLANGE 		0-28680-830-0 02 1 9704- ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU),M/T MSA5G(S7G) 		8-97048-928-2 01 1 9304-9502 ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97048-928-2 01 1 9503-9703 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97162-962-1 01 1 9704- ● ● ●
249 SPACER; CLU BOOSTER
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97167-489-0 01 1 9704- ● ● ●

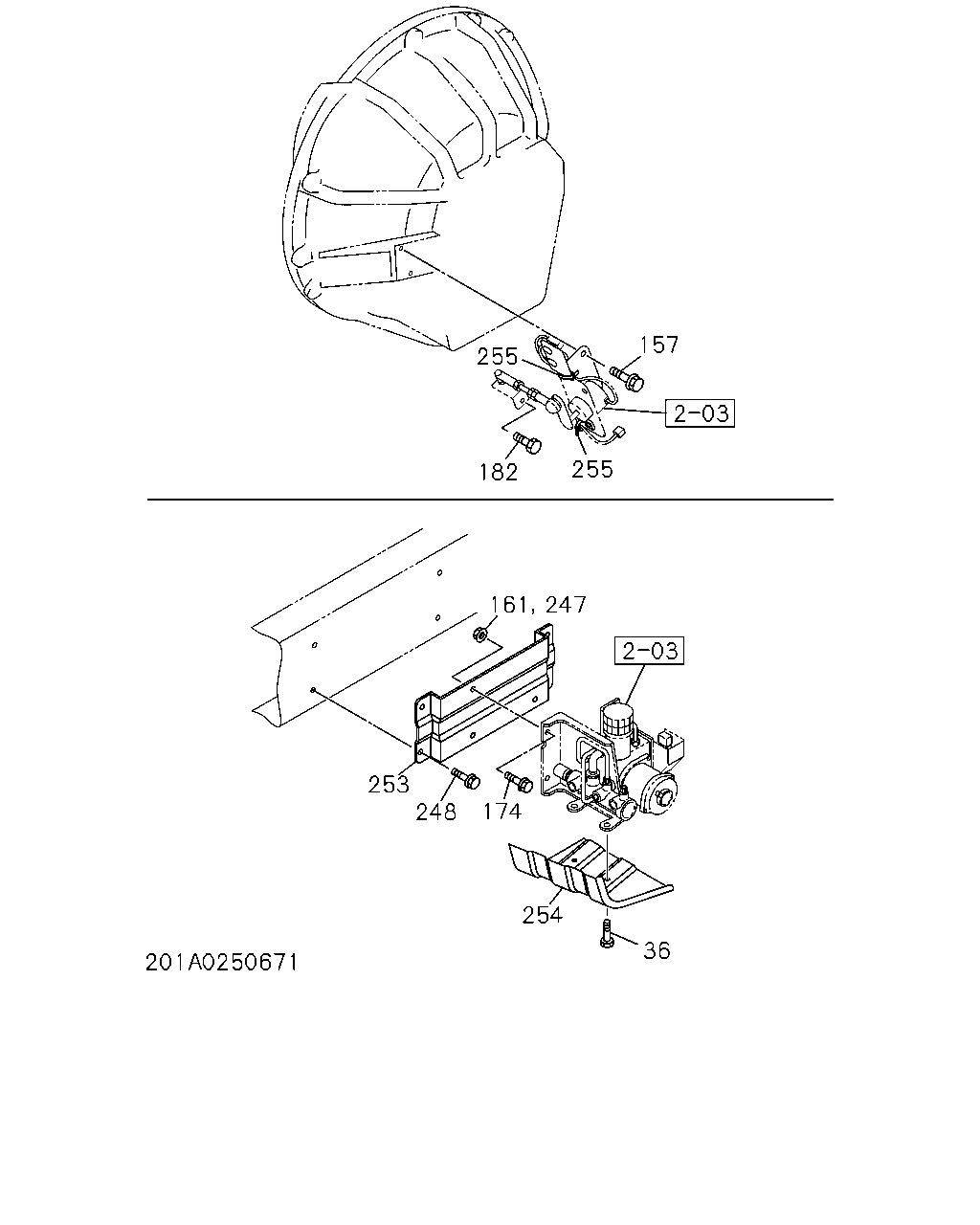

çizim 494341
255 157 255 182 161 247 174 248 253 254 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
36 BOLT; COVER
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) CLUTCH FREE(7RW) M8X20 FLANGE 		0-28680-820-0 02 1 9802-9811 ●
36 BOLT; COVER
MIDDLE CHASSIS(NK***F) CLUTCH FREE(7RW) M8X20 FLANGE 		0-28680-820-0 02 1 9812- ●
157 BOLT; BRKT
CLUTCH FREE(7RW) M8X16 FLANGE 		0-28080-816-0 02 1 9802- ●
161 NUT; BRKT
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) CLUTCH FREE(7RW) M10 FLANGE 		0-91150-110-0 01 1 9802-9811 ●
161 NUT; BRKT
MIDDLE CHASSIS(NK***F) CLUTCH FREE(7RW) M10 FLANGE 		0-91150-110-0 01 1 9812- ●
174 BOLT; BRKT
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) CLUTCH FREE(7RW) M10X30 FLANGE 		0-28681-030-0 03 1 9802-9811 ●
174 BOLT; BRKT
MIDDLE CHASSIS(NK***F) CLUTCH FREE(7RW) M10X30 FLANGE 		0-28681-030-0 03 1 9812- ●
182 BOLT
CLUTCH FREE(7RW) 		8-94310-164-1 01 1 9802- ●
247 NUT; ACTUATOR
CLUTCH FREE(7RW) M10 FLANGE 		0-91150-110-0 03 1 9802- ●
248 BOLT; ACTUATOR
CLUTCH FREE(7RW) M10X30 FLANGE 		0-28681-030-0 01 1 9802- ●
253 BRACKET; ACTUATOR
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) CLUTCH FREE(7RW) 		8-97203-513-0 01 1 9802-9811 ●
253 BRACKET; ACTUATOR
MIDDLE CHASSIS(NK***F) CLUTCH FREE(7RW) 		8-97203-513-0 01 1 9812- ●
254 COVER; UNDER
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) CLUTCH FREE(7RW) 		8-97173-849-0 01 1 9802-9811 ●
254 COVER; UNDER
MIDDLE CHASSIS(NK***F) CLUTCH FREE(7RW) 		8-97173-849-0 01 1 9812- ●
255 CLIP; HARNESS
CLUTCH FREE(7RW) L=140 		5-09707-031-1 01 1 9802- ●
255 CLIP; HARNESS
CLUTCH FREE(7RW) L=100 		5-09707-036-1 01 1 9802- ●
