6 |
VALVE; EXH BRAKE
4JG2 ENG(RJC)
|
8-97173-325-0 |
01 |
1 |
9802- |
● |
● |
● |
|
|
|
| |
6 |
VALVE; EXH BRAKE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
|
8-97094-669-0 |
01 |
1 |
9304-9502 |
● |
|
● |
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
|
8-97094-669-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97094-669-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4JG2 ENG(RJC)
|
8-97114-121-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-852-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9503-9504 |
● |
|
● |
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-852-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9503-9504 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9503-9504 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9505-9703 |
● |
|
● |
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97093-852-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-852-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9505-9703 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9505-9703 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9704-9706 |
● |
|
● |
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97093-852-0 |
01 |
1 |
9704-9706 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-852-0 |
01 |
1 |
9704-9706 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9704-9706 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9704-9706 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9704-9706 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-852-0 |
01 |
1 |
9704-9706 |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97177-736-0 |
01 |
1 |
9707- |
● |
|
● |
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97177-736-0 |
01 |
1 |
9707- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97177-736-0 |
01 |
1 |
9707- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97177-736-0 |
01 |
1 |
9707- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97177-736-0 |
01 |
1 |
9707- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97177-736-0 |
01 |
1 |
9707- |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97177-736-0 |
01 |
1 |
9707- |
|
|
|
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97091-701-0 |
01 |
1 |
9304-9502 |
● |
|
● |
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97091-701-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97091-701-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97091-701-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97091-701-0 |
01 |
1 |
9503- |
● |
|
● |
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97091-701-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97091-701-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97091-701-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4JG2 ENG(RJC)
|
8-97094-668-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
6 |
VALVE; EXH BRAKE
4JG2 ENG(RJC)
|
8-97094-668-0 |
01 |
1 |
9503-9612 |
● |
● |
● |
|
|
|
| |
6 |
VALVE; EXH BRAKE
4JG2 ENG(RJC)
|
8-97173-325-0 |
01 |
1 |
9701-9801 |
● |
● |
● |
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-850-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-850-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-850-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-850-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
6 |

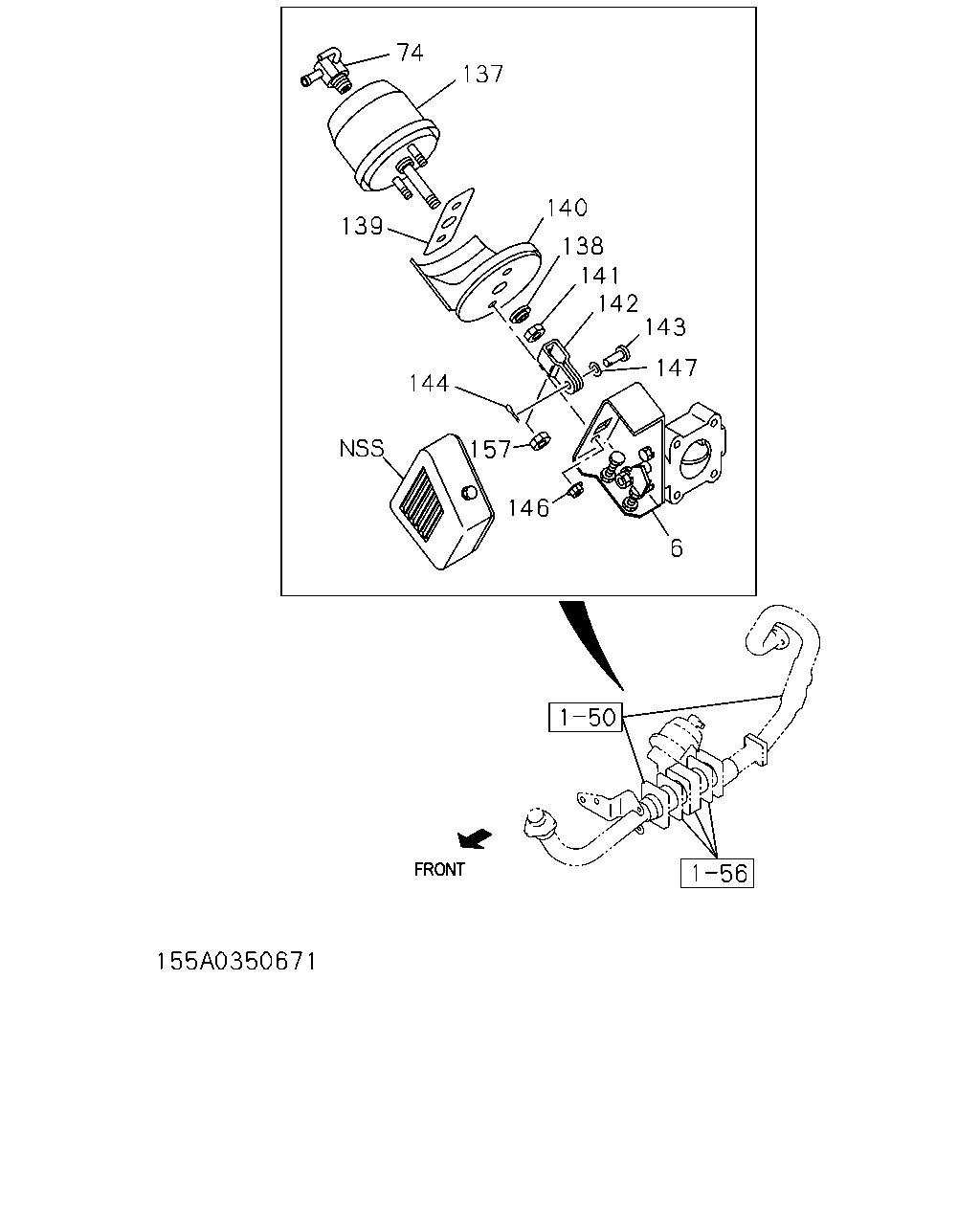

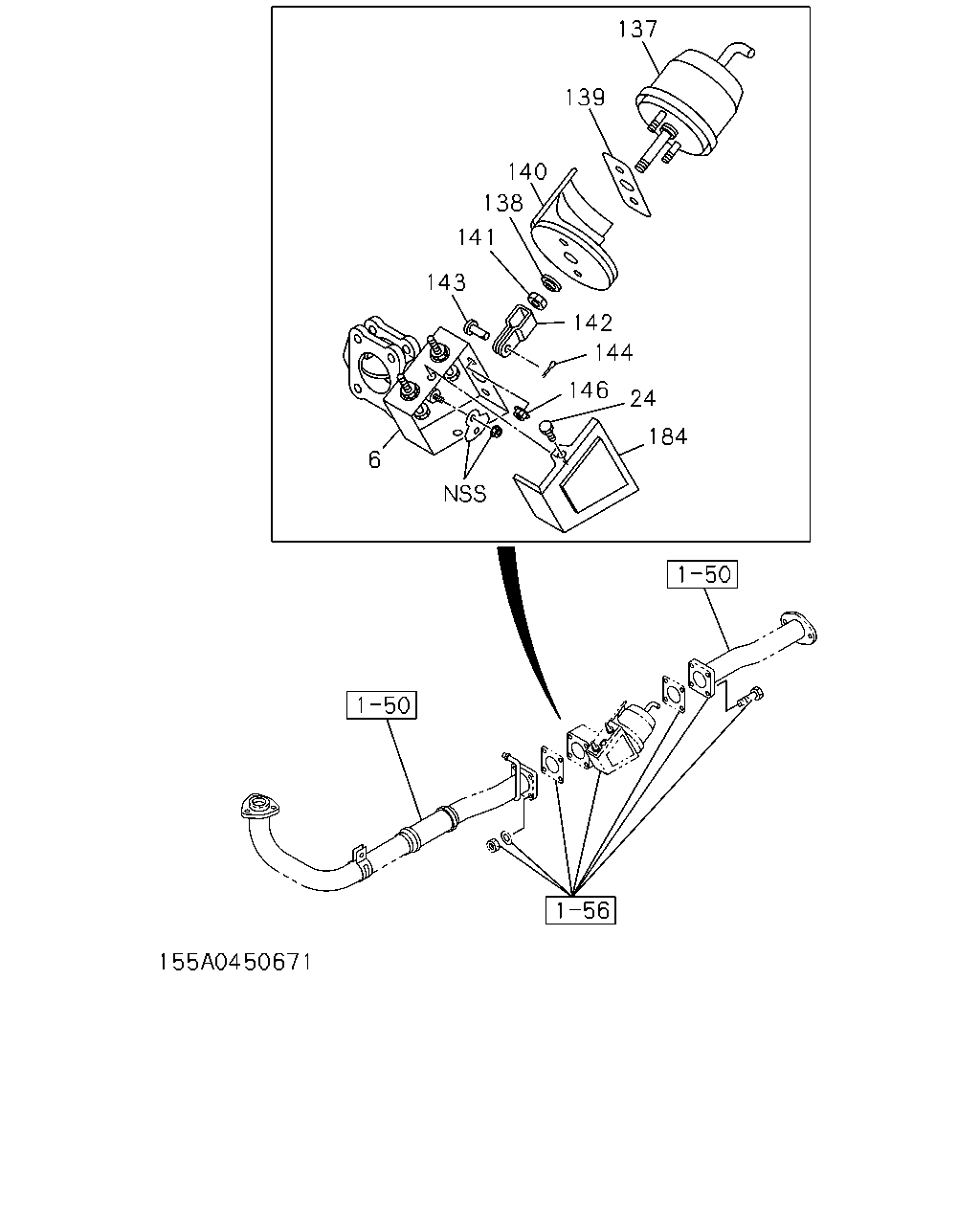

VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-850-0 |
01 |
1 |
9704-9802 |
|
● |
|
|
|
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-850-0 |
01 |
1 |
9704-9802 |
|
|
|
● |
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-850-0 |
01 |
1 |
9803- |
|
|
|
● |
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,ENG
QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,ENG
QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9503-9504 |
|
|
|
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97093-851-0 |
01 |
1 |
9503-9504 |
|
|
● |
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9505-9703 |
|
|
|
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97093-851-0 |
01 |
1 |
9505-9703 |
|
|
● |
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9704-9802 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9704-9802 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-851-0 |
01 |
1 |
9704-9802 |
|
|
|
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97093-851-0 |
01 |
1 |
9704-9802 |
|
|
● |
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97209-820-0 |
01 |
1 |
9803- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97209-820-0 |
01 |
1 |
9803- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),CNG ENGINE PACKAGE<7RY>
|
8-97209-820-0 |
01 |
1 |
9803- |
|
|
|
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97209-820-0 |
01 |
1 |
9803- |
|
|
● |
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97096-464-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97096-464-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97096-464-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97096-464-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97096-464-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97096-464-0 |
01 |
1 |
9503- |
|
|
● |
● |
● |
● |
| |
6 |
VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97209-676-0 |
01 |
1 |
9803- |
|
● |
|
|
|
● |
| |
74 |
CONNECTOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-377-0 |
01 |
1 |
9304-9502 |
● |
|
● |
● |
● |
● |
| |
74 |
CONNECTOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97039-377-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-377-0 |
01 |
1 |
9503- |
● |
|
● |
● |
● |
● |
| |
74 |
CONNECTOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97039-377-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-94311-454-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-94311-454-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-94311-454-0 |
01 |
1 |
9704- |
● |
● |
● |
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97096-812-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97096-812-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97096-812-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97096-812-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97066-252-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97066-252-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97066-252-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
● |
| |
74 |
CONNECTOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97066-252-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97066-252-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
74 |
CONNECTOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97066-252-0 |
01 |
1 |
9503- |
|
|
● |
● |
● |
● |
| |
137 |
CHAMBER; POWER
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
|
8-94383-631-0 |
01 |
1 |
9304-9502 |
● |
|
● |
● |
● |
● |
| |
137 |
CHAMBER; POWER
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
|
8-94383-631-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
● |
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9503-9612 |
● |
|
● |
|
|
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9503-9612 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9503-9612 |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97062-806-0 |
01 |
1 |
9503-9612 |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9701-9703 |
● |
|
● |
|
|
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9701-9703 |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9701-9703 |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9704- |
● |
|
● |
|
|
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9704- |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97173-327-0 |
01 |
1 |
9704- |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-374-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9503- |
● |
|
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97039-374-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97039-374-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97039-374-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-374-0 |
01 |
1 |
9503- |
|
|
|
● |
● |
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-374-0 |
01 |
1 |
9503- |
|
|
● |
|
|
|
| |
137 |
CHAMBER; POWER
4JG2 ENG(RJC)
|
8-94158-416-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
137 |
CHAMBER; POWER
4JG2 ENG(RJC)
|
8-94158-416-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
|
| |
137 |
CHAMBER; POWER
4JG2 ENG(RJC)
|
8-94158-416-0 |
01 |
1 |
9704- |
● |
● |
● |
|
|
|
| |
137 |
CHAMBER; POWER
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97094-670-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-459-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-459-0 |
01 |
1 |
9503-9612 |
|
● |
|
|
|
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97173-332-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97173-332-0 |
01 |
1 |
9704- |
|
● |
|
|
|
● |
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97094-457-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97094-457-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97094-457-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97094-457-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97094-457-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97094-457-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97094-457-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97094-457-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97094-457-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97094-457-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-328-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97173-328-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97173-328-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-328-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-328-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97173-328-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97173-328-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-328-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,ENG
QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,ENG
QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9503-9504 |
|
|
|
● |
● |
● |
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97094-458-0 |
01 |
1 |
9503-9504 |
|
|
● |
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97094-458-0 |
01 |
1 |
9505-9612 |
|
|
|
● |
● |
● |
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97094-458-0 |
01 |
1 |
9505-9612 |
|
|
● |
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97173-330-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97173-330-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97173-330-0 |
01 |
1 |
9701-9703 |
|
|
|
● |
● |
● |
| |
137 |
CHAMBER; POWER
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97173-330-0 |
01 |
1 |
9701-9703 |
|
|
● |
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97173-330-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97173-330-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97173-330-0 |
01 |
1 |
9704- |
|
|
|
● |
● |
● |
| |
137 |
CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97173-330-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
138 |
BEARING; EXH BRK VLV
4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E)
|
8-94311-446-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
138 |
BEARING; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E)
|
8-94311-446-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
138 |
BEARING; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
8-94311-446-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
138 |
BEARING; EXH BRK VLV
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
5-22189-004-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
138 |
BEARING; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
|
5-22189-004-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
138 |
BEARING; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
5-22189-004-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
138 |
BEARING; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
|
5-22189-004-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
138 |
BEARING; EXH BRK VLV
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
5-22189-004-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
138 |
BEARING; EXH BRK VLV
4JG2 ENG(RJC)
|
5-22189-004-0 |
01 |
1 |
9503-9612 |
● |
● |
● |
● |
● |
|
| |
138 |
BEARING; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
5-22189-004-0 |
01 |
1 |
9503-9612 |
|
|
|
● |
|
|
| |
138 |
BEARING; EXH BRK VLV
4JG2 ENG(RJC)
|
5-22189-004-0 |
01 |
1 |
9701-9703 |
● |
● |
● |
● |
● |
|
| |
138 |
BEARING; EXH BRK VLV
4JG2 ENG(RJC)
|
5-22189-004-0 |
01 |
1 |
9704- |
● |
● |
● |
|
|
|
| |
139 |
GASKET; EXH BRK VLV
|
8-94328-234-0 |
01 |
1 |
9304- |
● |
● |
● |
● |
● |
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9701-9703 |
● |
|
● |
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9701-9703 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9701-9703 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9704- |
● |
|
● |
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9704- |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97173-333-0 |
01 |
1 |
9704- |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
|
8-94383-633-0 |
01 |
1 |
9304-9502 |
● |
|
● |
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
|
8-94383-633-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-94383-633-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94383-633-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9503-9703 |
|
|
● |
● |
● |
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94383-633-0 |
01 |
1 |
9503-9703 |
|
|
|
● |
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94383-633-0 |
01 |
1 |
9704- |
|
|
● |
● |
● |
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94383-633-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-006-0 |
01 |
1 |
9304-9502 |
● |
|
● |
● |
● |
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-006-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97079-006-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97079-006-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-006-0 |
01 |
1 |
9503- |
● |
|
● |
● |
● |
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97079-006-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97079-006-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97079-006-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-97093-854-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-854-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-97093-854-0 |
01 |
1 |
9503-9504 |
● |
● |
● |
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9503-9504 |
● |
|
● |
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-854-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9503-9504 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9503-9504 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
● |
● |
● |
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
● |
|
● |
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9505-9612 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-97093-854-0 |
01 |
1 |
9701-9703 |
● |
● |
● |
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97093-854-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-854-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9701-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4JG2 ENG(RJC)
|
8-97093-854-0 |
01 |
1 |
9704- |
● |
● |
● |
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97093-854-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97093-854-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97093-854-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,ENG
QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,ENG
QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT
SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9503-9504 |
|
|
|
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9503-9504 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97093-853-0 |
01 |
1 |
9503-9504 |
|
|
● |
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9505-9703 |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9505-9703 |
|
|
|
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9505-9703 |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97093-853-0 |
01 |
1 |
9505-9703 |
|
|
● |
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97093-853-0 |
01 |
1 |
9704- |
|
|
|
● |
● |
|
| |
140 |
INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-97093-853-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E)
|
9-88510-009-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E)
|
9-88510-009-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
9-88510-009-0 |
01 |
1 |
9704-9801 |
● |
● |
● |
● |
● |
● |
| |
141 |
NUT; CLEVIS,EXH BRK VLV
|
9-88510-009-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
9-88510-258-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
|
9-88510-258-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
9-88510-258-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
|
9-88510-258-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
9-88510-258-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4JG2 ENG(RJC)
|
9-88510-258-0 |
01 |
1 |
9503-9612 |
● |
● |
● |
● |
● |
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
9-88510-258-0 |
01 |
1 |
9503-9612 |
|
|
|
● |
|
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4JG2 ENG(RJC)
|
9-88510-258-0 |
01 |
1 |
9701-9703 |
● |
● |
● |
● |
● |
|
| |
141 |
NUT; CLEVIS,EXH BRK VLV
4JG2 ENG(RJC)
|
9-88510-258-0 |
01 |
1 |
9704-9801 |
● |
● |
● |
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97177-311-0 |
01 |
1 |
9707-9802 |
● |
|
● |
|
|
● |
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
GARBAGE/VACUUM CHASSIS(V4G)
REAR WIDE TREAD(V4T)
|
8-97177-311-0 |
01 |
1 |
9707-9802 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF -
FLYWHEEL(6SZ)
|
8-97177-311-0 |
01 |
1 |
9707-9802 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97177-311-0 |
01 |
1 |
9707-9802 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97177-311-0 |
01 |
1 |
9707-9802 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97177-311-0 |
01 |
1 |
9707-9802 |
|
|
|
● |
● |
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97177-311-0 |
01 |
1 |
9707-9802 |
|
|
|
● |
● |
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E),ENG QUICK
WARM UP SYSTEM<6JZ>
|
8-97177-311-0 |
01 |
1 |
9803- |
● |
● |
● |
● |
● |
● |
| |
142 |
CLEVIS; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94428-084-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94428-084-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94428-084-0 |
01 |
1 |
9704-9706 |
● |
● |
● |
● |
● |
● |
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94428-084-0 |
01 |
1 |
9707-9802 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
EXC. GARBAGE/VACUUM CHASSIS(V4G),SUSPENSION -
RR UNDER SLUNG<V4U>,ENG QUICK WARM UP
SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP)
|
8-94428-084-0 |
01 |
1 |
9707-9802 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94428-084-0 |
01 |
1 |
9707-9802 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA
6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94428-084-0 |
01 |
1 |
9707-9802 |
|
|
|
|
|
● |
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94428-084-0 |
01 |
1 |
9707-9802 |
|
|
|
● |
● |
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94428-084-0 |
01 |
1 |
9707-9802 |
|
|
|
● |
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
DUMP CHASSIS(V4D)
|
8-94428-084-0 |
01 |
1 |
9707-9802 |
|
|
● |
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94428-084-0 |
01 |
1 |
9803- |
|
|
|
● |
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-375-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
142 |
CLEVIS; EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9503- |
● |
|
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-97039-375-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97039-375-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97039-375-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-375-0 |
01 |
1 |
9503- |
|
|
|
● |
● |
● |
| |
142 |
CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-97039-375-0 |
01 |
1 |
9503- |
|
|
● |
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4JG2 ENG(RJC)
|
8-94158-418-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
|
| |
142 |
CLEVIS; EXH BRK VLV
4JG2 ENG(RJC)
|
8-94158-418-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
|
| |
142 |
CLEVIS; EXH BRK VLV
4JG2 ENG(RJC)
|
8-94158-418-0 |
01 |
1 |
9704-9801 |
● |
● |
● |
|
|
|
| |
142 |
CLEVIS; EXH BRK VLV
4JG2 ENG(RJC)
|
8-97177-310-0 |
01 |
1 |
9802- |
● |
● |
● |
|
|
|
| |
143 |
PIN; EXH BRK VLV
4HF1 ENG(RLS)
|
8-94311-452-0 |
01 |
1 |
9304-9406 |
● |
● |
● |
● |
● |
● |
| |
143 |
PIN; EXH BRK VLV
4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E)
|
8-94311-452-0 |
01 |
1 |
9407-9502 |
● |
● |
● |
● |
● |
● |
| |
143 |
PIN; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E)
|
8-94311-452-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
143 |
PIN; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
8-94311-452-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
143 |
PIN; EXH BRK VLV
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
5-22189-008-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
143 |
PIN; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
|
5-22189-008-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
143 |
PIN; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
5-22189-008-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
143 |
PIN; EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
|
5-22189-008-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
143 |
PIN; EXH BRK VLV
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
5-22189-008-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
|
|
| |
143 |
PIN; EXH BRK VLV
4JG2 ENG(RJC)
|
5-22189-008-0 |
01 |
1 |
9503-9612 |
● |
● |
● |
● |
● |
|
| |
143 |
PIN; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
BOTTLE CARRIER CHASSIS(V4E)
EXC. ENG QUICK WARM UP SYSTEM<6JZ>
|
5-22189-008-0 |
01 |
1 |
9503-9612 |
|
|
|
● |
|
|
| |
143 |
PIN; EXH BRK VLV
4JG2 ENG(RJC)
|
5-22189-008-0 |
01 |
1 |
9701-9703 |
● |
● |
● |
● |
● |
|
| |
143 |
PIN; EXH BRK VLV
4JG2 ENG(RJC)
|
5-22189-008-0 |
01 |
1 |
9704- |
● |
● |
● |
|
|
|
| |
144 |
PIN; SPLIT,EXH BRK VLV
4HF1 ENG(RLS)
|
8-97029-428-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
144 |
PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97029-428-0 |
01 |
1 |
9503-9504 |
● |
● |
● |
● |
● |
● |
| |
144 |
PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. BOTTLE CARRIER CHASSIS(V4E)
|
8-97029-428-0 |
01 |
1 |
9505-9703 |
● |
● |
● |
● |
● |
● |
| |
144 |
PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
8-97029-428-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
144 |
PIN; SPLIT,EXH BRK VLV
4JG2 ENG(RJC),4BE1 ENG(RLH)
OD=1.8 L=20
|
9-08112-020-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
144 |
PIN; SPLIT,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
OD=1.8 L=20
|
9-08112-020-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
144 |
PIN; SPLIT,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
OD=1.8 L=20
|
9-08112-020-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
144 |
PIN; SPLIT,EXH BRK VLV
4JG2 ENG(RJC)
OD=1.8 L=20
|
9-08112-020-0 |
01 |
1 |
9503-9802 |
● |
● |
● |
|
|
|
| |
144 |
PIN; SPLIT,EXH BRK VLV
4JG2 ENG(RJC)
|
8-97010-295-1 |
01 |
1 |
9803- |
● |
● |
● |
|
|
|
| |
144 |
PIN; SPLIT,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-97094-673-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
144 |
PIN; SPLIT,EXH BRK VLV
4JG2 ENG(RJC)
|
8-97010-295-1 |
01 |
1 |
9503-9703 |
|
|
|
● |
● |
|
| |
146 |
NUT; EXH BRK VLV
M8 W/LK WASHER
|
8-94279-050-0 |
02 |
1 |
9304- |
● |
● |
● |
● |
● |
● |
| |
147 |
WASHER; PL,EXH BRK VLV
4BE1 ENG(RLH)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
SUSPENSION - RR UNDER SLUNG<V4U>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
147 |
WASHER; PL,EXH BRK VLV
4BE1 ENG(RLH),4BE2 ENGINE(RLQ)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
● |
|
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
147 |
WASHER; PL,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
|
|
|
● |
● |
● |
| |
147 |
WASHER; PL,EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9503- |
|
|
● |
|
|
|
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
● |
|
● |
|
|
|
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94388-225-0 |
01 |
1 |
9304-9502 |
|
|
|
● |
● |
|
| |
157 |
NUT; CLEVIS
4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9503- |
● |
|
|
|
|
|
| |
157 |
NUT; CLEVIS
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
FULL FLATLOW<6GL>
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER
TAKE OFF - FLYWHEEL(6SZ)
|
8-94388-225-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>
|
8-94388-225-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
GARBAGE/VACUUM CHASSIS(V4G)
SUSPENSION - RR UNDER SLUNG<V4U>
ENG QUICK WARM UP SYSTEM<6JZ>
POWER TAKE OFF - FLYWHEEL(6SZ)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-94388-225-0 |
01 |
1 |
9503- |
|
● |
|
|
|
|
| |
157 |
NUT; CLEVIS
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT),M/T MXA 6R(RMU)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94388-225-0 |
01 |
1 |
9503- |
|
|
|
● |
● |
● |
| |
157 |
NUT; CLEVIS
4HG1 ENG(RJH),4HF1 ENG(RLS)
M/T MXA5R(RMT)
ENG QUICK WARM UP SYSTEM<6JZ>
|
8-94388-225-0 |
01 |
1 |
9503- |
|
|
● |
|
|
|
