◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#166680) — 40 parça

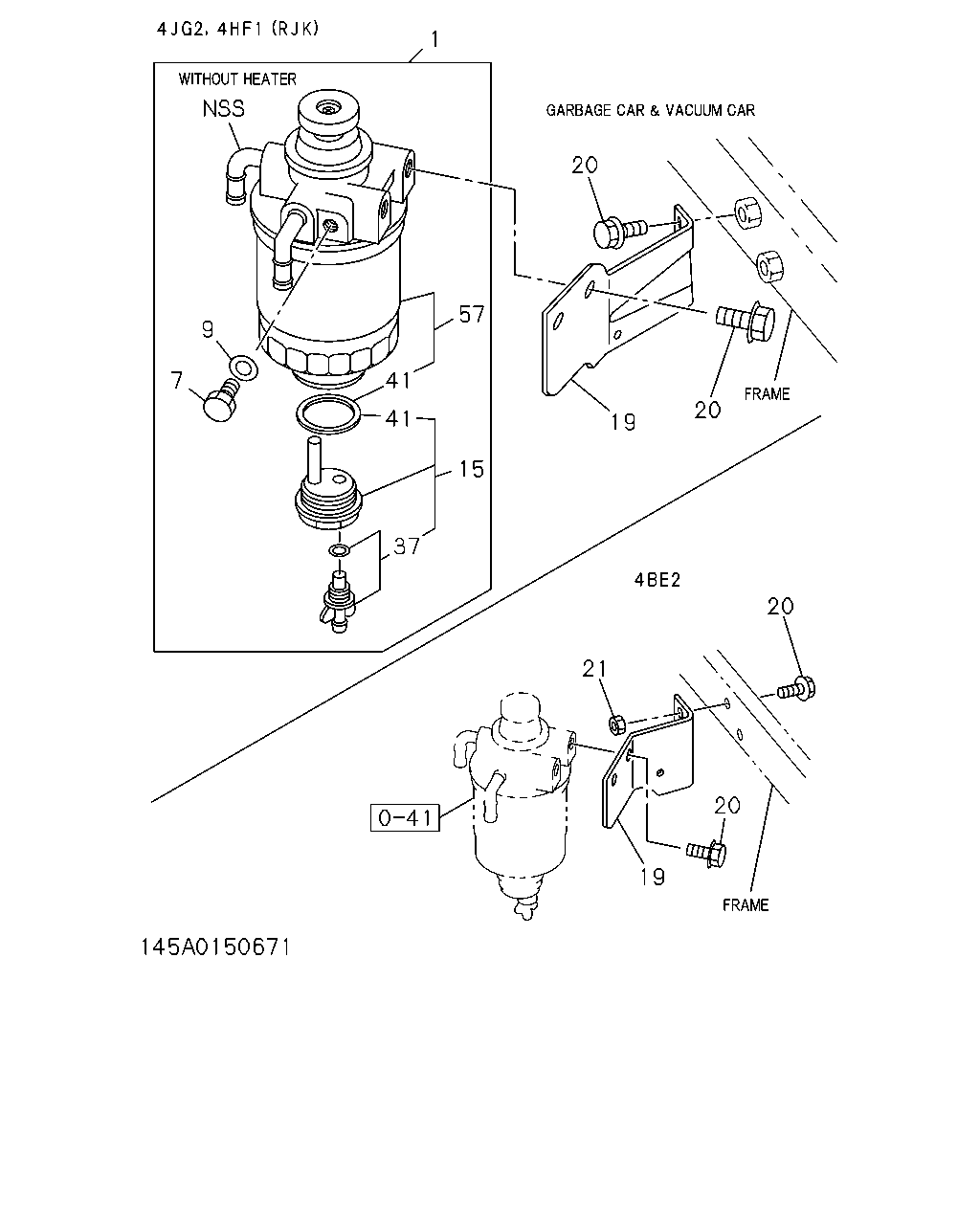

çizim 493908
1 7 9 41 41 37 15 57 20 19 20 20 21 19 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97065-965-0 01 1 9304-9502 ● ●
1 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97065-965-0 01 1 9503-9703 ● ● ● ● ●
1 SEDIMENTER; FUEL
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97065-965-0 01 1 9704- ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9304-9502 ● ●
7 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9503-9703 ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9704- ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9304-9502 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9503-9703 ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9704- ● ● ● ● ●
15 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 9304-9502 ● ●
15 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 9503-9703 ● ● ● ● ●
15 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 9704- ● ● ● ● ●
19 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) GARBAGE/VACUUM CHASSIS(V4G) 		8-97026-483-0 01 1 9304-9305 ●
19 BRACKET; FUEL SEDIMENTER
4BE2 ENGINE(RLQ) 		8-94366-685-0 01 1 9304-9502 ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) GARBAGE/VACUUM CHASSIS(V4G) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9304-9305 ●
20 BOLT; BRKT TO SEDIMENTER
4BE2 ENGINE(RLQ) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9304-9305 ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4BE2 ENGINE(RLQ) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9306-9502 ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. GARBAGE/VACUUM CHASSIS(V4G) M8X20 W/LK WASHER 		0-50040-820-0 03 1 9304-9305 ● ●
20 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9401 ● ● ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) M8X25 FLANGE 		0-28080-825-0 02 1 9402-9408 ● ● ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) M8X25 FLANGE 		0-28080-825-0 02 1 9409-9502 ● ●
20 BOLT; BRKT TO SEDIMENTER
4BE2 ENGINE(RLQ) M8X25 FLANGE 		0-28080-825-0 02 1 9409-9502 ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) M8X25 FLANGE 		0-28080-825-0 02 1 9503-9703 ● ● ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ● ● ● ●
20 BOLT; BRKT TO SEDIMENTER
4BE2 ENGINE(RLQ) M8X22 W/LK&PL WASHER 		0-50140-822-0 02 1 9304-9408 ● ● ●
21 NUT; BRKT TO FRAME
4BE2 ENGINE(RLQ) M8 		9-09110-508-0 02 1 9304-9408 ● ● ●
21 NUT; BRKT TO FRAME
4BE2 ENGINE(RLQ) EXC. FRAME-KICK UP<7EW> M8 FLANGE 		0-91150-208-0 02 1 9409-9502 ● ● ●
37 PLUG; SENSOR
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9503-9703 ● ● ● ● ●
37 PLUG; SENSOR
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9704-9801 ● ● ● ● ●
37 PLUG; SENSOR
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 9802- ● ● ● ● ●
37 PLUG; SENSOR
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-146-0 01 1 9304-9502 ● ●
41 GASKET; SENSOR TO CASE
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		9-09563-334-0 01 1 9802- ● ● ● ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> LOW PRICE PART 		5-87310-452-0 01 1 9304-9703 ● ● ● ● ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> LOW PRICE PART 		5-87310-452-0 01 1 9704- ● ● ● ● ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-1 01 1 9304-9502 ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 9503-9703 ● ● ● ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 9704- ● ● ● ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX 		5-86750-215-1 01 1 9304-9502 ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX 		5-86750-215-1 01 1 9503-9703 ● ● ● ● ●
57 CARTRIDGE KIT; FUEL FILTER
4JG2 ENG(RJC),4HF1 ENG(RJK) EXC. FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX 		5-86750-215-1 01 1 9704- ● ● ● ● ●
