Sayfa 1-40 - Isuzu EPC

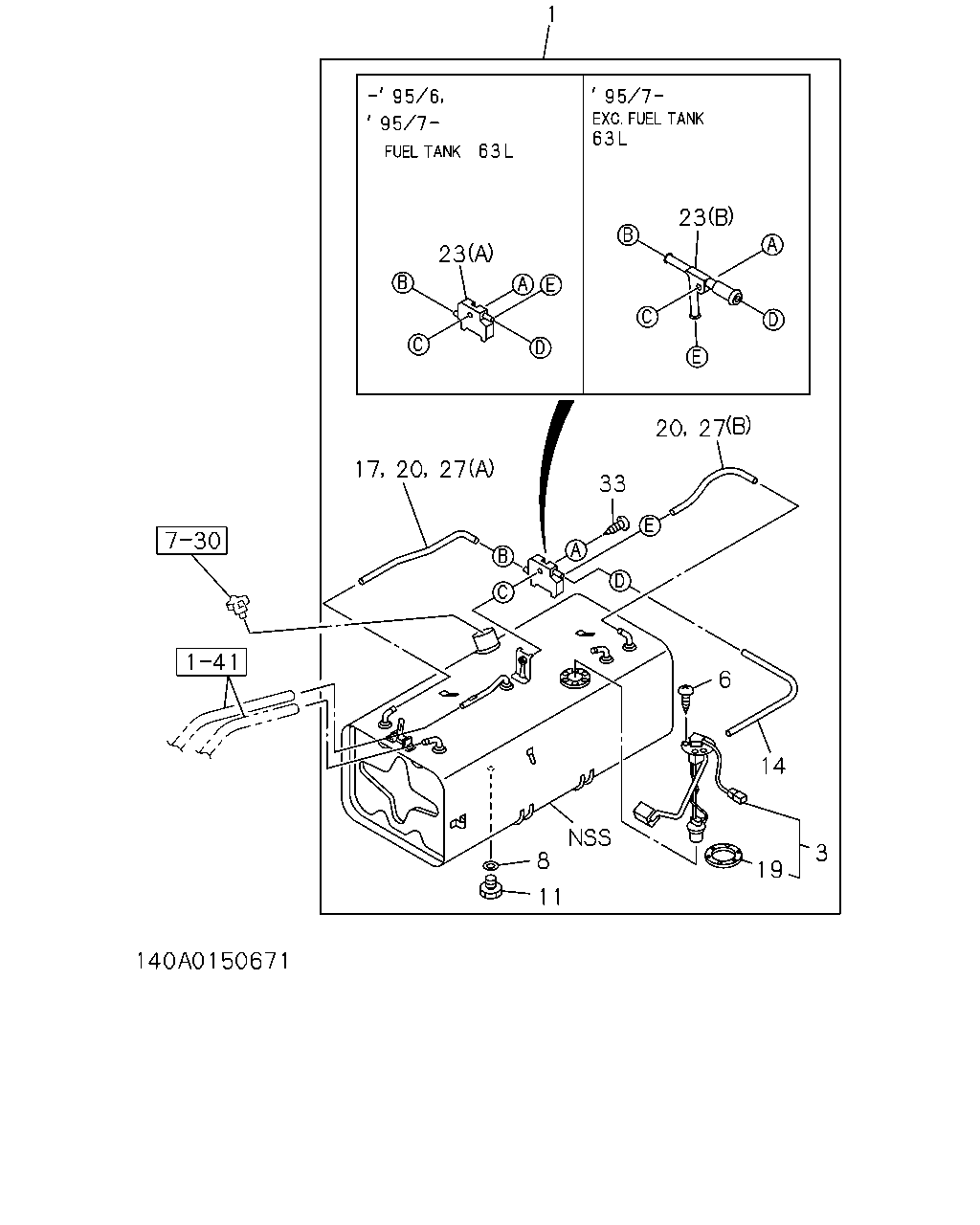

1-40 — FUEL TANK (#166678) — 400 parça

1 23 23 17 20 27 8 11 19 3 14 6 33 20 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL LOW DECK(V4S) 753X340X327 75L	8-97033-948-3	01	1	9304-9502	●
1	TANK; FUEL FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF> 753X340X327 75L	8-97033-948-3	01	1	9304-9502		●
1	TANK; FUEL 753X340X327 75L	8-97033-948-3	01	1	9304-9502			●
1	TANK; FUEL LOW DECK(V4S) 753X340X327 75L	8-97033-948-3	01	1	9503-9510	●
1	TANK; FUEL FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> 753X340X327 75L	8-97033-948-3	01	1	9503-9510		●
1	TANK; FUEL 753X340X327 75L	8-97033-948-3	01	1	9503-9510			●
1	TANK; FUEL LOW DECK(V4S) 753X340X327 75L	8-97131-121-0	01	1	9511-9801	●
1	TANK; FUEL FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> 753X340X327 75L	8-97131-121-0	01	1	9511-9801		●
1	TANK; FUEL 753X340X327 75L	8-97131-121-0	01	1	9511-9801			●
1	TANK; FUEL LOW DECK(V4S) 753X340X327 75L	8-97188-863-0	01	1	9802-	●
1	TANK; FUEL FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> 753X340X327 75L	8-97188-863-0	01	1	9802-		●
1	TANK; FUEL 753X340X327 75L	8-97188-863-0	01	1	9802-			●
1	TANK; FUEL EXC. LOW DECK(V4S) 753X340X327 75L	8-97033-949-3	01	1	9304-9502	●
1	TANK; FUEL EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL> 753X340X327 75L	8-97033-949-3	01	1	9304-9502		●
1	TANK; FUEL EXC. LOW DECK(V4S) 753X340X327 75L	8-97033-949-3	01	1	9503-9510	●
1	TANK; FUEL FRAME-KICK UP<7EW> EXC. FUEL TANK 63L<6EF> 753X340X327 75L	8-97033-949-3	01	1	9503-9510		●
1	TANK; FUEL EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> 753X340X327 75L	8-97033-949-3	01	1	9503-9510		●
1	TANK; FUEL EXC. LOW DECK(V4S) 753X340X327 75L	8-97131-122-0	01	1	9511-9801	●
1	TANK; FUEL FRAME-KICK UP<7EW> EXC. FUEL TANK 63L<6EF> 753X340X327 75L	8-97131-122-0	01	1	9511-9801		●
1	TANK; FUEL EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> 753X340X327 75L	8-97131-122-0	01	1	9511-9801		●
1	TANK; FUEL EXC. LOW DECK(V4S) 753X340X327 75L	8-97188-864-0	01	1	9802-	●
1	TANK; FUEL FRAME-KICK UP<7EW> EXC. FUEL TANK 63L<6EF> 753X340X327 75L	8-97188-864-0	01	1	9802-		●
1	TANK; FUEL EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> 753X340X327 75L	8-97188-864-0	01	1	9802-		●
1	TANK; FUEL FUEL TANK 63L<6EF> 753X340X275 63L	8-97033-941-3	01	1	9304-9506		●
1	TANK; FUEL BOTTLE CARRIER CHASSIS(V4E) 753X340X275 63L	8-97033-941-3	01	1	9304-9506				●
1	TANK; FUEL FUEL TANK 63L<6EF> 753X340X275 63L	8-97131-118-0	01	1	9507-9801		●
1	TANK; FUEL BOTTLE CARRIER CHASSIS(V4E) 753X340X275 63L	8-97131-118-0	01	1	9507-9801				●
1	TANK; FUEL FUEL TANK 63L<6EF> 753LX340X275 63L	8-97188-860-0	01	1	9802-		●
1	TANK; FUEL BOTTLE CARRIER CHASSIS(V4E) 753LX340X275 63L	8-97188-860-0	01	1	9802-				●
1	TANK; FUEL 1000X340X327 100L	8-97033-954-3	01	1	9304-9510					●	●
1	TANK; FUEL EXC. BOTTLE CARRIER CHASSIS(V4E) 1000X340X327 100L	8-97033-954-3	01	1	9304-9510				●
1	TANK; FUEL 1000X340X327 100L	8-97131-123-0	01	1	9511-9801					●	●
1	TANK; FUEL EXC. BOTTLE CARRIER CHASSIS(V4E) 1000X340X327 100L	8-97131-123-0	01	1	9511-9801				●
1	TANK; FUEL 1000X340X327 100L	8-97188-865-0	01	1	9802-					●	●
1	TANK; FUEL EXC. BOTTLE CARRIER CHASSIS(V4E) 1000X340X327 100L	8-97188-865-0	01	1	9802-				●
3	UNIT; FUEL TANK,SUB	8-94316-190-0	01	1	9304-	●		●		●	●
3	UNIT; FUEL TANK,SUB EXC. FUEL TANK 63L<6EF>	8-94316-190-0	01	1	9304-		●
3	UNIT; FUEL TANK,SUB EXC. BOTTLE CARRIER CHASSIS(V4E)	8-94316-190-0	01	1	9304-				●
3	UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-94316-188-0	01	1	9304-		●
3	UNIT; FUEL TANK,SUB BOTTLE CARRIER CHASSIS(V4E)	8-94316-188-0	01	1	9304-				●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	9304-	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) ID=14.2 OD=23.0	9-09572-014-0	01	1	9304-9502	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) SUB FUEL TANK<PR4> ID=14.2 OD=23.0	9-09572-014-0	01	1	9304-9502	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	9503-9503	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4> ID=14.2 OD=23.0	9-09572-014-0	01	1	9503-9503				●		●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9503-9506	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9503-9506				●		●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9507-9510	●		●		●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 63L<6EF>	1-21729-043-0	01	1	9507-9510		●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9507-9510				●		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E)	1-21729-043-0	01	1	9507-9510				●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9511-9601	●		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 63L<6EF>	1-21729-043-0	01	1	9511-9601		●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9511-9601				●		●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9602-9801				●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 63L<6EF> ID=14.2 OD=23.0	9-09572-014-0	01	1	9507-9510		●
8	GASKET; DRAIN PLUG,FUEL TANK BOTTLE CARRIER CHASSIS(V4E) ID=14.2 OD=23.0	9-09572-014-0	01	1	9507-9510				●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 63L<6EF> ID=14.2 OD=23.0	9-09572-014-0	01	1	9511-9601		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	9511-9601				●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	9602-9801	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9802-	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	9304-9502	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	9503-9503	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK SUB FUEL TANK<PR4> M14X14	9-09862-156-0	01	1	9503-9503				●		●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9503-9506	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK SUB FUEL TANK<PR4> M8X16 FLANGE	0-28080-816-0	01	1	9503-9506				●		●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9507-9510	●		●		●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 63L<6EF> M8X16 FLANGE	0-28080-816-0	01	1	9507-9510		●
11	PLUG; DRAIN,FUEL TANK SUB FUEL TANK<PR4> M8X16 FLANGE	0-28080-816-0	01	1	9507-9510				●		●
11	PLUG; DRAIN,FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E) M8X16 FLANGE	0-28080-816-0	01	1	9507-9510				●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9511-9601	●		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 63L<6EF> M8X16 FLANGE	0-28080-816-0	01	1	9511-9601		●
11	PLUG; DRAIN,FUEL TANK SUB FUEL TANK<PR4> M8X16 FLANGE	0-28080-816-0	01	1	9511-9601				●		●
11	PLUG; DRAIN,FUEL TANK SUB FUEL TANK<PR4> M8X16 FLANGE	0-28080-816-0	01	1	9602-9801				●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 63L<6EF> M14X14	9-09862-156-0	01	1	9507-9510		●
11	PLUG; DRAIN,FUEL TANK BOTTLE CARRIER CHASSIS(V4E) M14X14	9-09862-156-0	01	1	9507-9510				●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 63L<6EF> M14X14	9-09862-156-0	01	1	9511-9601		●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	9511-9601				●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	9602-9801	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9802-	●	●	●	●	●	●
14	HOSE; BREATHER,OUTLET LOW DECK(V4S) L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9502	●
14	HOSE; BREATHER,OUTLET FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF> L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9502		●
14	HOSE; BREATHER,OUTLET L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9502			●
14	HOSE; BREATHER,OUTLET LOW DECK(V4S) L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9503-9510	●
14	HOSE; BREATHER,OUTLET FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9503-9510		●
14	HOSE; BREATHER,OUTLET L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9503-9510			●
14	HOSE; BREATHER,OUTLET LOW DECK(V4S) L=480	8-97135-581-0	01	1	9511-9801	●
14	HOSE; BREATHER,OUTLET FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> L=480	8-97135-581-0	01	1	9511-9801		●
14	HOSE; BREATHER,OUTLET L=480	8-97135-581-0	01	1	9511-9801			●
14	HOSE; BREATHER,OUTLET LOW DECK(V4S) L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9802-	●
14	HOSE; BREATHER,OUTLET FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9802-		●
14	HOSE; BREATHER,OUTLET L=320 SERVICED BY L=10000	9-09914-701-0	01	1	9802-			●
14	HOSE; BREATHER,OUTLET EXC. LOW DECK(V4S) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9502	●
14	HOSE; BREATHER,OUTLET EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL> L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9502		●
14	HOSE; BREATHER,OUTLET EXC. LOW DECK(V4S) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9503-9510	●
14	HOSE; BREATHER,OUTLET FRAME-KICK UP<7EW> EXC. FUEL TANK 63L<6EF> L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9503-9510		●
14	HOSE; BREATHER,OUTLET EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9503-9510		●
14	HOSE; BREATHER,OUTLET EXC. LOW DECK(V4S) L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9801	●
14	HOSE; BREATHER,OUTLET FRAME-KICK UP<7EW> EXC. FUEL TANK 63L<6EF> L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9801		●
14	HOSE; BREATHER,OUTLET EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9801		●
14	HOSE; BREATHER,OUTLET L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9801					●	●
14	HOSE; BREATHER,OUTLET EXC. BOTTLE CARRIER CHASSIS(V4E) L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9801				●
14	HOSE; BREATHER,OUTLET EXC. LOW DECK(V4S) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9802-	●
14	HOSE; BREATHER,OUTLET FRAME-KICK UP<7EW> EXC. FUEL TANK 63L<6EF> L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9802-		●
14	HOSE; BREATHER,OUTLET EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9802-		●
14	HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF> L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9305		●
14	HOSE; BREATHER,OUTLET L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9305				●	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF> L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9306-9506		●
14	HOSE; BREATHER,OUTLET BOTTLE CARRIER CHASSIS(V4E) L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9306-9506				●
14	HOSE; BREATHER,OUTLET L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9306-9506					●	●
14	HOSE; BREATHER,OUTLET EXC. BOTTLE CARRIER CHASSIS(V4E) L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9306-9506				●
14	HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF> L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9507-9510		●
14	HOSE; BREATHER,OUTLET L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9507-9510				●	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF> L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9801		●
14	HOSE; BREATHER,OUTLET BOTTLE CARRIER CHASSIS(V4E) L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9801				●
14	HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF> L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9802-		●
14	HOSE; BREATHER,OUTLET BOTTLE CARRIER CHASSIS(V4E) L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9802-				●
14	HOSE; BREATHER,OUTLET L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9802-					●	●
14	HOSE; BREATHER,OUTLET EXC. BOTTLE CARRIER CHASSIS(V4E) L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9802-				●
17	HOSE; BREATHER LOW DECK(V4S) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502	●
17	HOSE; BREATHER FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF> L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502		●
17	HOSE; BREATHER L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502			●
17	HOSE; BREATHER LOW DECK(V4S) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9503-	●
17	HOSE; BREATHER FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9503-		●
17	HOSE; BREATHER L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9503-			●
17	HOSE; BREATHER FUEL TANK 63L<6EF> L=440 SERVICED BY L=3000	8-94128-826-0	01	1	9304-		●
17	HOSE; BREATHER BOTTLE CARRIER CHASSIS(V4E) L=440 SERVICED BY L=3000	8-94128-826-0	01	1	9304-				●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	9304-	●	●	●	●	●	●
20	HOSE; BREATHER EXC. LOW DECK(V4S) L=380 SERVICED BY L=3000	8-94128-826-0	02	1	9304-9502	●
20	HOSE; BREATHER EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL> L=380 SERVICED BY L=3000	8-94128-826-0	02	1	9304-9502		●
20	HOSE; BREATHER EXC. LOW DECK(V4S) L=380 SERVICED BY L=3000	8-94128-826-0	02	1	9503-	●
20	HOSE; BREATHER FRAME-KICK UP<7EW> EXC. FUEL TANK 63L<6EF> L=380 SERVICED BY L=3000	8-94128-826-0	02	1	9503-		●
20	HOSE; BREATHER EXC. FUEL TANK 63L<6EF>,FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> L=380 SERVICED BY L=3000	8-94128-826-0	02	1	9503-		●
23	JOINT; BREATHER HOSE (A)	8-97077-713-1	01	1	9304-9506	●	●	●	●	●	●
23	JOINT; BREATHER HOSE (A)	8-97077-713-1	01	1	9507-9510	●		●		●	●
23	JOINT; BREATHER HOSE EXC. FUEL TANK 63L<6EF> (A)	8-97077-713-1	01	1	9507-9510		●
23	JOINT; BREATHER HOSE EXC. BOTTLE CARRIER CHASSIS(V4E) (A)	8-97077-713-1	01	1	9507-9510				●
23	JOINT; BREATHER HOSE FUEL TANK 63L<6EF> (B)	8-94418-058-0	01	1	9507-9510		●
23	JOINT; BREATHER HOSE BOTTLE CARRIER CHASSIS(V4E) (B)	8-94418-058-0	01	1	9507-9510				●
23	JOINT; BREATHER HOSE (B)	8-94418-058-0	01	1	9511-9801	●	●	●	●	●	●
23	JOINT; BREATHER HOSE (A)	8-97077-713-1	01	1	9802-9803	●	●	●
23	JOINT; BREATHER HOSE BOTTLE CARRIER CHASSIS(V4E) (A)	8-97077-713-1	01	1	9802-9803				●
23	JOINT; BREATHER HOSE (A)	8-97077-713-1	01	1	9804-	●	●	●	●	●	●
27	HOSE; BREATHER LOW DECK(V4S) (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502	●
27	HOSE; BREATHER FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF> (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502		●
27	HOSE; BREATHER FUEL TANK 63L<6EF> (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502		●
27	HOSE; BREATHER BOTTLE CARRIER CHASSIS(V4E) (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502				●
27	HOSE; BREATHER (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502			●
27	HOSE; BREATHER LOW DECK(V4S) (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9503-	●
27	HOSE; BREATHER FULL FLATLOW<6GL> EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW> (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9503-		●
27	HOSE; BREATHER FUEL TANK 63L<6EF> (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9503-		●
27	HOSE; BREATHER BOTTLE CARRIER CHASSIS(V4E) (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9503-				●
27	HOSE; BREATHER (B) L=340 SERVICED BY L=3000	8-94128-826-0	01	1	9503-			●
27	HOSE; BREATHER (A) L=470 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9503					●	●
27	HOSE; BREATHER EXC. BOTTLE CARRIER CHASSIS(V4E) (A) L=470 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9503				●
27	HOSE; BREATHER (A) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9503-					●	●
27	HOSE; BREATHER EXC. BOTTLE CARRIER CHASSIS(V4E) (A) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9503-				●
27	HOSE; BREATHER (B) L=540 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9503					●	●
27	HOSE; BREATHER EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=540 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9503				●
33	SCREW; JOINT TO FUEL TANK M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9304-	●	●	●	●	●	●

230 10 10 411 493 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

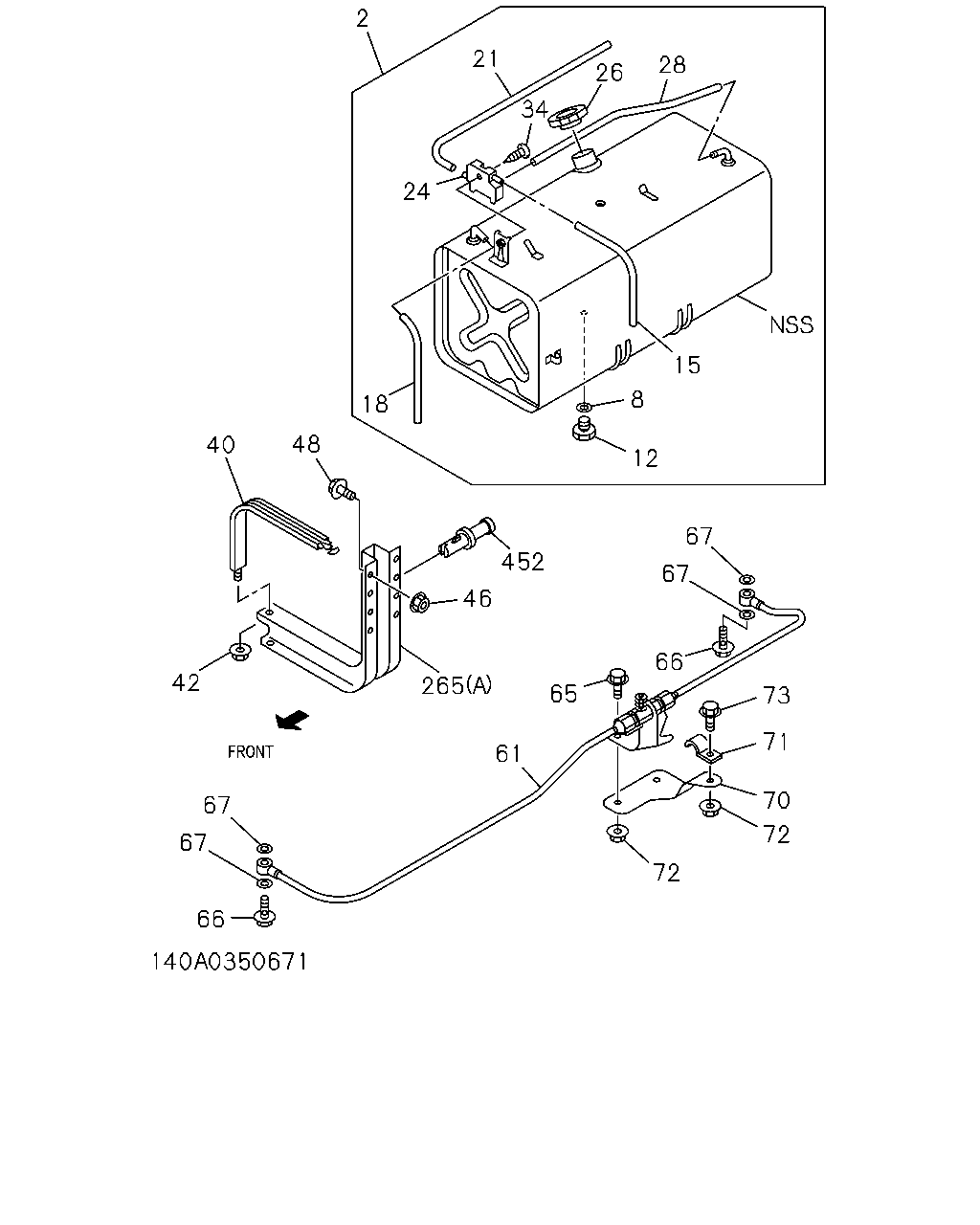

10	CLIP; SPRING,FUEL TANK UNIT CABLE (A) T=9.2	5-09709-013-0	AR	1	9304-9502	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) T=9.2	5-09709-013-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE SUSPENSION - RR UNDER SLUNG<V4U> (A) T=9.2	5-09709-013-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (A) T=9.2	5-09709-013-0	AR	1	9503-	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE EXC. FRAME-KICK UP<7EW> (A) T=9.2	5-09709-013-0	AR	1	9503-		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (B) T=4.5 & 9	5-09709-023-0	AR	1	9304-9502	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) T=4.5 & 9	5-09709-023-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE SUSPENSION - RR UNDER SLUNG<V4U> (B) T=4.5 & 9	5-09709-023-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (B) T=4.5 & 9	5-09709-023-0	AR	1	9503-	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE EXC. FRAME-KICK UP<7EW> (B) T=4.5 & 9	5-09709-023-0	AR	1	9503-		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (B) T=6.0	5-09709-024-0	AR	1	9304-9502	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) T=6.0	5-09709-024-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE SUSPENSION - RR UNDER SLUNG<V4U> (B) T=6.0	5-09709-024-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (B) T=6.0	5-09709-024-0	AR	1	9503-9610	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE EXC. FRAME-KICK UP<7EW> (B) T=6.0	5-09709-024-0	AR	1	9503-9610		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (B) T=9.2 & 9	5-09709-025-0	AR	1	9304-9502	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) T=9.2 & 9	5-09709-025-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE SUSPENSION - RR UNDER SLUNG<V4U> (B) T=9.2 & 9	5-09709-025-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (B) T=9.2 & 9	5-09709-025-0	AR	1	9503-	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE EXC. FRAME-KICK UP<7EW> (B) T=9.2 & 9	5-09709-025-0	AR	1	9503-		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (A) T=5.5	5-09709-047-0	AR	1	9304-9502	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) T=5.5	5-09709-047-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE SUSPENSION - RR UNDER SLUNG<V4U> (A) T=5.5	5-09709-047-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (A) T=5.5	5-09709-047-0	AR	1	9503-	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE EXC. FRAME-KICK UP<7EW> (A) T=5.5	5-09709-047-0	AR	1	9503-		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (A) T=8.7	5-09709-048-0	AR	1	9304-9502	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) T=8.7	5-09709-048-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE SUSPENSION - RR UNDER SLUNG<V4U> (A) T=8.7	5-09709-048-0	AR	1	9304-9502		●
10	CLIP; SPRING,FUEL TANK UNIT CABLE (A) T=8.7	5-09709-048-0	AR	1	9503-9610	●		●	●	●	●
10	CLIP; SPRING,FUEL TANK UNIT CABLE EXC. FRAME-KICK UP<7EW> (A) T=8.7	5-09709-048-0	AR	1	9503-9610		●
230	GROMMET; HARNESS,FUEL TANK UNIT ID=17	8-94128-319-2	01	1	9304-9304	●	●	●	●	●	●
230	GROMMET; HARNESS,FUEL TANK UNIT ID=17	8-94128-319-2	01	1	9304-9506	●	●	●	●	●	●
230	GROMMET; HARNESS,FUEL TANK UNIT REFRIGERATOR CHASSIS(V4R) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> ID=17	8-94128-319-2	01	1	9304-9506		●
411	CLIP; FUEL TANK UNIT HARNESS BOTTLE CARRIER CHASSIS(V4E) (B) ID=10	8-94450-392-0	01	1	9304-				●
411	CLIP; FUEL TANK UNIT HARNESS BOTTLE CARRIER CHASSIS(V4E) (A) L=168	8-97802-347-0	01	1	9304-9406				●
411	CLIP; FUEL TANK UNIT HARNESS BOTTLE CARRIER CHASSIS(V4E) (A) L=170.3	1-09987-182-0	01	1	9407-9407				●
411	CLIP; FUEL TANK UNIT HARNESS BOTTLE CARRIER CHASSIS(V4E) (A) L=170.3	1-09987-182-0	01	1	9407-				●
493	PROTECTOR; FUEL UNIT HARNESS BOTTLE CARRIER CHASSIS(V4E) L=80	5-22439-006-0	01	1	9304-				●

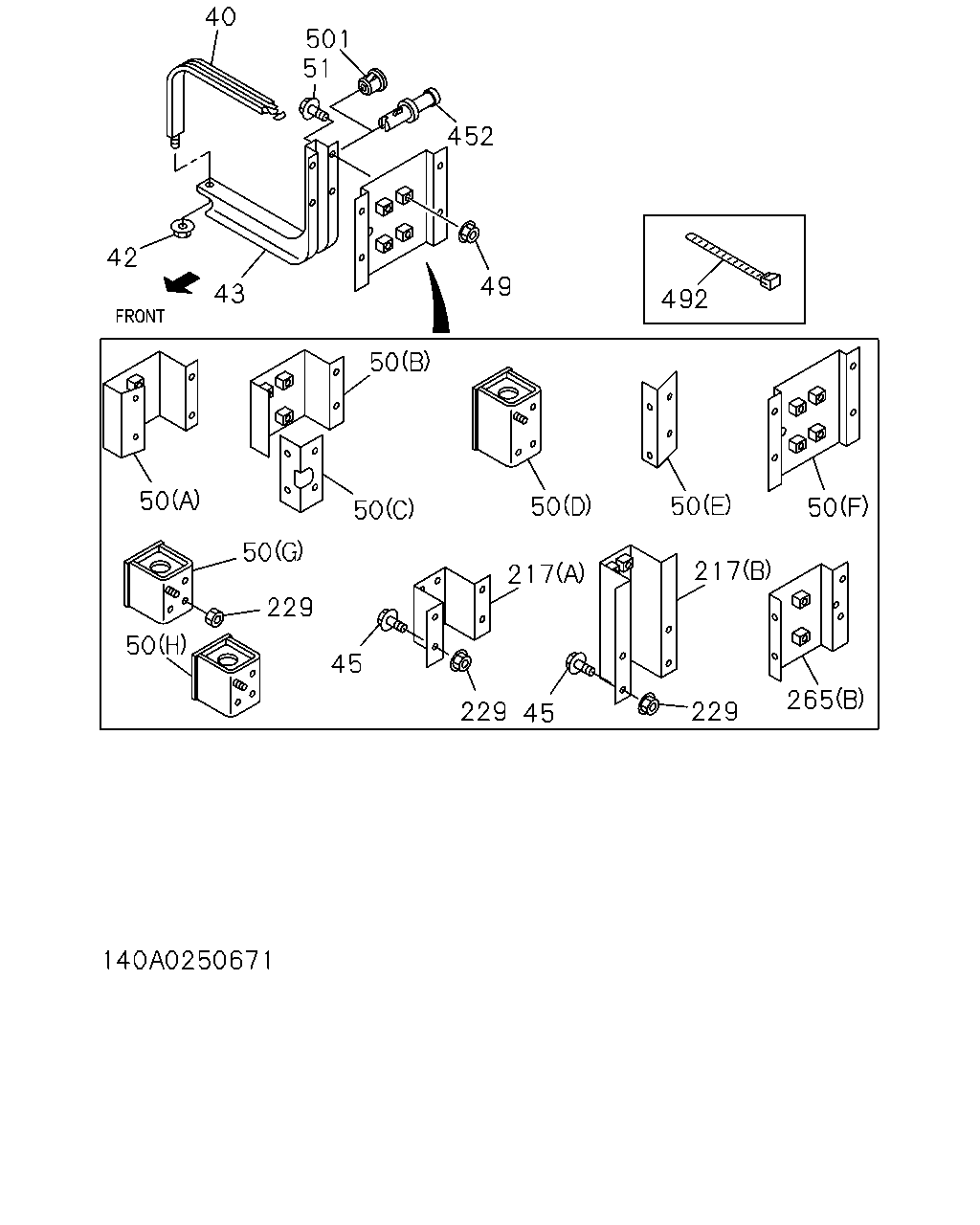

40 501 51 452 49 492 50 217 50 265 229 45 229 217 50 50 45 229 50 50 50 42 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
40	BELT; SUPPORT,FUEL TANK	8-94438-385-3	02	1	9304-9505	●		●		●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 63L<6EF>	8-94438-385-3	02	1	9304-9505		●
40	BELT; SUPPORT,FUEL TANK SUB FUEL TANK<PR4>	8-94438-385-3	02	1	9304-9505				●		●
40	BELT; SUPPORT,FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E)	8-94438-385-3	02	1	9304-9505				●
40	BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9506-	●		●		●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 63L<6EF>	8-94438-385-4	02	1	9506-		●
40	BELT; SUPPORT,FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E)	8-94438-385-4	02	1	9506-				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 63L<6EF> FOR MAIN TANK	8-94438-384-3	02	1	9304-		●
40	BELT; SUPPORT,FUEL TANK BOTTLE CARRIER CHASSIS(V4E) FOR MAIN TANK	8-94438-384-3	02	1	9304-				●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9304-9505	●	●	●	●	●	●
42	NUT; SUPPORT BELT SUB FUEL TANK<PR4> M8 FLANGE	9-09130-408-0	02	1	9304-9505				●		●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9506-	●	●	●	●	●	●
43	BRACKET; FUEL TANK	8-97035-517-0	02	1	9304-	●		●		●	●
43	BRACKET; FUEL TANK REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FUEL TANK 63L<6EF>	8-97035-517-0	02	1	9304-		●
43	BRACKET; FUEL TANK SUSPENSION - RR UNDER SLUNG<V4U> EXC. FUEL TANK 63L<6EF>	8-97035-517-0	02	1	9304-		●
43	BRACKET; FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E)	8-97035-517-0	02	1	9304-				●
43	BRACKET; FUEL TANK FUEL TANK 63L<6EF>	8-97035-514-0	02	1	9304-9803		●
43	BRACKET; FUEL TANK BOTTLE CARRIER CHASSIS(V4E)	8-97035-514-0	02	1	9304-9803				●
43	BRACKET; FUEL TANK FUEL TANK 63L<6EF>	8-97181-221-0	02	1	9804-9804		●
43	BRACKET; FUEL TANK BOTTLE CARRIER CHASSIS(V4E)	8-97181-221-0	02	1	9804-9804				●
43	BRACKET; FUEL TANK FUEL TANK 63L<6EF>	8-97035-514-1	02	1	9805-		●
43	BRACKET; FUEL TANK BOTTLE CARRIER CHASSIS(V4E)	8-97035-514-1	02	1	9805-				●
43	BRACKET; FUEL TANK EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FUEL TANK 63L<6EF>	8-97035-518-0	02	1	9304-		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 63L<6EF> AICHI SYARYO SPEC(6UE) M10X30 FLANGE	0-28081-030-0	05	1	9304-9509		●
45	BOLT; BRKT,FUEL TANK REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) M10X30 FLANGE	0-28081-030-0	05	1	9510-9609		●
45	BOLT; BRKT,FUEL TANK REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) M10X30 FLANGE	0-28691-030-0	05	1	9610-		●
45	BOLT; BRKT,FUEL TANK REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X25	0-28091-025-0	10	1	9304-9307		●
45	BOLT; BRKT,FUEL TANK REFRIGERATOR CHASSIS(V4R) M10X25	0-28091-025-0	10	1	9304-9307			●
45	BOLT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X25	0-28091-025-0	10	1	9308-9509		●
45	BOLT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) M10X25	0-28091-025-0	10	1	9308-9509			●
45	BOLT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X25	0-28091-025-0	10	1	9510-9609		●
45	BOLT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) M10X25	0-28091-025-0	10	1	9510-9609			●
45	BOLT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X30 FLANGE	0-28691-030-0	10	1	9610-9703		●
45	BOLT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) M10X30 FLANGE	0-28691-030-0	10	1	9610-9703			●
45	BOLT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X30 FLANGE	0-28691-030-0	10	1	9704-		●
45	BOLT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) M10X30 FLANGE	0-28691-030-0	10	1	9704-			●
45	BOLT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X25	0-28091-025-0	09	1	9308-9509		●
45	BOLT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10X25	0-28091-025-0	09	1	9308-9509			●
45	BOLT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X25	0-28091-025-0	09	1	9510-9609		●
45	BOLT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10X25	0-28091-025-0	09	1	9510-9609			●
45	BOLT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X30 FLANGE	0-28691-030-0	09	1	9610-9703		●
45	BOLT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10X30 FLANGE	0-28691-030-0	09	1	9610-9703			●
45	BOLT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10X30 FLANGE	0-28691-030-0	09	1	9704-		●
45	BOLT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10X30 FLANGE	0-28691-030-0	09	1	9704-			●
45	BOLT; BRKT,FUEL TANK AICHI SYARYO SPEC(6UE) M10X25	0-28091-025-0	06	1	9304-9609					●
45	BOLT; BRKT,FUEL TANK AICHI SYARYO SPEC(6UE) M10X30 FLANGE	0-28691-030-0	06	1	9610-					●
45	BOLT; BRKT,FUEL TANK BOTTLE CARRIER CHASSIS(V4E) M10X30	8-94324-205-0	09	1	9304-				●
49	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	9304-9408	●					●
49	NUT; BRKT REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R),SUSPENSION - RRUNDER SLUNG<V4U> M10 FLANGE	0-91150-210-0	08	1	9304-9408		●
49	NUT; BRKT SUSPENSION - RR UNDER SLUNG<V4U> EXC. REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	08	1	9304-9408		●
49	NUT; BRKT EXC. AICHI SYARYO SPEC(6UE) M10 FLANGE	0-91150-210-0	08	1	9304-9408					●
49	NUT; BRKT EXC. BOTTLE CARRIER CHASSIS(V4E) M10 FLANGE	0-91150-210-0	08	1	9304-9408				●
49	NUT; BRKT EXC. REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	08	1	9304-9408			●
49	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	9409-	●					●
49	NUT; BRKT EXC. REFRIGERATOR CHASSIS(V4R),FRAME-KICK UP<7EW> M10 FLANGE	0-91150-210-0	08	1	9409-		●
49	NUT; BRKT EXC. AICHI SYARYO SPEC(6UE) M10 FLANGE	0-91150-210-0	08	1	9409-					●
49	NUT; BRKT EXC. BOTTLE CARRIER CHASSIS(V4E) M10 FLANGE	0-91150-210-0	08	1	9409-				●
49	NUT; BRKT EXC. REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	08	1	9409-			●
49	NUT; BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10 FLANGE	0-91150-210-0	04	1	9304-		●
49	NUT; BRKT BOTTLE CARRIER CHASSIS(V4E) M10 FLANGE	0-91150-210-0	04	1	9304-				●
50	BRACKET; SUPPORT,FUEL BRKT FUEL TANK 63L<6EF> AICHI SYARYO SPEC(6UE) (G)	8-94377-747-2	01	1	9304-9509		●
50	BRACKET; SUPPORT,FUEL BRKT REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (G)	8-94377-747-2	01	1	9510-		●
50	BRACKET; SUPPORT,FUEL BRKT FUEL TANK 63L<6EF> AICHI SYARYO SPEC(6UE) (H)	8-97095-983-0	01	1	9304-9509		●
50	BRACKET; SUPPORT,FUEL BRKT REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (H)	8-97095-983-0	01	1	9510-		●
50	BRACKET; SUPPORT,FUEL BRKT REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> (A)	8-97065-647-3	01	1	9304-		●
50	BRACKET; SUPPORT,FUEL BRKT REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> (B)	8-97065-649-1	01	1	9304-		●
50	BRACKET; SUPPORT,FUEL BRKT REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> (C)	8-97076-589-1	01	1	9304-		●
50	BRACKET; SUPPORT,FUEL BRKT AICHI SYARYO SPEC(6UE) (D)	8-97043-960-0	02	1	9304-					●
50	BRACKET; SUPPORT,FUEL BRKT REFRIGERATOR CHASSIS(V4R) (E)	8-97074-167-0	01	1	9304-9509			●
50	BRACKET; SUPPORT,FUEL BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) (E)	8-97074-167-0	01	1	9510-9703			●
50	BRACKET; SUPPORT,FUEL BRKT REFRIGERATOR CHASSIS(V4R) (E)	8-97074-167-0	01	1	9704-			●
50	BRACKET; SUPPORT,FUEL BRKT REFRIGERATOR CHASSIS(V4R) (F)	8-97074-169-3	01	1	9304-9509			●
50	BRACKET; SUPPORT,FUEL BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) (F)	8-97074-169-3	01	1	9510-9703			●
50	BRACKET; SUPPORT,FUEL BRKT REFRIGERATOR CHASSIS(V4R) (F)	8-97074-169-3	01	1	9704-			●
51	BOLT; BRKT TO FRAME M10X25	0-28091-025-0	08	1	9304-9609	●		●	●	●	●
51	BOLT; BRKT TO FRAME REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M10X25	0-28091-025-0	08	1	9304-9609		●
51	BOLT; BRKT TO FRAME SUSPENSION - RR UNDER SLUNG<V4U> M10X25	0-28091-025-0	08	1	9304-9609		●
51	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9610-9706	●		●	●	●	●
51	BOLT; BRKT TO FRAME REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M10X30 FLANGE	0-28691-030-0	08	1	9610-9706		●
51	BOLT; BRKT TO FRAME SUSPENSION - RR UNDER SLUNG<V4U> M10X30 FLANGE	0-28691-030-0	08	1	9610-9706		●
51	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9707-9708	●		●	●	●	●
51	BOLT; BRKT TO FRAME REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	08	1	9707-9708		●
51	BOLT; BRKT TO FRAME REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) EXC. FULL FLATLOW<6GL>,FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	08	1	9707-9708		●
51	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9709-	●		●	●	●	●
51	BOLT; BRKT TO FRAME REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	08	1	9709-		●
51	BOLT; BRKT TO FRAME REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) EXC. FULL FLATLOW<6GL>,FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	08	1	9709-		●
51	BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	08	1	9709-		●
51	BOLT; BRKT TO FRAME REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,AICHI SYARYO SPEC(6UE), FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	06	1	9707-		●
51	BOLT; BRKT TO FRAME FULL FLATLOW<6GL> EXC. REFRIGERATOR CHASSIS(V4R),FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	06	1	9707-		●
51	BOLT; BRKT TO FRAME EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>, FRAME-KICK UP<7EW> M10X30 FLANGE	0-28691-030-0	06	1	9707-		●
51	BOLT; BRKT TO FRAME EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE	0-28481-025-0	08	1	9304-9706		●
51	BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> M10X25 FLANGE	0-28481-025-0	08	1	9707-9708		●
217	BRACKET; FUEL TANK,LOW BOTTLE CARRIER CHASSIS(V4E) (A)	8-94190-522-2	01	1	9304-9902				●
217	BRACKET; FUEL TANK,LOW BOTTLE CARRIER CHASSIS(V4E) (A)	8-97223-013-0	01	1	9903-				●
217	BRACKET; FUEL TANK,LOW BOTTLE CARRIER CHASSIS(V4E) (B)	8-94190-523-3	01	1	9304-				●
229	NUT; BRKT,FUEL TANK FUEL TANK 63L<6EF> AICHI SYARYO SPEC(6UE) M10 FLANGE	0-91150-110-0	03	1	9304-9509		●
229	NUT; BRKT,FUEL TANK REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) M10 FLANGE	0-91150-110-0	03	1	9510-		●
229	NUT; BRKT,FUEL TANK REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10 FLANGE	0-91150-210-0	08	1	9304-9310		●
229	NUT; BRKT,FUEL TANK REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	08	1	9304-9310			●
229	NUT; BRKT,FUEL TANK 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10 FLANGE	0-91150-210-0	06	1	9311-9502		●
229	NUT; BRKT,FUEL TANK 4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10 FLANGE	0-91150-210-0	07	1	9311-9502		●
229	NUT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	07	1	9311-9502			●
229	NUT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10 FLANGE	0-91150-210-0	07	1	9503-9509		●
229	NUT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	07	1	9503-9509			●
229	NUT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10 FLANGE	0-91150-210-0	07	1	9510-9703		●
229	NUT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	07	1	9510-9703			●
229	NUT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) FULL FLATLOW<6GL> M10 FLANGE	0-91150-210-0	07	1	9704-		●
229	NUT; BRKT,FUEL TANK A/T 4 SPEED-JATCO(RMK) REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	07	1	9704-			●
229	NUT; BRKT,FUEL TANK AICHI SYARYO SPEC(6UE) M10 FLANGE	0-91150-210-0	02	1	9304-					●
229	NUT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	08	1	9311-9509			●
229	NUT; BRKT,FUEL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	08	1	9510-9703			●
229	NUT; BRKT,FUEL TANK FLOOR REMOTE SHIFT<M11> REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	08	1	9704-			●
265	BRACKET; FUEL TANK,SUB SUB FUEL TANK<PR4> (A)	8-97035-517-0	02	1	9304-9505				●		●
265	BRACKET; FUEL TANK,SUB REFRIGERATOR CHASSIS(V4R) (B)	8-97074-168-1	01	1	9304-9509			●
265	BRACKET; FUEL TANK,SUB 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) (B)	8-97074-168-1	01	1	9510-9703			●
265	BRACKET; FUEL TANK,SUB REFRIGERATOR CHASSIS(V4R) (B)	8-97074-168-1	01	1	9704-			●
452	BREATHER; FUEL TANK	8-97062-954-1	01	1	9304-9505	●	●	●	●	●	●
452	BREATHER; FUEL TANK SUB FUEL TANK<PR4>	8-97062-954-1	01	1	9304-9505				●		●
452	BREATHER; FUEL TANK	8-97062-954-1	01	1	9506-9510	●	●	●	●	●	●
452	BREATHER; FUEL TANK	8-97062-954-1	01	1	9803-	●	●	●	●	●	●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=140	5-09707-031-0	02	1	9304-9304		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> L=140	5-09707-031-0	02	1	9304-9304		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) L=140	5-09707-031-0	02	1	9304-9304				●	●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) L=140	5-09707-031-0	01	1	9305-9306	●		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) L=250	5-09707-030-0	01	1	9307-9502	●		●
492	CLIP; HARNESS TO VAC HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) L=250	5-09707-030-0	01	1	9503-9703	●		●
492	CLIP; HARNESS TO VAC HOSE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=250	5-09707-030-1	01	1	9704-	●		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=140	5-09707-031-0	02	1	9305-9306		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> L=140	5-09707-031-0	02	1	9305-9306		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) L=140	5-09707-031-0	02	1	9305-9306				●	●	●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=250	5-09707-030-0	02	1	9307-9502		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> L=250	5-09707-030-0	02	1	9307-9502		●
492	CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) L=250	5-09707-030-0	02	1	9307-9502				●	●	●
492	CLIP; HARNESS TO VAC HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> L=250	5-09707-030-0	02	1	9503-9703		●		●	●	●
492	CLIP; HARNESS TO VAC HOSE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> L=250	5-09707-030-1	02	1	9704-		●		●	●	●
501	GROMMET; BRKT	8-97096-990-0	01	1	9304-9510	●		●		●	●
501	GROMMET; BRKT REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FUEL TANK 63L<6EF>	8-97096-990-0	01	1	9304-9510		●
501	GROMMET; BRKT SUSPENSION - RR UNDER SLUNG<V4U> EXC. FUEL TANK 63L<6EF>	8-97096-990-0	01	1	9304-9510		●
501	GROMMET; BRKT EXC. BOTTLE CARRIER CHASSIS(V4E)	8-97096-990-0	01	1	9304-9510				●
501	GROMMET; BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-990-0	01	1	9802-	●		●		●	●
501	GROMMET; BRKT EXC. FUEL TANK 63L<6EF>,FRAME-KICK UP<7EW>	8-97096-990-0	01	1	9802-		●
501	GROMMET; BRKT EXC. BOTTLE CARRIER CHASSIS(V4E)	8-97096-990-0	01	1	9802-				●

2 24 21 34 26 28 15 8 12 67 67 66 73 71 70 72 72 61 65 265 46 452 18 48 40 42 67 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	TANK ASM; FUEL,SUB SUB FUEL TANK<PR4> 753X340X327 75L	8-97033-956-2	01	1	9304-9505				●		●
8	GASKET; DRAIN PLUG,FUEL TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) ID=14.2 OD=23.0	9-09572-014-0	01	1	9304-9502	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) SUB FUEL TANK<PR4> ID=14.2 OD=23.0	9-09572-014-0	01	1	9304-9502	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	9503-9503	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4> ID=14.2 OD=23.0	9-09572-014-0	01	1	9503-9503				●		●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9503-9506	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9503-9506				●		●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9507-9510	●		●		●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 63L<6EF>	1-21729-043-0	01	1	9507-9510		●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9507-9510				●		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E)	1-21729-043-0	01	1	9507-9510				●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9511-9601	●		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 63L<6EF>	1-21729-043-0	01	1	9511-9601		●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9511-9601				●		●
8	GASKET; DRAIN PLUG,FUEL TANK SUB FUEL TANK<PR4>	1-21729-043-0	01	1	9602-9801				●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 63L<6EF> ID=14.2 OD=23.0	9-09572-014-0	01	1	9507-9510		●
8	GASKET; DRAIN PLUG,FUEL TANK BOTTLE CARRIER CHASSIS(V4E) ID=14.2 OD=23.0	9-09572-014-0	01	1	9507-9510				●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 63L<6EF> ID=14.2 OD=23.0	9-09572-014-0	01	1	9511-9601		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	9511-9601				●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	9602-9801	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	1-21729-043-0	01	1	9802-	●	●	●	●	●	●
12	PLUG; DRAIN,SUB TANK SUB FUEL TANK<PR4> M14X14	9-09862-156-0	01	1	9304-9502				●		●
15	HOSE; BREATHER,OUTLET,SUB TANK SUB FUEL TANK<PR4> L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9502				●		●
18	HOSE; BREATHER,SUB TANK SUB FUEL TANK<PR4> L=230 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502				●		●
21	HOSE; BREATHER,SUB TANK SUB FUEL TANK<PR4> L=1080 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502				●		●
24	JOINT; BREATHER HOSE,SUB SUB FUEL TANK<PR4>	8-97077-713-1	01	1	9304-9502				●		●
26	CAP; FILLER,FUEL SUB TANK SUB FUEL TANK<PR4>	8-94258-609-1	01	1	9304-9502				●		●
28	HOSE; BREATHER,SUB TANK SUB FUEL TANK<PR4> L=670 SERVICED BY L=3000	8-94128-826-0	01	1	9304-9502				●		●
34	SCREW; JOINT TO SUB TANK SUB FUEL TANK<PR4> M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9304-9502				●		●
40	BELT; SUPPORT,FUEL TANK	8-94438-385-3	02	1	9304-9505	●		●		●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 63L<6EF>	8-94438-385-3	02	1	9304-9505		●
40	BELT; SUPPORT,FUEL TANK SUB FUEL TANK<PR4>	8-94438-385-3	02	1	9304-9505				●		●
40	BELT; SUPPORT,FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E)	8-94438-385-3	02	1	9304-9505				●
40	BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9506-	●		●		●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 63L<6EF>	8-94438-385-4	02	1	9506-		●
40	BELT; SUPPORT,FUEL TANK EXC. BOTTLE CARRIER CHASSIS(V4E)	8-94438-385-4	02	1	9506-				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 63L<6EF> FOR MAIN TANK	8-94438-384-3	02	1	9304-		●
40	BELT; SUPPORT,FUEL TANK BOTTLE CARRIER CHASSIS(V4E) FOR MAIN TANK	8-94438-384-3	02	1	9304-				●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9304-9505	●	●	●	●	●	●
42	NUT; SUPPORT BELT SUB FUEL TANK<PR4> M8 FLANGE	9-09130-408-0	02	1	9304-9505				●		●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9506-	●	●	●	●	●	●
46	NUT; BRKT TO FRAME SUB FUEL TANK<PR4> M10 FLANGE	0-91150-210-0	08	1	9304-9505				●		●
48	BOLT; BRKT TO FRAME,SUB TANK SUB FUEL TANK<PR4> M10X25	0-28091-025-0	08	1	9304-9505				●		●
61	PIPE; CONN,SUB TANK SUB FUEL TANK<PR4> 75L	8-94140-527-1	01	1	9304-9505				●		●
65	BOLT; BRKT,FUEL SUB FUEL TANK<PR4> M8X20 W/LK WASHER	0-50040-820-0	04	1	9304-9505				●		●
66	BOLT; CONN PIPE SUB FUEL TANK<PR4> M14X32	9-09906-259-0	02	1	9304-9505				●		●
67	GASKET; CONN PIPE SUB FUEL TANK<PR4> ID=14.2 OD=23.0	9-09572-014-0	04	1	9304-9505				●		●
70	BRACKET; CONN PIPE SUB FUEL TANK<PR4>	8-94140-423-1	01	1	9304-9505				●		●
71	CLIP; CONN PIPE SUB FUEL TANK<PR4>	9-09716-287-0	01	1	9304-9505				●		●
72	NUT; BRKT SUB FUEL TANK<PR4> M6	9-09110-506-0	01	1	9304-9505				●		●
72	NUT; BRKT SUB FUEL TANK<PR4> M8	9-09110-508-0	04	1	9304-9505				●		●
73	BOLT; CLIP TO BRKT SUB FUEL TANK<PR4> M6X20 W/LK WASHER	0-50040-620-0	01	1	9304-9505				●		●
265	BRACKET; FUEL TANK,SUB SUB FUEL TANK<PR4> (A)	8-97035-517-0	02	1	9304-9505				●		●
265	BRACKET; FUEL TANK,SUB REFRIGERATOR CHASSIS(V4R) (B)	8-97074-168-1	01	1	9304-9509			●
265	BRACKET; FUEL TANK,SUB 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) (B)	8-97074-168-1	01	1	9510-9703			●
265	BRACKET; FUEL TANK,SUB REFRIGERATOR CHASSIS(V4R) (B)	8-97074-168-1	01	1	9704-			●
452	BREATHER; FUEL TANK	8-97062-954-1	01	1	9304-9505	●	●	●	●	●	●
452	BREATHER; FUEL TANK SUB FUEL TANK<PR4>	8-97062-954-1	01	1	9304-9505				●		●
452	BREATHER; FUEL TANK	8-97062-954-1	01	1	9506-9510	●	●	●	●	●	●
452	BREATHER; FUEL TANK	8-97062-954-1	01	1	9803-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
