◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#166677) — 475 parça

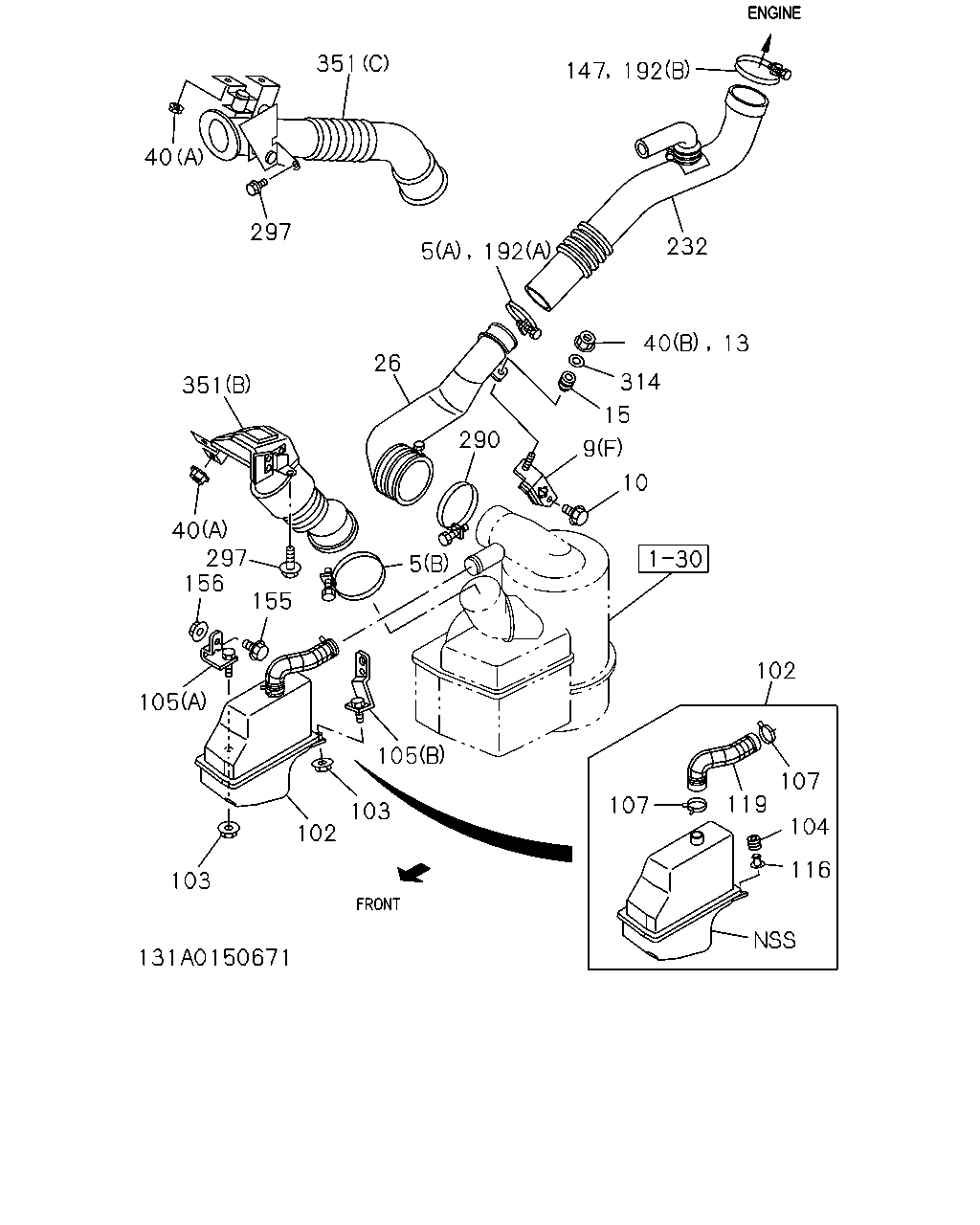

çizim 493612
351 297 40 147 192 232 192 5 40 13 314 15 9 290 26 351 40 297 156 155 105 102 103 103 105 5 10 102 107 104 119 107 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 CLIP; AIR DUCT
(B) ID=87 		8-97087-432-0 01 1 9304-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
(B) ID=64 		9-09915-268-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9405-9502 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) ID=79 		9-09915-734-1 01 1 9405-9502 ● ● ● ● ●
5 CLIP; AIR DUCT
4JG2 ENG(RJC) (A) ID=67 		9-09915-069-1 01 1 9405- ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-375-1 01 1 9304-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97037-250-1 01 1 9304-9412 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97126-226-0 01 1 9501-9502 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97126-226-0 01 1 9503-9612 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97163-252-0 01 1 9701-9703 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97163-252-0 01 1 9704- ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E) 		8-97102-618-0 01 1 9503-9703 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E) 		8-97102-618-0 01 1 9704- ● ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97089-654-1 01 1 9304-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94373-872-2 01 1 9304-9404 ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94373-872-2 01 1 9304-9404 ●
9 BRACKET; INT PIPE
4JG2 ENG(RJC) (F) 		8-97089-655-0 01 1 9304- ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9304-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4HF1 ENG(RLS) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9411 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9412-9502 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9503-9703 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9704- ● ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9304-9304 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28080-835-0 02 1 9305-9309 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28080-835-0 01 1 9310-9411 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28680-835-0 01 1 9412-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X25 W/LK WASHER 		0-51040-825-0 01 1 9304-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC) M8X25 W/LK WASHER 		0-51040-825-0 01 1 9503-9609 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9610- ● ● ● ● ●
13 NUT; BRKT FIX
4HF1 ENG(RLS) M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9305-9502 ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 02 1 9305-9502 ● ● ● ● ●
13 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ● ● ● ●
13 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
15 INSULATOR
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) 		8-94338-739-0 03 1 9304-9502 ● ● ● ● ●
15 INSULATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-94338-739-0 02 1 9304-9502 ● ● ● ● ●
15 INSULATOR
4JG2 ENG(RJC) 		8-94338-739-0 01 1 9304- ● ● ● ● ●
26 DUCT; AIR INT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-376-0 01 1 9304-9502 ● ● ● ● ●
26 DUCT; AIR INT
4HF1 ENG(RLS) 		8-97035-700-6 01 1 9304-9501 ● ● ● ● ● ●
26 DUCT; AIR INT
4HF1 ENG(RLS) 		8-97106-364-1 01 1 9502-9502 ● ● ● ● ● ●
26 DUCT; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97035-696-3 01 1 9405-9502 ● ● ● ● ●
26 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97106-364-1 01 1 9503-9703 ● ● ● ● ● ●
26 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97106-364-2 01 1 9704- ● ● ● ● ● ●
26 DUCT; AIR INT
4JG2 ENG(RJC) 		8-97091-273-1 01 1 9304- ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 FLANGE 		8-94279-517-0 02 1 9304-9311 ● ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 FLANGE 		8-94279-517-0 01 1 9312-9802 ● ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9803- ● ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC) (B) M8 		9-09110-408-0 01 1 9304-9309 ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) M8 		9-09110-408-0 01 1 9310-9402 ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) M8 FLANGE 		0-91150-108-0 01 1 9403-9502 ● ● ● ● ●
102 RESONATOR; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 		8-97075-574-1 01 1 9304-9408 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97075-574-1 01 1 9503-9703 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97075-574-1 01 1 9503-9703 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97126-042-0 01 1 9704- ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97126-042-0 01 1 9704- ● ● ● ● ● ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9304-9408 ● ● ● ● ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9409-9502 ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9409-9502 ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9503-9703 ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9503-9703 ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9704- ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9704- ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ● ● ● ● ● ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-600-0 02 1 9304-9502 ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-600-0 02 1 9503-9703 ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) 		8-97095-600-0 02 1 9704- ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) (B) 		8-97075-885-1 01 1 9304-9502 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97075-885-1 01 1 9503-9701 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97174-754-0 01 1 9702-9703 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) (B) 		8-97174-754-0 01 1 9704- ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) (A) 		8-97092-039-1 01 1 9304-9502 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97092-039-1 01 1 9503-9703 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) (A) 		8-97092-039-1 01 1 9704- ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-785-0 02 1 9304-9502 ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-785-0 02 1 9503-9703 ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) 		8-97095-785-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97105-842-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97105-842-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-597-0 02 1 9304-9502 ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-597-0 02 1 9503-9703 ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC) 		8-97095-597-0 02 1 9704- ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-597-0 02 1 9704- ●
119 HOSE; RESONATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 		8-97096-691-0 01 1 9304-9408 ● ● ● ● ● ●
119 HOSE; RESONATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9503-9703 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9503-9703 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9704- ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9704- ● ● ● ● ● ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9304-9408 ● ● ● ● ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9409-9502 ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9409-9502 ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9503-9703 ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9503-9703 ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9704- ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9704- ●
147 CLIP; HOSE TO ENG
4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9405-9502 ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=79 		9-09915-734-1 01 1 9405-9502 ● ● ● ● ●
147 CLIP; HOSE TO ENG
4JG2 ENG(RJC) ID=79 		9-09915-734-1 01 1 9503- ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) M8X25 FLANGE 		0-28480-825-0 01 1 9304-9502 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE 		0-28480-825-0 01 1 9503-9605 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 9606-9703 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ● ● ● ●
156 NUT; BRKT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9304-9304 ● ● ● ● ● ●
156 NUT; BRKT
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9304-9304 ● ●
192 CLIP; HOSE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=79 		9-09915-734-1 02 1 9304-9404 ● ● ● ● ●
192 CLIP; HOSE
4JG2 ENG(RJC) (A) ID=67 		9-09915-069-1 01 1 9304-9404 ● ● ● ● ●
192 CLIP; HOSE
4JG2 ENG(RJC) (B) ID=79 		9-09915-734-1 01 1 9304-9404 ● ● ● ● ●
232 HOSE; CONN
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) 		8-94310-038-0 01 1 9304-9502 ● ● ● ● ●
232 HOSE; CONN
4HF1 ENG(RLS) 		8-97035-702-1 01 1 9304-9305 ● ● ● ● ● ●
232 HOSE; CONN
4HF1 ENG(RLS) 		8-97102-361-0 01 1 9306-9502 ● ● ● ● ● ●
232 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97102-361-0 01 1 9503-9703 ● ● ● ● ● ●
232 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97102-361-0 01 1 9704- ● ● ● ● ● ●
232 HOSE; CONN
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-94373-874-1 01 1 9304-9502 ● ● ● ● ●
232 HOSE; CONN
4JG2 ENG(RJC) 		8-97091-272-0 01 1 9304-9304 ● ● ● ● ●
232 HOSE; CONN
4JG2 ENG(RJC) 		8-97096-429-1 01 1 9304- ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=92 		9-09915-072-1 01 1 9304-9401 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=87 		9-09915-071-1 01 1 9402-9502 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC) ID=95 		9-09915-733-1 01 1 9304-9401 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9402-9502 ● ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9304-9311 ● ● ● ● ● ●
297 BOLT; DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ● ● ● ● ● ●
297 BOLT; DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9703 ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9704- ● ● ● ● ● ●
314 WASHER; PL,AIR INT DUCT
4JG2 ENG(RJC) ID=8.4 OD=26 		9-09164-808-0 01 1 9304- ● ● ● ● ●
351 DUCT; AIR
(B) 		8-97048-441-4 01 1 9304-9703 ● ● ● ● ● ●
351 DUCT; AIR
(C) 		8-97140-078-1 01 1 9704- ● ● ● ● ● ●
351 DUCT; AIR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97035-696-3 01 1 9304-9404 ● ● ● ● ●

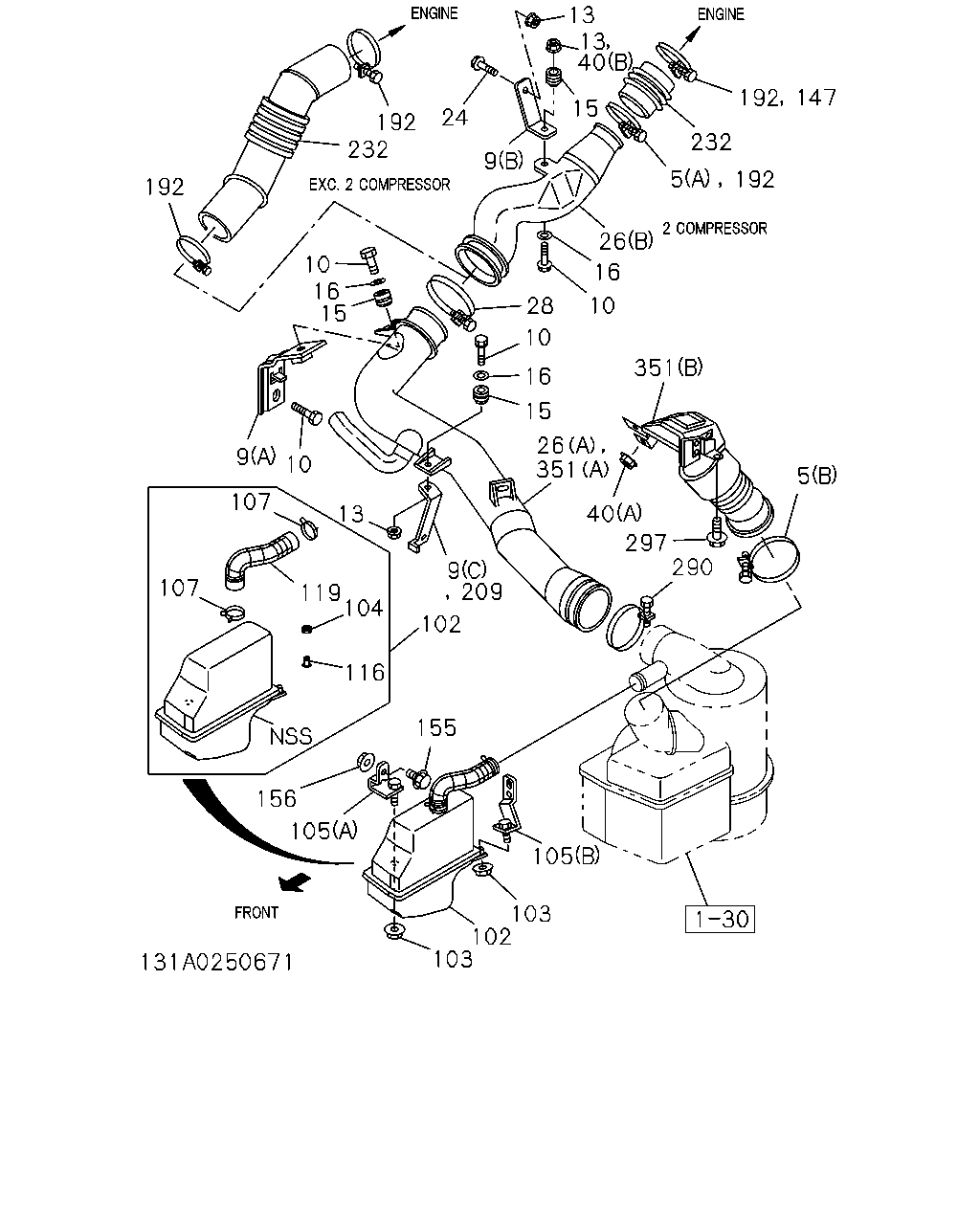

çizim 493805
192 232 24 192 10 16 15 28 10 16 16 10 15 5 232 192 15 40 13 13 147 192 351 107 9 107 119 13 10 104 116 156 105 102 209 9 155 105 103 102 103 26 351 40 297 290 5 26 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 CLIP; AIR DUCT
(B) ID=87 		8-97087-432-0 01 1 9304-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
(B) ID=64 		9-09915-268-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9405-9502 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) ID=79 		9-09915-734-1 01 1 9405-9502 ● ● ● ● ●
5 CLIP; AIR DUCT
4JG2 ENG(RJC) (A) ID=67 		9-09915-069-1 01 1 9405- ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-375-1 01 1 9304-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97037-250-1 01 1 9304-9412 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97126-226-0 01 1 9501-9502 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97126-226-0 01 1 9503-9612 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97163-252-0 01 1 9701-9703 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97163-252-0 01 1 9704- ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E) 		8-97102-618-0 01 1 9503-9703 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E) 		8-97102-618-0 01 1 9704- ● ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97089-654-1 01 1 9304-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94373-872-2 01 1 9304-9404 ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94373-872-2 01 1 9304-9404 ●
9 BRACKET; INT PIPE
4JG2 ENG(RJC) (F) 		8-97089-655-0 01 1 9304- ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9304-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4HF1 ENG(RLS) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9411 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9412-9502 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9503-9703 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9704- ● ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9304-9304 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28080-835-0 02 1 9305-9309 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28080-835-0 01 1 9310-9411 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28680-835-0 01 1 9412-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X25 W/LK WASHER 		0-51040-825-0 01 1 9304-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC) M8X25 W/LK WASHER 		0-51040-825-0 01 1 9503-9609 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9610- ● ● ● ● ●
13 NUT; BRKT FIX
4HF1 ENG(RLS) M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9305-9502 ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 02 1 9305-9502 ● ● ● ● ●
13 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ● ● ● ●
13 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
15 INSULATOR
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) 		8-94338-739-0 03 1 9304-9502 ● ● ● ● ●
15 INSULATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-94338-739-0 02 1 9304-9502 ● ● ● ● ●
15 INSULATOR
4JG2 ENG(RJC) 		8-94338-739-0 01 1 9304- ● ● ● ● ●
16 WASHER; PL,BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) ID=8.4 OD=26 		9-09164-808-0 03 1 9304-9502 ● ● ● ● ●
16 WASHER; PL,BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> ID=8.4 OD=26 		9-09164-808-0 02 1 9304-9502 ● ● ● ● ●
24 BOLT; INL DUCT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9304-9304 ● ● ● ● ●
24 BOLT; INL DUCT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8X35 FLANGE 		0-28080-835-0 01 1 9305-9411 ● ● ● ● ●
24 BOLT; INL DUCT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8X35 FLANGE 		0-28680-835-0 01 1 9412-9502 ● ● ● ● ●
26 DUCT; AIR INT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-376-0 01 1 9304-9502 ● ● ● ● ●
26 DUCT; AIR INT
4HF1 ENG(RLS) 		8-97035-700-6 01 1 9304-9501 ● ● ● ● ● ●
26 DUCT; AIR INT
4HF1 ENG(RLS) 		8-97106-364-1 01 1 9502-9502 ● ● ● ● ● ●
26 DUCT; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97035-696-3 01 1 9405-9502 ● ● ● ● ●
26 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97106-364-1 01 1 9503-9703 ● ● ● ● ● ●
26 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97106-364-2 01 1 9704- ● ● ● ● ● ●
26 DUCT; AIR INT
4JG2 ENG(RJC) 		8-97091-273-1 01 1 9304- ● ● ● ● ●
28 CLIP; AIR DUCT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) ID=87 		8-97087-432-0 01 1 9304-9305 ● ● ● ● ●
28 CLIP; AIR DUCT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) ID=79 		9-09915-734-1 01 1 9306-9502 ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 FLANGE 		8-94279-517-0 02 1 9304-9311 ● ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 FLANGE 		8-94279-517-0 01 1 9312-9802 ● ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9803- ● ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC) (B) M8 		9-09110-408-0 01 1 9304-9309 ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) M8 		9-09110-408-0 01 1 9310-9402 ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) M8 FLANGE 		0-91150-108-0 01 1 9403-9502 ● ● ● ● ●
102 RESONATOR; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 		8-97075-574-1 01 1 9304-9408 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97075-574-1 01 1 9503-9703 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97075-574-1 01 1 9503-9703 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97126-042-0 01 1 9704- ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97126-042-0 01 1 9704- ● ● ● ● ● ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9304-9408 ● ● ● ● ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9409-9502 ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9409-9502 ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9503-9703 ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9503-9703 ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9704- ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9704- ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ● ● ● ● ● ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-600-0 02 1 9304-9502 ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-600-0 02 1 9503-9703 ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) 		8-97095-600-0 02 1 9704- ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) (B) 		8-97075-885-1 01 1 9304-9502 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97075-885-1 01 1 9503-9701 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97174-754-0 01 1 9702-9703 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) (B) 		8-97174-754-0 01 1 9704- ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) (A) 		8-97092-039-1 01 1 9304-9502 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97092-039-1 01 1 9503-9703 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) (A) 		8-97092-039-1 01 1 9704- ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-785-0 02 1 9304-9502 ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-785-0 02 1 9503-9703 ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) 		8-97095-785-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97105-842-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97105-842-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-597-0 02 1 9304-9502 ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-597-0 02 1 9503-9703 ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC) 		8-97095-597-0 02 1 9704- ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-597-0 02 1 9704- ●
119 HOSE; RESONATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 		8-97096-691-0 01 1 9304-9408 ● ● ● ● ● ●
119 HOSE; RESONATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9503-9703 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9503-9703 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9704- ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9704- ● ● ● ● ● ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9304-9408 ● ● ● ● ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9409-9502 ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9409-9502 ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9503-9703 ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9503-9703 ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9704- ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9704- ●
147 CLIP; HOSE TO ENG
4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9405-9502 ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=79 		9-09915-734-1 01 1 9405-9502 ● ● ● ● ●
147 CLIP; HOSE TO ENG
4JG2 ENG(RJC) ID=79 		9-09915-734-1 01 1 9503- ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) M8X25 FLANGE 		0-28480-825-0 01 1 9304-9502 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE 		0-28480-825-0 01 1 9503-9605 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 9606-9703 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ● ● ● ●
156 NUT; BRKT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9304-9304 ● ● ● ● ● ●
156 NUT; BRKT
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9304-9304 ● ●
192 CLIP; HOSE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=79 		9-09915-734-1 02 1 9304-9404 ● ● ● ● ●
192 CLIP; HOSE
4JG2 ENG(RJC) (A) ID=67 		9-09915-069-1 01 1 9304-9404 ● ● ● ● ●
192 CLIP; HOSE
4JG2 ENG(RJC) (B) ID=79 		9-09915-734-1 01 1 9304-9404 ● ● ● ● ●
209 BRACKET; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-94373-872-2 01 1 9405-9502 ● ● ● ● ●
209 BRACKET; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94373-872-2 01 1 9405-9502 ●
209 BRACKET; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-698-0 01 1 9405-9502 ● ● ● ●
209 BRACKET; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. GARBAGE/VACUUM CHASSIS(V4G),FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-698-0 01 1 9405-9502 ●
209 BRACKET; ACL
4BE2 ENGINE(RLQ) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97035-698-0 01 1 9405-9502 ●
232 HOSE; CONN
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) 		8-94310-038-0 01 1 9304-9502 ● ● ● ● ●
232 HOSE; CONN
4HF1 ENG(RLS) 		8-97035-702-1 01 1 9304-9305 ● ● ● ● ● ●
232 HOSE; CONN
4HF1 ENG(RLS) 		8-97102-361-0 01 1 9306-9502 ● ● ● ● ● ●
232 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97102-361-0 01 1 9503-9703 ● ● ● ● ● ●
232 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97102-361-0 01 1 9704- ● ● ● ● ● ●
232 HOSE; CONN
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-94373-874-1 01 1 9304-9502 ● ● ● ● ●
232 HOSE; CONN
4JG2 ENG(RJC) 		8-97091-272-0 01 1 9304-9304 ● ● ● ● ●
232 HOSE; CONN
4JG2 ENG(RJC) 		8-97096-429-1 01 1 9304- ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=92 		9-09915-072-1 01 1 9304-9401 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=87 		9-09915-071-1 01 1 9402-9502 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC) ID=95 		9-09915-733-1 01 1 9304-9401 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9402-9502 ● ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9304-9311 ● ● ● ● ● ●
297 BOLT; DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ● ● ● ● ● ●
297 BOLT; DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9703 ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9704- ● ● ● ● ● ●
351 DUCT; AIR
(B) 		8-97048-441-4 01 1 9304-9703 ● ● ● ● ● ●
351 DUCT; AIR
(C) 		8-97140-078-1 01 1 9704- ● ● ● ● ● ●
351 DUCT; AIR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97035-696-3 01 1 9304-9404 ● ● ● ● ●

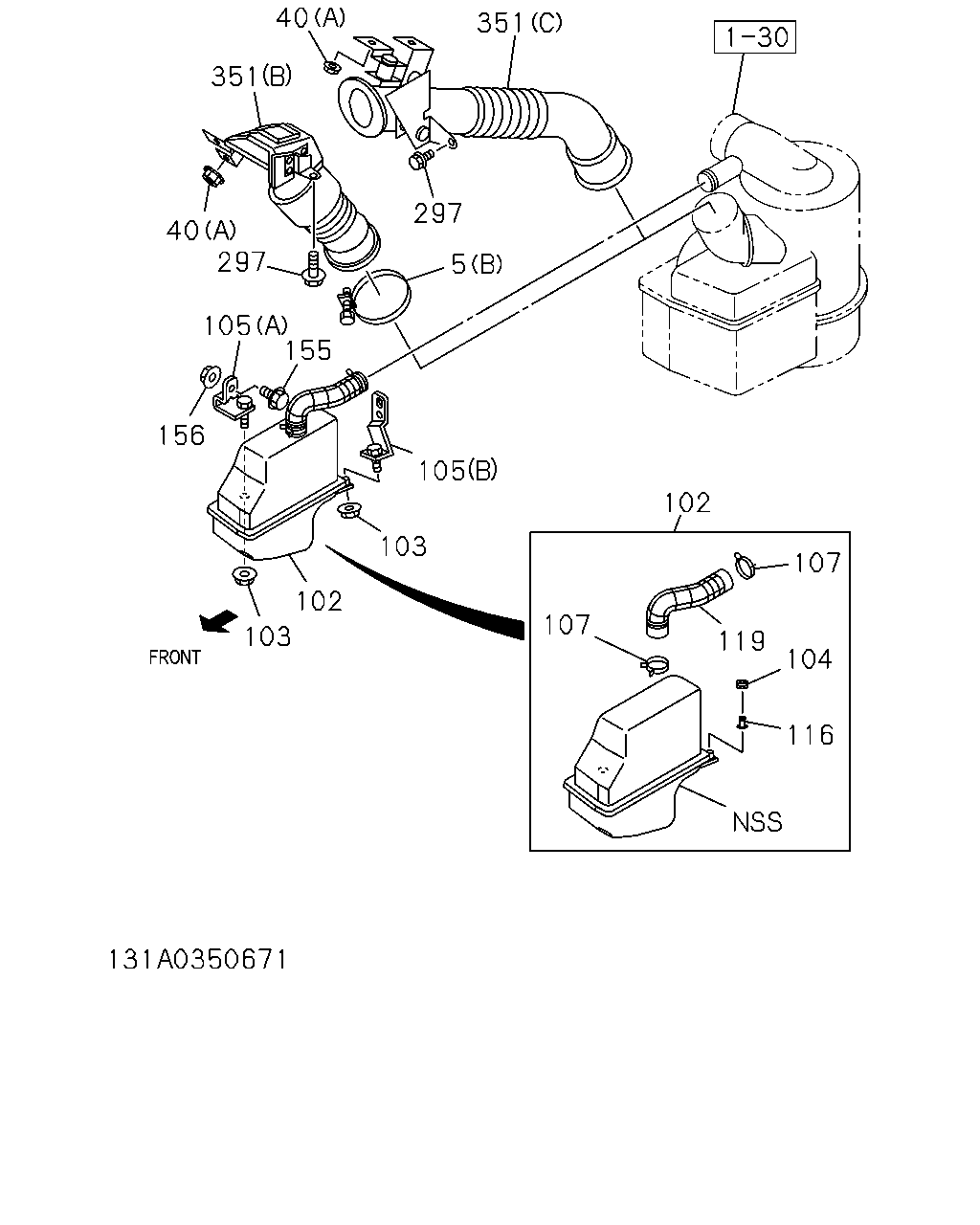

çizim 494270
40 351 40 297 105 155 156 103 103 105 102 107 119 107 104 116 297 5 351 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 CLIP; AIR DUCT
(B) ID=87 		8-97087-432-0 01 1 9304-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
(B) ID=64 		9-09915-268-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9405-9502 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) ID=79 		9-09915-734-1 01 1 9405-9502 ● ● ● ● ●
5 CLIP; AIR DUCT
4JG2 ENG(RJC) (A) ID=67 		9-09915-069-1 01 1 9405- ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 FLANGE 		8-94279-517-0 02 1 9304-9311 ● ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 FLANGE 		8-94279-517-0 01 1 9312-9802 ● ● ● ● ● ●
40 NUT; AIR INT DUCT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9803- ● ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC) (B) M8 		9-09110-408-0 01 1 9304-9309 ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) M8 		9-09110-408-0 01 1 9310-9402 ● ● ● ● ●
40 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) M8 FLANGE 		0-91150-108-0 01 1 9403-9502 ● ● ● ● ●
102 RESONATOR; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 		8-97075-574-1 01 1 9304-9408 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97075-574-1 01 1 9409-9502 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97075-574-1 01 1 9503-9703 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97075-574-1 01 1 9503-9703 ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97126-042-0 01 1 9704- ● ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97126-042-0 01 1 9704- ● ● ● ● ● ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9304-9408 ● ● ● ● ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9409-9502 ● ●
102 RESONATOR; AIR INT
4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9409-9502 ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9503-9703 ● ● ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9503-9703 ●
102 RESONATOR; AIR INT
4JG2 ENG(RJC) 		8-97075-616-1 01 1 9704- ● ● ●
102 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97075-616-1 01 1 9704- ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ● ● ● ● ● ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
103 NUT; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-600-0 02 1 9304-9502 ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-600-0 02 1 9503-9703 ● ● ● ● ● ●
104 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) 		8-97095-600-0 02 1 9704- ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) (B) 		8-97075-885-1 01 1 9304-9502 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97075-885-1 01 1 9503-9701 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97174-754-0 01 1 9702-9703 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) (B) 		8-97174-754-0 01 1 9704- ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) (A) 		8-97092-039-1 01 1 9304-9502 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97092-039-1 01 1 9503-9703 ● ● ● ● ● ●
105 BRACKET; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) (A) 		8-97092-039-1 01 1 9704- ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-785-0 02 1 9304-9502 ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-785-0 02 1 9503-9703 ● ● ● ● ● ●
107 CLIP; PROTECTOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) 		8-97095-785-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97105-842-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97105-842-0 02 1 9704- ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) 		8-97095-597-0 02 1 9304-9502 ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97095-597-0 02 1 9503-9703 ● ● ● ● ● ●
116 RETAINER; RESONATOR
4JG2 ENG(RJC) 		8-97095-597-0 02 1 9704- ● ● ●
116 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-597-0 02 1 9704- ●
119 HOSE; RESONATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 		8-97096-691-0 01 1 9304-9408 ● ● ● ● ● ●
119 HOSE; RESONATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9409-9502 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9503-9703 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9503-9703 ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D) 		8-97096-691-0 01 1 9704- ● ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FULL FLATLOW<6GL> 		8-97096-691-0 01 1 9704- ● ● ● ● ● ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9304-9408 ● ● ● ● ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9409-9502 ● ●
119 HOSE; RESONATOR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9409-9502 ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9503-9703 ● ● ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9503-9703 ●
119 HOSE; RESONATOR
4JG2 ENG(RJC) 		8-97095-784-0 01 1 9704- ● ● ●
119 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97095-784-0 01 1 9704- ●
155 BOLT; BRKT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ), 4HF1 ENG(RLS) M8X25 FLANGE 		0-28480-825-0 01 1 9304-9502 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE 		0-28480-825-0 01 1 9503-9605 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 9606-9703 ● ● ● ● ● ●
155 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 9704- ● ● ● ● ● ●
156 NUT; BRKT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 01 1 9304-9304 ● ● ● ● ● ●
156 NUT; BRKT
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9304-9304 ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9304-9311 ● ● ● ● ● ●
297 BOLT; DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ● ● ● ● ● ●
297 BOLT; DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9703 ● ● ● ● ● ●
297 BOLT; DUCT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9704- ● ● ● ● ● ●
351 DUCT; AIR
(B) 		8-97048-441-4 01 1 9304-9703 ● ● ● ● ● ●
351 DUCT; AIR
(C) 		8-97140-078-1 01 1 9704- ● ● ● ● ● ●
351 DUCT; AIR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97035-696-3 01 1 9304-9404 ● ● ● ● ●

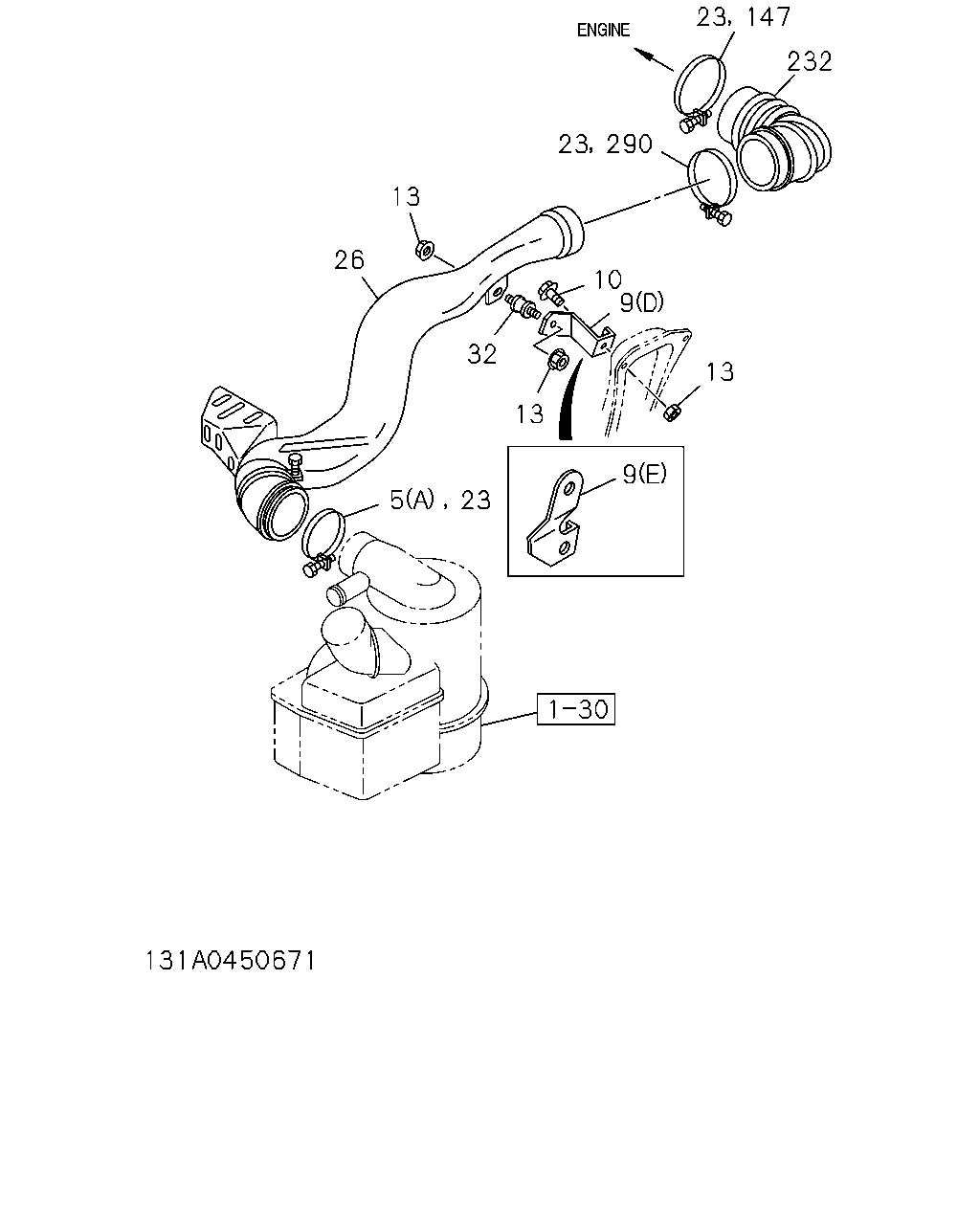

çizim 494303
26 13 23 290 23 147 232 13 9 10 32 13 23 5 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 CLIP; AIR DUCT
(B) ID=87 		8-97087-432-0 01 1 9304-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
(B) ID=64 		9-09915-268-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9405-9502 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
5 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
5 CLIP; AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) ID=79 		9-09915-734-1 01 1 9405-9502 ● ● ● ● ●
5 CLIP; AIR DUCT
4JG2 ENG(RJC) (A) ID=67 		9-09915-069-1 01 1 9405- ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-375-1 01 1 9304-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97037-250-1 01 1 9304-9412 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97126-226-0 01 1 9501-9502 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97126-226-0 01 1 9503-9612 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97163-252-0 01 1 9701-9703 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97163-252-0 01 1 9704- ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97072-718-1 01 1 9304-9305 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ●
9 BRACKET; INT PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97102-618-0 01 1 9306-9502 ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E) 		8-97102-618-0 01 1 9503-9703 ● ● ● ● ● ●
9 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E) 		8-97102-618-0 01 1 9704- ● ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97089-654-1 01 1 9304-9502 ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94373-872-2 01 1 9304-9404 ● ● ● ● ●
9 BRACKET; INT PIPE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94373-872-2 01 1 9304-9404 ●
9 BRACKET; INT PIPE
4JG2 ENG(RJC) (F) 		8-97089-655-0 01 1 9304- ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9304-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4HF1 ENG(RLS) M8X20 FLANGE 		0-28080-820-0 01 1 9304-9411 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9412-9502 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9503-9703 ● ● ● ● ● ●
10 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X20 FLANGE 		0-28680-820-0 01 1 9704- ● ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9304-9304 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28080-835-0 02 1 9305-9309 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28080-835-0 01 1 9310-9411 ● ● ● ● ●
10 BOLT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X35 FLANGE 		0-28680-835-0 01 1 9412-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X25 W/LK WASHER 		0-51040-825-0 01 1 9304-9502 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC) M8X25 W/LK WASHER 		0-51040-825-0 01 1 9503-9609 ● ● ● ● ●
10 BOLT; BRKT FIX
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9610- ● ● ● ● ●
13 NUT; BRKT FIX
4HF1 ENG(RLS) M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9305-9502 ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-208-0 02 1 9304-9304 ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE 		0-91150-108-0 02 1 9305-9502 ● ● ● ● ●
13 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ● ● ● ●
13 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8 FLANGE 		0-91150-208-0 01 1 9304-9304 ● ● ● ● ● ●
13 NUT; BRKT FIX
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 01 1 9305-9502 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
13 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
23 CLIP; HOSE
4HF1 ENG(RLS) ID=92 		9-09915-072-1 03 1 9304-9401 ● ● ● ● ● ●
23 CLIP; HOSE
4HF1 ENG(RLS) ID=92 		9-09915-072-1 02 1 9402-9404 ● ● ● ● ● ●
26 DUCT; AIR INT
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-376-0 01 1 9304-9502 ● ● ● ● ●
26 DUCT; AIR INT
4HF1 ENG(RLS) 		8-97035-700-6 01 1 9304-9501 ● ● ● ● ● ●
26 DUCT; AIR INT
4HF1 ENG(RLS) 		8-97106-364-1 01 1 9502-9502 ● ● ● ● ● ●
26 DUCT; AIR INT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A) 		8-97035-696-3 01 1 9405-9502 ● ● ● ● ●
26 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97106-364-1 01 1 9503-9703 ● ● ● ● ● ●
26 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97106-364-2 01 1 9704- ● ● ● ● ● ●
26 DUCT; AIR INT
4JG2 ENG(RJC) 		8-97091-273-1 01 1 9304- ● ● ● ● ●
32 RUBBER; AIR DUCT MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) 		8-94158-155-1 01 1 9701-9703 ● ● ● ● ● ●
32 RUBBER; AIR DUCT MTG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) 		8-94158-155-1 01 1 9704- ● ● ● ● ● ●
32 RUBBER; AIR DUCT MTG
4HF1 ENG(RLS) 		8-97077-387-0 01 1 9304-9502 ● ● ● ● ● ●
32 RUBBER; AIR DUCT MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97077-387-0 01 1 9503-9612 ● ● ● ● ● ●
32 RUBBER; AIR DUCT MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97077-387-0 01 1 9701-9703 ● ● ● ● ● ●
32 RUBBER; AIR DUCT MTG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97077-387-0 01 1 9704- ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9405-9502 ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
147 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=79 		9-09915-734-1 01 1 9405-9502 ● ● ● ● ●
147 CLIP; HOSE TO ENG
4JG2 ENG(RJC) ID=79 		9-09915-734-1 01 1 9503- ● ● ● ● ●
232 HOSE; CONN
4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG> FRT INDEPENDENT SUSPENSION(6PP) 		8-94310-038-0 01 1 9304-9502 ● ● ● ● ●
232 HOSE; CONN
4HF1 ENG(RLS) 		8-97035-702-1 01 1 9304-9305 ● ● ● ● ● ●
232 HOSE; CONN
4HF1 ENG(RLS) 		8-97102-361-0 01 1 9306-9502 ● ● ● ● ● ●
232 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97102-361-0 01 1 9503-9703 ● ● ● ● ● ●
232 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97102-361-0 01 1 9704- ● ● ● ● ● ●
232 HOSE; CONN
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-94373-874-1 01 1 9304-9502 ● ● ● ● ●
232 HOSE; CONN
4JG2 ENG(RJC) 		8-97091-272-0 01 1 9304-9304 ● ● ● ● ●
232 HOSE; CONN
4JG2 ENG(RJC) 		8-97096-429-1 01 1 9304- ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=92 		9-09915-072-1 01 1 9304-9401 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=87 		9-09915-071-1 01 1 9402-9502 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC) ID=95 		9-09915-733-1 01 1 9304-9401 ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9402-9502 ● ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ID=92 		9-09915-072-1 01 1 9503-9703 ● ● ● ● ● ●
290 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK), 4HF1ENG(RLS) ID=92 		9-09915-072-1 01 1 9704- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
