1 |

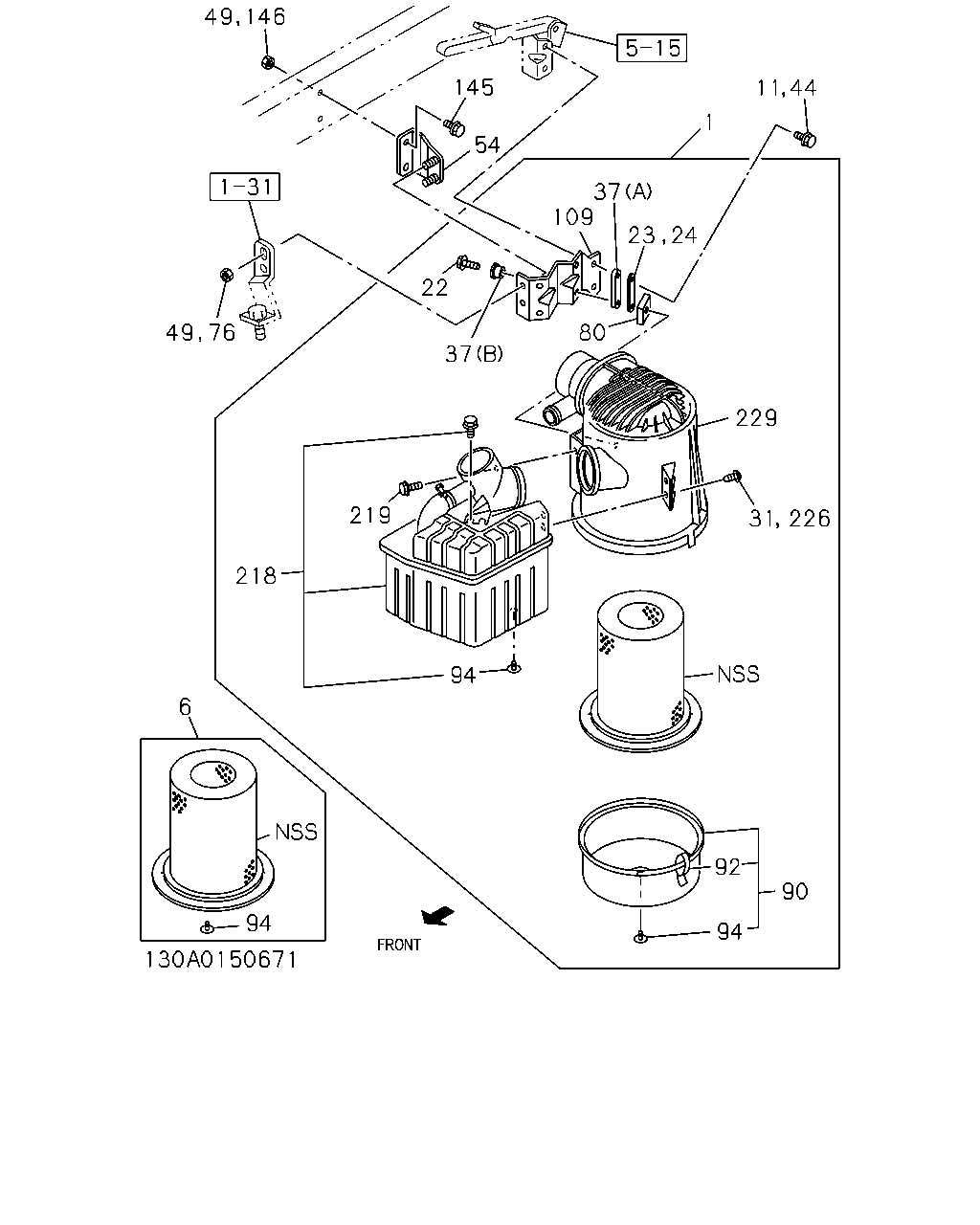

CLEANER ASM; AIR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
|
8-97078-859-3 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
1 |
CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97078-859-4 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
1 |
CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
8-97126-041-1 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
1 |
CLEANER ASM; AIR
4JG2 ENG(RJC)
|
8-97071-344-5 |
01 |
1 |
9304-9703 |
● |
● |
|
● |
● |
● |
| |
1 |
CLEANER ASM; AIR
4JG2 ENG(RJC)
|
8-97143-582-1 |
01 |
1 |
9704- |
● |
● |
|
● |
● |
● |
| |
6 |
FILTER; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
|
8-97173-026-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
6 |
FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97173-026-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
6 |
FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
8-97173-026-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
6 |
FILTER; ACL
4JG2 ENG(RJC)
|
8-97184-601-0 |
01 |
1 |
9304- |
● |
● |
|
● |
● |
● |
| |
6 |
FILTER; ACL
4JG2 ENG(RJC)
BESTFIX
|
5-86750-076-0 |
01 |
1 |
9304- |
● |
● |
|
● |
● |
● |
| |
6 |
FILTER; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
BESTFIX
|
5-86750-075-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
6 |
FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
BESTFIX
|
5-86750-075-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
6 |
FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
BESTFIX
|
5-86750-075-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
11 |
BOLT; ACL
4JG2 ENG(RJC)
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9304-9608 |
● |
● |
|
● |
● |
● |
| |
11 |
BOLT; ACL
4JG2 ENG(RJC)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9609- |
● |
● |
|
● |
● |
● |
| |
22 |
BOLT; ACL STAY
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97030-333-0 |
04 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
22 |
BOLT; ACL STAY
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97030-333-0 |
04 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
22 |
BOLT; ACL STAY
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97030-333-0 |
04 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
23 |
COLLAR; ACL STAY
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97030-336-0 |
02 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
23 |
COLLAR; ACL STAY
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97030-336-0 |
02 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
23 |
COLLAR; ACL STAY
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97030-336-0 |
02 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
24 |
GROMMET; ACL STAY
4JG2 ENG(RJC)
|
8-97030-335-0 |
02 |
1 |
9304-9304 |
● |
● |
|
● |
● |
● |
| |
31 |
SCREW; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
|
8-97100-001-0 |
02 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
31 |
SCREW; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97100-001-0 |
02 |
1 |
9503-9603 |
● |
● |
● |
● |
● |
● |
| |
31 |
SCREW; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97100-001-0 |
04 |
1 |
9604-9703 |
● |
● |
● |
● |
● |
● |
| |
31 |
SCREW; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97100-001-0 |
02 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
31 |
SCREW; ACL
4JG2 ENG(RJC)
|
8-97097-000-0 |
02 |
1 |
9304-9603 |
● |
● |
|
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
(A)
|
8-97100-007-0 |
02 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
(B)
|
8-97100-002-0 |
02 |
1 |
9304-9304 |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
(B)
|
8-97100-002-0 |
02 |
1 |
9304-9407 |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
(B)
|
8-97100-002-0 |
04 |
1 |
9408-9502 |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
(B)
|
8-97100-002-0 |
04 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
(B)
|
8-97100-002-0 |
04 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
(A)
|
8-97100-007-0 |
02 |
1 |
9304-9304 |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
(A)
|
8-97100-007-0 |
02 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
37 |
RUBBER; MTG,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
(A)
|
8-97100-007-0 |
02 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
44 |
BOLT; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
44 |
BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9503-9608 |
● |
● |
● |
● |
● |
● |
| |
44 |
BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9609-9703 |
● |
● |
● |
● |
● |
● |
| |
44 |
BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
49 |
NUT; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9304-9502 |
● |
|
● |
● |
● |
● |
| |
49 |
NUT; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
49 |
NUT; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
49 |
NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9503-9703 |
● |
|
● |
● |
● |
● |
| |
49 |
NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
EXC. FRT INDEPENDENT SUSPENSION(6PP),
FRAME-KICK UP<7EW>
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
49 |
NUT; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
49 |
NUT; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9304-9502 |
|
● |
|
|
|
|
| |
49 |
NUT; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
49 |
NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR
UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
49 |
NUT; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
49 |
NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
FRAME-KICK UP<7EW>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9704- |
|
● |
|
|
|
|
| |
54 |
BRACKET; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97038-519-1 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
54 |
BRACKET; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97038-519-1 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
54 |
BRACKET; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97038-519-1 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
76 |
NUT; BRKT TO ACL
4JG2 ENG(RJC)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9304- |
● |
● |
|
● |
● |
● |
| |
80 |
NUT; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
|
8-97189-338-0 |
04 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
80 |
NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97189-338-0 |
04 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
80 |
NUT; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97189-338-0 |
04 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
90 |
CUP; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
|
8-97093-048-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
90 |
CUP; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97093-048-0 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
90 |
CUP; ACL
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
|
8-97093-048-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
90 |
CUP; ACL
4JG2 ENG(RJC)
|
8-97094-662-0 |
01 |
1 |
9304-9304 |
● |
● |
|
● |
● |
● |
| |
90 |
CUP; ACL
4JG2 ENG(RJC)
|
8-97096-173-0 |
01 |
1 |
9304- |
● |
● |
|
● |
● |
● |
| |
92 |
CLIP; WIRE,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97093-078-0 |
03 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
92 |
CLIP; WIRE,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97093-078-0 |
03 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
92 |
CLIP; WIRE,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97093-078-0 |
03 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
94 |
VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97148-258-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
| |
94 |
VALVE; VACUATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97030-327-0 |
02 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
94 |
VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97030-327-0 |
02 |
1 |
9503-9603 |
● |
● |
● |
● |
● |
● |
| |
94 |
VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97148-258-0 |
02 |
1 |
9604-9703 |
● |
● |
● |
● |
● |
● |
| |
94 |
VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97148-258-0 |
02 |
1 |
9704-9801 |
● |
● |
● |
● |
● |
● |
| |
109 |
STAY; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
|
8-97096-175-0 |
01 |
1 |
9304-9304 |
● |
● |
● |
● |
● |
● |
| |
109 |
STAY; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97096-175-1 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
109 |
STAY; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97096-175-1 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
109 |
STAY; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97096-175-1 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
109 |
STAY; ACL
4JG2 ENG(RJC)
|
8-97094-663-0 |
01 |
1 |
9304-9304 |
● |
● |
|
● |
● |
● |
| |
145 |
BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
M10X28
|
0-28481-028-0 |
02 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
145 |
BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
M10X28
|
0-28481-028-0 |
02 |
1 |
9503-9605 |
● |
● |
● |
● |
● |
● |
| |
145 |
BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9606-9703 |
● |
● |
● |
● |
● |
● |
| |
145 |
BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
146 |
NUT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9304-9305 |
● |
|
● |
● |
● |
● |
| |
146 |
NUT; BRKT TO FRAME
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9304-9305 |
|
● |
|
|
|
|
| |
146 |
NUT; BRKT TO FRAME
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9304-9305 |
|
● |
|
|
|
|
| |
146 |
NUT; BRKT TO FRAME
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9306-9502 |
● |
|
● |
● |
● |
● |
| |
146 |
NUT; BRKT TO FRAME
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9306-9502 |
|
● |
|
|
|
|
| |
146 |
NUT; BRKT TO FRAME
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9306-9502 |
|
● |
|
|
|
|
| |
146 |
NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9703 |
● |
|
● |
● |
● |
● |
| |
146 |
NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT
INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
146 |
NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9703 |
|
● |
|
|
|
|
| |
146 |
NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)
EXC. FRT INDEPENDENT SUSPENSION(6PP),
FRAME-KICK UP<7EW>
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
146 |
NUT; BRKT TO FRAME
4JG2 ENG(RJC)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9407-9502 |
● |
|
|
|
● |
|
| |
146 |
NUT; BRKT TO FRAME
4JG2 ENG(RJC)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9503-9703 |
● |
● |
|
● |
● |
● |
| |
146 |
NUT; BRKT TO FRAME
4JG2 ENG(RJC)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9704- |
● |
● |
|
|
● |
|
| |
218 |
RESONATOR; ACL
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
|
8-97093-071-0 |
01 |
1 |
9304-9304 |
● |
● |
● |
● |
● |
● |
| |
218 |
RESONATOR; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97093-071-0 |
01 |
1 |
9304-9502 |
● |
● |
● |
● |
● |
● |
| |
218 |
RESONATOR; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97093-071-1 |
01 |
1 |
9503-9703 |
● |
● |
● |
● |
● |
● |
| |
218 |
RESONATOR; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97189-339-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
| |
218 |
RESONATOR; ACL
4JG2 ENG(RJC)
|
8-97094-664-0 |
01 |
1 |
9304-9304 |
● |
● |
|
● |
● |
● |
| |
219 |
BOLT; RESONATOR
4JG2 ENG(RJC)
|
8-97096-998-0 |
01 |
1 |
9304-9407 |
● |
● |
|
● |
● |
● |
| |
219 |
BOLT; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
|
8-97096-998-0 |
01 |
1 |
9408-9502 |
● |
● |
● |
● |
● |
● |
| |
219 |
BOLT; RESONATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ),
4HF1 ENG(RLS)
M6X14
|
9-09812-021-0 |
01 |
1 |
9304-9304 |
● |
● |
● |
● |
● |
● |
| |
219 |
BOLT; RESONATOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS)
M6X14
|
9-09812-021-0 |
01 |
1 |
9304-9407 |
● |
● |
● |
● |
● |
● |
| |
226 |
SCREW; SILENCER
4JG2 ENG(RJC)
|
8-94158-135-0 |
02 |
1 |
9304-9304 |
● |
● |
|
● |
● |
● |
| |
229 |
BODY ASM; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97096-172-0 |
01 |
1 |
9304-9603 |
● |
● |
● |
● |
● |
● |
| |
229 |
BODY ASM; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97096-172-0 |
01 |
1 |
9604-9703 |
● |
● |
● |
● |
● |
● |
| |
229 |
BODY ASM; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RJK),
4HF1ENG(RLS)
|
8-97189-337-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
● |
