Sayfa 1-11 - Isuzu EPC

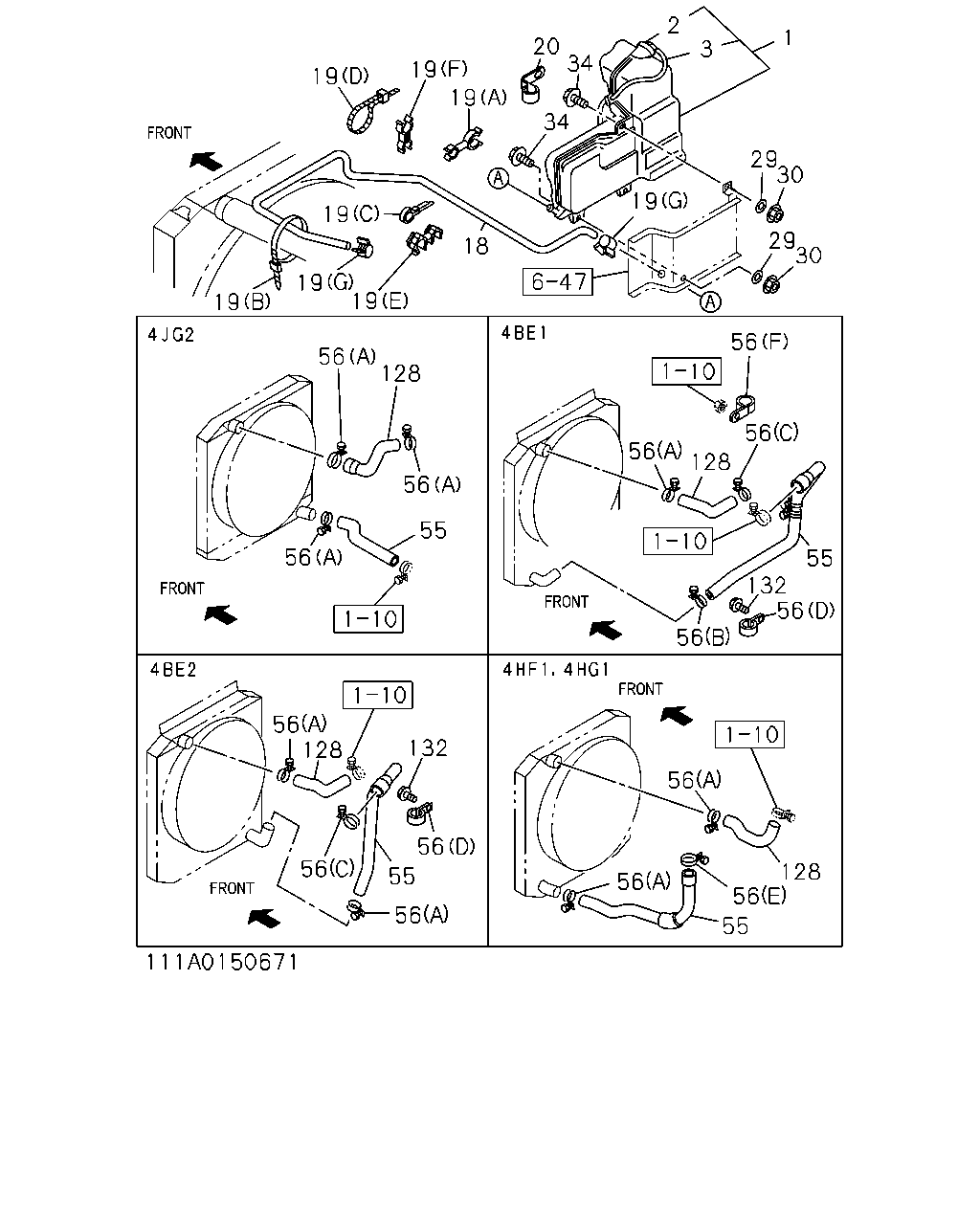

1-11 — RADIATOR HOSE AND SUB TANK (#166675) — 147 parça

19 19 19 20 34 2 1 3 34 18 19 19 19 19 56 128 56 56 55 56 128 56 56 55 132 56 56 56 128 56 55 56 56 55 56 56 132 128 56 19 29 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	8-97035-511-1	01	1	9304-9407	●	●	●	●	●	●
1	TANK; SURGE,RAD	8-97120-913-1	01	1	9408-9502	●	●	●	●	●	●
1	TANK; SURGE,RAD	8-97131-202-0	01	1	9503-9811	●	●	●	●	●	●
1	TANK; SURGE,RAD	8-97210-844-0	01	1	9812-	●	●	●	●	●	●
2	CAP; SURGE TANK SERVICED BY L=190 L=40	8-97126-876-0	01	1	9304-9811	●	●	●	●	●	●
2	CAP; SURGE TANK SERVICED BY L=190 L=40	8-97217-796-0	01	1	9812-	●	●	●	●	●	●
3	HOSE; SURGE TANK L=430 SERVICED BY L=3000	0-03157-300-0	01	1	9408-9410	●	●	●	●	●	●
3	HOSE; SURGE TANK L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9411-9502	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97095-064-4	01	1	9304-9502	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97095-064-4	01	1	9503-9504	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97129-554-1	01	1	9505-9703	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=1595	8-97162-125-1	01	1	9704-9809	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97190-418-2	01	1	9810-	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97102-906-0	01	1	9306-9502	●				●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97102-906-0	01	1	9503-9504	●	●		●	●	●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) (B)	8-97129-549-0	01	1	9505-9703	●	●		●	●	●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) (A) L=1450	8-97162-122-1	01	1	9704-9809	●	●			●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) (A)	8-97204-084-1	01	1	9810-	●	●			●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-97093-833-1	01	1	9304-9305	●	●		●	●	●
18	HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-97093-833-2	01	1	9306-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK (G) ID=12	8-94238-610-0	02	1	9304-	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK (F) ID=11.5 & 14.5	8-94314-293-0	01	1	9304-9305	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (F) ID=11.5 & 14.5	8-94314-293-0	01	1	9306-9502	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (F) ID=11.5 & 14.5	8-94314-293-0	01	1	9503-9509	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (F) ID=10 & 11	8-94438-996-0	01	1	9510-9703	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (F) ID=10 & 11	8-94438-996-0	01	1	9704-	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D) L=450	1-09707-142-0	01	1	9304-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C) ID=14 L=47	5-09700-319-0	02	1	9304-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (E) ID=10 & 12	8-94416-613-0	01	1	9304-9502	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (E) ID=10 & 12	8-94416-613-0	01	1	9503-9703	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (E) ID=10 & 12	8-94416-613-0	01	1	9704-	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (A) ID=12 & 16.5	8-94400-865-0	01	1	9304-9305	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (A) ID=12 & 16.5	8-94400-865-0	02	1	9306-	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=217	8-94235-793-0	01	1	9304-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (B) L=217	8-94235-793-0	01	1	9503-9703	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (B) L=217	8-94235-793-0	01	1	9704-	●	●			●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HF1 ENG(RLS) (C) ID=14 L=47	5-09700-319-0	01	1	9304-9502	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (C) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●	●	●	●
20	CLIP; HOSE,RAD ID=13 H=18 L=20	1-09700-813-0	01	1	9408-9502	●	●	●	●	●	●
29	WASHER; PL,RESERVE TANK ID=6.4 OD=18	9-09160-706-0	03	1	9304-	●	●	●	●	●	●
30	NUT M6	9-09110-406-0	03	1	9304-9407	●	●	●	●	●	●
30	NUT M6 FLANGE	0-91150-106-0	03	1	9408-	●	●	●	●	●	●
34	BOLT; RESERVE TANK M6X20 W/LK WASHER	0-50040-620-0	03	1	9304-9703	●	●	●	●	●	●
34	BOLT; RESERVE TANK M6X20 FLANGE	0-28080-620-0	03	1	9704-	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-015-0	01	1	9304-9502	●	●		●	●	●
55	HOSE; WATER,RAD OUTLET 4BE1 ENG(RLH) EXC. CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-016-0	01	1	9304-9502	●	●		●	●	●
55	HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97034-014-1	01	1	9304-9412	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97124-740-0	01	1	9501-9502	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97124-740-0	01	1	9503-9703	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97124-740-0	01	1	9704-	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC)	8-97034-013-2	01	1	9304-	●	●		●	●	●
55	HOSE; WATER,RAD OUTLET 4BE2 ENGINE(RLQ)	8-97034-017-1	01	1	9304-9502		●		●		●
56	CLIP; WATER HOSE,RAD 4HF1 ENG(RLS) (E) ID=62	9-09915-068-1	01	1	9304-9502	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (E) ID=62	9-09915-068-1	01	1	9503-9703	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (E) ID=62	9-09915-068-1	01	1	9704-	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (F) ID=46	8-94362-266-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (B) ID=45	8-97031-339-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C) ID=57	5-09704-051-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D) ID=46.5	8-94156-158-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4BE1 ENG(RLH) (A) ID=48	5-09704-049-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC) (A) ID=48	5-09704-049-0	01	1	9503-	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A) ID=48	5-09704-049-0	02	1	9304-9502	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=48	5-09704-049-0	02	1	9503-9703	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	02	1	9704-	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97034-005-0	01	1	9304-9502	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97128-673-0	01	1	9503-9703	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97162-163-0	01	1	9704-	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-002-0	01	1	9510-9703	●	●		●	●	●
128	HOSE; WATER,RAD INL 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-97034-004-0	01	1	9304-9502	●	●		●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97034-003-0	01	1	9304-9509	●	●		●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-003-0	01	1	9510-9703	●	●		●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97147-473-0	01	1	9704-	●	●		●	●	●
132	BOLT; CLIP,WATER HOSE,OUTLET 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M8X20 W/LK WASHER	0-50040-820-0	01	1	9304-9502	●	●		●	●	●

19 18 19 19 19 73 19 42 19 34 2 1 29 29 19 73 34 30 30 56 128 56 55 56 56 56 55 56 128 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	8-97035-511-1	01	1	9304-9407	●	●	●	●	●	●
1	TANK; SURGE,RAD	8-97120-913-1	01	1	9408-9502	●	●	●	●	●	●
1	TANK; SURGE,RAD	8-97131-202-0	01	1	9503-9811	●	●	●	●	●	●
1	TANK; SURGE,RAD	8-97210-844-0	01	1	9812-	●	●	●	●	●	●
2	CAP; SURGE TANK SERVICED BY L=190 L=40	8-97126-876-0	01	1	9304-9811	●	●	●	●	●	●
2	CAP; SURGE TANK SERVICED BY L=190 L=40	8-97217-796-0	01	1	9812-	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97095-064-4	01	1	9304-9502	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97095-064-4	01	1	9503-9504	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97129-554-1	01	1	9505-9703	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) L=1595	8-97162-125-1	01	1	9704-9809	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97190-418-2	01	1	9810-	●	●	●	●	●	●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97102-906-0	01	1	9306-9502	●				●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97102-906-0	01	1	9503-9504	●	●		●	●	●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) (B)	8-97129-549-0	01	1	9505-9703	●	●		●	●	●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) (A) L=1450	8-97162-122-1	01	1	9704-9809	●	●			●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) (A)	8-97204-084-1	01	1	9810-	●	●			●
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-97093-833-1	01	1	9304-9305	●	●		●	●	●
18	HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-97093-833-2	01	1	9306-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK (G) ID=12	8-94238-610-0	02	1	9304-	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK (F) ID=11.5 & 14.5	8-94314-293-0	01	1	9304-9305	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (F) ID=11.5 & 14.5	8-94314-293-0	01	1	9306-9502	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (F) ID=11.5 & 14.5	8-94314-293-0	01	1	9503-9509	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (F) ID=10 & 11	8-94438-996-0	01	1	9510-9703	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (F) ID=10 & 11	8-94438-996-0	01	1	9704-	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D) L=450	1-09707-142-0	01	1	9304-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C) ID=14 L=47	5-09700-319-0	02	1	9304-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (E) ID=10 & 12	8-94416-613-0	01	1	9304-9502	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (E) ID=10 & 12	8-94416-613-0	01	1	9503-9703	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (E) ID=10 & 12	8-94416-613-0	01	1	9704-	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (A) ID=12 & 16.5	8-94400-865-0	01	1	9304-9305	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (A) ID=12 & 16.5	8-94400-865-0	02	1	9306-	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=217	8-94235-793-0	01	1	9304-9502	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (B) L=217	8-94235-793-0	01	1	9503-9703	●	●		●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (B) L=217	8-94235-793-0	01	1	9704-	●	●			●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HF1 ENG(RLS) (C) ID=14 L=47	5-09700-319-0	01	1	9304-9502	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (C) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●	●	●	●	●
19	CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●	●	●	●
29	WASHER; PL,RESERVE TANK ID=6.4 OD=18	9-09160-706-0	03	1	9304-	●	●	●	●	●	●
30	NUT M6	9-09110-406-0	03	1	9304-9407	●	●	●	●	●	●
30	NUT M6 FLANGE	0-91150-106-0	03	1	9408-	●	●	●	●	●	●
34	BOLT; RESERVE TANK M6X20 W/LK WASHER	0-50040-620-0	03	1	9304-9703	●	●	●	●	●	●
34	BOLT; RESERVE TANK M6X20 FLANGE	0-28080-620-0	03	1	9704-	●	●	●	●	●	●
42	HOSE; RUBBER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97130-856-1	01	1	9505-9703	●	●	●	●	●	●
42	HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9505-9703	●	●		●	●	●
55	HOSE; WATER,RAD OUTLET 4BE1 ENG(RLH) CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-015-0	01	1	9304-9502	●	●		●	●	●
55	HOSE; WATER,RAD OUTLET 4BE1 ENG(RLH) EXC. CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-016-0	01	1	9304-9502	●	●		●	●	●
55	HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97034-014-1	01	1	9304-9412	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97124-740-0	01	1	9501-9502	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97124-740-0	01	1	9503-9703	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97124-740-0	01	1	9704-	●	●	●	●	●	●
55	HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC)	8-97034-013-2	01	1	9304-	●	●		●	●	●
55	HOSE; WATER,RAD OUTLET 4BE2 ENGINE(RLQ)	8-97034-017-1	01	1	9304-9502		●		●		●
56	CLIP; WATER HOSE,RAD 4HF1 ENG(RLS) (E) ID=62	9-09915-068-1	01	1	9304-9502	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (E) ID=62	9-09915-068-1	01	1	9503-9703	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (E) ID=62	9-09915-068-1	01	1	9704-	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (F) ID=46	8-94362-266-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (B) ID=45	8-97031-339-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C) ID=57	5-09704-051-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D) ID=46.5	8-94156-158-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4BE1 ENG(RLH) (A) ID=48	5-09704-049-0	01	1	9304-9502	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC) (A) ID=48	5-09704-049-0	01	1	9503-	●	●		●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A) ID=48	5-09704-049-0	02	1	9304-9502	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=48	5-09704-049-0	02	1	9503-9703	●	●	●	●	●	●
56	CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	02	1	9704-	●	●	●	●	●	●
73	CLIP; RUBBER HOSE ID=13	8-94238-571-0	02	1	9505-9703	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97034-005-0	01	1	9304-9502	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97128-673-0	01	1	9503-9703	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97162-163-0	01	1	9704-	●	●	●	●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-002-0	01	1	9510-9703	●	●		●	●	●
128	HOSE; WATER,RAD INL 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-97034-004-0	01	1	9304-9502	●	●		●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97034-003-0	01	1	9304-9509	●	●		●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG>	8-97034-003-0	01	1	9510-9703	●	●		●	●	●
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97147-473-0	01	1	9704-	●	●		●	●	●
