0-91 — REFRIGERATION (#166672) — 117 parça

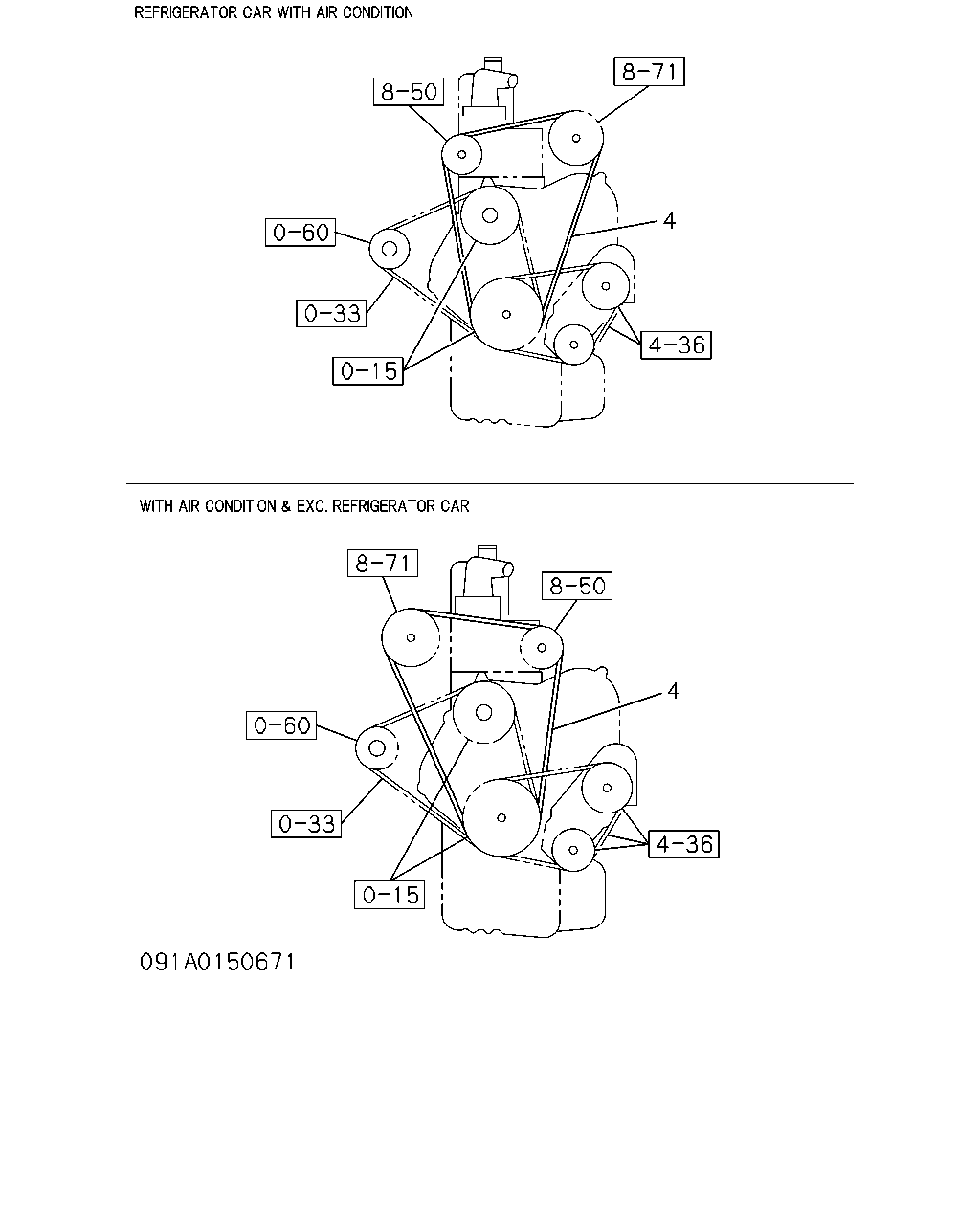

4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1464	8-94482-166-0	01	1	9304-	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9704-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1335	1-13671-209-0	01	1	9304-9811	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1436	8-97208-496-0	01	1	9812-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	1-87310-084-0	01	1	9304-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1606	1-13671-176-0	01	1	9304-9502		●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1606	1-13671-176-0	01	1	9503-		●	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1560 B=17	5-13671-137-0	01	1	9304-9502				●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	5-87410-633-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	5-87410-633-0	01	1	9704-	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX	5-86750-007-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX	5-86750-007-0	01	1	9704-	●

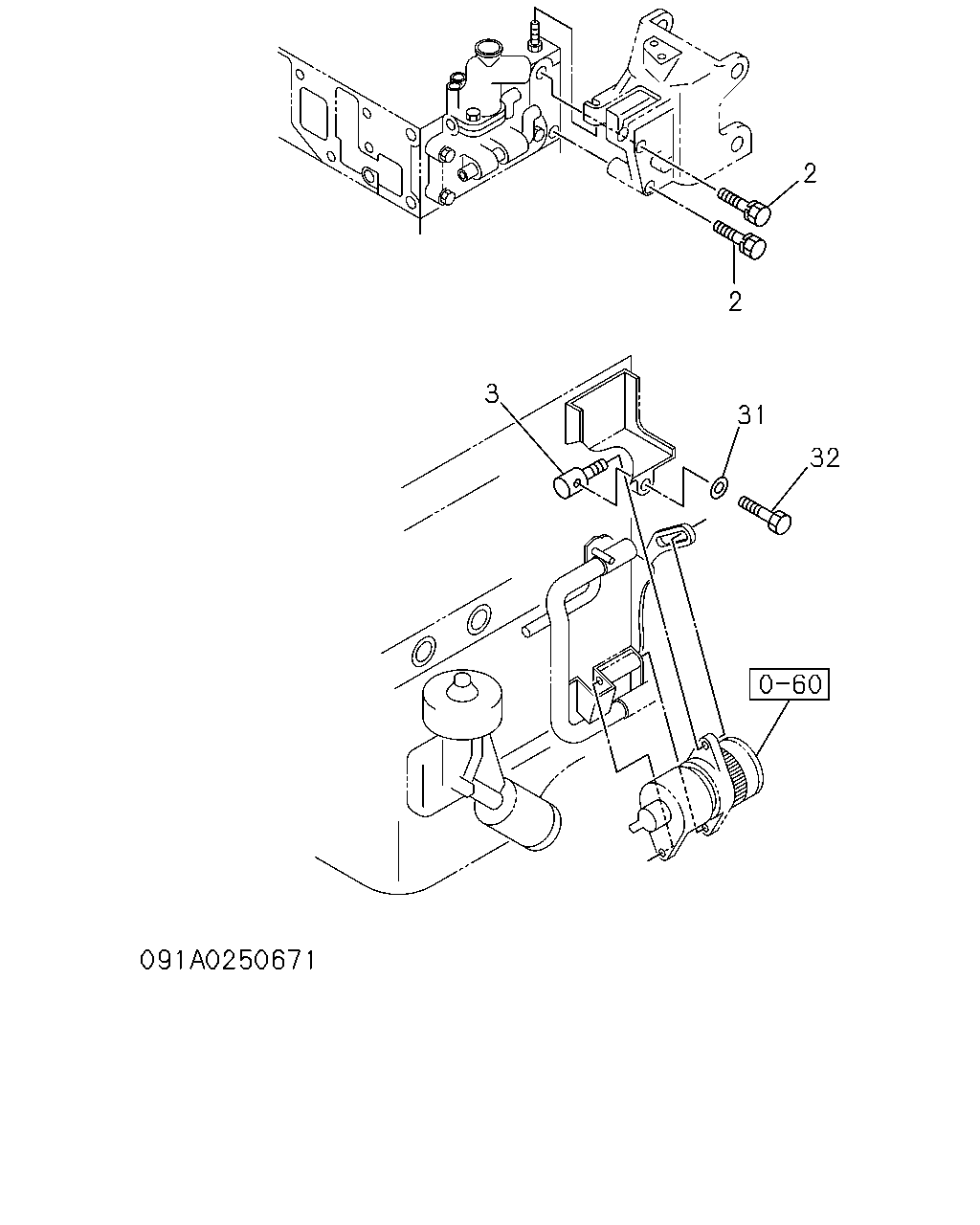

2 2 31 32 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
2	BOLT; BRKT TO CYL HD SHORT CHASSIS(NK***C) REFRIGERATOR CHASSIS(V4R) M8X60 W/LK WASHER	0-50040-860-0	01	1	9510-9703	●
2	BOLT; BRKT TO CYL HD SHORT CHASSIS(NK***C) REFRIGERATOR CHASSIS(V4R) M10X60 W/LK WASHER	0-50041-060-0	01	1	9510-9703	●
3	SHAFT; AC GEN SHORT CHASSIS(NK***C) REFRIGERATOR CHASSIS(V4R)	8-97084-802-0	01	1	9510-9703	●
31	WASHER; CMPR BRKT SHORT CHASSIS(NK***C) REFRIGERATOR CHASSIS(V4R) OD=20	8-94135-769-0	01	1	9510-9703	●
32	BOLT; AC GEN TENSION SHORT CHASSIS(NK***C) REFRIGERATOR CHASSIS(V4R) M8X128	8-94134-053-0	01	1	9510-9703	●

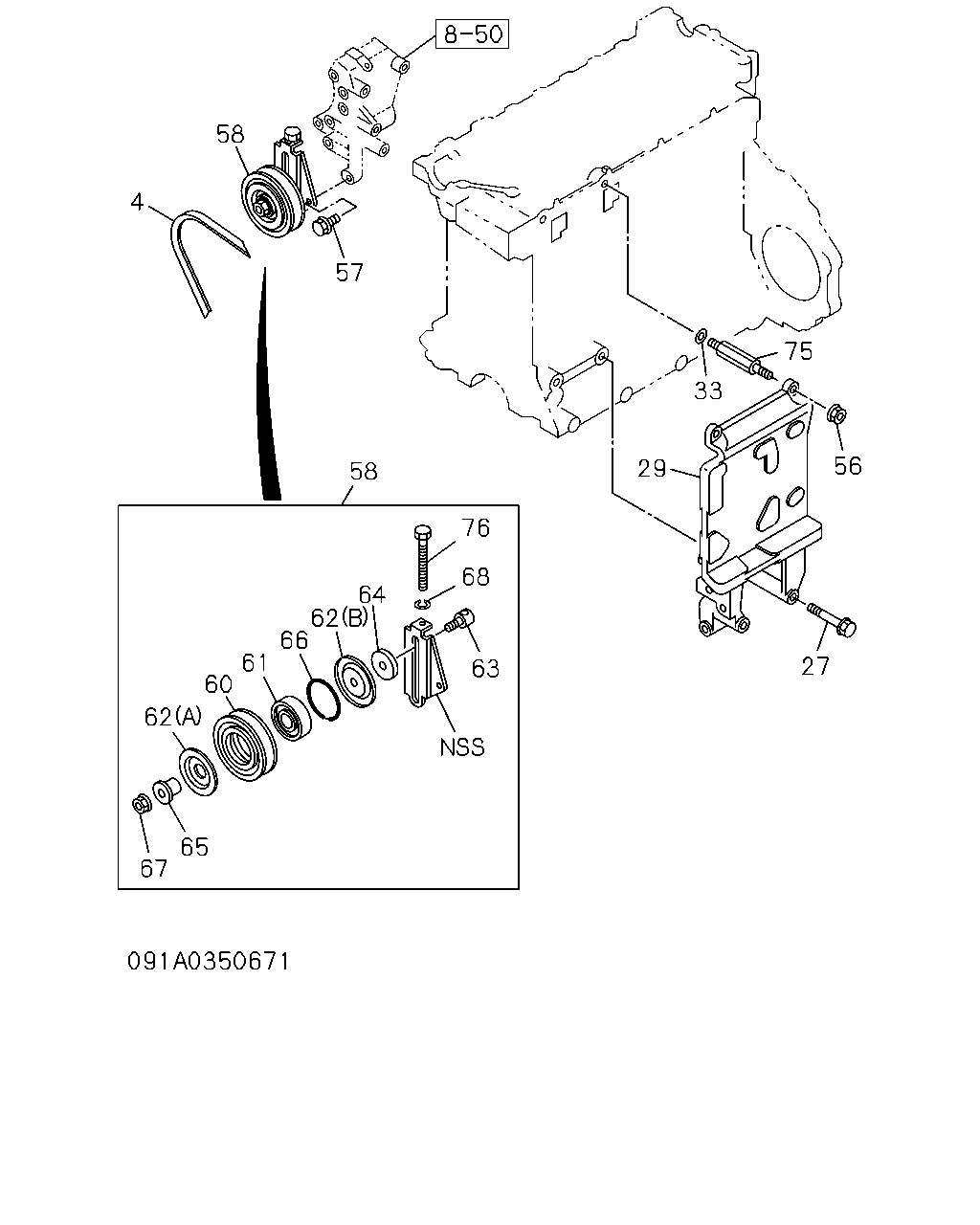

58 4 57 58 75 33 56 27 29 76 68 63 64 62 66 61 60 62 65 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1464	8-94482-166-0	01	1	9304-	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9704-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1335	1-13671-209-0	01	1	9304-9811	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1436	8-97208-496-0	01	1	9812-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	1-87310-084-0	01	1	9304-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1606	1-13671-176-0	01	1	9304-9502		●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1606	1-13671-176-0	01	1	9503-		●	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1560 B=17	5-13671-137-0	01	1	9304-9502				●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	5-87410-633-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	5-87410-633-0	01	1	9704-	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX	5-86750-007-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX	5-86750-007-0	01	1	9704-	●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) M10X60 W/LK WASHER	0-50041-060-0	01	1	9304-9502				●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER	0-50141-025-0	03	1	9304-9502				●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R)	8-97028-734-0	02	1	9304-9502		●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R)	8-97028-734-0	02	1	9503-9703		●	●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) M10X90 FLANGE	0-28191-090-0	02	1	9704-		●	●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-94478-929-1	01	1	9304-9502				●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-97065-483-0	01	1	9304-9406		●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-97115-710-0	01	1	9407-9502		●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-97115-710-1	01	1	9503-		●	●
33	WASHER; PL,BRKT REFRIGERATOR CHASSIS(V4R) ID=10.5 OD=22	9-09164-610-0	02	1	9304-9502		●
33	WASHER; PL,BRKT REFRIGERATOR CHASSIS(V4R) ID=10.5 OD=22	9-09164-610-0	02	1	9503-		●	●
56	NUT; CMPR TO BRKT REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	02	1	9304-9502		●
56	NUT; CMPR TO BRKT REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-210-0	02	1	9503-		●	●
57	BOLT; TENSIONER REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	03	1	9304-9502		●
57	BOLT; TENSIONER REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	03	1	9503-		●	●
58	PULLEY ASM; FREEZE CMPR REFRIGERATOR CHASSIS(V4R)	8-97065-641-0	01	1	9304-9502		●
58	PULLEY ASM; FREEZE CMPR REFRIGERATOR CHASSIS(V4R)	8-97065-641-1	01	1	9503-		●	●
60	PULLEY; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-795-0	01	1	9304-9502		●
60	PULLEY; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-795-0	01	1	9503-9603		●	●
60	PULLEY; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97147-126-0	01	1	9604-		●	●
61	BEARING; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-786-0	01	1	9304-9502		●
61	BEARING; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-786-0	01	1	9503-		●	●
62	COVER; TENSIONER REFRIGERATOR CHASSIS(V4R) (A)	8-97028-787-0	01	1	9304-9502		●
62	COVER; TENSIONER REFRIGERATOR CHASSIS(V4R) (A)	8-97028-787-0	01	1	9503-		●	●
62	COVER; TENSIONER REFRIGERATOR CHASSIS(V4R) (B)	8-97028-788-0	01	1	9304-9502		●
62	COVER; TENSIONER REFRIGERATOR CHASSIS(V4R) (B)	8-97028-788-0	01	1	9503-9603		●	●
62	COVER; TENSIONER REFRIGERATOR CHASSIS(V4R) (B)	8-97147-098-0	01	1	9604-		●	●
63	SHAFT; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97065-642-0	01	1	9304-9502		●
63	SHAFT; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97065-642-0	01	1	9503-9603		●	●
63	SHAFT; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97147-099-0	01	1	9604-		●	●
64	COLLAR; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-790-0	01	1	9304-9502		●
64	COLLAR; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-790-1	01	1	9503-		●	●
65	BUSHING; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-791-1	01	1	9304-9502		●
65	BUSHING; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-791-1	01	1	9503-9603		●	●
65	BUSHING; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97146-844-0	01	1	9604-		●	●
66	CLIP; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-792-0	01	1	9304-9502		●
66	CLIP; TENSIONER REFRIGERATOR CHASSIS(V4R)	8-97028-792-0	01	1	9503-		●	●
67	NUT; TENSIONER REFRIGERATOR CHASSIS(V4R) M10 FLANGE	5-09440-006-0	01	1	9304-9502		●
67	NUT; TENSIONER REFRIGERATOR CHASSIS(V4R) M10 FLANGE	5-09440-006-0	01	1	9503-9603		●	●
67	NUT; TENSIONER REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91250-110-0	01	1	9604-		●	●
68	WASHER; LK,TENSIONER REFRIGERATOR CHASSIS(V4R) ID=8.2	9-09150-508-0	01	1	9304-9502		●
68	WASHER; LK,TENSIONER REFRIGERATOR CHASSIS(V4R) ID=8.2	9-09150-508-0	01	1	9503-9603		●	●
75	SPACER REFRIGERATOR CHASSIS(V4R)	8-97065-515-2	02	1	9503-		●	●
76	BOLT REFRIGERATOR CHASSIS(V4R) M8X120 FLANGE	8-97062-091-1	01	1	9604-		●	●

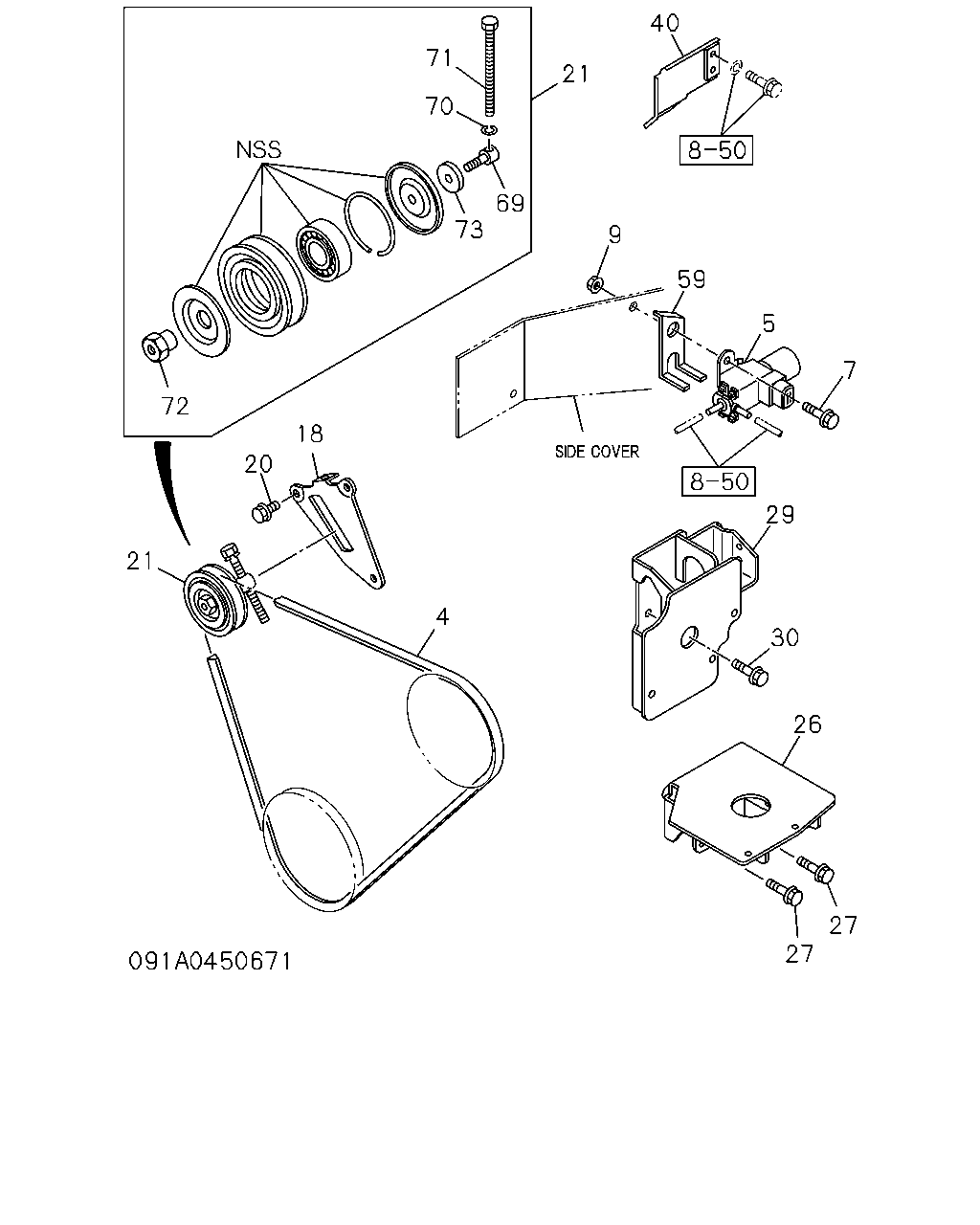

71 70 73 69 21 40 9 59 5 7 29 30 26 27 27 4 18 20 72 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1464	8-94482-166-0	01	1	9304-	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9704-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1335	1-13671-209-0	01	1	9304-9811	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1436	8-97208-496-0	01	1	9812-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	1-87310-084-0	01	1	9304-	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1606	1-13671-176-0	01	1	9304-9502		●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1606	1-13671-176-0	01	1	9503-		●	●
4	BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1560 B=17	5-13671-137-0	01	1	9304-9502				●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	5-87410-633-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) LOW PRICE PART	5-87410-633-0	01	1	9704-	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX	5-86750-007-0	01	1	9304-9703	●
4	BELT; CMPR,REFRIGERATION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX	5-86750-007-0	01	1	9704-	●
5	VALVE; VAC SWITCHING,FICD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R)	8-97013-879-0	01	1	9304-9502				●
5	VALVE; VAC SWITCHING,FICD REFRIGERATOR CHASSIS(V4R)	8-97013-879-0	01	1	9304-9502				●
7	BOLT; VSV FIX AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9304-9502				●
7	BOLT; VSV FIX REFRIGERATOR CHASSIS(V4R) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9304-9502				●
9	NUT; VSV FIX AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M8 FLANGE	0-91150-208-0	01	1	9304-9305				●
9	NUT; VSV FIX REFRIGERATOR CHASSIS(V4R) M8 FLANGE	0-91150-208-0	01	1	9304-9305				●
9	NUT; VSV FIX AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M8 FLANGE	0-91150-108-0	01	1	9306-9502				●
9	NUT; VSV FIX REFRIGERATOR CHASSIS(V4R) M8 FLANGE	0-91150-108-0	01	1	9306-9502				●
18	BRACKET; "C",IDLE CMPR REFRIGERATOR CHASSIS(V4R)	8-94478-935-1	01	1	9304-9502				●
20	BOLT; BRKT "C" TO WATER PUMP REFRIGERATOR CHASSIS(V4R) M10X18	0-50041-018-0	03	1	9304-9502				●
21	PULLEY ASM; IDLE,CMPR REFRIGERATOR CHASSIS(V4R)	8-94340-402-1	01	1	9304-9502				●
26	BRACKET; GEN TO C/BL REFRIGERATOR CHASSIS(V4R)	8-94478-928-2	01	1	9304-9502				●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) M10X60 W/LK WASHER	0-50041-060-0	01	1	9304-9502				●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER	0-50141-025-0	03	1	9304-9502				●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R)	8-97028-734-0	02	1	9304-9502		●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R)	8-97028-734-0	02	1	9503-9703		●	●
27	BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) M10X90 FLANGE	0-28191-090-0	02	1	9704-		●	●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-94478-929-1	01	1	9304-9502				●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-97065-483-0	01	1	9304-9406		●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-97115-710-0	01	1	9407-9502		●
29	BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-97115-710-1	01	1	9503-		●	●
30	BOLT; BRKT TO CYL HD REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER	0-50141-025-0	03	1	9304-9502				●
40	PROTECTOR; HTR HOLE REFRIGERATOR CHASSIS(V4R)	8-94337-402-0	01	1	9304-9502				●
59	BRACKET; VSV	8-97087-008-1	01	1	9304-9502				●
69	SHAFT; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97093-515-0	01	1	9304-9502				●
70	WASHER; LK,IDLE PULLEY REFRIGERATOR CHASSIS(V4R) ID=8.2	9-09150-508-0	01	1	9304-9502				●
71	BOLT; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97093-513-0	01	1	9304-9502				●
72	BUSHING; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97093-512-0	01	1	9304-9502				●
73	COLLAR; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97093-514-0	01	1	9304-9502				●
