◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#166671) — 87 parça

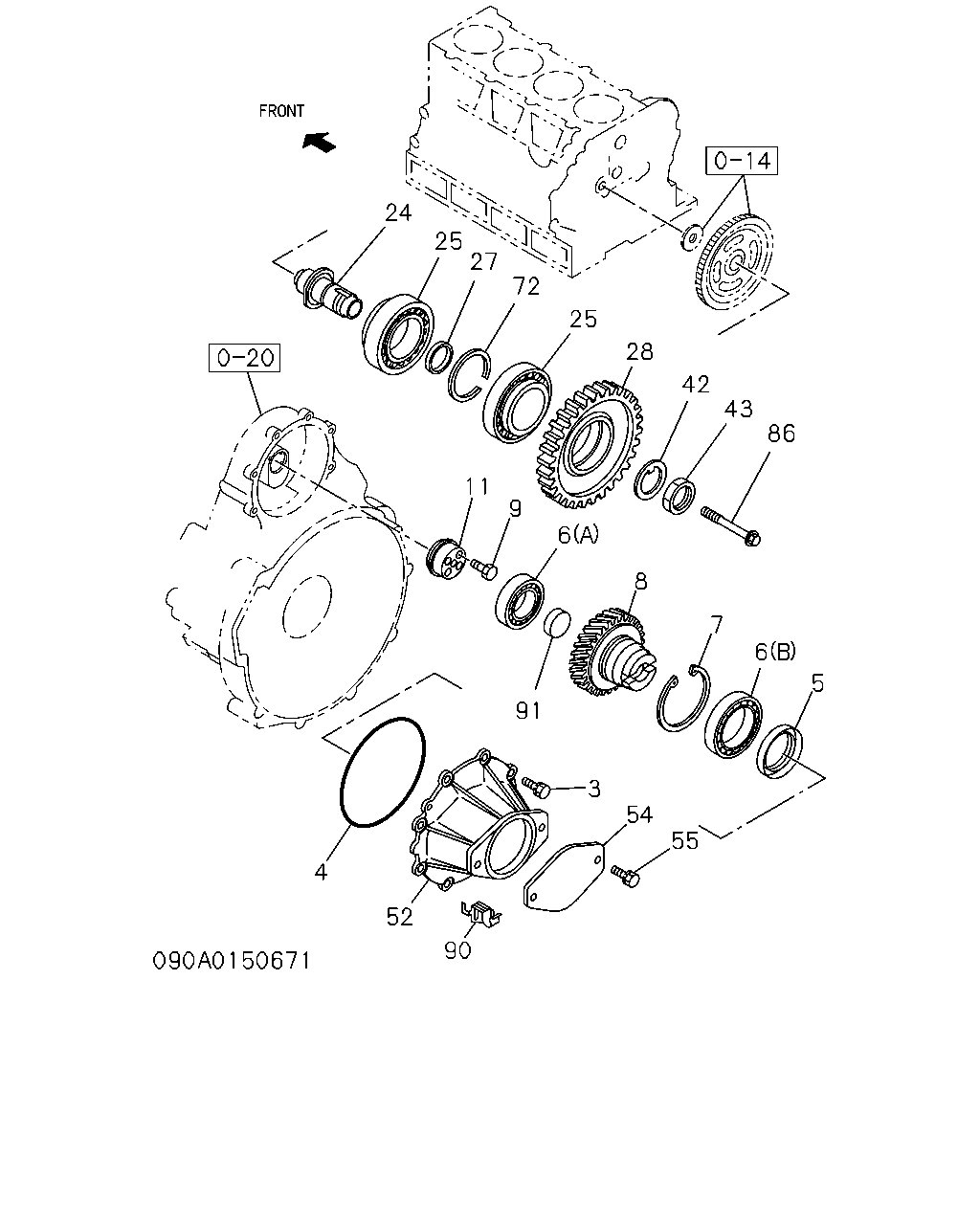

çizim 493906
86 43 42 28 25 72 27 25 24 11 9 6 8 7 6 5 54 55 3 91 4 52 90
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRG CASE
POWER TAKE OFF - FLYWHEEL(6SZ) M10X28 FLANGE 		0-28181-028-0 08 1 9304-9502 ●
3 BOLT; BRG CASE
POWER TAKE OFF - FLYWHEEL(6SZ) M10X28 FLANGE 		0-28181-028-0 08 1 9503-9606 ● ●
3 BOLT; BRG CASE
POWER TAKE OFF - FLYWHEEL(6SZ) M10X35 FLANGE 		0-28781-035-0 08 1 9607- ● ●
4 GASKET; BRG CASE
POWER TAKE OFF - FLYWHEEL(6SZ) 		9-09720-519-0 01 1 9304-9502 ●
4 GASKET; BRG CASE
POWER TAKE OFF - FLYWHEEL(6SZ) 		9-09720-519-0 01 1 9503- ● ●
5 SEAL; OIL,BRG CASE,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) 		1-09625-128-0 01 1 9304-9502 ●
5 SEAL; OIL,BRG CASE,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) 		1-09625-128-0 01 1 9503- ● ●
6 BEARING; FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94322-415-1 01 1 9304-9502 ●
6 BEARING; FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94322-415-1 01 1 9503- ● ●
6 BEARING; FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-94322-416-0 01 1 9304-9502 ●
6 BEARING; FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) (B) 		8-94322-416-0 01 1 9503- ● ●
7 RING; SNAP BALL BRG
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-94322-417-0 01 1 9304-9502 ●
7 RING; SNAP BALL BRG
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-94322-417-0 01 1 9503- ● ●
8 GEAR; FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97072-698-4 01 1 9304-9502 ●
8 GEAR; FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97072-698-4 01 1 9503- ● ●
9 BOLT; SPINDLE,PTO GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) M8X35 HEX SOCKET 		9-05820-835-0 04 1 9304-9502 ●
9 BOLT; SPINDLE,PTO GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) M8X35 HEX SOCKET 		9-05820-835-0 04 1 9503- ● ●
11 SHAFT; PTO,FLYWHEEL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-94322-684-0 01 1 9304-9502 ●
11 SHAFT; PTO,FLYWHEEL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-94322-684-0 01 1 9503- ● ●
24 SHAFT; IDLE GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-94396-895-1 01 1 9304-9502 ●
24 SHAFT; IDLE GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-94396-895-1 01 1 9503- ● ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) ID=45 OD=85 		9-00032-209-0 02 1 9304-9502 ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
POWER TAKE OFF - FLYWHEEL(6SZ) ID=45 OD=85 		9-00032-209-0 02 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.05 		1-38226-016-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.05 		1-38226-016-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.12 		1-38226-017-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.12 		1-38226-017-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.19 		1-38226-018-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.19 		1-38226-018-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.26 		1-38226-019-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.26 		1-38226-019-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.33 		1-38226-020-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.33 		1-38226-020-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.40 		1-38226-021-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.40 		1-38226-021-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.47 		1-38226-022-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.47 		1-38226-022-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.54 		1-38226-023-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.54 		1-38226-023-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.61 		1-38226-024-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.61 		1-38226-024-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.68 		1-38226-025-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.68 		1-38226-025-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.75 		1-38226-026-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.75 		1-38226-026-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.82 		1-38226-027-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.82 		1-38226-027-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.89 		1-38226-028-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.89 		1-38226-028-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.96 		1-38226-029-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=6.96 		1-38226-029-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.03 		1-38226-030-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.03 		1-38226-030-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.10 		1-38226-031-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.10 		1-38226-031-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.17 		1-38226-032-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.17 		1-38226-032-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.24 		1-38226-033-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.24 		1-38226-033-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.31 		1-38226-034-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.31 		1-38226-034-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.38 		1-38226-035-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.38 		1-38226-035-0 01 1 9503- ● ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.45 		1-38226-036-0 01 1 9304-9502 ●
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=7.45 		1-38226-036-0 01 1 9503- ● ●
28 GEAR; IDLE
POWER TAKE OFF - FLYWHEEL(6SZ) Z=72 		8-94396-884-0 01 1 9304-9502 ●
28 GEAR; IDLE
POWER TAKE OFF - FLYWHEEL(6SZ) Z=72 		8-94396-884-0 01 1 9503- ● ●
42 WASHER; LK,BRG
POWER TAKE OFF - FLYWHEEL(6SZ) ID=47 		1-09533-003-0 01 1 9304-9502 ●
42 WASHER; LK,BRG
POWER TAKE OFF - FLYWHEEL(6SZ) ID=47 		1-09533-003-0 01 1 9503- ● ●
43 NUT; BRG IDLE GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) 		1-09840-005-0 01 1 9304-9502 ●
43 NUT; BRG IDLE GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) 		1-09840-005-0 01 1 9503- ● ●
52 CASE; BRG,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97076-044-0 01 1 9304-9502 ●
52 CASE; BRG,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97076-044-0 01 1 9503- ● ●
54 PLATE; BRG CASE
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97015-559-0 01 1 9304-9502 ●
54 PLATE; BRG CASE
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97015-559-0 01 1 9503- ● ●
55 BOLT; PLATE
POWER TAKE OFF - FLYWHEEL(6SZ) M12X25 W/LK WASHER 		0-50051-225-0 01 1 9304-9304 ●
55 BOLT; PLATE
POWER TAKE OFF - FLYWHEEL(6SZ) M12X25 W/LK WASHER 		0-50051-225-0 02 1 9304-9502 ●
55 BOLT; PLATE
POWER TAKE OFF - FLYWHEEL(6SZ) M12X25 W/LK WASHER 		0-50051-225-0 02 1 9503-9606 ● ●
55 BOLT; PLATE
POWER TAKE OFF - FLYWHEEL(6SZ) M12X25 		0-28781-225-0 02 1 9607- ● ●
72 SPACER; OUTER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=3 		1-38226-015-0 01 1 9304-9502 ●
72 SPACER; OUTER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF - FLYWHEEL(6SZ) T=3 		1-38226-015-0 01 1 9503- ● ●
86 BOLT; PTO GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 01 1 9304-9502 ●
86 BOLT; PTO GEAR
POWER TAKE OFF - FLYWHEEL(6SZ) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 01 1 9503- ● ●
90 CLIP; RUBBER HOSE
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97077-545-0 01 1 9304-9502 ●
90 CLIP; RUBBER HOSE
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97077-545-0 01 1 9503- ● ●
91 CUP; SEALING
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-11129-007-0 01 1 9304-9502 ●
91 CUP; SEALING
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-11129-007-0 01 1 9503- ● ●
