4-01 — PROPELLER SHAFT (#16667) — 63 parça

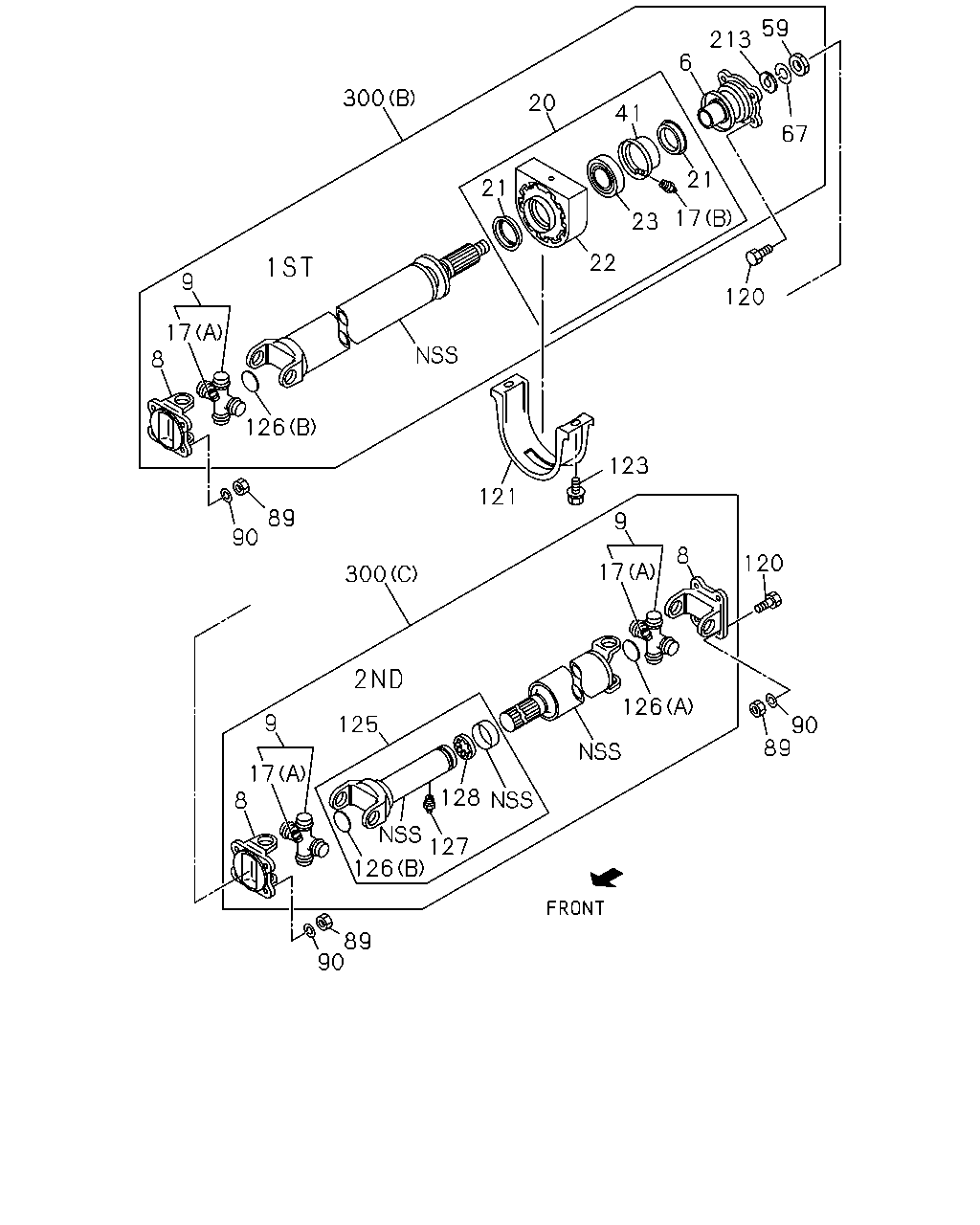

59 213 6 300 20 41 67 21 21 17 23 22 9 120 17 8 126 123 121 89 90 9 8 120 17 300 126 9 125 90 89 17 8 128 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	COUPLING ASM; DRIVER,PROP SHAFT THA	8-97036-123-0	01	1	0009-	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97020-281-0	02	1	0309-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97020-281-0	02	1	0309-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	01	1	0009-	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	02	1	0009-	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97020-281-0	02	1	0009-		●	●
9	JOURNAL ASM; PROP SHAFT THA	8-97185-603-0	02	1	0309-		●	●
9	JOURNAL ASM; PROP SHAFT THA	8-97185-603-0	02	1	0309-		●	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	01	1	0009-	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	02	1	0009-	●
9	JOURNAL ASM; PROP SHAFT THA	8-97185-603-0	02	1	0009-		●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	9-09031-006-0	01	1	0009-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0009-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0009-	●
20	BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0009-	●
21	SEAL; OIL,CENTER BRG ID=49 THA	5-09625-067-1	02	1	0009-	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	5-37516-005-1	01	1	0009-	●
23	BEARING; CENTER,PROP SHAFT OD=80 THA	5-09800-068-0	01	1	0009-	●
41	COVER; CENTER BRG,PROP SHAFT THA	5-37512-004-0	01	1	0009-	●
59	NUT; RET TO SUPPORT M30 H=23 THA	1-09449-068-0	01	1	0009-0306	●
59	NUT; RET TO SUPPORT M27 H=25	8-97253-126-0	01	1	0307-	●
67	WASHER; PROP SHAFT TO COUPLING DRIVER ID=30.5 THA	1-09503-025-0	01	1	0009-0306	●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0009-		●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0009-	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	08	1	0009-		●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0009-	●
120	BOLT; YOKE TO RR AXLE M10X29 THA	8-97168-458-1	04	1	0009-		●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0009-	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0009-	●
123	BOLT; RET M10X25 FLANGE	0-28681-025-0	04	1	0009-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=191 THA	8-97036-126-1	01	1	0009-	●
126	PLUG; SPLINED YOKE (A) THA	8-94366-900-0	01	1	0009-	●
126	PLUG; SPLINED YOKE (B) THA	1-09600-023-0	01	1	0009-	●
126	PLUG; SPLINED YOKE (B) THA	1-09600-023-0	01	1	0009-	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	0009-	●
128	SEAL; SLEEVE THA	8-97145-746-0	01	1	0009-	●
300	SHAFT ASM; PROP,RR (A) L=1118 THA	8-97940-282-1	01	1	0009-		●
300	SHAFT ASM; PROP,RR (A) L=1104 THA	8-97940-283-1	01	1	0009-			●
300	SHAFT ASM; PROP,RR (B) L=856	8-97206-681-1	01	1	0009-	●
300	SHAFT ASM; PROP,RR (C) L=1050 THA	8-97206-688-0	01	1	0009-	●

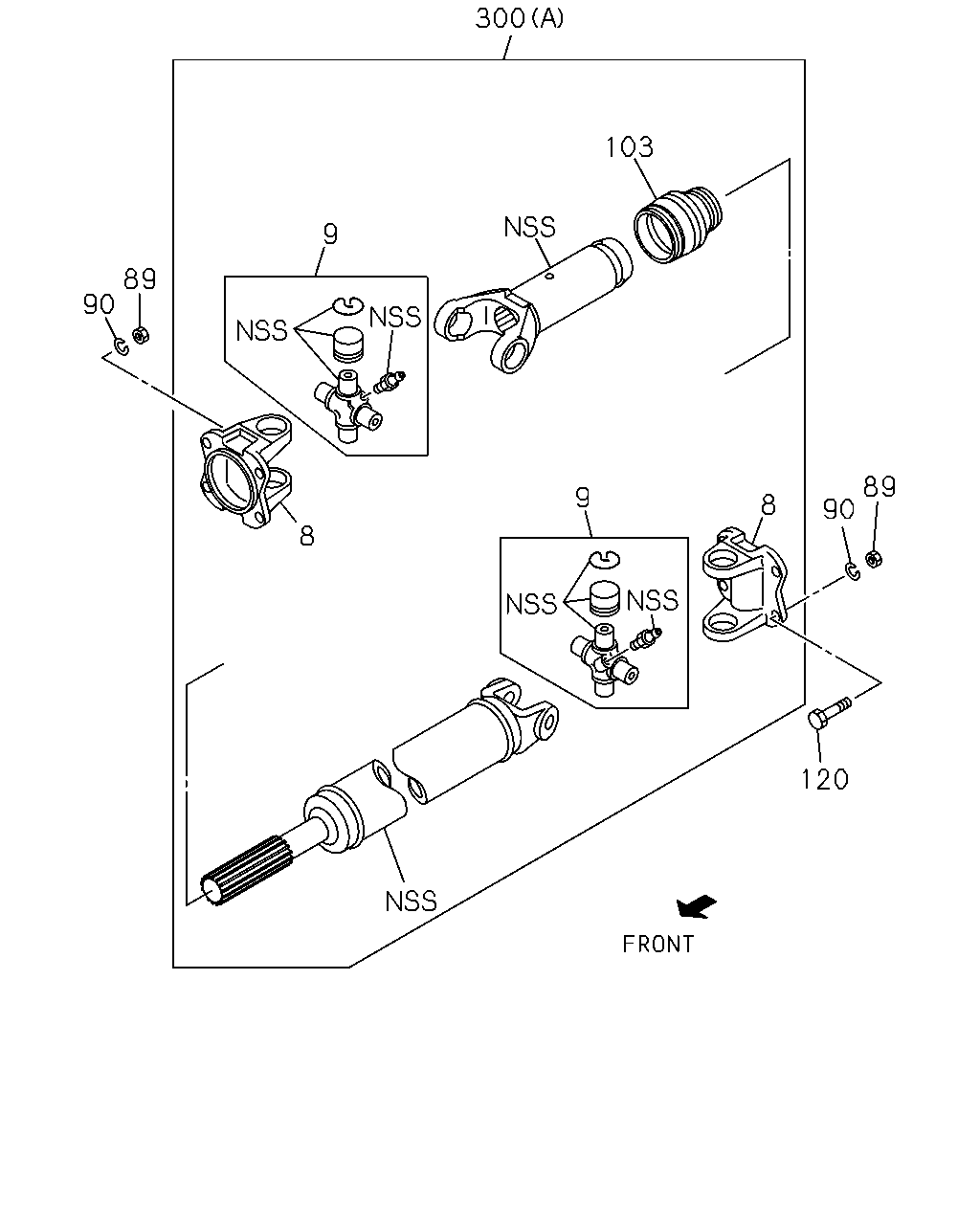

300 103 9 89 90 89 90 9 8 8 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT THA	8-97020-281-0	02	1	0309-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97020-281-0	02	1	0309-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	01	1	0009-	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	02	1	0009-	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97020-281-0	02	1	0009-		●	●
9	JOURNAL ASM; PROP SHAFT THA	8-97185-603-0	02	1	0309-		●	●
9	JOURNAL ASM; PROP SHAFT THA	8-97185-603-0	02	1	0309-		●	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	01	1	0009-	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	02	1	0009-	●
9	JOURNAL ASM; PROP SHAFT THA	8-97185-603-0	02	1	0009-		●	●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0009-		●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0009-	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	08	1	0009-		●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0009-	●
103	BOOT; PROP SHAFT THA	8-97182-164-0	01	1	0309-		●	●
103	BOOT; PROP SHAFT THA	8-97182-164-0	01	1	0309-		●	●
103	BOOT; PROP SHAFT THA	8-97182-164-0	01	1	0009-		●	●
120	BOLT; YOKE TO RR AXLE M10X29 THA	8-97168-458-1	04	1	0009-		●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0009-	●
300	SHAFT ASM; PROP,RR (A) L=1118 THA	8-97940-282-1	01	1	0009-		●
300	SHAFT ASM; PROP,RR (A) L=1104 THA	8-97940-283-1	01	1	0009-			●
300	SHAFT ASM; PROP,RR (B) L=856	8-97206-681-1	01	1	0009-	●
300	SHAFT ASM; PROP,RR (C) L=1050 THA	8-97206-688-0	01	1	0009-	●
