1 |

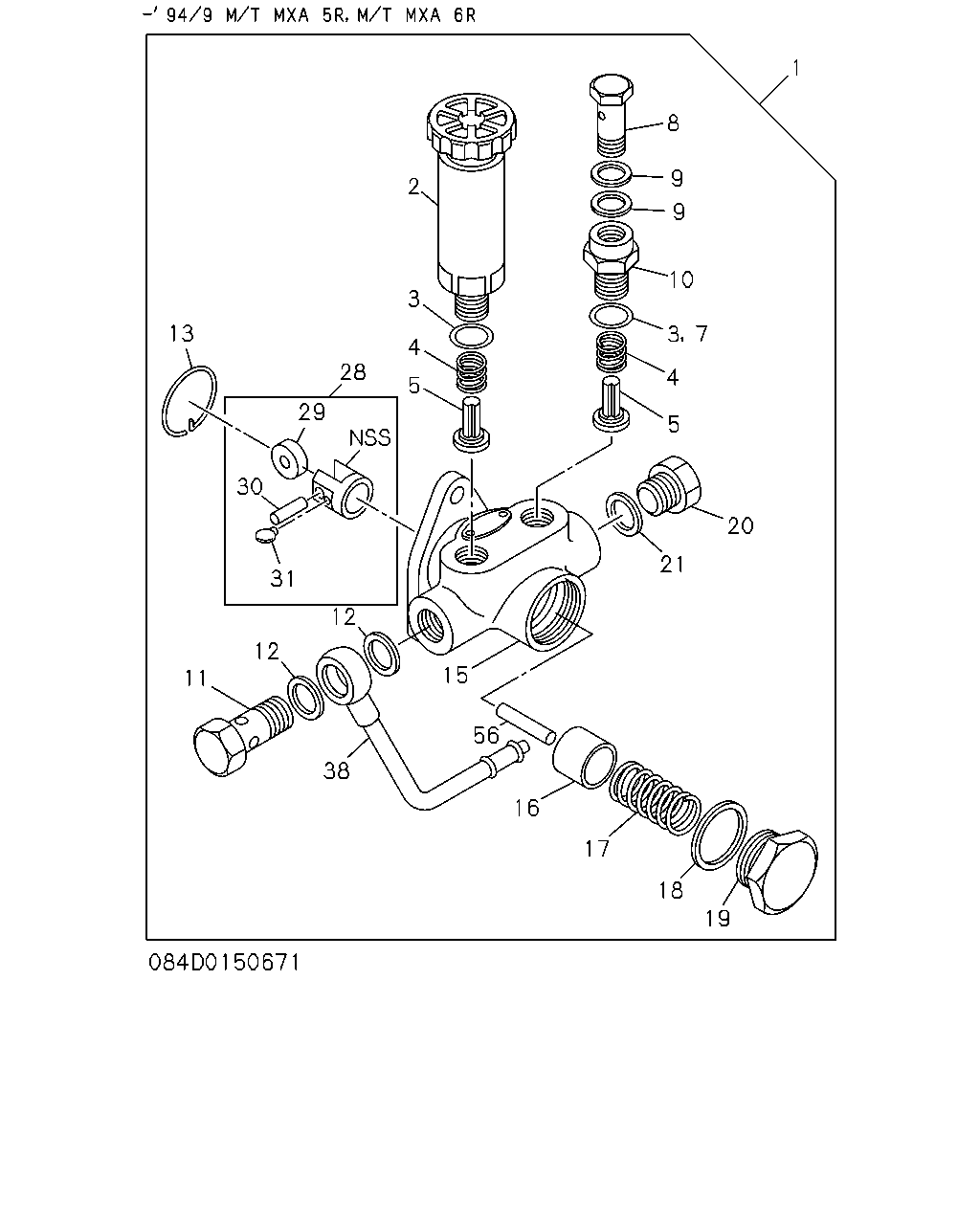

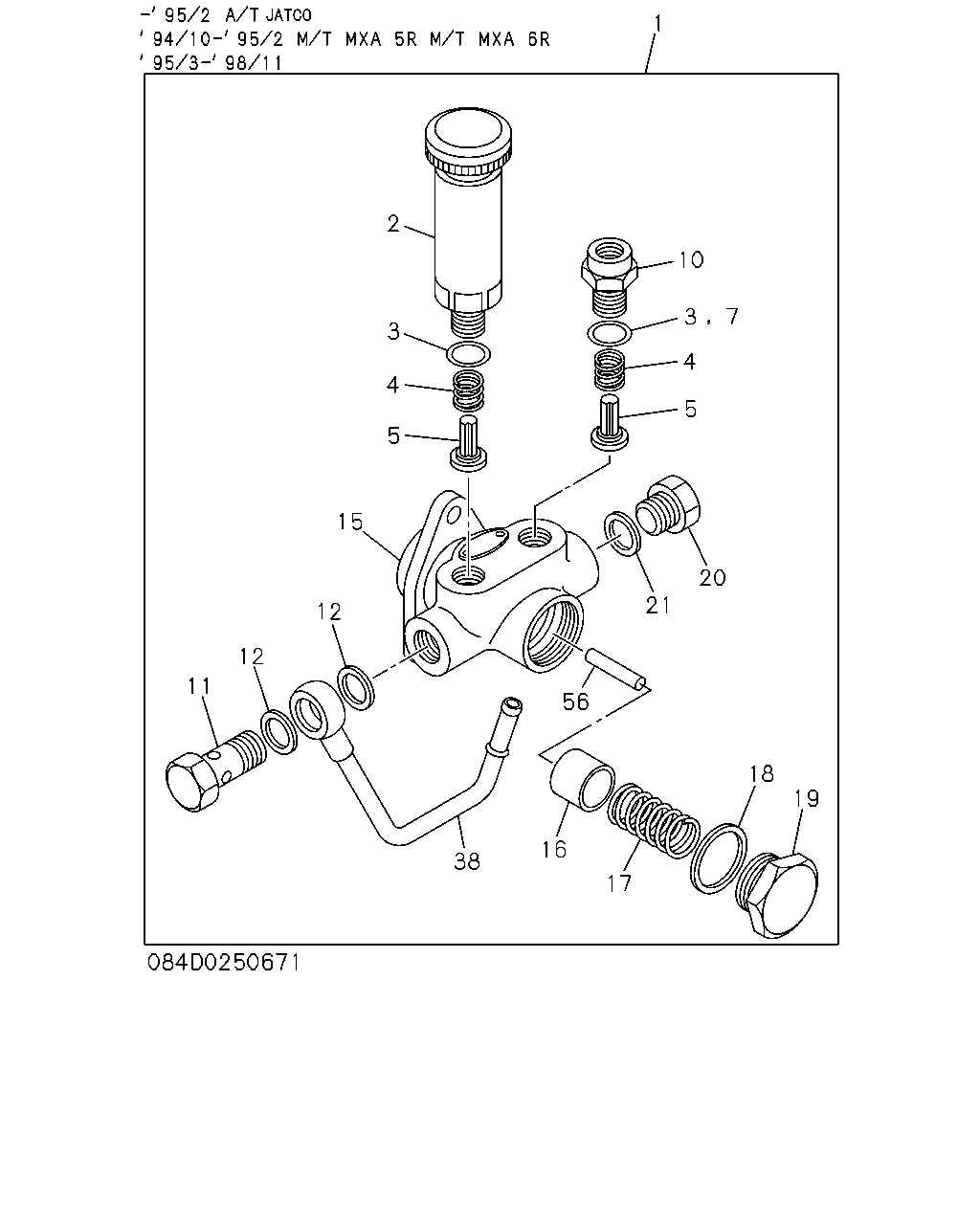

PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
8-97093-761-0 |
01 |
1 |
- |
| |
1 |
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97090-353-2
|
8-97093-761-0 |
01 |
1 |
-9312 |
| |
1 |
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-97114-006-0, E = 8-97114-007-0,
F = 8-97114-008-0, G = 8-97115-361-0,
I = 8-97118-291-2, J = 8-97136-656-0,
L = 8-97146-771-1
|
8-97114-351-0 |
01 |
1 |
- |
| |
1 |
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97090-353-2
|
8-97114-351-0 |
01 |
1 |
9401- |
| |
1 |
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 8-97118-290-2, K = 8-97136-664-0,
M = 8-97146-773-1
|
8-97117-944-0 |
01 |
1 |
- |
| |
1 |
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: N = 8-97203-369-0
|
8-97223-289-0 |
01 |
1 |
- |
| |
1 |
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: O = 8-97203-371-0
|
8-97224-396-0 |
01 |
1 |
- |
| |
2 |
PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
1-15761-006-0 |
01 |
1 |
- |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: G = 8-97115-361-0
|
1-15623-016-0 |
01 |
1 |
- |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: D = 8-97114-006-0, O = 8-97203-371-0
|
1-19623-016-0 |
02 |
1 |
- |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
1-19623-016-0 |
02 |
1 |
9401- |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
1-19623-016-0 |
01 |
1 |
-9312 |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2,
E = 8-97114-007-0, F = 8-97114-008-0,
H = 8-97118-290-2, I = 8-97118-291-2,
J = 8-97136-656-0, K = 8-97136-664-0,
L = 8-97146-771-1, M = 8-97146-773-1,
N = 8-97203-369-0
|
1-19623-016-0 |
01 |
1 |
- |
| |
4 |
SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
9-81351-702-0 |
02 |
1 |
- |
| |
5 |
VALVE; FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
1-15755-002-0 |
02 |
1 |
- |
| |
7 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0
|
1-19623-016-0 |
01 |
1 |
- |
| |
7 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
1-19623-016-0 |
01 |
1 |
-9312 |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
1-15759-011-0 |
01 |
1 |
- |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 8-97090-353-2
|
1-15759-011-0 |
01 |
1 |
-9312 |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: A = 8-97090-353-2
|
1-09630-085-0 |
02 |
1 |
-9312 |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
1-09630-085-0 |
02 |
1 |
- |
| |
10 |
ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
1-15759-003-0 |
01 |
1 |
- |
| |
11 |
BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1
|
1-15759-029-0 |
01 |
1 |
- |
| |
12 |
GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1
|
1-09630-085-0 |
02 |
1 |
- |
| |
13 |
RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
9-81355-025-0 |
01 |
1 |
-9312 |
| |
13 |
RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
9-81355-025-0 |
01 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
8-94472-292-0 |
01 |
1 |
-9312 |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
8-94472-292-0 |
01 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
8-97115-987-0 |
01 |
1 |
9401- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: D = 8-97114-006-0
|
8-97115-987-0 |
01 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
8-97115-989-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: G = 8-97115-361-0
|
1-15725-001-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: D = 8-97114-006-0, E = 8-97114-007-0,
F = 8-97114-008-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
1-15752-001-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
1-15752-001-0 |
01 |
1 |
9401- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
9-81351-205-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
9-81351-205-0 |
01 |
1 |
-9312 |
| |
17 |
SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
9-81351-302-0 |
01 |
1 |
- |
| |
18 |
GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
1-15759-042-0 |
01 |
1 |
- |
| |
19 |
PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
8-94171-185-0 |
01 |
1 |
- |
| |
20 |
PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
1-15759-004-0 |
01 |
1 |
- |
| |
21 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1, N = 8-97203-369-0,
O = 8-97203-371-0
|
1-15759-007-0 |
01 |
1 |
- |
| |
28 |
TAPPET ASM; FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
5-15754-001-0 |
01 |
1 |
- |
| |
28 |
TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
5-15754-001-0 |
01 |
1 |
-9312 |
| |
29 |
ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
9-81351-403-0 |
01 |
1 |
- |
| |
29 |
ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
9-81351-403-0 |
01 |
1 |
-9312 |
| |
30 |
PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
9-81351-410-0 |
01 |
1 |
- |
| |
30 |
PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
9-81351-410-0 |
01 |
1 |
-9312 |
| |
31 |
GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: B = 8-97090-354-1, C = 8-97090-355-2
|
1-15759-002-0 |
02 |
1 |
- |
| |
31 |
GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97090-353-2
|
1-15759-002-0 |
02 |
1 |
-9312 |
| |
38 |
PIPE; FEED PUMP
ASM PART: A = 8-97090-353-2, B = 8-97090-354-1,
C = 8-97090-355-2, D = 8-97114-006-0,
E = 8-97114-007-0, F = 8-97114-008-0,
G = 8-97115-361-0, H = 8-97118-290-2,
I = 8-97118-291-2, J = 8-97136-656-0,
K = 8-97136-664-0, L = 8-97146-771-1,
M = 8-97146-773-1
|
8-97093-411-0 |
01 |
1 |
- |
| |
56 |
PUSH ROD
ASM PART: H = 8-97118-290-2, K = 8-97136-664-0,
M = 8-97146-773-1, O = 8-97203-371-0
|
8-97115-990-0 |
01 |
1 |
- |
| |
56 |
PUSH ROD
ASM PART: A = 8-97090-353-2
|
8-97115-991-0 |
01 |
1 |
9401- |
| |
56 |
PUSH ROD
ASM PART: D = 8-97114-006-0, E = 8-97114-007-0,
F = 8-97114-008-0, G = 8-97115-361-0,
I = 8-97118-291-2, J = 8-97136-656-0,
L = 8-97146-771-1, N = 8-97203-369-0
|
8-97115-991-0 |
01 |
1 |
- |
