0-84A — FEED PUMP; INJECTION PUMP (#166667) — 40 parça

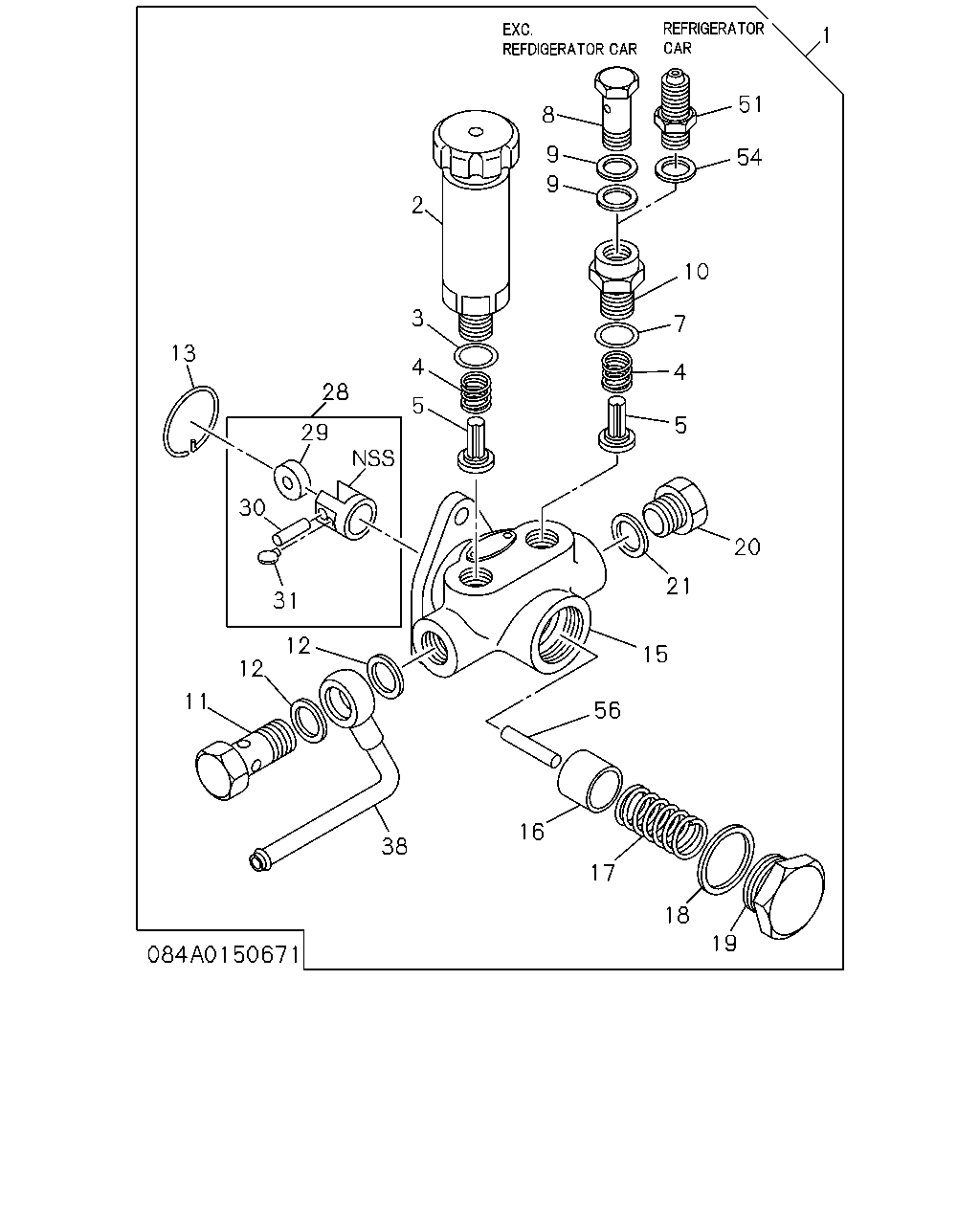

çizim 494302
1 51 54 10 7 4 5 20 21 15 56 16 17 18 19 38 12 12 11 31 30 29 28 13 5 4 3 2 9 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 8-97077-491-2 		8-97081-181-0 01 1 -9312
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97075-425-2 		8-97081-182-0 01 1 -9312
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 8-97077-491-2 		8-97115-978-0 01 1 9401-
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: C = 8-97117-559-0 		1-15761-006-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		1-15761-006-0 01 1 9401-
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		8-94131-130-0 01 1 -9312
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		1-15755-002-0 02 1 9401-
5 VALVE; FUEL FEED PUMP
ASM PART: C = 8-97117-559-0 		1-15755-002-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		9-81351-602-0 02 1 -9312
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 8-97077-491-2 		1-19623-016-0 01 1 -9312
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, C = 8-97117-559-0 		1-19623-016-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 8-97075-425-2 		1-15619-082-0 01 1 -9312
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2 		1-15759-001-0 02 1 -9312
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		1-15759-003-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		5-15759-027-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		1-15759-001-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: C = 8-97117-559-0 		9-81355-025-0 01 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		9-81355-025-0 01 1 -9312
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		8-94472-292-0 01 1 -9312
15 HOUSING; FUEL FEED PUMP
ASM PART: C = 8-97117-559-0 		8-97115-989-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		8-97115-989-0 01 1 9401-
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		1-15752-001-0 01 1 9401-
16 PISTON; FUEL FEED PUMP
ASM PART: C = 8-97117-559-0 		1-57520-010-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		9-81351-205-0 01 1 -9312
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		9-81351-302-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		1-15759-042-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		1-15759-004-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		1-15759-007-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		5-15754-001-0 01 1 -9312
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		9-81351-403-0 01 1 -9312
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		9-81351-410-0 01 1 -9312
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		1-15759-002-0 02 1 -9312
38 PIPE; FEED PUMP
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2, C = 8-97117-559-0 		8-97083-357-0 01 1 -
51 CONNECTOR; FEED PUMP
ASM PART: B = 8-97077-491-2 		8-97028-203-0 01 1 -
54 GASKET; ADAPTER
ASM PART: B = 8-97077-491-2 		8-97024-863-0 01 1 -
56 PUSH ROD
ASM PART: A = 8-97075-425-2, B = 8-97077-491-2 		8-97115-991-0 01 1 9401-
56 PUSH ROD
ASM PART: C = 8-97117-559-0 		8-97115-991-0 01 1 -
