Sayfa 0-66 - Isuzu EPC

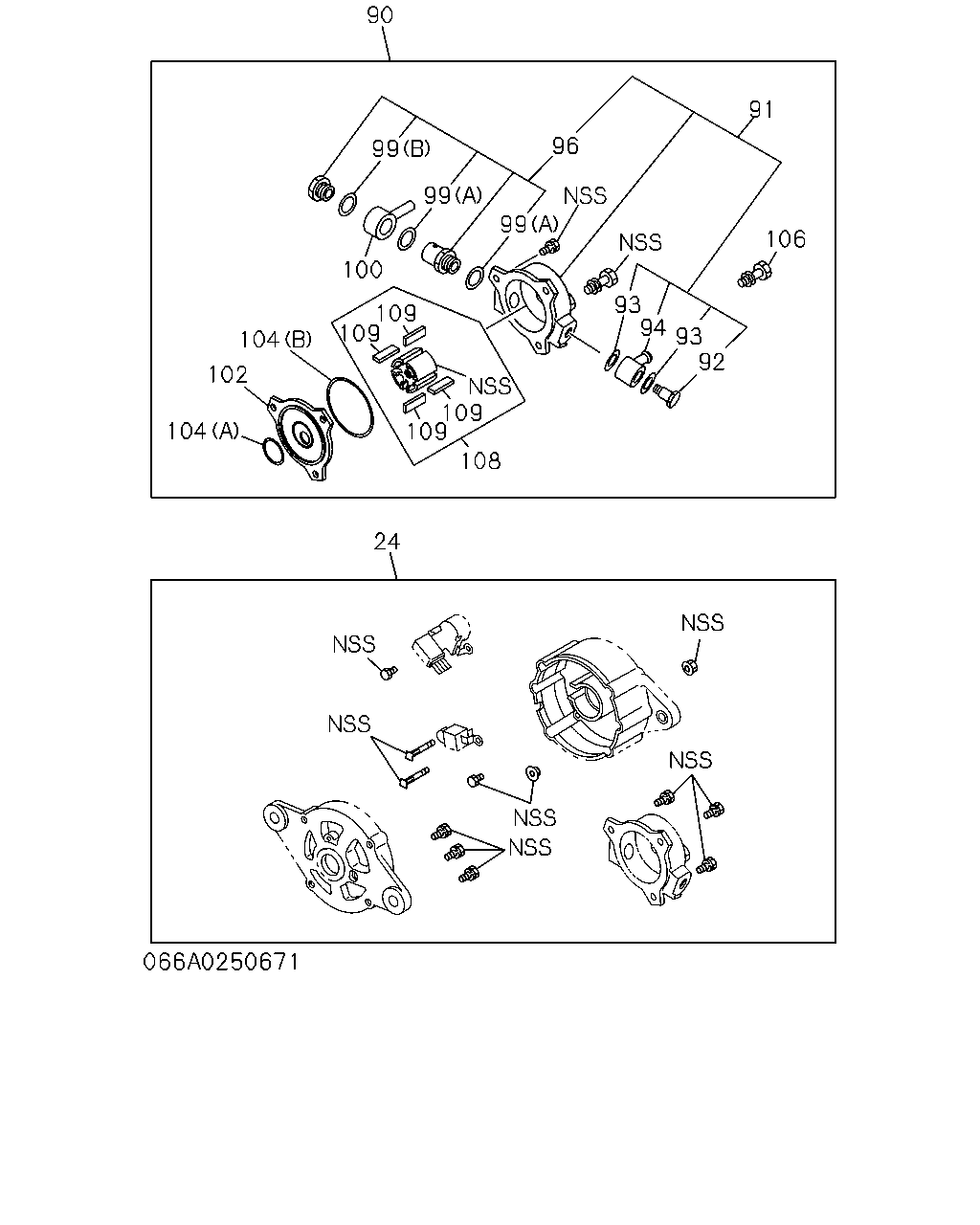

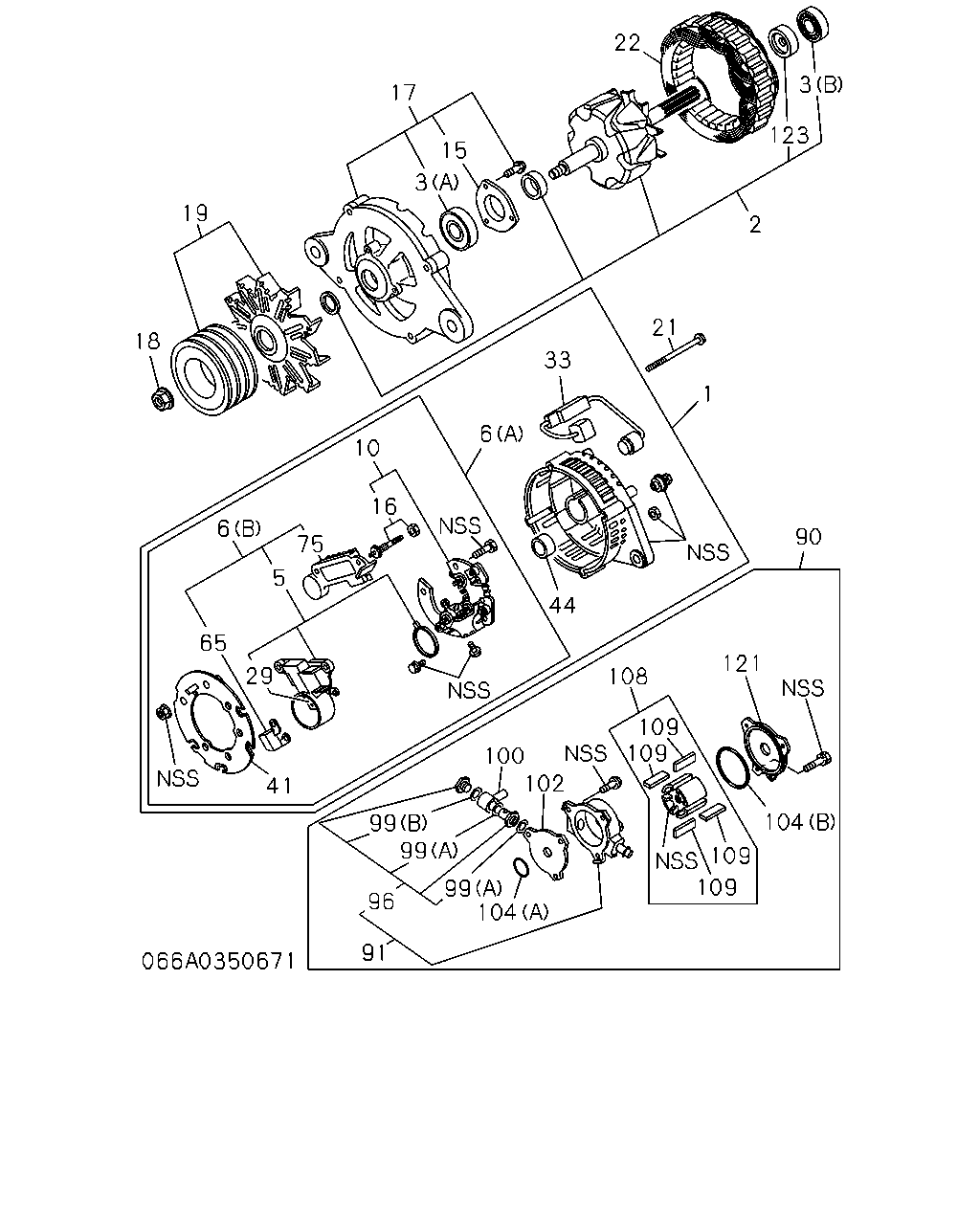

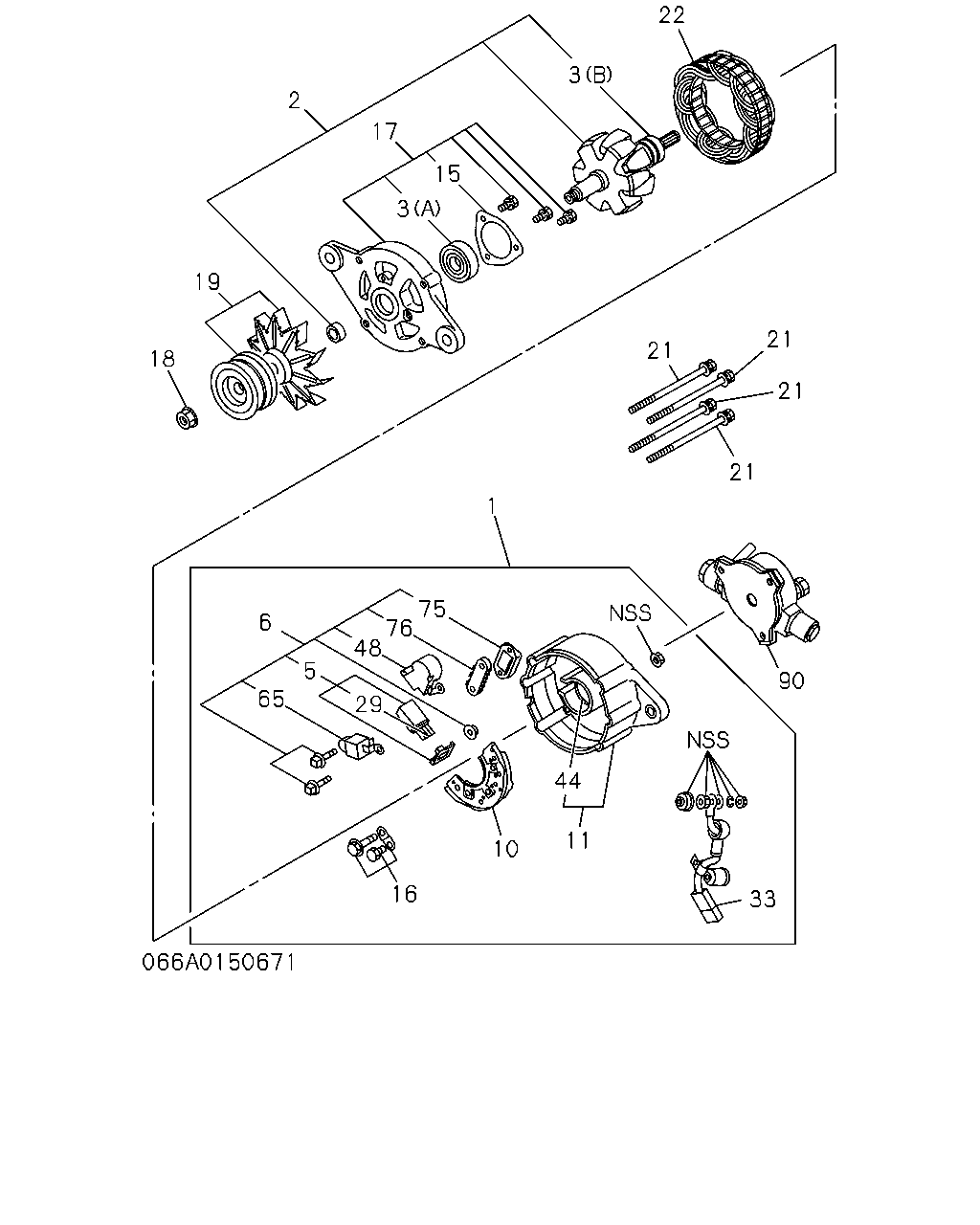

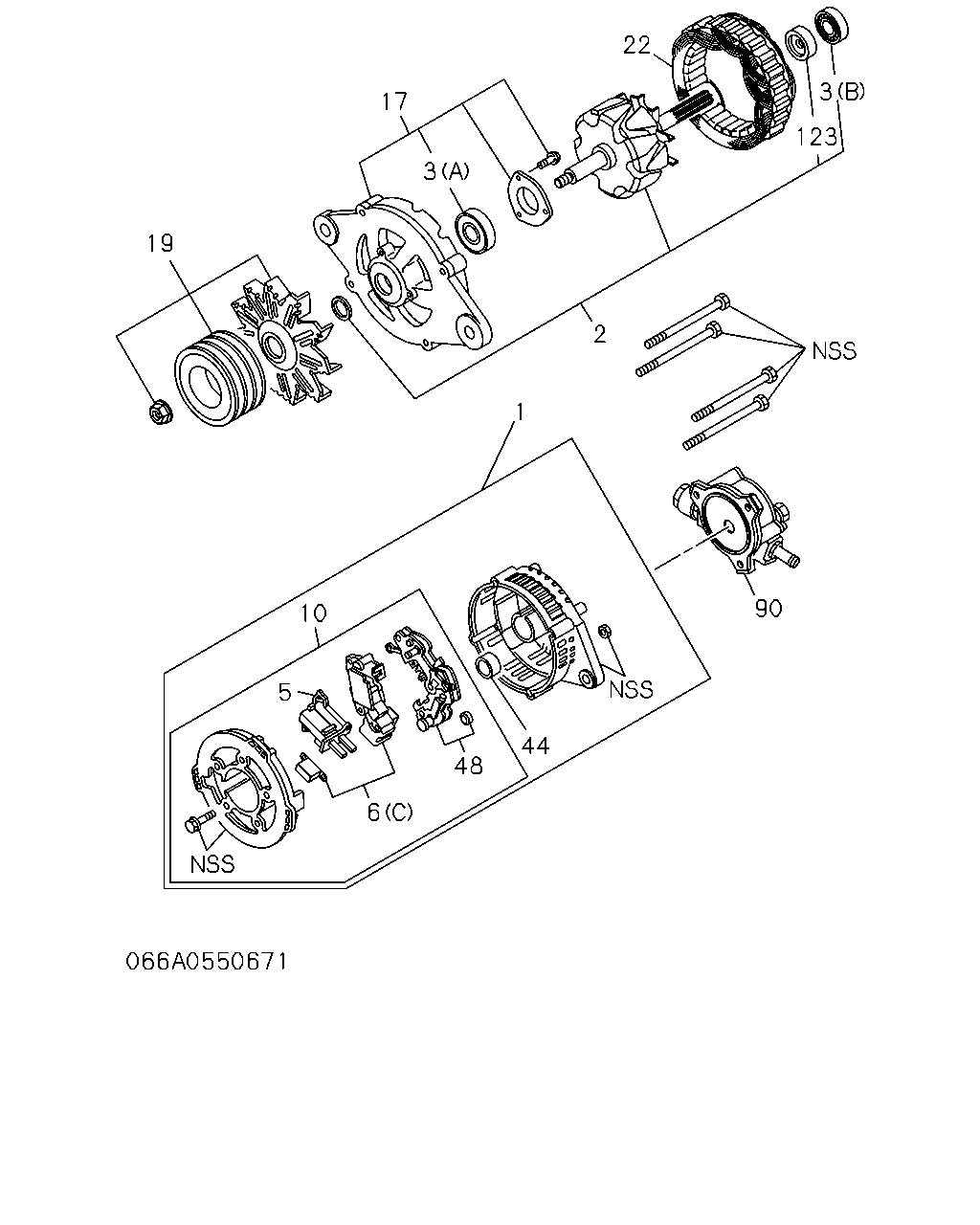

0-66 — GENERATOR (#166666) — 504 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-302-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-97075-882-2	8-97083-294-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-295-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: I = 8-97144-392-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: K = 8-97175-390-1	8-97189-263-0	01	1	-

2 123 3 22 17 19 18 15 3 33 6 10 6 75 5 65 29 41 16 21 1 90 44 121 108 109 109 104 109 109 104 99 99 99 96 91 102 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: F = 8-97077-534-0	8-97018-869-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 8-97077-524-0	8-97027-777-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97073-924-1	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1	8-97083-011-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97075-882-2	8-97083-277-0	01	1	-9402
1	COVER ASM; RR,GEN ASM PART: D = 8-97075-883-2	8-97083-278-0	01	1	-9402
1	COVER ASM; RR,GEN ASM PART: C = 8-97075-882-2	8-97111-260-0	01	1	9403-
1	COVER ASM; RR,GEN ASM PART: J = 8-97148-496-0	8-97111-261-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-97075-883-2	8-97111-261-0	01	1	9403-
1	COVER ASM; RR,GEN ASM PART: H = 8-97143-011-0, L = 8-97182-379-0	8-97147-623-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: K = 8-97175-390-1	8-97147-623-0	01	1	-9804
1	COVER ASM; RR,GEN ASM PART: I = 8-97144-392-1	8-97148-107-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: M = 8-97187-658-0	8-97188-853-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: K = 8-97175-390-1	8-97211-162-0	01	1	9805-
2	ROTOR; GEN ASM PART: E = 8-97077-524-0	8-97016-299-0	01	1	-
2	ROTOR; GEN ASM PART: F = 8-97077-534-0	8-97018-884-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97073-924-1	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97083-010-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97075-882-2	8-97083-271-0	01	1	-9511
2	ROTOR; GEN ASM PART: D = 8-97075-883-2	8-97083-272-0	01	1	-9511
2	ROTOR; GEN ASM PART: H = 8-97143-011-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-621-0	01	1	-
2	ROTOR; GEN ASM PART: I = 8-97144-392-1	8-97148-104-1	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97075-883-2	8-97161-468-0	01	1	9512-
2	ROTOR; GEN ASM PART: J = 8-97148-496-0	8-97161-468-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97075-882-2	8-97161-470-0	01	1	9512-
3	BEARING; ROTOR,GEN (B) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0, I = 8-97144-392-1, M = 8-97187-658-0	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94223-979-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-273-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: H = 8-97143-011-0	8-97083-290-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-290-0	01	1	-9511
3	BEARING; ROTOR,GEN (A) ASM PART: I = 8-97144-392-1	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97161-473-0	01	1	9512-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: M = 8-97187-658-0	8-97026-053-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-283-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: I = 8-97144-392-1	8-97148-108-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-590-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: M = 8-97187-658-0	8-97026-052-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-282-0	01	1	-9402
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-97075-882-2	8-97111-262-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-263-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97075-883-2	8-97111-263-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97111-264-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-264-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: I = 8-97144-392-1	8-97148-109-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-596-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97073-924-1	8-94408-376-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97075-882-2	8-97083-285-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-286-0	01	1	-
10	RECTIFIER; GEN ASM PART: I = 8-97144-392-1	8-97148-169-1	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-291-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1	8-94156-597-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-287-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: M = 8-97187-658-0	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-97077-524-0	8-94156-637-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 8-97077-534-0	8-94440-628-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, M = 8-97187-658-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: G = 8-97080-328-1	8-97083-013-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-289-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-625-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: I = 8-97144-392-1	8-97148-111-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1	8-97016-301-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-293-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: M = 8-97187-658-0	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: F = 8-97077-534-0	8-97018-872-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-97077-524-0	8-97027-779-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-292-0	01	1	-
19	PULLEY; GEN ASM PART: I = 8-97144-392-1	8-97148-113-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, F = 8-97077-534-0, H = 8-97143-011-0, J = 8-97148-496-0	8-94116-435-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97073-924-1, E = 8-97077-524-0	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97083-014-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: K = 8-97175-390-1, L = 8-97182-379-0	8-97168-206-0	04	1	-
22	STATOR; GEN ASM PART: E = 8-97077-524-0	8-94156-586-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97073-924-1	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: F = 8-97077-534-0	8-94336-729-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97075-882-2	8-97083-275-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97075-883-2, J = 8-97148-496-0	8-97083-276-0	01	1	-
22	STATOR; GEN ASM PART: H = 8-97143-011-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-622-0	01	1	-
22	STATOR; GEN ASM PART: I = 8-97144-392-1	8-97148-106-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-593-0	02	1	-
29	BRUSH; GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97084-356-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-871-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97071-213-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: K = 8-97175-390-1	8-97178-244-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: L = 8-97182-379-0	8-97184-068-0	01	1	-
41	GUIDE; FAN,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-288-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0, M = 8-97187-658-0	8-94156-589-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-594-0	01	1	-
65	CONDENSER; GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97084-357-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-595-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94250-964-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-284-0	01	1	-9402
75	REGULATOR; VOLTAGE,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97111-267-0	01	1	9403-
75	REGULATOR; VOLTAGE,GEN ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-267-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97080-473-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0	8-97083-296-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1	8-97148-114-1	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97148-114-1	01	1	9805-
90	PUMP ASM; VAC,GEN ASM PART: M = 8-97187-658-0	8-97171-006-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97183-173-0	01	1	-9804
90	PUMP ASM; VAC,GEN ASM PART: L = 8-97182-379-0	8-97183-173-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94424-381-0	01	1	-
91	BODY; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-874-0	01	1	-
91	BODY; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-300-0	01	1	-
91	BODY; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-300-0	01	1	-9804
91	BODY; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-117-0	01	1	9805-
91	BODY; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-991-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-875-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-301-0	01	1	-9804
96	VALVE ASM; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-301-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-118-0	01	1	9805-
96	VALVE ASM; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: K = 8-97175-390-1	5-19679-002-0	02	1	9805-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: K = 8-97175-390-1	5-19679-002-0	01	1	-9804
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: E = 8-97077-524-0, F = 8-97077-534-0, I = 8-97144-392-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	5-19679-002-0	01	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: K = 8-97175-390-1	8-97083-302-0	01	1	-9804
99	GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-302-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: M = 8-97187-658-0	5-19619-040-0	01	1	-9802
100	CONNECTOR; VAC PUMP ASM PART: J = 8-97148-496-0	8-94407-283-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94428-791-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, I = 8-97144-392-1, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-303-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: M = 8-97187-658-0	8-97209-180-0	01	1	9803-
102	COVER; FRT,VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94424-380-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-305-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0	8-97083-299-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: M = 8-97187-658-0	8-97137-334-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: K = 8-97175-390-1	8-97183-175-0	01	1	-9804
102	COVER; FRT,VAC PUMP ASM PART: L = 8-97182-379-0	8-97183-175-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0, M = 8-97187-658-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94462-877-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-297-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-297-0	01	1	-9804
108	ROTOR; VAC PUMP ASM PART: M = 8-97187-658-0	8-97137-333-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-115-1	01	1	9805-
108	ROTOR; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-985-0	04	1	-
109	VANE; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94462-883-0	04	1	-
109	VANE; VAC PUMP ASM PART: I = 8-97144-392-1	8-97083-298-0	03	1	-
109	VANE; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-298-0	04	1	-9804
109	VANE; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-298-0	03	1	9805-
109	VANE; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-298-0	04	1	-
121	COVER; RR,VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-116-0	01	1	-
121	COVER; RR,VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-116-0	01	1	9805-
123	GUIDE; BRUSH ASM PART: I = 8-97144-392-1	8-97062-644-0	01	1	-
123	GUIDE; BRUSH ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-274-0	01	1	-

21 21 21 21 90 33 11 44 1 75 76 48 5 6 65 29 16 10 17 3 22 15 3 2 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: F = 8-97077-534-0	8-97018-869-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 8-97077-524-0	8-97027-777-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97073-924-1	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1	8-97083-011-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97075-882-2	8-97083-277-0	01	1	-9402
1	COVER ASM; RR,GEN ASM PART: D = 8-97075-883-2	8-97083-278-0	01	1	-9402
1	COVER ASM; RR,GEN ASM PART: C = 8-97075-882-2	8-97111-260-0	01	1	9403-
1	COVER ASM; RR,GEN ASM PART: J = 8-97148-496-0	8-97111-261-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-97075-883-2	8-97111-261-0	01	1	9403-
1	COVER ASM; RR,GEN ASM PART: H = 8-97143-011-0, L = 8-97182-379-0	8-97147-623-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: K = 8-97175-390-1	8-97147-623-0	01	1	-9804
1	COVER ASM; RR,GEN ASM PART: I = 8-97144-392-1	8-97148-107-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: M = 8-97187-658-0	8-97188-853-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: K = 8-97175-390-1	8-97211-162-0	01	1	9805-
2	ROTOR; GEN ASM PART: E = 8-97077-524-0	8-97016-299-0	01	1	-
2	ROTOR; GEN ASM PART: F = 8-97077-534-0	8-97018-884-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97073-924-1	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97083-010-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97075-882-2	8-97083-271-0	01	1	-9511
2	ROTOR; GEN ASM PART: D = 8-97075-883-2	8-97083-272-0	01	1	-9511
2	ROTOR; GEN ASM PART: H = 8-97143-011-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-621-0	01	1	-
2	ROTOR; GEN ASM PART: I = 8-97144-392-1	8-97148-104-1	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97075-883-2	8-97161-468-0	01	1	9512-
2	ROTOR; GEN ASM PART: J = 8-97148-496-0	8-97161-468-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97075-882-2	8-97161-470-0	01	1	9512-
3	BEARING; ROTOR,GEN (B) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0, I = 8-97144-392-1, M = 8-97187-658-0	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94223-979-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-273-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: H = 8-97143-011-0	8-97083-290-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-290-0	01	1	-9511
3	BEARING; ROTOR,GEN (A) ASM PART: I = 8-97144-392-1	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97161-473-0	01	1	9512-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: M = 8-97187-658-0	8-97026-053-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-283-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: I = 8-97144-392-1	8-97148-108-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-590-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: M = 8-97187-658-0	8-97026-052-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-282-0	01	1	-9402
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-97075-882-2	8-97111-262-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-263-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97075-883-2	8-97111-263-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97111-264-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-264-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: I = 8-97144-392-1	8-97148-109-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-596-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97073-924-1	8-94408-376-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97075-882-2	8-97083-285-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-286-0	01	1	-
10	RECTIFIER; GEN ASM PART: I = 8-97144-392-1	8-97148-169-1	01	1	-
11	COVER; RR,GEN ASM PART: F = 8-97077-534-0	8-97018-870-0	01	1	-
11	COVER; RR,GEN ASM PART: E = 8-97077-524-0	8-97027-778-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-291-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1	8-94156-597-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-287-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: M = 8-97187-658-0	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-97077-524-0	8-94156-637-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 8-97077-534-0	8-94440-628-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, M = 8-97187-658-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: G = 8-97080-328-1	8-97083-013-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-289-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-625-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: I = 8-97144-392-1	8-97148-111-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1	8-97016-301-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-293-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: M = 8-97187-658-0	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: F = 8-97077-534-0	8-97018-872-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-97077-524-0	8-97027-779-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-292-0	01	1	-
19	PULLEY; GEN ASM PART: I = 8-97144-392-1	8-97148-113-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, F = 8-97077-534-0, H = 8-97143-011-0, J = 8-97148-496-0	8-94116-435-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97073-924-1, E = 8-97077-524-0	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97083-014-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: K = 8-97175-390-1, L = 8-97182-379-0	8-97168-206-0	04	1	-
22	STATOR; GEN ASM PART: E = 8-97077-524-0	8-94156-586-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97073-924-1	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: F = 8-97077-534-0	8-94336-729-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97075-882-2	8-97083-275-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97075-883-2, J = 8-97148-496-0	8-97083-276-0	01	1	-
22	STATOR; GEN ASM PART: H = 8-97143-011-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-622-0	01	1	-
22	STATOR; GEN ASM PART: I = 8-97144-392-1	8-97148-106-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-593-0	02	1	-
29	BRUSH; GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97084-356-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-871-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97071-213-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: K = 8-97175-390-1	8-97178-244-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: L = 8-97182-379-0	8-97184-068-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0, M = 8-97187-658-0	8-94156-589-0	01	1	-
48	DIODE; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94237-727-0	01	1	-
48	DIODE; GEN ASM PART: I = 8-97144-392-1	8-97148-110-1	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-594-0	01	1	-
65	CONDENSER; GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97084-357-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-595-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94250-964-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-284-0	01	1	-9402
75	REGULATOR; VOLTAGE,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97111-267-0	01	1	9403-
75	REGULATOR; VOLTAGE,GEN ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-267-0	01	1	-
76	BLOCK; REG,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-591-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97080-473-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0	8-97083-296-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1	8-97148-114-1	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97148-114-1	01	1	9805-
90	PUMP ASM; VAC,GEN ASM PART: M = 8-97187-658-0	8-97171-006-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97183-173-0	01	1	-9804
90	PUMP ASM; VAC,GEN ASM PART: L = 8-97182-379-0	8-97183-173-0	01	1	-

106 91 92 93 94 93 99 96 99 99 90 100 109 109 109 109 108 104 102 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-302-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-97075-882-2	8-97083-294-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-295-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: I = 8-97144-392-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: K = 8-97175-390-1	8-97189-263-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97080-473-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0	8-97083-296-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1	8-97148-114-1	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97148-114-1	01	1	9805-
90	PUMP ASM; VAC,GEN ASM PART: M = 8-97187-658-0	8-97171-006-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97183-173-0	01	1	-9804
90	PUMP ASM; VAC,GEN ASM PART: L = 8-97182-379-0	8-97183-173-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94424-381-0	01	1	-
91	BODY; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-874-0	01	1	-
91	BODY; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-300-0	01	1	-
91	BODY; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-300-0	01	1	-9804
91	BODY; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-117-0	01	1	9805-
91	BODY; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-117-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	5-19619-031-0	01	1	-
93	GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	5-19679-004-2	02	1	-
93	GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	5-19679-004-2	01	1	-9402
93	GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	5-19679-004-2	01	1	-
94	CONNECTOR; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	5-19619-034-0	01	1	-9402
94	CONNECTOR; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	5-19619-034-0	01	1	-
94	CONNECTOR; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-640-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-991-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-875-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-301-0	01	1	-9804
96	VALVE ASM; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-301-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-118-0	01	1	9805-
96	VALVE ASM; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: K = 8-97175-390-1	5-19679-002-0	02	1	9805-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: K = 8-97175-390-1	5-19679-002-0	01	1	-9804
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: E = 8-97077-524-0, F = 8-97077-534-0, I = 8-97144-392-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	5-19679-002-0	01	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: K = 8-97175-390-1	8-97083-302-0	01	1	-9804
99	GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-302-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: M = 8-97187-658-0	5-19619-040-0	01	1	-9802
100	CONNECTOR; VAC PUMP ASM PART: J = 8-97148-496-0	8-94407-283-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94428-791-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, I = 8-97144-392-1, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-303-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: M = 8-97187-658-0	8-97209-180-0	01	1	9803-
102	COVER; FRT,VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94424-380-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-305-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0	8-97083-299-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: M = 8-97187-658-0	8-97137-334-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: K = 8-97175-390-1	8-97183-175-0	01	1	-9804
102	COVER; FRT,VAC PUMP ASM PART: L = 8-97182-379-0	8-97183-175-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0, M = 8-97187-658-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94462-877-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-304-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-297-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-297-0	01	1	-9804
108	ROTOR; VAC PUMP ASM PART: M = 8-97187-658-0	8-97137-333-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-115-1	01	1	9805-
108	ROTOR; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-985-0	04	1	-
109	VANE; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94462-883-0	04	1	-
109	VANE; VAC PUMP ASM PART: I = 8-97144-392-1	8-97083-298-0	03	1	-
109	VANE; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-298-0	04	1	-9804
109	VANE; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-298-0	03	1	9805-
109	VANE; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-298-0	04	1	-

90 2 123 3 22 3 17 19 10 1 44 48 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: F = 8-97077-534-0	8-97018-869-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 8-97077-524-0	8-97027-777-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97073-924-1	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1	8-97083-011-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97075-882-2	8-97083-277-0	01	1	-9402
1	COVER ASM; RR,GEN ASM PART: D = 8-97075-883-2	8-97083-278-0	01	1	-9402
1	COVER ASM; RR,GEN ASM PART: C = 8-97075-882-2	8-97111-260-0	01	1	9403-
1	COVER ASM; RR,GEN ASM PART: J = 8-97148-496-0	8-97111-261-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-97075-883-2	8-97111-261-0	01	1	9403-
1	COVER ASM; RR,GEN ASM PART: H = 8-97143-011-0, L = 8-97182-379-0	8-97147-623-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: K = 8-97175-390-1	8-97147-623-0	01	1	-9804
1	COVER ASM; RR,GEN ASM PART: I = 8-97144-392-1	8-97148-107-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: M = 8-97187-658-0	8-97188-853-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: K = 8-97175-390-1	8-97211-162-0	01	1	9805-
2	ROTOR; GEN ASM PART: E = 8-97077-524-0	8-97016-299-0	01	1	-
2	ROTOR; GEN ASM PART: F = 8-97077-534-0	8-97018-884-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97073-924-1	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97083-010-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97075-882-2	8-97083-271-0	01	1	-9511
2	ROTOR; GEN ASM PART: D = 8-97075-883-2	8-97083-272-0	01	1	-9511
2	ROTOR; GEN ASM PART: H = 8-97143-011-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-621-0	01	1	-
2	ROTOR; GEN ASM PART: I = 8-97144-392-1	8-97148-104-1	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97075-883-2	8-97161-468-0	01	1	9512-
2	ROTOR; GEN ASM PART: J = 8-97148-496-0	8-97161-468-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97075-882-2	8-97161-470-0	01	1	9512-
3	BEARING; ROTOR,GEN (B) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0, I = 8-97144-392-1, M = 8-97187-658-0	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94223-979-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-273-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: H = 8-97143-011-0	8-97083-290-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-290-0	01	1	-9511
3	BEARING; ROTOR,GEN (A) ASM PART: I = 8-97144-392-1	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97161-473-0	01	1	9512-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: M = 8-97187-658-0	8-97026-053-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-283-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: I = 8-97144-392-1	8-97148-108-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-590-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: M = 8-97187-658-0	8-97026-052-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-282-0	01	1	-9402
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-97075-882-2	8-97111-262-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-263-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97075-883-2	8-97111-263-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97111-264-0	01	1	9403-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97111-264-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: I = 8-97144-392-1	8-97148-109-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94156-596-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97073-924-1	8-94408-376-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97075-882-2	8-97083-285-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-286-0	01	1	-
10	RECTIFIER; GEN ASM PART: I = 8-97144-392-1	8-97148-169-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-97077-524-0	8-94156-637-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 8-97077-534-0	8-94440-628-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, M = 8-97187-658-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: G = 8-97080-328-1	8-97083-013-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2	8-97083-289-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-625-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: I = 8-97144-392-1	8-97148-111-0	01	1	-
19	PULLEY; GEN ASM PART: F = 8-97077-534-0	8-97018-872-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-97077-524-0	8-97027-779-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-292-0	01	1	-
19	PULLEY; GEN ASM PART: I = 8-97144-392-1	8-97148-113-0	01	1	-
22	STATOR; GEN ASM PART: E = 8-97077-524-0	8-94156-586-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97073-924-1	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: F = 8-97077-534-0	8-94336-729-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97073-923-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97075-882-2	8-97083-275-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97075-883-2, J = 8-97148-496-0	8-97083-276-0	01	1	-
22	STATOR; GEN ASM PART: H = 8-97143-011-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97147-622-0	01	1	-
22	STATOR; GEN ASM PART: I = 8-97144-392-1	8-97148-106-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0, M = 8-97187-658-0	8-94156-589-0	01	1	-
48	DIODE; GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, M = 8-97187-658-0	8-94237-727-0	01	1	-
48	DIODE; GEN ASM PART: I = 8-97144-392-1	8-97148-110-1	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97080-473-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0	8-97083-296-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1	8-97148-114-1	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97148-114-1	01	1	9805-
90	PUMP ASM; VAC,GEN ASM PART: M = 8-97187-658-0	8-97171-006-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97183-173-0	01	1	-9804
90	PUMP ASM; VAC,GEN ASM PART: L = 8-97182-379-0	8-97183-173-0	01	1	-
123	GUIDE; BRUSH ASM PART: I = 8-97144-392-1	8-97062-644-0	01	1	-
123	GUIDE; BRUSH ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-274-0	01	1	-

90 108 121 104 109 109 109 100 104 99 99 99 96 91 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-302-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-97075-882-2	8-97083-294-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-295-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: I = 8-97144-392-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: K = 8-97175-390-1	8-97189-263-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97080-473-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0	8-97083-296-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1	8-97148-114-1	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97148-114-1	01	1	9805-
90	PUMP ASM; VAC,GEN ASM PART: M = 8-97187-658-0	8-97171-006-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97175-390-1	8-97183-173-0	01	1	-9804
90	PUMP ASM; VAC,GEN ASM PART: L = 8-97182-379-0	8-97183-173-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94424-381-0	01	1	-
91	BODY; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-874-0	01	1	-
91	BODY; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-300-0	01	1	-
91	BODY; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-300-0	01	1	-9804
91	BODY; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-117-0	01	1	9805-
91	BODY; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-991-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97018-875-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-301-0	01	1	-9804
96	VALVE ASM; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-301-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-118-0	01	1	9805-
96	VALVE ASM; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: K = 8-97175-390-1	5-19679-002-0	02	1	9805-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: K = 8-97175-390-1	5-19679-002-0	01	1	-9804
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: E = 8-97077-524-0, F = 8-97077-534-0, I = 8-97144-392-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	5-19679-002-0	01	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: K = 8-97175-390-1	8-97083-302-0	01	1	-9804
99	GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-302-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: M = 8-97187-658-0	5-19619-040-0	01	1	-9802
100	CONNECTOR; VAC PUMP ASM PART: J = 8-97148-496-0	8-94407-283-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94428-791-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, I = 8-97144-392-1, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-303-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: M = 8-97187-658-0	8-97209-180-0	01	1	9803-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, C = 8-97075-882-2, D = 8-97075-883-2, E = 8-97077-524-0, F = 8-97077-534-0, G = 8-97080-328-1, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0, M = 8-97187-658-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94462-877-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, I = 8-97144-392-1, J = 8-97148-496-0, K = 8-97175-390-1, L = 8-97182-379-0	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-97016-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-297-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-297-0	01	1	-9804
108	ROTOR; VAC PUMP ASM PART: M = 8-97187-658-0	8-97137-333-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-115-1	01	1	9805-
108	ROTOR; VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97073-923-1, B = 8-97073-924-1, G = 8-97080-328-1, M = 8-97187-658-0	8-94223-985-0	04	1	-
109	VANE; VAC PUMP ASM PART: E = 8-97077-524-0, F = 8-97077-534-0	8-94462-883-0	04	1	-
109	VANE; VAC PUMP ASM PART: I = 8-97144-392-1	8-97083-298-0	03	1	-
109	VANE; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-298-0	04	1	-9804
109	VANE; VAC PUMP ASM PART: K = 8-97175-390-1	8-97083-298-0	03	1	9805-
109	VANE; VAC PUMP ASM PART: C = 8-97075-882-2, D = 8-97075-883-2, H = 8-97143-011-0, J = 8-97148-496-0, L = 8-97182-379-0	8-97083-298-0	04	1	-
121	COVER; RR,VAC PUMP ASM PART: I = 8-97144-392-1	8-97148-116-0	01	1	-
121	COVER; RR,VAC PUMP ASM PART: K = 8-97175-390-1	8-97148-116-0	01	1	9805-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
