Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#166665) — 497 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-94333-438-0	8-94152-982-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: C = 8-97065-526-0	8-97025-681-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97095-811-5	8-97025-681-0	01	1	-9709
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-403-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: H = 8-97216-185-0	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97095-811-5	8-97179-778-0	01	1	9710-

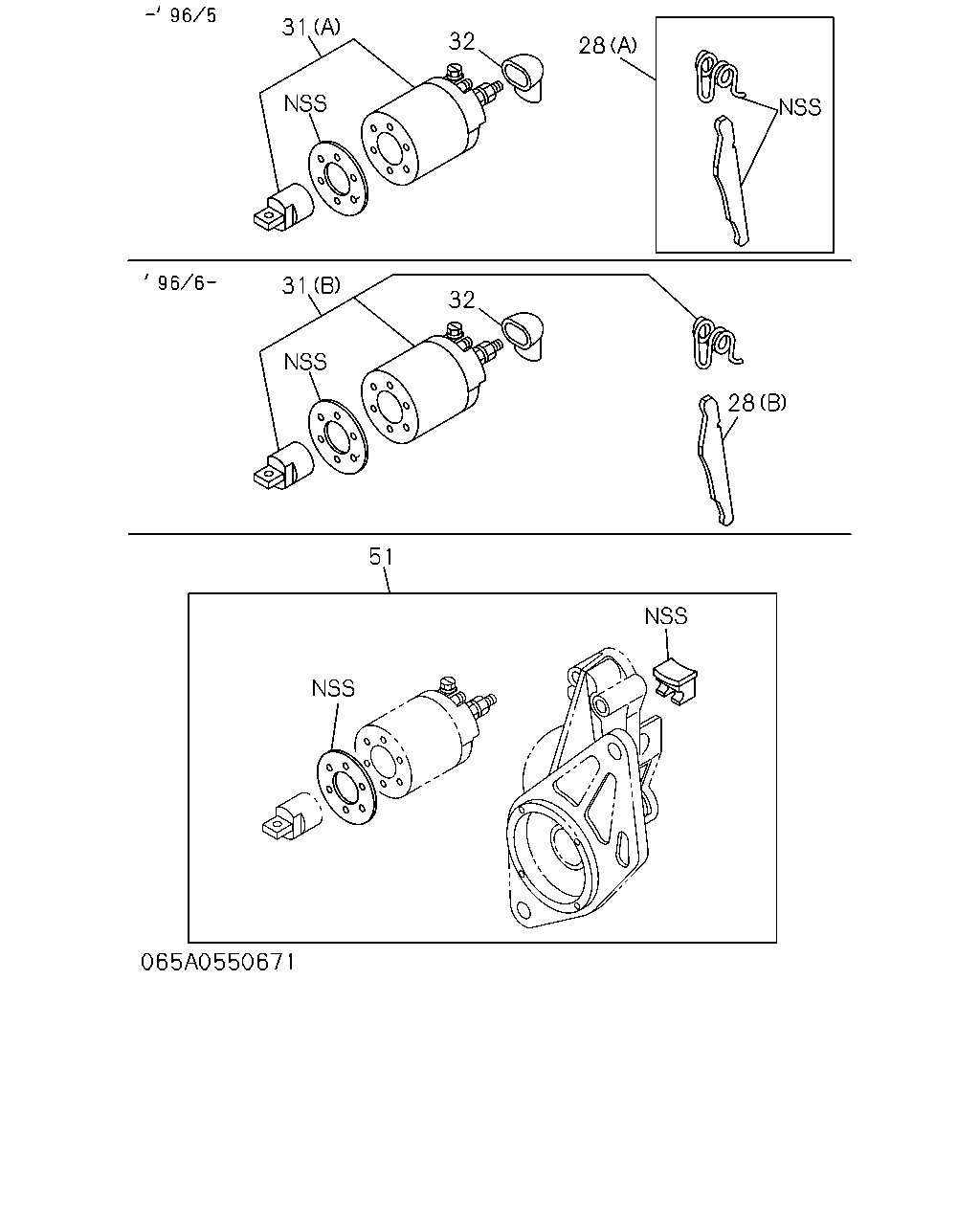

28 32 31 31 32 51 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	LEVER; SHIFT,STARTER ASM PART: A = 8-94333-438-0	8-94152-980-0	01	1	-
28	LEVER; SHIFT,STARTER (A) ASM PART: C = 8-97065-526-0	8-97025-680-0	01	1	-
28	LEVER; SHIFT,STARTER (A) ASM PART: E = 8-97095-811-5	8-97025-680-0	01	1	-9605
28	LEVER; SHIFT,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER (B) ASM PART: E = 8-97095-811-5	8-97161-790-0	01	1	9606-9709
28	LEVER; SHIFT,STARTER (B) ASM PART: E = 8-97095-811-5	8-97179-776-0	01	1	9710-
28	LEVER; SHIFT,STARTER (B) ASM PART: H = 8-97216-185-0	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94333-438-0	8-94152-981-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: C = 8-97065-526-0	8-97025-677-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: E = 8-97095-811-5	8-97025-677-0	01	1	-9605
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-2	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: H = 8-97216-185-0	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: E = 8-97095-811-5	8-97161-789-0	01	1	9606-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-97216-186-1	8-97217-569-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: G = 8-97120-356-2	5-81119-029-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: H = 8-97216-185-0, I = 8-97216-186-1	8-97217-570-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-94333-438-0	8-94152-982-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: C = 8-97065-526-0	8-97025-681-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97095-811-5	8-97025-681-0	01	1	-9709
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-403-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: H = 8-97216-185-0	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97095-811-5	8-97179-778-0	01	1	9710-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-94333-438-0	8-94152-982-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: C = 8-97065-526-0	8-97025-681-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97095-811-5	8-97025-681-0	01	1	-9709
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-403-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: H = 8-97216-185-0	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97095-811-5	8-97179-778-0	01	1	9710-

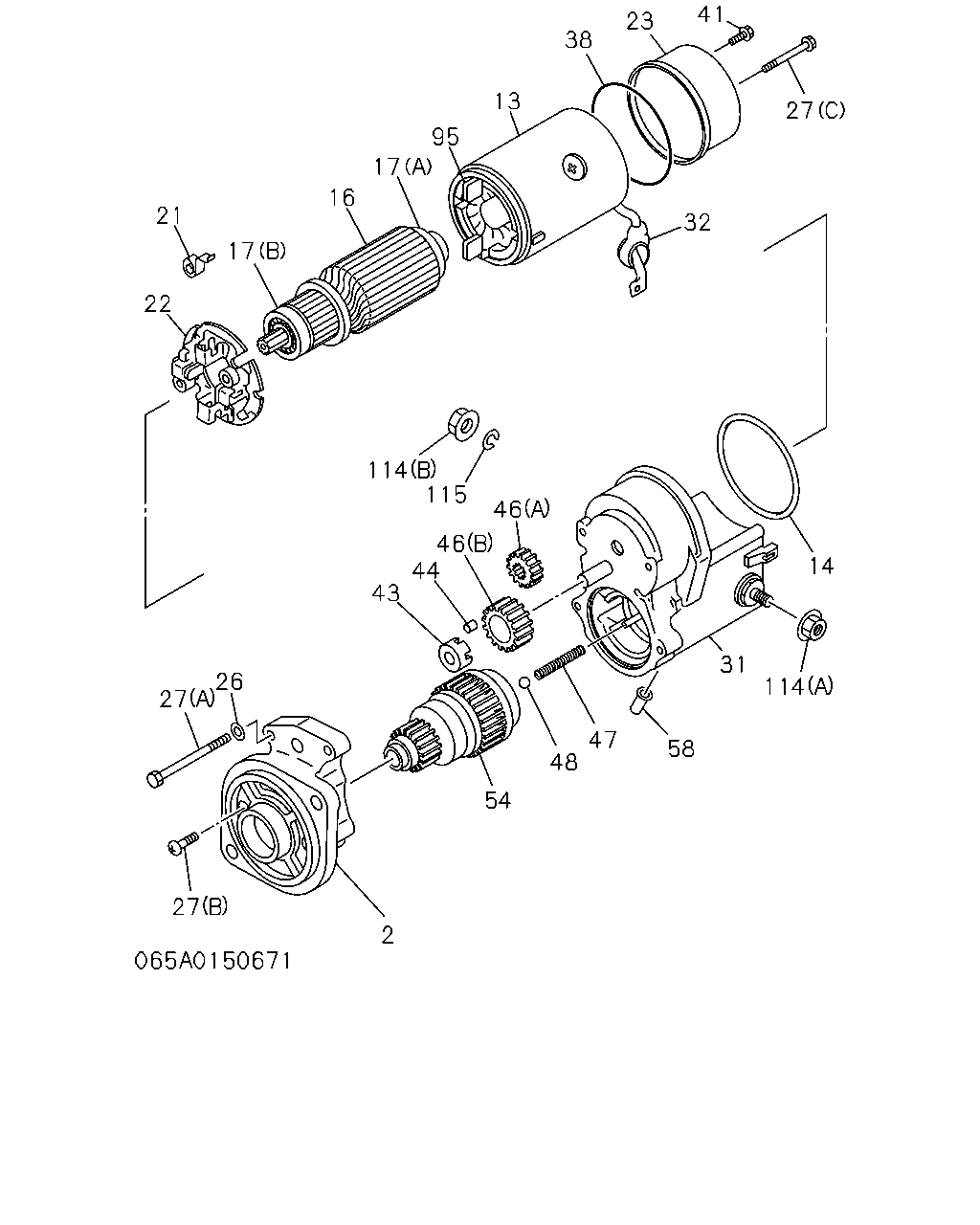

14 27 41 23 38 32 13 95 17 16 17 21 22 114 46 115 46 44 43 26 27 2 27 54 47 48 58 31 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94152-979-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-97065-526-0	8-97025-678-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97115-765-0	01	1	-9709
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-97216-185-0	8-97179-775-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97179-775-0	01	1	9710-
13	YOKE; STARTER ASM PART: B = 8-97042-997-0	8-94167-425-0	01	1	-
13	YOKE; STARTER ASM PART: G = 8-97120-356-2	8-97135-497-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 8-97042-997-0	8-94167-428-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-94333-438-0	8-94152-967-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-97065-526-0	8-94365-477-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-94365-477-0	01	1	-9709
16	ARMATURE; STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: G = 8-97120-356-2	8-97112-869-0	01	1	-
16	ARMATURE; STARTER ASM PART: H = 8-97216-185-0	8-97179-769-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-97179-769-0	01	1	9710-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-94333-438-0	8-94152-968-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: G = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-954-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94333-438-0	8-94337-866-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-670-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-2	8-97112-873-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-94333-438-0	8-94337-865-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97065-526-0	8-97065-604-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-2	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97115-764-0	01	1	-9610
23	COVER; RR COVER STARTER ASM PART: H = 8-97216-185-0	8-97171-493-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97171-493-0	01	1	9611-
23	COVER; RR COVER STARTER ASM PART: I = 8-97216-186-1	8-97217-568-0	01	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: B = 8-97042-997-0	5-81129-211-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: G = 8-97120-356-2	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, H = 8-97216-185-0	8-97117-106-0	02	1	-
27	BOLT; THROUGH,STARTER M6X16 W/LK WASHER ASM PART: A = 8-94333-438-0	9-01910-616-0	03	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94333-438-0	8-94152-981-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: C = 8-97065-526-0	8-97025-677-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: E = 8-97095-811-5	8-97025-677-0	01	1	-9605
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-2	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: H = 8-97216-185-0	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: E = 8-97095-811-5	8-97161-789-0	01	1	9606-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-97216-186-1	8-97217-569-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: G = 8-97120-356-2	5-81119-029-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: H = 8-97216-185-0, I = 8-97216-186-1	8-97217-570-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: G = 8-97120-356-2	8-94170-214-0	02	1	-
38	GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5	8-97115-763-0	01	1	9710-
38	GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5	8-97115-763-0	02	1	-9709
38	GASKET; RR COVER,STARTER ASM PART: H = 8-97216-185-0	8-97115-763-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: E = 8-97095-811-5, H = 8-97216-185-0	8-97117-107-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: G = 8-97120-356-2	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-97042-997-0	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: G = 8-97120-356-2	8-94377-246-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: B = 8-97042-997-0, G = 8-97120-356-2	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (A) ASM PART: B = 8-97042-997-0	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: B = 8-97042-997-0	8-94167-427-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: G = 8-97120-356-2	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: G = 8-97120-356-2	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER ASM PART: B = 8-97042-997-0	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER ASM PART: G = 8-97120-356-2	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: B = 8-97042-997-0, G = 8-97120-356-2	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94334-977-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: C = 8-97065-526-0	8-97025-672-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97025-672-0	01	1	-9709
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97030-394-0	01	1	-9406
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: D = 8-97075-402-1	8-97030-394-0	01	1	-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97115-816-0	01	1	9407-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: I = 8-97216-186-1	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: H = 8-97216-185-0	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97179-771-0	01	1	9710-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-97042-997-0	1-81129-677-0	02	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: G = 8-97120-356-2	8-97041-421-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: B = 8-97042-997-0	8-97083-194-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: B = 8-97042-997-0	5-09400-042-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: G = 8-97120-356-2	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B) ASM PART: G = 8-97120-356-2	8-94377-238-0	01	1	-
114	NUT; TERMINAL (B), M8 ASM PART: B = 8-97042-997-0	9-09110-508-0	01	1	-
115	WASHER; TERMINAL ID=8.2 ASM PART: B = 8-97042-997-0	9-09150-508-0	01	1	-

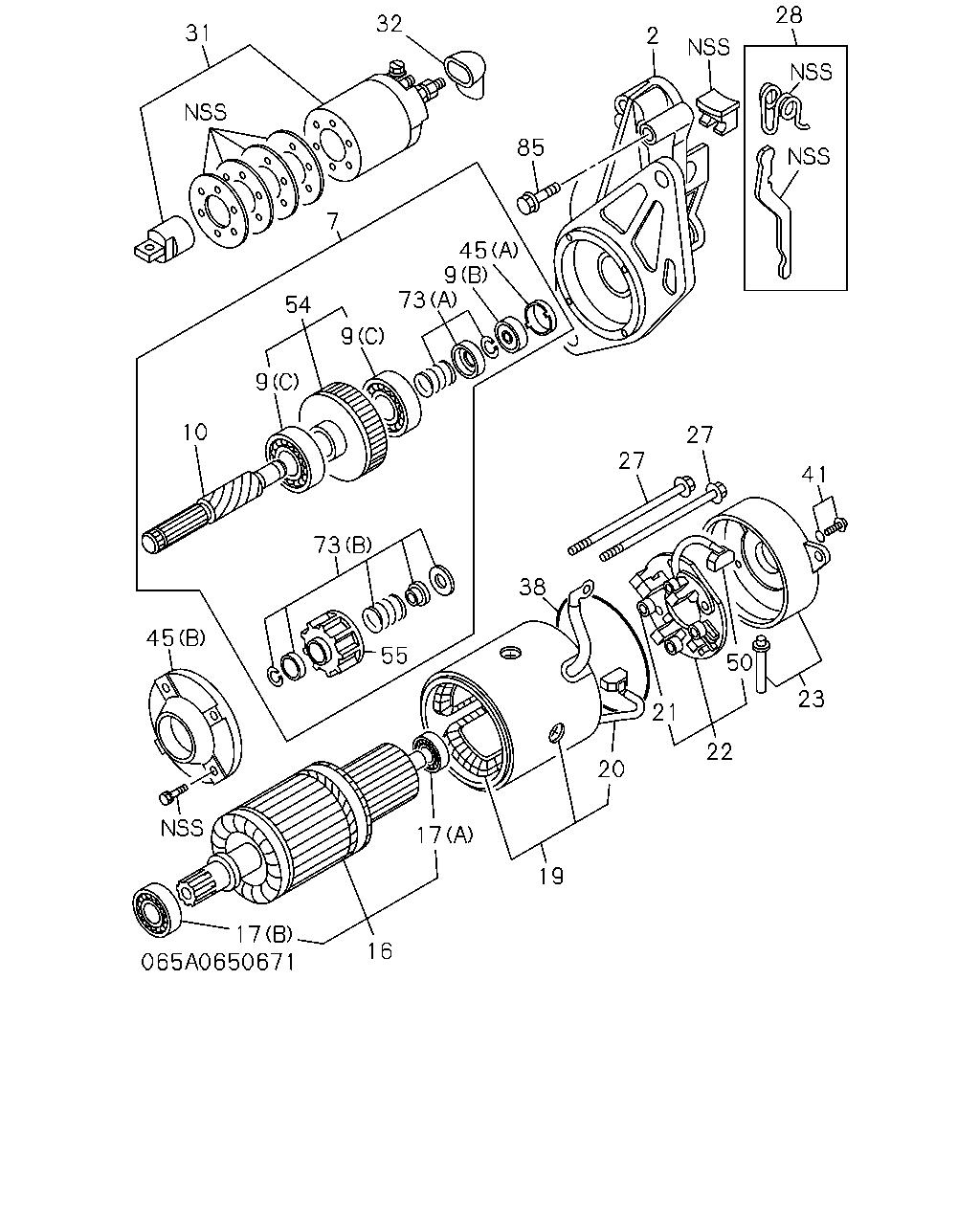

28 27 27 23 50 22 21 20 19 17 16 17 10 45 9 54 9 7 31 32 85 2 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94152-979-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-97065-526-0	8-97025-678-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97115-765-0	01	1	-9709
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-97216-185-0	8-97179-775-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97179-775-0	01	1	9710-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94334-976-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97065-526-0	8-97025-671-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97025-671-0	01	1	-9605
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97075-402-1	8-97030-393-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2	8-97030-393-0	01	1	-9406
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2	8-97115-815-0	01	1	9407-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97161-793-0	01	1	9606-9709
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97179-770-0	01	1	9710-
7	CLUTCH ASM; PINION,STARTER ASM PART: H = 8-97216-185-0	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: I = 8-97216-186-1	8-97232-475-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 8-94333-438-0	8-94228-468-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-94333-438-0	8-94152-976-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97025-675-0	01	1	-9605
10	SHAFT; GEAR STARTER ASM PART: C = 8-97065-526-0	8-97025-675-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97131-794-0	01	1	9606-9709
10	SHAFT; GEAR STARTER ASM PART: H = 8-97216-185-0	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97179-772-0	01	1	9710-
16	ARMATURE; STARTER ASM PART: A = 8-94333-438-0	8-94152-967-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-97065-526-0	8-94365-477-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-94365-477-0	01	1	-9709
16	ARMATURE; STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: G = 8-97120-356-2	8-97112-869-0	01	1	-
16	ARMATURE; STARTER ASM PART: H = 8-97216-185-0	8-97179-769-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-97179-769-0	01	1	9710-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-94333-438-0	8-94152-968-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: G = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-954-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-94333-438-0	8-94152-969-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-97065-526-0	8-97025-668-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5	8-97025-668-0	01	1	-9610
19	COIL; FIELD,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97078-461-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5	8-97171-491-0	01	1	9611-
19	COIL; FIELD,STARTER ASM PART: I = 8-97216-186-1	8-97217-567-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: H = 8-97216-185-0	8-97221-347-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-970-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-462-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94333-438-0	8-94337-866-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-670-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-2	8-97112-873-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-94333-438-0	8-94337-865-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97065-526-0	8-97065-604-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-2	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97115-764-0	01	1	-9610
23	COVER; RR COVER STARTER ASM PART: H = 8-97216-185-0	8-97171-493-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97171-493-0	01	1	9611-
23	COVER; RR COVER STARTER ASM PART: I = 8-97216-186-1	8-97217-568-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: G = 8-97120-356-2	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, H = 8-97216-185-0	8-97117-106-0	02	1	-
27	BOLT; THROUGH,STARTER M6X16 W/LK WASHER ASM PART: A = 8-94333-438-0	9-01910-616-0	03	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-94333-438-0	8-94152-980-0	01	1	-
28	LEVER; SHIFT,STARTER (A) ASM PART: C = 8-97065-526-0	8-97025-680-0	01	1	-
28	LEVER; SHIFT,STARTER (A) ASM PART: E = 8-97095-811-5	8-97025-680-0	01	1	-9605
28	LEVER; SHIFT,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER (B) ASM PART: E = 8-97095-811-5	8-97161-790-0	01	1	9606-9709
28	LEVER; SHIFT,STARTER (B) ASM PART: E = 8-97095-811-5	8-97179-776-0	01	1	9710-
28	LEVER; SHIFT,STARTER (B) ASM PART: H = 8-97216-185-0	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94333-438-0	8-94152-981-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: C = 8-97065-526-0	8-97025-677-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: E = 8-97095-811-5	8-97025-677-0	01	1	-9605
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-2	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: H = 8-97216-185-0	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: E = 8-97095-811-5	8-97161-789-0	01	1	9606-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-97216-186-1	8-97217-569-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: G = 8-97120-356-2	5-81119-029-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: H = 8-97216-185-0, I = 8-97216-186-1	8-97217-570-0	01	1	-
45	RETAINER; BEARING,STARTER ASM PART: A = 8-94333-438-0	8-94334-978-0	01	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5	8-97025-679-0	01	1	-9709
45	RETAINER; BEARING,STARTER (B) ASM PART: C = 8-97065-526-0	8-97025-679-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: H = 8-97216-185-0	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5	8-97179-774-0	01	1	9710-
50	BRUSH; (-),STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-973-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-464-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94334-977-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: C = 8-97065-526-0	8-97025-672-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97025-672-0	01	1	-9709
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97030-394-0	01	1	-9406
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: D = 8-97075-402-1	8-97030-394-0	01	1	-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97115-816-0	01	1	9407-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: I = 8-97216-186-1	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: H = 8-97216-185-0	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97179-771-0	01	1	9710-
73	STOPPER SET; PINION ASM PART: A = 8-94333-438-0	8-94152-978-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-398-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-94408-500-0	02	1	-

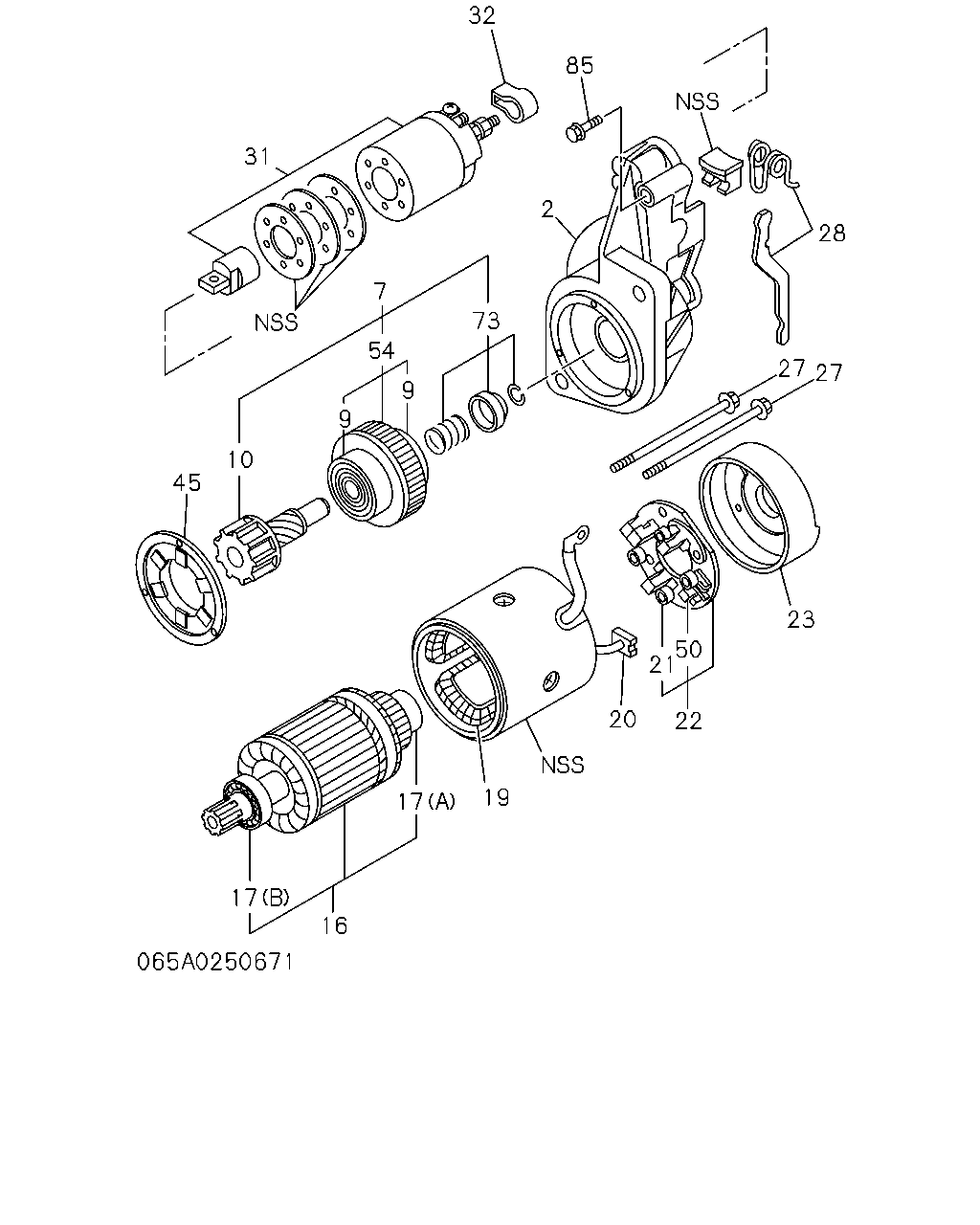

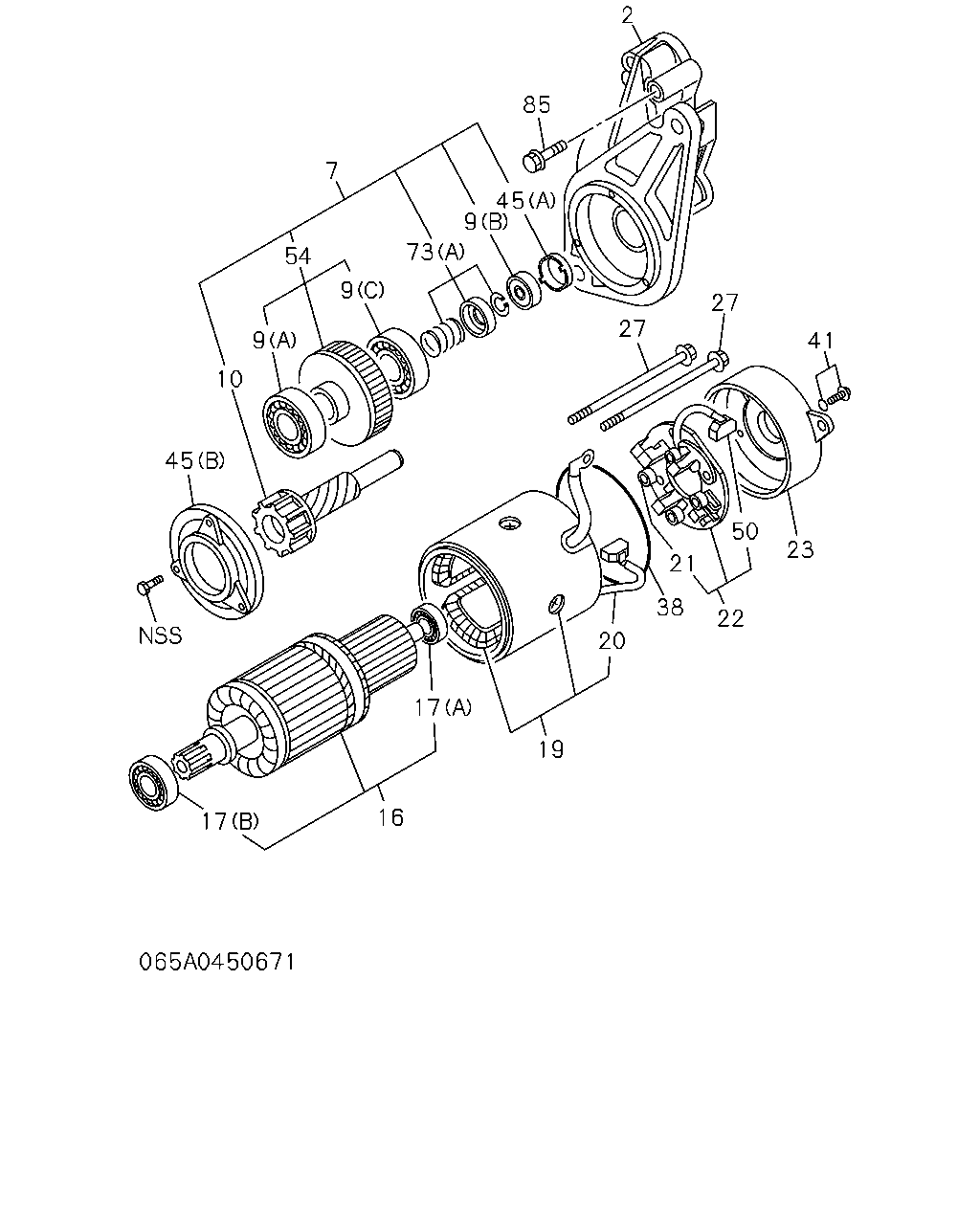

41 27 27 85 2 45 9 73 9 54 7 9 10 45 17 17 19 16 20 21 38 23 50 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94152-979-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-97065-526-0	8-97025-678-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97115-765-0	01	1	-9709
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-97216-185-0	8-97179-775-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97179-775-0	01	1	9710-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94334-976-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97065-526-0	8-97025-671-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97025-671-0	01	1	-9605
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97075-402-1	8-97030-393-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2	8-97030-393-0	01	1	-9406
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2	8-97115-815-0	01	1	9407-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97161-793-0	01	1	9606-9709
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97179-770-0	01	1	9710-
7	CLUTCH ASM; PINION,STARTER ASM PART: H = 8-97216-185-0	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: I = 8-97216-186-1	8-97232-475-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 8-94333-438-0	8-94228-468-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-94333-438-0	8-94152-976-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97025-675-0	01	1	-9605
10	SHAFT; GEAR STARTER ASM PART: C = 8-97065-526-0	8-97025-675-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97131-794-0	01	1	9606-9709
10	SHAFT; GEAR STARTER ASM PART: H = 8-97216-185-0	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97179-772-0	01	1	9710-
16	ARMATURE; STARTER ASM PART: A = 8-94333-438-0	8-94152-967-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-97065-526-0	8-94365-477-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-94365-477-0	01	1	-9709
16	ARMATURE; STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: G = 8-97120-356-2	8-97112-869-0	01	1	-
16	ARMATURE; STARTER ASM PART: H = 8-97216-185-0	8-97179-769-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-97179-769-0	01	1	9710-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-94333-438-0	8-94152-968-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: G = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-954-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-94333-438-0	8-94152-969-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-97065-526-0	8-97025-668-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5	8-97025-668-0	01	1	-9610
19	COIL; FIELD,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97078-461-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5	8-97171-491-0	01	1	9611-
19	COIL; FIELD,STARTER ASM PART: I = 8-97216-186-1	8-97217-567-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: H = 8-97216-185-0	8-97221-347-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-970-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-462-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94333-438-0	8-94337-866-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-670-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-2	8-97112-873-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-94333-438-0	8-94337-865-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97065-526-0	8-97065-604-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-2	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97115-764-0	01	1	-9610
23	COVER; RR COVER STARTER ASM PART: H = 8-97216-185-0	8-97171-493-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97171-493-0	01	1	9611-
23	COVER; RR COVER STARTER ASM PART: I = 8-97216-186-1	8-97217-568-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: G = 8-97120-356-2	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, H = 8-97216-185-0	8-97117-106-0	02	1	-
27	BOLT; THROUGH,STARTER M6X16 W/LK WASHER ASM PART: A = 8-94333-438-0	9-01910-616-0	03	1	-
38	GASKET; RR COVER,STARTER ASM PART: G = 8-97120-356-2	8-94170-214-0	02	1	-
38	GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5	8-97115-763-0	01	1	9710-
38	GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5	8-97115-763-0	02	1	-9709
38	GASKET; RR COVER,STARTER ASM PART: H = 8-97216-185-0	8-97115-763-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: E = 8-97095-811-5, H = 8-97216-185-0	8-97117-107-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: G = 8-97120-356-2	8-97142-903-0	02	1	-
45	RETAINER; BEARING,STARTER ASM PART: A = 8-94333-438-0	8-94334-978-0	01	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5	8-97025-679-0	01	1	-9709
45	RETAINER; BEARING,STARTER (B) ASM PART: C = 8-97065-526-0	8-97025-679-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: H = 8-97216-185-0	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5	8-97179-774-0	01	1	9710-
50	BRUSH; (-),STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-973-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-464-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94334-977-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: C = 8-97065-526-0	8-97025-672-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97025-672-0	01	1	-9709
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97030-394-0	01	1	-9406
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: D = 8-97075-402-1	8-97030-394-0	01	1	-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97115-816-0	01	1	9407-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: I = 8-97216-186-1	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: H = 8-97216-185-0	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97179-771-0	01	1	9710-
73	STOPPER SET; PINION ASM PART: A = 8-94333-438-0	8-94152-978-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-398-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-94408-500-0	02	1	-

27 27 41 28 2 85 45 9 73 9 54 9 7 32 31 10 73 45 17 17 20 21 50 23 22 38 55 16 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94152-979-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-97065-526-0	8-97025-678-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97115-765-0	01	1	-9709
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-97216-185-0	8-97179-775-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97179-775-0	01	1	9710-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94334-976-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97065-526-0	8-97025-671-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97025-671-0	01	1	-9605
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97075-402-1	8-97030-393-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2	8-97030-393-0	01	1	-9406
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2	8-97115-815-0	01	1	9407-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97161-793-0	01	1	9606-9709
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5	8-97179-770-0	01	1	9710-
7	CLUTCH ASM; PINION,STARTER ASM PART: H = 8-97216-185-0	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: I = 8-97216-186-1	8-97232-475-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 8-94333-438-0	8-94228-468-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-94333-438-0	8-94152-976-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97025-675-0	01	1	-9605
10	SHAFT; GEAR STARTER ASM PART: C = 8-97065-526-0	8-97025-675-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97131-794-0	01	1	9606-9709
10	SHAFT; GEAR STARTER ASM PART: H = 8-97216-185-0	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5	8-97179-772-0	01	1	9710-
16	ARMATURE; STARTER ASM PART: A = 8-94333-438-0	8-94152-967-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-97065-526-0	8-94365-477-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-94365-477-0	01	1	-9709
16	ARMATURE; STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: G = 8-97120-356-2	8-97112-869-0	01	1	-
16	ARMATURE; STARTER ASM PART: H = 8-97216-185-0	8-97179-769-0	01	1	-
16	ARMATURE; STARTER ASM PART: E = 8-97095-811-5	8-97179-769-0	01	1	9710-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-94333-438-0	8-94152-968-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: G = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-954-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-94333-438-0	8-94152-969-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-97065-526-0	8-97025-668-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5	8-97025-668-0	01	1	-9610
19	COIL; FIELD,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97078-461-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5	8-97171-491-0	01	1	9611-
19	COIL; FIELD,STARTER ASM PART: I = 8-97216-186-1	8-97217-567-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: H = 8-97216-185-0	8-97221-347-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-970-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-462-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94333-438-0	8-94337-866-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-97025-670-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-2	8-97112-873-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-94333-438-0	8-94337-865-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97065-526-0	8-97065-604-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-2	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97115-764-0	01	1	-9610
23	COVER; RR COVER STARTER ASM PART: H = 8-97216-185-0	8-97171-493-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5	8-97171-493-0	01	1	9611-
23	COVER; RR COVER STARTER ASM PART: I = 8-97216-186-1	8-97217-568-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: G = 8-97120-356-2	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, H = 8-97216-185-0	8-97117-106-0	02	1	-
27	BOLT; THROUGH,STARTER M6X16 W/LK WASHER ASM PART: A = 8-94333-438-0	9-01910-616-0	03	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-94333-438-0	8-94152-980-0	01	1	-
28	LEVER; SHIFT,STARTER (A) ASM PART: C = 8-97065-526-0	8-97025-680-0	01	1	-
28	LEVER; SHIFT,STARTER (A) ASM PART: E = 8-97095-811-5	8-97025-680-0	01	1	-9605
28	LEVER; SHIFT,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER (B) ASM PART: E = 8-97095-811-5	8-97161-790-0	01	1	9606-9709
28	LEVER; SHIFT,STARTER (B) ASM PART: E = 8-97095-811-5	8-97179-776-0	01	1	9710-
28	LEVER; SHIFT,STARTER (B) ASM PART: H = 8-97216-185-0	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94333-438-0	8-94152-981-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: C = 8-97065-526-0	8-97025-677-0	01	1	-
31	SWITCH; ENGAGE STARTER (A) ASM PART: E = 8-97095-811-5	8-97025-677-0	01	1	-9605
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-2	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: H = 8-97216-185-0	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER (B) ASM PART: E = 8-97095-811-5	8-97161-789-0	01	1	9606-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-97216-186-1	8-97217-569-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: G = 8-97120-356-2	5-81119-029-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: H = 8-97216-185-0, I = 8-97216-186-1	8-97217-570-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: G = 8-97120-356-2	8-94170-214-0	02	1	-
38	GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5	8-97115-763-0	01	1	9710-
38	GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5	8-97115-763-0	02	1	-9709
38	GASKET; RR COVER,STARTER ASM PART: H = 8-97216-185-0	8-97115-763-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: E = 8-97095-811-5, H = 8-97216-185-0	8-97117-107-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: G = 8-97120-356-2	8-97142-903-0	02	1	-
45	RETAINER; BEARING,STARTER ASM PART: A = 8-94333-438-0	8-94334-978-0	01	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5	8-97025-679-0	01	1	-9709
45	RETAINER; BEARING,STARTER (B) ASM PART: C = 8-97065-526-0	8-97025-679-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: H = 8-97216-185-0	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5	8-97179-774-0	01	1	9710-
50	BRUSH; (-),STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, E = 8-97095-811-5, H = 8-97216-185-0	8-94152-973-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97078-464-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94333-438-0	8-94334-977-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: C = 8-97065-526-0	8-97025-672-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97025-672-0	01	1	-9709
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97030-394-0	01	1	-9406
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: D = 8-97075-402-1	8-97030-394-0	01	1	-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: F = 8-97100-926-2	8-97115-816-0	01	1	9407-
54	CLUTCH; PINION,STARTER (B) 4.5KW ASM PART: I = 8-97216-186-1	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-2	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: H = 8-97216-185-0	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER (A) 4.0KW ASM PART: E = 8-97095-811-5	8-97179-771-0	01	1	9710-
55	PINION; CLU,STARTER ASM PART: D = 8-97075-402-1, F = 8-97100-926-2	8-97030-397-0	01	1	-
55	PINION; CLU,STARTER ASM PART: I = 8-97216-186-1	8-97232-458-0	01	1	-
73	STOPPER SET; PINION ASM PART: A = 8-94333-438-0	8-94152-978-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: D = 8-97075-402-1, F = 8-97100-926-2, I = 8-97216-186-1	8-97030-398-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-94333-438-0, C = 8-97065-526-0, D = 8-97075-402-1, E = 8-97095-811-5, F = 8-97100-926-2, H = 8-97216-185-0, I = 8-97216-186-1	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
