◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#166663) — 1209 parça
çizim 493563
211 553 489 489 442 417 210 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
210 BOLT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> M6X16 FLANGE 		0-28080-616-0 01 1 9304-9304 ●
210 BOLT; CABLE FIX
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> M6X16 FLANGE 		0-28080-616-0 01 1 9304-9304 ●
210 BOLT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> M6X16 FLANGE 		0-28080-616-0 01 1 9304-9304 ●
210 BOLT; CABLE FIX
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28480-825-0 01 1 9304-9502 ●
210 BOLT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) M8X25 FLANGE 		0-28480-825-0 01 1 9304-9502 ●
210 BOLT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> M8X25 FLANGE 		0-28480-825-0 01 1 9503-9703 ● ●
210 BOLT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28480-825-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 AR 1 9304-9502 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9503-9703 ● ●
211 NUT; CABLE FIX
CLUTCH FREE(7RW) (B) M6 FLANGE 		0-91150-106-0 01 1 9704- ● ● ● ● ● ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 9503-9512 ● ●
211 NUT; CABLE FIX
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ● ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9704- ● ● ●
219 CLIP; ENG STOP CABLE
(A) L=140 		5-09707-031-0 03 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
(B) ID=20 		1-09709-068-0 01 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) ID=10 H=40 		8-94462-219-0 01 1 9704- ● ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) L=100 		5-09707-036-0 01 1 9304-9502 ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> FRAME-KICK UP<7EW> (A) L=100 		5-09707-036-0 01 1 9503-9703 ● ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> (A) L=100 		5-09707-036-0 01 1 9503-9703 ● ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> (A) L=100 		5-09707-036-1 01 1 9704- ● ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
417 CLIP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
442 CLIP; GRAND
FLOOR REMOTE SHIFT<M11> ID=8.3 & 10 		8-94176-792-0 01 1 9701-9703 ● ●
442 CLIP; GRAND
FLOOR REMOTE SHIFT<M11> ID=8.3 & 10 		8-94176-792-0 01 1 9704-9801 ● ● ●
489 BOLT; ENG STOPPER
MIDDLE CHASSIS(NK***F) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 01 1 9704-9704 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8X20 FLANGE 		0-28680-820-0 02 1 9704- ● ●
489 BOLT; ENG STOPPER
BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28481-025-0 03 1 9304-9703 ●
489 BOLT; ENG STOPPER
FRAME-KICK UP<7EW> M10X25 FLANGE 		0-28681-025-0 02 1 9704- ● ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97085-642-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97071-356-0 01 1 9304-9401 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97109-789-0 01 1 9402-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-457-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) 		8-97105-994-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-456-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97077-438-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-455-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T), FRAME-KICK UP<7EW> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-0 01 1 9304-9310 ●

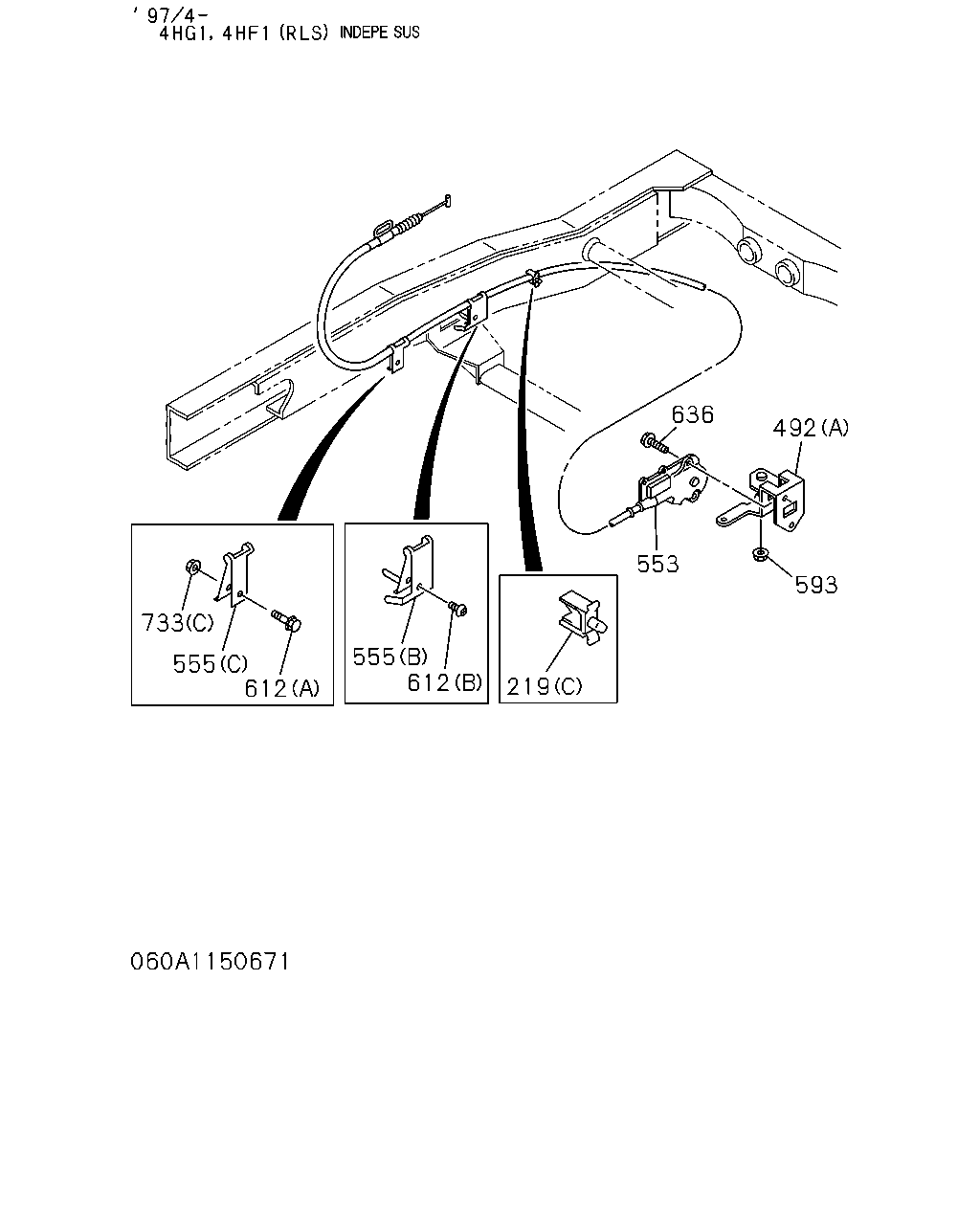

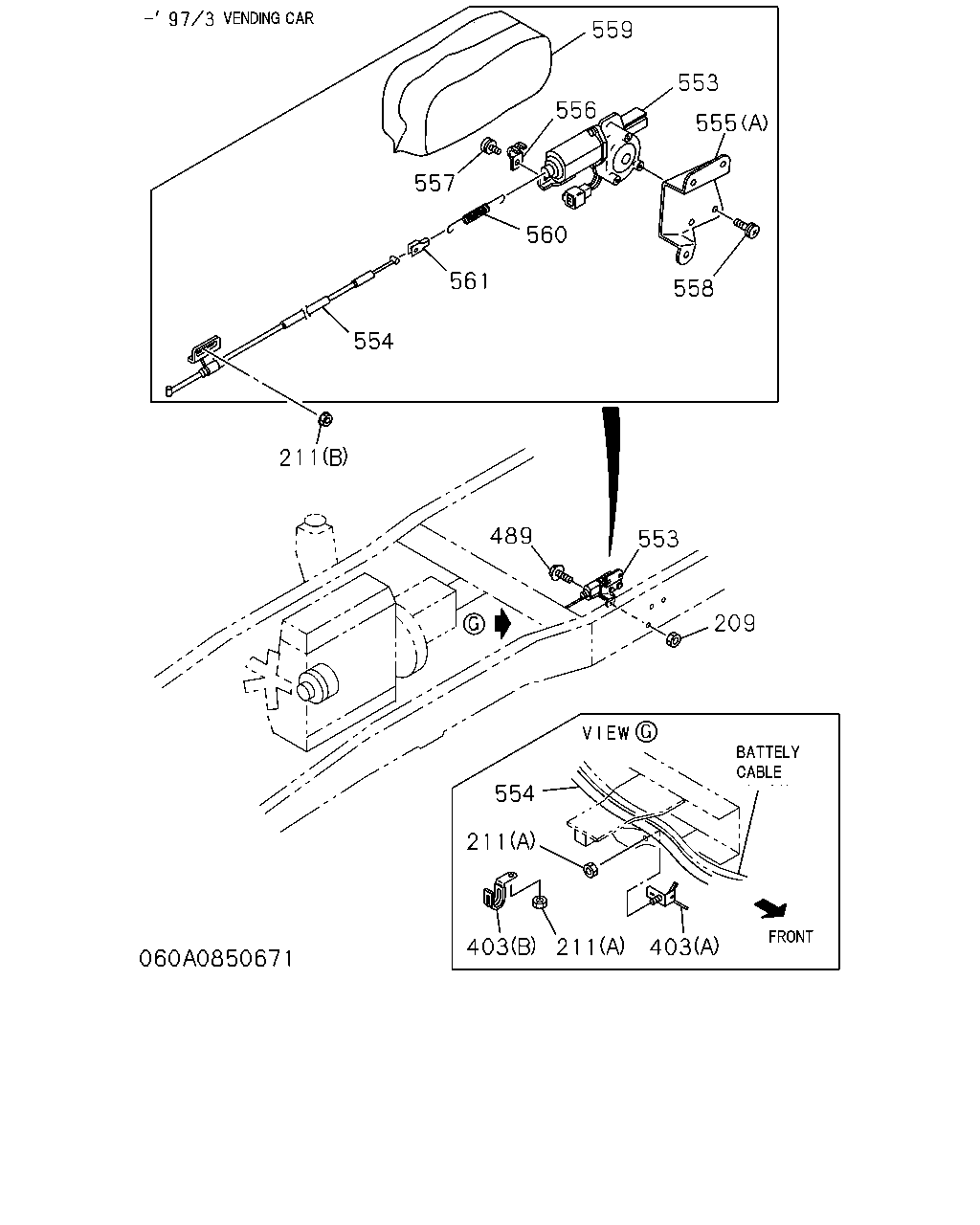

553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D) 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
EXC. FRAME-KICK UP<7EW> 		8-97119-551-3 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97063-950-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97090-624-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) A/T 4 SPEED-JATCO(RMK) 		8-97063-952-0 01 1 9304-9307 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97063-952-0 01 1 9308-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97090-625-1 01 1 9503-9703 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9304-9306 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9307-9307 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97036-578-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97090-622-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FRAME-KICK UP<7EW> 		8-97090-622-0 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97088-560-0 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97096-444-1 01 1 9503-9703 ● ●
çizim 493840
23 18 17 2 17 16 108 83 729 4 7 7 292 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
24V 3.5KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9304-9502 ● ●
1 STARTER ASM
12V 2.2KW DENSO SEE FIG-NO 0-65 FOR COMPONENT. 		8-97042-997-0 01 1 9304-9603 ●
1 STARTER ASM
12V 2.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-2 01 1 9604- ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97075-402-1 01 1 9304-9307 ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-1 01 1 9308-9502 ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-1 01 1 9503-9703 ● ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-2 01 1 9704-9810 ● ● ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97216-186-1 01 1 9811- ● ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97065-526-0 01 1 9304-9404 ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-0 01 1 9405-9502 ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-2 01 1 9503-9703 ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-5 01 1 9704-9811 ● ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97216-185-0 01 1 9812- ● ● ●
1 STARTER ASM
REBUILT 24V 3.5KW SHIN-ETSU 		5-87100-561-0 01 1 9304-9502 ● ●
1 STARTER ASM
REBUILT 24V 3.5KW HITACHI 		5-87100-699-0 01 1 9304-9502 ● ●
2 GENERATOR ASM
GENERATOR 24V40A<6MN> 24V 40A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-534-0 01 1 9304-9502 ●
2 GENERATOR ASM
24V 40A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-534-0 01 1 9304-9502 ●
2 GENERATOR ASM
EXC. GENERATOR 24V40A<6MN> 24V 25A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-524-0 01 1 9304-9502 ●
2 GENERATOR ASM
GENERATOR 60A(86M) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9304-9509 ●
2 GENERATOR ASM
EXC. REFRIGERATOR CHASSIS(V4R) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9510-9703 ●
2 GENERATOR ASM
12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9704-9801 ●
2 GENERATOR ASM
12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-658-0 01 1 9802- ●
2 GENERATOR ASM
EXC. GENERATOR 60A(86M) 12V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-924-1 01 1 9304-9509 ●
2 GENERATOR ASM
REFRIGERATOR CHASSIS(V4R) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97080-328-1 01 1 9510-9703 ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9304-9502 ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9503-9512 ● ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9601-9603 ● ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97148-496-0 01 1 9604-9606 ● ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97148-496-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V60A(KG2) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97144-392-1 01 1 9704- ● ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V50A(6QN) 24V 35A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-882-2 01 1 9304-9502 ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97182-379-0 01 1 9704-9709 ● ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97175-390-1 01 1 9710- ● ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97143-011-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) REBUILT 24V 60A 		5-87100-495-0 01 1 9710- ● ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V40A<6MN> REBUILT 24V 25A 		5-87100-569-0 01 1 9304-9502 ●
2 GENERATOR ASM
EXC. GENERATOR 24V50A(6QN) 24V 35A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-568-0 01 1 9304-9502 ●
2 GENERATOR ASM
REBUILT 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-515-0 01 1 9604-9606 ● ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) REBUILT 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-515-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
REBUILT 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-564-0 01 1 9802- ●
4 BOLT; STARTER
M12X84 		8-94107-769-2 02 1 9304-9703 ●
4 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704- ●
4 BOLT; STARTER
(A) 		8-97072-824-0 01 1 9304-9305 ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 01 1 9304-9305 ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9306-9502 ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9503-9703 ● ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9704-9808 ● ● ●
4 BOLT; STARTER
A/T 4 SPEED-JATCO(RMK) (B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9809- ● ● ●
4 BOLT; STARTER
FLOOR REMOTE SHIFT<M11> (B) M10X15,M14X75 L=103 		8-97212-602-0 02 1 9809- ● ● ●
7 NUT; STARTER
M12 		9-99110-412-0 02 1 9304-9502 ● ●
7 NUT; STARTER
(A) M12 FLANGE 		0-91150-112-0 02 1 9304- ●
7 NUT; STARTER
(B) M8 M8 		9-09110-508-0 01 1 9304-9502 ●
7 NUT; STARTER
(B) M8 		9-09110-408-0 01 1 9503- ●
16 BOLT; GEN
M10X125 		9-09801-325-0 01 1 9304-9502 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9304-9502 ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9503-9703 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9704- ● ● ●
16 BOLT; GEN
M10X130 		8-94402-322-1 01 1 9304-9304 ●
16 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9305-9612 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 BOLT; GEN
(A) M10X127 		8-97065-159-1 01 1 9304-9502 ●
16 BOLT; GEN
(A) M10X127 		8-97065-159-1 01 1 9503-9605 ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9606-9703 ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9704- ● ● ●
17 WASHER; PL,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9304-9502 ● ●
17 WASHER; PL,GEN
ID=10.5 OD=22 		9-09160-610-0 02 1 9304-9612 ●
18 WASHER; LK,GEN
ID=10.2 		9-09150-510-0 01 1 9304-9502 ● ● ●
18 WASHER; LK,GEN
ID=10.2 		9-09150-510-0 01 1 9503-9612 ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9304-9502 ● ● ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9503-9612 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9304-9502 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9304-9502 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9503-9612 ● ●
23 NUT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ● ●
23 NUT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10 FLANGE 		0-91150-210-0 01 1 9704- ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9704- ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9304-9502 ● ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9703 ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9704-9809 ● ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9810- ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9304-9502 ● ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9703 ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9704-9809 ● ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9810- ●
108 SWITCH; THERMO 8-94336-668-0 01 1 9304-9502 ● ●
108 SWITCH; THERMO 8-94336-668-0 01 1 9503- ●
108 SWITCH; THERMO 8-97021-507-1 01 1 9304-9502 ●
292 WASHER; LK,STARTER
ID=12.2 		9-09150-512-0 02 1 9304-9502 ● ●
292 WASHER; LK,STARTER
ID=8.2 		9-09150-508-0 01 1 9304- ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9304-9502 ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9503-9703 ● ● ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9704-9809 ● ● ● ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9810- ●

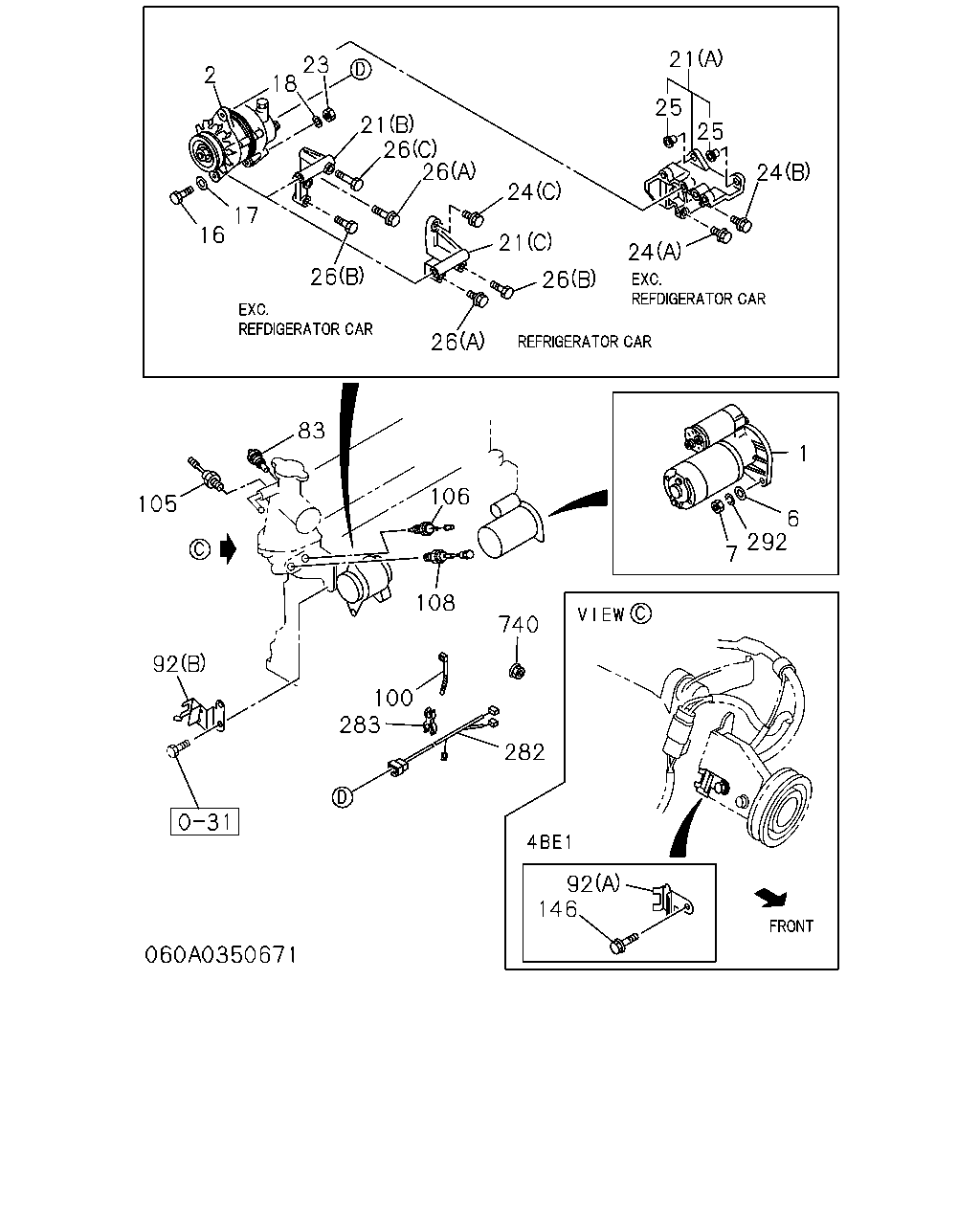

çizim 493841
2 23 18 17 16 26 21 26 26 24 21 26 26 24 24 25 25 21 1 6 292 7 92 146 282 740 283 108 106 83 105 92 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
24V 3.5KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9304-9502 ● ●
1 STARTER ASM
12V 2.2KW DENSO SEE FIG-NO 0-65 FOR COMPONENT. 		8-97042-997-0 01 1 9304-9603 ●
1 STARTER ASM
12V 2.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-2 01 1 9604- ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97075-402-1 01 1 9304-9307 ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-1 01 1 9308-9502 ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-1 01 1 9503-9703 ● ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-2 01 1 9704-9810 ● ● ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97216-186-1 01 1 9811- ● ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97065-526-0 01 1 9304-9404 ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-0 01 1 9405-9502 ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-2 01 1 9503-9703 ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-5 01 1 9704-9811 ● ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97216-185-0 01 1 9812- ● ● ●

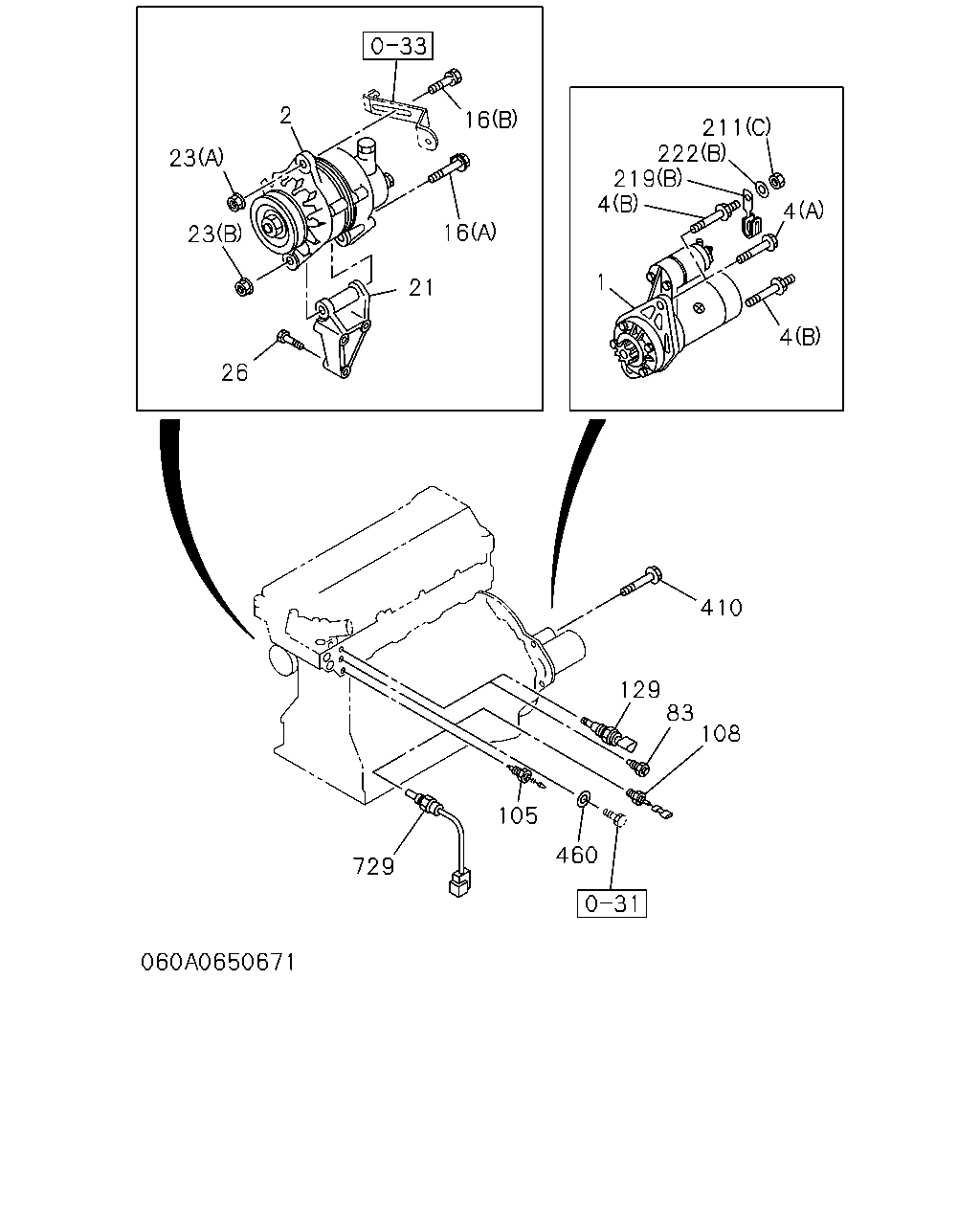

1 STARTER ASM
REBUILT 24V 3.5KW SHIN-ETSU 		5-87100-561-0 01 1 9304-9502 ● ●
1 STARTER ASM
REBUILT 24V 3.5KW HITACHI 		5-87100-699-0 01 1 9304-9502 ● ●
2 GENERATOR ASM
GENERATOR 24V40A<6MN> 24V 40A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-534-0 01 1 9304-9502 ●
2 GENERATOR ASM
24V 40A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-534-0 01 1 9304-9502 ●
2 GENERATOR ASM
EXC. GENERATOR 24V40A<6MN> 24V 25A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-524-0 01 1 9304-9502 ●
2 GENERATOR ASM
GENERATOR 60A(86M) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9304-9509 ●
2 GENERATOR ASM
EXC. REFRIGERATOR CHASSIS(V4R) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9510-9703 ●
2 GENERATOR ASM
12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9704-9801 ●
2 GENERATOR ASM
12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-658-0 01 1 9802- ●
2 GENERATOR ASM
EXC. GENERATOR 60A(86M) 12V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-924-1 01 1 9304-9509 ●
2 GENERATOR ASM
REFRIGERATOR CHASSIS(V4R) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97080-328-1 01 1 9510-9703 ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9304-9502 ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9503-9512 ● ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9601-9603 ● ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97148-496-0 01 1 9604-9606 ● ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97148-496-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V60A(KG2) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97144-392-1 01 1 9704- ● ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V50A(6QN) 24V 35A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-882-2 01 1 9304-9502 ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97182-379-0 01 1 9704-9709 ● ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97175-390-1 01 1 9710- ● ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97143-011-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) REBUILT 24V 60A 		5-87100-495-0 01 1 9710- ● ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V40A<6MN> REBUILT 24V 25A 		5-87100-569-0 01 1 9304-9502 ●
2 GENERATOR ASM
EXC. GENERATOR 24V50A(6QN) 24V 35A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-568-0 01 1 9304-9502 ●
2 GENERATOR ASM
REBUILT 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-515-0 01 1 9604-9606 ● ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) REBUILT 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-515-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
REBUILT 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-564-0 01 1 9802- ●
6 WASHER; PL,STARTER
ID=12.5 		9-09160-512-0 02 1 9304-9502 ● ●
7 NUT; STARTER
M12 		9-99110-412-0 02 1 9304-9502 ● ●
7 NUT; STARTER
(A) M12 FLANGE 		0-91150-112-0 02 1 9304- ●
7 NUT; STARTER
(B) M8 M8 		9-09110-508-0 01 1 9304-9502 ●
7 NUT; STARTER
(B) M8 		9-09110-408-0 01 1 9503- ●
16 BOLT; GEN
M10X125 		9-09801-325-0 01 1 9304-9502 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9304-9502 ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9503-9703 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9704- ● ● ●
16 BOLT; GEN
M10X130 		8-94402-322-1 01 1 9304-9304 ●
16 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9305-9612 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 BOLT; GEN
(A) M10X127 		8-97065-159-1 01 1 9304-9502 ●
16 BOLT; GEN
(A) M10X127 		8-97065-159-1 01 1 9503-9605 ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9606-9703 ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9704- ● ● ●
17 WASHER; PL,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9304-9502 ● ●
17 WASHER; PL,GEN
ID=10.5 OD=22 		9-09160-610-0 02 1 9304-9612 ●
18 WASHER; LK,GEN
ID=10.2 		9-09150-510-0 01 1 9304-9502 ● ● ●
18 WASHER; LK,GEN
ID=10.2 		9-09150-510-0 01 1 9503-9612 ●
21 BRACKET; GEN
REFRIGERATOR CHASSIS(V4R) (C) 		8-94122-268-0 01 1 9304-9502 ●
21 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (A) 		8-97012-502-1 01 1 9304-9502 ●
21 BRACKET; GEN
(A) 		8-97012-502-1 01 1 9304-9502 ●
21 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) 		8-97012-504-0 01 1 9304-9502 ●
21 BRACKET; GEN
(B) 		8-97012-504-0 01 1 9304-9502 ●
21 BRACKET; GEN 8-97075-884-2 01 1 9304-9502 ●
21 BRACKET; GEN 8-97075-884-2 01 1 9503-9703 ● ●
21 BRACKET; GEN 8-97075-884-2 01 1 9704- ● ● ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9304-9502 ● ● ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9503-9612 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9304-9502 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9304-9502 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9503-9612 ● ●
23 NUT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ● ●
23 NUT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10 FLANGE 		0-91150-210-0 01 1 9704- ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9704- ● ● ●
24 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) (C) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9304-9502 ●
24 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9304-9502 ●
24 BOLT; GEN BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9304-9502 ●
24 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X40 W/LK WASHER 		0-50041-040-0 02 1 9304-9502 ●
24 BOLT; GEN BRKT
(B) M10X40 W/LK WASHER 		0-50041-040-0 02 1 9304-9502 ●
25 COLLAR; BRKT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-94201-057-1 02 1 9304-9502 ●
25 COLLAR; BRKT 8-94201-057-1 02 1 9304-9502 ●
26 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) (A) M10X45 W/LK WASHER 		0-50041-045-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) (B) M10X95 		8-94165-519-1 01 1 9304-9502 ●
26 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
(A) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X45 W/LK WASHER 		0-50041-045-0 02 1 9304-9502 ●
26 BOLT; GEN BRKT
(B) M10X45 W/LK WASHER 		0-50041-045-0 02 1 9304-9502 ●
26 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X90 W/LK WASHER 		0-50041-090-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
(C) M10X90 W/LK WASHER 		0-50041-090-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 9503-9703 ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 9704- ● ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9304-9502 ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9503-9703 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9704- ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9304-9502 ● ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9703 ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9704-9809 ● ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9810- ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9304-9502 ● ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9703 ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9704-9809 ● ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9810- ●
92 CLIP; SENSOR CONNECTOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) (B) 		8-97021-314-0 01 1 9304-9502 ●
92 CLIP; SENSOR CONNECTOR
(B) 		8-97021-314-0 01 1 9304-9502 ●
92 CLIP; SENSOR CONNECTOR
REFRIGERATOR CHASSIS(V4R) (A) 		8-97011-093-0 01 1 9304-9502 ●
100 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=140 		5-09707-031-0 01 1 9304-9310 ● ●
105 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9304-9502 ● ●
105 SWITCH; THERMO,QOS 8-97068-804-0 01 1 9304-9502 ●
106 SWITCH; THERMO,AIR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97094-793-0 01 1 9304-9410 ● ●
106 SWITCH; THERMO,AIR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97094-793-0 01 1 9411-9502 ●
108 SWITCH; THERMO 8-94336-668-0 01 1 9304-9502 ● ●
108 SWITCH; THERMO 8-94336-668-0 01 1 9503- ●
108 SWITCH; THERMO 8-97021-507-1 01 1 9304-9502 ●
146 BOLT; CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9304-9502 ●
282 HARNESS; EXT,GEN
REFRIGERATOR CHASSIS(V4R) 		8-97032-095-2 01 1 9304-9502 ●
282 HARNESS; EXT,GEN
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97079-534-1 01 1 9304-9502 ●
282 HARNESS; EXT,GEN 8-97079-534-1 01 1 9304-9502 ●
283 CLIP; BAND,HARNESS,AC GEN
ID=13 & 16.5 		8-94169-028-0 01 1 9304-9502 ● ●
292 WASHER; LK,STARTER
ID=12.2 		9-09150-512-0 02 1 9304-9502 ● ●
292 WASHER; LK,STARTER
ID=8.2 		9-09150-508-0 01 1 9304- ●
740 NUT
FRT INDEPENDENT SUSPENSION(6PP) M8 W/LK WASHER 		8-94413-537-0 01 1 9402-9502 ●
çizim 493870
490 219 219 403 733 209 553 489 602 555
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
209 NUT; BRKT TO BODY
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10 FLANGE 		0-91150-110-0 02 1 9304-9502 ● ●
209 NUT; BRKT TO BODY
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10 FLANGE 		0-91150-110-0 02 1 9304-9502 ● ●
209 NUT; BRKT TO BODY
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 02 1 9304-9502 ●
209 NUT; BRKT TO BODY
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ●
209 NUT; BRKT TO BODY
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ●
209 NUT; BRKT TO BODY
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ●

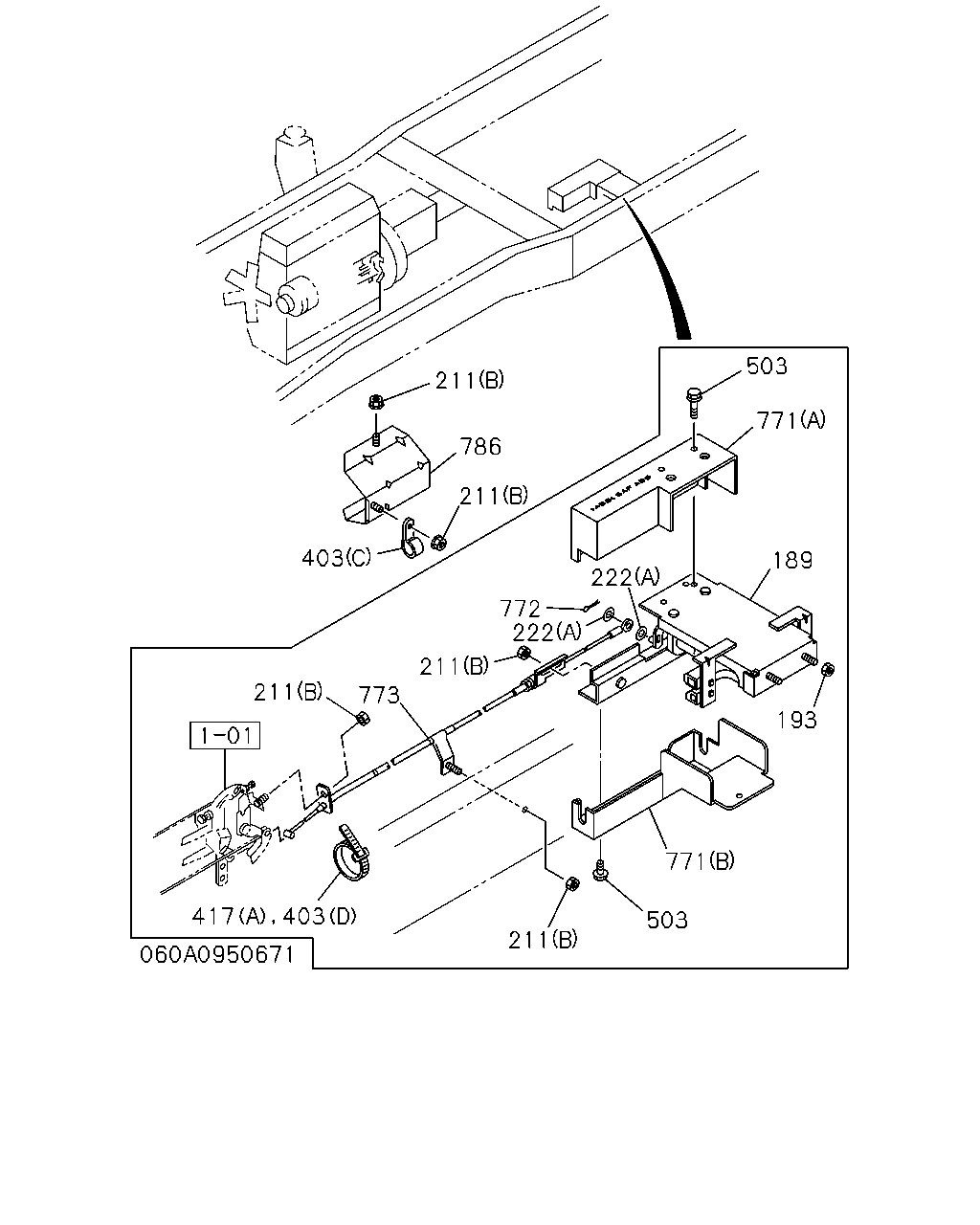

219 CLIP; ENG STOP CABLE
(A) L=140 		5-09707-031-0 03 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
(B) ID=20 		1-09709-068-0 01 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) ID=10 H=40 		8-94462-219-0 01 1 9704- ● ●
403 CLIP; CABLE
L=140 		5-09707-031-0 01 1 9311-9502 ● ●
403 CLIP; CABLE
BOTTLE CARRIER CHASSIS(V4E) (B) ID=13 		8-94147-320-0 01 1 9304-9502 ●
403 CLIP; CABLE
BOTTLE CARRIER CHASSIS(V4E) (B) ID=13 		8-94147-320-0 01 1 9503-9703 ● ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW&SHORT CHASSIS(NKN1SC) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
MIDDLE CHASSIS(NK***F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BOTTLE CARRIER CHASSIS(V4E),THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) M/T MXA5R(RMT) (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T),THROTTLE CONTROL SYSTEM<6XH>,FRAME-KICK UP<7EW> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BOTTLE CARRIER CHASSIS(V4E),THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (C) ID=9 		9-09524-845-0 01 1 9704- ● ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9704- ● ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (C) ID=9 		9-09524-845-0 01 1 9503-9703 ● ●
403 CLIP; CABLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (D) L=100 		5-09707-036-1 01 1 9704- ● ●
489 BOLT; ENG STOPPER
MIDDLE CHASSIS(NK***F) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 01 1 9704-9704 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8X20 FLANGE 		0-28680-820-0 02 1 9704- ● ●
489 BOLT; ENG STOPPER
BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28481-025-0 03 1 9304-9703 ●
489 BOLT; ENG STOPPER
FRAME-KICK UP<7EW> M10X25 FLANGE 		0-28681-025-0 02 1 9704- ● ●
490 NUT; ENG STOP
M6 FLANGE 		5-09440-004-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97085-642-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97071-356-0 01 1 9304-9401 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97109-789-0 01 1 9402-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-457-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) 		8-97105-994-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-456-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97077-438-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-455-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T), FRAME-KICK UP<7EW> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D) 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
EXC. FRAME-KICK UP<7EW> 		8-97119-551-3 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97063-950-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97090-624-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) A/T 4 SPEED-JATCO(RMK) 		8-97063-952-0 01 1 9304-9307 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97063-952-0 01 1 9308-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97090-625-1 01 1 9503-9703 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9304-9306 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9307-9307 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97036-578-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97090-622-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FRAME-KICK UP<7EW> 		8-97090-622-0 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97088-560-0 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97096-444-1 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> ID=16 H=60 L=32.5 		1-09700-214-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (C) 		8-97119-039-2 01 1 9704- ● ●
555 BRACKET; ENG STOP
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (B) 		8-97119-044-1 01 1 9704- ● ●
602 BOLT; BRKT
SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
733 NUT; BRKT
SUSPENSION - RR UNDER SLUNG<V4U> M10 FLANGE 		0-91150-110-0 01 1 9304-9502 ●
733 NUT; BRKT
EXC. FRAME-KICK UP<7EW> (C) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ●
çizim 493871
41 40 723 301 320 321 41 39 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 RESISTOR; SENSING 8-94380-646-2 01 1 9304-9502 ●
40 BRACKET; SENSING RESISTOR 5-14122-002-0 01 1 9304-9502 ●
41 BOLT; SENSING RESISTOR
(A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9304-9502 ●
41 BOLT; SENSING RESISTOR
(B) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9304-9502 ●
301 RESISTOR; DROPPING 8-94380-647-2 01 1 9304-9502 ●
301 RESISTOR; DROPPING 8-94389-802-1 01 1 9304- ●
320 BRACKET; HARNESS CONNECTOR,GLOW PLUG 8-94380-644-1 01 1 9304-9502 ●
321 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9304-9502 ●
723 GASKET; DROPPING RESISTOR
ID=30.5 OD=38.0 		9-09571-430-0 01 1 9304-9502 ●
çizim 493872
2 23 23 26 21 16 16 4 1 219 222 211 4 4 410 129 83 108 460 105 729
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
24V 3.5KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9304-9502 ● ●
1 STARTER ASM
12V 2.2KW DENSO SEE FIG-NO 0-65 FOR COMPONENT. 		8-97042-997-0 01 1 9304-9603 ●
1 STARTER ASM
12V 2.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-2 01 1 9604- ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97075-402-1 01 1 9304-9307 ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-1 01 1 9308-9502 ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-1 01 1 9503-9703 ● ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97100-926-2 01 1 9704-9810 ● ● ●
1 STARTER ASM
STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97216-186-1 01 1 9811- ● ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97065-526-0 01 1 9304-9404 ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-0 01 1 9405-9502 ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-2 01 1 9503-9703 ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-97095-811-5 01 1 9704-9811 ● ● ●
1 STARTER ASM
EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI SEE FIG-NO 0-65 FOR COMPONENT. 		8-97216-185-0 01 1 9812- ● ● ●
1 STARTER ASM
REBUILT 24V 3.5KW SHIN-ETSU 		5-87100-561-0 01 1 9304-9502 ● ●
1 STARTER ASM
REBUILT 24V 3.5KW HITACHI 		5-87100-699-0 01 1 9304-9502 ● ●
2 GENERATOR ASM
GENERATOR 24V40A<6MN> 24V 40A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-534-0 01 1 9304-9502 ●
2 GENERATOR ASM
24V 40A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-534-0 01 1 9304-9502 ●
2 GENERATOR ASM
EXC. GENERATOR 24V40A<6MN> 24V 25A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97077-524-0 01 1 9304-9502 ●
2 GENERATOR ASM
GENERATOR 60A(86M) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9304-9509 ●
2 GENERATOR ASM
EXC. REFRIGERATOR CHASSIS(V4R) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9510-9703 ●
2 GENERATOR ASM
12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-923-1 01 1 9704-9801 ●
2 GENERATOR ASM
12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-658-0 01 1 9802- ●
2 GENERATOR ASM
EXC. GENERATOR 60A(86M) 12V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97073-924-1 01 1 9304-9509 ●
2 GENERATOR ASM
REFRIGERATOR CHASSIS(V4R) 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97080-328-1 01 1 9510-9703 ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9304-9502 ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9503-9512 ● ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-883-2 01 1 9601-9603 ● ●
2 GENERATOR ASM
24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97148-496-0 01 1 9604-9606 ● ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97148-496-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V60A(KG2) 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97144-392-1 01 1 9704- ● ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V50A(6QN) 24V 35A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97075-882-2 01 1 9304-9502 ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97182-379-0 01 1 9704-9709 ● ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97175-390-1 01 1 9710- ● ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) 24V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97143-011-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
GENERATOR 24V60A(KG2) REBUILT 24V 60A 		5-87100-495-0 01 1 9710- ● ● ●
2 GENERATOR ASM
EXC. GENERATOR 24V40A<6MN> REBUILT 24V 25A 		5-87100-569-0 01 1 9304-9502 ●
2 GENERATOR ASM
EXC. GENERATOR 24V50A(6QN) 24V 35A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-568-0 01 1 9304-9502 ●
2 GENERATOR ASM
REBUILT 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-515-0 01 1 9604-9606 ● ●
2 GENERATOR ASM
GENERATOR 24V50A(6QN) REBUILT 24V 50A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-515-0 01 1 9607-9703 ● ●
2 GENERATOR ASM
REBUILT 12V 60A SEE FIG-NO 0-66 FOR COMPONENT. 		5-87100-564-0 01 1 9802- ●
4 BOLT; STARTER
M12X84 		8-94107-769-2 02 1 9304-9703 ●
4 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704- ●
4 BOLT; STARTER
(A) 		8-97072-824-0 01 1 9304-9305 ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 01 1 9304-9305 ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9306-9502 ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9503-9703 ● ●
4 BOLT; STARTER
(B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9704-9808 ● ● ●
4 BOLT; STARTER
A/T 4 SPEED-JATCO(RMK) (B) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9809- ● ● ●
4 BOLT; STARTER
FLOOR REMOTE SHIFT<M11> (B) M10X15,M14X75 L=103 		8-97212-602-0 02 1 9809- ● ● ●
16 BOLT; GEN
M10X125 		9-09801-325-0 01 1 9304-9502 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9304-9502 ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9503-9703 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68),REFRIGERATOR CHASSIS(V4R) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9704- ● ● ●
16 BOLT; GEN
M10X130 		8-94402-322-1 01 1 9304-9304 ●
16 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9305-9612 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 BOLT; GEN
(A) M10X127 		8-97065-159-1 01 1 9304-9502 ●
16 BOLT; GEN
(A) M10X127 		8-97065-159-1 01 1 9503-9605 ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9606-9703 ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9704- ● ● ●
21 BRACKET; GEN
REFRIGERATOR CHASSIS(V4R) (C) 		8-94122-268-0 01 1 9304-9502 ●
21 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (A) 		8-97012-502-1 01 1 9304-9502 ●
21 BRACKET; GEN
(A) 		8-97012-502-1 01 1 9304-9502 ●
21 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) 		8-97012-504-0 01 1 9304-9502 ●
21 BRACKET; GEN
(B) 		8-97012-504-0 01 1 9304-9502 ●
21 BRACKET; GEN 8-97075-884-2 01 1 9304-9502 ●
21 BRACKET; GEN 8-97075-884-2 01 1 9503-9703 ● ●
21 BRACKET; GEN 8-97075-884-2 01 1 9704- ● ● ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9304-9502 ● ● ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9503-9612 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9304-9502 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9304-9502 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9503-9612 ● ●
23 NUT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ● ●
23 NUT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10 FLANGE 		0-91150-210-0 01 1 9704- ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 9704- ● ● ●
26 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) (A) M10X45 W/LK WASHER 		0-50041-045-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) (B) M10X95 		8-94165-519-1 01 1 9304-9502 ●
26 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
(A) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X45 W/LK WASHER 		0-50041-045-0 02 1 9304-9502 ●
26 BOLT; GEN BRKT
(B) M10X45 W/LK WASHER 		0-50041-045-0 02 1 9304-9502 ●
26 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X90 W/LK WASHER 		0-50041-090-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
(C) M10X90 W/LK WASHER 		0-50041-090-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 9304-9502 ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 9503-9703 ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 9704- ● ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9304-9502 ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9503-9703 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9704- ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9304-9502 ● ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9703 ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9704-9809 ● ● ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9810- ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9304-9502 ● ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9703 ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9704-9809 ● ● ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9810- ●
105 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9304-9502 ● ●
105 SWITCH; THERMO,QOS 8-97068-804-0 01 1 9304-9502 ●
108 SWITCH; THERMO 8-94336-668-0 01 1 9304-9502 ● ●
108 SWITCH; THERMO 8-94336-668-0 01 1 9503- ●
108 SWITCH; THERMO 8-97021-507-1 01 1 9304-9502 ●
129 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 9810- ● ● ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 9810- ● ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 AR 1 9304-9502 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9503-9703 ● ●
211 NUT; CABLE FIX
CLUTCH FREE(7RW) (B) M6 FLANGE 		0-91150-106-0 01 1 9704- ● ● ● ● ● ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 9503-9512 ● ●
211 NUT; CABLE FIX
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ● ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9704- ● ● ●
219 CLIP; ENG STOP CABLE
(A) L=140 		5-09707-031-0 03 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
(B) ID=20 		1-09709-068-0 01 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) ID=10 H=40 		8-94462-219-0 01 1 9704- ● ●
222 WASHER; PL,CONT CABLE
THROTTLE CONTROL SYSTEM<6XH> (A) ID=8.4 		9-09160-508-0 02 1 9304-9502 ●
222 WASHER; PL,CONT CABLE
THROTTLE CONTROL SYSTEM<6XH> (A) ID=8.4 		9-09160-508-0 02 1 9503-9703 ● ●
222 WASHER; PL,CONT CABLE
THROTTLE CONTROL SYSTEM<6XH> (A) ID=8.4 		9-09160-508-0 02 1 9704- ● ● ●
222 WASHER; PL,CONT CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9503-9703 ● ●
222 WASHER; PL,CONT CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9503-9703 ● ●
222 WASHER; PL,CONT CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9503-9703 ● ●
410 BOLT; BRKT,GRAND
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9309-9502 ●
410 BOLT; BRKT,GRAND
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9503-9703 ● ●
410 BOLT; BRKT,GRAND
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9704- ● ● ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24 		9-09571-416-0 01 1 9503-9604 ● ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9304-9502 ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9503-9703 ● ● ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9704-9809 ● ● ● ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9810- ●
çizim 493903
559 556 560 557 561 554 211 489 554 211 403 211 403 209 553 558 555 553
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
209 NUT; BRKT TO BODY
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10 FLANGE 		0-91150-110-0 02 1 9304-9502 ● ●
209 NUT; BRKT TO BODY
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10 FLANGE 		0-91150-110-0 02 1 9304-9502 ● ●
209 NUT; BRKT TO BODY
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 02 1 9304-9502 ●
209 NUT; BRKT TO BODY
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ●
209 NUT; BRKT TO BODY
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ●
209 NUT; BRKT TO BODY
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 02 1 9503-9703 ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 AR 1 9304-9502 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9503-9703 ● ●
211 NUT; CABLE FIX
CLUTCH FREE(7RW) (B) M6 FLANGE 		0-91150-106-0 01 1 9704- ● ● ● ● ● ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 9503-9512 ● ●
211 NUT; CABLE FIX
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ● ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9704- ● ● ●
403 CLIP; CABLE
L=140 		5-09707-031-0 01 1 9311-9502 ● ●
403 CLIP; CABLE
BOTTLE CARRIER CHASSIS(V4E) (B) ID=13 		8-94147-320-0 01 1 9304-9502 ●
403 CLIP; CABLE
BOTTLE CARRIER CHASSIS(V4E) (B) ID=13 		8-94147-320-0 01 1 9503-9703 ● ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW&SHORT CHASSIS(NKN1SC) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
MIDDLE CHASSIS(NK***F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BOTTLE CARRIER CHASSIS(V4E),THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) M/T MXA5R(RMT) (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T),THROTTLE CONTROL SYSTEM<6XH>,FRAME-KICK UP<7EW> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BOTTLE CARRIER CHASSIS(V4E),THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (C) ID=9 		9-09524-845-0 01 1 9704- ● ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9704- ● ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (C) ID=9 		9-09524-845-0 01 1 9503-9703 ● ●
403 CLIP; CABLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (D) L=100 		5-09707-036-1 01 1 9704- ● ●
489 BOLT; ENG STOPPER
MIDDLE CHASSIS(NK***F) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
489 BOLT; ENG STOPPER
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28081-025-0 01 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 01 1 9704-9704 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) M10X25 FLANGE 		0-28481-025-0 02 1 9304-9502 ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> M10X25 FLANGE 		0-28481-025-0 02 1 9503-9703 ● ●
489 BOLT; ENG STOPPER
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M8X20 FLANGE 		0-28680-820-0 02 1 9704- ● ●
489 BOLT; ENG STOPPER
BOTTLE CARRIER CHASSIS(V4E) M10X25 FLANGE 		0-28481-025-0 03 1 9304-9703 ●
489 BOLT; ENG STOPPER
FRAME-KICK UP<7EW> M10X25 FLANGE 		0-28681-025-0 02 1 9704- ● ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97085-642-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97071-356-0 01 1 9304-9401 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97109-789-0 01 1 9402-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-457-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) 		8-97105-994-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-456-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97077-438-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-455-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T), FRAME-KICK UP<7EW> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D) 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
EXC. FRAME-KICK UP<7EW> 		8-97119-551-3 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97063-950-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97090-624-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) A/T 4 SPEED-JATCO(RMK) 		8-97063-952-0 01 1 9304-9307 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97063-952-0 01 1 9308-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97090-625-1 01 1 9503-9703 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9304-9306 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9307-9307 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97036-578-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97090-622-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FRAME-KICK UP<7EW> 		8-97090-622-0 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97088-560-0 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97096-444-1 01 1 9503-9703 ● ●
554 CABLE ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-97026-981-0 01 1 9304-9502 ●
554 CABLE ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-97026-981-0 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> ID=16 H=60 L=32.5 		1-09700-214-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (C) 		8-97119-039-2 01 1 9704- ● ●
555 BRACKET; ENG STOP
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (B) 		8-97119-044-1 01 1 9704- ● ●
556 CLAMP; CABLE,ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-97066-049-0 01 1 9304-9502 ●
556 CLAMP; CABLE,ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-97066-049-0 01 1 9503-9703 ● ●
557 SCREW; CABLE CLAMP
BOTTLE CARRIER CHASSIS(V4E) M5X10 W/LK WASHER 		9-03910-510-0 01 1 9304-9502 ●
557 SCREW; CABLE CLAMP
BOTTLE CARRIER CHASSIS(V4E) M5X10 W/LK WASHER 		9-03910-510-0 01 1 9503-9703 ● ●
558 SCREW; BRKT TO MOTOR
BOTTLE CARRIER CHASSIS(V4E) M6X16 W/LK WASHER 		9-03910-616-0 03 1 9304-9502 ●
558 SCREW; BRKT TO MOTOR
BOTTLE CARRIER CHASSIS(V4E) M6X16 W/LK WASHER 		9-03910-616-0 03 1 9503-9703 ● ●
559 COVER; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		5-82848-022-0 01 1 9304-9502 ●
559 COVER; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		5-82848-022-0 01 1 9503-9703 ● ●
560 SPRING; CABLE,ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94157-920-0 01 1 9304-9502 ●
560 SPRING; CABLE,ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94157-920-0 01 1 9503-9703 ● ●
561 HOOK; CABLE TO SPR
BOTTLE CARRIER CHASSIS(V4E) 		8-94157-919-0 01 1 9304-9502 ●
561 HOOK; CABLE TO SPR
BOTTLE CARRIER CHASSIS(V4E) 		8-94157-919-0 01 1 9503-9703 ● ●
çizim 493904
211 786 211 403 211 773 211 417 403 211 503 771 193 189 771 503 222 772 222
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
189 ACTUATOR ASM; THROTTLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> 		8-97039-981-3 01 1 9304-9502 ●
189 ACTUATOR ASM; THROTTLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> 		8-97039-981-3 01 1 9304-9502 ●
189 ACTUATOR ASM; THROTTLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> 		8-97039-981-3 01 1 9304-9502 ●
189 ACTUATOR ASM; THROTTLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97127-411-0 01 1 9503-9607 ● ●
189 ACTUATOR ASM; THROTTLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97143-591-0 01 1 9608-9703 ● ●
189 ACTUATOR ASM; THROTTLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97143-591-0 01 1 9704- ● ● ●
189 ACTUATOR ASM; THROTTLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) THROTTLE CONTROL SYSTEM<6XH> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97065-632-2 01 1 9304-9502 ●
189 ACTUATOR ASM; THROTTLE
THROTTLE CONTROL SYSTEM<6XH> FRAME-KICK UP<7EW> 		8-97127-412-0 01 1 9503-9607 ● ●
189 ACTUATOR ASM; THROTTLE
THROTTLE CONTROL SYSTEM<6XH> FRAME-KICK UP<7EW> 		8-97143-592-0 01 1 9608-9703 ● ●
193 NUT; ADJ BOLT,THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ●
193 NUT; ADJ BOLT,THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ●
193 NUT; ADJ BOLT,THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 AR 1 9304-9502 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9503-9703 ● ●
211 NUT; CABLE FIX
CLUTCH FREE(7RW) (B) M6 FLANGE 		0-91150-106-0 01 1 9704- ● ● ● ● ● ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9304-9306 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9307-9307 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) M6 FLANGE 		0-91150-206-0 01 1 9308-9312 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9306-9502 ●
211 NUT; CABLE FIX
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (C) M10 FLANGE 		0-91150-210-0 01 1 9503-9703 ● ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 9503-9512 ● ●
211 NUT; CABLE FIX
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ● ●
211 NUT; CABLE FIX
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) (B) M6 FLANGE 		0-91150-106-0 01 1 9601-9703 ●
211 NUT; CABLE FIX
THROTTLE CONTROL SYSTEM<6XH> (B) M6 FLANGE 		0-91150-106-0 02 1 9704- ● ● ●
222 WASHER; PL,CONT CABLE
THROTTLE CONTROL SYSTEM<6XH> (A) ID=8.4 		9-09160-508-0 02 1 9304-9502 ●
222 WASHER; PL,CONT CABLE
THROTTLE CONTROL SYSTEM<6XH> (A) ID=8.4 		9-09160-508-0 02 1 9503-9703 ● ●
222 WASHER; PL,CONT CABLE
THROTTLE CONTROL SYSTEM<6XH> (A) ID=8.4 		9-09160-508-0 02 1 9704- ● ● ●
222 WASHER; PL,CONT CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9306-9502 ●
222 WASHER; PL,CONT CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9503-9703 ● ●
222 WASHER; PL,CONT CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9503-9703 ● ●
222 WASHER; PL,CONT CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10.5 OD=26 		9-09164-710-0 01 1 9503-9703 ● ●
403 CLIP; CABLE
L=140 		5-09707-031-0 01 1 9311-9502 ● ●
403 CLIP; CABLE
BOTTLE CARRIER CHASSIS(V4E) (B) ID=13 		8-94147-320-0 01 1 9304-9502 ●
403 CLIP; CABLE
BOTTLE CARRIER CHASSIS(V4E) (B) ID=13 		8-94147-320-0 01 1 9503-9703 ● ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (A) 		8-97093-555-1 01 1 9304-9306 ●
403 CLIP; CABLE
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97093-555-2 01 1 9307-9307 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) FLAT LOW&SHORT CHASSIS(NKN1SC) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
MIDDLE CHASSIS(NK***F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97093-555-2 01 1 9308-9502 ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BOTTLE CARRIER CHASSIS(V4E),THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) SUSPENSION - RR UNDER SLUNG<V4U> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) AICHI SYARYO SPEC(6UE) (A) 		8-97125-981-0 01 1 9503-9512 ● ●
403 CLIP; CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) M/T MXA5R(RMT) (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T),THROTTLE CONTROL SYSTEM<6XH>,FRAME-KICK UP<7EW> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BOTTLE CARRIER CHASSIS(V4E),THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97125-981-0 01 1 9601-9703 ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (C) ID=9 		9-09524-845-0 01 1 9704- ● ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9704- ● ● ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) 		8-94441-247-0 01 1 9304-9304 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) 		9-09525-245-0 01 1 9304-9305 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (C) ID=9 		9-09524-845-0 01 1 9306-9502 ●
403 CLIP; CABLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (C) ID=9 		9-09524-845-0 01 1 9503-9703 ● ●
403 CLIP; CABLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> (D) L=100 		5-09707-036-1 01 1 9704- ● ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) L=100 		5-09707-036-0 01 1 9304-9502 ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> FRAME-KICK UP<7EW> (A) L=100 		5-09707-036-0 01 1 9503-9703 ● ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> (A) L=100 		5-09707-036-0 01 1 9503-9703 ● ●
417 CLIP
THROTTLE CONTROL SYSTEM<6XH> (A) L=100 		5-09707-036-1 01 1 9704- ● ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) (B) L=250 		5-09707-030-0 01 1 9304-9307 ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) (B) L=250 		5-09707-030-0 01 1 9308-9502 ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) A/T 4 SPEED-JATCO(RMK) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) A/T 4 SPEED-JATCO(RMK) FRT INDEPENDENT SUSPENSION(6PP) (B) L=250 		5-09707-030-0 01 1 9503-9703 ● ●
417 CLIP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
417 CLIP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
417 CLIP
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
417 CLIP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) L=350 		8-94152-256-0 01 1 9304-9305 ●
503 BOLT; COVER
THROTTLE CONTROL SYSTEM<6XH> M6X10 		8-94358-403-1 05 1 9304-9502 ●
503 BOLT; COVER
THROTTLE CONTROL SYSTEM<6XH> M6X10 		8-94358-403-1 05 1 9503-9703 ● ●
503 BOLT; COVER
THROTTLE CONTROL SYSTEM<6XH> M6X10 		8-94358-403-1 05 1 9704- ● ● ●
771 COVER; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97066-282-0 01 1 9304-9502 ●
771 COVER; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97066-282-0 01 1 9503-9703 ● ●
771 COVER; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> (A) 		8-97066-282-0 01 1 9704- ● ● ●
771 COVER; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> (B) 		8-97066-285-0 01 1 9304-9502 ●
771 COVER; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> (B) 		8-97123-845-0 01 1 9503-9703 ● ●
771 COVER; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> (B) 		8-97123-845-0 01 1 9704- ● ● ●
772 PIN; SNAP,CABLE
THROTTLE CONTROL SYSTEM<6XH> L=27.7 		1-09747-005-0 01 1 9304-9502 ●
772 PIN; SNAP,CABLE
THROTTLE CONTROL SYSTEM<6XH> L=27.7 		1-09747-005-0 01 1 9503-9703 ● ●
772 PIN; SNAP,CABLE
THROTTLE CONTROL SYSTEM<6XH> L=27.7 		1-09747-005-0 01 1 9704- ● ● ●
773 CABLE; THROTTLE ACTUATOR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> 		8-97048-381-4 01 1 9304-9502 ●
773 CABLE; THROTTLE ACTUATOR
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> 		8-97048-381-4 01 1 9304-9502 ●
773 CABLE; THROTTLE ACTUATOR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> 		8-97048-381-4 01 1 9304-9502 ●
773 CABLE; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97048-381-4 01 1 9503-9506 ● ●
773 CABLE; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97132-861-0 01 1 9507-9703 ● ●
773 CABLE; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97132-861-0 01 1 9704- ● ● ●
773 CABLE; THROTTLE ACTUATOR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) THROTTLE CONTROL SYSTEM<6XH> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97039-982-4 01 1 9304-9502 ●
773 CABLE; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> FRAME-KICK UP<7EW> 		8-97039-982-4 01 1 9503-9506 ● ●
773 CABLE; THROTTLE ACTUATOR
THROTTLE CONTROL SYSTEM<6XH> FRAME-KICK UP<7EW> 		8-97132-859-0 01 1 9507-9703 ● ●
786 BRACKET; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) THROTTLE CONTROL SYSTEM<6XH> 		8-97100-360-0 01 1 9304-9502 ●
786 BRACKET; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) THROTTLE CONTROL SYSTEM<6XH> 		8-97100-360-0 01 1 9304-9502 ●
786 BRACKET; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> THROTTLE CONTROL SYSTEM<6XH> 		8-97100-360-0 01 1 9304-9502 ●
786 BRACKET; CABLE
THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97100-360-0 01 1 9503-9703 ● ●
786 BRACKET; CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> EXC. FRAME-KICK UP<7EW> 		8-97100-360-0 01 1 9704- ● ● ●
786 BRACKET; CABLE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) FRT INDEPENDENT SUSPENSION(6PP) THROTTLE CONTROL SYSTEM<6XH> 		8-97100-360-0 01 1 9704- ● ● ●
çizim 493905
733 555 612 219 636 553 492
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
219 CLIP; ENG STOP CABLE
(A) L=140 		5-09707-031-0 03 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
(B) ID=20 		1-09709-068-0 01 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) ID=10 H=40 		8-94462-219-0 01 1 9704- ● ●
492 BRACKET; ENG STOPPER
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A) 		8-97119-042-2 01 1 9704- ● ●
492 BRACKET; ENG STOPPER
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97119-037-2 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97085-642-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97071-356-0 01 1 9304-9401 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97109-789-0 01 1 9402-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-457-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) 		8-97105-994-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-456-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97077-438-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-455-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T), FRAME-KICK UP<7EW> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D) 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
EXC. FRAME-KICK UP<7EW> 		8-97119-551-3 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97063-950-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97090-624-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) A/T 4 SPEED-JATCO(RMK) 		8-97063-952-0 01 1 9304-9307 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97063-952-0 01 1 9308-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97090-625-1 01 1 9503-9703 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9304-9306 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9307-9307 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97036-578-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97090-622-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FRAME-KICK UP<7EW> 		8-97090-622-0 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97088-560-0 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97096-444-1 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> ID=16 H=60 L=32.5 		1-09700-214-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (C) 		8-97119-039-2 01 1 9704- ● ●
555 BRACKET; ENG STOP
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (B) 		8-97119-044-1 01 1 9704- ● ●
612 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> (A) M8X20 		1-09981-468-0 01 1 9704- ● ●
612 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (B) M6X25 FLANGE 		0-28680-625-0 01 1 9704- ● ●
636 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ●
733 NUT; BRKT
SUSPENSION - RR UNDER SLUNG<V4U> M10 FLANGE 		0-91150-110-0 01 1 9304-9502 ●
733 NUT; BRKT
EXC. FRAME-KICK UP<7EW> (C) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ●
çizim 493940
733 555 612 555 612 219 553 636 492 593
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
219 CLIP; ENG STOP CABLE
(A) L=140 		5-09707-031-0 03 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
(B) ID=20 		1-09709-068-0 01 1 9304-9502 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-026-0 01 1 9304-9306 ●
219 CLIP; ENG STOP CABLE
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) (A) ID=11 L=16 		9-09525-025-0 01 1 9307-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11 L=16 		9-09525-025-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (D) T=9 & 10.5 		8-97041-091-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9306-9502 ●
219 CLIP; ENG STOP CABLE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. BOTTLE CARRIER CHASSIS(V4E) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
SEMI MIDDLE CHASSIS(NK***D) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-436-0 01 1 9503-9703 ● ●
219 CLIP; ENG STOP CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> (D) T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ●
219 CLIP; ENG STOP CABLE
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (C) ID=10 H=40 		8-94462-219-0 01 1 9704- ● ●
492 BRACKET; ENG STOPPER
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (A) 		8-97119-042-2 01 1 9704- ● ●
492 BRACKET; ENG STOPPER
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97119-037-2 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97085-642-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97071-356-0 01 1 9304-9401 ●
553 MOTOR ASM; ENG STOP
MIDDLE CHASSIS(NK***F) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97109-789-0 01 1 9402-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-454-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-457-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) 		8-97105-994-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE&SHORT CHASSIS(NKB1SC) FLAT LOW&SHORT CHASSIS(NKN1SC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-456-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,CHASSIS PARTS FOR 2-COMP<6NG> 		8-97077-438-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97065-455-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97093-544-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) FULL FLATLOW<6GL> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T), FRAME-KICK UP<7EW> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SEMI MIDDLE CHASSIS(NK***D) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE & MIDDLE CHASSIS(NKC**F) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) M/T MXA5R(RMT),M/T MXA 6R(RMU) FULL FLATLOW<6GL> 		8-97105-993-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-0 01 1 9304-9310 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97093-543-1 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D) 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> EXC. BATTERY 115E41R<6XD> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) EXC. FULL FLATLOW<6GL> 		8-97105-992-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
EXC. FRAME-KICK UP<7EW> 		8-97119-551-3 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97063-950-0 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97090-624-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) 		8-94342-460-1 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) 		8-97094-911-1 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97105-995-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) A/T 4 SPEED-JATCO(RMK) 		8-97063-952-0 01 1 9304-9307 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97063-952-0 01 1 9308-9502 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) 		8-97090-625-1 01 1 9503-9703 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9304-9306 ●
553 MOTOR ASM; ENG STOP
S TIRE(NKB***) M/T MXA5R(RMT) 		8-97093-546-0 01 1 9307-9307 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97036-578-2 01 1 9304-9502 ●
553 MOTOR ASM; ENG STOP
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97090-622-0 01 1 9503-9703 ● ●
553 MOTOR ASM; ENG STOP
FRAME-KICK UP<7EW> 		8-97090-622-0 01 1 9704- ● ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97088-560-0 01 1 9311-9502 ●
553 MOTOR ASM; ENG STOP
FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN**F) A/T 4 SPEED-JATCO(RMK) FULL FLATLOW<6GL> BATTERY 115E41R<6XD> 		8-97096-444-1 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
SUSPENSION - RR UNDER SLUNG<V4U> ID=16 H=60 L=32.5 		1-09700-214-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9304-9502 ●
555 BRACKET; ENG STOP
BOTTLE CARRIER CHASSIS(V4E) (A) 		8-97026-980-0 01 1 9503-9703 ● ●
555 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (C) 		8-97119-039-2 01 1 9704- ● ●
555 BRACKET; ENG STOP
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (B) 		8-97119-044-1 01 1 9704- ● ●
593 NUT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> M8 FLANGE 		0-91150-108-0 01 1 9704- ● ●
612 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> (A) M8X20 		1-09981-468-0 01 1 9704- ● ●
612 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> (B) M6X25 FLANGE 		0-28680-625-0 01 1 9704- ● ●
636 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 02 1 9704- ● ●
733 NUT; BRKT
SUSPENSION - RR UNDER SLUNG<V4U> M10 FLANGE 		0-91150-110-0 01 1 9304-9502 ●
733 NUT; BRKT
EXC. FRAME-KICK UP<7EW> (C) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ●
çizim 494366
643 310 641 381 770 301 314 770 436 780 46 10 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9304-9502 ● ● ●
10 RELAY; STARTER 8-97036-359-1 01 1 9304-9502 ●
10 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9503-9704 ●
10 RELAY; STARTER 8-97036-359-1 01 1 9503-9704 ● ●
10 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705- ●
10 RELAY; STARTER
24V 50A 		8-97173-947-0 01 1 9705- ● ●
10 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9304-9704 ●
10 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9705- ●
46 RELAY; GLOW PLUG 8-97036-359-1 01 1 9304-9502 ● ●
46 RELAY; GLOW PLUG 8-97036-359-1 01 1 9503-9703 ● ●
46 RELAY; GLOW PLUG 8-97036-359-1 01 1 9704-9704 ● ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 9705- ● ● ●
46 RELAY; GLOW PLUG 8-97036-359-1 02 1 9304-9502 ●
46 RELAY; GLOW PLUG
12V 80A 		8-97036-358-1 02 1 9304-9704 ●
46 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705- ●
301 RESISTOR; DROPPING 8-94380-647-2 01 1 9304-9502 ●
301 RESISTOR; DROPPING 8-94389-802-1 01 1 9304- ●
310 CONTROLLER; QOS 8-97047-342-0 01 1 9304-9502 ●
310 CONTROLLER; QOS 8-97047-029-0 01 1 9304- ●
314 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 9304- ●
381 BOLT; DROPPING RESISTOR
M6X20 FLANGE 		0-28080-620-0 02 1 9304-9503 ●
381 BOLT; DROPPING RESISTOR
M6X25 FLANGE 		0-28080-625-0 02 1 9504-9703 ●
381 BOLT; DROPPING RESISTOR
M6X25 FLANGE 		0-28680-625-0 02 1 9704- ●
436 RELAY; FAST IDLE (Q-CONTROL)
ENG QUICK WARM UP SYSTEM<6JZ> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9502 ●
436 RELAY; FAST IDLE (Q-CONTROL)
24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ●
578 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9304-9502 ● ● ●
578 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9304-9502 ●
578 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-0 01 1 9304-9502 ●
641 TIMER; QOS 8-97047-028-0 01 1 9304-9502 ● ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91150-106-0 02 1 9304-9502 ● ● ● ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91150-106-0 02 1 9503- ●
770 NUT; DROPPING REGISTER
M6 FLANGE 		0-91150-106-0 04 1 9304- ●
780 RELAY; IDLING UP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9502 ● ● ●
780 RELAY; IDLING UP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ●
780 RELAY; IDLING UP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
