◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#166662) — 497 parça

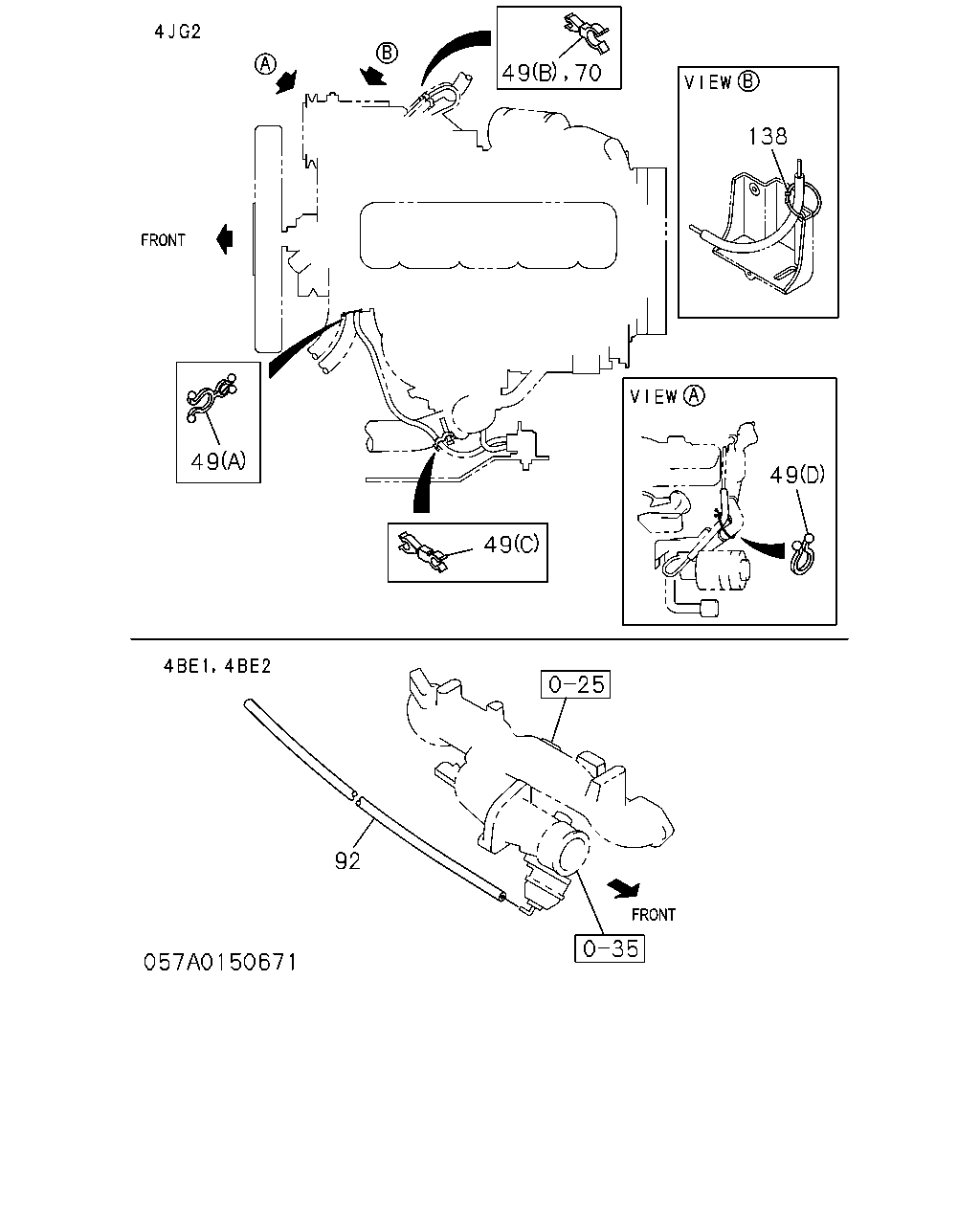

çizim 494102
49 70 138 49 92 49 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 CLIP; HOSE
(B) ID=6 & 16.5 		8-94165-402-0 01 1 9706- ●
49 CLIP; HOSE
(A) ID=8 & 23 		5-09707-002-0 01 1 9304-9509 ●
49 CLIP; HOSE
EXC. REFRIGERATOR CHASSIS(V4R) (A) ID=8 & 23 		5-09707-002-0 01 1 9510- ●
49 CLIP; HOSE
(B) ID=6 & 16.5 		8-94165-402-0 01 1 9304-9703 ●
49 CLIP; HOSE
(B) ID=6 & 13 		8-94459-564-0 01 1 9704- ●
49 CLIP; HOSE
(C) ID=6 & 6 		8-94400-853-0 01 1 9304-9801 ●
49 CLIP; HOSE
(C) ID=6 & 6 		8-94463-708-0 01 1 9802- ●
49 CLIP; HOSE
EXC. AIR CONDITIONER MANUAL CONT(C60) (D) ID=37 		8-94481-468-0 01 1 9304-9502 ●
49 CLIP; HOSE
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D) ID=37 		8-94481-468-0 01 1 9503-9703 ●
49 CLIP; HOSE
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (D) ID=37 		8-94481-468-0 01 1 9704- ●
70 CLIP; RUBBER HOSE
FLAT LOW&SHORT CHASSIS(NKN**C) REFRIGERATOR CHASSIS(V4R) ID=6 & 16.5 		8-94165-402-0 02 1 9510- ●
92 HOSE; VAC,THROTTLE BODY
REFRIGERATOR CHASSIS(V4R) L=1315 		8-97030-489-1 01 1 9304-9502 ●
92 HOSE; VAC,THROTTLE BODY
EXC. REFRIGERATOR CHASSIS(V4R) L=1315 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
92 HOSE; VAC,THROTTLE BODY
L=1095 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
92 HOSE; VAC,THROTTLE BODY
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=500 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
138 CLIP; BAND,VAC HOSE
FLAT LOW&SHORT CHASSIS(NKN**C) REFRIGERATOR CHASSIS(V4R) L=170 		5-09707-054-0 01 1 9510- ●

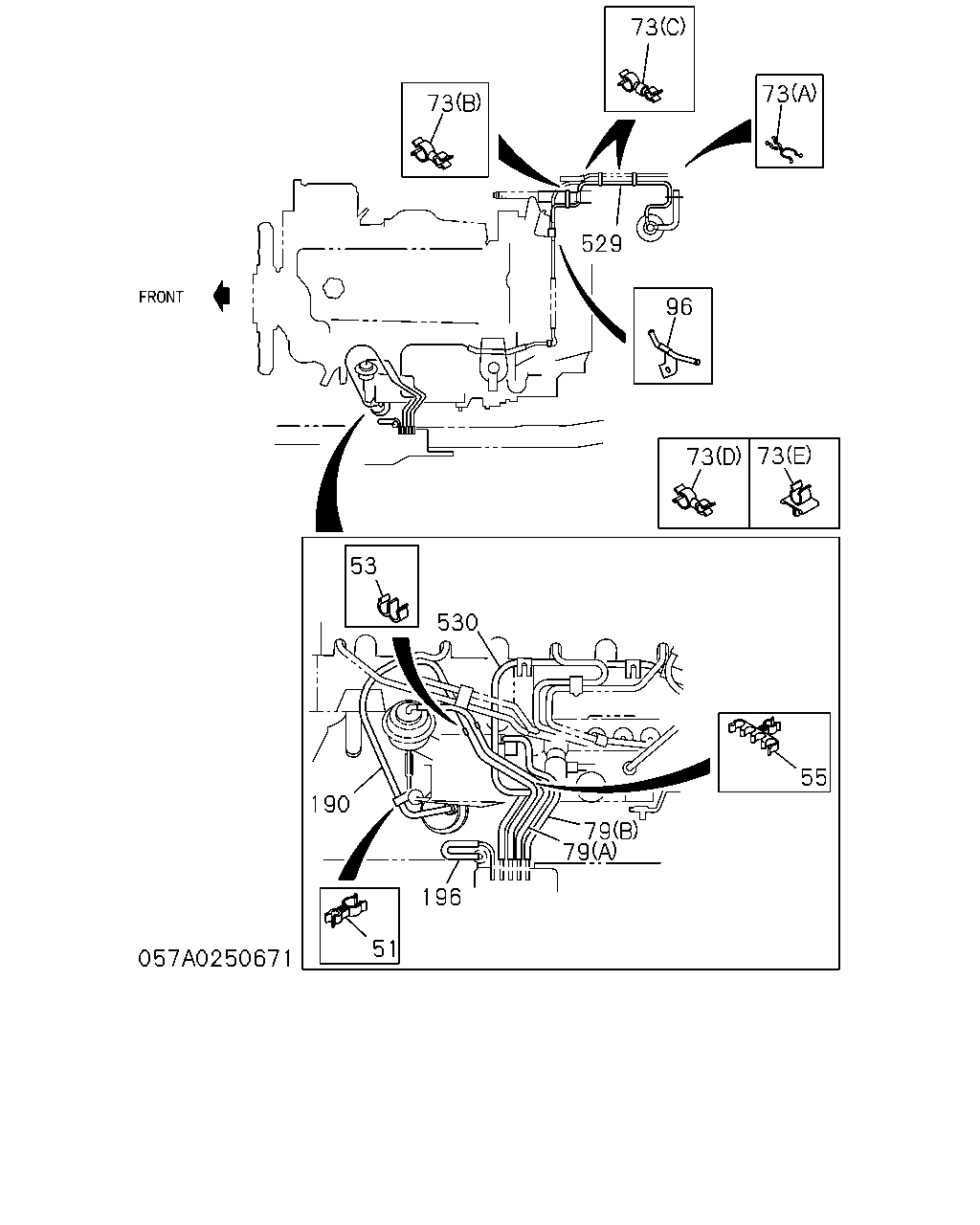

çizim 494135
73 73 73 96 529 73 73 53 530 90 196 51 79 79 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 CLIP; VSV HOSE
ENG QUICK WARM UP SYSTEM<6JZ> ID=13.2 & 7.5 		8-94315-426-0 01 1 9304-9502 ●
51 CLIP; VSV HOSE
ID=13.2 & 7.5 		8-94315-426-0 01 1 9704- ●
53 CLIP; 2 HOSE
ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
53 CLIP; 2 HOSE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
53 CLIP; 2 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
55 CLIP; 4 HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97041-020-0 01 1 9304-9502 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=8 & 16 		5-09707-032-0 01 1 9304-9502 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=8 & 16 		5-09707-032-0 01 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=6 & 8.3 		8-94167-742-0 02 1 9304-9502 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=6 & 8.3 		8-94167-742-0 02 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=8 & 16 		8-94165-407-0 01 1 9304-9312 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (E) 		8-94253-984-0 01 1 9304-9307 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=6.8 & 22.5 		8-97081-816-0 01 1 9304-9502 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=6.8 & 22.5 		8-97081-816-0 01 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (G) ID=20 		1-09709-068-0 02 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (H) ID=12 		1-09987-201-0 01 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (F) L=250 		5-09707-030-1 02 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=8 & 16 		8-94165-407-0 01 1 9503- ● ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=350 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=220 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=260 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=300 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97077-327-1 01 1 9304-9502 ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97077-327-1 01 1 9503-9509 ● ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97135-705-0 01 1 9510-9605 ● ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97149-851-0 01 1 9606- ● ●
196 HOSE; VAC PUMP TO 3 WAY
ENG QUICK WARM UP SYSTEM<6JZ> L=220 		8-97037-963-1 01 1 9304-9502 ●
196 HOSE; VAC PUMP TO 3 WAY
ENG QUICK WARM UP SYSTEM<6JZ> L=260 		8-97037-964-1 01 1 9503- ● ●
529 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) ENG QUICK WARM UP SYSTEM<6JZ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9304-9502 ●
529 HOSE; RUBBER
M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9503- ● ●
529 HOSE; RUBBER
M/T MXA5R(RMT) ENG QUICK WARM UP SYSTEM<6JZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9503- ● ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF - FLYWHEEL(6SZ) L=680 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF - FLYWHEEL(6SZ),FRAME-KICK UP<7EW> L=680 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) ENG QUICK WARM UP SYSTEM<6JZ> POWER TAKE OFF - FLYWHEEL(6SZ) L=560 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) ENG QUICK WARM UP SYSTEM<6JZ> POWER TAKE OFF - FLYWHEEL(6SZ) EXC. FRAME-KICK UP<7EW> L=560 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=830 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=830 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
530 HOSE; RUBBER,PIPE TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> L=1160 		8-97092-927-1 01 1 9304-9502 ●
530 HOSE; RUBBER,PIPE TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> L=1120 		8-97093-021-2 01 1 9503- ● ●

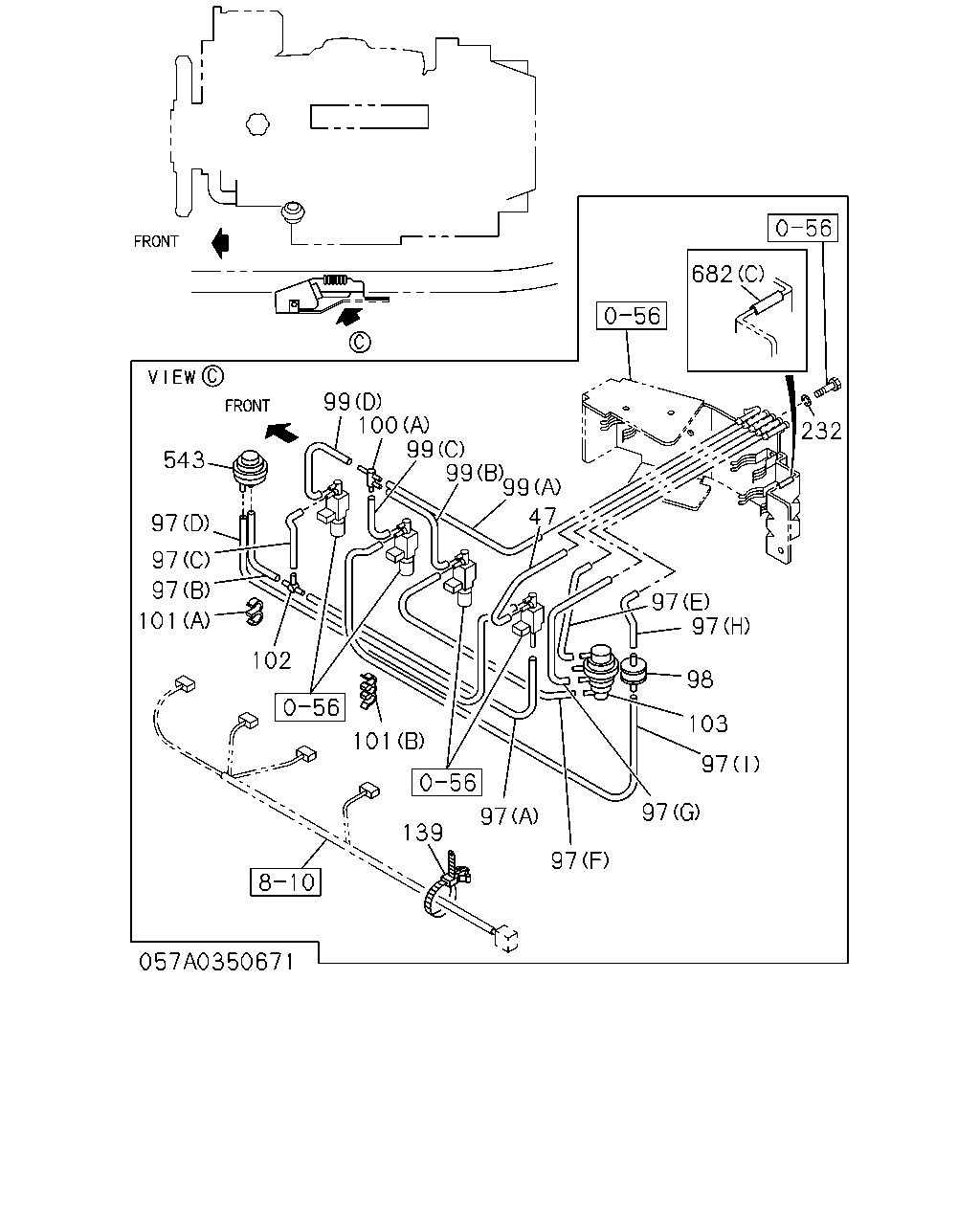

çizim 494167
543 97 97 97 101 102 101 139 97 97 97 97 103 98 97 97 47 99 99 99 100 99 682 232
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
47 HOSE; VAC,VSV
ENG QUICK WARM UP SYSTEM<6JZ> L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9701 ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=100 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=100 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9701 ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A),(C) L=100 SERVICED BY L=3000 		0-04730-300-0 02 1 9702- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=230 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=230 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (G) L=130 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (F) L=150 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (F) L=150 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (E) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (I) L=250 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (I) L=250 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (E) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (G) L=140 SERVICED BY L=3000 		0-04731-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (H) L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (H) L=150 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
98 VALVE; DELAY
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94110-978-0 01 1 9304-9502 ●
98 VALVE; DELAY
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94110-978-0 01 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=50 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=50 SERVICED BY L=3000 		0-04730-300-0 02 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=100 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
100 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY 		8-94100-256-0 01 1 9304-9502 ●
100 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY 		8-94100-256-0 01 1 9503- ● ●
100 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) 3WAY 		8-94208-695-0 01 1 9503- ● ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2 		8-94126-636-0 01 1 9503-9701 ● ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2 		8-94126-636-0 03 1 9702- ● ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9503- ● ●
102 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 3WAY 		8-94208-695-0 01 1 9304-9502 ●
102 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 3WAY 		8-94208-695-0 01 1 9503- ● ●
103 VALVE; VAC CONT
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9304-9502 ●
103 VALVE; VAC CONT
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9503- ● ●
103 VALVE; VAC CONT
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9610-9703 ● ●
139 CLIP; HARNESS
ENG QUICK WARM UP SYSTEM<6JZ> L=112 		8-94232-618-0 01 1 9304-9502 ●
139 CLIP; HARNESS
ENG QUICK WARM UP SYSTEM<6JZ> L=112 		8-94232-618-0 01 1 9503- ● ●
232 WASHER; LK,VAC SW VLV
ENG QUICK WARM UP SYSTEM<6JZ> ID=5.1 		9-09150-505-0 04 1 9304-9502 ●
232 WASHER; LK,VAC SW VLV
ENG QUICK WARM UP SYSTEM<6JZ> ID=5.1 		9-09150-505-0 04 1 9503-9708 ● ●
543 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94111-775-0 01 1 9304-9502 ●
543 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94111-775-0 01 1 9503- ● ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9311-9502 ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9503- ● ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
SHORT CHASSIS(NK***C) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●

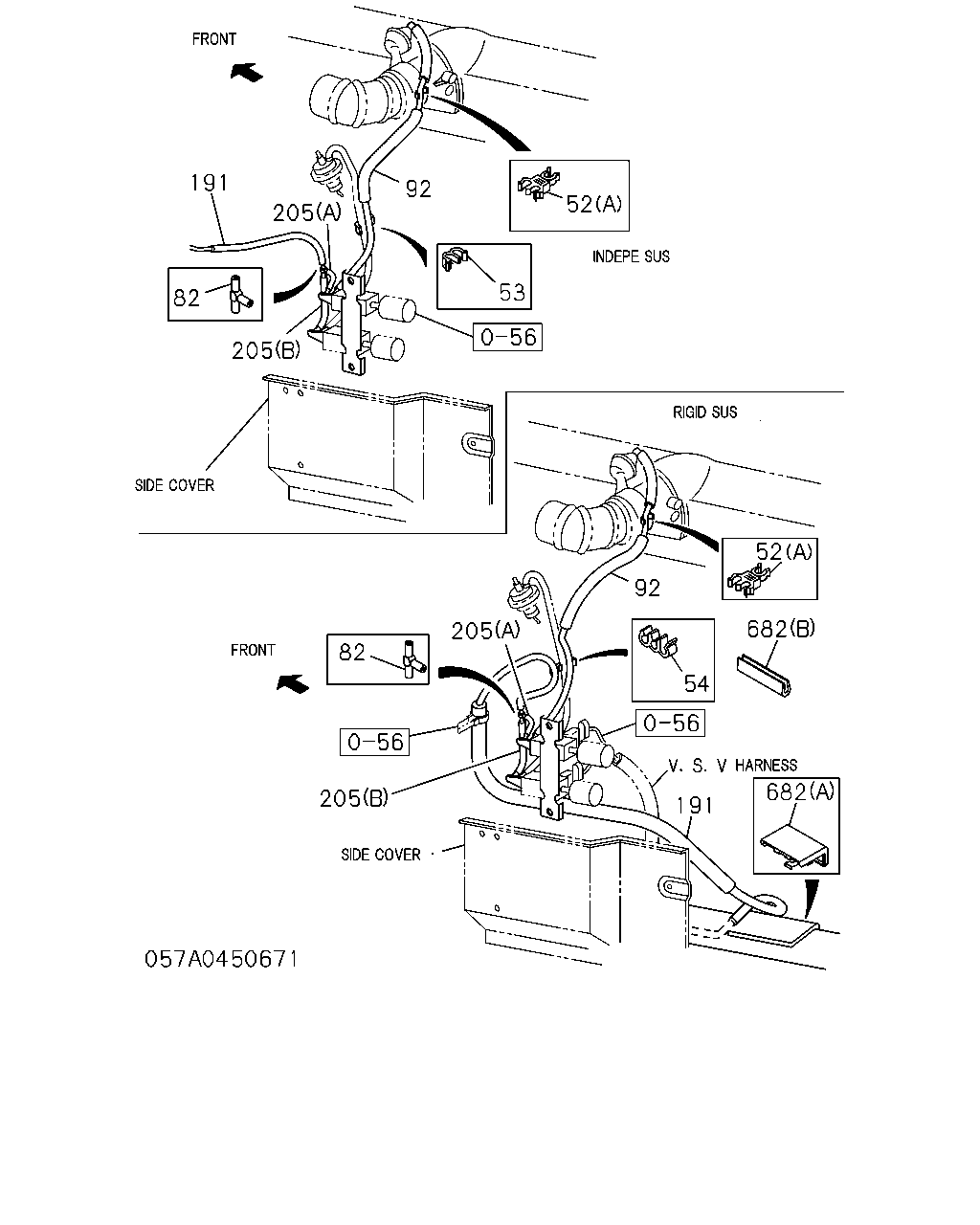

çizim 494198
191 205 205 92 52 53 205 82 205 191 682 682 54 52 92 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9304-9502 ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9503-9504 ● ●
52 CLIP; VSV HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9505-9801 ● ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9802- ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9802- ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9505-9703 ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9704-9801 ● ● ●
53 CLIP; 2 HOSE
ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
53 CLIP; 2 HOSE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
53 CLIP; 2 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9503-9703 ● ●
54 CLIP; 3 HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9704- ● ● ●
82 JOINT; 3 WAY
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 3WAY 		8-94208-695-0 01 1 9304-9502 ●
92 HOSE; VAC,THROTTLE BODY
REFRIGERATOR CHASSIS(V4R) L=1315 		8-97030-489-1 01 1 9304-9502 ●
92 HOSE; VAC,THROTTLE BODY
EXC. REFRIGERATOR CHASSIS(V4R) L=1315 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
92 HOSE; VAC,THROTTLE BODY
L=1095 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
92 HOSE; VAC,THROTTLE BODY
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=500 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=130 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRAME-KICK UP<7EW> EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRAME-KICK UP<7EW> EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> L=380 		8-97114-722-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> L=380 		8-97114-722-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>, FRTINDEPENDENT SUSPENSION(6PP) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
205 HOSE; VSV TO 3 WAY CONN
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
205 HOSE; VSV TO 3 WAY CONN
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) L=50 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9311-9502 ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9503- ● ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
SHORT CHASSIS(NK***C) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●

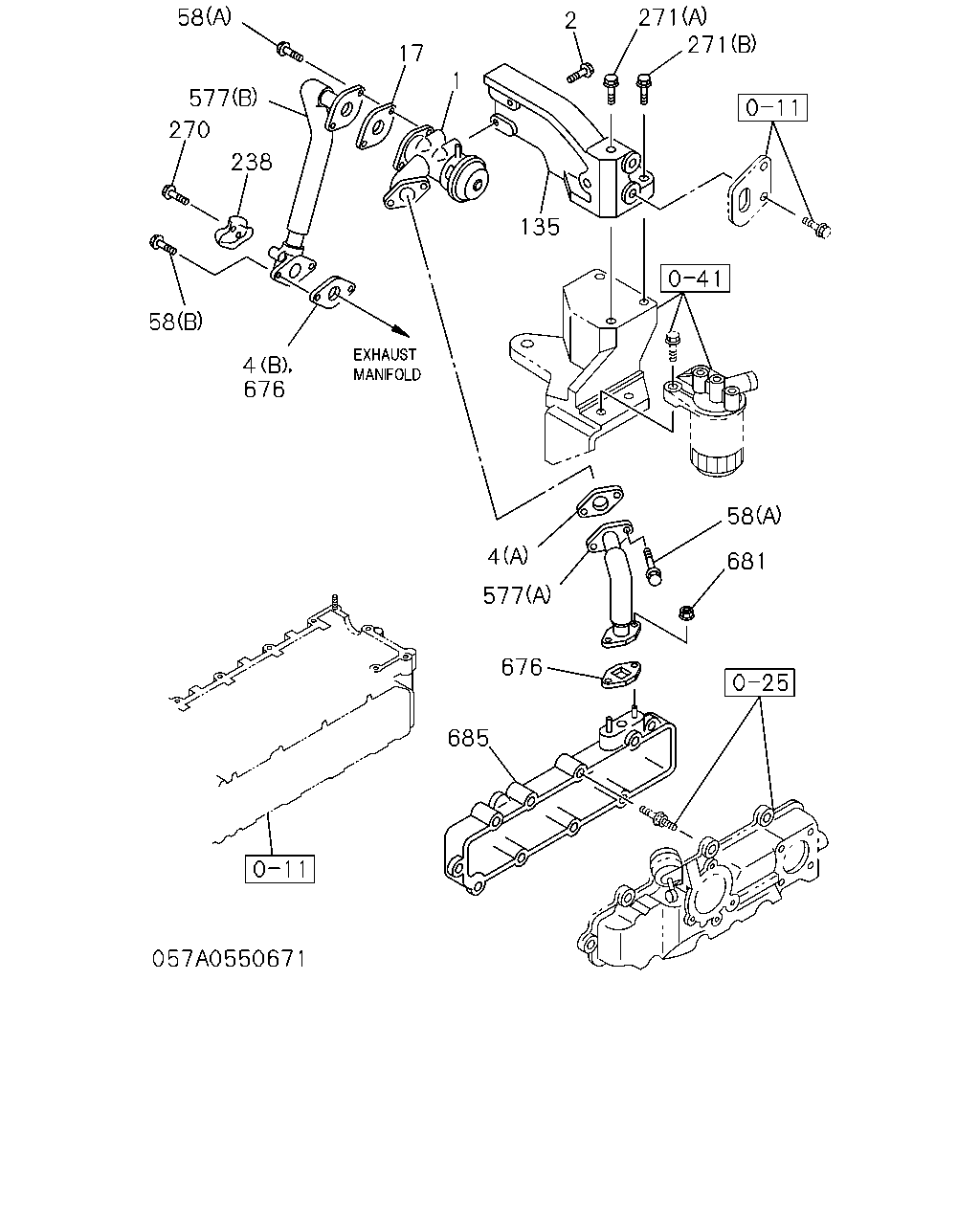

çizim 494232
58 577 270 238 58 4 676 4 577 676 685 681 58 135 1 17 2 271 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR 8-97113-033-5 01 1 9503-9703 ● ●
1 VALVE; EGR 8-97113-033-6 01 1 9704- ● ● ●
2 BOLT; EGR VLV
M10X30 FLANGE 		0-28781-030-0 02 1 9503-9703 ● ●
2 BOLT; EGR VLV
M10X30 FLANGE 		0-28781-030-0 02 1 9704- ● ● ●
4 GASKET; EGR VLV
(B) 		8-97084-708-1 01 1 9503-9603 ● ●
4 GASKET; EGR VLV
(A) 		8-97113-022-1 01 1 9503-9703 ● ●
4 GASKET; EGR VLV
(A) 		8-97113-022-1 01 1 9704- ● ● ●
17 GASKET; EGR PIPE 8-97113-023-0 01 1 9503-9703 ● ●
17 GASKET; EGR PIPE 8-97113-023-0 01 1 9704- ● ● ●
58 BOLT; PIPE
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9503-9703 ● ●
58 BOLT; PIPE
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9704- ● ● ●
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-94103-629-2 02 1 9503-9703 ● ●
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-94103-629-2 02 1 9704- ● ● ●
135 BRACKET; EGR 8-97113-034-1 01 1 9503-9703 ● ●
135 BRACKET; EGR 8-97113-034-1 01 1 9704- ● ● ●
238 PROTECTOR; HEAT,EGR 8-97088-044-0 01 1 9503-9703 ● ●
238 PROTECTOR; HEAT,EGR 8-97088-044-0 01 1 9704- ● ● ●
270 BOLT
M6X12 FLANGE 		8-97108-669-0 02 1 9503-9703 ● ●
270 BOLT
M6X12 FLANGE 		8-97108-669-0 02 1 9704-9706 ● ● ●
270 BOLT
M6X12 FLANGE 		8-97108-669-0 01 1 9707- ● ● ●
271 BOLT; BRKT
(A) M10X70 FLANGE 		0-28181-070-0 01 1 9503-9703 ● ●
271 BOLT; BRKT
(A) M10X70 FLANGE 		0-28181-070-0 01 1 9704- ● ● ●
271 BOLT; BRKT
(B) M10X30 FLANGE 		0-28781-030-0 02 1 9503-9703 ● ●
271 BOLT; BRKT
(B) M10X30 FLANGE 		0-28781-030-0 02 1 9704- ● ● ●
577 PIPE; AIR,EGR
(A) 		8-97120-171-0 01 1 9503-9703 ● ●
577 PIPE; AIR,EGR
(A) 		8-97120-171-0 01 1 9704- ● ● ●
577 PIPE; AIR,EGR
(B) 		8-97120-172-1 01 1 9503-9703 ● ●
577 PIPE; AIR,EGR
(B) 		8-97120-172-3 01 1 9704- ● ● ●
676 GASKET; PIPE 8-97088-648-1 01 1 9503-9603 ● ●
676 GASKET; PIPE 8-97146-683-0 02 1 9604-9703 ● ●
676 GASKET; PIPE 8-97146-683-0 02 1 9704- ● ● ●
681 NUT; EGR PIPE
M8 FLANGE 		0-91150-208-0 02 1 9503-9503 ● ●
681 NUT; EGR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9504-9703 ● ●
681 NUT; EGR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ●
685 CASE; INLET,EGR 8-97112-968-1 01 1 9503-9606 ● ●
685 CASE; INLET,EGR 8-97146-872-0 01 1 9607-9703 ● ●
685 CASE; INLET,EGR 8-97146-872-0 01 1 9704- ● ● ●

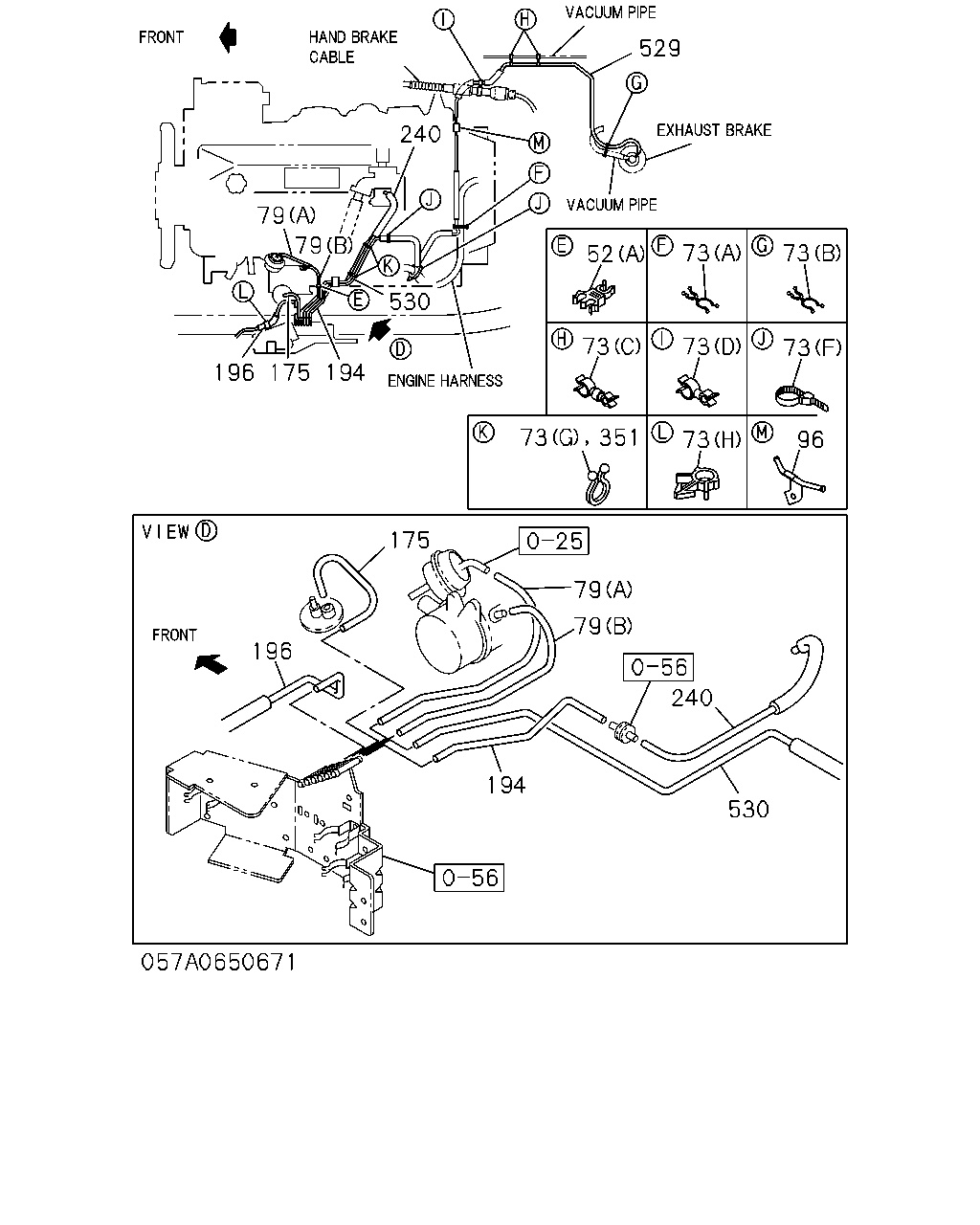

çizim 494266
240 79 79 530 194 175 196 52 73 73 73 73 73 73 351 73 96 79 79 240 530 194 175 196 529
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9304-9502 ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9503-9504 ● ●
52 CLIP; VSV HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9505-9801 ● ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9802- ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9802- ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9505-9703 ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9704-9801 ● ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=8 & 16 		5-09707-032-0 01 1 9304-9502 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=8 & 16 		5-09707-032-0 01 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=6 & 8.3 		8-94167-742-0 02 1 9304-9502 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=6 & 8.3 		8-94167-742-0 02 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=8 & 16 		8-94165-407-0 01 1 9304-9312 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (E) 		8-94253-984-0 01 1 9304-9307 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=6.8 & 22.5 		8-97081-816-0 01 1 9304-9502 ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=6.8 & 22.5 		8-97081-816-0 01 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (G) ID=20 		1-09709-068-0 02 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (H) ID=12 		1-09987-201-0 01 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (F) L=250 		5-09707-030-1 02 1 9503- ● ●
73 CLIP; VAC HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=8 & 16 		8-94165-407-0 01 1 9503- ● ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=350 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=220 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=260 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
79 HOSE; RUBBER,THROTTLE BODY TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=300 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97077-327-1 01 1 9304-9502 ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97077-327-1 01 1 9503-9509 ● ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97135-705-0 01 1 9510-9605 ● ●
96 BRACKET; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97149-851-0 01 1 9606- ● ●
175 HOSE; RUBBER,FAST IDLE TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> L=130 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
194 HOSE; VAC
ENG QUICK WARM UP SYSTEM<6JZ> L=100 		8-97126-456-0 01 1 9503- ● ●
196 HOSE; VAC PUMP TO 3 WAY
ENG QUICK WARM UP SYSTEM<6JZ> L=220 		8-97037-963-1 01 1 9304-9502 ●
196 HOSE; VAC PUMP TO 3 WAY
ENG QUICK WARM UP SYSTEM<6JZ> L=260 		8-97037-964-1 01 1 9503- ● ●
240 HOSE; VCV TO EGR VLV
ENG QUICK WARM UP SYSTEM<6JZ> L=390 		8-97114-721-1 01 1 9503- ● ●
240 HOSE; VCV TO EGR VLV
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=430 		8-97114-720-1 01 1 9503-9703 ● ●
240 HOSE; VCV TO EGR VLV
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=430 		8-97114-720-1 01 1 9704- ● ● ●
351 CLIP; VAC HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=16 		8-94336-291-0 02 1 9503- ● ●
351 CLIP; VAC HOSE
ID=23 		8-97010-411-0 03 1 9704-9801 ●
351 CLIP; VAC HOSE
ID=23 		8-97010-411-0 02 1 9802- ●
351 CLIP; VAC HOSE
ID=15 		1-09709-003-0 01 1 9802- ●
529 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) ENG QUICK WARM UP SYSTEM<6JZ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9304-9502 ●
529 HOSE; RUBBER
M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9503- ● ●
529 HOSE; RUBBER
M/T MXA5R(RMT) ENG QUICK WARM UP SYSTEM<6JZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=930 		8-97083-497-3 01 1 9503- ● ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF - FLYWHEEL(6SZ) L=680 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP),POWER TAKE OFF - FLYWHEEL(6SZ),FRAME-KICK UP<7EW> L=680 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) ENG QUICK WARM UP SYSTEM<6JZ> POWER TAKE OFF - FLYWHEEL(6SZ) L=560 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) ENG QUICK WARM UP SYSTEM<6JZ> POWER TAKE OFF - FLYWHEEL(6SZ) EXC. FRAME-KICK UP<7EW> L=560 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=830 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
529 HOSE; RUBBER
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=830 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
530 HOSE; RUBBER,PIPE TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> L=1160 		8-97092-927-1 01 1 9304-9502 ●
530 HOSE; RUBBER,PIPE TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> L=1120 		8-97093-021-2 01 1 9503- ● ●

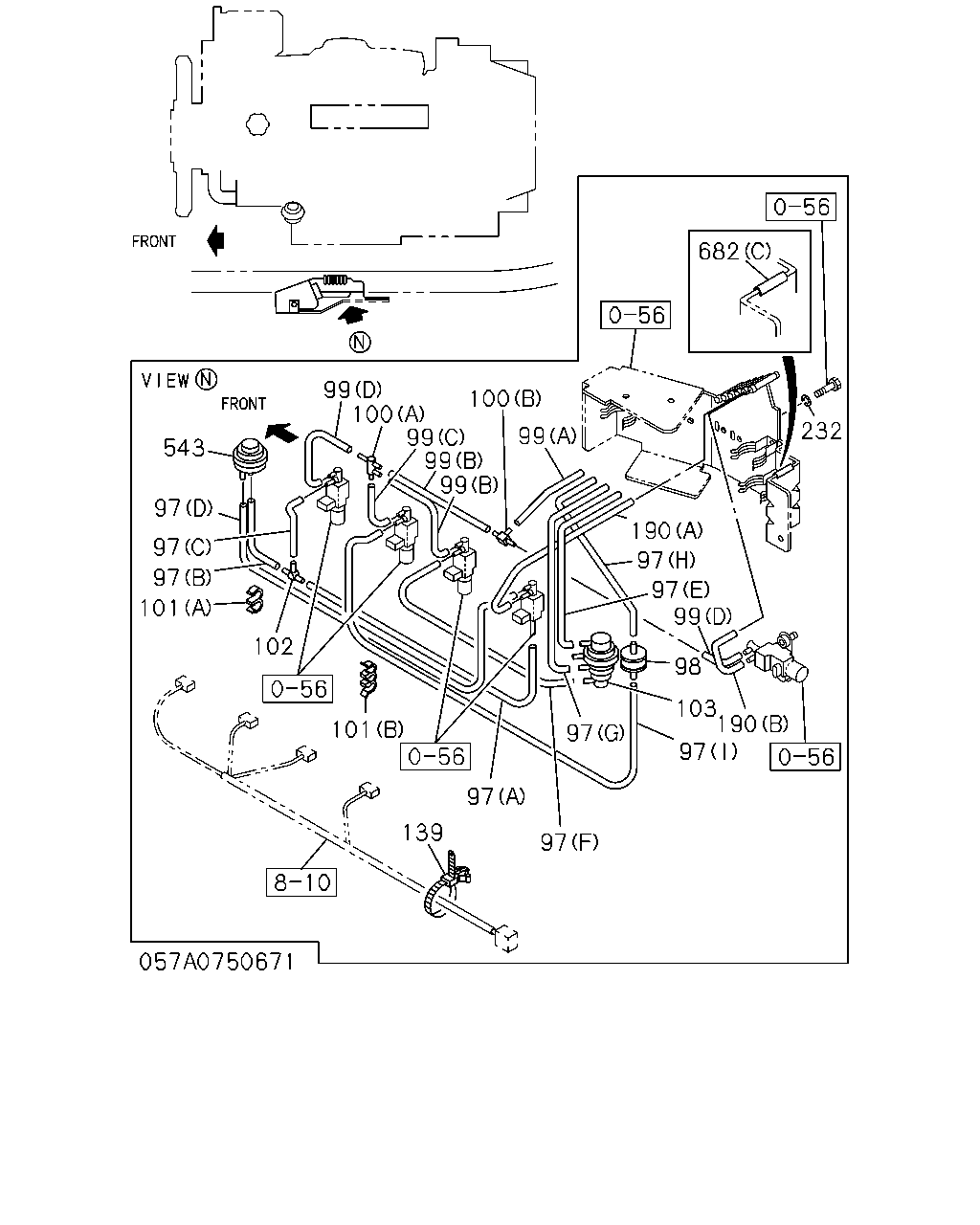

çizim 494299
99 543 97 97 97 101 102 101 139 97 97 97 99 99 99 100 100 99 190 97 97 99 98 103 190 97 232 682
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9701 ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=100 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=100 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9701 ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A),(C) L=100 SERVICED BY L=3000 		0-04730-300-0 02 1 9702- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=230 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=230 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (G) L=130 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (F) L=150 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (F) L=150 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (E) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (I) L=250 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (I) L=250 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (E) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (G) L=140 SERVICED BY L=3000 		0-04731-300-0 01 1 9503- ● ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (H) L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
97 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (H) L=150 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
98 VALVE; DELAY
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94110-978-0 01 1 9304-9502 ●
98 VALVE; DELAY
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94110-978-0 01 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (C) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=50 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=50 SERVICED BY L=3000 		0-04730-300-0 02 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (D) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9503- ● ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=100 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
99 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9503- ● ●
100 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY 		8-94100-256-0 01 1 9304-9502 ●
100 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY 		8-94100-256-0 01 1 9503- ● ●
100 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) 3WAY 		8-94208-695-0 01 1 9503- ● ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2 		8-94126-636-0 01 1 9304-9502 ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2 		8-94126-636-0 01 1 9503-9701 ● ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2 		8-94126-636-0 03 1 9702- ● ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
101 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9503- ● ●
102 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 3WAY 		8-94208-695-0 01 1 9304-9502 ●
102 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> 3WAY 		8-94208-695-0 01 1 9503- ● ●
103 VALVE; VAC CONT
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9304-9502 ●
103 VALVE; VAC CONT
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9503- ● ●
103 VALVE; VAC CONT
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9610-9703 ● ●
139 CLIP; HARNESS
ENG QUICK WARM UP SYSTEM<6JZ> L=112 		8-94232-618-0 01 1 9304-9502 ●
139 CLIP; HARNESS
ENG QUICK WARM UP SYSTEM<6JZ> L=112 		8-94232-618-0 01 1 9503- ● ●
190 HOSE; RUBBER,VSV TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> L=700 		8-97092-925-0 01 1 9304-9502 ●
190 HOSE; RUBBER,VSV TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9609 ● ●
190 HOSE; RUBBER,VSV TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=110 SERVICED BY L=3000 		0-04730-300-0 02 1 9610- ● ●
190 HOSE; RUBBER,VSV TO PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (B) L=110 SERVICED BY L=3000 		0-04734-300-0 01 1 9503-9609 ● ●
232 WASHER; LK,VAC SW VLV
ENG QUICK WARM UP SYSTEM<6JZ> ID=5.1 		9-09150-505-0 04 1 9304-9502 ●
232 WASHER; LK,VAC SW VLV
ENG QUICK WARM UP SYSTEM<6JZ> ID=5.1 		9-09150-505-0 04 1 9503-9708 ● ●
543 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94111-775-0 01 1 9304-9502 ●
543 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94111-775-0 01 1 9503- ● ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9311-9502 ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9503- ● ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
SHORT CHASSIS(NK***C) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●

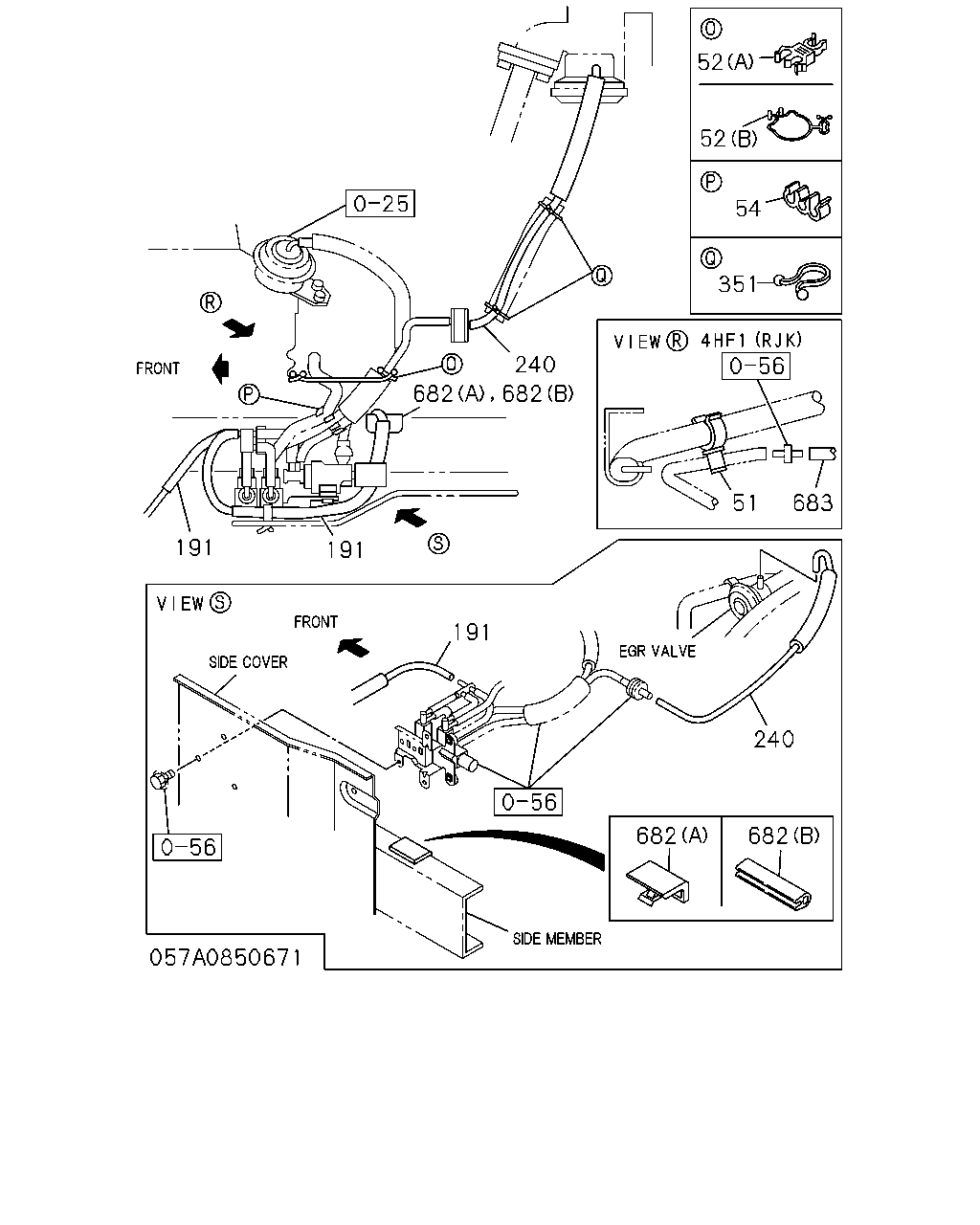

çizim 494300
52 52 54 351 51 683 240 682 682 191 191 191 682 682 240
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 CLIP; VSV HOSE
ENG QUICK WARM UP SYSTEM<6JZ> ID=13.2 & 7.5 		8-94315-426-0 01 1 9304-9502 ●
51 CLIP; VSV HOSE
ID=13.2 & 7.5 		8-94315-426-0 01 1 9704- ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9304-9502 ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9503-9504 ● ●
52 CLIP; VSV HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9505-9801 ● ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9802- ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9802- ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9505-9703 ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9704-9801 ● ● ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9503-9703 ● ●
54 CLIP; 3 HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=130 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRAME-KICK UP<7EW> EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRAME-KICK UP<7EW> EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> L=380 		8-97114-722-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> L=380 		8-97114-722-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>, FRTINDEPENDENT SUSPENSION(6PP) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
240 HOSE; VCV TO EGR VLV
ENG QUICK WARM UP SYSTEM<6JZ> L=390 		8-97114-721-1 01 1 9503- ● ●
240 HOSE; VCV TO EGR VLV
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=430 		8-97114-720-1 01 1 9503-9703 ● ●
240 HOSE; VCV TO EGR VLV
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=430 		8-97114-720-1 01 1 9704- ● ● ●
351 CLIP; VAC HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=16 		8-94336-291-0 02 1 9503- ● ●
351 CLIP; VAC HOSE
ID=23 		8-97010-411-0 03 1 9704-9801 ●
351 CLIP; VAC HOSE
ID=23 		8-97010-411-0 02 1 9802- ●
351 CLIP; VAC HOSE
ID=15 		1-09709-003-0 01 1 9802- ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9311-9502 ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9503- ● ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
SHORT CHASSIS(NK***C) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
683 HOSE; VAC,PUMP TO JOINT
L=170 		8-97176-084-0 01 1 9704- ●

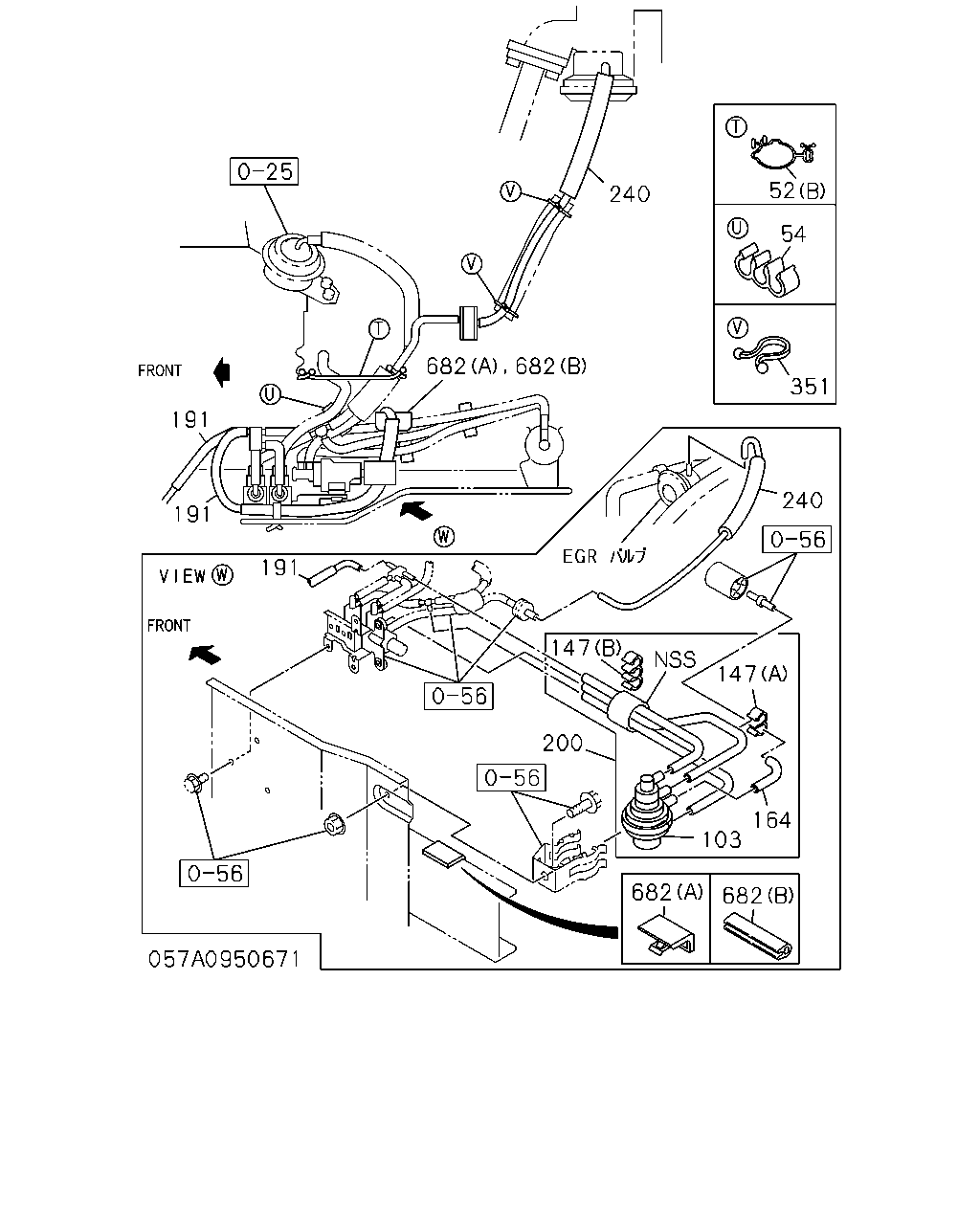

çizim 494336
240 682 682 191 191 191 200 147 682 682 103 164 147 240 351 54 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9304-9502 ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9503-9504 ● ●
52 CLIP; VSV HOSE
ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9505-9801 ● ●
52 CLIP; VSV HOSE
(A) 		8-97022-016-0 01 1 9802- ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97022-016-0 01 1 9802- ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9505-9703 ● ●
52 CLIP; VSV HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97030-576-0 01 1 9704-9801 ● ● ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9304-9502 ●
54 CLIP; 3 HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9503-9703 ● ●
54 CLIP; 3 HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9704- ● ● ●
103 VALVE; VAC CONT
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9304-9502 ●
103 VALVE; VAC CONT
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9503- ● ●
103 VALVE; VAC CONT
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97022-856-1 01 1 9610-9703 ● ●
147 CLIP; RUBBER HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2 		8-94126-636-0 01 1 9610-9703 ● ●
147 CLIP; RUBBER HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9610-9703 ● ●
164 HOSE; RUBBER
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=60 SERVICED BY L=3000 		0-04730-300-0 01 1 9610-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=130 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRAME-KICK UP<7EW> EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
FRAME-KICK UP<7EW> EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=370 		8-97093-016-2 01 1 9304-9502 ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> L=380 		8-97114-722-0 01 1 9503-9703 ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> L=380 		8-97114-722-0 01 1 9704- ● ● ●
191 HOSE; RUBBER,3 WAY TO PIPE
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,ENG QUICK WARM UP SYSTEM<6JZ>, FRTINDEPENDENT SUSPENSION(6PP) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9304-9502 ●
200 HOSE; VAC
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97167-803-0 01 1 9610-9703 ● ●
240 HOSE; VCV TO EGR VLV
ENG QUICK WARM UP SYSTEM<6JZ> L=390 		8-97114-721-1 01 1 9503- ● ●
240 HOSE; VCV TO EGR VLV
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=430 		8-97114-720-1 01 1 9503-9703 ● ●
240 HOSE; VCV TO EGR VLV
EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=430 		8-97114-720-1 01 1 9704- ● ● ●
351 CLIP; VAC HOSE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=16 		8-94336-291-0 02 1 9503- ● ●
351 CLIP; VAC HOSE
ID=23 		8-97010-411-0 03 1 9704-9801 ●
351 CLIP; VAC HOSE
ID=23 		8-97010-411-0 02 1 9802- ●
351 CLIP; VAC HOSE
ID=15 		1-09709-003-0 01 1 9802- ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9311-9502 ●
682 PROTECTOR; EDGE
ENG QUICK WARM UP SYSTEM<6JZ> (C) k=30 SERVICED BY L=65 		8-94235-856-0 01 1 9503- ● ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
SHORT CHASSIS(NK***C) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (B) L=40 		8-94212-660-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9304-9307 ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) SUSPENSION - RR UNDER SLUNG<V4U> EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9308-9502 ●
682 PROTECTOR; EDGE
DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9503-9512 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9601-9702 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9703-9703 ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) (A) W/SPRING CLIP 		8-94400-156-0 01 1 9704-9801 ● ● ●
682 PROTECTOR; EDGE
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) EXC. REAR WIDE TREAD(V4T),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAM E-KICK UP<7EW> L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) EXC. DUMP CHASSIS(V4D),ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) L=40 		8-94212-660-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) REAR WIDE TREAD(V4T) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
W TIRE/FULL FLAT LOW & SEMI SHORT CHASSIS(NKC1SD) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
682 PROTECTOR; EDGE
FLAT LOW&SHORT CHASSIS(NKN**C) DUMP CHASSIS(V4D) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP) W/SPRING CLIP 		8-94400-156-0 01 1 9802- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
