Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#166661) — 280 parça

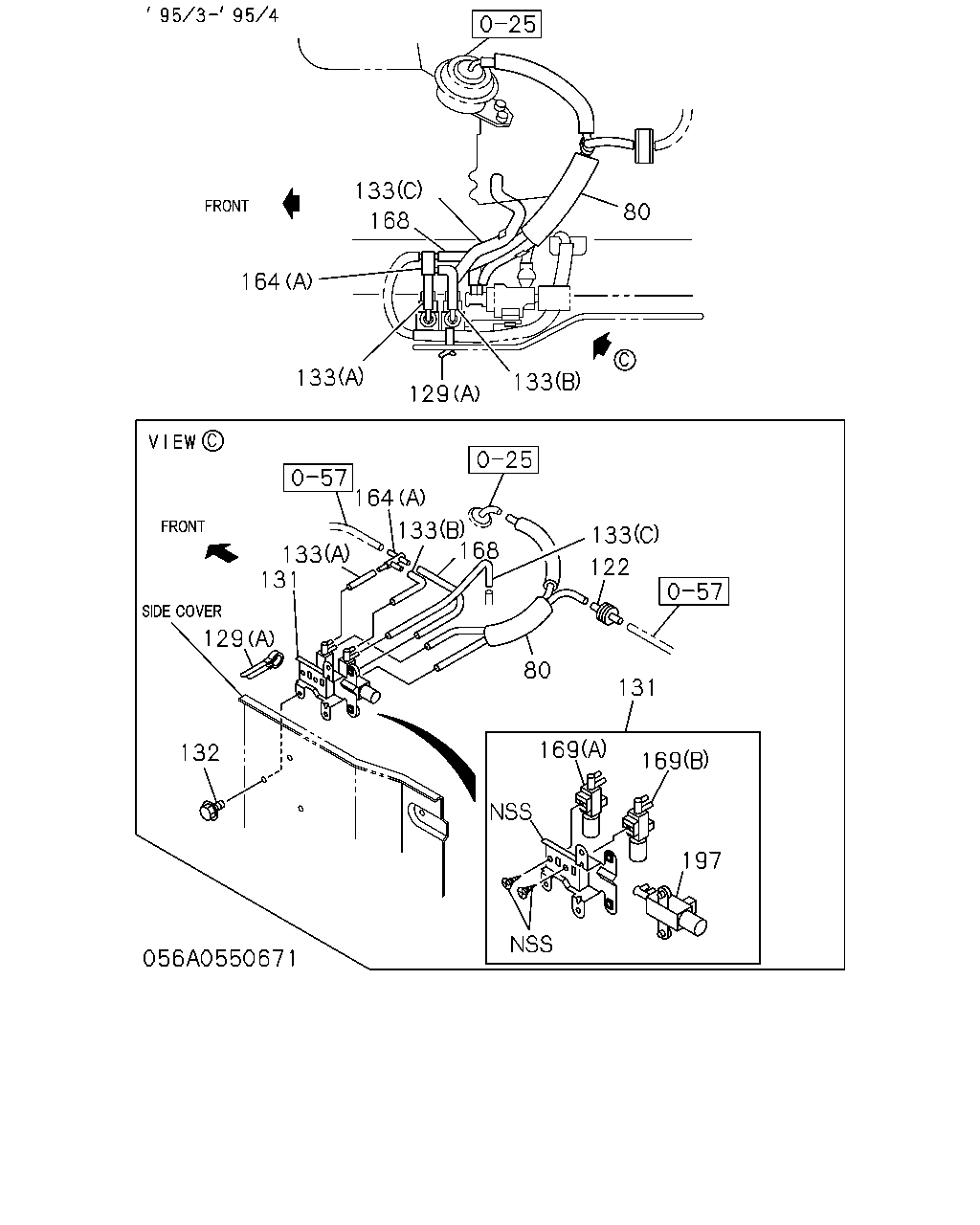

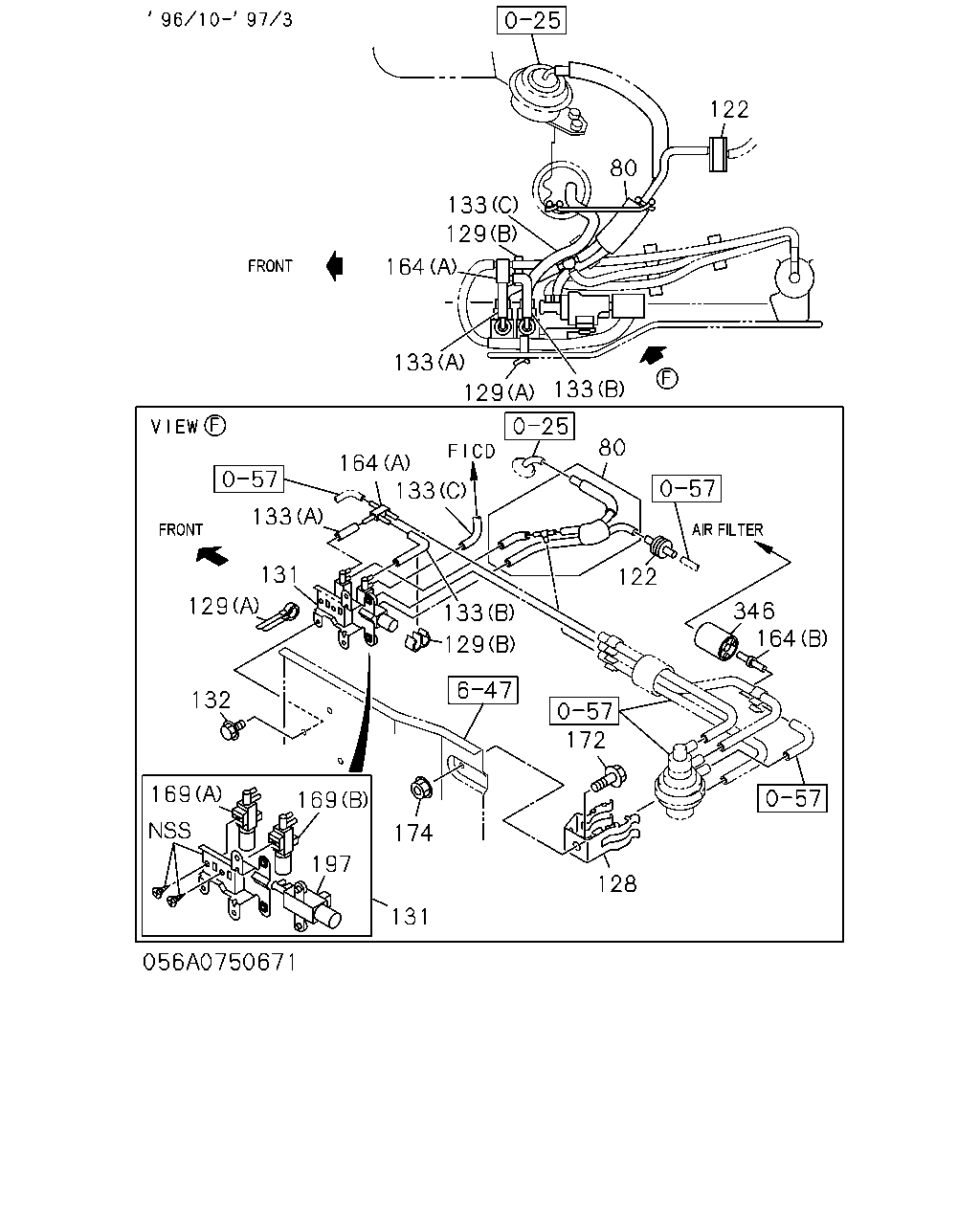

133 129 164 133 129 133 80 122 346 164 133 164 133 131 129 132 133 129 172 128 174 131 197 169 169 80 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97115-762-2	01	1	9503-9504	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9505-9609	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97167-837-0	01	1	9610-9701	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97176-979-0	01	1	9702-9703	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9704-9801	●	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97201-603-0	01	1	9802-	●	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9503-9703	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9704-	●	●	●
128	BRACKET; VAC SW EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97167-721-0	01	1	9610-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=14 L=47	5-09700-319-0	01	1	9304-9312		●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=12	1-09987-201-0	01	1	9401-9402		●
129	CLIP; VAC HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=12	1-09987-201-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9506-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9704-	●	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97030-324-1	01	1	9304-9502		●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9503-9703	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9704-	●	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	02	1	9304-9502		●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9503-9703	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=860 SERVICED BY L=3000	0-04730-300-0	01	1	9304-9502		●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9610-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9503-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9704-9705	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9706-	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=210	8-97181-087-0	01	1	9706-			●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9503-9703	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9704-	●	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-94313-805-0	01	1	9610-9703	●	●
164	JOINT; RUBBER HOSE (B) 2WAY	8-94313-805-0	01	1	9704-			●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97012-878-0	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9704-	●	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97021-705-1	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9704-	●	●	●
172	BOLT; BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	01	1	9610-9703	●	●
174	NUT; BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6 FLANGE	0-91150-106-0	01	1	9610-9703	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9503-9703	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9704-	●	●	●
346	FILTER; AIR EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97101-779-0	01	1	9610-9703	●	●

10 10 102 1 3 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
1	VALVE; VAC SW,EGR	8-94253-907-0	01	1	9304-			●
3	BOLT; VSV M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9304-9703			●
3	BOLT; VSV M6X12 FLANGE	0-28080-612-0	01	1	9704-			●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8	0-20800-508-0	04	1	9304-9502		●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8	0-20800-508-0	04	1	9503-9708	●	●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8 W/LK WASHER	9-03910-508-0	04	1	9709-	●	●
10	HOSE; RUBBER,PUMP TO VSV (A) L=230	8-97096-193-0	01	1	9304-9703			●
10	HOSE; RUBBER,PUMP TO VSV (A) L=270	8-97167-278-0	01	1	9704-			●
10	HOSE; RUBBER,PUMP TO VSV (B) L=1180	8-97096-088-2	01	1	9304-			●
38	CLIP; VAC HOSE REFRIGERATOR CHASSIS(V4R) (A) ID=8	8-94154-795-0	01	1	9304-9502				●
38	CLIP; VAC HOSE REFRIGERATOR CHASSIS(V4R) (B)	8-94342-964-0	01	1	9304-9502				●
102	NUT; VSV M6 FLANGE	5-09440-004-0	01	1	9304-9505			●
102	NUT; VSV M6 FLANGE	0-91150-106-0	01	1	9506-			●

130 192 2 3 122 100 130 13 15 14 13 130 130 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BRACKET; VSV ENG QUICK WARM UP SYSTEM<6JZ>	8-97091-627-2	01	1	9304-9502		●
2	BRACKET; VSV ENG QUICK WARM UP SYSTEM<6JZ>	8-97117-817-1	01	1	9503-9601	●	●
2	BRACKET; VSV ENG QUICK WARM UP SYSTEM<6JZ>	8-97137-959-0	01	1	9602-	●	●
3	BOLT; VSV M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9304-9703				●
3	BOLT; VSV M6X12 FLANGE	0-28080-612-0	01	1	9704-				●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8	0-20800-508-0	04	1	9304-9502		●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8	0-20800-508-0	04	1	9503-9708	●	●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8 W/LK WASHER	9-03910-508-0	04	1	9709-	●	●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A) EXHAUST NO.1	8-97023-543-0	01	1	9304-9502		●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A) EXHAUST NO.1	8-97023-543-0	01	1	9503-	●	●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (B) EXHAUST NO.2	8-97023-545-0	01	1	9304-9502		●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (B) EXHAUST NO.2	8-97023-545-0	01	1	9503-	●	●
14	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> FICD	8-97023-544-0	01	1	9304-9502		●
14	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> FICD	8-97023-544-0	01	1	9503-	●	●
15	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A) FOR INTAKE THROTTLE	8-97037-165-0	01	1	9304-9502		●
15	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9503-	●	●
15	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97126-214-0	01	1	9503-	●	●
100	BRACKET; VLV ENG QUICK WARM UP SYSTEM<6JZ>	8-97117-081-0	01	1	9503-	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9503-9703	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9704-	●	●	●
130	BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9304-9502		●
130	BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	05	1	9503-9703	●	●
130	BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> M6X16 FLANGE	0-28680-616-0	05	1	9704-	●	●
192	BRACKET; SIDE COVER ENG QUICK WARM UP SYSTEM<6JZ>	8-97080-563-0	01	1	9304-9502		●
192	BRACKET; SIDE COVER ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-856-0	01	1	9503-	●	●

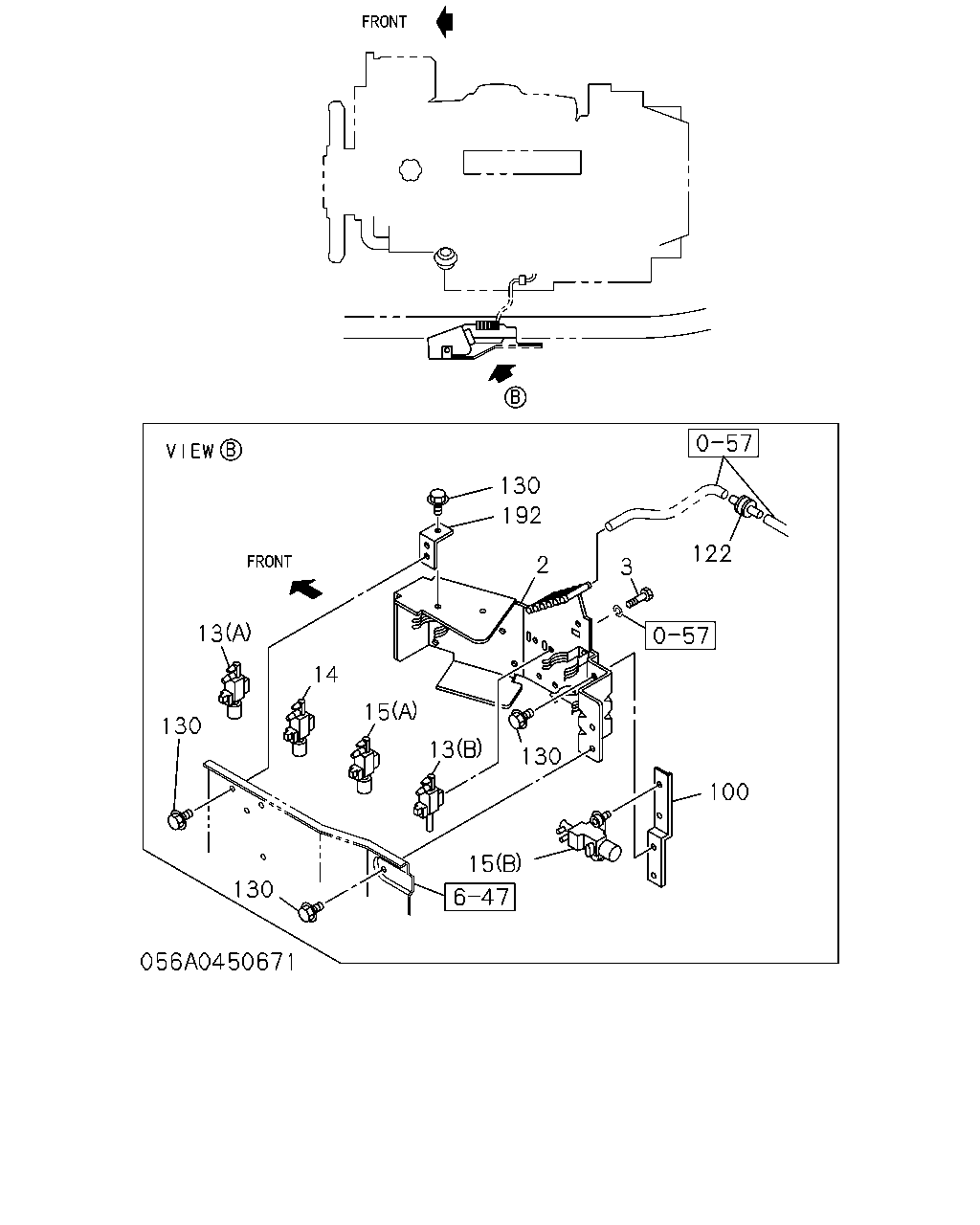

130 192 129 3 2 13 15 14 13 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BRACKET; VSV ENG QUICK WARM UP SYSTEM<6JZ>	8-97091-627-2	01	1	9304-9502		●
2	BRACKET; VSV ENG QUICK WARM UP SYSTEM<6JZ>	8-97117-817-1	01	1	9503-9601	●	●
2	BRACKET; VSV ENG QUICK WARM UP SYSTEM<6JZ>	8-97137-959-0	01	1	9602-	●	●
3	BOLT; VSV M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9304-9703				●
3	BOLT; VSV M6X12 FLANGE	0-28080-612-0	01	1	9704-				●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8	0-20800-508-0	04	1	9304-9502		●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8	0-20800-508-0	04	1	9503-9708	●	●
3	BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> M5X8 W/LK WASHER	9-03910-508-0	04	1	9709-	●	●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A) EXHAUST NO.1	8-97023-543-0	01	1	9304-9502		●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A) EXHAUST NO.1	8-97023-543-0	01	1	9503-	●	●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (B) EXHAUST NO.2	8-97023-545-0	01	1	9304-9502		●
13	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (B) EXHAUST NO.2	8-97023-545-0	01	1	9503-	●	●
14	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> FICD	8-97023-544-0	01	1	9304-9502		●
14	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> FICD	8-97023-544-0	01	1	9503-	●	●
15	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A) FOR INTAKE THROTTLE	8-97037-165-0	01	1	9304-9502		●
15	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9503-	●	●
15	VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97126-214-0	01	1	9503-	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=14 L=47	5-09700-319-0	01	1	9304-9312		●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=12	1-09987-201-0	01	1	9401-9402		●
129	CLIP; VAC HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=12	1-09987-201-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9506-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9704-	●	●	●
130	BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9304-9502		●
130	BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	05	1	9503-9703	●	●
130	BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> M6X16 FLANGE	0-28680-616-0	05	1	9704-	●	●
192	BRACKET; SIDE COVER ENG QUICK WARM UP SYSTEM<6JZ>	8-97080-563-0	01	1	9304-9502		●
192	BRACKET; SIDE COVER ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-856-0	01	1	9503-	●	●

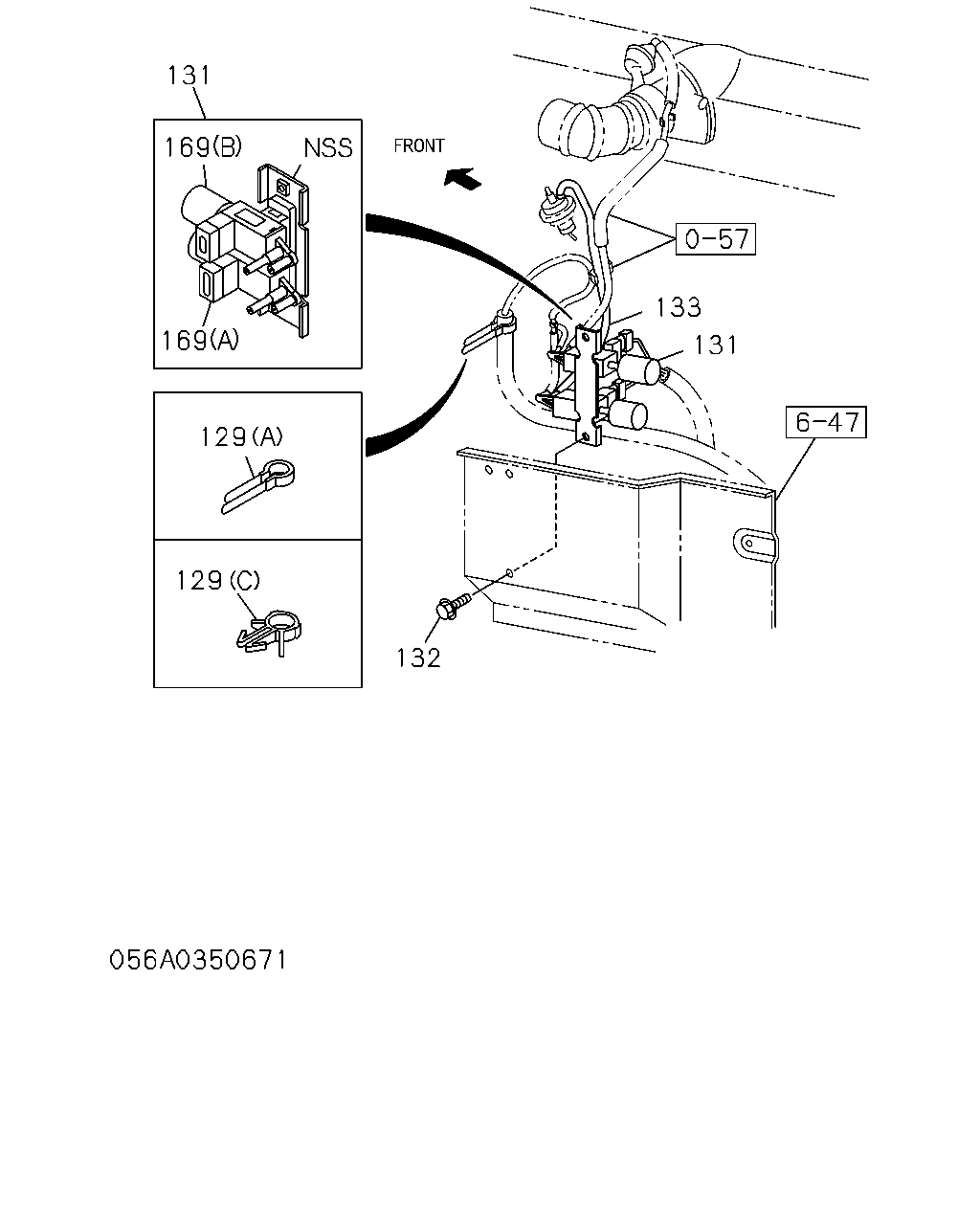

133 131 132 129 129 169 169 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=14 L=47	5-09700-319-0	01	1	9304-9312		●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=12	1-09987-201-0	01	1	9401-9402		●
129	CLIP; VAC HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=12	1-09987-201-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9506-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9704-	●	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97030-324-1	01	1	9304-9502		●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9503-9703	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9704-	●	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	02	1	9304-9502		●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9503-9703	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=860 SERVICED BY L=3000	0-04730-300-0	01	1	9304-9502		●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9610-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9503-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9704-9705	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9706-	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=210	8-97181-087-0	01	1	9706-			●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97012-878-0	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9704-	●	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97021-705-1	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9704-	●	●	●

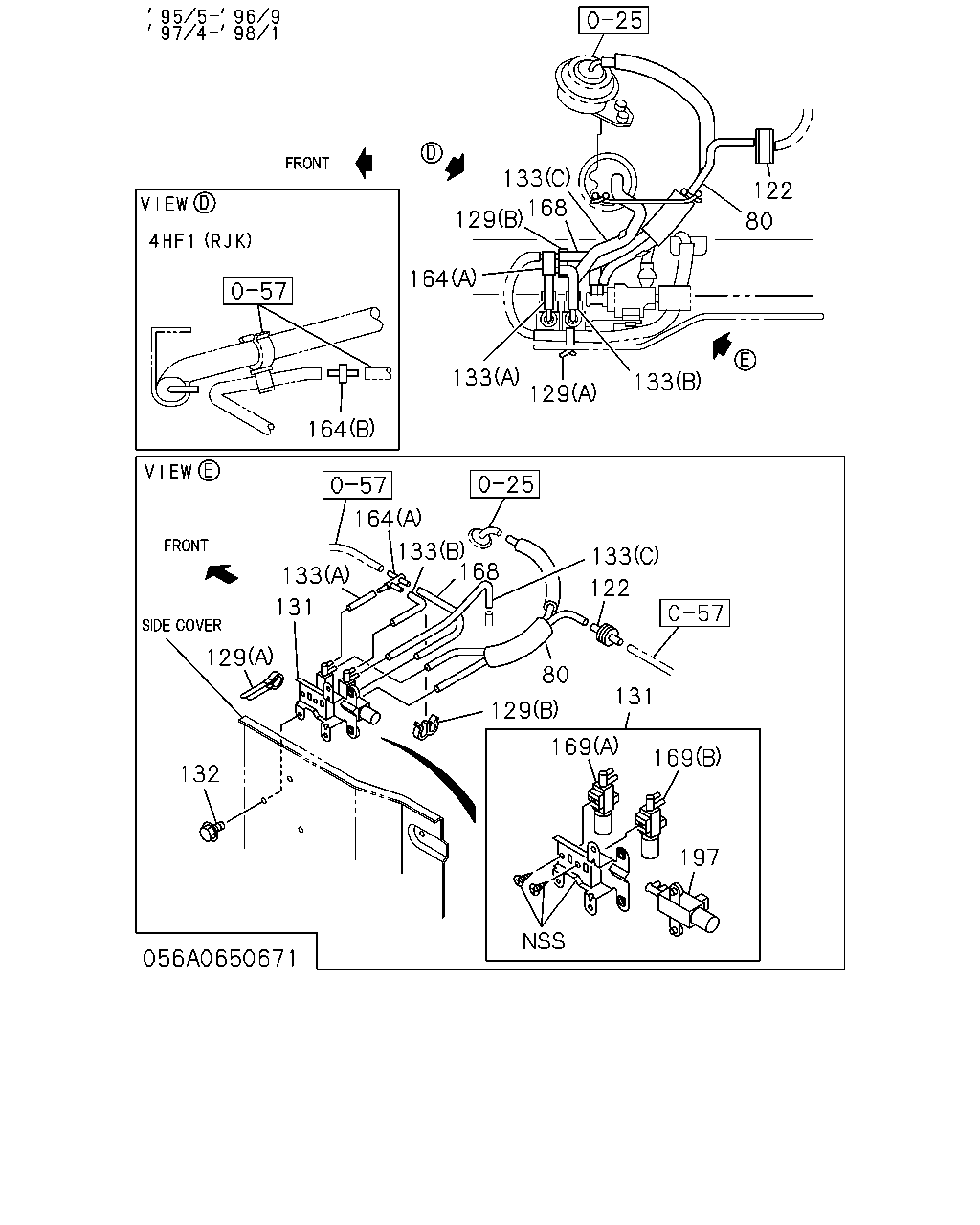

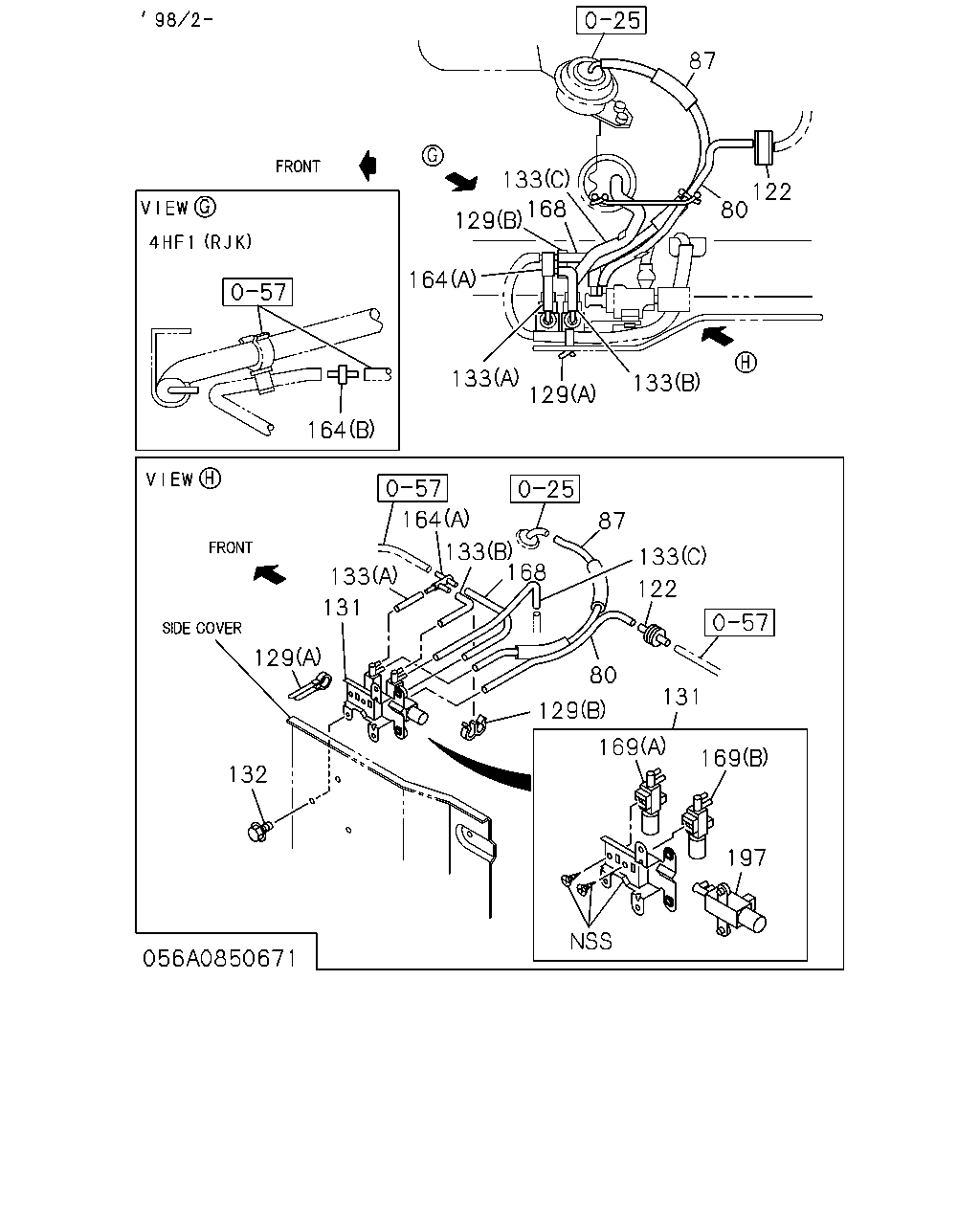

133 168 164 133 129 133 80 133 122 168 133 164 133 131 129 132 80 131 169 169 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97115-762-2	01	1	9503-9504	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9505-9609	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97167-837-0	01	1	9610-9701	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97176-979-0	01	1	9702-9703	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9704-9801	●	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97201-603-0	01	1	9802-	●	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9503-9703	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=14 L=47	5-09700-319-0	01	1	9304-9312		●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=12	1-09987-201-0	01	1	9401-9402		●
129	CLIP; VAC HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=12	1-09987-201-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9506-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9704-	●	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97030-324-1	01	1	9304-9502		●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9503-9703	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9704-	●	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	02	1	9304-9502		●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9503-9703	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=860 SERVICED BY L=3000	0-04730-300-0	01	1	9304-9502		●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9610-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9503-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9704-9705	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9706-	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=210	8-97181-087-0	01	1	9706-			●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9503-9703	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9704-	●	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-94313-805-0	01	1	9610-9703	●	●
164	JOINT; RUBBER HOSE (B) 2WAY	8-94313-805-0	01	1	9704-			●
168	HOSE; RUBBER EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=70 SERVICED BY L=3000	0-04734-300-0	01	1	9704-	●	●	●
168	HOSE; RUBBER EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=70 SERVICED BY L=3000	0-04734-300-0	01	1	9503-9609	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97012-878-0	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9704-	●	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97021-705-1	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9704-	●	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9503-9703	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9704-	●	●	●

133 168 129 164 133 129 133 122 80 164 133 168 122 133 131 80 129 169 169 197 133 131 129 132 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97115-762-2	01	1	9503-9504	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9505-9609	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97167-837-0	01	1	9610-9701	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97176-979-0	01	1	9702-9703	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9704-9801	●	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97201-603-0	01	1	9802-	●	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9503-9703	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=14 L=47	5-09700-319-0	01	1	9304-9312		●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=12	1-09987-201-0	01	1	9401-9402		●
129	CLIP; VAC HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=12	1-09987-201-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9506-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9704-	●	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97030-324-1	01	1	9304-9502		●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9503-9703	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9704-	●	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	02	1	9304-9502		●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9503-9703	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=860 SERVICED BY L=3000	0-04730-300-0	01	1	9304-9502		●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9610-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9503-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9704-9705	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9706-	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=210	8-97181-087-0	01	1	9706-			●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9503-9703	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9704-	●	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-94313-805-0	01	1	9610-9703	●	●
164	JOINT; RUBBER HOSE (B) 2WAY	8-94313-805-0	01	1	9704-			●
168	HOSE; RUBBER EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=70 SERVICED BY L=3000	0-04734-300-0	01	1	9704-	●	●	●
168	HOSE; RUBBER EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=70 SERVICED BY L=3000	0-04734-300-0	01	1	9503-9609	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97012-878-0	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9704-	●	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97021-705-1	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9704-	●	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9503-9703	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9704-	●	●	●

87 122 80 133 168 129 164 133 129 133 164 164 133 168 133 131 129 132 129 80 131 169 169 197 122 133 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97115-762-2	01	1	9503-9504	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9505-9609	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97167-837-0	01	1	9610-9701	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97176-979-0	01	1	9702-9703	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97131-933-0	01	1	9704-9801	●	●	●
80	HOSE; RUBBER,DELAY VLV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97201-603-0	01	1	9802-	●	●	●
87	HOSE; RUBBER,THROTTLE BODY TO VSV EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97201-604-0	01	1	9802-	●	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9503-9703	●	●
122	VALVE ASM; VAC,CONT	8-97121-789-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9503-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (A) ID=14 L=47	5-09700-319-0	01	1	9704-	●	●	●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=14 L=47	5-09700-319-0	01	1	9304-9312		●
129	CLIP; VAC HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=12	1-09987-201-0	01	1	9401-9402		●
129	CLIP; VAC HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=12	1-09987-201-0	01	1	9403-9502		●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9506-9703	●	●
129	CLIP; VAC HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) ID=6.8X2	8-94126-636-0	01	1	9704-	●	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97030-324-1	01	1	9304-9502		●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9503-9703	●	●
131	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-731-1	01	1	9704-	●	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	02	1	9304-9502		●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9503-9703	●	●
132	BOLT; VSV BRKT EXC. ENG QUICK WARM UP SYSTEM<6JZ> M6X12 FLANGE	0-28080-612-0	03	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=860 SERVICED BY L=3000	0-04730-300-0	01	1	9304-9502		●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9610-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A),(B) L=40 SERVICED BY L=3000	0-04730-300-0	02	1	9704-	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9503-9609	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9503-9703	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9704-9705	●	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=160	8-97119-143-1	01	1	9706-	●	●
133	HOSE; RUBBER,VSV TO INJ PUMP EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) L=210	8-97181-087-0	01	1	9706-			●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9503-9703	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 4WAY	8-94100-256-0	01	1	9704-	●	●	●
164	JOINT; RUBBER HOSE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-94313-805-0	01	1	9610-9703	●	●
164	JOINT; RUBBER HOSE (B) 2WAY	8-94313-805-0	01	1	9704-			●
168	HOSE; RUBBER EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=70 SERVICED BY L=3000	0-04734-300-0	01	1	9704-	●	●	●
168	HOSE; RUBBER EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=70 SERVICED BY L=3000	0-04734-300-0	01	1	9503-9609	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97012-878-0	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97037-165-0	01	1	9704-	●	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97021-705-1	01	1	9304-9502		●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9503-9703	●	●
169	VALVE; VAC SWITCHING EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97023-544-0	01	1	9704-	●	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9503-9703	●	●
197	VALVE; VACUUM REGULATING EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97119-732-1	01	1	9704-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
