0-52 — OIL AND VACUUM PIPING; ENGINE (#166660) — 152 parça

41 40 40 41 37 2 3 3 1 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9304-9502	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9304-9502		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	9503-		●	●
2	BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9304-9502	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9304-9502		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9503-		●	●
2	BOLT; EYE,OIL PIPE POWER TAKE OFF - FLYWHEEL(6SZ) (A) M10X32	1-09675-119-0	01	1	9304-9502		●
2	BOLT; EYE,OIL PIPE POWER TAKE OFF - FLYWHEEL(6SZ) (A) M10X32	1-09675-119-0	01	1	9503-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=19	9-09572-010-0	04	1	9304-9502	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	07	1	9304-9502		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	07	1	9503-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	04	1	9304-9502		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	04	1	9503-		●	●
37	PIPE; OIL,FILTER TO COOLER FRIGID ZONE(YL3)	8-94145-271-0	01	1	9304-9502	●
37	PIPE; OIL,FILTER TO COOLER EXC. FRIGID ZONE(YL3)	8-94158-760-0	01	1	9304-9502	●
37	PIPE; OIL,FILTER TO COOLER	8-94158-760-0	01	1	9304-9502				●
40	BOLT; OIL PIPE FRIGID ZONE(YL3) M8X40 W/LK WASHER	0-50040-840-0	02	1	9304-9502	●
40	BOLT; OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●			●
40	BOLT; OIL PIPE EXC. FRIGID ZONE(YL3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
41	GASKET; OIL COOLER FRIGID ZONE(YL3) ID=19.8	1-09623-232-0	01	1	9304-9502	●
41	GASKET; OIL COOLER FRIGID ZONE(YL3) ID=25.4	8-97026-590-0	01	1	9304-9502	●
41	GASKET; OIL COOLER EXC. FRIGID ZONE(YL3) ID=25.4	8-97026-590-0	02	1	9304-9502	●
41	GASKET; OIL COOLER ID=25.4	8-97026-590-0	02	1	9304-9502				●

233 234 234 231 26 27 27 28 26 27 27 332 47 47 49 330 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
26	PIPE; OIL,PUMP TO C/BL	8-94114-580-1	01	1	9304-9502	●
26	PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9304-9502				●
26	PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9304-					●
27	BOLT; OIL PIPE FIX (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	02	1	9503-9703		●	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	02	1	9704-9805		●	●			●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-		●	●			●
27	BOLT; OIL PIPE FIX (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9304-9502	●
27	BOLT; OIL PIPE FIX (B) M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9304-9502				●
27	BOLT; OIL PIPE FIX POWER TAKE OFF - FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28080-812-0	01	1	9304-9502		●
27	BOLT; OIL PIPE FIX POWER TAKE OFF - FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28080-812-0	01	1	9503-		●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09921-188-0	02	1	9304-9502				●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9304-					●
43	CLIP; RUB HOSE ID=17.1	8-94122-679-0	02	1	9304-9502	●			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=19	9-09572-010-0	04	1	9304-9502	●			●
49	NUT; CAP,OIL PIPE,VAC PUMP M10	9-09844-022-0	01	1	9304-9502	●			●
231	PIPE; OIL,RETURN	9-13314-651-0	01	1	9304-9502	●			●
233	BOLT; EYE M14X29 EYE-BOLT	9-09906-325-1	01	1	9304-9502	●			●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=23.0	9-09572-014-0	02	1	9304-9502	●			●
330	HOSE; VAC PUMP,RETURN REFRIGERATOR CHASSIS(V4R)	8-97031-151-0	01	1	9304-9502	●
330	HOSE; VAC PUMP,RETURN EXC. REFRIGERATOR CHASSIS(V4R)	8-97023-118-0	01	1	9304-9502	●
330	HOSE; VAC PUMP,RETURN	8-97023-118-0	01	1	9304-9502				●
330	HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9304-					●
332	PIPE; OIL,C/BL TO VAC PUMP REFRIGERATOR CHASSIS(V4R) L=240	8-94159-048-1	01	1	9304-9502	●
332	PIPE; OIL,C/BL TO VAC PUMP EXC. REFRIGERATOR CHASSIS(V4R) L=165	5-13311-198-0	01	1	9304-9502	●
332	PIPE; OIL,C/BL TO VAC PUMP L=165	5-13311-198-0	01	1	9304-9502				●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9304-					●

3 3 2 153 27 2 3 3 3 3 1 3 2 1 3 3 3 2 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F
1	PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9304-9502	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9304-9502		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	9503-		●	●
2	BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9304-9502	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9304-9502		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9503-		●	●
2	BOLT; EYE,OIL PIPE POWER TAKE OFF - FLYWHEEL(6SZ) (A) M10X32	1-09675-119-0	01	1	9304-9502		●
2	BOLT; EYE,OIL PIPE POWER TAKE OFF - FLYWHEEL(6SZ) (A) M10X32	1-09675-119-0	01	1	9503-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=19	9-09572-010-0	04	1	9304-9502	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	07	1	9304-9502		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	07	1	9503-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	04	1	9304-9502		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER TAKE OFF - FLYWHEEL(6SZ) ID=10.2 OD=15.2	1-09630-083-0	04	1	9503-		●	●
27	BOLT; OIL PIPE FIX (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	02	1	9503-9703		●	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	02	1	9704-9805		●	●		●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-		●	●		●
27	BOLT; OIL PIPE FIX (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9304-9502	●
27	BOLT; OIL PIPE FIX (B) M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9304-9502				●
27	BOLT; OIL PIPE FIX POWER TAKE OFF - FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28080-812-0	01	1	9304-9502		●
27	BOLT; OIL PIPE FIX POWER TAKE OFF - FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28080-812-0	01	1	9503-		●	●
153	PIPE; OIL,C/BL TO PTO POWER TAKE OFF - FLYWHEEL(6SZ)	8-97073-692-0	01	1	9304-9306		●
153	PIPE; OIL,C/BL TO PTO POWER TAKE OFF - FLYWHEEL(6SZ)	8-97103-838-0	01	1	9307-9502		●
153	PIPE; OIL,C/BL TO PTO POWER TAKE OFF - FLYWHEEL(6SZ)	8-97103-838-0	01	1	9503-		●	●

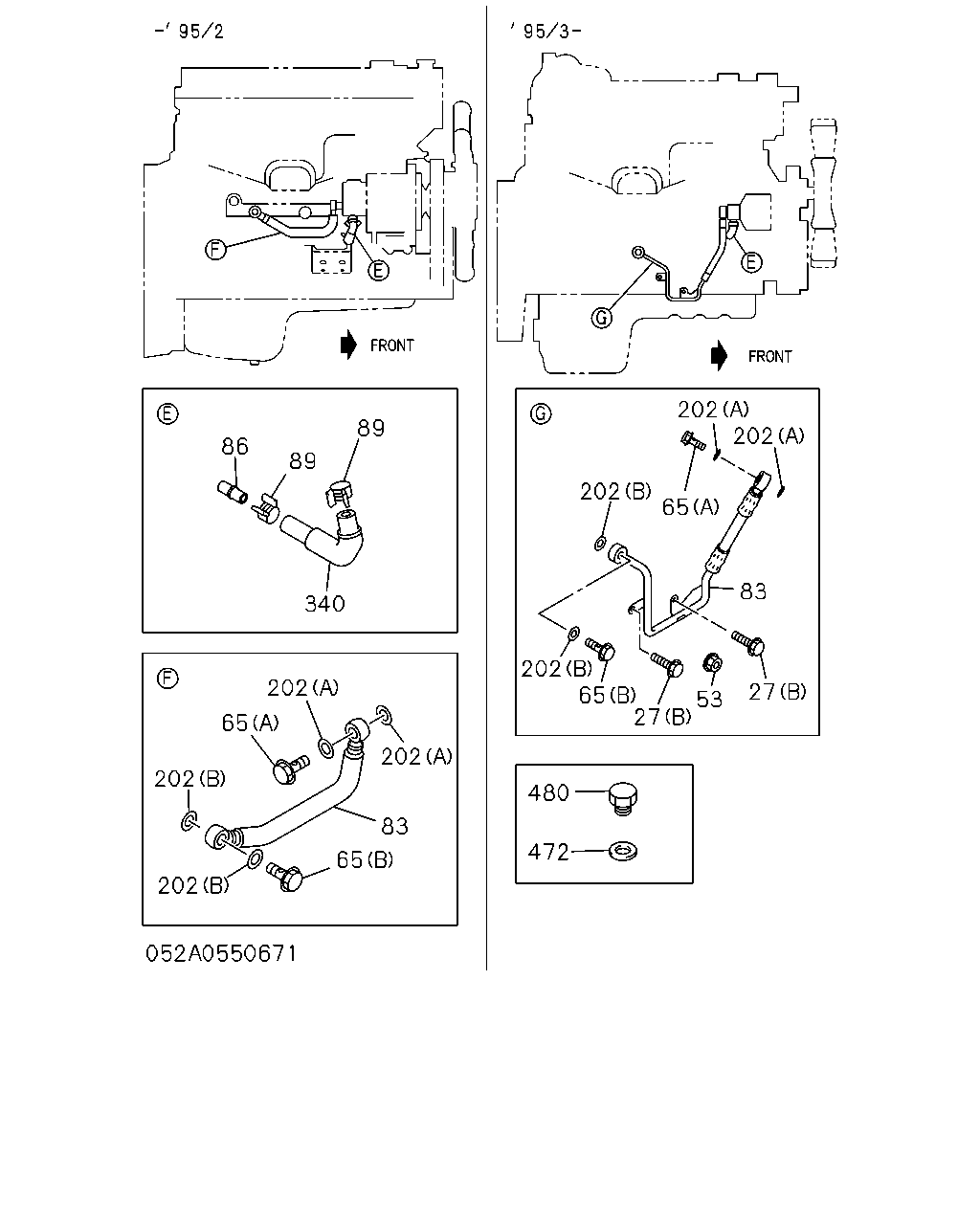

89 89 86 340 202 65 202 202 65 83 202 480 472 202 65 27 53 27 83 65 202 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F
27	BOLT; OIL PIPE FIX (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	02	1	9503-9703		●	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	02	1	9704-9805		●	●		●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-		●	●		●
27	BOLT; OIL PIPE FIX (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9304-9502	●
27	BOLT; OIL PIPE FIX (B) M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9304-9502				●
27	BOLT; OIL PIPE FIX POWER TAKE OFF - FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28080-812-0	01	1	9304-9502		●
27	BOLT; OIL PIPE FIX POWER TAKE OFF - FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28080-812-0	01	1	9503-		●	●
53	NUT; OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9806-		●	●		●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9304-9502		●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9503-9703		●	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9704-		●	●		●
65	BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9304-9502		●
65	BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9503-9703		●	●
65	BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9704-9805		●	●		●
65	BOLT; JOINT,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	9806-		●	●		●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97039-762-1	01	1	9304-9308		●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97029-287-1	01	1	9309-9502		●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97128-169-1	01	1	9503-9509		●	●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97139-538-0	01	1	9510-9703		●	●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97139-538-0	01	1	9704-		●	●		●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	9304-9502		●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	9503-9703		●	●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	9704-		●	●		●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	02	1	9304-9502		●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	9503-9703		●	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	9503-9703		●	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	9704-		●	●		●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	9704-		●	●		●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9304-9502		●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9503-9703		●	●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9704-		●	●		●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9304-9502		●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9503-9703		●	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9704-		●	●		●
340	HOSE; VAC PUMP,RETURN	8-94339-073-3	01	1	9304-9502		●
340	HOSE; VAC PUMP,RETURN	8-94339-073-3	01	1	9503-9703		●	●
340	HOSE; VAC PUMP,RETURN	8-94339-073-3	01	1	9704-		●	●		●
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9704-					●
480	PLUG; OIL FILTER M10X7	9-09202-310-0	02	1	9704-9806					●
480	PLUG; OIL FILTER M10X10	1-09604-074-0	02	1	9807-					●

311 310 306 312 307 308 474 310 310 309 310 474 473 474 473 339 339 332 339 331 338 339 331 330 335 335 57 26 28 474

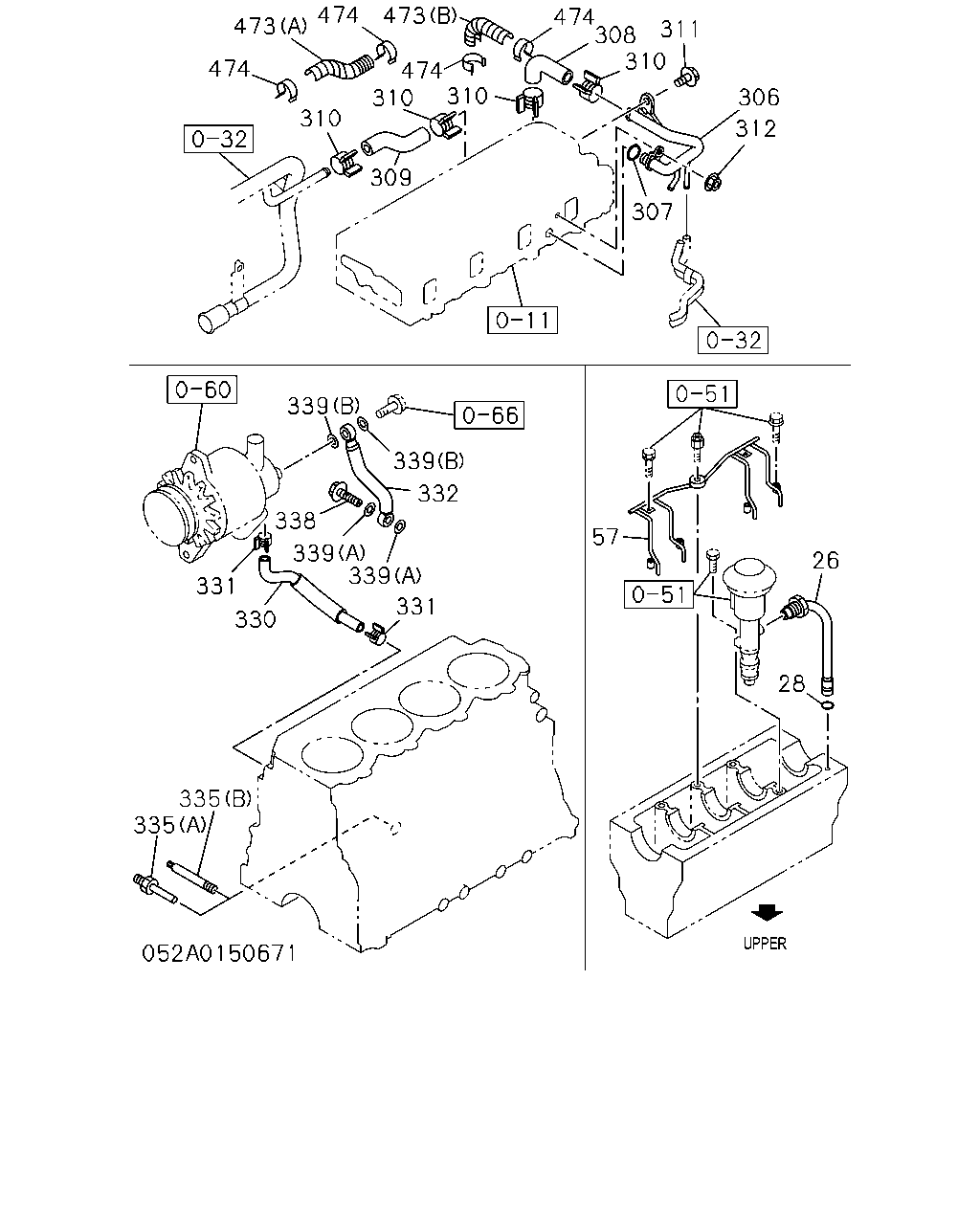

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E
26	PIPE; OIL,PUMP TO C/BL	8-94114-580-1	01	1	9304-9502	●
26	PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9304-9502		●
26	PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9304-			●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09921-188-0	02	1	9304-9502		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9304-			●
57	PIPE; OIL,OIL JET	8-97043-741-1	01	1	9304-			●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97063-031-1	01	1	9304-9701			●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97176-316-1	01	1	9702-			●
307	GASKET; WATER PIPE	9-09561-218-0	01	1	9304-9412			●
307	GASKET; WATER PIPE	8-97124-640-0	01	1	9501-			●
308	HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9304-			●
309	HOSE; OIL COOLER RETURN	8-97080-197-1	01	1	9304-9701			●
309	HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9702-			●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	9304-			●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	9304-			●
312	NUT; PIPE FIX M8 FLANGE	5-09440-005-0	01	1	9304-			●
330	HOSE; VAC PUMP,RETURN REFRIGERATOR CHASSIS(V4R)	8-97031-151-0	01	1	9304-9502	●
330	HOSE; VAC PUMP,RETURN EXC. REFRIGERATOR CHASSIS(V4R)	8-97023-118-0	01	1	9304-9502	●
330	HOSE; VAC PUMP,RETURN	8-97023-118-0	01	1	9304-9502		●
330	HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9304-			●
331	CLAMP; VAC HOSE,PUMP RETURN ID=17	1-09707-158-0	02	1	9304-9402			●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-			●
332	PIPE; OIL,C/BL TO VAC PUMP REFRIGERATOR CHASSIS(V4R) L=240	8-94159-048-1	01	1	9304-9502	●
332	PIPE; OIL,C/BL TO VAC PUMP EXC. REFRIGERATOR CHASSIS(V4R) L=165	5-13311-198-0	01	1	9304-9502	●
332	PIPE; OIL,C/BL TO VAC PUMP L=165	5-13311-198-0	01	1	9304-9502		●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9304-			●
335	STOPPER; OIL PIPE (A)	8-94443-643-0	01	1	9304-9804			●
335	STOPPER; OIL PIPE (B)	8-97203-568-0	01	1	9805-			●
338	BOLT; JOINT,OIL PIPE M8X24	5-09675-024-0	01	1	9304-9404			●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9405-			●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=17	9-09572-008-0	02	1	9304-9404			●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9405-			●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=19	9-09572-010-0	02	1	9304-9311			●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9312-			●
473	INSULATOR; HOSE (A)	8-97101-331-0	01	1	9305-			●
473	INSULATOR; HOSE (B)	8-97101-333-1	01	1	9305-			●
474	CLIP; INSULATOR	8-97101-337-0	04	1	9305-			●
