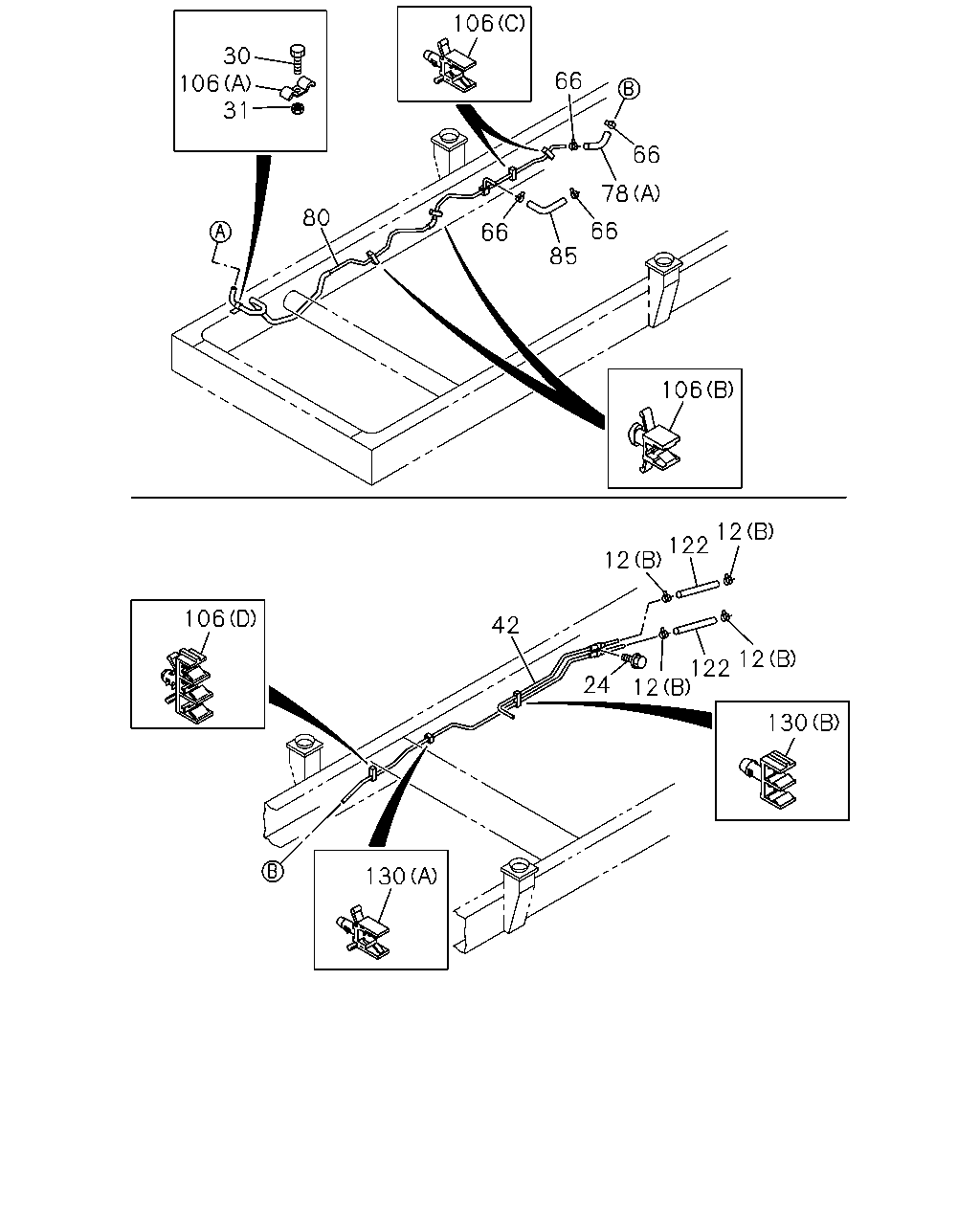

3-60 — BRAKE PIPING; VACUUM (#16666) — 141 parça

106 30 106 31 66 66 78 66 80 66 85 106 12 122 12 106 42 12 122 12 24 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0009-	●	●	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0009-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0009-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0009-			●
24	BOLT; BRKT EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0009-	●	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0009-	●	●	●
42	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97176-416-0	01	1	0009-	●
42	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97225-306-1	01	1	0009-			●
66	CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0009-	●	●	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0009-	●	●	●
78	HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●	●
78	HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	0009-			●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0009-	●	●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0009-	●	●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97258-134-0	01	1	0009-			●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97258-133-0	01	1	0009-			●
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0009-	●	●
85	HOSE; VAC,ENG SIDE	8-97109-066-0	01	1	0009-			●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-	●	●	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	0009-	●	●	●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (C) ID=10 H=40	8-94462-219-0	02	1	0009-		●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0009-		●	●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10 H=45.5	8-97017-902-0	01	1	0009-			●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10 H=45.5	8-97017-902-0	01	1	0009-			●
106	CLIP; PIPE (F) ID=4.8 H=26	8-94249-685-0	01	1	0009-			●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●	●	●
130	CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	0009-	●
130	CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0009-	●
130	CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0009-			●

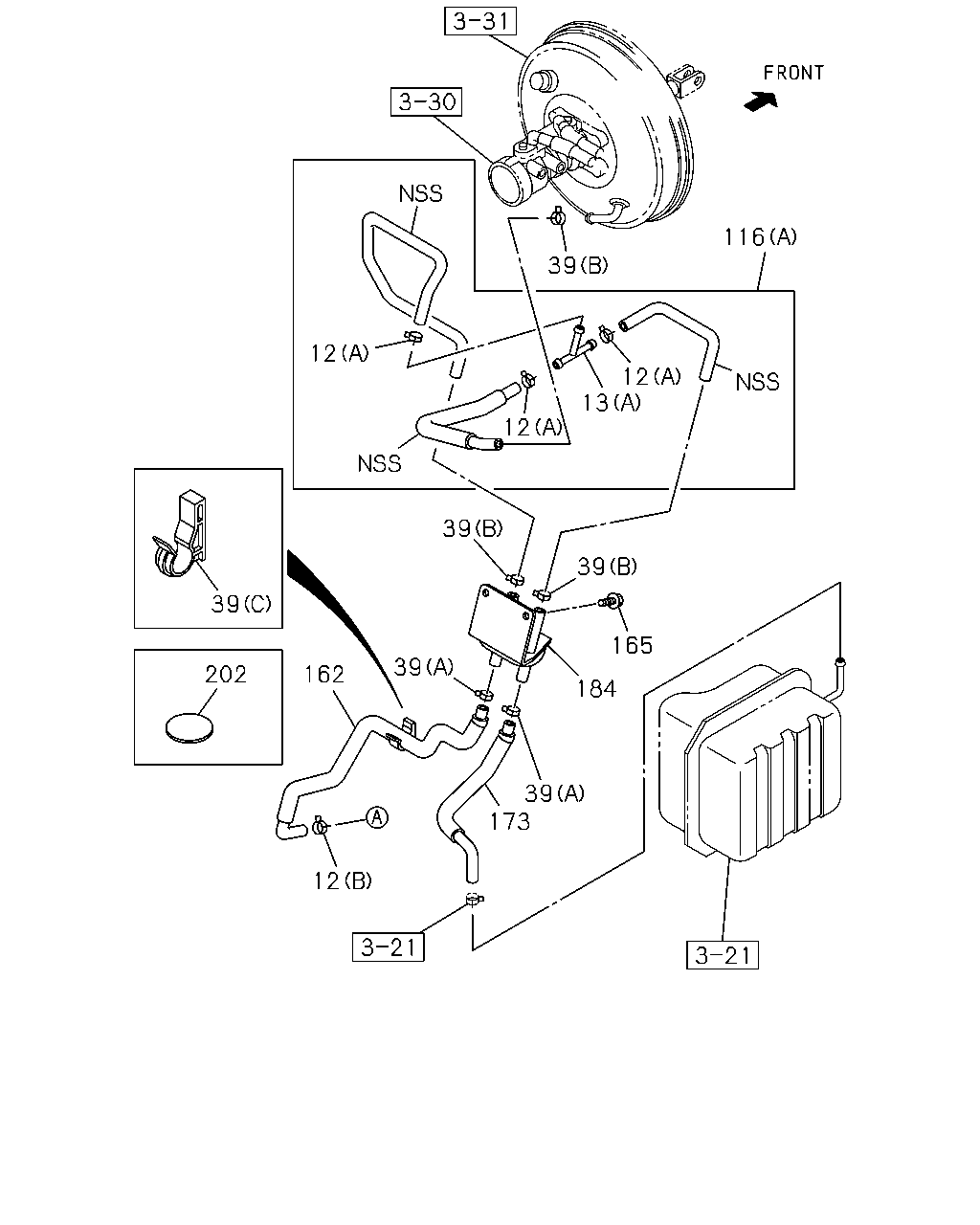

116 39 12 12 13 12 39 39 39 165 39 202 162 184 39 173 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0009-	●	●	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0009-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0009-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0009-			●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0009-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) 3WAY	8-94167-478-0	01	1	0009-			●
39	CLIP; HOSE,VAC (A) ID=16	5-09707-023-2	02	1	0009-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	03	1	0009-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0009-			●
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0009-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (C) ID=25.5	8-97077-492-0	01	1	0009-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0009-			●
116	HOSE; VAC,M/VAC (A)	8-97048-909-0	01	1	0009-0109	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97048-909-0	01	1	0009-0109			●
116	HOSE; VAC,M/VAC (A)	8-97314-597-0	01	1	0110-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-0	01	1	0110-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0009-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97035-972-0	01	1	0009-0109			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97314-596-0	01	1	0110-			●
162	HOSE; VAC	8-97102-369-2	01	1	0009-	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>	8-97102-369-2	01	1	0009-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-97178-659-0	01	1	0009-			●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0009-	●	●	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0009-	●	●	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0009-	●	●	●
202	SEAL OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0009-	●	●
202	SEAL EXC. POWER ASSIST CLUTCH<S2T> OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0009-			●

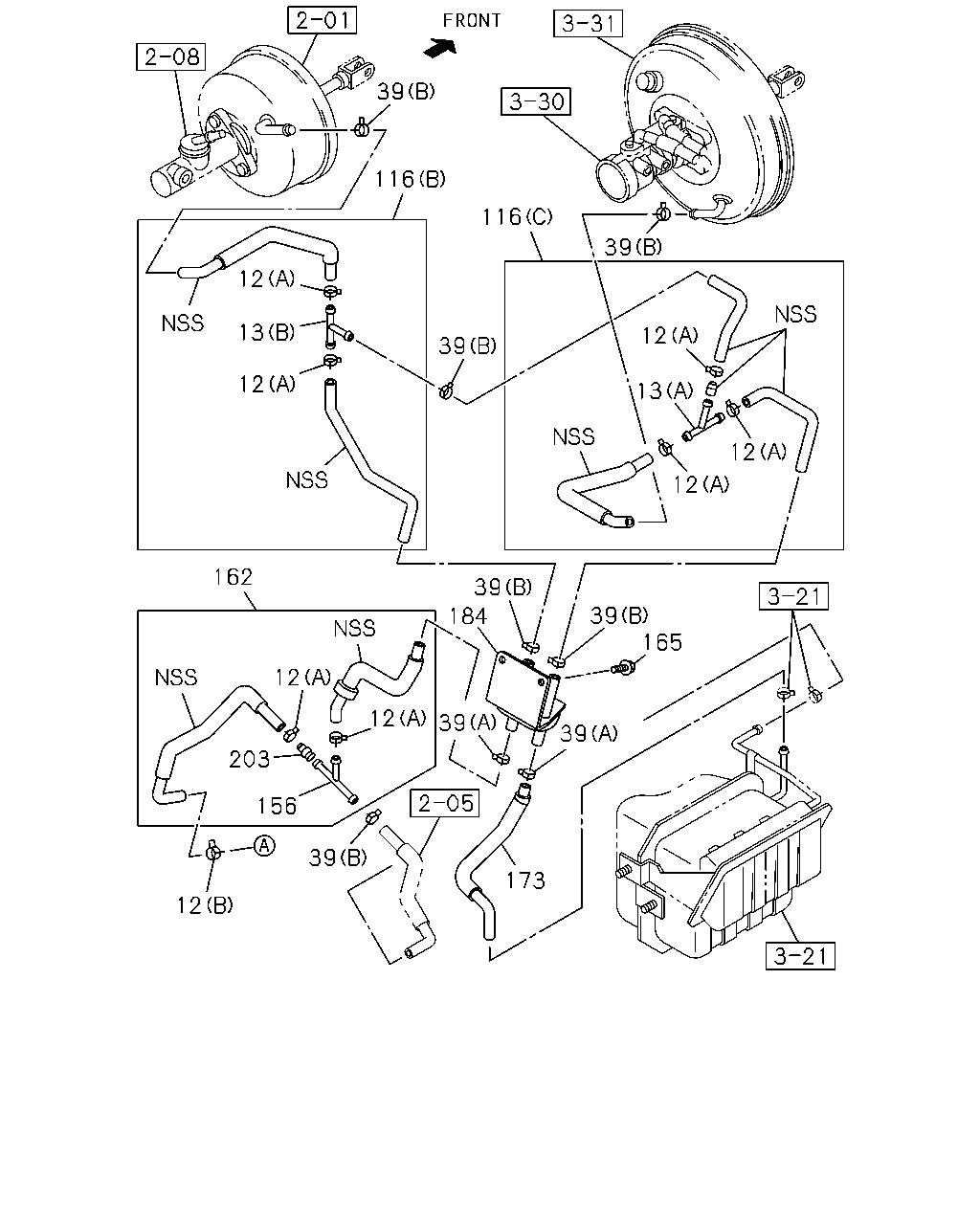

85 106 66 80 66 30 106 31 85 106 66 30 106 31 80 66 66 210 82 66 81 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0009-	●	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0009-	●	●	●
66	CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0009-	●	●	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0009-	●	●	●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0009-	●	●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0009-	●	●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97258-134-0	01	1	0009-			●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97258-133-0	01	1	0009-			●
81	PIPE; VAC,VSV AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8>	8-97070-286-3	01	1	0009-			●
81	PIPE; VAC,VSV EXHAUST BRAKE<NF8>	8-97070-286-3	01	1	0009-			●
82	HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
82	HOSE; VAC,VSV EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0009-	●	●
85	HOSE; VAC,ENG SIDE	8-97109-066-0	01	1	0009-			●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-	●	●	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	0009-	●	●	●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (C) ID=10 H=40	8-94462-219-0	02	1	0009-		●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0009-		●	●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10 H=45.5	8-97017-902-0	01	1	0009-			●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10 H=45.5	8-97017-902-0	01	1	0009-			●
106	CLIP; PIPE (F) ID=4.8 H=26	8-94249-685-0	01	1	0009-			●
210	RUBBER; CAP EXC. AIR CONDITIONER MANUAL CONT<C60>,EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0009-			●

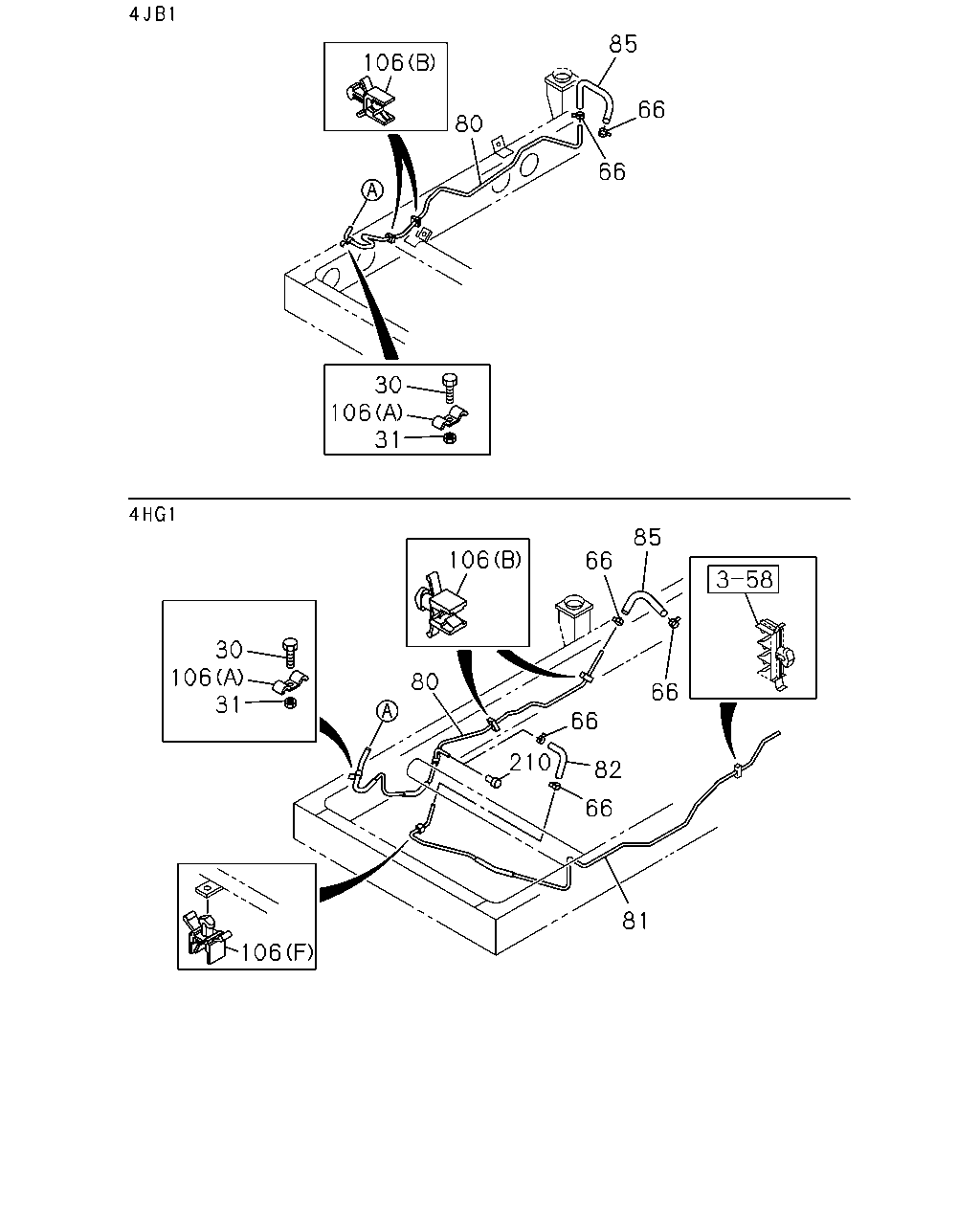

39 116 116 39 12 13 12 39 12 13 12 12 162 39 39 165 184 12 12 39 39 203 156 39 173 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0009-	●	●	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0009-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0009-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0009-			●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0009-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) 3WAY	8-94167-478-0	01	1	0009-			●
39	CLIP; HOSE,VAC (A) ID=16	5-09707-023-2	02	1	0009-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	03	1	0009-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0009-			●
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0009-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (C) ID=25.5	8-97077-492-0	01	1	0009-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0009-			●
116	HOSE; VAC,M/VAC (A)	8-97048-909-0	01	1	0009-0109	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97048-909-0	01	1	0009-0109			●
116	HOSE; VAC,M/VAC (A)	8-97314-597-0	01	1	0110-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-0	01	1	0110-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0009-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97035-972-0	01	1	0009-0109			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97314-596-0	01	1	0110-			●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 3WAY	8-94441-184-0	01	1	0009-			●
162	HOSE; VAC	8-97102-369-2	01	1	0009-	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>	8-97102-369-2	01	1	0009-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-97178-659-0	01	1	0009-			●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0009-	●	●	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0009-	●	●	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0009-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T>	8-94386-540-0	01	1	0009-			●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T>	8-94104-021-0	01	1	0009-			●

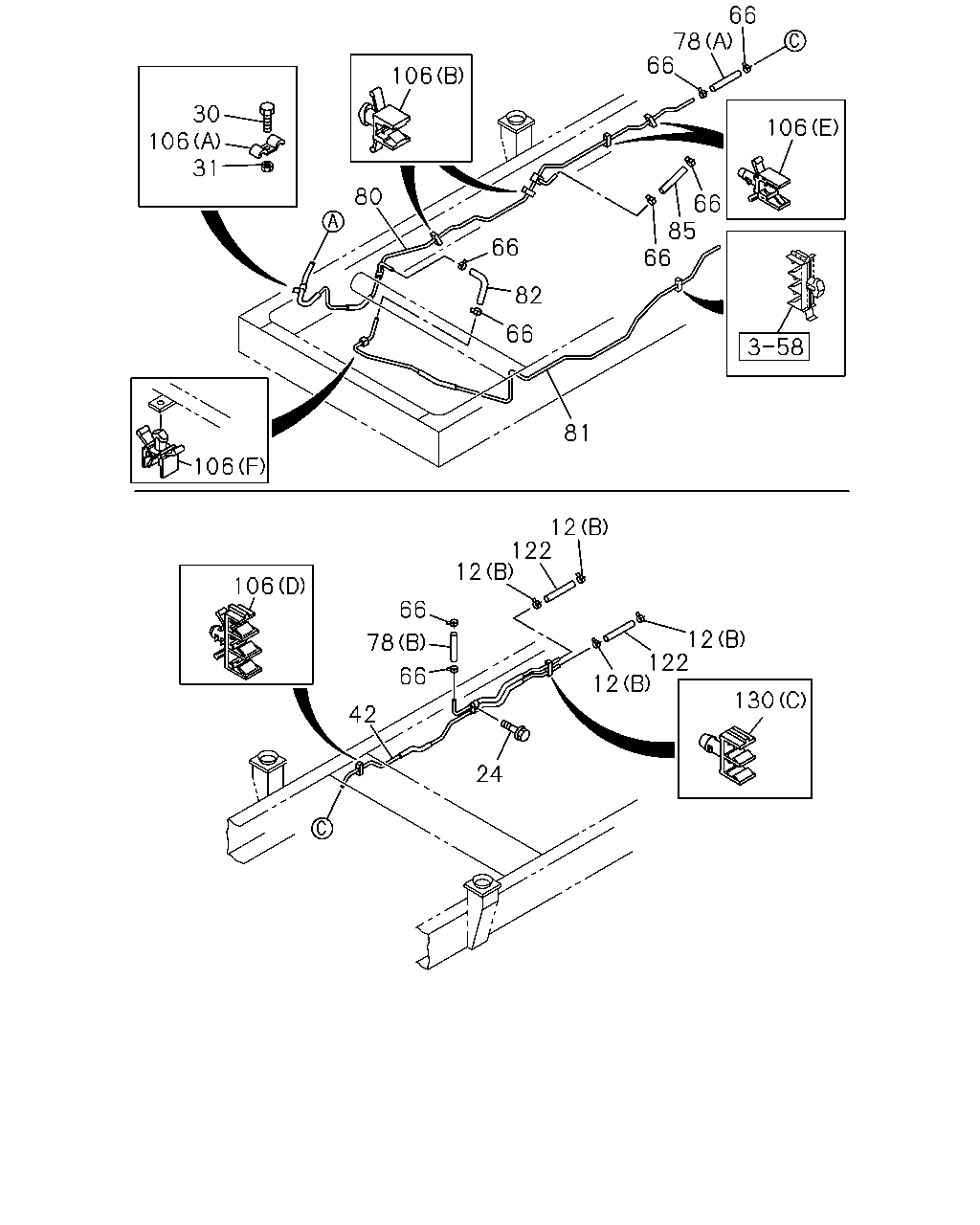

66 78 66 106 30 106 31 106 80 66 85 66 66 82 66 81 106 12 122 12 106 66 12 122 12 78 66 130 42 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0009-	●	●	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0009-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0009-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0009-			●
24	BOLT; BRKT EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0009-	●	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0009-	●	●	●
42	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97176-416-0	01	1	0009-	●
42	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97225-306-1	01	1	0009-			●
66	CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0009-	●	●	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0009-	●	●	●
78	HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●	●
78	HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	0009-			●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0009-	●	●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0009-	●	●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97258-134-0	01	1	0009-			●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97258-133-0	01	1	0009-			●
81	PIPE; VAC,VSV AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8>	8-97070-286-3	01	1	0009-			●
81	PIPE; VAC,VSV EXHAUST BRAKE<NF8>	8-97070-286-3	01	1	0009-			●
82	HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
82	HOSE; VAC,VSV EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0009-	●	●
85	HOSE; VAC,ENG SIDE	8-97109-066-0	01	1	0009-			●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-	●	●	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	0009-	●	●	●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (C) ID=10 H=40	8-94462-219-0	02	1	0009-		●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0009-		●	●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10 H=45.5	8-97017-902-0	01	1	0009-			●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10 H=45.5	8-97017-902-0	01	1	0009-			●
106	CLIP; PIPE (F) ID=4.8 H=26	8-94249-685-0	01	1	0009-			●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●	●	●
130	CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	0009-	●
130	CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0009-	●
130	CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0009-			●
