0-51 — OIL PUMP AND OIL STRAINER (#166659) — 226 parça

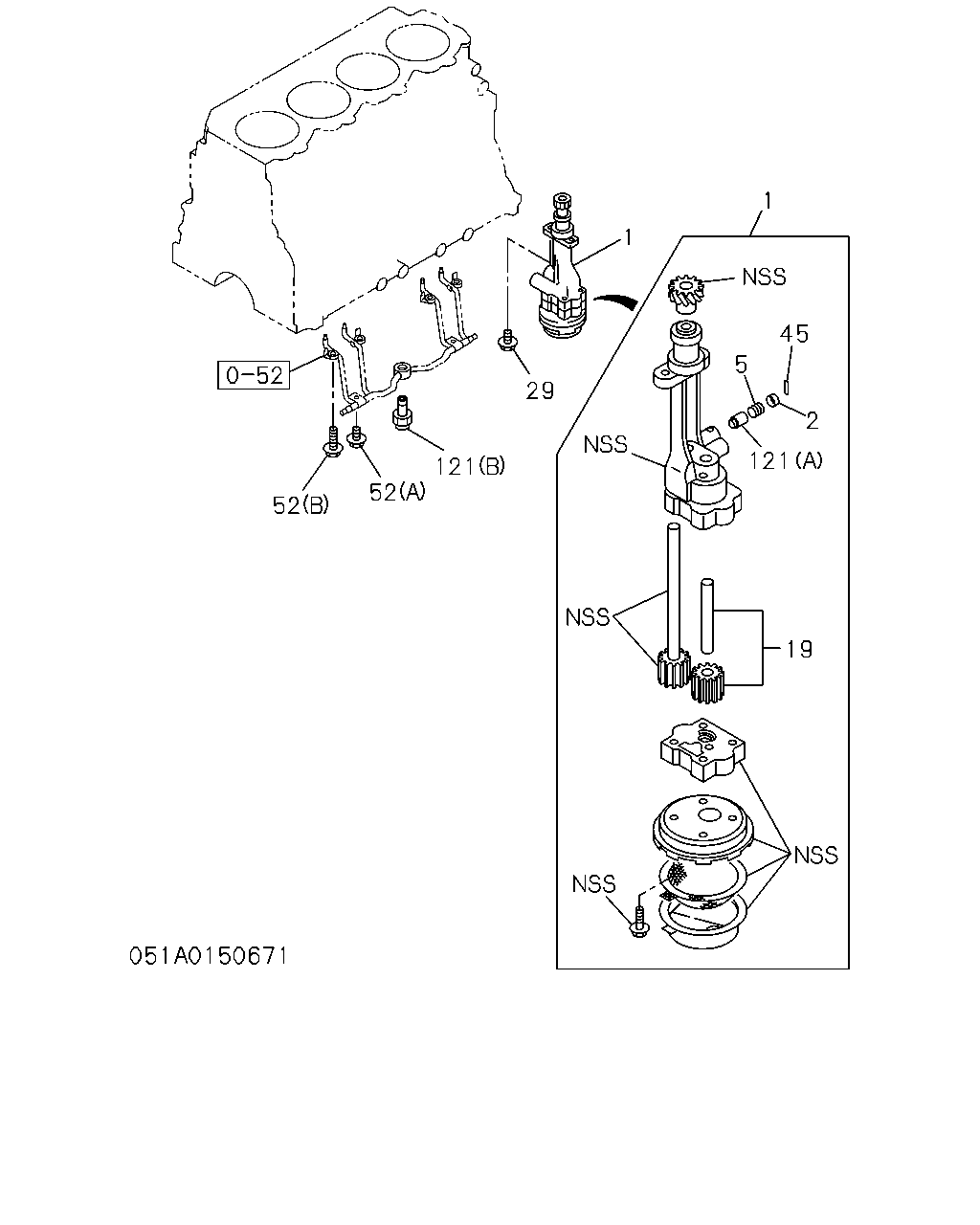

çizim 494297
45 1 5 121 2 19 29 1 121 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL 8-94114-491-1 01 1 9304-9502 ●
1 PUMP ASM; OIL 8-94340-049-0 01 1 9304-9502 ●
1 PUMP ASM; OIL 8-97033-175-4 01 1 9304- ●
1 PUMP ASM; OIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97075-283-1 01 1 9304-9502 ●
1 PUMP ASM; OIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97075-283-1 01 1 9503- ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97074-281-2 01 1 9304-9409 ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-950-0 01 1 9410-9502 ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-950-0 01 1 9503-9605 ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-338-0 01 1 9606-9703 ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-338-1 01 1 9704- ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9304-9502 ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9503-9703 ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9704- ● ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9304-9409 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9410-9502 ●
5 SPRING; COIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09580-098-0 01 1 9410-9502 ●
5 SPRING; COIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09580-098-0 01 1 9503- ● ●
5 SPRING; COIL 8-97036-834-0 01 1 9304-9409 ●
5 SPRING; COIL 8-97036-834-0 01 1 9410-9502 ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97036-834-0 01 1 9410-9502 ●
5 SPRING; COIL 8-97036-834-0 01 1 9503-9605 ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97036-834-0 01 1 9503-9605 ● ●
5 SPRING; COIL 8-97036-834-0 01 1 9606- ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-503-0 01 1 9606-9703 ● ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-503-0 01 1 9704- ● ● ●
19 GEAR SET; OIL PUMP 5-87810-274-0 01 1 9304-9502 ●
19 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9304- ●
29 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9304-9502 ● ●
29 BOLT; OIL PUMP
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9304-9612 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 02 1 9701- ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9304-9502 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9503-9703 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9704-9704 ● ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 02 1 9705- ● ● ●
29 BOLT; OIL PUMP
M8X30 FLANGE 		0-28090-830-0 02 1 9705- ● ● ●
45 PIN; SPLIT,RELIEF VLV
L=30 		9-08104-030-0 01 1 9304-9502 ● ●
45 PIN; SPLIT,RELIEF VLV
L=30 		9-08104-030-0 01 1 9503- ●
52 BOLT; OIL PIPE
(B) M6X25 W/LK WASHER 		0-50040-625-0 04 1 9304-9304 ●
52 BOLT; OIL PIPE
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9305- ●
52 BOLT; OIL PIPE
(A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9304-9804 ●
52 BOLT; OIL PIPE
(A) M8X10 FLANGE 		0-28080-810-0 02 1 9805- ●
121 VALVE; RELIEF,OIL PUMP
(B) 		8-94177-189-3 01 1 9304-9603 ●
121 VALVE; RELIEF,OIL PUMP
(B) 		8-97145-612-0 01 1 9604- ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9304-9409 ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9410-9502 ●
121 VALVE; RELIEF,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94235-567-1 01 1 9410-9502 ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9503-9703 ●
121 VALVE; RELIEF,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94235-567-1 01 1 9503-9703 ● ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9704- ● ●
121 VALVE; RELIEF,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94235-567-1 01 1 9704- ● ●

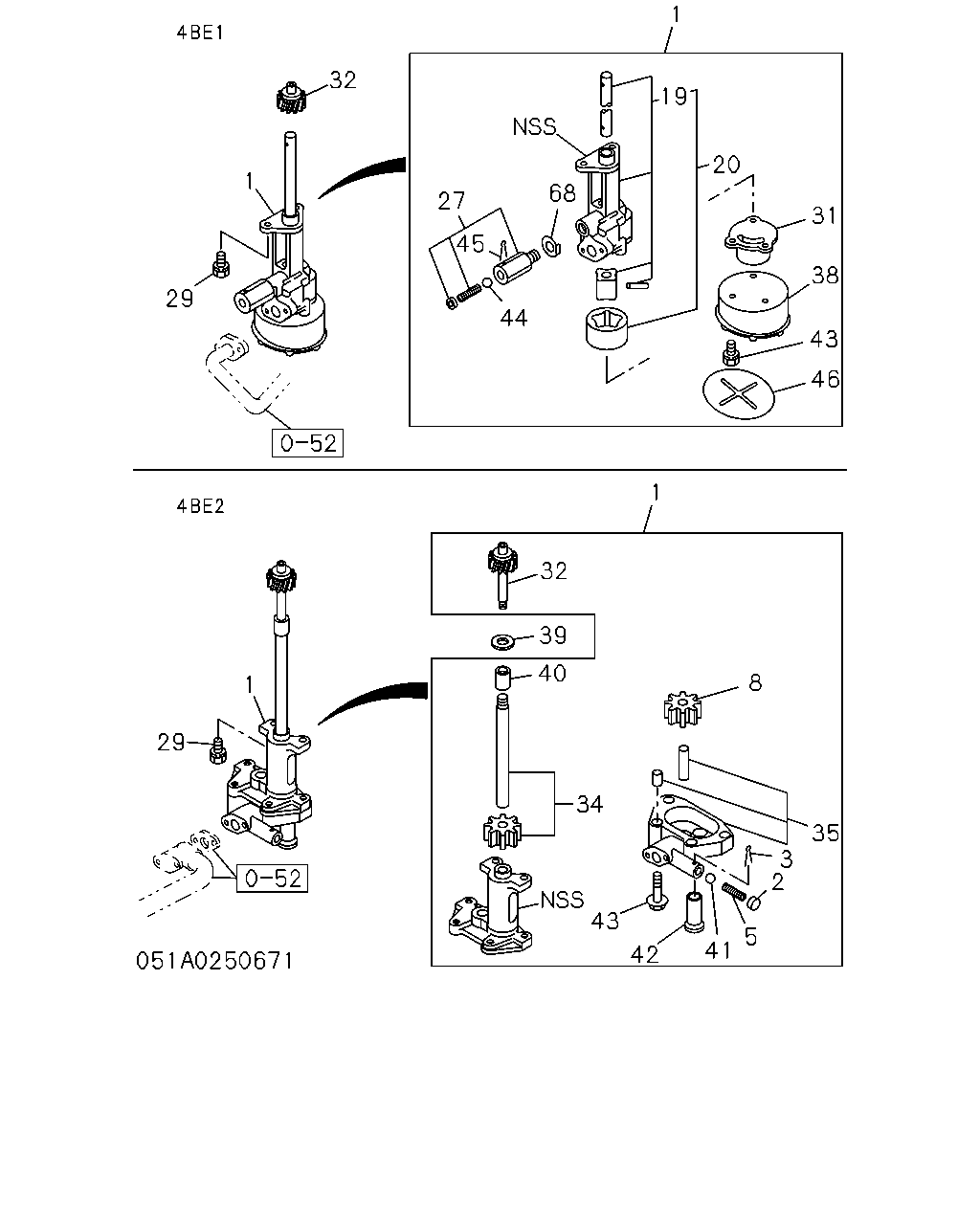

çizim 494334
31 20 19 1 27 68 44 45 1 32 29 38 43 46 1 8 35 3 2 5 41 42 43 34 39 32 40 1 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL 8-94114-491-1 01 1 9304-9502 ●
1 PUMP ASM; OIL 8-94340-049-0 01 1 9304-9502 ●
1 PUMP ASM; OIL 8-97033-175-4 01 1 9304- ●
1 PUMP ASM; OIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97075-283-1 01 1 9304-9502 ●
1 PUMP ASM; OIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97075-283-1 01 1 9503- ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97074-281-2 01 1 9304-9409 ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-950-0 01 1 9410-9502 ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-950-0 01 1 9503-9605 ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-338-0 01 1 9606-9703 ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-338-1 01 1 9704- ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9304-9502 ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9503-9703 ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9704- ● ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9304-9405 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9406-9502 ●
3 PIN; SPLIT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) L=30 		9-08104-030-0 01 1 9406-9502 ●
3 PIN; SPLIT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) L=30 		9-08104-030-0 01 1 9503-9605 ● ●
3 PIN; SPLIT
POWER TAKE OFF - FLYWHEEL(6SZ) OD=3.7 L=30 		9-08114-030-0 01 1 9406-9502 ●
3 PIN; SPLIT
POWER TAKE OFF - FLYWHEEL(6SZ) OD=3.7 L=30 		9-08114-030-0 01 1 9503-9605 ● ●
3 PIN; SPLIT
OD=3.7 L=30 		9-08114-030-0 01 1 9606-9703 ● ●
3 PIN; SPLIT
OD=3.7 L=30 		9-08114-030-0 01 1 9704- ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9304-9409 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9410-9502 ●
5 SPRING; COIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09580-098-0 01 1 9410-9502 ●
5 SPRING; COIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09580-098-0 01 1 9503- ● ●
5 SPRING; COIL 8-97036-834-0 01 1 9304-9409 ●
5 SPRING; COIL 8-97036-834-0 01 1 9410-9502 ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97036-834-0 01 1 9410-9502 ●
5 SPRING; COIL 8-97036-834-0 01 1 9503-9605 ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97036-834-0 01 1 9503-9605 ● ●
5 SPRING; COIL 8-97036-834-0 01 1 9606- ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-503-0 01 1 9606-9703 ● ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-503-0 01 1 9704- ● ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94163-595-0 01 1 9304-9502 ●
19 GEAR SET; OIL PUMP 5-87810-274-0 01 1 9304-9502 ●
19 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9304- ●
20 GEAR; DRIVE,OIL PUMP 8-94130-416-0 01 1 9304-9502 ●
20 GEAR; DRIVE,OIL PUMP
POWER TAKE OFF - FLYWHEEL(6SZ) Z=9 		8-97078-736-0 01 1 9304-9502 ●
20 GEAR; DRIVE,OIL PUMP
POWER TAKE OFF - FLYWHEEL(6SZ) Z=9 		8-97078-736-0 01 1 9503-9605 ● ●
20 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9606-9703 ● ●
20 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9704- ● ● ●
20 GEAR; DRIVE,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97100-372-0 01 1 9304-9502 ●
20 GEAR; DRIVE,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97100-372-0 01 1 9503-9605 ● ●
27 VALVE ASM; OIL RELIEF 8-94130-421-0 01 1 9304-9502 ●
29 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9304-9502 ● ●
29 BOLT; OIL PUMP
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9304-9612 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 02 1 9701- ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9304-9502 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9503-9703 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9704-9704 ● ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 02 1 9705- ● ● ●
29 BOLT; OIL PUMP
M8X30 FLANGE 		0-28090-830-0 02 1 9705- ● ● ●
31 COVER; OIL PUMP 8-94130-415-1 01 1 9304-9502 ●
32 PINION; OIL PUMP DRIVING 8-94130-420-0 01 1 9304-9502 ●
32 PINION; OIL PUMP DRIVING 1-13128-016-0 01 1 9304-9502 ●
34 SHAFT; OIL PUMP 8-94163-594-0 01 1 9304-9502 ●
35 COVER; OIL PUMP 8-94163-597-0 01 1 9304-9502 ●
38 CASE; OIL STRAINER 8-94130-423-0 01 1 9304-9502 ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-915-0 01 1 9410-9502 ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-915-0 01 1 9503-9605 ● ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-504-0 01 1 9606-9702 ● ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-505-0 01 1 9703-9703 ● ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-505-0 01 1 9704- ● ● ●
38 CASE; OIL STRAINER
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97133-330-0 01 1 9407-9502 ●
38 CASE; OIL STRAINER
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97133-330-0 01 1 9503- ● ●
39 COLLAR; OIL PUMP PINION 9-13119-010-0 01 1 9304-9502 ●
40 COUPLING; PINION TO SHAFT 1-13123-016-0 01 1 9304-9502 ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9304-9502 ●
42 STRAINER; OIL,OIL PUMP 8-94335-644-0 01 1 9304-9502 ●
42 STRAINER; OIL,OIL PUMP
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97088-788-2 01 1 9304-9502 ●
42 STRAINER; OIL,OIL PUMP
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97088-788-2 01 1 9503- ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97036-410-0 01 1 9304-9405 ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97108-510-0 01 1 9406-9502 ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97108-510-0 01 1 9503-9703 ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97108-510-0 01 1 9704-9801 ● ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97182-909-0 01 1 9802-9802 ● ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97182-909-0 01 1 9802- ● ● ●
43 BOLT; CASE
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9304-9502 ●
43 BOLT; CASE 8-94344-591-0 04 1 9304-9502 ●
44 BALL; RELIEF VLV 9-00097-531-0 01 1 9304-9502 ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 9304-9409 ●
44 BALL; RELIEF VLV
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09843-003-0 01 1 9410-9502 ●
44 BALL; RELIEF VLV
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09843-003-0 01 1 9503- ● ●
45 PIN; SPLIT,RELIEF VLV
L=30 		9-08104-030-0 01 1 9304-9502 ● ●
45 PIN; SPLIT,RELIEF VLV
L=30 		9-08104-030-0 01 1 9503- ●
46 GAUZE; OIL STRAINER 9-13143-010-0 01 1 9304-9502 ●
68 WASHER; RELIEF VLV
OD=34 		1-09530-004-0 01 1 9304-9502 ●

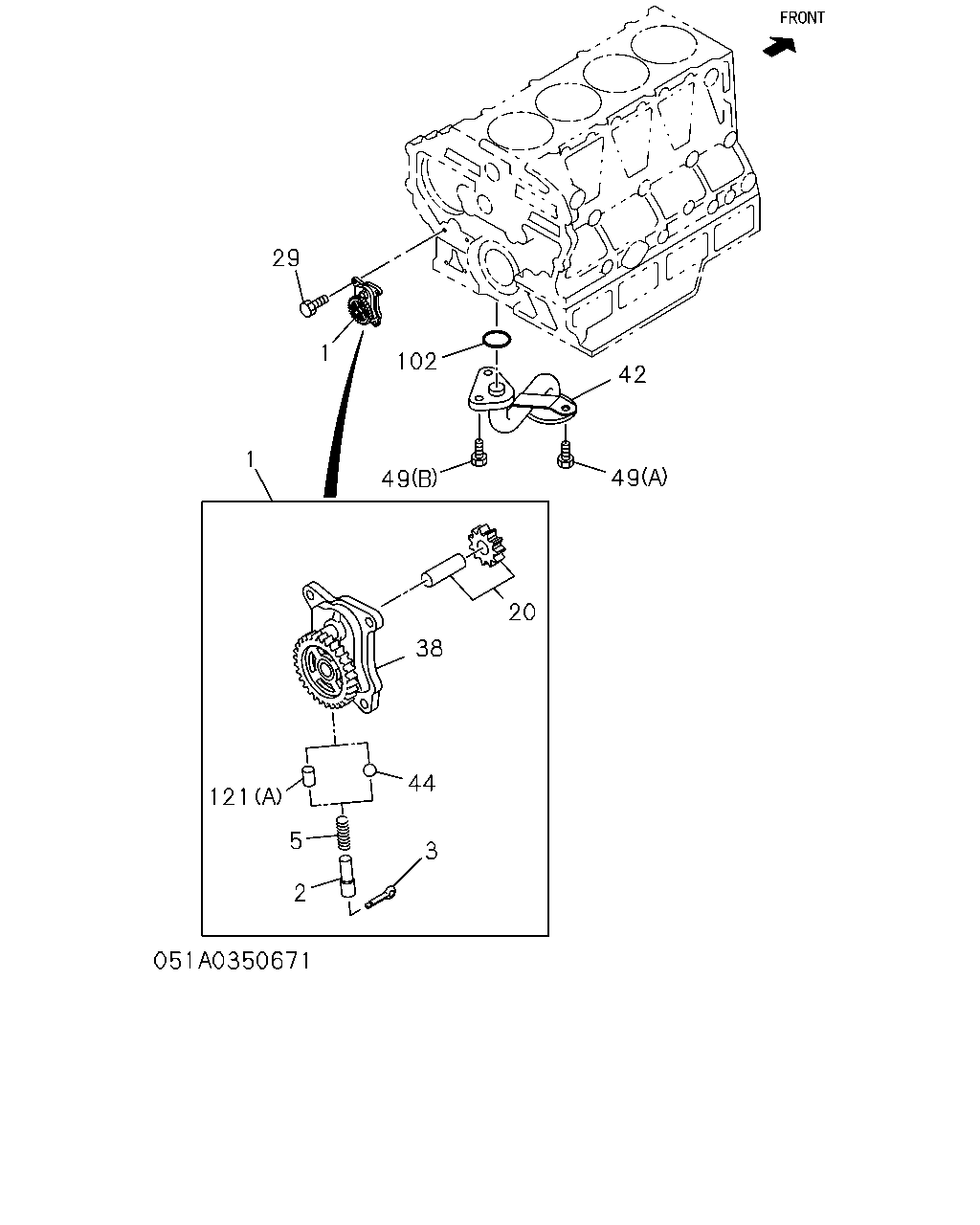

çizim 494335
42 49 49 102 1 29 1 44 38 3 2 5 121 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL 8-94114-491-1 01 1 9304-9502 ●
1 PUMP ASM; OIL 8-94340-049-0 01 1 9304-9502 ●
1 PUMP ASM; OIL 8-97033-175-4 01 1 9304- ●
1 PUMP ASM; OIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97075-283-1 01 1 9304-9502 ●
1 PUMP ASM; OIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97075-283-1 01 1 9503- ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97074-281-2 01 1 9304-9409 ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-950-0 01 1 9410-9502 ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-950-0 01 1 9503-9605 ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-338-0 01 1 9606-9703 ● ●
1 PUMP ASM; OIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-338-1 01 1 9704- ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9304-9502 ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9503-9703 ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9704- ● ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9304-9405 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9406-9502 ●
3 PIN; SPLIT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) L=30 		9-08104-030-0 01 1 9406-9502 ●
3 PIN; SPLIT
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) L=30 		9-08104-030-0 01 1 9503-9605 ● ●
3 PIN; SPLIT
POWER TAKE OFF - FLYWHEEL(6SZ) OD=3.7 L=30 		9-08114-030-0 01 1 9406-9502 ●
3 PIN; SPLIT
POWER TAKE OFF - FLYWHEEL(6SZ) OD=3.7 L=30 		9-08114-030-0 01 1 9503-9605 ● ●
3 PIN; SPLIT
OD=3.7 L=30 		9-08114-030-0 01 1 9606-9703 ● ●
3 PIN; SPLIT
OD=3.7 L=30 		9-08114-030-0 01 1 9704- ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9304-9409 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9410-9502 ●
5 SPRING; COIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09580-098-0 01 1 9410-9502 ●
5 SPRING; COIL
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09580-098-0 01 1 9503- ● ●
5 SPRING; COIL 8-97036-834-0 01 1 9304-9409 ●
5 SPRING; COIL 8-97036-834-0 01 1 9410-9502 ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97036-834-0 01 1 9410-9502 ●
5 SPRING; COIL 8-97036-834-0 01 1 9503-9605 ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97036-834-0 01 1 9503-9605 ● ●
5 SPRING; COIL 8-97036-834-0 01 1 9606- ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-503-0 01 1 9606-9703 ● ●
5 SPRING; COIL
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-503-0 01 1 9704- ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-94130-416-0 01 1 9304-9502 ●
20 GEAR; DRIVE,OIL PUMP
POWER TAKE OFF - FLYWHEEL(6SZ) Z=9 		8-97078-736-0 01 1 9304-9502 ●
20 GEAR; DRIVE,OIL PUMP
POWER TAKE OFF - FLYWHEEL(6SZ) Z=9 		8-97078-736-0 01 1 9503-9605 ● ●
20 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9606-9703 ● ●
20 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9704- ● ● ●
20 GEAR; DRIVE,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97100-372-0 01 1 9304-9502 ●
20 GEAR; DRIVE,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97100-372-0 01 1 9503-9605 ● ●
29 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9304-9502 ● ●
29 BOLT; OIL PUMP
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9304-9612 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 02 1 9701- ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9304-9502 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9503-9703 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 04 1 9704-9704 ● ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 02 1 9705- ● ● ●
29 BOLT; OIL PUMP
M8X30 FLANGE 		0-28090-830-0 02 1 9705- ● ● ●
38 CASE; OIL STRAINER 8-94130-423-0 01 1 9304-9502 ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-915-0 01 1 9410-9502 ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97115-915-0 01 1 9503-9605 ● ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-504-0 01 1 9606-9702 ● ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-505-0 01 1 9703-9703 ● ●
38 CASE; OIL STRAINER
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97147-505-0 01 1 9704- ● ● ●
38 CASE; OIL STRAINER
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97133-330-0 01 1 9407-9502 ●
38 CASE; OIL STRAINER
POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97133-330-0 01 1 9503- ● ●
42 STRAINER; OIL,OIL PUMP 8-94335-644-0 01 1 9304-9502 ●
42 STRAINER; OIL,OIL PUMP
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97088-788-2 01 1 9304-9502 ●
42 STRAINER; OIL,OIL PUMP
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97088-788-2 01 1 9503- ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97036-410-0 01 1 9304-9405 ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97108-510-0 01 1 9406-9502 ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97108-510-0 01 1 9503-9703 ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97108-510-0 01 1 9704-9801 ● ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97182-909-0 01 1 9802-9802 ● ● ●
42 STRAINER; OIL,OIL PUMP
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97182-909-0 01 1 9802- ● ● ●
44 BALL; RELIEF VLV 9-00097-531-0 01 1 9304-9502 ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 9304-9409 ●
44 BALL; RELIEF VLV
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09843-003-0 01 1 9410-9502 ●
44 BALL; RELIEF VLV
POWER TAKE OFF - FLYWHEEL(6SZ) 		5-09843-003-0 01 1 9503- ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 9304-9502 ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 9503-9703 ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 9704- ● ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X14 		8-97073-782-0 02 1 9304-9502 ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X14 		8-97073-782-0 02 1 9503-9604 ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X14 		8-97073-782-0 01 1 9605-9703 ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X14 		8-97073-782-0 01 1 9704- ● ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9304-9502 ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9503-9701 ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2 		8-97137-501-0 01 1 9702-9703 ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2 		8-97137-501-0 01 1 9704- ● ● ●
121 VALVE; RELIEF,OIL PUMP
(B) 		8-94177-189-3 01 1 9304-9603 ●
121 VALVE; RELIEF,OIL PUMP
(B) 		8-97145-612-0 01 1 9604- ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9304-9409 ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9410-9502 ●
121 VALVE; RELIEF,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94235-567-1 01 1 9410-9502 ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9503-9703 ●
121 VALVE; RELIEF,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94235-567-1 01 1 9503-9703 ● ●
121 VALVE; RELIEF,OIL PUMP
(A) 		8-94235-567-1 01 1 9704- ● ●
121 VALVE; RELIEF,OIL PUMP
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) 		8-94235-567-1 01 1 9704- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
